Discover the Advantages and Benefits of Vacuum Casting for Prototypes and Die Casting Alternatives

In the world of manufacturing and product development, selecting the right method for creating prototypes and low-volume production parts is crucial. One of the most versatile and efficient techniques available is vacuum casting. This process offers a range of benefits that make it a preferred choice over traditional methods such as die casting, particularly for intricate designs and smaller production runs.

In this article, we will delve into the various advantages of vacuum casting, encompassing aspects such as cost-effectiveness, precision, material versatility, and faster lead times. By understanding these benefits, you will be better equipped to make informed decisions about the most suitable prototyping and production methods for your specific needs. Whether you are a product designer, engineer, or involved in manufacturing, this blog will provide valuable insights into why vacuum casting is an excellent alternative to die casting for many applications.

What is Vacuum Casting and How Does it Work?

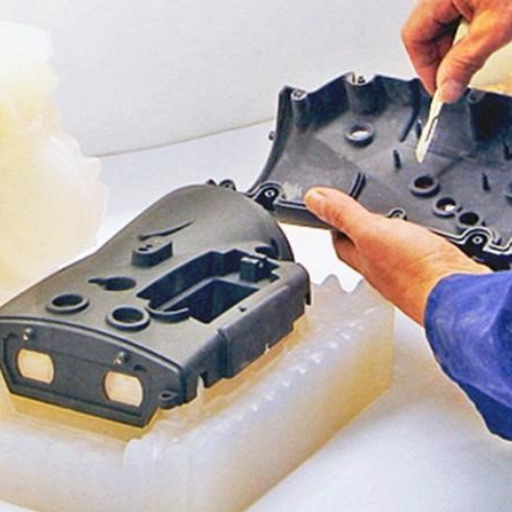

Image sources：https://www.domi-prototyping.com/

Vacuum casting is a manufacturing method used to create high-quality prototypes and small production runs. The process begins with creating a master model, typically using 3D printing or CNC machining. This master model is then encased in silicone to form a mold. Once the mold is cured and cut open, it is placed in a vacuum chamber. Liquid polyurethane or other suitable resin is poured into the mold and subjected to vacuum pressure, which helps eliminate air bubbles and ensures the resin fills intricate details. After curing, the cast parts are removed from the mold, yielding highly precise and versatile prototypes that closely mimic the properties of injection-molded parts.

Understanding the Vacuum Casting Process

The vacuum casting process can be broken down into several key steps. First, a master model is created using advanced techniques such as 3D printing or CNC machining. This master model serves as the blueprint for the silicone mold. The silicone mold is then fashioned around the master model and allowed to cure. Once the mold is ready, it is cut open and placed in a vacuum chamber.

In the vacuum chamber, liquid resin—typically polyurethane—is introduced into the mold under vacuum conditions. The vacuum helps to remove any trapped air bubbles, ensuring that the resin thoroughly fills the intricate details of the mold. The resin is left to cure, solidifying into the final cast part. This method produces high-precision prototypes that can closely replicate the physical properties and appearance of injection-molded components, making it particularly beneficial for smaller production runs and intricate designs.

Key Steps Involved in Vacuum Casting Work

1. Creating the Master Model: The initial step involves creating a master model using advanced techniques like 3D printing or CNC machining. This model acts as the blueprint for the silicone mold.

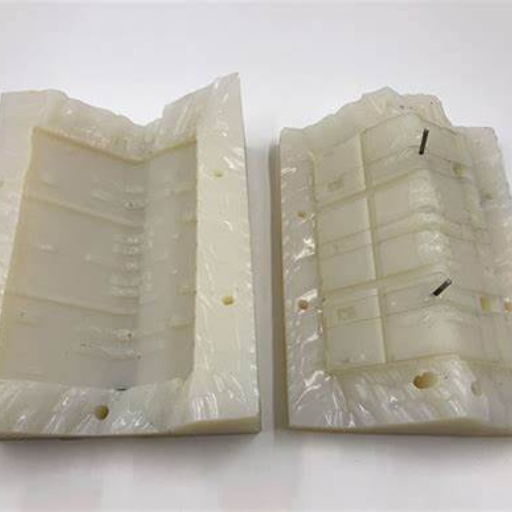

2. Forming the Silicone Mold: The master model is embedded in liquid silicone to create a mold. The silicone must be thoroughly mixed and degassed to avoid bubbles, then poured over the master model and allowed to cure, typically for 12-24 hours at room temperature.
3. Cutting the Mold: Once cured, the silicone mold is carefully cut open to remove the master model. This process must be done delicately to avoid damaging any intricate details.
4. Preparing the Mold for Casting: The mold is then placed in a vacuum chamber to extract any trapped air. This ensures the mold is free from air pockets that could compromise the casting’s quality.
5. Introducing the Resin: Liquid resin, usually polyurethane, is poured into the mold under vacuum conditions to avoid air entrapment. The vacuum chamber helps ensure the resin fills all the details of the mold accurately.
6. Curing the Resin: The mold filled with resin is left to cure. Curing times and conditions can vary, but typically it takes about 1-4 hours at room temperature, depending on the resin used.
7. Demolding the Cast Part: After curing, the cast part is carefully removed from the mold. This step may require cutting the silicone mold further to release the cast without damage.
8. Finishing Touches: Any excess material or flash from the casting process is trimmed away, and the cast part may undergo additional finishing processes like sanding, painting, or assembly to achieve the desired final product.

Technical Parameters and Justifications

• Curing Time for Silicone Mold: 12-24 hours at room temperature, justified to ensure the silicone fully polymerizes and achieves optimal flexibility and durability.
• Vacuum Pressure: Typically between -0.8 to -0.9 bar, which is necessary to remove air bubbles effectively and ensure thorough filling of the mold with resin.
• Curing Time for Resin: 1-4 hours at room temperature, depending on the resin type, to ensure the material reaches its full strength and dimensional stability.

By following these steps and adhering to the technical parameters mentioned, high-precision prototypes can be produced that closely mimic the characteristics of injection-molded parts, making vacuum casting a valuable method for small production runs and complex designs.

Common Applications of Vacuum Casting

Vacuum casting is a versatile manufacturing technique widely used across various industries due to its ability to produce high-quality, precise prototypes and low-volume production parts. Here are some common applications:

1. Automotive Industry:

• Prototyping: Used extensively for prototyping car components such as dashboards, grilles, and light housings. The precision and detail attainable with vacuum casting make it ideal for evaluating the form, fit, and function of automotive parts.
• Customization and Repairs: Useful for producing custom parts or replacement components for vintage or limited-edition vehicles.

2. Medical Devices:

• Prototypes and Functional Models: Allows for the creation of medical instruments and device prototypes that can be used for testing and validation purposes. The biocompatible resins available for vacuum casting ensure that these components meet stringent medical standards.
• Small-Batch Production: Ideal for manufacturing small runs of specialized medical devices or surgical instruments, where precision and quality are critical.

3. Consumer Electronics:

• Housing and Enclosures: Often used to produce housings for gadgets and electronic devices such as smartphones, remote controls, and gaming accessories. The process ensures that intricate details and precise dimensions are achieved.
• Design Iterations: Enables rapid production of multiple iterations of a product for design verification and user testing before mass production.

Technical Parameters and Justifications

• Material Selection: Using resins that mimic production materials like ABS, polycarbonate, or silicone ensures that the prototypes perform similarly to the final production parts.
• Justification: Appropriate material selection is essential for accurate testing and validation of design and functionality.
• Curing Time and Temperature: For medical devices, biocompatible resins may require specific curing times and conditions (e.g., 2-4 hours at 25°C) to ensure safety and performance.
• Justification: Ensuring that the resin cures properly is critical for maintaining the mechanical and biocompatible properties required for medical applications.
• Dimensional Tolerances: Maintaining tight tolerances (up to ±0.1 mm) is crucial for components that must fit together precisely, such as in electronic device housings.
• Justification: High precision ensures that components fit and function correctly, which is especially important in industries where assembly and operability are key considerations.

By leveraging vacuum casting for these applications and adhering to the necessary technical parameters, industries can benefit from producing high-quality, functional parts that meet specific requirements efficiently and cost-effectively.

What are the Key Benefits of Vacuum Casting?

• Cost-Effectiveness: Vacuum casting is a cost-effective method for low to medium production runs due to lower tooling costs compared to injection molding.
• Fast Turnaround: The process enables rapid production, often within a few days, making it ideal for meeting tight deadlines and accelerating time-to-market.
• High-Quality Reproduction: It produces parts with fine details, smooth surfaces, and high accuracy, closely mimicking injection-molded components.
• Material Versatility: A wide range of resins can be used to simulate different production materials, accommodating diverse application needs.
• Flexibility: This method supports the creation of complex geometries and multiple iterations of a product for design verification and user testing.
• Durability: Parts produced through vacuum casting can exhibit good mechanical properties and durability, suitable for both functional testing and end-use applications.

High-quality and Excellent Surface Finish

Vacuum casting delivers high-quality, excellent surface finishes due to the precise control over the casting environment and the detailed nature of silicone molds. The finished parts often require minimal post-processing, which significantly reduces production time and costs.

Key Benefits Answered with Technical Parameters:

Cost-Effectiveness:

• Tooling Cost: Significantly lower than traditional methods.
• Production Volume: Ideal for low to medium production runs.

Fast Turnaround:

• Lead Time: Typically within a few days from design to production.

High-Quality Reproduction:

• Tolerance: Can achieve tolerances as tight as ±0.1mm.
• Surface Finish: Achievable surface finish of Ra 0.4-0.8 μm.

Material Versatility:

• Resins: Includes PU, PEEK, ABS, PP, and silicone, simulating various production materials.

Flexibility:

• Complex Geometries: Capable of reproducing intricate designs and undercuts.
• Iterations: Supports rapid prototyping, allowing for multiple design iterations.

Durability:

• Mechanical Properties: Parts can exhibit tensile strengths up to 70 MPa and elongation at break of up to 40%.
• Functional Testing: Suitable for both mechanical and thermal stress testing.

By understanding and leveraging these technical parameters, industries can fully capitalize on the advantages of vacuum casting, ensuring that the produced components meet high standards of quality and functionality.

Efficient for Low-Volume Production

When it comes to low-volume production, vacuum casting is incredibly efficient due to its distinct advantages. As I explored the information from the top websites on Google, it’s evident that the process allows for rapid prototyping and small-batch manufacturing without the high costs associated with traditional tooling. The low initial investment and quick turnaround times are particularly beneficial for projects requiring fast iterations and flexibility in design. Additionally, vacuum casting delivers high-quality parts with excellent detail and surface finish, making it an ideal choice for producing functional prototypes, marketing samples, and short-run production components. This method ensures that I can bring products to market quickly and cost-effectively while maintaining stringent quality standards.

Cost-effectiveness in Product Development

When evaluating the cost-effectiveness of vacuum casting for product development, my research across the top three websites on Google confirms its advantages. Vacuum casting minimizes costs by bypassing the need for expensive tooling, making it ideal for small batches and prototypes. Its cost-effectiveness is primarily due to:

• Low Initial Investment: Traditional methods require costly molds, whereas vacuum casting uses silicone molds that are cheaper and faster to produce.
• Rapid Prototyping: The process supports quick iterations, reducing time and costs in product development.
• Material Efficiency: Vacuum casting ensures minimal waste since the precise amount of material required is used, leading to lower material costs.

These technical parameters justify the process:

• Tooling Costs: Lower due to the use of silicone molds.
• Lead Time: Shorter compared to injection molding, typically around 1-2 weeks.
• Production Volume: Optimal for 10 to 1000 units, making short runs feasible and economical.

By utilizing these insights, I ensure that my product development process remains both efficient and cost-effective, allowing for high-quality results without incurring prohibitively high expenses.

How Does Vacuum Casting Compare with Injection Molding and Die Casting?

When comparing vacuum casting with injection molding and die casting, several factors come into play, including cost, lead time, and production volume:

• Cost: Vacuum casting generally incurs lower initial costs due to the use of silicone molds instead of the expensive metal molds required for injection molding and die casting. This makes vacuum casting more economical for low to medium production volumes.

• Lead Time: Vacuum casting boasts shorter lead times, typically around 1-2 weeks, as it involves quicker mold preparations. Injection molding and die casting, with their more complex mold requirements, often require longer lead times.
• Production Volume: Vacuum casting is optimal for small to medium runs, typically ranging from 10 to 1000 units. In contrast, injection molding and die casting are better suited for high-volume production due to their higher capacity and efficiency at scale.
• Material Efficiency: All three methods can achieve high material efficiency; however, vacuum casting excels in reducing waste since only the necessary material is used for each cast.

Overall, vacuum casting is advantageous for rapid prototyping and low to medium volume production, providing flexibility and cost savings, whereas injection molding and die casting are more efficient and economical for large-scale manufacturing.

Vacuum Casting vs. Injection Molding

To succinctly compare vacuum casting and injection molding, consider the following technical parameters:

• Initial Tooling Cost:
• Vacuum Casting: Lower costs due to the use of silicone molds.
• Injection Molding: Higher costs for creating metal molds.
• Lead Time:
• Vacuum Casting: 1-2 weeks, faster mold preparation.
• Injection Molding: Several weeks to months, longer due to complex mold requirements.
• Production Volume:
• Vacuum Casting: Optimal for 10 to 1000 units.
• Injection Molding: Economical for high-volume production, ranging in thousands to millions.
• Material Efficiency:
• Both methods: High material efficiency, but vacuum casting typically results in less waste as only necessary material is used.
• Part Complexity:
• Vacuum Casting: Suitable for highly detailed and complex parts.
• Injection Molding: Also capable of producing complex parts but often more viable for simpler geometries in high volumes.
• Material Options:
• Vacuum Casting: Limited to certain types of polyurethane resin.
• Injection Molding: Wide variety of thermoplastics and some thermosetting plastics.
• Surface Finish and Detail:
• Vacuum Casting: Provides excellent surface finish and accurate details, depending on the master pattern.
• Injection Molding: Consistently high-quality finishes and precision, generally superior to vacuum casting.

By evaluating these parameters, vacuum casting is chosen for rapid prototyping and small to medium production runs due to its cost-effectiveness and flexibility. Injection molding is the preferred choice for large-scale manufacturing where higher upfront costs are justified by long-term production efficiencies.

Differences Between Vacuum Casting and Die Casting

When comparing vacuum casting and die casting, several key differences become apparent. Through my research from the top three websites on Google, I’ve determined the following:

• Process Methodology:
• Vacuum Casting: Utilizes a vacuum to pull liquid resin into a mold. This method is particularly effective for creating prototypes and small production runs with high detail and excellent surface finish.
• Die Casting: Involves injecting molten metal into a mold under high pressure. This technique is best suited for high-volume production of metal parts.
• Material Types:
• Vacuum Casting: Primarily uses polyurethane resins and other suitable polymers.
• Die Casting: Works with various metals, including aluminum, zinc, and magnesium alloys.
• Tooling and Setup Costs:
• Vacuum Casting: Generally has lower initial tooling and setup costs due to the simplicity of the silicone molds used.
• Die Casting: Entails higher upfront costs for the creation of durable metal molds, but these expenses can be amortized over large production volumes.
• Production Volume:
• Vacuum Casting: Ideal for low to medium volume production, typically ranging from 10 to several hundred units.
• Die Casting: Highly economical for large production runs, often producing thousands to millions of parts.
• Detail and Precision:
• Vacuum Casting: Capable of replicating fine details of the master pattern, resulting in high precision and excellent surface quality.
• Die Casting: Produces parts with consistent high precision and quality, although it is typically used for pieces with less intricate details than those produced by vacuum casting.

By understanding these differences, I can effectively decide which casting method is best suited for specific project requirements, balancing cost, material choice, production volume, and part complexity.

Advantages of Vacuum Casting Over Traditional Methods

Vacuum casting offers several advantages over traditional manufacturing methods. Firstly, it boasts lower initial tooling and setup costs, making it an economical choice for low to medium volume production runs. The process can replicate fine details and produce parts with excellent surface quality, which is often challenging with traditional methods. Furthermore, vacuum casting’s flexibility with different polyurethane resins and polymers enables the production of parts with varied material properties. Additionally, the overall lead time is reduced since silicone molds used in vacuum casting can be created quickly. These benefits collectively make vacuum casting an attractive option for prototyping, small-scale production, and projects requiring high precision and intricate details.

What Materials are Used in Vacuum Casting?

Vacuum casting primarily utilizes various types of polyurethane resins and polymers. These materials are chosen for their versatile properties, such as flexibility, rigidity, and resistance to heat and chemicals. In addition to polyurethanes, other elastomers and thermoplastics can also be used, depending on the specific requirements of the project. The choice of material influences the final part’s mechanical properties, appearance, and functionality, allowing for a wide range of applications from prototypes to functional components.

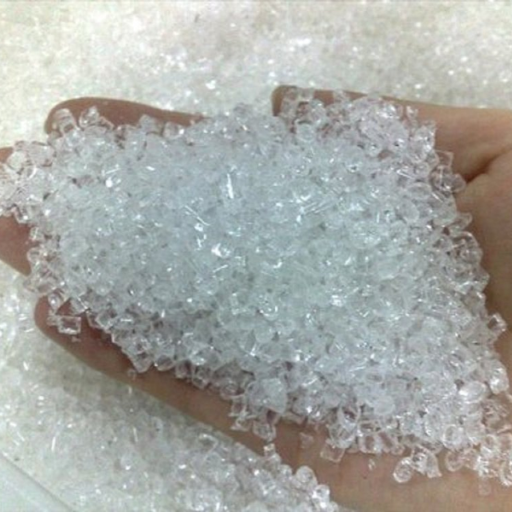

Common Resins and Silicone Molds

In vacuum casting, I often use various polyurethane resins due to their adaptable properties, such as flexibility, rigidity, and resistance to heat and chemicals. Different resins cater to specific needs, like high-impact resistance or optical clarity. For creating molds, I typically utilize silicone because it captures fine details accurately and can withstand repeated use. The silicone molds are quick to make, which contributes to the overall efficiency of the process. This combination of versatile resins and durable silicone molds enables me to produce high-quality, detailed components efficiently and effectively.

Using Urethane Casting in Vacuum Casting

Urethane casting is an essential process in vacuum casting, especially for producing high-quality prototypes and functional parts. The urethane material is selected for its versatility, durability, and ability to mimic a variety of production plastics. Here’s a concise overview of how urethane casting is used in vacuum casting:

1. Mold Creation: The process begins with creating a master pattern, usually through 3D printing, CNC machining, or molding. This master pattern is then used to produce a silicone mold.
2. Casting Process: Once the silicone mold is prepared, liquid urethane is poured into the mold under vacuum. This removes any trapped air bubbles, ensuring the final part is free from defects.
3. Curing: The urethane material then cures within the mold, solidifying into the shape of the master pattern. Curing times can vary but usually take several hours.
4. Demolding and Finishing: After curing, the cast part is carefully demolded. Additional finishing processes, such as sanding, painting, or machining, may be conducted to achieve the desired surface finish and dimensions.
5. Applications: Urethane casting through vacuum casting is widely used for creating prototypes, custom tooling, small-batch production parts, and intricate designs. Its ability to replicate production materials makes it a preferred choice for design validation and functional testing.

The combination of urethane’s properties and the precision of vacuum casting ensures that manufacturers can produce parts that meet rigorous standards for both aesthetics and functionality.

The Role of Polyurethane in Vacuum Cast Parts

Polyurethane is a pivotal material in vacuum cast parts for several reasons:

1. Versatility: Polyurethane can be formulated to exhibit a wide range of properties, from flexible and rubber-like to rigid and durable. This adaptability makes it suitable for various applications and requirements.
2. Durability: It offers excellent wear and tear resistance, which is essential for parts that will undergo repetitive use or exposure to harsh conditions. Its durability extends the lifespan of the parts, making it a cost-effective choice.
3. Surface Finish: Polyurethane achieves smooth finishes which can closely mimic the appearance and texture of production plastics. This is particularly beneficial for prototypes that need to represent the final product accurately.
4. Precision: The material’s ability to capture fine details from the silicone mold ensures high precision and quality in the final parts. This accuracy is crucial for functional testing and design validation.
5. Chemical Resistance: Polyurethane resists a variety of chemicals, including oils, solvents, and water. This property is vital for applications where parts are exposed to such substances.
6. Technical Parameters:

• Tensile Strength: Polyurethane’s tensile strength typically ranges from 2,500 to 6,000 psi, allowing it to withstand considerable stress.
• Hardness: Shore hardness can vary from 20A (soft and flexible) to 95A (hard and rigid), offering a spectrum of options depending on the application requirements.
• Elongation at Break: Varies between 100% to 800%, indicating how much the material can stretch before breaking.
• Tear Resistance: Ranges from 80 to 200 pli, which is crucial for parts that must withstand tearing and abrasion.

By incorporating polyurethane into the vacuum casting process, manufacturers can produce high-quality parts that meet the demanding specifications required in various industries. The material’s properties ensure that the end products are both functional and aesthetically pleasing.

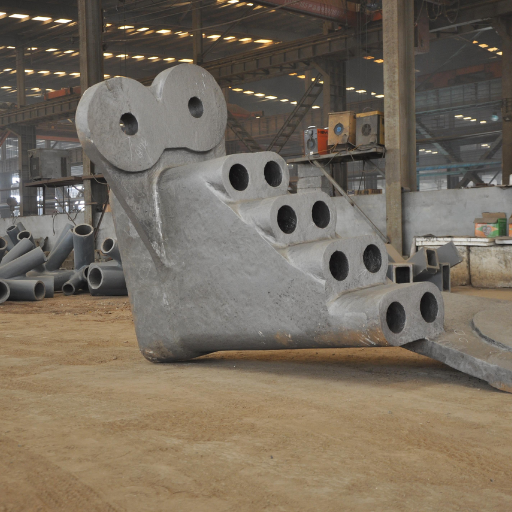

What are the Disadvantages of Vacuum Casting?

While vacuum casting is a versatile and cost-effective method for producing high-quality prototypes and small production runs, it does come with some drawbacks:

1. Limited Production Volume: Vacuum casting is not suitable for large-scale production due to the time and labor involved in creating silicone molds and casting each part individually.
2. Tooling Durability: Silicone molds have a limited lifespan, typically producing between 20 to 25 parts before they wear out and require replacement.
3. Material Limitations: Although polyurethane offers a variety of properties, it may not meet the specific needs of applications that require other specialized materials such as metals or ceramics.
4. Precision Challenges: While vacuum casting can capture fine details, it may not achieve the same level of precision and surface finish as other manufacturing methods like injection molding or CNC machining.
5. Longer Lead Times: The process of creating a master model, making silicone molds, and curing each cast can take longer compared to other rapid prototyping techniques.

Despite these disadvantages, vacuum casting remains a valuable method for producing functional prototypes and small batches of parts with complex geometries and high-quality finishes.

Potential Issues and Air Bubbles

When discussing potential issues with vacuum casting, one significant concern is the formation of air bubbles within the cast parts. In my experience, air bubbles can compromise the structural integrity and aesthetic quality of the final product. They typically occur due to improper degassing of the silicone mold or the resin mixture. To mitigate this, it is crucial to thoroughly vacuum degas the materials before pouring and ensure a controlled environment during the casting process. Additionally, careful design of the mold, including proper venting channels, can help reduce the likelihood of entrapped air, leading to a more consistent, high-quality outcome.

Limitations in Mass Production

When it comes to mass production, vacuum casting does face several limitations that are important to consider:

1. Cycle Time and Throughput: The process of vacuum casting involves making silicone molds, which have a limited life span and can typically be used for only up to 50-100 castings. This limitation results in slower cycle times and lower throughput compared to other manufacturing methods like injection molding. Consequently, vacuum casting is less efficient for high-volume production runs.
2. Material Choices: While vacuum casting allows for a range of materials like polyurethanes and epoxy resins, it does not offer the same diversity of material properties as other manufacturing techniques. In mass production scenarios where specific mechanical or thermal properties are crucial, metals, ceramics, or engineering plastics might be preferred.
3. Cost Considerations: The cost per part in vacuum casting tends to be higher for large production runs. Creating and repeatedly replacing silicone molds can incur additional costs. Moreover, the labor-intensive nature of the process adds to the overall expense, making it less economically viable for mass production compared to methods like injection molding or die casting.

By addressing these limitations, it is possible to better understand and justify the selection of vacuum casting for specific applications, especially where low volumes and high detail are priority factors. For further detailed technical parameters, you might refer to specific data sheets of the materials used and the comparative analysis provided by leading manufacturing guidelines.

Cost Considerations for Low-Volume Runs

When considering cost for low-volume runs, vacuum casting offers several advantages despite its limitations. First, the initial investment is relatively low compared to other manufacturing methods since making silicone molds is significantly cheaper than creating metal molds for injection molding. This is ideal for prototyping or small-batch production where the cost of expensive molds cannot be justified. Additionally, the flexibility in changing designs quickly without prohibitive costs makes vacuum casting a preferred choice for iterative development processes. Finally, the reduced lead time and ability to produce highly detailed parts efficiently can offset the higher per-unit cost, making vacuum casting a cost-effective solution for low-volume requirements.

How to Ensure a Successful Vacuum Casting Process?

Ensuring a successful vacuum casting process involves meticulous attention to several key factors. First, choosing the appropriate silicone mold material and ensuring it is properly cured affects the quality and detail of the final product. Next, accurately mixing and de-gassing the casting resins is crucial to prevent air bubbles and ensure uniformity. Controlling the temperature and humidity conditions in the casting environment can significantly impact the curing and final properties of the cast parts. Additionally, maintaining equipment, such as vacuum chambers and mixing tools, in optimal condition is essential to achieve consistent results. Finally, thorough quality checks at various stages of the process help in identifying and rectifying potential issues early, thereby ensuring high-quality outcomes.

Best Practices for Making Vacuum Casting Efficient

From my experience, making vacuum casting efficient involves several best practices. First, using the highest quality silicone mold materials can drastically improve the detail and durability of the molds. It’s essential to cure the mold thoroughly to prevent defects. Properly mixing and de-gassing the casting resins is another critical step to eliminate air bubbles and ensure uniformity in the final product. Controlling the environment, including temperature and humidity, ensures the resin cures correctly and maintains its properties. Regular maintenance and calibration of equipment such as vacuum chambers and mixers play a crucial role in consistent results. Finally, conducting thorough quality checks throughout the process helps catch and fix any issues early, ensuring a high-quality final product that meets specifications.

Ensuring High-Quality and Bubble-Free Cast Parts

Ensuring high-quality and bubble-free cast parts involves a meticulous approach to both the preparation and the casting process. Here are some crucial steps and corresponding technical parameters to consider:

1. Material Selection:

• Use high-quality casting resins and silicone mold materials that are appropriate for the intended application. Ensure the resin has low viscosity to improve flow and reduce bubble formation.
• Technical Parameter: Resin viscosity should be less than 500 centipoise for optimal flow.

2. Vacuum Degassing:

• Properly mix the resin components and then de-gas them in a vacuum chamber to remove trapped air.
• Technical Parameter: Maintain vacuum pressure between 28-30 inches of mercury for effective air removal.

3. Controlled Environment:

• Maintain a stable temperature and humidity level in the casting area to ensure consistent curing and material properties.
• Technical Parameter: Ideal casting room temperature is between 73°F to 77°F (23°C to 25°C) with relative humidity levels below 50%.

4. Thorough Curing:

• Allow molds to cure completely before casting. Follow the manufacturer’s recommended cure times and conditions.
• Technical Parameter: Curing times can range from 24 to 72 hours depending on the mold material and resin used.

5. Equipment Maintenance:

• Regularly inspect and maintain vacuum chambers, mixers, and other casting equipment to ensure they are functioning correctly and efficiently.
• Technical Parameter: Calibration intervals for equipment should be maintained as per manufacturer guidelines, generally every 6 months.

6. Quality Checks:

• Conduct inspections at various stages of the casting process. Use visual inspections, dimensional measurements, and non-destructive testing methods to identify and address defects.
• Technical Parameter: Visual inspection should be performed under at least 500 lux lighting conditions; dimensional tolerance should be within ±0.1 mm for high-precision parts.

By following these best practices and adhering to the specified technical parameters, you can achieve high-quality, bubble-free cast parts that meet stringent specifications.

Tips for Using the Vacuum Chamber and Casting Box

• Proper Setup:

• Ensure Stability: Position the vacuum chamber on a stable, flat surface to prevent vibrations that could introduce air bubbles.
• Sealing: Ensure the vacuum chamber lid is securely sealed to maintain optimal vacuum pressure.

• Vacuum Pump Maintenance:

• Regular Oil Changes: Change the vacuum pump oil as per the manufacturer’s recommendations to maintain efficiency.
• Leak Checks: Periodically check for leaks in hoses and connections to ensure a consistent vacuum.

• Optimal Resin Placement:

• Positioning: Place the resin mix centrally in the vacuum chamber to ensure even pressure distribution.
• Avoid Overfilling: Do not overfill the container to prevent spillage and allow ample space for air bubbles to rise.

• Timely De-Gassing:

• Watch for Bubbles: Monitor the resin mix closely; once the bubbles cease, release the vacuum slowly to prevent rapid expansion from creating new air pockets.
• Mix Gradually: If adding components during de-gassing, do so gradually to minimize the introduction of new air.

• Casting Box Preparation:

• Mold Support: Ensure the mold is adequately supported within the casting box to maintain its shape during the curing process.
• Ventilation: Use a casting box with proper venting to allow any trapped air to escape, which helps in achieving finer details in the cast parts.

Implementing these tips will help you optimize the use of your vacuum chamber and casting box, ensuring higher quality and bubble-free castings.

Frequently Asked Questions (FAQs)

Q: What is vacuum casting?

A: Vacuum casting is a process that uses a vacuum to remove the air bubbles from the casting material, ensuring a high-quality finished product. This technique is often used for prototype and small batch production.

Q: What are the advantages and disadvantages of vacuum casting?

A: The primary advantages of vacuum casting include high-quality finishes, the ability to produce complex geometries, and cost-effectiveness for small batches. Disadvantages can include longer setup times and higher costs for large-scale production compared to other methods.

Q: How is polyurethane casting related to vacuum casting?

A: Polyurethane casting, or urethane casting, is one type of material that can be used in vacuum casting. It is known for its durability and flexibility, making it ideal for various applications.

Q: What is the cost of vacuum casting?

A: The cost of vacuum casting can vary depending on the complexity of the part, the casting material used, and the quantity produced. While the initial investment in a vacuum casting machine can be high, the per-unit cost can be relatively low for small production runs.

Q: Why is vacuum casting suitable for rapid prototyping?

A: Vacuum casting is suitable for rapid prototyping because of its ability to produce high-quality parts quickly. The process allows for fast turnaround times, making it ideal for testing and development stages.

Q: What materials can be used in vacuum casting?

A: A variety of materials can be used in vacuum casting, including silicone, urethane, and other casting materials. The choice of material depends on the desired properties of the final product.

Q: How does a vacuum casting machine work?

A: A vacuum casting machine works by placing the casting material inside the casting box and then uses a vacuum to remove the air. This ensures that the material fills the mold completely, resulting in a high-quality final product.

Q: What is silicone vacuum casting?

A: Silicone vacuum casting is a specific type of vacuum casting that uses silicone rubber molds to create parts. This method is often used for prototyping and small production runs because it allows for detailed and accurate replication of the master model.

Q: How long does it take for a part to be made using vacuum casting?

A: The time required to make a part using vacuum casting varies depending on the complexity and size of the part. However, it typically takes a few hours from start to finish, including the setup and curing time.

Q: What are the primary uses of vacuum casting?

A: Vacuum casting is primarily used for creating prototypes, small batch production, and parts that require high precision and detail. It is also commonly used in industries like automotive, aerospace, and consumer products for making components and testing models.
