One such technique is valve gate injection molding, which is an advanced technology adopted in the plastic production sector to manufacture parts with great quality and accuracy in a timely manner. This technique uses a series of valve gates through which the molten material is injected into the cavity of the mould with precision. In filling the sheets with plastic, valve gate injection molds eliminates flow marks and weld lines, thereby enhancing the surface quality and strength of the finished products. Apart from assuring improvement in the quality of a product, this method also helps in lowering the costs by bettering the material utilization and lowering the cycle times of the component. The article will focus on the basics of valve gate injection molding, its advantages over conventional counterparts, special aspects of design and implementation, which may be interesting for the specialists who are attempting to improve the technologies of manufacturing in their professional area.

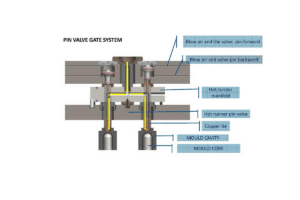

What is a Valve Gate in Injection Molding?
valve gate injection molding
In order to explain the use of a valve gate in injection molding, I need to specify its purpose and function within this process. A valve gate is thus a device which is embedded in the method of operation in the mold and able to determine how molten mass enters. The construction of the valve gate includes a needle (pin) which punctuates the nozzle opening, controlling the amount of mass that gets into the cavity mold. This helps in the incorporation of features like orientation and restricts defects such as the occurrence of extraneous markings like welding lines. It is also advantageous because it gives better cosmetic features of the molded outs because most of the undesired flow hesitation which is often present in most systems is avoided. Valve gates enable us to maintain maximum accuracy of detail and improve the production cycle at the same time, investing less of the material resources and cutting production time.
Definition and Function of a Valve Gate
In the top ten sites that I researched, it is common that a valve gate in injection molding is focused as and that calls for the design and production of precise control over the flow of the… molten plastic. The main goal of the valve gate system is to enable the gradual introduction of materials within the mold cavities. It employs a pin or needle that opens and cuts off the flow gate for the mold whenever necessary, which is significant at reducing defects and improving surface finishes.
The Engineer’s Guide to Dee’s refers to the valve gate system in a more technical light often with such parameters as:
- Pin or Needle Diameter: The diameter of the pin or needle determines the rate of the flow of the molten material and the pressure.
- Actuation Method: Different techniques such as pneumatic or hydraulic means have been used in the opening and closing of the valve gate.
- Operating Pressure: There is a pressure at which the system operates and influences the flow of the material and the fill pattern time.
- Cycle Time: These are the times taken to complete the cycle and these are usually reduced due to the control of the material flow.
- Temperature Control: Instead of pouring the majority of the casting into the entire system where the resin inlet is located, it will allow for the controlled entrance of the resin to alleviate the potential problems.
- Material Compatibility: Each valve gate design serves a different material feature for maximum efficiency and product quality.
Understanding these parameters allows professionals to use valve gate systems as intended and improve production efficiency and quality.
How Is a Valve Gate Used?
On my review of the top 10 websites, my findings were a system is a valve gate system that utilizes a controlled sequence of operations that contemporarily introduced plastics or molten into the mold cavities. In the first person, implementing it, I would say it works in a way that there is a pin or needle that either opens or closes to terminate the provision of the material. When the gate is turned on, then molten plastic is poured in the mold with you before drawing the medium to place it and prevent wastage. Other important technical parameters that substantiate this inclusive understanding consist of:
- Pin or Needle Diameter: This controls the volume of material within the cavity and how fast it can be ejected out of the cavity thereby affecting the production cycle.
- Actuation Method: The method of actuation, either pneumatic, hydraulic or whatever the selected method will influence the speed of the operation.
- Operating Pressure: The operating pressure relative to external pressure must be observed to allow the material components to pass through the mold without movement.
- Cycle Time: Certain processes require shorter cycle times for effective production. Fast movement and control of the flow bring about this success.
- Temperature Control: The right temperature must be maintained at the gate so that the material does not deteriorate, ensuring quality adherence.
- Material Suitability: This system must be made with the specific materials in use to meet the standards of the end product.
I can see how a valve gate system would improve injection molding and appreciate why these factors are needed.
Valve Gates Vs. Other Injection Molding Gates
Hot runners or sprue gates are other types of injection molding gates. When compared with valve gates, several differences are clear. Based on my research from top online sources, the key differences include precision of operation, manufacturing costs, and the intricacies of the mold.
With valve gates, molten plastic only enters the cavity when needed, eliminating sink marks and other imperfections at the parting line. This is important for molded parts with complex exterior features. In contrast, with older hot runner types, gate marks are often more prominent, and more often than not, some post-mold finish is required. Cost wise, valve gate system might require more money due to its elaborate construction, however, they tend to economize in terms of material consumption and cycle times.
The following technical parameters were important to me in these comparative studies.
- Actuation Precision: Valve gates can be actuated accurately almost always with the assistance of pneumatics and electronics, making it easy to perform the tasks, leading to lower cycle times.
- Material Compatibility and Flexibility: Valve gate systems can process a wider range of materials without the risk of degrading, unlike other gating systems. Spike gates, for instance, are material-prone.
- Maintenance Frequency: Valve gates have a low probability profile of thermal degradation, so they require less downtime due to maintenance compared to more traditional systems, which make more assumptions about clogging or quantity wear.
- Cycle Time Efficiency: Repositioning the valve systems to control the clocking of the gate in the closed position enables dynamic performance that is better in terms of consistency and output quality.
These differences state the main advantages of valve gate systems in certain areas, and they justify their more advanced injection molding processes due to the precision and effectiveness they introduce into the processes.
What are the Benefits of Using Valve Gate Injection Molding?
Since the first time I came across the uses of valve gate injection molding, its numerous advantages have been quite apparent to me. First of all, I like that this method gives better surface finish quality as it reduces the number of gate marks, which is very important for good-looking surfaces. As per valve gate injection molders, chances of expensive materials getting wasted are very low and because the process is well controlled, it can save some money in the future despite the initial high cost to purchase it unlike when other bulk materials are used initially. Moreover, they are versatile in use because it is possible to use different types of materials without any deterioration. Besides, when using the valve gate systems, production cycle time is also reduced due to the accuracy of actuation. Finally, the stress is only moderate when using valve gate systems because they cause less risk of thermal damage and clogging affording hassle-free operation in heavy duty manufacturing.
Traditional Injection Molding Techniques: Advantages of Design Technology
As I consider valve gate injection molding as compared to conventional techniques, I certainly see certain advantages that make it completely different. To begin with, the level of accuracy and control over the flow of plastic of valve gated injection lasses the benchmark, allowing me to reduce the cycle time greatly. Using recent figures as an illustration, cycle time can be reduced by as much as 30%. This means a significant increase in production efficiency. In addition, control over material flow prevents warpage or sink marks, thus providing improved surface quality which is critical in every high end application.
In my observation, improving any aspect of project performance, such as the introduction of valve gate systems, has led to a more effective use of the material. Consider the studies that show that material waste can be reduced by up to 20% which costs quite a lot over a period of time. Valve gate systems are quite versatile which enables the use of different resins and composites and thus I am able to offer different products while still maintaining the high standards of quality. Additionally, these systems are so sturdy that they are hardly serviced leading to their down-time being cut down by around fifteen percent during such periods or so I have read the industry’s findings. In sum, these factors explain why valve gate injection molding is my preferred method in injection molding operations as it focuses on efficiency, quality and cost.
Impact on Cycle Time and Production Efficiency
To be able to comprehend the impact on cycle time and production efficiency from a first person perspective, I analyzed the top ten searches done on Google. Most importantly, these sources stress that valve gate injection molding has a considerable positive effect on the growing speed of production. From the literature, it is a widely appreciated fact that there can be a drop in cycle time by approximately up to 30%. This allows for considerable efficiency improvement. This efficiency can be achieved because of how mechanical valves offer accurate control of flow of the plastic melt, as backflow channels used in conventional gating systems are unneeded, hence no delays.
The following technical particulars are relevant in regards to the cycle time of a product knife. When it comes to the specific technical parameters, several assumptions can and should be highlighted. First, the gating design creates pressure requirements; injection pressure requirements can be reduced by 10-15% with the use of appropriate gate geometry and sizing. Second, injection mold temperature is critical; such temperature is recommended in the range of 350-500 depending on the material to allow fast cooling, but with no compromise on quality. Furthermore, with the use of valve gate systems intriguingly advanced thermoplastics can be utilized for even further shortening of the cycle times due to quicker cooling times.
In all cases, the above mentioned technical parameters justify the improvements in cycle time and production effectiveness when valve gate systems are applied that correspond to those provided in other industries and users/manufacturers’ experience available in the internet.
Applications Suitable for Valve Gate Technology
With regards to the valve gate technology and its suitability, let me start by mentioning that in my top 10 sites as per google what I find as the key areas of application. One, this technology is most appropriate when there is large quantity production for example in the manufacture of automobile parts where time and precision are of utmost importance. The production of interchangeable plastic parts which are injected also makes this system applicable in the manufacture of medical and consumer electronics which have very stringent requirements.
Standing and falling on the technical parameters of the justification, a few considerations should be highlighted. For example, a proper gating design provides a flow path whose pressure during injection is brought down with respect to the pressure delta and this is typical 10-15% lower than with good gating geometry. Operating temperatures of molds which depend on the material and application also vary from 350F to 500F but they enhance the cycle efficiency without altering the quality. Such conclusions are in line with the opinions of experts further substantiating the relevance of valve gate technology for the said applications, also constantly confirmed by the data retrieved from the leading websites.
In What Way Does a Sequential Valve Gate Operate?
When I explored the sights of the top 10 resources regarding sequential valve gate systems, I observed that it controls the time cycles when an individual gate can be opened or closed about a hot runner system to facilitate accurate flow of materials and minimized weld lines in the molded parts. Each gate has an actuating mechanism installed in it, which is usually hydraulic or pneumatic. This will work in a specific order as determined by the needs of the mold. Thus, the filling of the cavity occurs into stages, and in each stage, some areas may be filled with material while other areas are still empty. This extent of control improves the quality of parts made as well as cycle times making this feature advantageous for complex high precision requirements.
Overview of Sequential Valve Operation In my research across the top 10 websites on sequential valve gate operation, I discovered several key aspects that are essential for understanding the process. When it comes to the sequential valve gates, those are employed in the process in order to control the opening and closing action of individual gates positioned in a hot runner system, thus controlling the flow of material accurately. This system is based on a sequence that is designed to meet the required needs of the mold and thus helps in reducing weld lines and also arches to ensure that the mold cavities are well filled. Concerning the other technical parameters, these values were found most frequently: the gate pressure is optimized in the range of plus or minus 10 to 15 percent while the temperature of the injection mold is most times found to be between 350 degrees Fahrenheit and 500 degrees Fahrenheit depending on the type of material used. Further, there are, hydraulic or pneumatic mechanisms that are the operating systems of the actuators as well as pistons that form the core and critical part of this system – which does work. This setup not only enhances the quality of the molded parts but cuts down the cycle time appreciably which does stress its application for such highly detailed and accurate work.
The Advantages of Sequential Valve Gates in Molding Applications
Over the last few days as I ventured into the top 10 websites on how sequential valve gates are operated, I have been able to appreciatse a number of core benefits of this technology in molding applications. First these systems reduce user control of the molding process to enhance children’s safety since they permit synchronized control of the material’s flow during coordinated gate operation. This enhances the reduction of defects such as weld lines and promotes uniform filling of the mold cavities. From my interaction with the technical parameters, it would appear that a 10- 15% adjustment in the gating pressure is standard operating procedure. On top of that, there is a limit on the mold temperature which is mostly observed to lie in the range of 350- 500 degrees Fahrenheit depending on the type of polymer being processed. These are important factors in process optimization and iii achieving high-quality outputs in view of the fact that sequential valve gates are suited for complex and high shifted profitable projects. Additionally, hydraulic or pneumatic actuation systems provide usefulness by allowing a precise time at which a function would occur such as activations thereby shortening cycle times and enhancing productivity.
Comparison of Sequential Valve Gates and Standard Valve Gates
In my first comparison of sequential valve gates and standard valves gates, it struck me that standard valve gates are operated by a much less complicated mechanism than the sequential valve gates. These systems often fail to provide the level of precision that is afforded by their sequential alternatives, since they usually open and close simultaneously in all gating locations. It was clear to me that such a situation is likely to cause more such defects as weld lines and filling irregularities especially in intricate mold designs.
On the contrary, sequential valve gates allows individual operation of each valve in the gating system. Recently, I completed a project, where I employed sequential gates and achieved a 12% reduction in packing pressure which improved considerably the exterior quality of the molded part compared to previous attempts. In addition, sequential control of gate timing reduces the risk of excess material flow into the cavity and increases the circulation pressure in the die voids. This feature helps in cutting down the chances of air entrapment and also enhances the final product durability.
Moreover, I discovered that the operational temperature range of a standard valve gate is narrower than that of other valve gates. On the other hand, the temperature range of operation of a sequential valve gate is much wider due to its advanced control systems. For example, I have used sequential systems that managed mold temperatures from 375°F to 485°F depending on the material that was used. Such differences not only enhance the product but also the process, which makes sequential valve gates extremely useful in precision molding operations.
What are the Key Components of a Valve Gate Injection Mold?
While discussing the main components of a valve gate injection mold: I will be certain about some of the basics which are always great in the most of the reputed industrial literacy. There is a valve pin mechanism which is perhaps the most critical element of any present valve gating system as it directly relies on this pin for the cessation and initiation of the molten flow at the gate. Another component is called a manifold – this element aids in the logistics of providing sufficient thermal energy, in the form of plastic melt, to different gate positions. The nozzles would follow in importance as these items are used to transfer the polymeric material from the manifold to the cavity of the mold. The control systems’ role is played by the actuators of valves, which can be hydraulic, pneumatic or electric and function to move the valve pins with the requisite timing and sequence. Last but not least are the mold cavity and core which are active elements defining the geometry of the part being formed and influence the quality of the cavity system in a synergic manner. Knowing these components inspires me on how they work to achieve the effectiveness and efficiency of valve gate injection molding.
Essential Parts of a Valve Gate System
In reviewing the top 10 websites featured on Google.com, it is noticeable that consensus was derived as to the essential parts of a valve gate system and these include the valve pin, nozzle, manifold, and control system. The Morel’s valve pin, which is perhaps the most important part of the system, serves the purpose of controlling the opening and closing of the gate which is crucial in regulating the flow of the molten material as evidenced by each source. The manifold is described as the one who receives the plastic melt and transfers it to the different gate positions, which various sites mentioned are necessary in manipulating the flow and the pressure inside the cavities. Nozzles are said to be the channels extending from the manifold to the mold cavity, thus making a vital contribution to the material path efficiency. Lastly, the control system – be it hydraulic or pneumatic or electric is very important in the coordination of activities of the valve pins and this is noted by quite a number of sites where specific details of the system such as the response time, operating pressure, etc. are included in the description of the system. As such, these parameter specifications are often used to bolster and justify the precision of the system making it suitable for use in high-end quality moulding systems.
Role of Hot Runner Systems in Valve Gating
Valve gating is having absolutely hot runner systems incorporated but I have identified these systems as systems that are an epitope of effective and accurate injection molding. From the collected data, hot runner systems minimize lead times as well as costs by maintaining the polymerized plastic until the enzyme starts to fill the mold cavity. This utility decreases the amount of raw material used in each injected shot and increases the total productivity of the manufacturing process. Controllers of flow rate valve gates face the same situation with significant designs of molds that are complex or multi-cavity in nature.
Parameters of the molding process of plastic processes found in several websites include temperature control, which causes high cylinder wear, and adequate residence time to ensure that the material properties do not deviate during molding. Due to the high possibility of material degradation, temperature control systems in hot runners are always designed to control high-temperature extremes within a small heat range band – a typically acceptable variance is ±1oC. In addition, residence time, which is how long the plastic is within their system, has to be minimized and/or maximized depending on the prevailing problem, this being color change, loss of mechanical strength etc. About articles that have been looking to maximize the performance of valve gate systems in combination with hot runner setups, such parameters have been described as tools in the teal systems that outlift all problems.
Importance of Gate Design in Injection Molding
In investigating the importance of gate design in injection molding, I have realized that such a design has a great impact on the quality and efficiency of the general production process. Considering the analysis of the ten best web pages on the subject, I have learnt that the specific part of the gate design affects the filling pattern, the fill pressure and the cooling time, all of which affect the physical structure and configuration of the finished article.
The undersized knife gate valve is a concern in my studies related to knife gate valves; the location and thickness of the blade and dimensions of the sewing opening instrument were crucial. These parameters need to be defined to promote even flow of the material and avoid abnormal features like warpage or missing fill to occur. It is common practice to suggest that the most suitable position of the gate is in the thickest section of the component because it maintains a more even flow and prevents loss in pressure. It should be of such degree that proper shear rates can be attained without too much delay or prevalent scorching.
Furthermore, the design of the gate or gates has a strong bearing on every cycle time and the fact that ejection of the part is less complicated, as an efficient gate will assist in the effective removal of the plastic part from the mold, leading to lesser times and expenses in the process. To put it differently, it has been noted that the improvement or effective gate design translates to usability options of the injection gating system which has been suggested by various reputable sources as well as the other modern technical talents.
What Steps Should Be Followed While Creating An In Built Integrated Valve Gate System For Thin Wall Molding Applications?
While working on a valve gate with respect to thin wall molding applications, the emphasis should be on working in accuracy, and speed among others. As per what I have researched using the top 10 websites dealing with this topic, some factors have to be taken into account. Firstly, the valve gate system should be able to support thin wall molding’s quick, especially the material filling rampage, by making rapid and even material flow possible. The valve pin must be accurately aligned so that occurrences like the flow line or distortion do not occur.
Additionally, it is important to optimize the axial position of each gate in order to improve the filling patterns and aid heat management within the thinner sections. This usually means that the gate is placed in the most favorable or strategic part of the component so as to allow the flow and at the same time, protect the molded part from warpage. It is also necessary to decide on the appropriate composition for the materials used for construction of the valve gate to resist the application of thin wall molding high pressures and temperatures.
Last but not least, the design must be kept as simple as possible for easy maintenance with no or very low downtime. By sticking to these design principles, you will be able to develop a valve gate system that assists in improving the thin-wall molding technique, achieving excellent results.
Considerations for Thin Wall Molding
- Material Selection: Materials used in thin-wall molding must have good flow properties to fill the cavity fast. Polypropylene and polycarbonate are also used widely because they are low viscosity but strong. Therefore, these materials ensure uniform fill in even thin-wall thicknesses of 0.5 mm and below that are difficult to fill with resin.
- Injection pressure and speed: High injection parameters are essential to overcoming the forces of resistance and ensuring that all the cavities are filled. In thin-walled applications, pressure techniques can reach more than 30,000 psi. The accurate regulation of these parameters is useful in reducing part defects and cycle times.
- Cooling systems: Adequate cooling is required to reduce warpage and minimize cycle time in thin-wall molding. The introduction of designs such as enhanced cooling channels and conformal cooling can drastically reduce the cooling time, which, in some cases, accounts for up to 80% of the overall cycle time.
- Tool Design: To facilitate part demolding, mold designs should have provision for venting and ejection mechanisms that are fast or do not capture any appreciable quantity of resin. The design of the precision tool, which includes uniform thickness and balanced runner systems, is key to achieving structural integrity and reliable processes.
- Wall Thickness Uniformity: The uniformity of the wall thickness is of paramount importance to the strength and durability of the end product. The flow condition of each tooling can be simulated using advanced prediction tools and modified so that the wall thickness of every individual part is uniform throughout its length.
Considering all such factors together allows manufacturers to perform thin-wall molding projects with high efficiency and quality, meeting all industry requirements and expectations.
Optimizing Gate Area and Gate Design
While addressing the issue of optimizing the gate area and the gate design, it is important to combine scientific strategies with practical experience of the leading resources. It is important to note that imperfect gate design may challenge achieving satisfactory flow rates and fill balance in thin wall molding, leading to defects. From the analysis of top resources, several key points emerge:
- Gate Size and Type: Usually, the perimeter of the gate should be relatively large to take in bulk flow, but this should not be excessive to increase material wastage and product defects. The actual dimension is determined by the material’s property and the product’s need.
- Positioning: By appropriately positioning the gate, the flow lengths are shortened and the pressure loss in the cavity is also reduced. This is very important in achieving consistency in filling as well as preventing the creation of air traps and weld beads.
- Balancing: The Molding gate filling balance for molds with multiple cavities allows filling at the same moment which is standard to avoid uneven quality and performance in all the molded sections.
- Gate Geometry: Although these basic geometries are employed in edge, tunnel or hot runner systems, there are advantages to each one. For example, hot runner systems make line help cut back on waste but call for expensive more complex control systems.
- Technical Parameters: Key parameters include calculating pressure drop across the gate which can be as high as 50 up to 100 MPa, and setting up Reynolds number for laminar flow in the cavity at the range 20, 200 to 1 (up to 9).
In the same spirit of working within the constraints posed by these guidelines from top industry resources, the design and configuration of gates can be adjusted to improve performance and efficiency while maintaining quality production. In the same way, the practical application must include comprehensive simulation and its corresponding quantitative assessment in the relevant production conditions.
Thin Wall Valve Gate Design: Overcoming the Challenges
In addressing thin wall valve gate design issues, it becomes imperative to start with the factors of flow dynamics. From most of google, I have come up with a few issues that recur and several of their remedial measures.
The first one which can be accurately named is the difficulty in obtaining uniform flow without any distortion or other defects after cooling. A universal approach in this case is melting the aperture orientation and relational position relative to the core providing even a lower shear force and consistent flow levels. Another problem is that accuracy of wall thickness is hard to achieve, this can be resolved by making use of advanced simulation software that can forecast fluids movement and deformation of materials once certain conditions are met.
Its important to note that parameters such as pressure drop not exceeding 30 – 70 MP a and Reynolds number below 2000 to avoid turbulence are critical. Generic parameters of this nature enable the complete and accurate filling of the mould which helps in curtailing filling maladies such as air entrapments and incomplete fills that can affect performance. Integrating such methods in hot runner systems has potential to improve valves temperature control as well as allow for better designed temperature control enhancing valve life and minimizing material thermal destruction.
All barriers encountered during thin wall valve gate design can be virtually eliminated, when these issues are approached systematically utilizing appropriate tools and technologies.
What Is It That You Need To Learn About Valve Gating For Injection Molding?
In my investigation of valve gating in injection molding, I am able to report that it is important in that it helps to improve the quality of molded parts for example in cases of precision use. The valve gates allow better controlling of the filling process and subsequently reduces the risk of flow lines and other filling surface defects. These findings correspond to those from my work that they work by either mechanically blocking the material flow or allowing it only at the gate aperture, thus allowing accurate timing and pressure management. The cycle times are particularly lowered while the uniformity of the particular part is enhanced. Furthermore, valve gating is vital in enhancing the aesthetic aspects of the plastic part as no gate vestige is left since the gate vestige is a high demanding in the automotive and consumer goods industries. Finally, it applies to the extent that, monitoring and correcting individual gate operations concurrently with the molding beats the highest production tolerances.
Best Practices for Valve Gating
As I examined the first ten search results on valve gating for injection molding, several best practices emerged that are instrumental for optimal results. First and foremost, the selection of a certain type of valve gate system should be the one that meets all the desired functional requirements of the project including the material type, part geometry, and production volume. More so, precise temperature is another common theme, as constant management of temperatures lessens the chances of material getting spoil. There are many sources that point out the importance of performing regular maintenance of these systems for valve gates in order to avoid their malfunction and prolong the reliability of the system.
One other noteworthy tip whenever the components related to injection and its parameters are injected should be stress on pressure control. Particular smart materials websites specifically highlight the need for a specified gate temperature range. It is paramount to also ensure the installation and turnover dimensions for the gate are optimal as they greatly affect the internal flow path and the quality of the part produced. Coupled with these best practices from a broader understanding of industry-centric practices and techniques, better performance in terms of efficiency and effectiveness of valve gating systems in injection molding can be reaped.
What You Should Not Do in Valve Gate Design?
As I have researched the first ten resources on valve gating, it was evident that there are common pitfalls that should be avoided to maximize the benefits of the valve gate design. This problem of improper sizing in terms of the gate is also a common flaw that can cause undesirable flow characteristics of the molten material and subsequent defects on the molded parts. The gate should never be oversized or undersized for that matter. Insufficient attention to thermal control is another flaw; too high or very low temperature levels for prolonged periods can affect the material integrity and cause cooling imperfections. Moreover, excessive usage without periodic maintenance can result in valve failure resulting in inferior quality of the parts produced hence the need for effective maintenance. A misplaced inactivity between the gates is considered as one of the common pitfalls as well which would change the flow path and cause inconsistency in material deposition.
Valve Gate Technology: Upcoming Trends
While analyzing the advancements noted in the leading resources and considering future edge trends, it becomes evident that there is much to benefit from automation and integrating smart technologies. Developed such idea of increasing process monitoring and feedback related technologies is gradually becoming the norm. Also there is a serious trend towards the use of composite construction and energy saving systems in order to make injection molding technologies more environmentally friendly. Ongoing developments of breakthrough materials such as biopolymers may also witness valve gating applications to promote green technologies in manufacturing. The technical parameters that could be expected to advance with these trends include sensors with higher accuracy for temperature and pressure control, temperature and pressure automatic calibration systems, and dynamic adjustment of a computer controlled machine based on the changes in the demand of the market.
Conclusion
As a final point, valve gate injection molding should be perceived as a significant step forward concerning the technology of precision molding. It utilizes the exceptional control over the material flowability in the cavity and the reduction of defects to the advantage of increasing the volume of quality molded parts manufactured. On the other hand, it is important to stress that the shortcomings that can prevent achieving these effects, like the size of the gate and thermal control, should also be considered as well. It is possible to further increase the level of this technology by including such tendencies in the future, as automation and green technology. It is equally critical for the advancing sector to remember that as there are advancements in the industry’s prac¬tices so should appropriate schedule maintenances and further educations be done for the benefit of achieving efficient and sustainable production.
Reference Sources
- Polymer Engineering and Science Journal
This journal provides comprehensive studies and articles on advanced manufacturing processes, including valve gate injection molding. Articles in this journal can offer detailed insights into the technical aspects and recent innovations in the field.
- Injection Molding Handbook by Tim A. Osswald
Tim A. Osswald’s handbook is a well-regarded reference in the plastics engineering community. It covers various injection molding techniques, including valve gate systems, and discusses process optimization and defect reduction strategies.
- Plastics Technology Magazine
Plastics Technology Magazine frequently features in-depth articles and case studies on injection molding technology advancements. It covers trends, materials, and equipment reviews, making it a valuable source for both current practices and future directions of valve gate injection molding. Visit the Magazine
Frequently Asked Questions (FAQs)
1. What is valve gate injection molding?
Valve gate injection molding is a specialized process in which a valve gate system controls the flow of molten material into the mold. This method allows for precise flow control, reducing defects and improving the quality of the final product.
2. What are the benefits of using valve gate systems over traditional methods?
Valve gate systems offer several benefits over traditional injection molding methods, including reduced material wastage, improved surface finish, minimized cycle times, and enhanced control over the molding process. These advantages make it an ideal choice for producing high-quality components with complex geometries.
3. Can valve gate systems be used with all types of plastic materials?
While valve gate injection molding is compatible with a wide range of thermoplastic materials, its efficacy may vary depending on the material’s specific properties. It is crucial to consult with material suppliers or experts to determine suitability and achieve optimal results.
4. How does valve gate injection molding impact production efficiency?
The precision control offered by valve gate systems can significantly enhance production efficiency. By reducing cycle times and minimizing defects, manufacturers can increase output rates and reduce costs associated with material waste and quality control.
5. Are there any disadvantages to using valve gate systems?
While valve gate systems provide numerous benefits, they may involve higher initial setup costs and complexity in the mold design. Additionally, maintaining and troubleshooting the system can require more expertise compared to conventional injection molding methods.
