How to Prevent Heat Creep in 3D Printing: Tips and Solutions

The heat creep phenomenon is a common puzzle to many 3D printing hobbyists and professionals as well. This normally happens when excessive heat finds its way towards the filament path and results in filament softening or melting before it reaches the intended melt zone. In the end, this condition may lead to several print failures including clogs, irregular extrusion and poor print quality. This article will look into what heat creep is all about, what causes it and how it can be prevented while maintaining smooth 3D printing process. Your understanding of NPL’s approach as we address these factors one by one improves your print results; however, you can also increase the lifespan of your 3D printer by doing so.

What is Heat Creep in 3D Printing?

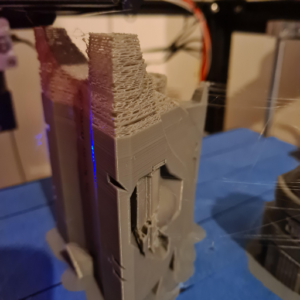

Heat Creep 3D Printing
Image source: https://freefronsm.best/

Heat creep in 3D printing refers to the inopportune movement of heat from hotend to cooler parts of the extruder especially up through the filament path. This excess warmth makes the filament tenderize or even dissolve beforehand, even before hitting its melting zone within hotend. Consequently, softness before time does commonly result in jammed filaments and inconsistent extrusions ultimately resulting into poor prints. Heat creep becomes a serious disadvantage during long high temperature prints since a stable thermal gradient is essential for seamless feeding of filaments and optimal performance in prints.

Understanding Heat Creep

If the 3D printer’s extruder assembly does not dissipate heat adequately, heat creep can set in. Poor cooling due to an ineffective heatsink or the nonexistence of a fan is usually the cause. It follows that when this happens, the heat coming from hotend goes up and this softens filament prematurely. Depend on the kind of filament used, ambient temperature and print speed; you may experience different level of severity for this issue. For example, upgrading the heat sink for better cooling of the extruder, finding more powerful fans to enhance airflow, and printing using optimal parameters can reduce it.

Why Heat Creep Occurs

Heat creep mainly arises because a 3D printer’s hotend generates too much heat that cannot be well dissipated by its cooling system. An inefficient cooler consisting either of a poor fan or a bad thermal conductor will result in upward motion of this warm air from the hotend towards those regions where filament is located at lower temperatures in an extruder assembly. This may however occur because there are high temperatures surrounding or during lengthy periods of printing which can lead to early melting and softening of filaments. PLA as a type of material having low thermal resistance also causes higher rates of heat creep. There is therefore need for proper cooling mechanisms such as upgrading hardware components and specific choice on types of filaments so as to counteract any possibility of experiencing it.

Impact of Heat Creep on Print Quality

In most cases, 3D prints suffer from degradation caused by heat creep that affects their quality. In some cases, heating up prior to time may melt or enlarge filaments within other areas like cool sections in an extruder causing erratic speeds in extrusion process thus causing under-extrusion, stringing or clogged nozzles among others defects seen during printing operations Like distortion or jamming due to overheating may make them fall out thereby interrupting formation layers hence leading to incomplete prints with a lot faults like shift in layer heights. To achieve high-quality prints, proper cooling and the right printer settings must be maintained.

What Causes Heat Creep in Your 3D Printer?

When the assembly of an extruder has poor thermal management, it leads to heat creep in 3D printers. There are inefficient cooling systems such as low performance cooling fans and heat sinks that can let hotend’s heat to move upwards. For instance, if the ambient temperature is high or you have been printing for a long time, this problem becomes worse. Furthermore, susceptibility to heat creep increases when using filaments with lower thermal resistance like PLA. To mitigate this problem therefore, it is important to ensure that optimal cooling is done, select the right filament types and upgrade hardware components accordingly.

Filament and Material Issues

Material choice and filament selection are also influential in preventing the onset of heat creep – particularly in terms of printability. With their lower thermal resistances than other filaments like PLLA, they are more likely to soften or deform prematurely within the extruder leading to heat creep. Other substances such as ABS or PETG have higher melting points and less vulnerability towards this defect; though sometimes require a higher printer temperature and efficient cooling system. Also remember that filament quality may be comprised by humidity hence proper storage requirements should be observed. The selection of appropriate filament materials based on their thermophysical properties, careful storage conditions for these materials and ensuring good printer cooling all play a critical role in minimizing occurrence of heat creep because once considered very difficult to control it may result into complete destruction of your parts or even further damaging your machine.

Heat Transfer and Hot End Problems

Heat creep can be majorly caused by heat transfer problems within the hot end of a 3D printer. This separates hot and cold areas in order to prevent heat moving up the filament path. Important issues include poor heat sinks, broken thermal barriers and inadequate ventilation systems.

To begin with, malfunctioning thermal barriers or ineffective heat sinks allow a lot of heat to move away from the heated nozzle towards the filament input zone. As a result, this may lead to early melting of the filament and thus cloggings. High grade heat breaks are designed for effective isolation thermally; but if they are unsuitably installed or made from wrong materials then they can aggravate heat creep.

Additionally, there might be an insufficient cooling mechanism that leads to poor dissipation of heat. In many times however, such situations can be solved by adding more/better fans for cooling and ensuring that there is proper airflow around the heatsink. You should also ensure correct use of thermal paste for increased thermal conductivity thereby enhancing your cooling system’s performance.

In conclusion, focusing on robust components and effective cooling systems in terms of thermal management of your hot end will help reduce the risk of heat creep while improving reliability during 3D printing process.

Clogging and Extrusion Issues

Clogging and extrusion are two commonly experienced challenges in the process of 3D printing, which can distort output quality. In most cases, clogging occurs when the filament cannot flow through the nozzle smoothly because of dirt on it, remnants from previous prints or melting inconsistency of the filament.

Causes of Clogging:

Dirty Nozzle: With time, old filament residue or waste materials from earlier print jobs could collect inside the nozzle thereby making it difficult for new filaments to pass through.
Filament Quality: If you have a low-quality material or one that has varying diameters, then there is a possibility that some sections will block passage.
Incorrect Temperature Settings: When your filament type’s temperature setting reduces or increases too much, melting may not be done well leading to clogs. Make sure to utilize recommended temperature settings by the manufacturer.
Filament Pathway Issues: It may lead to clogging if your feeder path is incorrectly placed or twisted.

Symptoms of Extrusion Problems:

Under-Extrusion: The printer will extrude less than required eventually causing gaps in between layers, weak layers or even no printing at all.
Over-Extrusion: It results into excessive blobs, strings and unlevelled layers as too much plastic comes out.

Troubleshooting and Solutions:

Clean the Nozzle: Specially designed wire brush helps clean the nozzle regularly while a cold pull using cleaning filaments also does this work by eliminating accumulated grime on hot ends.
Inspect Filament Quality: Good quality filament should be sourced and properly stored to prevent moisture absorption which causes inconsistent extrusions.
Adjust Temperature Settings: You need to adjust temperatures based on different types of filaments you are using within a range recommended by manufacturers as well as calibrate them for optimum performance results after trying different combinations and settings.
Check the Extruder Mechanism: Ensure that both external gears and pathway containing thermoplastic fiber are neat and in good working condition. Ascertain that the filament is traversing in a smooth manner from a reel to an orifice.

By systematically addressing these issues, you can reduce disruptions and improve 3D print quality by minimizing breakdowns related to clogging and extrusion.

How to Detect Heat Creep in Your Prints

Keeping excellent print quality requires timely detection of heat creep. The following are some ways to check if heat creep is affecting your prints:

Inconsistent Extrusion: If you notice that your printer starts to under-extrude especially after longer prints, heat creep might be the cause.
Frequent Filament Jams: Recurrent filament jams within the cold end of your extruder are a common symptom of heat creep.
Poor Layer Adhesion: Look out for poor layer bonding or delamination as these may indicate problems with consistent filament flow due to heat creeping up the hot end.
Visible Filament Deformation: Check the filament removed from the extruder. Softer and puffier appearance before it gets into the melting zone indicates presence of heat creep.

By being aware of these signs, you can prevent their occurrence at early stages thus ensuring high-quality and trouble-free 3D printing.

Signs of Heat Creep

Heat creep occurs when heat goes up the track of the filament path above thermal barrier that results in various problems during your 3D printing. The following are some clear signs of heat creep:

Clogged Nozzle: This is one of the most common symptoms, particularly after long print jobs where nozzles tend to clog frequently.
Inconsistent Filament Flow: If you find out that after a couple of hours into printing, the flow of filament becomes irregular or inconsistent, then it could be due to heat creep.
Failed Prints: You can also see an increase in print failures such as filament not sticking well with previous layers or gaps appearing on the print.

When these signs are detected on time, one can adjust their cooling and temperature settings hence reducing risk associated with heat creep while improving efficiency in printing.

Testing for Clogs

When it comes to testing printer jam in your 3D printer, you will want to take a step by step approach to properly diagnose and deal with it. These are the steps based on the industry’s best practices:

Perform a Cold Pull (Atomic Pull): Heat up the nozzle to the printing temperature of the last filament used, then reduce it to about 85–90°C for PLA or 140°C for ABS. Manually pull out the filament from the nozzle. The tip should come out with some dirt or remains, meaning that the clog had been removed. Repeat this procedure until nothing comes out together with the filament.
Check and Clean the Nozzle: Unscrew nozzle from hot end while heated to recommended removal temperature. Employ small metal wire, needle or dedicated nozzle cleaning toolkit in order to eliminate residual filaments. Another way is soaking such nozzles into acetone (for ABS) or other relevant solvents capable of dissolving encased filaments.
Inspect the Filament Path: Ensure there are no obstructions along this path from extruder to hot end. This involves looking at bowden tube (if applicable) and extruder gears if there is any filament debris or dust accumulations.
Verify Temperature Settings: Wrong temperature settings can also cause blockages. Confirm that you have employed manufacturer-recommended temperatures for your filament. Printing either at very low or too high temperatures may thus lead to poor melting and ultimately affect clogging.

By following these steps, you’ll effectively detect and clear clogs from your 3D printer thereby making your printing smoother and consistent all through.

Monitoring Print Speed and Temperature

Properly controlling the print speed and temperature is very important for optimal 3D printing outcomes.

Print Speed: Beginning with low speeds of roughly 30-50 mm/s are particularly good for newbies to decrease printing errors and enhance print quality. However, advanced users can experiment with speeds up to or above 100 mm/s depending on their specific printer as well as filament used. Always consult your particular 3D printer’s manufacturer’s instructions.
Temperature Control: Keeping an unchanging and correct nozzle as well as bed temperatures is important. For instance, PLA filaments require a nozzle temperature between 180°C and 220°C while the bed should be between 20°C and 60°C; ABS however requires slightly higher temperatures that range from around 230 –2500C when it comes down to the nozzle and about80 -110OC for the bed. Acquisition of a printer which has got a stable temperature control system or use external temperature monitoring tools might greatly enhance print quality.
Real-Time Monitoring Tools: Make use of software programs plus hardware that give real-time feedback on print speed plus temperature. This enables people to monitor their prints remotely through apps like OctoPrint or those specifically made by the manufacturers of printers hence making sure they stay on course; again, thermal cameras especially infrared thermometers help confirm temperatures during printing processes.

By paying strict attention to these factors, you can avoid common problems such as warping, stringing and layer adhesion issues thereby coming up with high-quality three dimensional prints.

What are Effective Ways to Avoid Heat Creep?

Heat creep is a common problem in 3D printing where the filament softens too early due to heat rising past it and may, in turn, block the printer nozzle. Here are some effective ways through which you can prevent heat creep:

Cooling System: Make sure that your 3D printer has a good cooling system. The fan should be facing the heatsink so as to make sure that its cooling effect is felt. If the present fan is not doing enough, you may consider upgrading.
Adjust Print Speed: Printing slower for materials prone to heat creep can manage the heating and cooling cycle more effectively.
Use Heat-Resistant Filament: Some filaments are less affected by heat creep than others. Using PETG instead of PLA for instance would help fix this issue.
Proper Insulation: Applying thermal paste on or wrapping up the heat break with a thermally insulating material will stop heating from traveling up along the length of filament path.
Regular Maintenance: Clean and maintain your printer regularly to prevent dust and debris buildup which worsen heat creep problems. Check for worn-out parts and replace when necessary.

By following these tips, one can greatly minimize chances of encountering heat creeps thus maintaining consistent print quality.

Cooling Fan and Heat Sink Usage

Preventing heat creep in your 3D printer requires the effective use of a cooling fan and heat sink. The flow of air should be directed by the cooling fan towards the heatsink to dissipate the heat from the hot end. In order to ensure that quickly transfer away from filament occurs an efficient high performance heat sink with good thermal conductivity is necessary. It can make a huge difference if your present setup is not up to scratch, by upgrading to a more powerful cooling fan.

To prevent dust or debris clogging the fans or preventing them from working at their best, regular maintenance is crucial. To further improve efficiency, you may choose to replace these parts over time or clean them when necessary. By using and maintaining these devices properly you can limit overheating tendency hence achieving better print quality through less jamming and other related problems in 3D printing processes.

Optimizing Print Temperature

One way of getting rid of heat creep and achieving high-quality 3D prints is through optimizing print temperature. How do I optimize?

Material-Specific Temperatures: Different filaments have specific optimal temperature ranges. For instance, PLA typically prints well between 190°C and 220°C whereas ABS requires a hotter range of 220°C to 250°C. Always go by filament manufacturer’s guidelines for best outcomes.
Conducting Temperature Tests: Temperature calibration tests like printing temperature towers can assist in finding perfect temperature for your specific printer setup and filament in question. A single object is printed at different temperatures until where the print quality looks best.
Monitoring Environmental Factors: The ambient temperature and humidity level of your printing environment can influence print temperature settings. A stable and controlled environment assures more consistent results as they’re being printed out on printers’ bedplates unlike other parts being produced elsewhere before being fastened together. You might need slightly higher print temperatures if your workspace experiences cold climate.

By selecting carefully and tuning your print temperatures adhesion between layers could be improved while reducing stringing as well as warping thus, generally enhancing the overall quality of your 3D prints. Also, keeping a record of successful temperature settings for different materials can be helpful in the future when printing.

Proper Extrusion Techniques

In achieving consistent and high-quality 3D prints, proper extrusion techniques are essential. The most effective methods available today, gathered from top industry sources, will be presented below helping you make better use of your extrusion process.

Calibrating the Extruder: Your extruder needs calibration done regularly to ensure it is pushing the right amount of filament. This includes measuring the length of the filament that has been extruded and making necessary changes in your printer settings. Proper calibration prevents problems such as excessive or insufficient deposition.
Adjusting Retraction Settings: Retraction settings regulate the flow of filament during nozzle movement from one section of a print to another. To avoid oozing and stringing, among other problems common to 3D printing, one should set retractions correctly. Alter retraction speed as well as distance depending on type of material and printer you are using.
Maintaining Nozzle Health: Keep checking and cleaning the nozzle so that you do not have any build-up or clogs from filaments. A clean nozzle guarantees smoother movement in filament flow while ensuring similar output throughout any operation. Occasionally replace nozzles if need be for optimum printing performance.
Using the Right Filament Diameter: It’s important to check that the filament width corresponds with your printer specifications. Mismatched filaments lead to non-uniform flows; resulting in poor outcomes after fabrication processes. Most 3D printers require either a 1.75mm or a 2.85mm diameter for their filaments.
Optimizing Print Speed: Print speed should be determined by the complexity of each print job and its associated type of filament being used.Adjustments can be made based on this data with slower paces having finer details as well as layer adherence while faster alternatives cater for simpler designs.

Through these techniques there can be serious improvements brought to an extrusion process thereby reflecting improved qualities alongside lesser technical hitches when printing happens again.

How Can You Fix Heat Creep in 3D Printing?

Heat creep is a phenomenon that occurs in 3D printers when excessive heat travels up the hotend and causes the filament to soften too early at the cold end. To overcome this problem of heat creep, ensure there is good cooling around the hotend by using an effective cooling fan of high quality and making sure your heatsink is free from dirt or obstruction. Also, lowering down the temperature on the hot end can prevent filament from becoming soft earlier than necessary. Regular cleaning of the nozzle and use of filaments with good thermal stability are among best maintenance practices to avoid problems related to heat creep.

Adjusting the Slicer Settings

Adjustments made within slicer settings may have a great impact on your 3D prints’ quality as well as help mitigate some issues such as heat creep. Here are some noteworthy adjustments:

Temperature Settings: Make sure both nozzle and bed temperature settings are optimized for whichever type of filament you are using. Different filaments have distinct optimal printing temperatures which should be observed religiously.
Print Speed: Slower print speeds facilitate detail improvement and layer adhesion while higher speeds may suit simpler prints. Regulating print speed depending on how complicated your model is can prevent overheating and reduce chances of experiencing heat creep.
Cooling: Within slicer software, modify fan speed settings in order to achieve better cooling. Proper cooling will help maintain a favorable thermal environment around hotends.
Retraction Settings: Filament oozing and stringing can be minimized by adjusting retraction settings properly; this prevents excessive buildup of heat within extruder hence minimizing chances of heat creep.
Layer Height and Width: The overall printing temperature can also be affected by altering layer height together with extrusion width dimensions. Higher temperatures are needed for thicker layers as well as wider extrusion widths whereas for thinner layers lower temperatures will suffice.

Improving print quality and reducing problems like heat creep can be done through these slicer setting fine tuning steps

Improving PTFE Tube and Hotend Installation

Properly mounting the PTFE tube and hotend for optimal 3D printing performance and prevention of heat creep is vital. Here are some tips that can guarantee you success in the installation:

Ensure Proper Seating: Ensure full seating of PTFE tubing inside the hotend. Any gap will cause filament blockage leading to uneven extrusion. This often includes pushing the tube completely until it absolutely cannot proceed any more.
Cutting the PTFE Tube: It is necessary for the cutting surface of the PTFE tube to be clean and straight as much as possible. A diagonally or obliquely cut can lead to misfitting and more friction which causes jamming.
Use High-Quality PTFE Tubes: Opt for high-quality PTFE tubing that can withstand higher temperatures without deforming. This is especially true for filaments with higher printing temperatures.
Secure Connections: Make sure fittings such as collets or clips are firmly attached so that they do not move or slip during operation. Loose connections may result in extrusion problems and inconsistent prints.
Check for Wear and Tear: Periodically check both the state of a PTFE tube and a hotend for wear, tear, degradation signs; over time, PTFE tubes degrade while their hotend components become blocked or damaged necessitating maintenance or replacement.

By doing this, one enables smoother filament flow hence reduction on cases of heat creep among other related printer issues.

Using Correct Printing Materials

To get good 3D prints, it is important to choose the right material for printing. Here are some tips from different recognized sources:

Match Material to Application: Use a filament that meets your project’s needs. PLA is easy to use and great for prototypes and educational purposes, while ABS is more durable and heat resistant, making it ideal for functional parts.
Material Quality: Always go for high-quality filaments from reputable companies. Filament materials with uniform diameter and purity give better print results reducing the chances of clogs and other errors.
Storage Conditions: Keep filaments in a cool dry room so that they do not absorb moisture. Materials such as nylon and PVA are very hygroscopic hence become brittle or rather degrade when in contact with humidity which affects their performance during print out.
Compatibility with Hotend and Bed: Ensure that your material choice aligns perfectly with hotend of the 3D printer you are using as well as its build plate. Some materials demand specialized hotends capable of reaching higher temperature or heated beds which aid to proper adhesion thereby avoiding warping.

This will help you select the right material to print your file resulting in more reliable, higher quality 3D prints.

Tips for Preventing Heat Creep in Future Prints

Maintain Adequate Cooling: Make certain that the cooler of your printer is working well and producing enough air to maintain the heat break at a cool temperature. Additionally, it is possible to mount another one or have a more efficient model.
Use a High-Quality Heat Break: It is better if you buy an excellent quality heat break with low thermal transfer coefficient for less heat dissipation into filament.
Optimize Printing Temperature: When using our filament, make sure you never exceed the recommended hot end temperature. It will aggravate heat creep.
Regular Maintenance: To prevent clogging and buildup that can interfere with dissipation of heat, clean and examine your hotend frequently.
Adjust Printer Settings: Reset your retraction parameters so that nozzle thawing does not occur prematurely in the area of the breaker made of heating material.

With these hints, you will be able to effectively deal with heat creep resulting in smoother 3D prints that are more reliable as well.

Regular Maintenance and Checks

Make sure that you regularly service and check your 3D printer to ensure maximum performance and durability. Here are a few steps:

Clean the Nozzle: Routinely rid the nozzle of any filament globules so as to preclude blockage, and then facilitate smooth extrusion. Use either a tiny wire brush or a nozzle cleaning kit.
Inspect the Belts and Pulleys: Assess the tightness of belts and condition of pulleys. Failure may result from slack or worn-out belts that can be inaccurate during printing. Act accordingly by fastening or substituting them respectively.
Lubricate Moving Parts: To reduce wear and friction, use correct lubricant on rods as well as bearings. It makes sure that parts in printers move easily and with accuracy.
Check the Bed Leveling: Make certain your print bed is leveled properly. Unevenly leveled beds will cause poor adhesion hence affecting prints quality. Where possible, use a leveling tool or an automatic bed leveling system.
Update Firmware and Software: Keep your manufacturer’s firmware and slicing software up-to-date; they occasionally come up with updates for bug fixing purposes, better functioning, among others enhancements.

By frequently following these maintenance routines, you can enjoy best performance from your 3D printer while ensuring reliability is not compromised.

Enclosure and Ambient Temperature Control

To achieve stable and high-quality 3D prints, proper enclosure and ambient temperature control are essential. Some best practices include:

Use an Enclosure: A cage assists in sustaining a 3D printer’s constant heat level to avoid warping or cracking. Furthermore, the print is defended from elements like dust and drafts that might affect its quality.
Control Ambient Temperature: For instance, it should be placed in an area of environment where the temperature is stabilized. Do not place it near windows, doors or vents from HVAC systems that can cause fluctuations.
Monitor Humidity Levels: Filaments of certain kinds suffer due to increased humidity levels. Dehumidifiers or silica gel packets help in moderating moisture content of air within this space.
Proper Ventilation: Ensure there is enough air supply but at the same time maintain consistent temperatures especially when using materials which emit fumes or particles during printing processes.
Insulate the Printer: Insulating the enclosure can make it easier to use materials needing specific temperatures since this keeps internal temperature stable all through.

By following these guidelines, you will find it easier to regulate your printing environment resulting into more dependable and higher quality 3D prints.

Best Practices for Filament Storage

For you to achieve long-lasting and good quality 3D prints, it is important that filaments are stored well. Below are some best practices:

Keep Filaments Dry: PLA and Nylon made filaments among others are hygroscopic meaning they can absorb moisture from the air which leads to printing with low quality. In order to keep them dry, place them in resealable bags or airtight containers with silica gel packs.
Avoid Direct Sunlight: The filament materials degrade slowly after exposure to UV light for a long time. To preserve their properties, store your filaments in a cool dark place.
Use a Filament Dry Box: The filament dry box is another layer of protection that keeps your filaments safe from dust and humidity by maintaining controlled environment. Other advanced dry boxes also come with built-in dehumidifiers that maintain the optimal condition of the filament.
Organize Your Filaments: You can label and arrange your different color filaments as per their type so as to retrieve easily when in need. Besides, this will help you quickly spot those nearing end-of-life hence better stock management.

Follow these storage procedures and have your filaments remain in good shape resulting on consistent quality 3D prints.

Frequently Asked Questions (FAQs)

Q: What is heat creep in 3D printing?

A: Heat creep is a phenomenon in 3D printing where heat from the hot end travels up toward the heat sink, causing the filament to soften prematurely. This can lead to problems such as filament jams and failed prints, especially with materials like PLA.

Q: What are the common causes of heat creep in 3D printing?

A: The common causes of heat creep include insufficient cooling of the heat sink, high ambient temperatures, and improper heat management. These factors can cause the heat from the hot end to travel upward, affecting the filament.

Q: How can I prevent heat creep when printing PLA?

A: To prevent heat creep when printing PLA, ensure that your printer’s heat sink is adequately cooled, reduce the temperature of the hot-end, and maintain a stable ambient temperature. Using a fan or a cooling system can also help manage the heat effectively.

Q: What are some solutions to address heat creep in 3D printed parts?

A: Solutions to address heat creep include improving the cooling of the heat sink, using thermal barriers, and optimizing the temperature settings of the hot-end. Regular maintenance and proper calibration also play important roles in preventing heat creep.

Q: How does heat creep affect 3D printed parts?

A: Heat creep can cause the filament to soften or partially melt before it reaches the hot extrusion 3D printing stage. This can result in jams, inconsistent extrusion, and defects in the printed part, ultimately leading to a failed print.

Q: How does the temperature gradient contribute to heat creep?

A: The temperature gradient, which is the difference in temperature between the hot end and the heat sink, contributes to heat creep by allowing heat to travel from the hot block toward the cooler parts of the print head. Managing this gradient is essential to prevent the filament from softening prematurely.

Q: Can different 3D printing materials influence the occurrence of heat creep?

A: Yes, different 3D printing materials have varying melting points and thermal properties. Materials like PLA are more prone to heat creep due to their lower melting temperatures. Adjusting the cooling and temperature settings based on the material you are using can help mitigate this issue.

Q: What role does the heat sink play in preventing heat creep?

A: The heat sink plays a crucial role in dissipating heat away from the hot end to prevent heat from traveling up and affecting the filament. Ensuring that the heat sink is properly cooled and free from blockages is essential for effective heat management.

Q: How can I improve heat management in my 3D printer?

A: Improving heat management involves optimizing the cooling of the heat sink, ensuring proper ventilation around the printer, using high-quality thermal barriers, and adjusting the hot end temperature settings. Regular maintenance and monitoring can also help prevent heat-related issues.

Q: Is there any specific equipment that can help reduce heat creep?

A: Yes, specific equipment such as upgraded cooling fans, heat break components, and better thermal insulation can help reduce heat creep. Ensuring that all parts of the print head are functioning correctly and efficiently can significantly improve heat management and prevent heat creep.

Q: What is heat creep in 3D printing?

A: Heat creep is a phenomenon where heat from the hot end travels up the filament path toward the heat sink, causing unwanted softening or melting of the filament above the heat block. This results in filament jamming and extrusion issues.

Q: What are the common causes of heat creep?

A: Common causes of heat creep include improper cooling, inadequate heat management, high ambient temperatures, and using 3d printing materials that are sensitive to temperature changes.

Q: How can I prevent heat creep when printing PLA?

A: To prevent heat creep while printing PLA, ensure proper cooling of the hot-end by using an effective fan, reduce the temperature of the hot end if possible, and ensure the heat sink is clean and free of dust to allow optimal airflow.

Q: Can the design of the printed part affect heat creep?

A: Yes, the design of the printed part can affect heat creep. Complex geometries and large prints may require consistent extrusion and more filament, which can cause heat creep if not managed properly.

Q: How does using different 3d printing materials impact the likelihood of heat creep?

A: Different 3d printing materials have unique thermal properties, and some, like PLA, are more prone to heat creep. In contrast, materials with higher melting points, like ABS, are less likely to experience heat creep but may contribute to other heat-related issues.

Q: What role does the heat sink play in preventing heat creep?

A: The heat sink is crucial in preventing heat creep as it dissipates heat away from the filament path, maintaining a clear temperature gradient and preventing the filament from softening prematurely.

Q: How can upgrading parts of the print head help in managing heat creep?

A: Upgrading parts of the print head, such as enhancing the hot-end with a better heat block or using more effective cooling fans, can significantly improve heat management and reduce the risk of heat creep.

Q: Are there specific 3D printers that are better at handling heat creep?

A: 3D printers with well-designed cooling systems, such as Prusa models, are generally better at handling heat creep. These printers often feature premium components and optimal airflow management to prevent heat buildup.

Q: How does hot extrusion 3D printing compare to fused deposition modeling in terms of heat creep?

A: Both hot extrusion 3D printing and fused deposition modeling (FDM) can experience heat creep. However, their efficiency in managing this problem in 3d printing depends on the printer’s cooling system and the types of materials used.

Q: How does reducing the print speed impact heat creep?

A: Reducing the print speed can help mitigate heat creep by giving the filament more time to cool down between extrusions. This helps maintain a stable temperature gradient, minimizing the chances of filament softening above the heat block.
