Ultimate Guide to Coefficient of Friction Testing: ASTM D1894 Explained

Quality and performance in products within the engineering and manufacturing sectors greatly depend on understanding the coefficient of friction (COF) between materials. Friction is resistance to sliding when two surfaces come into contact. ASTM D1894 is a comprehensive standard that provides a way of measuring material coefficients for friction, key to many industries including packaging, textiles, coatings etc. This guide breaks down the complexities of the ASTM D1894 test procedure and its practical importance.

What is the Coefficient of Friction?

Coefficient of Friction Testing

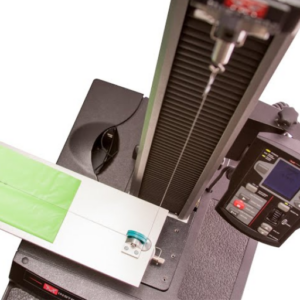

Image source: https://schapmachine.com/

The COF is a unit-less numerical measure showing how difficult it is for any two touching interfaces to slide along each other. It is obtained by dividing the force needed to move one surface over another by the normal force pushing these surfaces together in terms of magnitude. The static COF measures initiation resistance while kinetic COF assesses motion resistance after movement starts. For example, wear and tear issues are determined by this property directly affecting energy costs among others when assessing how materials will behave during actual service applications.

Understanding the Coefficient of Friction

It is important to consider the coefficient of friction while examining the interaction between two surfaces. The static coefficient of friction measures the force necessary to cause motion, while the dynamic one shows the power required for continued movement. Consequently, COF becomes a vital element in designing systems that manipulate friction like braking systems, conveyer belts and even everyday things such as shoe soles Static COF that is high implies difficulties with surface motion relative to each other leading to useful applications such as grip for tires. In contrast, a low kinetic coefficient of friction decreases resistance thereby improving efficiency in machines or lubricated surfaces.

Types of Coefficients of Friction

The two main types of friction coefficients are static and kinetic.

Static Coefficient of Friction (μs)

Amount of force required to start one surface moving over another is what static coefficient of friction measures. It is usually higher than the kinetic one because it requires more energy for surpassing the initial resistance that makes a body stay still in the first place. This sort of friction is important in cases where keeping position is necessary, such as stationary machinery construction or vehicle tires design.

Kinetic Coefficient of Friction (μk)

Kinetic or dynamic friction occurs after motion starts and this is measured by its coefficient. It shows how much an object sticks when sliding across a surface. This coefficient tends to be lower than the COF static one and is essential in understanding and optimizing systems that involve continuous movement such as conveyor belts, bearings, and lubrication processes.

These coefficients are used widely in various industries including automotive, manufacturing, packaging etc. where material choice, safety considerations and efficiency are paramount. Knowing these coefficients allows engineers to create systems which either enhance grip or reduces drag depending on the specific tasks in question.

Importance of Measuring COF in Industry

The direct significance of measuring Coefficient of Friction (COF) lies in many industries. If for instance, an understanding of COF is applied in the automotive industry it eventually assists in designing tires that ensure a maximum grip on road thereby improving safety and performance of vehicles. Precise measurements of COF for manufacturing processes help choose suitable materials and coatings to avoid issues like wear out or break down. Furthermore, adequate COF levels during packaging prevent products from slipping or shifting during transportation which is important for product integrity to be maintained. Consistently observing and recording COF enables industries to develop more reliable and functional product systems.

How Does ASTM D1894 Coefficient of Friction Test Work?

ASTM D1894 Coefficient of Friction Test characterizes plastic film and sheeting tribological properties such as frictional forces. A rectangular sample material is kept on a flat surface as shown in Figure 2 below while attached with a yarn clamped at the other end that runs through a pulley system to carry load across it. The force required moving the sled was recorded, from this data frictional forces were calculated. It also gives two types of frictional forces; Static COF being the initial resistance to motion, Kinetic one representing resistance during continuous motion. Material sliding characteristics are necessary in applications where ASTM D1894 test results are significant, such as packaging, manufacturing and material handling.

Introduction to ASTM D1894

Plastic films and sheetings have their sliding characteristics tested through ASTM D1894 which is crucial as it provides important information to these industries. The test involves a sample material being placed on a horizontal platform with weight sleds moving across it. The required force to pull the sleds determines the static coefficient of friction that is for initial resistance, and kinetic coefficient of friction during movement. These values are used to ensure industrial-grade materials will perform dependably in applications like packaging without slipping or making manufacturing optimal. This standardized procedure of ASTM D1894’s makes it an accepted technique for quality control and product development in different fields.

Step-by-Step Guide to ASTM D1894 Testing

Preparation of Test Samples:

Cut the plastic film or sheet to the required dimensions as specified in ASTM D1894 standard.
Ensure that the samples are clean and they should not have any contaminants or defaults that could affect the test results.

Setup of Testing Apparatus:

Fasten the specimen firmly on a flat horizontal plane. This is usually achieved by use of clamps or adhesives thereby avoiding any movement during testing.
Put the sled which will have certain weight on top of the sample; this sled should be made with a smooth, consistent bottom surface to ensure it contacts uniformly with sample material.

Calibration of Equipment:

Calibrate force measurement system before starting test to improve accuracy in measurements. This may involve using a calibration weight or checking it with known force.

Performing the Test:

In a particular speed mentioned in ASTM D1894 standard, slowly start sliding sled over sample’s surface.
Keep recording force needed so as to slide sled. The first peak force refers to static friction coefficient while average force during sustained motion represents kinetic coefficient of friction.

Data Analysis:

Analysis of recorded force measurements to find out static and kinetic COFs. Generally, plotting of force vs time/ distance and identifying points on graph is done for calculation COF.

Reporting Results:

Record static and kinetic COF values in addition to information about specimen under testing, conditions used during experiment and observations noted down during experiment sessions.
Create an inclusive report which includes calculated COF values, graphs, notes that can help interpret results for quality control or product development purposes if necessary.

By following these steps, accurate and consistent ASTM D1894 tests will be carried out thus providing dependable material data in evaluating the sliding properties of plastics films and sheets.

Key Parameters in ASTM D1894 Testing

Here are some of the few main things to keep in mind when carrying out ASTM D1894 testing, so as to get actual and dependable results:

Sample Preparation:

Make sure that you have prepared your sample well following all standard requirements. This includes cutting it to fit as required and making certain that it is free from any contaminant which may affect test results.

Test Speed:

This is a critical issue which depends on how quickly the sled moves across the surface of the sample. For example, according to ASTM D1894, there is a test speed of 150 mm/ min (5.9 inches/min). Any deviation from this figure would give wrong readings.

Environmental Conditions:

Ensure controlled conditions during testing by regulating temperature and humidity levels as specified. The frictional properties of material being tested can vary significantly with environmental changes.

Proper control over these parameters helps in maintaining uniformity and accuracy when determining static and kinetic coefficients of friction, whose necessity cannot be underestimated by quality control as well as product development departments within plastic industry.

What Equipment is Used for Coefficient of Friction Testing?

Coefficient of friction (COF) measurement test necessitates the use of specific apparatus to guarantee accuracy and reproducibility as stipulated in ASTM D1894. The major equipment includes:

COF Tester: A computer-controlled instrument that is predominantly used for measuring the force required to move one material across another.
Sled: Consistently applying force on sample material requires a normal weight sled.
Test Surface/Plate: Usually made from a smooth, low-friction material, this is where the sample material slides.
Force Gauge/Sensor: It provides both static and kinetic COF values by measuring the force exerted during testing procedure.
Data Acquisition System: This helps to record and analyze the force measurements over time throughout the test.

The stated test can be used with above instrumentation to accurately determine static & kinetic coefficient of friction on various plastic films and sheeting as per ASTM D1894.

Overview of COF Testing Machines

The coefficient of friction (CoF) test machines are designed in several designs to match different testing needs. According to the best online reviews of the leading COF test machines, they usually have advanced features that one can use in scrutinizing as required. They usually consist of a motorized sled driven by a precision linear actuator, thus ensuring consistent and controlled testing speed. In fact, these testers contain sensors with high resolution with an ability of detecting even the slightest variations in frictional forces which give accurate static and kinetic Coefficient of Friction values. Furthermore, recent COF testers are accompanied by modern software for data acquisition and analysis that produce detailed reports and graphs for effective understanding of results.

Some commonly used COF testing machines include models from manufacturers like Instron, TMI or Hanatek. These machinery is highly appreciated because they have an easy-to-use interface; they can last long; additionally they meet all international standards applicable on tests such as ASTM D1894. On the whole, quality control processes cannot do without Coefficient Of Friction Testing Machines since performance materials need to be in line with Industry Specifications all along.

The Role of Sleds and Weights in COF Tests

COF tests must have sleds and weights because they are the main factors that determine how accurate and consistent the results can be. The low friction material is usually used on the sledge so as to minimize any form of disturbance; it is made in such a way that it will be sliding evenly across the trial surface. Weights are put onto its top sides to represent pressure conditions prevalent in real life situations where this material will find application. According to three leading COF testing websites, these weights are employed in order to provide pressures which match ASTM D1894 standard test method. This arrangement makes sure that those responsible for conducting the research could accurately determine both static and kinetic COF by reasonably duplicating actual service conditions, thus upholding veracity of outcomes. They also stress about routine checks, regular calibration and servicing of sleds plus weights since these acts are important in sustaining accuracy and dependability of COF measurements.

Choosing the Right Testing Standard and Method

To get accurate and reliable results when choosing a proper testing standard and method for COF tests, there are several things to consider. For instance, the three leading webs on COF testing underscored the importance of selecting an appropriate standard that relates directly with what you want to achieve with your current experiment or test involving this particular kind of material. It is highly recommended for measuring plastic’s COF due to its exhaustive instructions: ASTM D1984. For other types however TAPPI T549 or ISO 8295 may come into play as alternatives . In addition it is important to take into account various testing conditions including temperature humidity and speed which greatly affect values of COF . Similarly, using methodologies representing actual workloads would give more meaningful data . Finally, maintaining precision and correctness of results requires regular calibration exercises alongside conforming with chosen standards as stated by usual practice procedures.

Why is Friction Testing of Plastic Film Important?

There are several reasons why friction testing of plastic film is important. The first reason is that it establishes how easy it can be to process and handle the films in a manufacturing environment thereby affecting production line efficiency. Secondly, it assesses slip properties, which have implications for the performance and durability of end products in terms of quality assurance. Moreover, knowledge about COF helps to prevent problems like blocking and sticking during their application on packaging, automobile as well as consumer goods industries. Finally, friction testing ensures that the specific needs for which plastic films are meant are met thereby increasing their functionality and reliability.

Applications of Plastic Film and Sheeting Testing

Plastic film and sheeting testing play an important role in various sectors where they are used across different industries. In packaging these tests determine whether the material can protect the contents during transit and storage as well as ensuring products get to customers’ premises intact. These tests also help evaluate the performance of these films when used in different components within vehicles, thus improving safety and enhancing aesthetics. On another note, friction testing is indispensable when it comes to items such as plastic bags or wrapping films that must offer ease-of-use along with dependability demanded by users. In summary, they are essential for establishing quality, functionality as well as compliance requirements of plastic films concerning their applications in various industries.

Challenges in Friction Testing of Plastic Films

There are many difficulties encountered when it comes to testing the friction of plastic films that may impair accuracy and reliability of results. One of the main challenges is inconsistency in experimental conditions such as temperature, humidity, and sliding speed that affect COF values. Also, non-uniformity of surfaces on both film and test apparatuses can make measurements inconsistent. Exact alignment and constant contact pressure during tests are very important but difficult to achieve. Results can also be skewed by contamination or wearing off of testing surfaces with time thereby requiring regular maintenance as well as calibration of the test machines. It is therefore necessary to tackle these issues so as to obtain reliable and reproducible data regarding friction for plastic films.

What are the Differences Between Static and Kinetic Coefficient of Friction?

The static coefficient of friction (COF) refers to the amount of force required to set in motion a surface when two surfaces are at rest; it is higher than kinetic COF due to initial resistance developed before movement occurs. In contrast, Kinetic coefficient of friction describes how much force must be continuously applied in order to keep one surface moving relative to another once they have been set into motion. This value is normally less because less energy is needed in maintaining an object’s status quo compared with putting it into motion. This is vital in applications where both starting and continuing movements are significant considerations.

Understanding Static Coefficient of Friction

The static friction coefficient is the measure of force necessary to move an object from rest. This happens due to the initial resistive forces between the contacting surfaces. We can consider the basic tenets provided by sources like Engineering Toolbox, ThoughtCo, and Hyperphysics for us to comprehend this idea:

Engineering Toolbox: The formula for calculating static COF is as follows: ( f_s = \mu_s \times N ), where ( f_s ) is the static frictional force, ( \mu_s ) is the static coefficient of friction, and ( N ) is the normal force. Different material combinations will have varying values for ( \mu_s ).
ThoughtCo: The kinetic COF is typically lower than its static counterpart because it incorporates overcoming that first interlocking or bonding of surface irregularities. This bonding breaks when motion starts resulting in a lower value called kinetic COF.
Hyperphysics: Examples seen in practical life demonstrate what a high value of static COF looks like such as when one tries moving something heavy on a smooth floor. Initially, it takes more force to overcome the static friction.

Thus, this property has significant meaning for activities which start off with inertia and require designs capable of supporting maximum restive forces.

Understanding Kinetic Coefficient of Friction

The dynamic friction coefficient, usually mentioned with the static friction coefficient, is a measure of the force that must be exerted on an object to keep it in motion after it has been moved. The meaning of this is emphasized through by ScienceDirect, Physics Classroom and Engineering Toolbox:

ScienceDirect: The kinetic coefficient (µk) can be calculated in the same way as the static coefficient, using f k = µ k × N where fk is the kinematic frictional force and N is normal force. In general µk < µs since there is less opposition to movement.
Physics Classroom: This means that kinetic friction occurs between surfaces moving relative to each other just like static friction does but which varies from pair to pair respectively. It takes a consistent force to maintain motion thus lowering energy requirements compared to overcoming initial static friction.
Engineering Toolbox: Practical tables and examples show typical values for various materials of the kinetic coefficient. Knowledge of μk helps in designing machines and transportation systems which demand efficient maintenance of motion.

In summary, knowledge about kinetic resistance makes it possible for one to know how moving systems work and control them so that when an object starts moving it can continue without experiencing any hindrance or requiring additional power input.

Comparing Static and Kinetic Friction in Tests

When undertaking a comparison of static and kinetic friction through experiments, one must understand the varied conditions under which they each operate. Generally, the static friction that stops an object from moving is higher than the kinetic friction that operates once it has begun to move. They have been well documented by resources such as MIT’s Teaching and Learning Laboratory, Khan Academy, and HyperPhysics.

MIT Teaching and Learning Laboratory: This source describes how you can use inclined planes and force sensors to measure the forces of static or kinetic frictions in its experiments. The maximum static friction (( f_s )) can be found by gradually increasing the incline or applying force until motion starts. Moreover, measuring a constant force necessary to sustain a uniform motion enables one to compute for kinetic friction (( f_k )).
Khan Academy: Through tutorials as well as interactive simulations, Khan Academy teaches about how to use graphs with force on y-axis against displacement on x-axis in order to grasp how to plot them. The point at which the object begins sliding marks the shift from static to kinetic friction. Furthermore, ( \mu_s ) and ( \mu_k ) can be determined by looking at the slope of this curve with respect to displacement.
HyperPhysics: This educational aid contains real-life examples coupled with diagrams illustrating differences between these methods of measurement. Static Friction is measured based on maximum force required before any movement occurs; while Kinetic Friction is assessed based on continuous force needed for maintaining motion.

All these methods together show how much experimentation is necessary before one reaches an absolute value for both static and dynamic frictions emphasizing their importance in different practical applications as well as scientific studies.

How to Interpret Coefficient of Friction Test Results?

Interpretation of the outcome of friction coefficient tests involves several key steps. First, differentiate between static friction coefficient (( \mu_s )) and kinetic friction coefficient (( \mu_k )). The highest value of the maximum force just before motion starts divided by normal force gives us the static friction coefficient. Conversely, dividing the constant applied force to keep an object in uniform motion by the normal force yields the kinetic friction coefficient. These coefficients reflect how easily objects will start moving and continue to move relative to one another when compared across different surfaces or materials. Smaller numbers mean less resistance and more freedom of movement, whereas bigger numbers mean more grinding. These interpretations find significance in any application from material selections to engineering designs and safety evaluations.

Analyzing Average Force and Normal Force

Such factors as analyzing average force and normal force are essential for arriving at correct values of coefficients of friction. The perpendicular force with which a surface acts on an object resting on it is known as the normal force. The normal force is important because both static and kinetic frictions depend directly upon it, expressed typically as ( F_f = \mu \cdot F_N ). To determine average force especially in situations where there is a case of kinetic friction, measure out steady forces required for keeping an object moving uniformly at a certain speed. This represents a constant applied towards keeping something at rest while still maintaining its velocity: (F_k). Precision and reliability can be achieved by taking multiple readings into account. These forces assist not only in calculating frictional coefficients but also in predicting how different materials interact under various conditions which is necessary for designing new items or assessing their safety concerns.

Common Mistakes in COF Test Analysis

When performing COF (Coefficient of Friction) testing, there are several common errors that can greatly affect the accuracy and dependability of the findings. One typical mistake is wrongly calibrated test apparatus leading to erroneous measurement of forces. Furthermore, neglecting environmental factors such as temperature and moisture may also compromise the results as these can change the properties of a material used for various purposes. Another common error is improper sample preparation which involves failure in cleaning surface properly or use of samples not representing real-life condition of materials under study. For worthwhile and dependable results, it is important to ensure accurate and consistent methodology in COF testing.

Practical Applications of COF Test Results

The Coefficient of Friction (COF) test outcomes have many practical applications across different sectors. In manufacturing industry, these results help to select materials that offer suitable friction levels thus guaranteeing product safety and functionality. For example, in automotive design, knowledge about how much friction exists between road surfaces and tire materials can enhance overall vehicle performance and make driving safer than ever before possible. The packaging industry uses COF data for determining how easily goods can be packed or unpacked during handling processes thus optimizing this step while reducing damages incurred during movements. Moreover, when it comes to flooring and footwear industries, slip resistance assessment is impossible without COF measurements needed for accident prevention at places where we work. Thus, the results obtained from COF tests are crucial in improving standards of safety, products’ designs as well as their overall efficiency in operations.

Frequently Asked Questions (FAQs)

Q: What is ASTM D1894?

A: ASTM D1894 is a testing standard designed to measure the coefficients of friction of plastic film and sheeting. The standard provides a test method for determining both static and kinetic COF (Coefficient of Friction).

Q: Why is the Coefficient of Friction important for plastic films?

A: The Coefficient of Friction is crucial in material testing of plastic films because it affects the handling, processing, and end-use performance of the material. High or low friction values can impact the product’s usability and can lead to issues in packaging or processing.

Q: What kind of equipment is needed for ASTM D1894 testing?

A: The test equipment typically includes a COF tester or a universal testing machine equipped with a sled, a test sample holder, and a means of measuring the frictional force and the weight of the sled.

Q: How is the static Coefficient of Friction (COF) measured according to ASTM D1894?

A: To measure the static COF, a sled is placed on the test sample, and the initial force required to start sliding the sled is measured. This force, divided by the sled’s weight, gives the static coefficient of friction.

Q: What is the difference between static COF and kinetic COF?

A: Static COF refers to the frictional force that must be overcome to initiate relative motion between two surfaces, while kinetic COF refers to the frictional force acting between the surfaces when they are already in motion.

Q: How does the test method for ASTM D1894 work?

A: The test method involves placing a sled of known weight on a plastic film sample and measuring the force required to drag the sled across the film. The measurements are then used to calculate the coefficient of friction.

Q: What role does industrial physics play in Coefficient of Friction testing?

A: Industrial physics underpins the principles and methodologies used in Coefficient of Friction testing. It ensures the reliability and accuracy of tests, helping in the design and standardization of test equipment and methods.

Q: Can ASTM D1894 be used for materials other than plastic films?

A: Although ASTM D1894 is primarily designed for testing the friction of plastic films and sheeting, the principles and test method can be adapted for other materials, provided appropriate test samples and equipment adjustments are made.

Q: How are results from ASTM D1894 tests typically reported?

A: The results are usually reported as the static and kinetic coefficients of friction. These values are calculated from the measured frictional force and the weight of the sled and provide insight into the material’s performance.

Q: What are some common applications of Coefficient of Friction testing in industry?

A: COF testing is widely used in packaging, film manufacturing, and other industries where the handling and performance of plastic materials are critical. It helps in quality control, product development, and ensuring compliance with industry standards.
