Calculate Shear Modulus: Your Ultimate Guide to Understanding and Using the Shear Modulus Calculator

In engineering and physics, understanding the material properties is very important especially when it comes to stress and deformation of materials. One such essential property includes the modulus of rigidity which is also known as shear modulus. It takes a look into the basic principles of shear modulus, including its meaning, significance and uses. Additionally, we shall go through how to calculate shear modulus using an intuitive and easy-to-use shear modulus calculator. You are either a scholar or technician or rather just person interested in matter science; this guide can be helpful in effectively determining the shear moduli of different substances. Get set for enhancement of your knowledge on this vital mechanical characteristic that will help you apply it practically. Length: 198 characters.

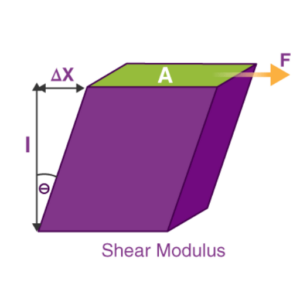

What is Shear Modulus?

Another name for shear modulus is the modulus of rigidity, and it refers to how much a material will resist deformation when it is in contact with a shear stress. It shows how much shear force applied to a material would make it deform. The bigger the shear modulus, the less elastic such material. This quality is important where there are transverse forces that are being subjected on materials hence helping engineers and scientists understand what they are going through as they load materials.

Defining Shear Modulus

The relationship between shear stress and shear strain is given by a constant known as the Shear Modulus (G). It measures the resistance of matter to altering its shape when acted upon by shearing forces. Parallel to the surface, shear stress refers to force per unit area while angular distortion resulting from this application of force is called shear strain. In terms of math, the equation for Shear Modulus is written as:

[ G = \frac{\text{Shear Stress}}{\text{Shear Strain}} = \frac{\tau}{\gamma} ]

Here tau represents and gamma represents . By understanding this property, engineers can estimate whether a material will bend or break under lateral forces thus making it vital in designing structures and parts. Engineering applications tend to favour materials with high shear moduli because they are stiffer and less likely to be deformed by shearing loads.

Importance in Material Science

The importance of shear modulus in material science is very vital, especially when it comes to the engineering design and analysis of structures. Shear modulus represents one of the fundamental mechanical properties that helps in understanding how rigid or stable a material behaves when subjected to shear forces. High values for shear moduli indicate that materials retain their shape under stress and therefore are needed in construction, aerospace, and automotive industries where structural integrity is of great importance. Moreover, this fabric constant element plays a leading role in inventing new materials and composites which assists scientists predict the behavior of materials under various loading conditions and enhance their performance during particular applications. Accurate determination of the value as well as application of shear modulus guarantees the reliability and safety of products and structures developed.

Units of Shear Modulus

How to Use the Shear Modulus Calculator?

How to use a calculator for Shear modulus

1. Input Material Properties: This includes entering the Young’s Modulus (E) and Poisson’s Ratio ((\nu)) of the material. These are usually given in materials data sheets or engineering handbooks.
2. Calculate: Press “Calculate”. The calculator will use the equation ( G = \frac{E}{2(1+\nu)} ) to determine the shear modulus.
3. Interpret Results: Shear modulus is shown on the screen with units choice applied in (Pa, MPa, GPa, psi). Employ this figure while analyzing a material’s resistance to deformation through cutting when performing scientific or engineering functions.

If you carefully follow these steps, you can quickly find the shearing module of different materials which helps in your analysis and design.

Steps to Calculate Shear Modulus

There are various steps that could be taken to help you calculate shear modulus of an object:

1. Gather Material Properties: Identify Young’s modulus ((E)) of materials and its Poisson ratio ((\nu)). As such, one would refer to text book reference resources as well as material data sheet from any reputable engineer expert sources.
2. Use the Shear Modulus Formula: Apply formula ( G = \frac{E}{2(1 + \nu)} ). This calculates shear modulus ((G)) based on inputs including Young’s modulus ((E)) and Poisson’s ratio ((\nu)).
3. Conversion and Units: Ensure E and G have similar units. Convert results into required units like pascals (Pa), megapascals (MPa) or gigapascals (GPa).
4. Verification: Compare against known values for your type of material to ensure accuracy. It is one way verifying that calculations were done right without any mistakes made during computations process.

Input Parameters Needed

The following input parameters should be taken into account to accurately calculate the shear modulus of a material:

1. Young’s Modulus (\(E\)): This is a measure of how stiff a material is and can be found on data sheets, in engineering handbooks and on reputable websites.
2. Poisson’s Ratio (\(\nu\)): This parameter is the ratio of transverse strain to axial strain in the material. Information on this can be sourced from data sheets, engineering handbooks or trusted sites.
3. Material Type: Identifying the specific material you are analyzing is crucial as materials have different properties. Ensure specifications that relate to the exact type of material under consideration (e.g., steel, aluminum, polymers) are used.

To confidently compute shear modulus by ensuring youngs moduli values and Poisson ratios values are accurate along with clearly identifying the material type will greatly assist one in their scientific or engineering work.

Common Mistakes to Avoid

When calculating shear modulus there are several common pitfalls that can lead to errors. Some important ones include:

1. Incorrect Units: Inconsistent units when putting down data could result into wrong answers. All your input parameters such as Young’s Modulus and Poisson’s ratio must therefore be put in same unit systems.
2. Inaccurate Data: Dependence on inaccurate or vague values for Young’s modulus or Poisson’s ratio might affect your calculations. Use trusted sources only e.g., datasheets of materials, engineering handbooks or authorized websites.
3. Ignoring Material Anisotropy: Some materials may have different properties in different directions (anisotropic materials). Failing to do this results to large discrepancies when doing calculations. Understand how it behaves in various orientations if necessary.

What is the Shear Modulus Formula?

The shear modulus ((G)) can be calculated from the relationship between an element’s Young’s modulus ((E)) and Poisson’s ratio ((\nu)). The formula for the shear modulus is as follows:

\[ G = \frac{E}{2(1 + \nu)} \]

Knowing the values of Young’s modulus and Poisson’s ratio of a material, this formula enables accurate determination of the shear modulus.

Deriving the Shear Modulus Formula

To derive the formula for shear modulus, we start with the basic equation involving (G), (E) and, (ν) i.e. Poission’ ratios. The main criticalities are to comprehend these mechanical characteristics as they apply on isotropic materials.

1. Understanding Stress and Strain: Shear Modulus is how a material resists shearing stress resulting to planar deformation while Young’s Modulus concern with longitudinal stress and strain whereas Poisson Ratio refers to proportional lateral strain to axial strain.
2. Hooke’s Law for Isotropic Materials: For isotropic materials which have equal properties in all directions Hooke’s law applies in three dimensions. In general terms, τ= Gγ defines a linear relationship between shear stress (τ) and shear strain ( γ).
3. Relationship between Young’s Modulus and Shear Modulus: For isotropic materials, one can obtain the relationship between Shear Modulus (G), Young’s Modulus (E) and Poisons Ratio (v) from generalized Hooke’s law. Starting from the elasticity tensor considering force balance equations among others will lead us to simple equations whereby: [ G = \frac{E}{2(1 + \nu)} ]

4. Simplification and Assumptions: This derivation has been made under assumption that material is isotropic and its linearly elastic behavior which implies that within elastic limit of material stresses are directly proportional to strains.

Explaining Key Terms in the Formula

1. Young’s Modulus (\(E\)):Young’s Modulus The stiffness of a solid material is measured by Young’s modulus. It is defined as the ratio of tensile stress to tensile strain and characterized by elastic properties for a substance. This tells how much a certain material will deform when subjected to loading. This means that when Young’s modulus is high, the material will not deform much under stress.
2. Shear Modulus (\(G\)):Shear Modulus Shear modulus also known as modulus of rigidity measures shear stress which is parallel forces in the materials. Shear stress divided by corresponding shear strain is termed as shear modulus, which indicates how a given material deforms when the applied forces are in opposite directions to each other thus showing ability to resist shape changes.
3. Poisson’s Ratio (\(\nu\)):Poisson’s Ratio Poisson’s ratio defines a relationship between transverse and axial strains during deformation in the direction perpendicular to the force application. When stretched, materials generally become thinner at right angles to their length, and Poisson’s ratio helps quantify this effect. For nearly incompressible materials, Poisson’s ratio would be about 0.5.

How is Shear Modulus Related to Other Elastic Moduli?

Shear modulus (G) is closely tied to Young’s modulus (E) and Poisson’s ratio ((\nu)). For isotropic materials, mathematically, they can be expressed in the form. The formula most frequently used to relate these moduli is as follows:

\[ G = \frac{E}{2(1 + \nu)} \]

The above equation reveals that shear modulus depends on both young’s modular and Poisson’s ratio. What this means is that by having a knowledge of two out of these three moduli allows for calculation of the third which gives an inclusive description of a material under different types of forces.

Shear Modulus vs. Modulus of Elasticity

Shear modulus (G) and Modulus of Elasticity/Young’s Modulus (E) are intrinsic properties which characterize how a given material gets deformed under stress conditions. Although Young’s modulus determines how stiff a material is under tensile or compressive stress, shear modulus measures stiffness in shear. This is why Young’s Modulus represents the ability to elongate body while Shear Modulus relates to its resistance for deformation.

Young’s modulus is usually higher than shear modulus because it requires more force to stretch or compress a material than it does to shear one. The relationship between these two moduli for isotropic materials lies in the formula:

[ G = \frac{E}{2(1 + \nu)} ]

Thus, if you have any two of these three quantities you will be able to determine the third one. In practice, engineers usually rely upon them when selecting proper materials for various applications so that structures or products designed would comply with required mechanical performance standards.

Understanding Bulk Modulus

K (bulk modulus) is another fundamental elastic property that quantifies how a material resists uniform compression. It expresses the incompresibility of a substance under pressure. Like Young’s modulus (E) and shear modulus (G), bulk modulus is critical for understanding all aspects of an elastic material.

Mathematically, the bulk modulus can be defined as follows:

[ K = -V \frac{dP}{dV} ]

Where V is initial volume, dP is change in pressure and dV is change in volume.

The bulk modulus indicates how an isotropic pressure causes changes in the shape of materials and helps to determine their compressibility. In general, materials with larger bulk moduli are less compressible than others and resist uniform changes in pressure more effectively. Conversely, those with lower values are easily compressed.

In practice, the bulk modulus plays a vital role when it comes to understanding and predicting behavior of materials under high pressures such as deep-sea or high-altitude settings. The bulk modulus; together with Young’s and shear moduli respectively used by engineers and scientists help select appropriate materials that guarantee structures’ safety as well as best performance under given circumstances.

Interrelation with Modulus of Rigidity

Shear modulus (G), or modulus of rigidity, characterizes how a material deforms when subjected to forces in parallel to its surface. This element, alongside Young’s and Bulk moduli, is needed for the determination of the complete elastic properties of any material.

Mathematical relationships show how these moduli relate. For example, one that frequently arises connects Young’s modulus, shear modulus and Poisson’s ratio (ν):

[ E = 2G(1 + \nu) ]

Another way to express relationship between bulk modulus and the other two can be put as:

[ K = \frac{E}{3(1 – 2\nu)} ]

Such connections are important for engineers or material scientists because they enable them to obtain one modulus if values of others are known. For instance, knowing the shear modulus and Poisson’s ratio allows one to calculate Young’s modulus thus providing an insight into a material’s elasticity. These dependencies help select appropriate materials by ensuring that their mechanical demands are met exactly for various applications. Therefore, understanding this association between such moduli results in efficient engineering of structures and products under specific conditions.

How to Find Shear Modulus of Different Materials?

Different procedures are employed in determining the shear modulus (G) of materials. The experimental way deals with mechanical tests that can be executed through torsion tests such as twisting a cylindrical specimen until it deforms. Then, the relationship between applied torque and angle of twist is used to find the shear modulus based on mathematical expression:

[ G = \frac{\tau}{\gamma} ]

where ( \tau ) represents the applied shear stress and ( \gamma ) represents shear strain.

Another way of obtaining shear modulus is to indirectly calculate it if other mechanical properties such as Young’s modulus (E), Poisson’s ratio (ν), etc., are given. By using the following formula:

[ G = \frac{E}{2(1 + \nu)} ]

engineers and scientists may find accurate values for this property.

For many common materials, like those found in material property databases and engineering handbooks, which streamline selection processes for various applications, values of shear modulus can be obtained easily.

Shear Modulus of Steel

The shear modulus is a fundamental mechanical property of steel that indicates its resistance to resisting shearing deformations. The range for steel shear modulus typically is about 75-85 GPa, the value depends on the type and composition of steel. This parameter is used in engineering calculations related to the performance of steel under shear stress.

To find out the exact value of shear modulus for a given kind of steel, engineers often consult material property databases or authoritative engineering handbooks. These sources are reputable and provide high-quality information that can be used in design and analysis with confidence.

For example, stainless steel has a typical shear modulus around 77 GPa, while structural steels like ASTM A36 almost have it equal to 79.3 GPa. Even slight deviations in these numbers may result in significant differences in the way materials behave when they are used for practical purposes.

A clear understanding of steel’s shear modulus assists engineers designing structures that will not fail due to shearing forces hence ensuring safety and integrity of an end product.

Shear Modulus of Aluminum

Comparing Shear Modulus of Metals

What Factors Affect Shear Modulus?

Shear modulus of materials is influenced by many things.

1. Atomic Structure: The way atoms are arranged and the kind of bonding between them strongly affects the shear modulus which in turn affects the type of material it is. Dense atomic structures and stronger bonding often result in higher values for shear modulus.
2. Temperature: When temperature rises, shear modulus usually decreases because vibrations increase causing forces keeping structures become weak.
3. Impurities and Alloying: There are impurities and alloying elements that can be added to cause alteration of the shear modulus. This will depend on whether they add or weaken the strength of the material depending on their nature and how they interact with metals.
4. Microstructure: For example, grain size distribution, phase relationships, or defects within a material’s microstructure control its shear modulus. Smaller grains sizes may increase its Shear Modulus due to increased grain boundary area inhibiting dislocation motion.
5. Anisotropy: Sometimes, anisotropy causes variation in measured along different crystal directions especially in crystals as well as composites.

Material Properties and Composition

It is, thus, important to note that the shear modulus of materials depends on their properties and composition. It is primarily determined by the atomic structure, temperature, impurities, microstructure, and anisotropy as previously explained. For example, metals which have a high shear modulus because of strong metallic bond usually have closely packed atomic structures. On the other hand polymers which are weaker in intermolecular forces due to long molecular chains tend to show low shear modulus values.

Shear Modulus can be significantly affected by temperature changes. The Shear Modulus will decrease when temperatures rise in metals and ceramics because of increased atomic vibrations. Conversely some polymers may have higher shear modulus at low temperatures due to less number of molecules that are mobile. Impurities or alloying elements can improve the Shear Modulus by introducing obstacles into dislocation motion hence strengthening the material.

Fine grained materials generally present higher shear modulus values since dislocations cannot move across grain boundaries so many times. Also anisotropic solids have different stress orientations along various crystallographic axes; for instance composites and crystals might display variable resistance to shearing forces depending on load directions applied. This information is vital for engineers and material scientists who want to design or choose materials with optimum performance under specific loading circumstances.

Temperature and Environmental Conditions

Material mechanical properties, including shear modulus is affected by temperature and environmental conditions. The following effects are examined based on the latest sources:

1. Temperature Influence: Generally, with increasing temperature, the shear modulus of metals and ceramics decreases due to increased atomic vibrations that help in sliding of atomic planes while at low temperature reduced atomic movement further make material stiffer. However polymers behave differently, becoming more rigid at lower temperatures because molecular movement decreases or flexible when heated up.
2. Environmental Effects: In addition to that, there are other factors such as humidity, chemical action and ultra-violet radiations which have a direct impact on materials shear modulus as well as their general mechanical properties. For example the absorption of moisture may weaken some polymers through interference with intermolecular bonds while some metals corrode leading to loss of strength and hence shear elastic modulus.
3. Combined Influence: Temperature together with environmental conditions must be understood together. A combination of high temperatures and corrosive atmospheres can result to rapid material degradation. For example industrial applications operating under high temperatures require materials selection based on both thermal stability and resistance to attack from environmentals.

Stress and Strain Behavior

Stress and strain are basic principles in material mechanics. Stress is a measure of the internal force per area within a material, usually expressed in Pascals (Pa) or pounds per square inch (psi). When a body experiences an external force, it deforms and this deformation is called strain. Strain is given as a dimensionless quantity that explains how much a certain stress has changed the shape or size of objects.

Explicitly, stress can be classified into several types, which include tensile stress (stretching), compressive stress (squeezing), and shear stress (sliding layers). Similarly, strain refers to the various types of deformations that occur. A significant element in comprehending these conditions is undertaking the task of plotting a graph showing how materials behave under tension called the stress-strain curve. The initial part on this chart denotes its linear nature – here the substance will regain its original form when unloaded. This part’s gradient defines its stiffness — also known as Young’s modulus.

After elastic limit would have been exceeded, plastic region would follow where permanent deformation occurs. Key points on the curve are yield strength which shows transition from elastic to plastic behavior and ultimate tensile strength (UTS) representing maximum stress at which necking occurs before eventual fracture. Such behaviors must be understood for proper selection and design of different engineering applications so that they do not fail under imposed loads.

Frequently Asked Questions (FAQs)

Q: What is the shear modulus and why is it important?

A: The shear modulus, also known as the modulus of rigidity, is a measure of a material’s rigidity and resistance to deformation under shear stress. It is a crucial parameter in mechanical engineering and materials science, often used to determine the mechanical threshold stress and shear stiffness of a material.

Q: How do you perform a shear modulus calculation?

A: A shear modulus calculation typically involves determining the ratio of shear stress to shear strain in a material. The shear modulus equation is: g = τ / γ, where g is the shear modulus, τ is the shear stress, and γ is the shear strain.

Q: What factors affect the shear modulus of a material?

A: The shear modulus, or modulus of a material, can be influenced by several factors including the material’s composition, temperature, and internal structure. For example, materials with a higher density or stronger atomic bonding will generally have a higher shear modulus.

Q: How is the shear modulus related to other mechanical properties?

A: The shear modulus is related to other mechanical properties such as Young’s modulus and Poisson’s ratio. Together, these properties help describe the linear elastic behavior of materials under different types of stress and strain conditions.

Q: Can you explain the relationship between shear modulus and Young’s modulus?

A: Yes, the shear modulus and Young’s modulus are both measures of a material’s elasticity. While the shear modulus is a measure of resistance to deformation under shear stress, Young’s modulus describes the material’s stiffness under tensile stress. Both moduli are integral in understanding the rigidity of a material.

Q: What is the significance of a low shear modulus?

A: A low shear modulus indicates that the material has a relatively low resistance to deformation under shear stress. This can mean the material is more flexible or ductile, which may be desirable or undesirable depending on the application. For instance, a low shear modulus is one characteristic of materials that are more prone to shear deformation.

Q: How can I find the shear modulus of a specific material?

A: To find the shear modulus of a specific material, you can refer to published material property databases or perform experimental tests to measure the shear stress and shear strain. Additionally, some materials’ shear modulus can be calculated using relationships with other known properties such as Young’s modulus and Poisson’s ratio.

Q: Are there different models for calculating shear modulus?

A: Yes, there are different shear modulus models depending on the material and the specific conditions under which you are performing the shear modulus calculation. These models can include theoretical approaches, empirical formulas, and finite element analysis.

Q: What is the typical unit used for measuring shear modulus?

A: The typical units for measuring shear modulus are Pascals (Pa) in the International System of Units (SI). Other common units may include gigapascals (GPa) or pounds per square inch (psi) depending on the system of units being used.

Q: Can shear modulus be used to determine the mechanical threshold stress of a material?

A: Yes, the shear modulus can be used along with other mechanical properties to determine the mechanical threshold stress of a material. This threshold signals the point beyond which the material will undergo irreversible deformation.
