The Ultimate Guide to Sand Cast: Advantages and Disadvantages Explained

For centuries, sand casting has been one of the most adaptable and universal methods for making things. A mold is made from a mixture of sand and then filled with molten metal to create complex metal objects. This manual will look at the strengths and weaknesses of sand casting in order to give an overall picture about it. Whether you are a professional in the field or just starting out as an engineer, this article can be beneficial for everyone who wants some knowledge on basic manufacturing processes such as sand casting along with its advantages and disadvantages.

What is Sand Casting and How Does It Work?

Sand casting is a process of metal casting in which sand is used for making molds. The first step involves creating a pattern, which is an exact copy of the final product to be produced. Afterwards, this pattern is placed inside a container and surrounded with sand. When compacted tightly around the template, it leaves an imprint in form of hollow space similar to that of desired end product. After that liquid metal comes into play by being poured into created cavity; after solidification and cooling down the resulting castings are obtained simply by breaking off sands’ outer layer covering them up until now – these can be called raw castings or unfinished ones as well since they still need some work done on them before considering finished goods ready for use. This technique permits manufacturing items with intricate shapes or those having many details impossible to achieve through different methods

Basics of the Sand Casting Process

In order to create high-quality metal parts, the sand casting process must go through a few main steps:

Pattern Creation: A pattern is made, which is an exact copy of the final product. Patterns can be created out of many different materials such as wood, metal or plastic and are used to shape the mold.

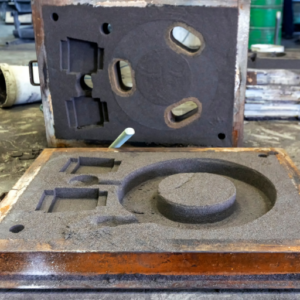

Molding: The pattern is put in a molding box and packed tightly around with special sand mixture. This sand is usually mixed with clay and water for better cohesion.
Removal of the Pattern: When the sand sets up solidly enough, the pattern is taken out gently leaving behind a cavity in its shape.
Core Making (if needed): For parts having internal recesses or intricate shapes, cores made up of sand are formed and placed within the mold.
Pouring: Metal in its molten state is heated to certain temperature and then poured into space left by pattern. It fills this space taking its form.
Cooling: Molten metal cools down until it solidifies inside mold. Cooling time depends on size as well as complexity of casting involved.
Shakeout: Molten metal cools down until it solidifies inside mold. Cooling time depends on size as well as complexity of casting involved.
Cleaning and Finishing: Newly cast part undergoes cleaning process to get rid of any remaining sands as well other impurities. Further finishing operations like grinding; polishing or machining may be done so that desired surface finish along dimensional accuracy can be achieved.

Sand casting allows for complex intricate metal components production with high precision and adaptivity if one follows these steps.

Types of Sand Used in Sand Casting

Sand casting is performed with different kinds of sands, each having distinctive properties according to the needs of the casting process. The most common types of sand are:

Green Sand: This type of sand is made up of silica sand, clay and water. It is called ‘green’ because it remains moist during moulding. Green sand is highly flexible and cheap which makes it suitable for many applications.
Chromite Sand: Chromite sand possesses high thermal conductivity and resistance to thermal shock that’s why it is used for casting metals with high melting points. Moreover, it also helps in reducing casting defects and is preferable for parts requiring tight dimensional accuracy.
Resin Sand: This involves mixing sand with a resin binder which increases the strength and stability of the mold. Resin sands are good at creating cores or molds for high-quality intricate castings especially when a smooth surface finish is needed.

These sands are chosen depending on what metal will be casted, desired surface finish as well as budgetary constraints set forth by the casting project itself.

Steps Involved in Sand Casting

The sand casting process is a set of steps that help create intricate metal parts:

Pattern Making: To make the mold cavity, an imitation of the final product called pattern is formed. Wood, metal, plastic or other materials can be used in making patterns.
Mold and Core Making: The pattern is positioned in a molding box and surrounded by sand mixed with binder which forms the mold. If there needs to be hollow portions within the casting then these are made using cores which consist of sand mixed with binders too.
Melting and Pouring: In order for casting to take place, metal has first to be melted down within a furnace before being poured carefully into the already formed moulds thereby ensuring all spaces are filled up as well capturing even small details engrained on them.
Cooling: It is left to cool and solidify within this particular shape where it should take based on its size together with what it has been made from.
Shakeout: After solidifying, one shakes out these pieces by removing them from their molds through shaking hence getting rid of sands and reusing them if possible.
Cleaning and Finishing: Cleaning entails removal of scale or excess metals usually done through grinding but sometimes requires polishing so as achieve desired surface finish while dimensional accuracy may demand machining additionally.
Inspection: Final castings undergo rigorous inspections aimed at quality assurance whereby they are checked against specifications thus ensuring project requirements have been met.

These processes collectively ensure effective production of metal castings that are both intricate in design and accurate in dimension.

What are the Advantages of Sand Casting?

Sand casting has a lot of benefits that have helped it become widely used in manufacturing. They are as follows:

Cost-Effective: Sand casting is cheap when compared with other methods, particularly for low-volume production or custom parts.
Versatility: It can produce many different shapes and sizes ranging from small intricate units to large-scale ones.
Material Flexibility: This process can work with almost any metal alloy giving wide options for materials.
Quick Turnaround: Patterns and molds used in sand casting are usually made fast thereby enabling quick production cycles.
Recyclability: The sand employed in this technique may be recycled most times which helps in sustainability efforts towards the environment.
Complex Geometries: With some other casting processes, it may not be possible to form complex internal and external features but this is allowed in sand casting.

Cost-Effective Nature

The most cost-effective metal casting method is sand casting. It is perfect for short runs or custom production because it takes the least amount of money to set up as compared to other methods that use metals in making molds. Moreover, this system can work with any type of metal alloy hence eliminating the need for costly special materials. Making patterns and molds are easy tasks which leads to faster production at lower costs thus making it more efficient in terms of time and resources than other techniques.

Flexibility in Material Choices

One of the main advantages of sand casting over other techniques is its ability to work with a wide range materials. This process can handle nearly all types of metal alloys like iron, steel, aluminum, bronze and brass among others. This quality makes it suitable for different sectors including automotive and aerospace industries because they deal with various combinations of these elements during their operations. Additionally, when using different metals one can have mechanical properties tailored according to what he wants i.e., tensile strength or hardness depending on what is required by specific projects undertaken under this technique. Hence such a flexible approach not only meets different needs but also ensures that parts are optimized for their applications.

Suitable for Complex Shapes

Sand casting is the best choice for creating highly complex shapes. It can create intricate geometries that are difficult or even impossible to achieve by other casting methods. This process allows incorporating various design elements such as undercuts, hollow sections and intricate patterns. The reason behind this adaptability lies mainly in the fact that sand molds can be easily shaped and manipulated until they meet exact specifications. Therefore, it serves well in those industries where customized detailed parts are required because it provides both precision and flexibility of fabrication.

Short Lead Times Compared to Other Casting Processes

Another advantage of sand casting is its relatively short time required to complete a manufacturing cycle compared with alternative techniques. According to most reputable sources, this speediness results from simplicity and rapidity of mold making which takes less time than creation of more complicated molds used in investment or die casting for example. Quick production of molds together with easy melting and pouring processes enable accelerated manufacturing cycles. Thus sand casting becomes beneficial when there is need for fast turnaround while maintaining high quality standards. That’s why it often happens to be the only method available for coping with tight production schedules and urgent delivery demands too.

What are the Disadvantages of Sand Casting?

Sand casting, despite its numerous advantages, has some drawbacks. One of the main disadvantages is the surface finish which tends to be rougher when compared with other methods such as investment casting or die casting. This often requires additional machining operations or finishing processes in order to achieve desired quality of surface. Besides, lower dimensional accuracy may be realized through sand casting thereby resulting into variations at different parts of the final product. Another thing is that the process usually yields porous materials hence affecting mechanical properties and strength of cast components negatively too. Finally, labor intensity associated with making molds by skilled workers may lead to increased costs for labour as well as reduced efficiency throughout production.

Dimensional Accuracy Limitations

According to experts in the field of sand casting technology, dimensional accuracy is frequently compromised because this method uses a mold made from sand. During the process of making a mold and pouring metal into it, sand grains tend to shift slightly thus causing small changes in final dimensions after cooling down period has elapsed. This means that precision parts cannot be produced through sand casting due to these inherent variations among them while other types may easily allow for their manufacture within specified tolerances.

Porosity Defects in Cast Parts

Porosity in castings can greatly impact mechanical properties and final product integrity. In accordance with important references, they are caused by trapped air or shrinkage during cooling. This creates little holes inside the material which makes it weak thereby prone to failure when stressed. There are three main types of porosities namely gas porosity, shrinkage porosity and micro porosity. One way of preventing these defects is by sufficiently degassing metals before pouring them and using proper gating systems; designers also take into account possible porosity by applying safety factors or choosing materials least likely to suffer from this problem. Where mechanical toughness is critical non-destructive testing methods like X-ray or ultrasonic inspection should be used to detect and rectify any pore prior completion.

Surface Finish Quality

Surface quality finishing on casted parts serves functional as well as aesthetic purposes. Top sources concurred that achieving a good surface finish depends on several things such as; type of casting process employed, mold quality and post casting treatments among others involve in the process chain. In sand casting for instance, smoothness of the finished piece may be affected largely by grain size and composition of the sand used during production stage; finer grains yields relatively smoother surfaces while coarser ones gives rise to rough textures.Furthermore enhanced finishes usually require additional machining or polishing operations which removes blemishes leaving behind a very smooth surface hence shot blasting can be done followed by sanding before subjecting it under coating procedures so that maximum results may achieved at last . However these parameters should not only improve appearance but also reduce frictional resistance as well wear hence leading into better mechanical fitments performance especially within moving components applied with forces against each other during operation.

How Does Sand Casting Compare to Die Casting?

Sand casting and die casting are two common methods used in the metal casting industry, each with its own advantages and disadvantages.

Sand Casting

More often than not, it is less expensive to cast in sand when production runs are short because of its adaptability, which allows for use with both ferrous and non-ferrous metals among other materials. In addition, this technique can be employed to create large complicated shapes. Normally rougher surface finish quality is achieved in a sand cast part compared to other methods such as investment casting thus requiring additional machining operations before achieving desired levels of smoothness.

Die Casting

On the contrary, die casting suits high volume production best since it can make complex precision parts having excellent dimensional accuracy and better finish surface quality faster. However, this process involves higher initial costs on tools but once they are paid off only material and labor costs will be incurred during subsequent manufacturing cycles. Aluminum zinc magnesium alloys are most commonly used with this method though nonferrous metals may also work well depending on their specific applications.

To sum up, whether sand or die should be chosen mainly depends on factors like required number of units produced per year; type(s)of metallic input needed; and final product’s appearance (finishing).

Main Differences Between Sand Casting and Die Casting

Production Volume: For low to medium quantity production runs, sand casting is more appropriate; while die casting is best for high volume production due to faster cycle times.
Tooling Costs: Lower start-up tooling cost is incurred with sand casting, hence it is cost-effective for short runs or prototype development. With reduced per-part cost because of larger production volumes, investment in tooling becomes higher initially but more economical over time for die casting.
Material Range: Sand casting can handle a wide range of ferrous and non-ferrous metals. On the other hand, die casting generally deals only with non ferrous metals like aluminum, zinc and magnesium.
Surface Finish and Precision: Die castings have better surface finish and closer dimensional tolerances which may eliminate need for further machining compared to sand castings. Sand castings on the other hand usually leave rougher surfaces that require additional machining operations in order to achieve desired finish.
Part Complexity and Size: Sand casting is good at producing large complex parts having intricate internal features. It can also make such parts that are impossible by any other method. Die casting too has ability to create complex shapes but it is mostly suitable for smaller sizes with tight tolerances required between them and surrounding components.

In summary; one must take into account various factors when deciding between these two processes including the number or quantities produced, cost restrictions imposed upon material types used depending upon desired surface finish as well complexity involved during manufacture stage etcetera.

Advantages of Each Casting Method

Advantages of Sand Casting:

Cost-Effectiveness for Low Volumes: The low cost of tooling at the beginning makes it perfect for prototypes and short runs.
Material Versatility: It can work with many types of metals, ferrous and non-ferrous alike; this means that there is plenty of choice when it comes to materials used during production.
Capability to Produce Large and Complex Parts: It’s very good at manufacturing intricate designs which are big in size and may not be possible by other methods.
Reduced Lead Times: Compared to other complex casting processes, this one is much quicker in terms of setup; therefore reducing lead times during initial stages.

Advantages of Die Casting:

High Production Efficiency: This method is known for its high-speed cycle time thus making it highly efficient especially for large quantities where per-part costs need to be brought down significantly.
Superior Surface Finish and Precision: The quality delivered by such a process as this ensures that additional machining or finishing operations may not be necessary since surface perfection and dimensional accuracy are already achieved.
High Strength and Quality: Parts manufactured through die casting often have great tensile strength because the cooling period is very short which eliminates any chances of porousness among other defects occurring.
Capability for Thin Walls and Fine Details: Components having close tolerances along with fine features can be produced using thin wall sections hence making die casting ideal for such applications.

In conclusion, both sand casting and die casting have their own sets of advantages, and the choice between them should be based on specific project requirements such as production volume, material selection, part complexity, and cost constraints.

When to Use Sand Casting vs. Die Casting

The decision of whether to use sand casting or die casting is usually based on what a project requires. Typically, sand casting is used for larger parts, lower production volumes, or complex geometries. It can work with different metals and alloys hence applicable in a wide range of uses. Further, small runs can be cost-effective with sand casting because of cheaper molds while also being suitable for non-demanding designs in terms of precision.

On the other hand, where high-speed mass production is needed most efficiently possible then die-casting comes into play differently from surface finish; part strength and accuracy are its strengths since it produces thin-wall sections having fine features at high dimensional accuracy within close tolerances with smooth finishes Die-casting saves time during manufacturing by eliminating secondary machining operations such as drilling which reduces cost per part when quantities produced are large enough notwithstanding high initial tooling costs comparatively.

To sum up, if you need flexibility together with low volume but still want to maintain affordability especially when dealing with bigger intricate components choose sand casting over diecasting otherwise go for die-casting whenever you require accurate strong small-sized items produced in large numbers very fast.

What Materials are Used in the Sand Casting Process?

The sand casting process has the ability to adapt to many different types of metals and alloys. Some commonly used materials are as follows:

Aluminum: Lightweight with good corrosion resistance, aluminium is a popular choice for automotive and aerospace applications.
Cast Iron: Highly wear resistant and easily machined, cast iron finds use in engine blocks and other machinery parts.
Steel: High tensile strength combined with durability make steel suitable for heavy-duty structures and industrial components.
Brass and Bronze: These copper alloys offer attractive appearance plus rust resistance which makes them perfect for decorative items and plumbing fittings.
Magnesium: Exceptional strength-to-weight ratio; used where weight reduction is critical such as in the aerospace industry.

These materials have different properties that can be utilized during sand casting so it covers wide range of uses.

Common Metal Alloys Used in Sand Casting

Multiple types of metal alloys can be used in sand casting, with each type having different properties and benefits. Below are some frequently employed metal alloys for sand casting as per the top sources:

Aluminum Alloys: These are preferred because they’re light in weight and have good thermal conductivity. They’re often used to make parts for cars, aerospace components, and many consumer goods.
Cast Iron Alloys: Cast iron is known for its high fluidity, wear resistance and castability; therefore it is widely used in manufacturing engine blocks, pipes etc.
Steel Alloys: Steel offers excellent tensile strength as well as durability; hence steel alloys are chosen for heavy duty applications like construction equipment, industrial machinery or military hardware.

Every one of these metals has its own strengths which suit different applications during the process of sand casting.

Properties of Green Sand and Dry Sand

Different casting applications are suited to green sand and dry sand because they each have unique properties.

Green Sand:

Composition: Usually made of silica sand, clay, water and sometimes organic additives.
Moisture Content: Contains moisture which helps the particles of sand bind together.
Plasticity: Highly plastic and can easily be molded around a pattern.
Reusability: Can be used many times over after simple conditioning.
Cooling Rate: Gives fast cooling rates suitable for smaller castings with finer details.

Dry Sand:

Composition: Made from silica sand and a binder but all moisture is baked out of it before use by heating in an oven.
Strength: Because there is no water present dry sands have higher strengths than those containing moisture such as green sands do.
Dimensional Accuracy: Better dimensional stability and accuracy hence it is good for larger complicated casts.
Surface Finish: Gives smoother surface finishes on cast parts.
Reuse: May be difficult to reuse because binders breakdown after being baked during preparation which makes them lose their adhesive properties.

Both green sand and dry sand are necessary for casting; therefore, they should not be overlooked or dismissed. They have their places in casting depending on what type of casting is being done as well as the desired final product attributes.

Refractory Materials for Sand Molds

When casting metals with high melting points, the construction of sand molds cannot do without refractory materials. These are materials that can resist very high temperatures while still maintaining their integrity as a mold. Below are some examples of the commonly used refractory materials in sand molding:

Silica Sand: This is the most conventional type which possesses a high melting point and excellent thermal shock resistance. It is also relatively cheap and therefore widely applied in foundries.
Zircon Sand: Compared to silica sands, zircon has more superior refractoriness and conductivity properties. Additionally, it rarely allows metal infiltration and thus produces fine finishes on surfaces during precision casting applications.
Chromite Sand: For casting ferrous as well as non-ferrous metals where there may be significant thermal conductivity requirements together with shock resistance needs; this kind would be suitable because it offers good dimensional stability apart from helping achieve complex geometries having detailed finishes on surfaces.

Every single one of these refractories brings something different to the table so that all kinds of metal parts can be made through various sand casting processes at higher quality levels.

How to Improve the Quality of Sand Cast Parts?

Here are a few practices that can be used to improve the quality of sand castings:

Optimizing Mold Design: Make sure that there is enough allowance for shrinkage in the mold design and also provide for accurate gating systems which will help in smooth flow of metal thus reducing turbulence and defects.
Controlling Sand Quality: The sand should be clean and have fine grains without impurities. Regular checking and conditioning should be done so as to keep it at the right moisture content level for permeability optimization.
Temperature Control: Maintain precise metal pouring temperatures; overheating should be avoided as this would lead to gas porosity thereby weakening or even breaking up the mould.
Proper Mold Preparation: Apply suitable coatings on molds that will improve surface finishing while preventing metal penetration or sticking together. Moulds must therefore not only packed sufficiently but also compacted properly since failure may occur due collapse or deformity during casting process.
Utilizing Advanced Refractory Materials: Thermal stability is paramount hence selection of appropriate refractories depending with type metals being cast should considered besides minimizing thermal shock risks involved.

Such foundry techniques can greatly increase both quality and uniformity among various components produced through sand casting method thus leading higher performance levels coupled with lower manufacturing costs overall.

Best Practices for Sand Molding

Bettering the quality of final cast parts adheres to proper sand molding practices. Here are some of the best strategies from leading industry resources:

Consistent Sand Composition: Make sure the mixture has uniform properties like grain size, clay content, and moisture levels. Test these variables often so as not to compromise mold quality.
Use of Proper Binders and Additives: Use binders and additives that enhance strength and integrity of sand molds. Proper choice of binder can help improve stability while reducing defects in cast parts.
Optimal Sand Mixing and Conditioning: Achieve evenness in mixing by adopting efficient methods coupled with optimum conditioning measures during preparation. This is important because it determines such properties of sand molds as compressive strength and permeability.
Application of Mold Coatings: Apply high-performance coatings for better surface finishing as well as prevention against metal penetration. Coatings enable one to achieve smoother finishes on castings thereby saving much time which could have been spent on finishing operations.
Efficient Mold Handling and Storage: Handle carefully the ready-to-use sand moulds in order not to distort or damage them. Right handling guarantees that moulds will retain their shapes throughout all stages involved in casting.

For reliable products out of sand moulding process, foundries should take into account these top practices which can also lead to improved performance and satisfaction among customers.

Optimizing the Gating System

According to some of the best in the industry, here are a few top strategies when it comes to optimizing the gating system:

Designing Proper Gating System Geometry: The design of gating system geometry should be such that it allows for smooth metal flow with minimal turbulence oxidation or inclusion defects. This can be achieved by optimizing sprue size and shape as well as runner sizes and gate locations.
Using Effective Filtration Methods: One way to clean up molten metals is through filtration media which captures impurities and inclusions before they get into molds hence resulting high quality castings without much troublesomeness during finishing operations.
Controlling Pouring Parameters: It is important to note that cold shuts or misruns may occur if pouring temperatures are not maintained at constant levels throughout the entire process; similarly, rates too high can lead to same issues mentioned above underlining the need for proper control over these variables so that everything goes on smoothly until we achieve efficient defect free casting process.

Those were a few among many other methods which have been found very useful by different industries leaders over time.

Managing Molten Metal during Casting

Casting management of the molten metal is necessary for getting good quality products. These are some of the recommended methods according to leading industry sources:

Temperature Control: It is crucial to keep the right temperature for the liquid metal. The precision should be such that there is no shrinkage or porosity problem, among other defects associated with casting a part. Monitoring can be done using advanced tools which can detect if it goes beyond or below certain degrees.
Degassing: When gases get trapped within a liquid metal, degassing comes in handy. Using inert gas purging method or vacuuming all help in reducing gas content significantly thereby lowering porosity levels while also enhancing cast product soundness.
Fluxing: Fluxes are employed to clean up impurities from molten metals by eliminating oxides and other undesired materials. This keeps them pure and prevents any faults during final casting.
Proper Ladle Practice: Proper pre-heating as well lining of ladles reduces heat loss thus avoiding contamination with dirt particles which could affect quality at pouring stage where it might not stick properly onto mold surfaces due to low temperatures caused by unheated ladle walls.Proper heating and lining of ladles prevent thermal losses and help in maintaining cleanliness of liquid iron before being poured into moulds thereby ensuring uniformity in terms of temperature throughout this procedure.

Integration these guidelines will enable foundries to effectively deal with their liquid metals resulting into better qualities, higher performances so that customers are satisfied more than ever before.

Frequently Asked Questions (FAQs)

Q: What is sand casting?

A: Sand casting is a versatile method of casting that uses a sand casting mold to create cast products. The process involves creating a cavity in the sand, into which molten metal is poured. The sand used to create the mold can be green sand molding or other types, making it one of the most common casting processes.

Q: What are the advantages and disadvantages of sand casting?

A: The advantages of sand casting include its ability to produce a wide range of metal castings, low cost, and flexibility in terms of design and size. However, the disadvantages include a rough surface finish and the requirement for additional machining. Sand casting also tends to be slower than some other casting methods.

Q: How does sand casting work?

A: In sand casting, molding sand is packed around a pattern to form a mold cavity. The pattern is removed, leaving a cavity in the sand that mimics the shape of the desired part. Molten metal is then poured into this cavity. After the metal solidifies, the sand is broken away to reveal the cast product.

Q: What materials can be used for sand casting?

A: Various materials can be used for sand casting, including aluminium, brass, bronze, steel, iron, and other metal alloys. The choice of casting materials depends on the specific application and desired properties of the final product.

Q: What is the difference between die casting and sand casting?

A: The difference between die casting and sand casting lies in the molds used and the production process. Die casting uses permanent metal molds and is best for high-volume production, while sand casting uses expendable sand molds and is more suited for lower volume production and larger castings. Sand casting also allows for more complex shapes and larger sizes.

Q: What is green sand molding in sand casting?

A: Green sand molding is a specific type of sand casting that uses wet sand, or “green sand,” as the mold material. This type of molding sand contains water and organic binders, making it pliable yet firm enough to retain its shape during the casting process.

Q: What are some common applications of sand casting?

A: Sand casting is used to create a variety of metal parts for industries such as automotive, aerospace, construction, and machinery. Examples include engine blocks, cylinder heads, pump housings, and various structural components. Sand casting is preferred for parts that require complex shapes and large dimensions.

Q: How does one ensure the quality of sand cast products?

A: Quality in sand cast products is ensured through careful control of the sand casting work process, from mold preparation to metal pouring and cooling. Using high-quality molding sand and maintaining accurate patterns is crucial. Non-destructive testing and inspection methods are also used to identify any defects in the castings.

Q: Can sand casting be used for prototyping?

A: Yes, sand casting is often used for prototyping due to its flexibility and low cost. It allows for quick iterations and changes in design, making it suitable for developmental phases before moving to mass production.
