The Ultimate Guide to Understanding Your 3D Printer Gantry System

Gantry system is the most critical part in 3D printing that determines the accuracy of your prints. If you are a beginner with your first 3D printer or an experienced maker who wants to get the best out of his setup, it is crucial for you to know how your printer’s gantry system works, as this understanding can influence your printing results greatly. This guide attempts to elucidate the complexity of 3D printer gantries and includes everything from simple mechanics to advanced calibration hints. We will look into the various types of gantry systems, their advantages and disadvantages and effect on your 3D print projects. After going through this article, you will be able to understand how a gantry system operates and takes care of it so that it can work efficiently. Let us delve into the world of your 3D printer.

What is a Gantry in a 3D Printer?

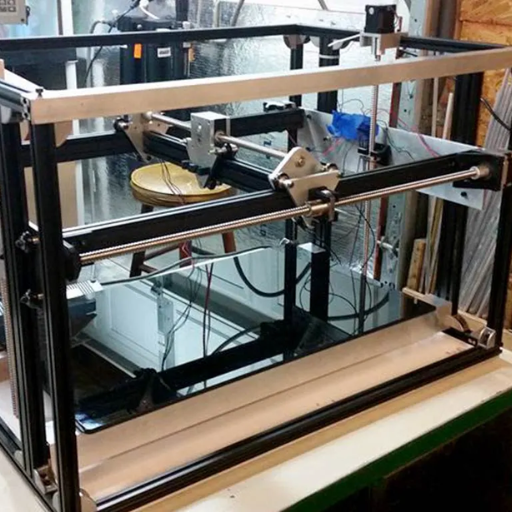

3D Printer Gantry
Image source: https://all3dp.com/

A Gantry is what supports and moves a printer’s extruder or print head in a 3d printer. It usually comprises a set of rails, belts, stepper motors etc., which control very precise positioning involved in layer deposition precisely as required. The resolution, speed and general quality of printed objects are hinged on the gantry system’s ability for movement along X, Y (and sometimes Z) axes.

Defining Gantry Systems in 3D Printing

Different types of 3D printing gantry systems are grouped into several categories each with its own characteristics and uses. The commonest ones include Cartesian, CoreXY, and Delta gantry systems. Simple and reliable cartesian gantry systems use linear motion along the X, Y, Z directions. The corexy system has a more advanced belt driven mechanism enabling faster movements and higher precision ideal for manufacturing more complex prints at a quicker pace. The three armed delta gantries offer fast accurate vertical movement that is helpful in large sized 3D printed objects. Knowing the mechanical distinctions of these systems will enable you select the right one for your specific printing needs therefore improving your 3D printing experience altogether.

Components of a 3D Printer Gantry

The function and performance of a 3D printer gantry depend on its components. These are some of the most common:

Rails and Rods: They act as the framework for the movement of print head or extruder, thereby ensuring stability and smoothness in motion in the X, Y and sometimes Z axes.
Stepper Motors: These precise motors determine how the gantry moves along all three axes. They are important for accurate placing and layering during printing.
Belts and Pulleys: Belts and pulleys, mostly as part of CoreXY systems, facilitate the transferal of movement from stepper motor to gantry hence enabling fast and exact movements.
Linear Bearings and Carriages: Components like these enable rails to be slid smoothly with no friction by providing a way for facilitating this kind of travel to the print head.
End Stops and Sensors: This is what sets up starting point calibration for gantry while also making sure that a print head will not move away from defined print area.
Frame: It’s a solid construction which keeps all main parts of gantry together thus ensuring steadiness during printing process with minimum vibrations.

Understanding these components helps you maintain your 3D printer’s gantry system effectively for high-quality prints that are reliable too.

How Does the Gantry Move?

The process of a 3D printer gantry’s movement is highly coordinated, and it involves several components. This movement is centered on stepper motors that convert electrical pulses into precise mechanical actions. These motors are coupled to the gantry through belts or lead screws, which provide motion along the defined axes. Rails and rods give direction for the gantry to move as linear bearings and carriages maintain it within a smooth and accurate path as they cause frictionlessness. Besides, end stops and sensors are vital in setting up the starting point of the gantry so that it never goes beyond its printing area. In this regard, comprehension about these mechanisms helps in optimizing performance of a gantry for producing high quality 3D prints.

How Does a Gantry System Work in 3D Printing?

In 3D printing, a gantry system is an arrangement of several mechanical and electronic components that enable precision movements of the print head throughout the designated build volume (print area). Stepper motors normally receive digital signals from a controller in form of electrical current pulses which sequentially translates them into individual step rotation to drive belts or lead screws that relay this motion to the gantries. Stable pathways are provided by rails and rods along which these canopies traverse while linear bearings together with carriages ensure there are no hitches as well as accurate movements. For instance, end stoppers and sensors define where beginning occurs as well as mark boundaries; thus they keep off demarcated spaces during such events like moving outside set priniting areas.This collection aside facilitates exact deposition of material resulting in fine quality three-dimensional prints produced.

The Role of Stepper Motors

Stepper motors are indispensable in 3D printing because they can accurately control the movement of the print head and build platform. This is achieved by converting electrical pulses into discrete mechanical steps. In contrast with traditional motors, stepper motors move through fixed increments that permit accurate positioning without requiring feedback systems. For example, when it comes to 3D printing, each layer must be placed down with precise accuracy to guarantee high-quality outputs. This is why stepper motors are also so reliable as to remain in position even when not powered up, hence providing another level of stability and consistency during the printing process.

Understanding Rail and Carriage Mechanisms

Rail and carriage mechanisms have fundamental roles in a 3D printer since they help smooth and precisely guide its movements. Usually these mechanisms encompass linear rails which are stiff tracks along which carriages run. Linear bearings inside the carriages ensure that there is minimal friction while allowing for precise motion of either the print head or build plate. Overall precision and accuracy of a printer depend on design and quality of its rails and carriages. By holding tight tolerances and enabling smooth travel, these mechanisms make possible detailed, high quality 3D prints creation.

Importance of Axes: X, Y, and Z

3D printing is highly dependent on three axes that are X, Y and Z as they delimit the three dimensional region over which the print head or build plate moves. The X-axis and Y-axis are in charge of horizontal movements with the X-axis normally handling left and right motion while Y-axis takes care of forward and backward motion. However, Z-axis manages vertical movement thereby allowing the print head or build platform to move up or down. Accurate arrangement of each layer during 3D printing is governed by preciseness on these axes; it is this precision that is required to produce detailed and high quality models. When working together along these three tridimensional axes, a 3D printer can achieve astonishingly accurate representations of complex geometries.

What to Consider When Choosing a 3D Printer with a Gantry System?

When you are picking out a 3D printer with gantry system, there are several key factors that need to be considered to make sure that it will fit your needs:

Build Volume: Evaluate the maximum build volume of the gantry system so as to determine the output size.
Stability and Rigidity: The materials and construction quality of a gantry system affect the accuracy of printed objects and its stability. Look for strength frames and high-grade linear guides.
Precision and Accuracy: Examine the technical specifications on how accurate movements can be moved by this gantry system. Detailed prints, resolutions depend on it pointblank.
Ease of Maintenance: Look at how easy or complicated it is to maintain such a gantry system. It’s those printers with easily accessible parts that save time later.
Compatibility with Materials: Make sure that filament type or resin type matches with the gantry systems you’re planning to use on them some printing materials serve well in certain types of these systems.
Software and Firmware: How simple are updates, support, use as they relate to software-firmware compatibility? These two things affect one another in relation to ease of use, updates, support.
Cost: Also ensure that you balance your requirements with cost because there is no need for spending too much money where quality is not delivered by choosing among features within your budget which give better return per investment towards a Gantry System

By considering these factors, you will be able to select a 3D printer having a gantry system which suits your requirement and application targets best possible way.

Evaluating Build Volume Constraints

As such, it is important to understand the constraints concerning build volume while examining the build volume limitations of a 3D printer with gantry system. Build volume determines how large individual components or items that can be printed.

For professional and industrial use, a larger build volume means that more parts can be produced in one print job thus reducing assembly requirements as well as ensuring structural integrity. On the other hand, if you are working with smaller parts or doing intricate prototyping, having a bigger build volume might not be as important. In addition to this, striking a balance between the size of your 3D printer’s build and other factors including positioning accuracy; material compatibility as well as the overall footprint will guarantee no unnecessary compromises are made in meeting your particular requirements.

Precision and Accuracy Expectations

To evaluate a 3D printer having a gantry system, precision and accuracy are crucial. In this case precision refers to the dimensional consistency of the printed parts while accuracy is how close the dimensions of a printed part are to its intended dimensions. Precision and accuracy are highly required in applications that require complicated designs like medical devices or aerospace components.

For optimal precision and accuracy, keep in mind these factors:

Resolution: Printers with higher resolutions can produce finer details and smoother surfaces. Typically, vertical resolution hinges on layer height whereby more accurate prints result from thinner layers.
Calibration and Maintenance: Regular calibration ensures that your 3D printer remains accurate over time; maintenance of gantry system also other components prevent inaccuracies which may be caused by wearing and tearing.
Environmental Factors: Print accuracy can be largely affected by stable environmental conditions like constant temperatures among others as it reduces material expansion or contraction over time.

These considerations will allow you to have realistic goals for your 3D printer’s precision and accuracy when completing specific projects.

Limitations of Gantry Systems

Although gantry systems have many merits in 3D printers, they also have a few limitations that should be noted.

Speed Constraints: Being very complex mechanically and requiring fine movements, the printer using gantry may have lower print speeds when compared to the other systems like Delta or CoreXY. This can ultimately lead to longer printing times especially for bulky and detailed projects.
Complexity and Cost: Gantry systems’ sophist design and construction usually results in higher production as well as maintenance costs. This might not go down well with users who are cost sensitive or with small businesses desiring pocket friendly 3D printing solutions.
Print Area Limitations: Generally, a gantry system has a small build volume which may limit the size of objects that can be printed. Other kinds of systems may provide better choices for application needing larger build areas.
Maintenance Requirements: To keep accuracy intact, regular calibration and maintenance is essential. Belts and rails usually experience tear and wear, hence continuous watching to avoid any errors during printing process is mandatory.
Vibration Sensitivity: There should not be any vibration during this process since it leads to inaccuracies on prints surfaces. In order to achieve high-quality prints from a gantry system, it must operate in stable environment free from vibrations.

By knowing these limits, users will easily choose if they need a gantry system for their particular 3D printing requirements; otherwise some alternatives can be found.

How to Maintain and Troubleshoot a Gantry System?

In order to achieve high performance and longevity, maintenance and troubleshooting of a gantry system comprise several essential steps.

Regular Maintenance:

Lubrication: Lubricate the rails and bearings routinely in order to reduce friction and wear.
Cleanliness: Use compressed air or a soft brush to keep the machine free from dust, debris, or any other residue that can affect its operation and accuracy.
Belt Tension: Regularly check the tension of belts making sure that they are not too tight or loose which influences print quality.
Alignment: Maintain precision and consistency in prints by verifying and adjusting alignment of gantry arms.
Firmware Updates: The latest improvements and bug fixes are realized when the machine’s firmware is kept up to date.

Troubleshooting:

Print Inaccuracies: Inspect belts for slackness or damage recalibrating if necessary when prints start showing inaccuracies.
Unusual Noises: Unusual noises may suggest mechanical problems like worn-out bearings or misaligned components. Replace faulty parts as required after identification.
Layer Shifting: Check for proper belt tension among other things if shifts occur during printing cycles.
Poor Print Quality: Rough surfaces, deformations can be caused by clogs; clean nozzle, inspect filament feeding process.
Error Codes: Manufacturer’s manual should be consulted for specific troubleshooting techniques to follow when error code appears on the system display.

These maintenance practices along with troubleshooting help users ensure their gantry systems function at their best while giving them consistent high-quality printouts.

Common Issues with Gantry Systems

Belt Wear and Tear: Belts in a gantry system can, over time, experience such deterioration as loosening or slackening, becoming frayed or even snapping. Regular checks of their condition and replacement on time can minimize this problem.
Calibration Drift: Consistent use may cause drifting or misalignment leading to inaccuracies in prints. The Gantry system should be periodically recalibrated so that is can remain accurate.
Motor Failures: Stepper motors used in the gantry system can wear out, overheat or develop electrical faults. Watching their performance and replacing defective motors keep operations from being interrupted.

Routine Maintenance Practices

Regular Cleaning: Ensure that all parts of the gantry system such as belts, pulleys and nozzle are maintained clean. Dust and debris collected in it may lead to performance problems eventually causing wear and tear.
Lubrication: Lubricate moving parts of the gantry system occasionally to reduce friction and avoid wear before time. Apply recommended lubricant from the manufacturer for best results.
Tightening Components: Regularly inspecting and tightening all screws, bolts, and connections within the gantry system is important. If components get loose they may cause misalignment hence low quality printing.
Calibration Checks: The accuracy of a gantry system can be sustained if routine calibration checks are done. These include bed leveling check, gantry alignment check and nozzle height check.
Firmware Updates: Make sure that firmware for the gantry system is updated when necessary. Performance boosts or bug fixes along with new features could be among what manufacturers often release during their maintenance activities.

When these regular maintenance practices are integrated, users can extend the life span of their gantry systems while maintaining a consistent high-quality print out put.

Troubleshooting Misalignment

Print quality can be significantly affected by misalignment problems in gantry systems. Here are some effective troubleshooting steps:

Check Belt Tension: Confirm that all the belts are tensioned properly. The slipping of loose belts may result in misalignment. Tighten or replace as necessary.
Inspect Pulley and Belt Connection: Ensure the pulleys have been attached securely to motor shafts and that belts are correctly seated within the pulley grooves. Loose or misaligned pulleys lead to inaccurate movements.
Verify Stepper Motor Functionality: Make sure all stepper motors operate normally without missing any step. An incomplete positioning could result from a faulty motor.
Check for Obstructions: The physical obstruction in a gantry system or debris present within should be examined. Any obstructions found must be cleared to ensure free movement.
Recalibrate the Printer: Repeat calibration process with emphasis on bed leveling, gantry alignment and nozzle height. Proper alignment is ensured through an accurate calibration process.

These above steps will enable the user address their printer’s misalignment issues leading to better results in general and high quality prints being realized from a well running gantry system.

Advantages and Disadvantages of Using Gantry Systems in 3D Printers

Advantages

Precision and Accuracy: Owing to their robust composition and managed motion, gantry systems guarantee great accuracy and precision in 3D printing.
Scalability: Hence, they are suitable for either small-scale or large-scale printing projects, as well as other applications that require flexibility.
High-Speed Printing: That means these systems can print at relatively high speeds while still ensuring quality output, making them good for mass production runs.
Stability: One important benefit is the stability brought about by the fixed gantry design which helps reduce shaking that could affect the final print quality.

Disadvantages

Complexity and Maintenance: These kinds of systems have more than one level of intricacy during setup and require regular servicing to maintain optimal productivity levels.
Cost: These printer types usually tend to be more expensive because of their precision as well as other additional components used in it like gantries for 3D printing.
Weight and Size: They are usually big and heavy and hence not suitable for portable applications.
Potential for Misalignment: Even though accurate misalignments can occur sometimes leading to inaccurate positioning or calibrations.

Benefits for Additive Manufacturing

Design Freedom: Gantry systems allow for the creation of intricate and complicated designs, which may be difficult or impossible to achieve using typical production techniques. This makes it possible to make parts that are customized or have innovative geometries.
Material Efficiency: Material usage is optimized when using gantry systems for additive manufacturing, thus minimizing wastage and lowering overall production costs. It is particularly beneficial in the case of expensive or scarce materials.
Rapid Prototyping: Rapid prototyping is made possible by gantry systems which facilitate quicker iterations, thereby shortening the product development cycle. Designers and engineers can therefore test out their concepts more efficiently.
Customization: The use of gantry systems enables easy changes in design and production of tailor-made products such as medical implants, dental devices and personalized consumer goods.
On-Demand Production: Gantry systems allow for just-in-time manufacturing, reducing the need for large inventories while enabling on-demand production. In sectors with unpredictable demand or much specialized components required, this flexibility matters much.

Potential Drawbacks to Consider

High Initial Costs: The initial outlay on gantry systems for additive manufacturing can be high. Purchasing quality machines and constructing required infrastructure might take significant capital, thereby discouraging small businesses and start-ups.
Technical Expertise Required: Effective operation of gantry systems is usually highly skilled. Creation of a workforce that is well versed in matters regarding operation and maintenance could be done through internal training or hiring professionals with experience on the same; which may result into extra costs.
Limited Material Choices: Although it can work with different materials, gantry systems have certain limitations compared to conventional manufacturing processes. Some advanced materials may not lend themselves well to 3D printing, limiting the range of products that can be created.

Comparing Gantry Systems to Other Motion Systems

There are several key differences between gantry systems and other motion systems such as Delta robots and Cartesian systems.

Precision and Stability: Gantry systems are famous for their outstanding precision and stability, hence suitable for applications requiring high accuracy. Unlike the speed that is associated with delta robot, which sometimes may lack precision, the design of a gantry system provides a strong base that reduces the amount of noises or vibrations from occurring.
Flexibility and Customization: There is a great deal of flexibility in gantry systems. On top of this, they can be easily adjusted to suit different sizes, payloads or motions; in contrast to Cartesian ones which have rectilinear movement patterns but don’t have the same level of versatility in intricate layouts.
Footprint and Space Utilization: Although gantry systems need much space because they are heavy-duty and large tasks can be handled by them effectively; however some motion systems like SCARA Robot are compact enough to fit into small scale production setups. However, there is usually a compromise made on payload capacity and reach as opposed to other machines such as Delta or Cartesian robots.

In conclusion, choosing between gantry-based motion control systems (GMC) against alternatives depends on specific needs that balance precision, flexibility, space requirements.

Future Developments in Gantry Systems for 3D Printing

The future of gantry systems in 3D printing looks full of promise as many more improvements are on the way. One important area of advancement is incorporation of advanced materials and construction methods to enhance strength and precision in gantry parts. Moreover, advancements in automation and controls will lead to increased efficiency and ease of operation among others. Advanced software integration enabling real-time monitoring, adaptive control, and improved accuracy as well as customizability is anticipated. In addition, innovations in modular design could offer greater flexibility allowing for easier upgrades and adaptability to different printing tasks. These improvements collectively aim at making gantry systems stronger, more versatile and able to cope with rising demands from the 3D printing industry.

Innovations in Robotic Arm Integration

Several innovative developments have so far been realized towards enhancing efficiency and versatility within 3D printing by the integration of robotic arms into these systems. Improved precision and repeatability have been achieved through advanced control algorithms; thus, this has been made possible using feedback sensors that enable the robotic arm to repeat certain actions with high accuracy levels. Besides that, cobots are increasingly being adopted as they provide an environment where humans can work safely with those robots leading to flexible handling features improving productivity in collaborative spaces. Modular robotic arms are also becoming popular choices where end-effectors could be easily exchanged for a change in tasks requiring lesser time for reconfiguring them thereby minimizing chances of downtime as well. This leads us to conclude that this trend shows that additive manufacturing has begun evolving into more dynamic forms for better application possibilities such as soft robotics which is one example intended for several sectors ranging from healthcare up to space exploration.

Trends in Compact and Efficient Gantry Designs

Space optimization and better performance despite smaller sizes, are recent key drivers behind the development of compact efficient gantries. Among them, one important improvement is the use of light weight high-strength materials like carbon fiber and aluminum alloys. By using such materials in constructing gantry systems, their overall weights become lighter thus helping in improving their operational speeds as well as reducing energy consumption. Furthermore, more modern linear motion elements such as precision ball screws and linear guides have been integrated to enhance movement accuracy and repeatability.

In addition, there is growing prevalence of smart technologies like IoT sensors and machine learning. Such technologies enable real-time monitoring of systems as well as predictive maintenance that help operators see early warning signs or predict possible system failures before they happen. Lastly, modularity has remained a significant aspect enabling flexibility in terms of configuration and easy upgradeability. This aspect enables it to accommodate many applications which make it suitable for different industries including electronics up to medical devices where these types of compact gantries can be employed.

Emerging Materials and Extrusion Techniques

The 3D-printing sphere is moving forward with the use of new materials and extrusion methods. The most current strides have been in biodegradable, eco-friendly materials, high-performance compositions and metal filaments.

Biodegradable and Environmentally Friendly Materials: Novelty for instance PLA (polylactic acid) blends and other bioplastics are now gaining popularity because they cause less harm to the environment. These alternatives are derived from living organisms and have physical properties that are comparable to those of conventional plastics hence could be used in various applications.
High-Performance Composites: Due to their characteristic strength-to-weight ratio as well as durability, materials such as carbon fiber-reinforced polymers (CFRPs) and glass-filled nylon are finding an increasing number of applications. High precision mechanical performance calls for these composites which are commonly used in the aeronautical industry, among others.
Metal Filaments: This material allows for functional metal-based parts directly produced by a standard 3D printer through the application of Stainless steel, Copper or Bronze infused filaments. In designing prototypes or manufacturing small quantities of metallic parts, this approach offers cost-effective choices for 3D printing users looking forward to such options.

Moreover, advanced techniques including multicolored printing and continuous filament reinforcement all help improve 3D printers’ efficiency. Multicolor extrusion can combine different substances into single print thereby making it possible to create complex structures with varying characteristics. Continuous filament reinforcement includes adding continuous strands of filament within the thermoplastic matrix during printing phase leading to significant increase in part’s strength and stiffness levels. This emerging technology together with new materials is going to shape additive manufacturing causing it to change industrial applications greatly.

Frequently Asked Questions (FAQs)

Q: What is a gantry system in a 3D printer?

A: A gantry system in a 3D printer is the hardware framework that supports and moves the printhead or extruder across the x, y, and z axes. This system often includes components like rails, belts, and motors to control its movements, making it easy to position the extruder accurately for precise 3D printed parts.

Q: How does the gantry system affect print quality?

A: The gantry system plays a crucial role in determining print quality. Properly configured and stable gantry systems reduce vibrations and inertial effects, ensuring smooth movement of the printhead or hot end. This results in higher precision and better adhesion of the layers for detailed and robust 3D printed parts.

Q: What are the types of gantry printers?

A: Gantry printers come in several types, including Cartesian, CoreXY, and multi-axis systems. Cartesian printers move in x, y, and z axes, while CoreXY offers faster and more efficient movement. Multi-axis systems provide additional degrees of freedom, useful for complex geometries and specific applications like cnc and sl fabrication.

Q: What materials can be used with a gantry system?

A: A gantry system can handle a variety of materials, including standard filaments like PLA and ABS, as well as more specialized materials for concrete printing and the construction industry. The choice of material often depends on the 3D printer’s capabilities, including its extruder hot end temperature and the print bed’s adhesion properties.

Q: What role does the print bed play in a gantry system?

A: The print bed in a gantry system provides a stable, stationary base for building the 3D printed parts. Proper bed leveling and adhesion are crucial to avoid print failures and ensure that the first layers are correctly placed, which is essential for the overall quality of the print.

Q: How do you maintain a gantry system for optimal performance?

A: Regular maintenance of a gantry system includes checking belt tension, lubricating rails, and cleaning the printhead. Periodically, you should also scrutinize screws and eccentric nuts for tightness to prevent unwanted movements, which could affect print accuracy and kinematics.

Q: What is the role of motors in a 3D printer gantry system?

A: Motors in a 3D printer gantry system control the movement of the x, y, and z axes. These motors are typically stepper motors known for their precision and control. Proper synchronization of these motors ensures accurate positioning of the printhead or robot arm to fabricate detailed and high-quality prints.

Q: Can a gantry system work with laser cutting or engraving?

A: Yes, a gantry system can be adapted for laser cutting or engraving by replacing the extruder with a laser module. This versatility makes it possible to transition between 3D printing and laser applications, broadening the range of fabrication capabilities.

Q: What is the significance of the controller in a gantry system?

A: The controller in a gantry system acts as the brain of the 3D printer, managing the movements of the motors and other components. It interprets the design file’s parameters to execute precise actions, ensuring that each layer of the 3D printed parts is accurately formed according to the set specifications.

Q: How does a robot arm differ from a typical gantry system?

A: Unlike a static gantry system, a robot arm offers enhanced flexibility and range of motion. This allows for complex kinematics and multi-axis movement beyond the standard x-y-z axes, making it suitable for intricate tasks and applications that require higher degrees of freedom, such as construction industry projects and advanced fabrication techniques.
