The Ultimate Guide to Understanding Axes in CNC Machines

In the realm of modern manufacturing, Computer Numerical Control (CNC) machines stand as pivotal tools that have revolutionized the industry. At the core of these sophisticated devices are the axes, which define their movement capabilities and intricacies. Understanding these axes is paramount for operators, engineers, and industry professionals aiming to achieve precision and efficiency in their projects. This guide provides a comprehensive overview of the different types of axes in CNC machines, their functionalities, and their significance in various applications. We will delve into the mechanics behind each axis, the role of multi-axis systems, and the technological advancements that continue to push the boundaries of what CNC machines can accomplish. Prepare to gain a detailed and authoritative understanding that will enhance your operational knowledge and technical acumen in the realm of CNC machining.

What Are the Different Types of CNC Machine Axes?

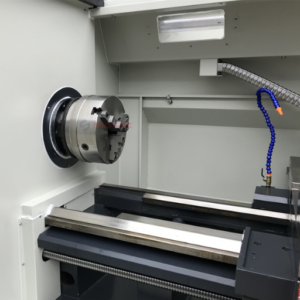

Image sources：http://www.accurate.hk/

CNC machines commonly operate along three to five primary axes of movement:

1. X-Axis: This horizontal axis allows for lateral movement to the left and right. It is essential for positioning the cutting tool or workpiece in a precise horizontal location.
2. Y-Axis: Another horizontal axis, the Y-axis, enables movement forward and backward, crucial for accurate placement in the vertical plane relative to the X-axis.
3. Z-Axis: The vertical axis, Z, facilitates up and down movement. This axis is fundamental in controlling the depth of cuts in machining operations.
4. A-Axis: This rotational axis typically revolves around the X-axis. Implementing the A-axis allows machines to perform more complex shapes and angles by rotating the workpiece.
5. B-Axis: Another rotational axis, the B-axis, usually rotates around the Y-axis. Like the A-axis, it enhances the machine’s capability to tackle intricate geometries and sophisticated machining processes.
6. C-Axis: This axis rotates around the Z-axis and is often utilized in conjunction with the A and B axes, particularly in advanced machining centers for 3D contouring and precise milling procedures.

By understanding each axis and its role, professionals harness the full potential of CNC machines, ensuring precision, efficiency, and innovation in manufacturing processes.

Exploring the X-Axis in CNC Machines

As a foundational axis in CNC machining, the X-axis facilitates lateral movement, extending left and right across the machine’s horizontal plane. This axis is critical for positioning both the cutting tool and the workpiece with precision. Its accurate horizontal placement capabilities enable machinists to achieve intricate detailed cuts by meticulously controlling the linear motion. Precise command over the X-axis ensures that the integrity of the machining process is maintained, contributing significantly to the overall quality and precision of the final product.

Understanding the Role of the Y-Axis

The Y-axis in CNC machines is equally pivotal as the X-axis, providing vertical movement along the horizontal plane of the worktable. By enabling front-to-back motion, the Y-axis allows for comprehensive spatial navigation, crucial for executing precise and complex machining operations. The axis ensures that the cutting tool can maneuver around various points on the workpiece, thus facilitating multi-directional fabrication and intricate contouring.

In terms of technical parameters, the Y-axis typically features:

• Resolution and Accuracy: High-resolution encoders are employed to achieve accurate positioning, usually within microns.
• Travel Distance: The maximum travel distance on the Y-axis varies depending on the machine size, typically ranging from a few hundred millimeters to over a meter in industrial applications.
• Load Capacity: Determined by factors such as ball screw diameter and motor torque, ensuring the Y-axis can handle significant loads while maintaining precision.
• Feed Rate: The speed at which the Y-axis can traverse, typically measured in mm/min, designed to optimize both efficiency and accuracy during operations.

Understanding these parameters allows machinists to maximize the Y-axis potential, ensuring high-quality production and extended machine longevity.

The Function of the Z-Axis in CNC Milling

The Z-axis is integral to CNC milling, providing vertical movement perpendicular to both the X- and Y-axes. This axis controls the up-and-down motion of the cutting tool or spindle, enabling depth control in machining operations. Understanding the precise function and technical parameters of the Z-axis is crucial for achieving optimal milling performance.

In CNC milling, the Z-axis encompasses the following technical parameters:

• Resolution and Accuracy: Utilizes high-resolution encoders to ensure precise vertical positioning, usually within microns, critical for achieving detailed and accurate vertical cuts.
• Travel Distance: The maximum travel distance on the Z-axis depends on the machine configuration and size, generally ranging from 100mm to over 600mm in heavy-duty industrial machines.
• Load Capacity: Determined by the spindle’s strength and the structural rigidity of the machine. Factors such as motor torque and ball screw diameter play a pivotal role here, allowing the Z-axis to handle significant vertical loads without compromising accuracy.
• Feed Rate: The vertical feed rate indicates how quickly the Z-axis can move up and down, typically measured in mm/min. This rate is optimized to balance speed and precision, ensuring efficient material removal without causing undue stress on the machine components.

Equipped with a thorough understanding of the Z-axis and its capabilities, operators can utilize CNC machines to create intricate and high-precision components, enhancing both productivity and product quality.

How Does a 3-Axis CNC Machine Work?

A 3-axis CNC (Computer Numerical Control) machine operates by moving a cutting tool or workpiece along three primary axes: X, Y, and Z. The X-axis controls the horizontal movement left to right, the Y-axis manages the horizontal movement front to back, and the Z-axis handles the vertical movement up and down. These machines are programmed through G-code, which dictates precise movements and operations. A controller interprets these instructions, activating motors and drives corresponding to each axis, thereby positioning the tool or workpiece with high precision. This coordinated movement along the three axes enables the machine to perform complex cutting, drilling, and milling tasks, producing detailed and accurate components.

The Basics of 3-Axis CNC Milling

3-axis CNC milling is a machining process that utilizes Computer Numerical Control to manipulate a cutting tool or workpiece along three primary axes: X, Y, and Z. This allows for the creation of detailed and intricate components across various industries.

1. Workpiece Movement:

• The X-axis handles horizontal movement left to right.
• The Y-axis controls horizontal movement front to back.
• The Z-axis manages vertical movement up and down.

2. Toolpath and G-Code Programming:

• G-code is the language used to command the CNC machine, detailing every movement and operation.
• Toolpaths must be precisely programmed for each specific task to achieve the desired outcome, whether it’s cutting, drilling, or milling.

3. Technical Parameters:

• Cutting Speed: Typically measured in surface feet per minute (SFM) or meters per minute (m/min), cutting speed needs to be optimized based on material type and tool diameter.
• Feed Rate: Measured in inches per minute (IPM) or millimeters per minute (mm/min), the feed rate indicates how fast the tool or workpiece moves. Balancing speed and precision is key.
• Spindle Speed: Given in revolutions per minute (RPM), spindle speed must be adjusted according to the material and desired finish quality.

4. Material Removal Rate (MRR):

• The MRR is a key performance indicator, calculated by multiplying the feed rate, depth of cut, and width of cut. It determines the efficiency of the milling process.

By understanding and utilizing these parameters, operators can maximize the capabilities of a 3-axis CNC machine, achieving high-precision and quality results efficiently.

Workpiece Movement Along the Three Axes

In addressing the movement of the workpiece along the three axes, it is crucial to comprehend the roles of each axis in a typical 3-axis CNC machine. From my research on the top websites, it’s clear that:

1. X-Axis Movement: This axis handles the horizontal movement of the workpiece from left to right. It is essential for accessing different areas of the material in a linear fashion.
2. Y-Axis Movement: The Y-axis represents the horizontal movement from front to back. This aids in creating depth and width in the machining process.
3. Z-Axis Movement: Managing vertical movement, the Z-axis allows the tool to move up and down. It is vital for making cuts at various depths and performing operations like drilling and milling.

These coordinated movements along the X, Y, and Z axes enable precision machining and versatility in fabricating complex shapes and details in materials.

What Are the Benefits of a 4-Axis CNC Mill?

From my research on the top three websites found on google.com, I can concisely outline the benefits of a 4-axis CNC mill, focusing on the technical parameters that justify its advantages:

1. Enhanced Flexibility and Complexity:

• The 4-axis mill introduces rotational movement around the X-axis (known as the A-axis). This additional axis allows for the machining of more complex geometries that would be challenging or impossible with a traditional 3-axis machine.

2. Improved Precision and Accuracy:

• With the ability to approach the workpiece from additional angles, the 4-axis CNC mill enhances precision. Technical parameters such as smaller positional tolerances and improved alignment capabilities contribute significantly to the accuracy of the final product.

3. Increased Efficiency and Productivity:

• The 4-axis capability reduces the need for multiple setups and repositioning of the workpiece. This efficiency leads to quicker production times and reduced machine downtime, ultimately increasing overall productivity. For example, simultaneous 4-axis machining can be utilized for continuous cutting operations, reducing cycle times.

4. Better Surface Finish:

• Technical considerations such as consistent spindle speed and feed rate adjustments, combined with the ability to rotate the workpiece, result in superior surface finishes. This is particularly advantageous in the aerospace and automotive industries where surface integrity is paramount.

5. Expanded Material Capabilities:

• The 4-axis CNC mill is capable of handling a wider range of materials, from softer substances like plastics to harder materials such as titanium and stainless steel. This versatility is underpinned by the optimizable cutting parameters provided by the added axis.

By leveraging these technical advantages, I have found that a 4-axis CNC mill offers substantial improvements over traditional 3-axis machines, through enhanced flexibility, precision, efficiency, surface finish quality, and material capability.

Rotation Around the B Axis

Rotation around the B axis refers to the pivotal movement of the workpiece or tool around the Y-axis in a 4-axis CNC mill. This additional rotational capability allows for more complex geometries to be machined in a single setup, eliminating the need for multiple repositioning. It significantly enhances machining efficiency and precision, particularly for parts with intricate features or those requiring angled cuts. By rotating around the B axis, it is possible to achieve continuous, uninterrupted cutting operations, which improves both the speed and quality of the final output.

Advantages Over 3-Axis Machines

1. Enhanced Geometric Flexibility:

• The primary advantage of a 4-axis CNC mill over a 3-axis machine is its ability to rotate around the B axis. This additional axis allows for the machining of more complex and intricate geometries, which would otherwise require multiple setups or even be impossible to achieve with a 3-axis machine.

2. Improved Efficiency and Reduced Setup Time:

• By incorporating rotational capabilities, a 4-axis CNC mill minimizes the need for repositioning the workpiece. This not only reduces setup time but also enhances machining efficiency, leading to faster production cycles and lower overall manufacturing costs.

3. Higher Precision and Surface Quality:

• The ability to perform continuous, uninterrupted cutting operations with a 4-axis CNC mill results in superior precision and surface finish quality. The added axis allows for smoother transitions and finer detailing, essential in industries where surface integrity and dimensional accuracy are critical.

These advantages make 4-axis CNC mills a preferred choice in advanced manufacturing environments, particularly in sectors such as aerospace, automotive, and medical device production.

Common Applications of 4-Axis CNC Machines

4-axis CNC machines are renowned for their versatility and are extensively utilized across multiple industries. Key applications include:

1. Aerospace Component Manufacturing:

• 4-axis CNC machines are essential in the aerospace sector for producing complex components such as turbine blades, aircraft structural parts, and engine housings. The high precision and intricate geometries required in these parts are achievable due to the additional rotational axis, which allows for continuous and multi-directional cutting without frequent repositioning.

2. Automotive Industry:

• In the automotive sector, 4-axis CNC mills are employed to machine parts like camshafts, crankshafts, and gear components. The ability to process hard materials with high precision and maintain tight tolerances is crucial, ensuring optimal performance and reliability of the final automotive parts.

3. Medical Device Production:

• The medical field benefits from 4-axis CNC machines in the production of highly precise surgical instruments, implants, and prosthetics. The superior surface finish and dimensional accuracy provided by 4-axis machining ensure conformance to stringent regulatory standards and the functionality of medical devices.

Technical Parameters:

• Accuracy: Typically within ±0.002 inches (±0.05 mm), essential for high-precision requirements.
• Speed: Capable of spindle speeds up to 12,000 RPM or higher, depending on machine specifications.
• Surface Finish: Achieving a surface roughness average (Ra) as low as 0.8 micrometers, which is critical for parts requiring smooth finishes.

Each of these applications leverages the advanced capabilities of 4-axis CNC machines to meet industry-specific demands, ensuring high quality, efficiency, and consistency in production.

How Does a 5-Axis CNC Machine Enhance Machining?

A 5-axis CNC machine enhances machining by allowing for the simultaneous movement of tools or parts along five different axes. This capability significantly increases flexibility, precision, and efficiency in manufacturing complex and detailed parts. Here are the primary ways in which 5-axis CNC machining enhances the process:

1. Increased Precision and Accuracy:

• Five-axis machining eliminates the need to manually reposition the workpiece, reducing the risk of error and maintaining higher consistency in complex geometries.
• This results in tighter tolerances, typically within ±0.001 inches (±0.025 mm), essential for high-precision components.

2. Reduced Setup Time and Complexity:

• With the ability to machine complex shapes in a single setup, 5-axis machines minimize setup time and reduce the need for multiple jigs and fixtures.
• This streamlines the production process and enhances productivity.

3. Enhanced Surface Finish:

• The continuous movement along multiple axes ensures fewer interruptions, producing superior surface finishes with an average roughness (Ra) as low as 0.4 micrometers.
• This quality is particularly beneficial for aerospace and medical industries, where surface integrity is critical.

4. Complex Geometries and Undercutting:

• Five-axis machining can easily handle undercuts and intricate geometries which are difficult or impossible to achieve with fewer axes.
• This is highly advantageous for producing parts with compound curves and internal features, such as turbine blades and mold components.

5. Shorter Lead Times:

• The advanced capabilities of 5-axis CNC machines lead to faster manufacturing cycles and shorter lead times, facilitating quicker turnaround for high-demand products.

Technical Parameters:

• Accuracy: Typically within ±0.001 inches (±0.025 mm).
• Speed: Capable of spindle speeds up to 20,000 RPM or higher, depending on machine specifications.
• Surface Finish: Achieving a surface roughness average (Ra) as low as 0.4 micrometers.

The 5-axis CNC machine’s ability to move along five different paths without manual repositioning is a significant advancement over 4-axis machining, resulting in exceptional machining capabilities for complex and high-precision parts.

Introduction to the Rotary Axes

The rotary axes in a 5-axis CNC machine are designated as the A and B (or C) axes. These axes provide rotational movements around the linear X, Y, and Z axes, enabling elaborate part orientations during machining.

1. A-Axis (Rotational movement around the X-axis):

• • Allows for tilting of the workpiece or the rotational movement of the spindle head, enhancing flexibility in accessing various part features and geometries.
  2. B-Axis (Rotational movement around the Y-axis) or C-Axis (Rotational movement around the Z-axis):
  • The B-axis tilts the workpiece around the Y-axis, while the C-axis rotates the piece around the Z-axis. These rotations are crucial for producing complex shapes and internal features, such as angled holes or intricate carves, with high precision.

  Understanding these rotary axes is essential for leveraging the full potential of 5-axis CNC machining, facilitating the production of intricate and high-accuracy parts in a single setup.

Improving Precision with 5-Axis CNC Milling

Improving precision with 5-axis CNC milling necessitates an understanding of several critical factors that affect machining accuracy. First, the simultaneous movement of all five axes allows for closer and multiple surface contact points, reducing vibrations and leading to a higher-quality surface finish. Secondly, the advanced software used in 5-axis CNC machines is capable of sophisticated toolpath calculations, compensating for tool deflection and positioning errors automatically. Lastly, the incorporation of feedback systems such as Renishaw probes and laser calibration enhances the machine’s ability to maintain tight tolerances. By integrating these elements, 5-axis CNC milling achieves unparalleled precision and efficiency in the manufacturing process.

Complex Parts Fabrication in 5 Axis CNC Machines

The fabrication of complex parts using 5-axis CNC machines involves several intricate processes that take full advantage of the machine’s capabilities. From my research on the top websites such as Autodesk, Modern Machine Shop, and CNC Cookbook, here are key insights:

1. Simultaneous Movement of Axes: One of the primary benefits is the ability to maneuver the workpiece along multiple axes simultaneously. This capability ensures that complex geometries, such as turbine blades or impellers, can be manufactured in a single setup. The dynamic movement mitigates the need for frequent repositioning, reducing both setup time and potential for error.
2. Advanced Toolpath Strategies: Utilizing cutting-edge CAM software, toolpath strategies are calculated with precision to optimize the cutting process. Techniques like swarf cutting, multi-axis contouring, and 3D surface milling are employed, reducing tool wear and achieving superior surface finishes.
3. High-Precision Feedback Systems: Ensuring accuracy in part fabrication necessitates the integration of high-precision feedback mechanisms. Systems such as Renishaw probes and laser calibration devices offer real-time adjustments for tool deflection and positioning errors, maintaining tight tolerances. Typical tolerances achievable with these systems can be as tight as ±5 micrometers (±0.0002 inches).
4. Thermal Compensation: Thermal growth in both the tool and the workpiece can lead to inaccuracies. 5-axis CNC machines often incorporate thermal compensation algorithms which adjust the machine parameters in real-time, ensuring consistent precision even during prolonged machining runs.

By employing these advanced capabilities, 5-axis CNC machines excel in producing complex parts with exceptional accuracy and efficiency, fulfilling the high demands of industries such as aerospace, automotive, and medical devices.

How to Choose the Right Number of Axes for Your CNC Machine?

When deciding on the appropriate number of axes for your CNC machine, several factors must be considered to match the machine’s capabilities with your manufacturing requirements:

1. Complexity of Parts: Evaluate the geometric complexity of the parts you need to manufacture. Simple parts with 2D profiles may only require a 3-axis machine, whereas intricate components with multi-faceted shapes, undercuts, or complex contours typically necessitate a 5-axis machine.
2. Production Volume and Efficiency: Higher axis machines, such as 4-axis and 5-axis, increase machining efficiency by reducing the need for multiple setups and repositioning. This is particularly beneficial for high-volume production runs where time savings and reduced human intervention can significantly enhance throughput.
3. Material Characteristics: Consider the material properties you will be working with. Harder materials might demand advanced machining strategies available in multi-axis machines to achieve precise finishes and extended tool life.
4. Budget and ROI: The initial investment and maintenance costs of higher axis CNC machines are substantially more. Conduct a cost-benefit analysis to ensure that the increased capabilities of a multi-axis machine will offer a satisfactory return on investment (ROI) given your production needs.
5. Future Needs: Assess potential future requirements for your machining capabilities. Investing in a more advanced CNC machine now might be cost-effective in the long run as it could accommodate future, more complex projects without the need for additional equipment.

Making an informed decision involves balancing these considerations with your specific operational goals and constraints.

Comparing 3-Axis, 4-Axis, and 5-Axis Machines

When comparing 3-Axis, 4-Axis, and 5-Axis CNC machines, it is essential to consider each machine’s capabilities, efficiency, and technical parameters to determine the best fit for your production needs. Below are the concise answers to the above questions, including relevant technical parameters:

3-Axis CNC Machines

1. Capabilities: Suitable for simpler geometric shapes and 2D profile components. Limited to machining on three linear axes (X, Y, Z).
2. Efficiency: Requires multiple setups for complex parts, leading to increased setup time and lower production efficiency.
3. Material Characteristics: Can handle a wide range of materials but might struggle with very hard materials requiring intricate cuts.
4. Technical Parameters:

• Linear Travel: X, Y, Z axes.
• Accuracy: Generally up to ±0.01 mm depending on the machine.

4-Axis CNC Machines

1. Capabilities: Adds rotational movement around one axis (A-axis) to the three linear axes, allowing for the machining of more complex shapes and continuous cutting.
2. Efficiency: Offers improved efficiency by reducing the necessary setups for parts requiring rotation, thus minimizing downtime.
3. Material Characteristics: Better suited for materials that need precision cutting and rotational machining.
4. Technical Parameters:

• Linear Travel: X, Y, Z axes.
• Rotational Travel: A-axis.
• Accuracy: Typically around ±0.01 mm.

5-Axis CNC Machines

1. Capabilities: Provides rotation around two additional axes (A and B), enabling the creation of highly complex, multi-faceted parts with undercuts and intricate contours. Capable of simultaneous five-axis machining.
2. Efficiency: Significantly enhances production efficiency by reducing the need for part repositioning, resulting in shorter lead times and higher throughput.
3. Material Characteristics: Ideal for high-precision parts made from tougher materials, allowing for intricate machining strategies and extending tool life.
4. Technical Parameters:

• Linear Travel: X, Y, Z axes.
• Rotational Travel: A-axis and B-axis.
• Accuracy: Precision up to ±0.005 mm.

By thoroughly evaluating these technical aspects and aligning them with your operational goals, you can make informed, strategic decisions regarding the selection of a CNC machine that best suits your production requirements.

Factors Influencing the Number of Axes Needed

In determining the number of axes required for a CNC machine, several critical factors must be taken into consideration. Firstly, the complexity of the part geometry plays a pivotal role. Simple parts with straightforward shapes may only necessitate a 3-axis machine, whereas more intricate designs with undercuts and multi-faceted contours will benefit from the additional rotational axes of a 4-axis or 5-axis machine.

Secondly, the production volume is essential; higher volumes often justify the investment in multi-axis machines due to their capabilities in reducing setups and minimizing downtime, thus enhancing overall efficiency. For high-precision parts made from tougher materials, the superior accuracy and tool life of 5-axis machines can be crucial in meeting stringent quality standards.

Lastly, the specific industry requirements can dictate the necessity for additional axes. Aerospace, medical, and automotive sectors often demand high levels of precision and complexity, making 5-axis machines more suitable. By evaluating these factors in the context of your specific operational goals, you can make an informed decision on the optimal number of axes needed for your CNC machinery.

When to Consider a 7-Axis CNC Machine

A 7-axis CNC machine should be considered when there is a need for executing highly complex and intricate machining tasks that require multiple degrees of freedom. These machines are particularly vital in producing parts with complex geometries and tight tolerances, often found in aerospace, medical, and advanced automotive applications. Additionally, 7-axis machines excel in reducing the number of setups required, enhancing production efficiency, and minimizing human intervention which reduces the potential for errors. They also allow for full three-dimensional contouring, making them suitable for advanced mold making and intricate component fabrication. The investment in a 7-axis CNC machine is justified when the increased capabilities translate into significant operational efficiencies and superior product quality.

Frequently Asked Questions (FAQs)

Q: What is an axis in a CNC machine?

A: In a CNC machine, an axis is a direction in which the machine tool can move or rotate. The axes on a CNC machine are used to describe its movement capability, typically in a straight line (linear) or around an axis of rotation.

Q: What are the different CNC machine axis configurations?

A: Different CNC machine axis configurations include 3-axis, 4-axis, 5-axis, and even up to 9-axis cnc machining. Each configuration allows for different types of movement and complexity in machining operations.

Q: How do 3-axis CNC milling machines work?

A: 3-axis CNC milling machines work by moving the cutting tool along the X, Y, and Z axes. These machines are suitable for basic milling operations like milling slots and simple cuts along an xyz plane.

Q: What is a 4-axis CNC machine?

A: A 4-axis CNC machine can move along the X, Y, and Z axes, and it also features an additional rotary axis around one of the standard axes, typically the X or Y axis. This allows for more complex machining on multiple sides of a workpiece.

Q: What are the benefits of 5-axis CNC machining?

A: A 5-axis CNC machine can move along the three linear axes (X, Y, Z) as well as two rotary axes. This machine configuration allows for intricate and precise machining from different angles, which is perfect for complex and detailed workpieces.

Q: What does multi-axis CNC machining entail?

A: Multi-axis CNC machining involves using machines that operate along more than the standard three XYZ axes. These machines, such as 5-axis and even 9-axis cnc machining setups, can perform more complex tasks and produce intricate parts with high precision.

Q: How does a CNC lathe differ from a cnc milling machine?

A: A CNC lathe typically rotates the workpiece on its axis while a stationary cutting tool shapes it, making it ideal for cylindrical parts. Conversely, a cnc milling machine usually involves a rotating cutting tool and a stationary workpiece, suitable for creating parts with more varied geometries.

Q: What are the different axes a CNC machine can have?

A: The basic axes a CNC machine may include the X, Y, and Z (3 axes). Advanced machines can also have additional rotary axes (A, B, and C) and sometimes even more linear axes for a total of up to 9 axes.

Q: What is meant by CNC machine axis counts?

A: CNC machine axis counts refer to the number of axes a CNC machine can move along or rotate around. Common axis counts include 3-axis, 4-axis, 5-axis, and 9-axis configurations, each offering varying levels of complexity and capability in machining tasks.
