Understanding Water Pipeline Valves: Types, Uses, and Importance

Water pipeline valves play a crucial role in the management and regulation of water flow within various systems, from residential plumbing to large-scale industrial applications. These mechanical components not only control the distribution of water but also ensure system safety and efficiency. This article will delve into the different types of water pipeline valves, their specific uses in various contexts, and their overall importance in maintaining the integrity of water supply systems. Whether you are a homeowner looking to understand your plumbing better or an industry professional seeking insights into valve applications, this guide aims to provide a comprehensive overview of the vital functions these valves serve.

What Are Water Pipeline Valves?

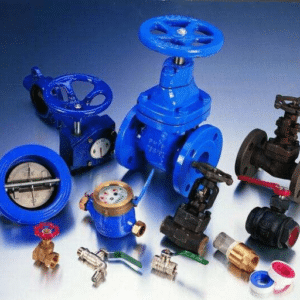

Image source：https://p4psearch.1688.com/

Water pipeline valves are mechanical devices designed to control the flow and pressure within a water system. They can open, close, or partially obstruct the flow of water, enabling operators to manage water supply effectively. Common types of water valves include gate valves, globe valves, ball valves, and check valves, each serving distinct functions based on the requirements of the system. By regulating water flow, these valves play an essential role in preventing leaks, ensuring safety, and facilitating maintenance tasks, contributing significantly to the overall functionality of plumbing and water supply networks.

Types of Water Valves and Their Functions

1. Gate Valves

Gate valves are primarily used for on/off control of fluid flow. They provide minimal resistance to flow when fully open and are commonly found in large water supply lines and industrial applications. Due to their design, they are not suitable for throttling purposes but excel in providing a straight-through flow.

2. Globe Valves

Globe valves are designed for regulating fluid flow and are characterized by their spherical body shape. They offer excellent throttling capabilities and are often used in applications where flow control is critical. Globe valves are ideal for scenarios involving frequent adjustments to flow, thanks to their ability to modulate effectively.

3. Ball Valves

Ball valves are well-known for their reliability and quick shut-off capabilities. Featuring a hollow, perforated ball that pivots within the valve body, they allow for swift flow control with minimal pressure drop. Ball valves are versatile and commonly used in residential plumbing and industrial applications due to their durable design and ease of operation.

Each type of valve serves a specific purpose within water distribution systems, ensuring that operators can effectively manage flow, pressure, and safety across various applications.

How Do Valves Work in a Water Distribution System?

Valves play a critical role in controlling and directing water flow within a water distribution system. They work by opening, closing, or partially obstructing the flow of water, enabling operators to manage pressure, regulate flow rates, and protect the system from backflow or potential damage.

1. Flow Control: By adjusting the valve positioning, operators can control the volume of water flowing through the system. For example, globe valves are ideal for precise throttle adjustments thanks to their design, which allows for gradual flow changes.
2. Isolation: Gate valves serve as isolation devices, completely shutting off water supply for maintenance or emergencies. These valves are designed to handle high pressures (typically rated up to 300 psi) and are intended for infrequent operation.
3. Preventing Backflow: Check valves act as one-way gates, allowing water to flow in only one direction. This function is vital for maintaining system integrity and preventing contamination, especially in potable water systems.
4. Pressure Regulation: Some valves, such as pressure-reducing valves (PRVs), automatically adjust water pressure within the system to maintain a pre-set level, safeguarding pipes and fixtures from pressure surges.

The effective selection and operation of these valves, along with consideration of parameters such as flow rate (measured in gallons per minute), pressure (typically measured in pounds per square inch), and pipe diameter, are essential for ensuring the optimal performance of water distribution systems. Properly functioning valves minimize water loss, enhance system reliability, and contribute to overall efficiency.

Common Valves Used in Water Supply Networks

In water supply networks, several types of valves are commonly employed to ensure efficient flow management and system protection.

1. Gate Valves: Primarily used for on/off control, gate valves allow or stop the flow of water with minimal resistance when fully opened.
2. Globe Valves: Utilized for throttling and flow regulation, globe valves provide precise control over water volume, suitable for systems demanding careful flow adjustments.
3. Check Valves: Designed to prevent backflow, check valves maintain directional flow and protect water supply systems from contamination.
4. Pressure-Reducing Valves (PRVs): These valves automatically lower incoming water pressure to a safe level, protecting pipelines and fixtures from damage due to pressure spikes.
5. Ball Valves: Known for their quick operation, ball valves are used for shut-off applications and can deliver excellent sealing performance, making them ideal for high-pressure environments.

Each valve type plays a crucial role in maintaining the functionality and reliability of water distribution systems.

How Do Different Types of Valves Control Water Flow?

Different types of valves control water flow by utilizing distinct mechanisms to regulate, direct, or stop the water flow within a system. Gate valves operate by raising or lowering a gate-like disc, allowing full flow when fully opened or completely stopping it when closed. Globe valves feature a movable disk that sits on a stationary ring seat, granting precise control over the flow by adjusting the opening size. Check valves work automatically to permit flow in one direction while preventing backflow, utilizing a hinged flap or ball that seals against reverse pressure. Pressure-reducing valves (PRVs) function by adjusting the outlet pressure based on the incoming pressure, maintaining a set output and protecting downstream systems. Lastly, ball valves consist of a hollow, perforated sphere that pivots to allow or block flow, providing quick on/off control with minimal pressure drop. Each valve type effectively contributes to the overall management and safety of water flow in distribution systems.

The Role of Gate Valves in Water Pipelines

Gate valves are essential in water pipelines as they provide reliable shut-off capabilities. When I consider their function, I appreciate how they allow for unobstructed flow when fully opened, facilitating efficient water distribution. These valves are particularly advantageous in applications where a straight-line flow of fluid and minimum pressure drop across the valve are necessary. Additionally, they are often used in larger pipelines where quick access for maintenance is critical. My research indicates that gate valves are also known for their durability and longevity, making them a dependable choice in various water distribution systems. Their straightforward design enables easy operation, which is invaluable in both residential and industrial settings.

Using Butterfly Valves for Efficient Water Distribution

Butterfly valves play a crucial role in water distribution systems due to their compact design and ability to handle a variety of flow rates. These valves operate using a rotating disc that is positioned in the centre of the pipe, allowing for quick opening and closing with a simple quarter turn. When fully opened, butterfly valves provide a straight-through flow path, ensuring minimal pressure drop, which is essential for efficient water distribution.

Technical Parameters of Butterfly Valves:

• Diameter Range: Typically from 2 inches to 48 inches, accommodating various pipeline sizes.
• Pressure Rating: Common ratings include ANSI 150, 300, and 600, justifying their application in different pressure environments.
• Temperature Range: These valves generally operate effectively between -20°F to 350°F, making them suitable for a range of water conditions.
• Material Options: Common materials include cast iron, stainless steel, and PVC, each chosen based on corrosion resistance and application requirements.

These specifications ensure that butterfly valves can be effectively used in water distribution, making them an optimal choice for both municipal and industrial applications. Their ability to control flow with minimal leakage and resistance enhances system efficiency, ultimately contributing to the overall reliability of the water distribution network.

Ball Valves: Versatile Solutions for Water and Wastewater Systems

Ball valves are essential components in both water and wastewater systems, known for their reliability and ease of use. Their operation is based on a spherical ball with a hole through its center, which allows for on/off control of flow with minimal resistance. When the valve is open, the ball’s bore aligns with the pipeline, ensuring a straight flow path that minimizes pressure drop. I find that the versatility of ball valves makes them suitable for a variety of applications, from residential plumbing to large-scale industrial processes.

Technical Parameters of Ball Valves:

• Diameter Range: Available typically from 1/4 inch to 12 inches, accommodating various pipeline sizes.
• Pressure Rating: Common pressure ratings include ANSI 150, 300, and 600, making them suitable for diverse pressure environments.
• Temperature Range: Ball valves generally operate effectively between -20°F to 400°F, catering to a wide range of fluid conditions.
• Material Options: Constructed from materials such as brass, stainless steel, and carbon steel, ball valves are selected based on factors like corrosion resistance and temperature tolerance.

These specifications justify the use of ball valves in water and wastewater systems, highlighting their capability to maintain excellent flow control while ensuring durability and efficiency across various operational parameters.

What Are the Key Considerations for Selecting Valves?

When selecting valves for water and wastewater systems, several key considerations must be taken into account:

1. Application Requirements: Understand the specific needs of the application, including the type of fluid being managed, flow rates, and pressure conditions.
2. Material Compatibility: Choose valve materials that are resistant to corrosion and suitable for the chemical properties of the fluid to ensure longevity and reliability.
3. Size and Diameter: Ensure that the valve’s size appropriately matches the pipeline to maintain optimal flow and pressure.
4. Pressure and Temperature Ratings: Assess the maximum pressure and temperature the valve will encounter to select one that can withstand operational conditions without failure.
5. Ease of Maintenance: Consider the accessibility for maintenance and repair, as well as the expected lifespan of the valve components.
6. Regulatory Compliance: Ensure valves meet relevant industry standards and regulations, particularly in municipal and industrial applications.

By evaluating these factors, you can make informed decisions that improve system performance and reliability in water and wastewater management.

Factors to Consider: Water Pressure and Pipeline Material

When assessing water pressure and pipeline material for valve selection in water and wastewater systems, several critical factors emerge.

1. Water Pressure: The operating pressure of the system is a primary concern. High-pressure systems may require valves specifically designed to handle elevated conditions to prevent leaks or failures. It is crucial to select valves that not only meet but exceed the maximum pressure ratings of the application to ensure safety and reliability.
2. Pipeline Material: The type of material used in the pipeline significantly affects the compatibility and performance of valves. Different materials, such as PVC, ductile iron, or stainless steel, have unique strengths and weaknesses in terms of durability, resistance to corrosion, and suitability for specific fluid types. Choosing valves that align with the pipeline material helps avoid issues related to joint failures or chemical reactions.

By carefully considering these factors, you can enhance the longevity and efficiency of water and wastewater systems.

Choosing the Right Valve for Water Supply and Control

When it comes to selecting the right valve for water supply and control, I consider several key elements to ensure optimal functionality and efficiency. Firstly, I evaluate the specific application requirements, including the fluid type, flow rate, and temperature ranges, to determine which valve type—such as gate, globe, or ball valves—will best suit my needs. I also pay attention to the valve materials, ensuring that they are compatible with the pipeline material to prevent any adverse chemical reactions or degradation. Additionally, I review the pressure ratings, ensuring the chosen valve can withstand the operational pressures of the system without risk of failure. By carefully assessing these factors, I can make informed choices that significantly enhance the performance of my water supply and control systems.

Safety and Relief Valves: Ensuring Safe Water Distribution

Safety and relief valves play a critical role in maintaining safe operations within water distribution systems. These valves are designed to automatically relieve excess pressure that may build up due to fluctuations in flow or temperature, thereby preventing potential damage to pipelines and associated infrastructure. By allowing controlled release of fluids, these valves help avoid catastrophic failures, such as ruptures or bursts, ensuring the integrity of the system. It’s essential to select valves that are appropriately rated for the maximum expected pressure and to install them in accessible locations for regular inspection and maintenance. This proactive approach not only safeguards the distribution network but also protects public health by ensuring a reliable supply of safe drinking water.

How Do Valves Address Common Issues in Water Distribution Systems?

Valves are integral to resolving several common issues in water distribution systems, primarily by regulating flow, controlling pressure, and ensuring efficient operation. For instance, control valves adjust the flow rate, preventing disruptions caused by fluctuations in demand, thus maintaining steady pressure across the system. Additionally, isolation valves enable quick shutoffs during maintenance or repairs, minimizing service interruptions and water loss. Check valves prevent backflow, protecting the integrity of the water supply and safeguarding against contamination. By effectively managing these aspects, valves enhance the reliability and longevity of water distribution systems while ensuring consistent service delivery to consumers.

Preventing Water Hammer with Check Valves

Water hammer, a common issue in water distribution systems, occurs when there is a sudden change in the flow of water, creating a shockwave that can cause pipe vibrations and potential damage. Check valves play a crucial role in preventing water hammer by allowing fluid to flow in one direction while preventing backflow. When water is suddenly stopped or reversed, these valves close automatically, minimizing the shockwave effects and reducing the likelihood of pressure surges. According to industry experts, installing check valves in strategic locations, such as near pumps and fast-closing valves, can effectively mitigate the impact of water hammer, ensuring the longevity of the piping infrastructure and maintaining system stability. Regular maintenance of these valves is necessary to ensure they function correctly and provide optimal protection against water hammer events.

Managing Air Release in Pipelines with Air Valves

Air valves are critical components in managing air within water pipelines, playing a vital role in maintaining the efficiency and safety of the system. These valves are designed to release trapped air during operation, which can create pressure imbalances and lead to potential system failures. By effectively allowing air to escape, air valves help prevent issues such as water hammer and pipeline bursts.

Research indicates that strategically placing air valves at high points in the pipeline ensures adequate air management, allowing for the consistent flow of water. In addition, combination air valves, which function as both air release and air intake valves, are recommended for more versatile applications, helping enhance the overall hydraulic performance of the pipeline. Regular inspections and maintenance of these valves are essential to ensure they remain functional and capable of addressing air-related challenges in the pipeline system.

Pressure Relief Valves: Protecting Against Over-Pressure Scenarios

Pressure relief valves (PRVs) are critical safety devices installed in various systems to prevent dangerous over-pressure conditions that can lead to equipment failure or hazardous situations. These valves function by automatically releasing excess pressure when it exceeds a predetermined level, thereby protecting pipelines, vessels, and other components. The key principles of PRVs include setting the appropriate pressure threshold and ensuring that they are calibrated correctly to respond promptly to pressure surges. Regular testing and maintenance of PRVs are essential to ensure their reliability and functionality, as any failure could result in catastrophic equipment damage or risk to personnel. By effectively managing excess pressure, PRVs play a vital role in safeguarding industrial processes and maintaining operational safety.

How Are Valves Maintained and Replaced in Water Supply Networks?

Maintaining and replacing valves in water supply networks is essential for ensuring reliability and operational efficiency. Regular maintenance involves routine inspections, which include checking for leaks, ensuring proper functionality, and testing the valves’ calibration. Cleaning and lubricating moving parts can help extend the lifespan of the valves. When it comes to replacement, the process typically involves temporarily isolating the valve from the system, draining any residual water, and removing the old valve. The new valve is then installed, ensuring all connections are secure and the system is properly bled of air. Following the installation, tests are conducted to confirm the valve operates correctly, and monitoring is put in place to ensure ongoing performance.

Routine Maintenance for Longevity of Water Valves

Routine maintenance of water valves is crucial for ensuring their longevity and dependable performance. Key maintenance tasks include:

1. Regular Inspections: Inspect valves at least quarterly to check for leaks, signs of corrosion, and overall condition. Pay attention to critical parameters such as operating pressure (typically between 20-80 psi for residential systems) and temperature limits (generally not exceeding 140°F for most plastic valves).
2. Cleaning: Accumulation of debris can hinder valve functionality. Cleaning should be performed at least annually, focusing on the valve seats and seals to ensure a tight closure.
3. Lubrication: For mechanical valves, apply appropriate lubricants to moving parts as needed, ideally every six months. Use lubricants that are compatible with the valve material to prevent degradation.
4. Calibration Checks: Valves, especially automated ones, should undergo calibration checks biannually to ensure they operate at the designated pressure thresholds. This may involve testing against a known pressure gauge.
5. Replacement of Seals and Gaskets: Inspect and replace worn seals and gaskets during routine maintenance to prevent leaks. Schedule this every 2-3 years or sooner if any signs of wear are detected.

These maintenance practices not only prolong the life of the valves but also ensure the efficient operation of the entire water supply network, reducing the risk of failures and associated costs. Regular documentation of maintenance activities is important for tracking the health and performance of each valve over time.

Signs That a Valve Needs Replacement

1. Visible Leaks: Any signs of water leakage around the valve are a clear indication that it may need to be replaced. Persistent leaks can lead to further damage and increased water bills.
2. Corrosion or Rust: If the valve shows signs of corrosion, rust, or pitting, it’s a strong signal that its integrity is compromised, necessitating replacement.
3. Difficulty in Operation: Valves that are hard to open or close, or that do not operate smoothly, are often past their effective lifespan.
4. Unusual Noises: Hearing strange sounds such as hissing, rattling, or banging can indicate internal issues with the valve that may require a replacement.
5. Age of the Valve: Valves that have not been replaced in over 10-15 years may start to show wear and may need replacement even if other signs aren’t immediately apparent.

Being vigilant and addressing these signs early can prevent more significant plumbing issues and ensure a reliable water supply system.

Best Practices for Installing New Valves in Pipelines

When installing new valves in pipelines, I follow several best practices to ensure optimal performance and longevity. Here are the key points based on the top resources I’ve found:

1. Choose the Right Valve Type: Selecting the appropriate valve type for the specific application is crucial. I consider the flow rate, pressure, and the medium (water, gas, etc.) that will pass through the valve. For example, ball valves are ideal for quick shut-off while gate valves are better suited for full flow.
2. Correct Sizing: Proper sizing is essential to avoid unnecessary pressure drops and ensure efficient operation. I refer to ANSI/ISA standards for nominal pipe sizes and ensure that the valve’s diameter matches the pipeline to prevent turbulence.
3. Installation Orientation: I pay attention to the installation orientation of the valve. For instance, some valves, like check valves, may need to be installed in a specific direction. The manufacturer’s instructions detail these requirements, which helps maintain functionality and safety.
4. Use Appropriate Sealing Materials: I ensure that I use the right sealing materials (e.g., Teflon tape or O-rings) that are compatible with both the valve and the fluid being transported. This step minimizes leaks and prolongs the valve’s lifespan.
5. Torque Specifications: Adhering to the manufacturer’s torque specifications during installation is crucial to prevent damage. Over-tightening can lead to valve failure, while under-tightening might cause leaks. I often refer to manufacturer guidelines to determine the precise torque values for each valve type.
6. Testing After Installation: After installing the valve, I conduct pressure testing to ensure there are no leaks and that the valve operates as intended. This can involve a hydrostatic pressure test, which I perform according to relevant industry standards.

By following these practices, I am able to install new valves effectively, ensuring a reliable and efficient water supply system.

What Innovations Are Shaping the Future of Water Pipeline Valves?

Innovations in water pipeline valves are primarily driven by advances in technology and materials science. Smart valve technology is emerging, incorporating sensors and automation to enable real-time monitoring and control, which enhances system efficiency and reduces the risk of leaks. Additionally, the development of corrosion-resistant materials, such as composite and advanced polymer constructions, is increasing the longevity and reliability of valves in harsh environments. Moreover, 3D printing is revolutionizing valve manufacturing by allowing for custom designs and rapid prototyping, leading to more efficient and cost-effective production. These innovations collectively aim to improve the performance, safety, and sustainability of water pipeline systems.

Advances in Automatic Air Release Valves

Automatic air release valves (AARVs) play a critical role in maintaining the efficiency and safety of water pipeline systems by expelling air trapped in the pipeline. Recent advancements have focused on enhancing valve design, automation, and material durability. Key developments include:

1. Improved Sizing and Flow Capacity: Manufacturers are utilizing computational fluid dynamics to optimize AARV sizes and flow capacities, thereby ensuring swift removal of air pockets without hindering water flow. Typical sizing parameters include a flow coefficient (Cv) that indicates the flow capacity of the valve.
2. Smart Technology Integration: Many new AARVs are equipped with smart sensors that monitor positional status and venting performance in real-time. This data can inform pipeline management systems, allowing for proactive maintenance and reducing risks of cavitation or pressure surges.
3. Enhanced Corrosion Resistance: Advancements in materials science have led to the development of AARVs utilizing high-performance polymers or composite materials designed to withstand the harsh conditions typically found in water infrastructure. These materials are expected to have a longer lifespan and require less maintenance.

The inclusion of these innovations reflects a response to the increasing demand for reliability and cost-effectiveness in modern water management systems, aligning with industry standards such as ASME A17.1 for elevator safety, which emphasizes the importance of equipment reliability. As these technologies are adapted and refined, they are expected to significantly enhance the functionality of automatic air release valves in water pipeline systems.

Smart Valves for Enhanced Water Distribution Management

Smart valves play a crucial role in optimising water distribution systems by enabling real-time monitoring and control of flow dynamics within the pipeline. The integration of advanced technologies has led to several key benefits and technical parameters worth noting:

1. Real-Time Monitoring: Equipped with smart sensors, these valves provide continuous data on flow rates, pressure levels, and valve position. This real-time monitoring allows for immediate responses to fluctuations in the water supply, ensuring consistent distribution without interruptions.
2. Flow Coefficient (Cv): The flow coefficient remains a critical technical parameter for smart valves, indicating their capacity to allow fluid flow. A higher Cv value signifies greater flow efficiency, crucial for reducing energy costs and optimising system performance.
3. Pressure Thresholds: Smart valves are equipped with pressure sensors that can detect and respond to predefined pressure thresholds. This capability helps to prevent potential issues such as backflow, water hammer, and cavitation, preserving the integrity of the water infrastructure.
4. Data Analytics and Predictive Maintenance: By employing IoT technology, smart valves can collect and analyse historical performance data. Parameters such as valve lifespan, maintenance intervals, and operational efficiency are evaluated to facilitate predictive maintenance, reducing downtime and repair costs.
5. Energy Consumption Metrics: The energy usage associated with water distribution can be monitored as well. Efficiently functioning smart valves contribute to lower energy requirements by optimising flow rates and reducing operational strain on pumping systems.

These advancements not only improve the reliability and efficiency of water distribution networks but also lead to sustainable management practices by minimising waste and ensuring optimal resource use. By adhering to technical specifications and performance standards, smart valves position themselves as essential components in modern hydraulic engineering.

Industrial Ball Valves: Improving Efficiency and Control

In my experience, industrial ball valves play a crucial role in enhancing efficiency and control within fluid systems. Their design allows for quick operation, with a simple quarter-turn mechanism that enables rapid opening and closing, minimizing downtime during processes. Additionally, the tight seal provided by ball valves significantly reduces leakage, which not only conserves resources but also improves safety in industrial environments. The use of high-quality materials in their construction ensures durability, even in demanding conditions, thus lowering the need for frequent replacements and maintenance. Overall, implementing industrial ball valves in fluid control systems can lead to substantial operational improvements, both in terms of efficiency and long-term cost savings.

Frequently Asked Questions (FAQs)

Q: What are the main types of valves used in the water pipeline systems?

A: The main types of valves used in water pipeline systems include gate valves, globe valves, ball valves, check valves, needle valves, and plug valves. Each type serves a specific function in regulating the flow and pressure of water.

Q: How do globe valves regulate the flow in a pipeline?

A: Globe valves regulate the flow in a pipeline by using a movable disk-type element and a stationary ring seat in a generally spherical body. When the valve is operated, the disk moves closer or farther from the seat, controlling the flow rate through the valve.

Q: Why are check valves commonly used in water supply lines?

A: Check valves are commonly used in water supply lines to prevent backflow, ensuring that water flows in only one direction. This is crucial for maintaining the integrity of water distribution systems and preventing contamination.

Q: What role do safety valves play in a water pipeline system?

A: Safety valves play a critical role in protecting a water pipeline system by relieving excess pressure. They automatically open to release water when the pressure exceeds a preset limit, preventing potential damage to the pipeline.

Q: What is a shut-off valve and where is it typically located?

A: A shut-off valve is a valve used to stop the flow of water in a pipeline. It is typically located at the points where water supply lines enter a building or at critical points within the distribution system, allowing for maintenance or emergency isolation of water flow.

Q: How does a ball valve function in a water pipeline?

A: A ball valve functions by using a spherical ball with a hole through its center. When the ball is rotated a quarter-turn, the hole aligns with the pipeline, allowing water to flow through. Rotating the ball back blocks the flow, making it an effective shut-off valve.

Q: What are pressure reducing valves and why are they important?

A: Pressure reducing valves are used to lower the pressure of the water coming into a pipeline to a safer and more manageable level. They are important for preventing damage to water mains and other components of the water distribution system due to excessive pressure.

Q: What is the purpose of a needle valve in water pipelines?

A: Needle valves are used in water pipelines to precisely control the flow rate. They have a slender, tapered point at the end of a valve stem, which fits into a conical seat. This design allows for fine adjustments to the flow of water.

Q: How do plug valves differ from other valve types in water distribution systems?

A: Plug valves use a cylindrical or tapered plug with a hole through its center to regulate flow. By rotating the plug, the hole aligns with the pipeline, allowing water to flow. This design is simple yet effective for quick shut-off and flow control in water distribution systems.

Q: What are the common applications of valves used in industrial water systems?

A: Valves used in industrial water systems are critical for controlling the flow, pressure, and temperature of water. They are commonly used in processes involving water heaters, pumps, and critical pipeline systems to ensure efficient and safe operation.
