7 Effective Methods to Smooth PLA 3D Prints with Vapor Polishing and More

3D printing has brought about a revolution in the way we create and innovate, allowing enthusiasts as well as professionals to make intricate models and functional components with ease. One of the most commonly used materials for 3D printing is PLA due to its user friendliness and eco-friendliness. However, making PLA look smooth and professional is a bit difficult. The use of chemicals that smoothen surfaces is one effective method of improving the quality of prints made from PLA. Chemical smoothing agents have gained popularity for their effectiveness in perfecting the surface quality of printed objects through dissolving the undesirable layer lines.

For this purpose, Methyl Ethyl Ketone (MEK) and Acetone-Based (AB) solutions are often employed.look on PLA prints can be a complicated process because they have FDM (Fused Deposition Modeling) 3D printing lines found in them which are difficult to eliminate. Thankfully, there are many ways to polish 3D printed PLA items including traditional methods as well as advanced vapor polishing. This article will explore some seven techniques that you can use to achieve an ideal finish on your PLA prints; hence, your final products will satisfy not only aesthetic criteria but also structural integrity demands.These strategies will enable you bring out better quality results from your projects using 3D printing whether you are a beginner or an experienced person in this field.

How Can You Smooth PLA Prints?

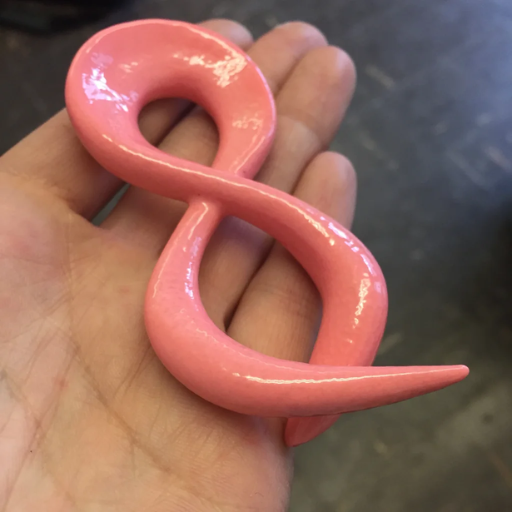

Vapor Polishing PLA
Image source: https://medium.com/

Some of the ways to achieve a smooth finish on PLA prints are as follows. Here are a few you might want to check out:

Sanding: Begin with rough grit sandpaper and gradually transition to finer grits so as to eliminate layer lines and have a glossy look.
Priming and Painting: After filling minor imperfections with primer, apply paint for a perfect finish.
Heat Gun: Gently melt the PLA surface using heat gun, thereby reducing print layers.
Chemical Smoothing: The utilization of specific chemical substances like ethyl acetate will help in gently dissolving and smoothing the outer surface of PLA prints. Use adequate ventilation while working with chemicals.
Epoxy Coating: For a glossy smooth surface without gaps, apply thin layer of epoxy resin to your 3D printed parts.
Smoothing Stations: Post-processing 3D prints can be done using specialized smoothing stations which also help in automating some of these smoothing techniques mentioned above.
Polishing Compounds: Polish your way into having that shiny well-groomed professional appearance at the end of your smoothening process.

These techniques will enable you to improve PLA prints’ aesthetics greatly without tampering with their structural integrity.

What Are the Most Effective Techniques to Smooth PLA?

Taking into account ease of use, the quality of the final finish and safety; it is possible to determine the best methods for smoothening PLA prints. In line with top resources, the following are highly recommended:

Sanding: This hands-on technique involves starting with a rougher grit to remove visible layer lines and then switching to finer grits for a smoother texture. Despite being time-consuming, it gives precise control over smoothing.

Epoxy Coating: Gap filling may be achieved by applying an epoxy resin which results in a high-gloss smooth surface. Both functional and aesthetic pieces benefit from this because they are long lasting as well as having excellent finishes.
Chemical Smoothing: However, using chemicals such as ethyl acetate or specially designed smoothing agents carefully can dissolve and smooth out external PLA layers. Proper ventilation and protective gear should be used when engaging in this method.

With these techniques you will achieve professional level smoothness on your PLA prints while preserving their intricate features.

Can You Use Acetone to Smooth PLA?

It is generally not advisable to use acetone in order to smooth PLA. The dissolvability of ABS with acetone is widely known, however, PLA does not have the same chemical nature and can therefore relate less effectively with acetone. While applying acetone on PLA fails to smoothen it satisfactorily, it may also damage a printout. Other ways to smooth PLA include sanding, coating it with epoxy or applying ethyl acetate which is more harmonious with the material.

What Tools Do You Need for PLA Polishing?

For you to have that perfect feel of the polished finish on your PLA prints, you need a combination of basic tools and materials.

Sandpaper: Start with rough papers (like around 200-400) to take out ridges left by individual layers and move on to finer paper(upto2000) for a smoother finish.
Polishing Compound: After sanding, this helps achieve a glossy polish on the surface.
Rotary Tool: Having buffing attachments is important in rotary tools as it speeds up the polishing process and improves the final look.
Epoxy Resin: Another way is by applying epoxy resin coat to obtain an extra smooth glossy finish after all other imperfections are filled in.
Respirator Mask and Safety Glasses: These are essential for protection against fine dusts and fumes especially when sanding or using chemicals.

If you use these tools and materials then, your PLA prints will look professional when finished with them.

Is it Possible to Smooth PLA Printed Parts with Vapor?

PLA parts do not get smoothed by vapors in the same method like ABS does when vaporized using acetone. PLA does not dissolve or react in such a manner as would allow its smoothing via solvent that most readily available. Attempts at vapor smoothing of PLA prints usually yield undesirable results which show poor quality user experience and inconsistency. Conversely, mechanical methods like sanding or coatings such as epoxy resin are advised for achieving a smooth finish on PLA prints instead.

How Does Acetone Vapor Smoothing Work on PLA?

Generally, this is a common fallacy among people that acetone vapor smoothing works on PLA prints but it results in very poor quality. Unlike ABS that dissolves easily with acetone, acetone vapor does not work well with PLA. The chemical composition of PLA repels acetone hence little or no smoothing effect and often making the surface tacky and uneven. Sanding and polishing or surface treatment such as epoxy resin are better mechanical methods of achieving smoothness in PLA than other 3D printing materials.

What Solvents Are Effective for Vapor Smoothing PLA?

Currently, there are still no universally accepted solvents which can effectively smooth PLA printed parts by means of vapor smoothing just like with ABS through the use of an acetone. Tetrahydrofuran (THF) has also been tried, although the results have been inconsistent at best; some users have experimented with dichloromethane (DCM), but again these attempts have yielded variable outcomes and had certain risks involved. Such chemicals are highly toxic and dangerous to handle thus it is safer for most users to stick to mechanical processes or applying coatings on surfaces instead. For dependable smooth finishing on PLA prints, one should rely on proven procedures such as sanding, resin application or purchase commercial polishing kits specially designed for 3D printed parts.

Can Ethyl Acetate and THF Be Used for Vapor Smoothing PLA?

Generally, using ethyl acetate and tetrahydrofuran (THF) for vapor smoothing PLA prints is not recommended. Though ethyl acetate has been suggested as a plausible agent for smoothening PLA material; its efficiency lacks uniformity while giving rise to imperfect textures. Similarly much as THF dissolves PLA it is highly hazardous because of its toxicity and flammability. Due to practical challenges and hazards associated with these chemicals they may not be suitable for casual use. Instead, mechanical methods like sanding and polishing, or using safe surface treatments such as epoxy resin, remain the preferred and reliable options for smoothing PLA prints.

What Are the Key Steps in the Smoothing Process?

For a smooth PLA print finish, it is important to follow these main steps:

Preparation: Begin by removing any supports and cleaning the print to get rid of any loose particles.
Sanding: Use sandpapers with coarser grits and then, subsequently employ those with finer grits. Start with a low-grit paper such as 100 to eliminate major imperfections and then move up to higher grits like 400-600 for further smoothing.
Filling: Apply thin layers of filler primer or putty, which will fill in small gaps and hide surface blemishes; after that use fine grit sandpaper.
Base Coat: Apply a base coat of paint or primer which gives an even surface for the final finish.
Polishing: If desired, one can attain glossy look by using polishing kits or compounds specially designed for 3D printed parts.
Sealing: Applying a clear sealant or epoxy resin at last protects the surface and improves its smoothness and long-lasting finish on your print job.

You can achieve high quality smooth finishes on your PLA prints by following these steps religiously.

How to Prep Your PLA 3D Prints for Smoothing

Preparation is vital when you want your PLA 3D prints appear seamless. Check out these critical stages:

Remove Support Structures: Gently take off any supporting structure so that you don’t damage the object.
Clean the Print: Brush away remaining particles gently while blowing air compressed from dust remover into hidden places.
Inspect for Flaws: There might still be some flaws or other things needing attention before we start working on them.
Initial Sanding: Take coarse-grit sandpaper such as120-200 where you have large defects to deal with first. Make sure to follow a circular motion while applying equal force everywhere around it.
Filling Imperfections: Filler primers may be used as lightweight putties too if there’s only tiny holes left unfilled by our previous fillings. Thin layers are applied drying completely besides.
Final Sanding: After the filler has dried, sand using finer grits such as 600 and 400 until you reach a smooth finish before any further finishing is done to it.

Observing these preparation steps will ensure that your PLA prints are perfectly smoothed, making them look better and last longer.

Step-by-Step Guide to Using Acetone Vapor for Smooth PLA

Note: For instance, it is essential to know that acetone vapor smoothing is very effective for ABS and doesn’t ordinarily work on PLA. On the contrary, there may be other alternative methods which are often much more suitable for smoothing PLA prints.

Alternatively, here are other ways you can make a smooth finish on your prints of PLA:

Sanding and Polishing: Keep sanding the print using finer grit (up to 2000 grit) then polish with a polishing compound to achieve a glossy look.
Heat Treatment: Apply gentle heat through a heat gun to soften and smoothen the surface however avoid excessive heating that might distort the print.
Epoxy Coating: After sanding, put a thin layer of epoxy resin on the surface. The result is a sleek shiny layer that toughens the model as well.
Chemical Smoothing with PLA-Specific Solvents: Some chemicals like ethyl acetate are able to dissolve away some parts of PLA models but they have health concerns due their toxic nature as well as being flammable.

Using these techniques means you do not need acetone vapor which cannot work effectively with PLA if you want professional results in finishing your PLA prints.

Safety Tips for Chemical Smoothing of PLA

Use a Well-Ventilated Area: Always work in a well-aerated place to avoid breathing in poisonous gases. Ideally, do the work outside or in a room with windows and an exhaust fan.
Wear Protective Gear: Make sure you have correct safety instruments such as gloves, safety glasses and respirator mask which will protect your skin, eyes, lungs against harmful chemicals.
Handle Chemicals with Care: Use such chemicals like ethyl acetate very cautiously. They are highly flammable and should be kept away from open flames. Keep them out of reach of children and animals in properly labeled containers.
Follow Manufacturer’s Instructions: Obey what chemical manufacturers have said while using their products. This includes directions for use, storage and disposal that safeguard safe handling.
Dispose of Chemicals Responsibly: Avoid pouring excess chemical waste down the drain. Observe local laws on hazardous materials disposal so as to avoid contamination of the environment.

By following these safety hints you guarantee that your PLA prints will come out smoothly during the chemical smoothing process as they are supposed to be.

What Are the Pros and Cons of Different Methods for Smoothing PLA?

Sanding

Pros:

Cheap and common materials.
Gives precise control over the process of smoothing.
No toxic fumes or chemicals involved.

Cons:

Time-consuming and physically demanding.
Hard to get into intricate details and small areas.
Requires different grades of sandpaper for best results.

Chemical Smoothing (e.g., with Ethyl Acetate)

Pros:

Leads to a gleaming, professional finish
Rapidly smooths down extensive and complex surfaces.
Less manual intervention than in sanding is needed.

Cons:

Handling toxic and combustible chemicals is involved in it
Needs proper ventilation and protective clothing
Over-application may cause damage to model

Heat Smoothing

Pros:

It does not involve any dangerous chemicals.
Quick surface smoothing is possible through this method
Large easy surfaces can be dealt with using this technique

Cons:

There is high risk of warping or damaging the print altogether.
Precise temperature control is required;
May not deliver as polished an outcome as chemical ones do;

Filler Priming

Pros:

Innocuousness and simplicity of usage are guaranteed by it
Can fix gaps, minor imperfections etcetera well enough
Subsequently, it can be sanded for a smooth glossy touch after application of filler primer on the surface of the 3D model that complements it’s quality.;

Cons:

This may put extra layers on the print that might conceal finer parts of it,
Multiple applications necessitating sanding between each layer,
Requires much time to gain perfection during finishing;

The choice depends on specific requirements of a project as well as available resources since each comes with some advantages and disadvantages.

Comparing Acetone Vapor vs Ethyl Acetate for PLA

Acetone vapor and ethyl acetate are both used in smoothing 3D prints, but they have different effects on PLA. While Acetone is perfect for smoothing ABS prints and less effective on PLA due to its chemical resistance against it, Ethyl acetate works best with PLA producing a smoother surface without deteriorating the material. Additionally, Ethyl acetate poses less danger to home users because of its low toxicity and impact on the environment. However, ventilation and handling precautions should be observed when dealing with these chemicals. In conclusion, ethyl acetate is preferred in terms of being effective for smoothing PLA and safe to handle.

Mechanical vs Chemical Smoothing for PLA

Comparing mechanical and chemical methods of smoothing is beneficial when finishing PLA prints.

Mechanical Smoothing: This technique involves grinding or sanding using files and rotary tools. The method is cheap while providing precise targeting of areas that need polishing. Conversely, it’s time-consuming; hence may not yield smooth finish as expected if not well done. Also, it is possible through mechanical means to obtain a fine control though this might require extra effort than can be achieved by simply using chemicals.

Chemical Smoothing: Solvents or vapors such as ethyl acetate dissolve the outermost layer of PLA then solidify into a sleeker texture. Chemical smoothing does not involve much labor yet gives an extremely polished look to the print surface. Nevertheless, one needs proper ventilation and safety equipment to work safely with such chemicals as well as risk warping or losing small features.

To sum up, mechanical polishing is more laborious however allows tight detailed control while chemical polishing provides quicker even completion but needs careful handling of hazardous substances involved.

Impact of Smoothing on PLA Print Strength

The power of both chemical and mechanical techniques used in smoothing could result in the loss of strength of PLA prints. Mechanical smoothing such as coarse sanding or filing may incidentally decrease the thickness of material, which can weaken the structural integrity of the print. Nonetheless, chemical smoothing on the other hand while efficient in making a glossy surface may sometimes cause a slight reduction in mechanical strength. The outer layer of PLA is often modified by the chemicals applied for smoothing which could eventually make it brittle. Nevertheless, if effectively utilized these methods can strike a fine balance between aesthetics enhancement with functional strength retention. It is important to be careful and precise with whichever method one chooses so that they do not compromise on the advantages to be derived from the structure of 3D prints.

What Alternative Solvents Can Be Used for Smoothing PLA?

While ethyl acetate is a common solvent used for smoothing PLA, there are other solvents that can be helpful as well. Although isopropyl alcohol may be used to achieve this, its effect of smoothing is usually not so readily apparent and may take longer than usual. Methylene chloride, also called dichloromethane, on the other hand, can give a glossy finish but needs to be handled with care due to its poisonous nature and the potential dangers it poses to human health. Like dichloromethane, Tetrahydrofuran (THF) is an effective way of smoothening PLA prints but must be handled very carefully too. Each solvent has different trade-offs between risk and efficacy; hence you need to select one based on your project’s unique needs; and always prioritize safety when handling these substances.

Effectiveness of Nail Polish Remover on PLA Smoothness

Usually, the ability of nail polish remover with acetone in it to smooth PLA is not good. Acetone works better with ABS than PLA. Nonetheless, even though certain users claim slight smoothing of the surface by acetone-based nail polish removers, the outcome is often varied and less significant compared to similar solvents such as ethyl acetate or dichloromethane. Additionally, an uneven texture may result or a filmy residue when you use acetone on PLA. Thus, other solvents mentioned above would be more effective and preferable for reliable and efficient smoothing of PLA prints as per users’ preferences.

Using MEK and AB as Smoothing Agents

MEK and ABS are alternatives for smoothing out 3D prints. MEK, characterized by strong dissolving power, can smooth down PLA by slightly dissolving its surface layer which solidifies into a smoother texture thereafter. However, it should be handled with care since it is highly volatile and could be hazardous to health.

Acetone has a good response on ABS hence improving the quality of the print. Applying acetone to ABS prints can result in polished surfaces by dissolution of the outermost layer that later evaporates leaving a shiny appearance. While not as successful with PLA, this combination of ABS and acetone is used quite often to make professional-looking ABS printed objects.

Both methods of smoothing using MEK and ABS require taking precautions such as ensuring proper ventilation and wearing protective clothing to minimize exposure to harmful fumes.

Epoxy Resin Coatings for PLA Filament

Epoxy resin coatings can be used to get a smooth and durable finish with PLA prints. With epoxy resin coating, it is possible to fill layer lines and surface imperfections resulting in a hard glossy finish. This technique is particularly useful for prints that will undergo much handling or are required to resist environmental factors. Most importantly, epoxy resins are relatively easy to put on as they can be brushed or poured over the print allowing diversity in the finishing process. Commonly found online, two-part epoxy kits usually come with clear mixing and application instructions making them accessible even for hobbyists. However, one should ensure there is proper ventilation as well as protective gear when applying this product because fumes could be hazardous if ingested by skin or inhaled thus prioritizing safety while achieving a professional finish.

What Brands Provide the Best Results in PLA Smoothing?

Some of the best choices for PLA smoothing brands are those that have a high quality and are easy to use. XTC-3D by Smooth-On is extensively recommended for its adherence with epoxy resin coatings which are durable and glossy on PLA prints. Z-Poxy is also liked because it has strong abilities to finish in clear coat, making it perfect for small detailed applications. 3D Gloop! has a simple application process unlike others therefore their adhesive can bond as well as fill gaps between layers of PLA. They have been positively reviewed within the 3D printing community and can be purchased online, thus hobbyists as well as professionals can purchase them easily.

Which PLA Filament Brands Are Best for Vapor Smoothing?

When it comes to the best PLA filament brand for a vapor smoothing process, Proto-pasta is highly rated due to its easy smoothness and high-quality finished surface. This filament has been engineered to be able to handle vapor based smoothing methods which causes an end product that is slick and well polished. Another alternative is found at MatterHackers which provides great PLA filaments that are friendly with vapor smoothers and have very consistent diameter as well as minimal contaminants resulting in final products that are uniform. Lastly, PolyMaker produces PolySmooth, a range of filaments specifically built for use with alcohol vapour smoothing solutions after 3D printing. It melts evenly when exposed to vapours thereby providing a smooth finish which is ideal for various applications done in professional level quality.

Comparing Smooth 3D Prints Across 6 Different Brands

When considering the smoothness of 3D prints among diverse brands, it’s significant to take into account filament quality, finish consistency and ease of post-processing. Below are brief comparisons with insights from best-rated websites.

Proto-pasta: Known for its high performance in vapor smoothing, Proto-pasta filaments give a high-quality finish with negligible layer lines. It is praised for being easy to smoothen and having end results that are polished so that it is an ideal filament for fine detailed prints.
MatterHackers: This brand has a variety of PLA filaments that have a constant diameter and few impurities which assist in achieving an even and smooth finish. Additionally, MatterHackers’ filaments are reliable when it comes to producing professional-looking objects after being smoothed out.
PolyMaker (PolySmooth): These PolySmooth filaments are specifically made for alcohol-based surface smoothing solvents because they usually melt uniformly under vapors. This leads to consistently smooth surfaces, making it perfect for use in applications where flawless surfaces are required.
Hatchbox: Hatchbox PLA filaments are known to be cheap without compromising on quality, thus giving rise to prints which have nice layer adhesion. They have continuous nature and simplicity hence many enthusiasts and specialists love them.
eSUN: The eSUN brand offers a wide array of PLA options known for their reliability along with a smooth finish. Most eSUN filaments have good surface finishes and can be easily post-processed hence making them ideal for different forms of 3D printing projects.
Prusament: Prusament PLA filaments manufactured by Prusa Research come highly recommended due to their superlative manufacturing standards. They deliver excellent print quality through having uniform diameter together with minimal impurities thereby ensuring sleek as well as intricately detailed prints.

These brands provide users with various products that can be used by both hobbyists and professionals towards ensuring dependable as well as high-quality surfaces in different 3D printing projects.

Top Recommendations for PLA Filament for Vapor Polishing

Polymaker PolySmooth: Recognized by various leading 3D printing websites, Polymaker PolySmooth is a filament specially designed for smoothing post-processing by means of alcohol-based fumes. This filament ensures even and professional finishes, making it perfect for complex projects.
MatterHackers PRO Series: Another regularly recommended option; MatterHackers’ PRO Series PLA has been manufactured to bring about strong adhesion between layers and a sleek surface. It is appreciated for being reliable, easy to post-process, which gives it that clean polished look.
eSUN ePLA-LW: Noted for its wide availability and consistent quality control, eSUN’s ePLA-LW is recognized for its excellent surface finish as well as low effort vapor smoothing. This results in coming up with dependable outcomes with no sweat as both the starter and well experienced users of different prints always desire high quality.

Frequently Asked Questions (FAQs)

Q: What are some common methods to smooth PLA 3D prints?

A: Common methods to smooth PLA 3D prints include vapor polishing, priming and sanding, using a resin coating, and applying a heat gun. Each method has different advantages and may be suitable for different types of PLA material.

Q: Can vapor polishing be used to smooth PLA parts effectively?

A: Yes, vapor polishing can be an effective way to smooth PLA parts. Using chemicals like ethyl acetate vapor within a vapor chamber helps in vapor smoothing of PLA, resulting in a smooth finish. However, it should be done in a well-ventilated area.

Q: How does priming and sanding help in smoothing a PLA 3D print?

A: Priming and sanding are effective methods for smoothing PLA 3D prints. Start with coarse-grit sandpaper to remove the appearance of layer lines and gradually move to finer grits. After sanding, applying a primer helps to fill in small gaps and prepares the surface for painting or additional smoothing techniques.

Q: Is it possible to dissolve PLA with acetone for smoothing?

A: Unlike ABS, pure PLA does not dissolve in acetone. However, some brands of PLA might be smoothed with acetone if they contain certain additives. Other solvents, like ethyl acetate, are more commonly used for vapor smoothing of PLA.

Q: What is the role of layer height in achieving a smooth PLA 3D print?

A: The layer height in a 3D printer significantly affects the smoothness of the prints. A lower layer height results in less noticeable layer lines, making the prints smoother and requiring less post-processing. However, lower layer heights increase print time.

Q: What safety precautions should be taken during vapor smoothing of PLA?

A: During vapor smoothing of PLA, it’s important to work in a well-ventilated area and wear protective gear, including gloves and goggles. This prevents inhalation of fumes and skin contact with solvents like ethyl acetate.

Q: Are there any commercial products available specifically for smoothing PLA 3D prints?

A: Yes, there are commercial products designed specifically for smoothing PLA 3D prints. These include specialized sanding and priming kits, as well as solvent-based products for vapor polishing PLA. Comparing brands and results can help you choose the right product for your needs.

Q: How effective is a heat gun in smoothing PLA prints?

A: Using a heat gun can be an effective method for smoothing PLA prints. The heat softens the PLA plastic, allowing the surface layer to be smoothed out. However, it’s important to apply heat evenly and avoid overheating which can deform the printed part.

Q: What are some alternative ways of smoothing a PLA 3D print?

A: In addition to vapor polishing and sanding, other ways of smoothing a PLA 3D print include using a resin coating, applying an epoxy finish, or using a specialized chemical smoother. Each method offers different levels of smoothness and durability.

Q: Why might some PLA parts be more difficult to smooth than others?

A: Some PLA parts might be more difficult to smooth due to variations in PLA material composition, infill density, and print quality. Factors such as the type of PLA used, layer height, and printing conditions can also impact the ease of post-processing and achieving a smooth finish.
