In the sphere of recent machining, precision and efficacy are cardinal. Tool balance is a significant critical factor that has a major influence on both aspects. Better accuracy can be achieved, machine wear reduced and costly downtime minimized if tool balancing is properly done. Essential principles of tool balancing, its significance in machining and the advanced technologies that enable perfect balance are discussed in this blog post. Thus, industry experts require better comprehension as well as utilization advanced tools for attaining high quality production levels.

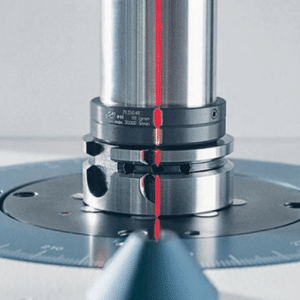

What is Tool Balancing and Why is Balance Critical?
Image source: https://www.sme.org/
The technique of balancing tools is an art of repositioning weight in a tool to achieve smooth, stable spinning without shaking or vibrating. A lack of balance becomes significant when there is a slight imbalance at high speeds because it can result in reduced accuracy during machining, more wear on the tool, and damage to the machine’s spindle. A tool that has been adequately balanced will not vibrate and hence extend the life of both itself as well as the machine. This results in higher-quality finished products and also reduces maintenance costs while minimizing unscheduled downtime, thus leading to increased productivity and dependability in a better machining operation.
Understanding Tool Balance
This makes sure that there is an equal distribution of mass in all parts of the tool around its axis of rotation to avoid vibrations while it is being used. Some resources suggest that there are several main steps to take into account when balancing a tool.
- Static Balancing and Dynamic Balancing: Tools may be balanced either statically, so they are stable at rest, or dynamically which means balance during rotation. In high-speed operations dynamic balancing is particularly important.
- Utilizing Advanced Balancing Machines: These detect and correct imbalances by accurately measuring weight distribution and adjusting it accordingly. This technology enables high degree precision and repeatability.
- Regular Maintenance and Balancing Checks: Therefore, regular monitoring and balancing as part of maintenance routine is necessary for tools. Small imbalances may escalate over time resulting in reduced performance levels as well as health issues for machines.
Inclusion of these practices promotes accuracy in machining, reduces equipment depreciation rates; ultimately increasing the efficiency of machine operation over a long span of time.
The Role of rpm in Tool Balancing
Tool balancing is a critical part of the high-speed machining process; this is especially so when considering revolutions per minute (rpm). Balance of a tool is controlled by its rotational speed. Thus, rpm determines the centrifugal forces exerted on it during its operation. This leads to a balance on it. High speeds in the rotation of tools can even give rise to minor imbalances that generate excessive vibrations and centrifugal forces which cause poor machining quality and increased wear of machinery.
Therefore, tools have to be balanced to deal with particular rpm they are expected to function at. Dynamic balancing must therefore be carried out since an increase in speed reduces tolerance for imbalance. Optimum tool balance at required rpm level minimizes vibration, enhances precision and yields smoother operation. To achieve this, sophisticated balancing machines are used along with regular maintenance checks that help identify and correct any imbalances thus ensuring uniform performance while increasing their lifespan in both cases.
Impact of Imbalance on Tool Life and Machine Performance
The life of the instrument and the performance of the machine are greatly influenced by imbalance in tools. When a tool is off balance, it produces uneven forces during operation, thereby increasing vibration and stress on the equipment involved. It may also speed up wearing out of tools or decrease their working life. Moreover, disproportionate vibration associated with imbalance may lead to machining imprecision, which manifests itself through poor surface finishes and dimensional inaccuracies in pieces being worked on. Furthermore, these vibrations eventually cause damage to machine components including bearings and spindles leading to more frequent maintenance and possible downtime of machines due to this reason. Therefore, tool balancing is important for improving the longevity of tools as well as ensuring high precision in machining and optimizing general machine performance.
How Does Toolholder Balancing Work?
Balancing toolholder involves a series of steps intended to detect and rectify unbalances to ensure that there is a smooth operation. Balancing machine is first placed into the toolholder whereby it spins at particular speed in order to establish mass distribution. The position and extent of unbalance are indicated by the machine. Once determined, weights are either added or subtracted from specific positions on the toolholder so as to counteract it. This precise adjustment can be achieved through methods such as adding balancing rings or screws. Regular checks for balance and maintenance are very important for sustaining optimal performance, reducing vibrations, minimizing wear on tools and machinery in general, and extending their life expectancy.
Components of a Balancing Assembly
Usually a balancing assembly is made up of several key components which are intended for precise mass distribution and reducing the vibrations during operation. The primary ones include:
- Balancing Rings: These rings can be adjusted along the toolholder to neutralize any of its unbalances.
- Balancing Screws: The added or removed screws or bolts adjust weights.
- Balancing Weights: These are either fixed or can be altered in position on the tool holder to overcome imbalances.
- Balancing Machine: This significant element rotates the tool holder while finding areas where there is imbalance so that weights, rings, or screws put accordingly.
- Software: Contemporary balancing systems may come with software to provide comprehensive analysis and give directives on where and how adjustments need to be made.
Working together, these elements make sure that any balance required for optimizing wear and tear reduction, precision improvement, extended life of both tools and machines is maintained in the tool holder. Regular maintenance as well as checks are necessary to sustain the efficiency of balancing assemblies.
Step-by-Step Balancing Process
- Initial Inspection:
Start with a visual inspection of the toolholder to see if there are any apparent marks of wear, dirt or damage. Clean up the toolholder meticulously in order to ensure that it is free from materials which can affect balancing.
- Set Up the Balancing Machine:
Using the instructions from the manufacturer, secure the toolholder on the balancing machine. The aim is to align properly with the tool holder so as not to get skewed results.
- Spin the Toolholder:
A specified speed spin of the tool holder should be initiated by turning on the balancing machine. As it rotates, sensors and gauges within this machine will pick up areas where there is no balance.
- Analyze the Imbalance Data:
The collected spinning data should be analyzed using special software for balancing. Areas that need correction are indicated by this software by location and magnitude of imbalances.
- Adjust Balancing Components:
Balance rings, screws and weights may need to be adjusted based on these findings
- Move balancing rings along a spindle axis offsetting found imbalances.
- Add or remove screw-in weights for fine-tuning weight distribution.
- Place appropriately identified counterbalancing weights as directed by software program.
- Re-Test the Toolholder:
Then after some adjustments have been made, spin again to ascertain how effective changes have been implemented. Once it’s done with reading new values again you will know whether you were able to achieve balance or not according to its readings from balancing machine requirements
- Repeat Adjustments if Necessary:
If still unbalanced, one more adjustment had better be performed on balanced machines. Therefore continue changing their locations depending on how updated software directs until a desired adaptation is achieved;
- Final Inspection:
After ensuring that all parts are firmly secured in place complete a final inspection of a balanced unit. Make sure none of fastened screws, weights and rings became loose during this process
- Documentation and Maintenance:
Store all information about your work in files where necessary actions are logged into service history. As a part of routine maintenance, schedule regular balance controls ensuring that the life and efficiency of the tool holder and machine is increased.
Following these steps sequentially can help you balance your toolholder well to enhance its performance as well as prolonging both the tools’ life span and its related machinery. Regular check-ups will ensure that there are no operational delays or inaccuracies in future.
Using Balancing Machines: An Overview
Balancing machine is an important tool that will guarantee smooth operation and life span of rotating machinery components. These devices evaluate the mass distribution within a rotating part and recognize imbalance, which could cause more vibrations, wear and tear.
1. Types of Balancing Machines
There are two major types of balancing machines namely hard-bearing and soft-bearing machines. Hard-bearing machines are particularly appropriate for high-precision balancing requirements mostly at operational speeds while soft-bearing machines are versatile since they support a wider range of parts having varying weights as well as sizes.
2. Process of Balancing
The process of balancing often entails mounting the running component on the machine, spinning to operational speed then measuring vibrations using sensors to detect imbalances. The software in the machine then calculates where exactly the imbalance is and how much it weighs.
3. Corrective Measures
After obtaining this imbalance data, corrective measures such as adding or removing materials with weights, piercing holes or attaching balance screws may be taken up. The piece is retested just to ensure that these adjustments have successfully cut down on any imbalances.
4. Benefits of Using Balancing Machines
Numerous advantages accrue from using these machines among them reduced downtime on machines, increased accuracy plus efficiency levels, prolonged lifespan of components, greater safety by minimizing occurrence of operating accidents due to imbalances.
It incorporates these engines into their regular maintenance schedules to enable industries achieve optimum performance and reliability in their rotating machinery.
What are the Benefits of Dynamic Tool Balancing?
The use of dynamic tool balancing provides a number of important benefits that help make machines more efficient and durable. To begin with, it enhances the levels precision in general, making tools to run smoother and more precise which is necessary for a high-quality job. Additionally, it decreases vibrations that may ensue thus leading to over usage and tear; hence, enhancing its useful life. Again, balanced tools also lead to increased productivity by minimizing downtime for fixing or maintenance purposes (Rusinko 31). This can result in significant cost savings over time. Lastly, dynamic balancing supports safety by reducing the chance of operational breakdowns hence safeguarding both the machine itself as well as the operators using them.
Increased Tool Life and Reduced Vibration
Tool life can be increased and vibration reduced by dynamic tool balancing. Firstly, the operational stress on the machinery is greatly reduced which in turn leads to a significant increase in tool life through having balanced tools. Balanced tools rotate more smoothly hence reducing irregular forces exerted on components. Premature wear and tear are avoided thus fewer replacements and lower maintenance costs. Secondly, minimizing vibration of tools is important to not only their durability but also product quality. Tool accuracy and precision become compromised due to vibrations thereby leading to defects and poor performance. Balancing counters these vibrations so that tools work optimally producing high-quality results. It also helps in improving the operator’s comfort and safety by reducing chances of such catastrophic tool failures during operation. For instance, machining operations need dynamic tool balancing for them to remain efficient, safe as well as cost-effective.
Enhanced Surface Finish and Machining Accuracy
Superior product quality necessitates enhanced surface finish and machining accuracy in order to reduce post-processing requirements. According to industry-leading sources, this is where dynamic tool balancing plays an important part. When tools are balanced, they cause less vibration and chatter during machining operations, leading to a smoother and more uniform surface finish. Precise applications demand for this especially as it affects the adequate surface quality. The geometric alignment is also maintained by a well-balanced tool which further guarantees high machining precision. As the inconsistencies and errors caused by vibrations are decreased, the overall tolerances are tightened up leading to final products that satisfy strict quality standards. Thus, dynamic balancing techniques enhance not only surface finish and machining accuracy but also productivity and precision within the entire manufacturing process.
Extended Spindle Life and Lower Maintenance Costs
Prolonged spindle life and reduced maintenance costs are significantly influenced by dynamic tool balancing. Spindle bearings and other key components are not subjected to excessive force when tools are balanced, thus reducing wearing out. Hence, fewer repairs and replacements will be made which would result in spending less money and keeping the machine running for longer periods of time. Prominent industry resources emphasize that balanced tools can lessen wear on spindles thereby minimizing frequency and complexity of maintenances. This accordingly improves total equipment lifespan as well as operational dependability thereby making sure that machines perform effectively with slight stoppages or their associated expenditure.
What Are the Industry Standards for Tool Balancing?
Standard in the industry for tool balance is meant to ensure machining operations are consistent, of a high quality and safe. Some of these standards consist of ISO 1940/1 as well as ISO 16084, which indicate the tolerances for unbalance in rotating parts based on the permitted imbalance. For various types of tools and machines these standards also set out what level of residual unbalance is acceptable enabling manufacturers to achieve best results. They have been developed so that tools can operate within appropriate levels of vibration thus reducing chances of damaging either machines or work pieces; this consequently increases general efficiency and accuracy during operations.
ISO 1940-1: Balancing Quality Grades G2.5 and G6.3 Explained
ISO 1940-1 prescribes criteria for the balance quality of rotating parts, including tools, so that they function without any hitches while moving at different speeds. Balancing quality grades G2.5 and G6.3 are commonly used in machine and metalworking industries.
- Grade G2.5: This grade is given to components which rotate at higher speeds and need very exact balancing to avoid vibrations. It is used in such applications as precision machine tools, high-speed spindles, and turbines. Stricter tolerances on permissible unbalance are required so that performance does not suffer in high speed equipment.
- Grade G6.3: This grade applies to parts which operate at moderate speeds where the balance requirements are slightly less stringent compared to G2.5. It is often applied in industrial fans, small electric motors, and general machinery operating with acceptable levels of vibration.
By adhering to these grades specified by ISO 1940-1 a user maintains operational excellence of the tool; lowers wear-out rate; extends machines’ longevity by maintaining allowed imbalance; and ensures safe work within defined oscillation boundaries.
Permissible Residual Unbalance: Important Metrics
It is a very important matter to look at the permitted residual unbalance in ensuring safe and efficient operations of rotating components. The following are key indicators:
- Maximum Permissible Residual Unbalance (U_per): This value depends on the component mass and permissible balance quality grade e.g., G2.5 or G6.3, that determines it and therefore defines an allowed unbalance usually calculated by formula ( U_per = e \times m ) where ( e ) denotes allowable eccentricity and ( m ) – weight of detail.
- Service Speed as well as Rotor Dimensions: Unbalance allowable will depend on rotor speed as well as its dimensions. Whenever speeds are high, there should be tighter tolerances for unbalance preventing excessive vibration.
- ISO Standards Compliance: Complying with ISO 1940-1 allows one to have permissible residual unbalances which are within industrial norms thus reducing equipment failure risks and downtime.
These measures must be understood and applied in order to maintain the efficiency, safety and durability of rotating equipment.
Compliance and Certification for Machine Tools
The machine tools must conform to the industry standards and have certification for them so as to guarantee quality, safety and reliability in production. These are the main factors:
- ISO Certification: The International Organization for Standardization (ISO) standards, particularly ISO 9001 for quality management and ISO 1940-1 for balancing quality, are vital. The guidelines and requirements that will result in consistent product quality and operational safety are provided by these standards. Being ISO certified is a good mark of international benchmarked machine tools assuring consumers that they are not only competitive but also meet all global specifications.
- CE Marking: For machine tools used in the European Economic Area (EEA), the CE Marking is mandatory. It implies that this equipment meets all relevant EU directives concerning safety, health, environmental protection standards etc.. Obtaining CE Marking requires intensive testing and documentation but it’s essential for accessing European markets.
- Third-Party Certifications: Safety and performance evaluations through certifications offered by organizations like Underwriters Laboratories (UL) or TÜV exist for machine tools. These certifications often go beyond the basic regulatory requirements, offering a higher level of scrutiny and assurance. Customers often seek out these marks as indicators of superior product safety and reliability.
To sum up, following these certifications/standards means that machine tools can perform at their best while meeting global safety demands as well as reducing risks while increasing marketability.
How to Choose the Right Toolholder for High-Speed Machining?
When selecting a right tool holder for high speed machining, it requires considering several factors.
- Balance and run-out: Choose precisely balanced tool holders with low values of runout that can handle the high RPMs characteristic to high-speed machining. This eliminates vibration and ensures an even process.
- Material: Metals like steel and carbide are advisable for choice of toolholders that can withstand the forces and temperatures experienced during high speeds.
- Clamping force: go for a toolholder which gives strong clamping force to safely lock up the cutting tools without any movement or slippage which could result in inaccuracies
- Compatibility: Ascertain that the chosen tool holder is compatible with your machine spindle as well as the specific tools you intend to use hence optimal performance is guaranteed while this also minimizes chances of tool failure.
- Cooling capability: If applicable, opt for a toolholder with integrated cooling system. Rapid cooling helps dissipate heat thereby ensuring that cutting edges remain intact during high-speed milling processes.
By critically examining these conditions, one should choose a new set of tollholders which should raise capabilities, safety levels and accuracy in operations using very fast work motions.
Evaluating Toolholders for Spindle Speed and Performance
In assessing spindle speed and performance of toolholders, look into the following:
- Precision Balance: For high-speed operations, check for a well-balanced toolholder to reduce vibrations caused by imbalance. Unbalanced tool holders might cause excessive wear on spindles and tools, which can result in bad cuts and reduced lifespan of the cutting edge.
- Runout: To maintain precision and prevent workpiece damage, use low runout toolholders. Slight deviations may produce severe consequences at high speeds; therefore, opt for ultra-precision toolholders that provide minimal runout.
- Vibration Damping: High-performance toolholders frequently have vibratory damping systems that are necessary for maintaining long life expectancy of tools and consistent machining results. Tool holders with excellent vibration control add to surface finish quality leaving both the machine and cutter lasting longer.
- Material and Construction: Toolholders constructed from premium-grade materials like annealed steel or unique alloys ensure durability as well as robustness. They must withstand the dynamic forces as well as temperatures associated with high speed machining.
- Dynamic Balance: Take into account dynamic balancing capacity of toolholders specifically meant for high speed applications. Tool holders rated for higher RPMs should have very tight balance tolerances to maintain smooth running conditions.
If you put emphasis on these factors, your choice of a tool holder will make it possible to reach optimal tasking or rates per minute rate thus making manufacturing more efficient in general terms while increasing accuracy.
Importance of Toolholder Taper and Clamping Mechanisms
Machining accuracy, stability and efficiency are some of the main issues in taper and clamping mechanism of toolholder. The taper is the conical interface which normally aligns the toolholder to the spindle accurately such that even a concentricity and runout can be maintained at its minimum. As for machining with super precise, this alignment is vital because it may greatly affect how well the machined work piece will appear if any slight deviations exist.
The cutting tools get secured by clamping mechanisms like hydraulic chucks or collets. There should be a strong clamping force to make sure that during high speed machining, there is no slippage or movement of tools to avoid errors due to chaos and damage of machine tools too. Also, good clamping mechanisms allow for quick tool changeover and provide consistent pressure thus improving operation speed while minimizing downtime.
To sum up, the performance of machining process depends on the quality of taper and clamping mechanisms directly affecting surface finish quality, tool life among other factors. Therefore, they should be robust as well as accurate aiming at attaining reliable high-quality manufacturing outcomes.
Recommendations for Toolholder Balancing
To ensure optimal machining performance and the longevity of both tool and spindle, a proper toolholder balance is necessary. Here are some key recommendations in relation to the current most important resources available:
- Regular Inspection and Maintenance:
- Periodically check for wear, damage or contamination of the toolholders that can cause significant issues when running at high speeds because of minimal imbalances.
- Ensure cleanliness of components making up the toolholder so as not to compromise on balance and concentricity.
- Use Balanced Toolholders:
- Ensure cleanliness of components making up the toolholder so as not to compromise on balance and concentricity.
- Dynamic Balancing Machines:
- For operations involving fastening bolts, dynamic balancing machines should be applied. Such machines enable detection as well as precise correction of imbalances aiming at ensuring smooth operation at higher speeds.
- Consistent Monitoring:
- Install monitoring systems that can immediately detect imbalances during operation in real-time. This permits immediate rectification steps to prevent damages while maintaining machining quality.
Adherence to these guidelines will result in excellent balances in your toolholders which will help improve machining accuracy, reduce Wear & tear and upgrade overall system performance.
Reference sources
Frequently Asked Questions (FAQs)
Q: What is the importance of tool balancing in modern machining?
A: Tool balancing is crucial in modern machining as it helps to reduce vibrations, improve machining precision, and extend the lifespan of the tool and tool holder. Properly balanced tools and toolholders enhance the overall performance of CNC machining centers by ensuring that the tools operate at their optimal center of gravity.
Q: How does tool balancing benefit CNC machining centers?
A: Balancing tools and toolholders in CNC machining centers helps to reduce runout, which subsequently improves the surface finish and dimensional accuracy of parts. This leads to increased productivity and efficiency in machine shops, as well as reduced tool breakage and wear.
Q: What are the common methods used to balance tools and toolholders?
A: The common methods for balancing tools and toolholders include static balancing and dynamic balancing. Static balancing typically involves determining and correcting imbalances when the tool is stationary, while dynamic balancing corrects imbalances while the tool is rotating. Specialized balancing equipment, such as the Haimer Tool Dynamic TD, could be used to achieve precise balancing.
Q: Why is it necessary to balance toolholder assemblies?
A: Balancing toolholder assemblies is necessary to minimize vibrations that can lead to tool and machine damage, reduced machining accuracy, and increased wear on the machine tool spindle. Proper balancing ensures smoother operations, resulting in better quality of the machined parts and the longevity of the cutting tools and holders.
Q: What are the key factors to consider in tool balancing?
A: Key factors to consider in tool balancing include the types of tools and toolholders being used, the balancing requirements of the machining center, the center of gravity of the tool assemblies, and the specific machining applications. It is also vital to follow the tool manufacturer’s guidelines and balance the tool to the required standard, such as G2.5.
Q: Can unbalanced tools cause any significant issues in machining?
A: Yes, unbalanced tools can cause significant issues, such as increased vibrations, which can lead to poor surface finishes, reduced dimensional accuracy, faster tool wear, and potential tool breakage. Unbalanced tools also place more stress on the machine tool spindle, leading to decreased machine life and higher maintenance costs.
Q: What are the benefits of using a tool balancer?
A: A tool balancer offers numerous benefits, including reduced vibrations, extended tool life, improved surface finishes, and enhanced overall machining accuracy. Tool balancers ensure that tools are balanced to the required specifications, helping to prevent operational issues and improving the productivity of CNC machining centers.
Q: How does balancing toolholders affect machining precision?
A: Balancing toolholders directly affects machining precision by reducing runout and vibrations during operation. A balanced toolholder ensures that the cutting tool maintains its intended path and cutting parameters, resulting in more precise cuts and better dimensional accuracy of the machined parts.
Q: What balancing equipment is commonly used in modern machining?
A: Common balancing equipment in modern machining includes dynamic balancers like the Haimer Tool Dynamic TD, which allow for precise correction of imbalances in rotating tools and toolholders. These machines use advanced technology to identify and correct imbalances, ensuring tools are balanced to specific standards such as G2.5, thus optimizing machining performance.
