In the manufacturing sector, selecting the proper method for producing plastic parts is essential to be efficient, have quality, and be cost-effective. Thermoforming and injection molding are two standard methods with different benefits and disadvantages per project requirements. This article helps manufacturers choose between these processes by outlining their fundamental differences. Factors including material types used, production volumes required, and design complexities will be discussed so that decision-making among manufacturers can be informed in a broader sense regarding the manufacturing realm. Whether you’re a seasoned professional or new to the industry, understanding these processes will empower you to make the best choice for your projects.
What are the Key Differences Between Injection Mold and Thermoforming?

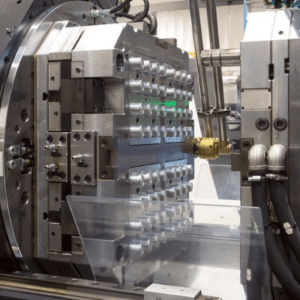

Image source: https://europlas.com.vn/
The distinction between injection molding and thermoforming lies in their procedures and applications. With injection molding, molten plastic is injected into molds, where it cools and solidifies to form intricate shapes. This process is ideal for high-volume production with consistent quality. It allows for the use of different materials and complex geometries; however, a higher initial investment in mold development is required.
On the other hand, thermoforming involves heating a flexible sheet of plastic until pliable, then draping it over a mold and cooling it into shape. Although this method is generally more economical and quicker during short production runs than other methods, details and strength may not match those found in injection molded parts. Thermoforming is usually chosen for large but less complex items like packaging or trays; therefore, one must consider what their project requires when choosing either of these systems.
How Does the Manufacturing Process Differ?
The manufacturing processes for injection molding and thermoforming differ mainly in plastic shaping methods and the products they make. In line with recent insights:
- Injection Molding: This approach involves pouring hot molten thermoplastic material into a precisely constructed mold that solidifies into the desired component. It provides accurate components with consistent dimensions suitable for large-scale production while enabling multi-material functionality.
- Thermoforming: Conversely, thermoforming involves heating a plastic sheet until it is pliable and then shaping it over a mold. It is often more flexible than other methods when producing small volumes of items and has shorter lead times. However, its perfection may not be as good as that achievable through injection molding.
- Applications and Cost: The decision on which method to use usually depends on the project’s requirements and the amount of money available. Injection molding usually incurs higher initial costs because of mold making; nonetheless, this production system proves economical when the volumes are high enough. Thermoforming is ideal for small batch quantities, whereas it might produce less durable products.
In summary, both processes offer unique advantages and disadvantages, implying that proper analysis, considering intended application and production scales, is necessary for effective decision-making.
What are the Tooling Costs for Each Method?
The significant differences between tooling costs for injection molding and thermoforming need to be recognized. Injection molding, these costs for tools can be considerable and may start from $5,000 up to $100,000 or more, depending on the intricacy of the mold and materials used. This initial expenditure is deemed appropriate by high-volume production runs as production cost per unit goes down substantially with scale.
However, thermoforming tooling is generally cheaper, costing between $2,000 and $20,000.This is because of simple molds and a faster production process, which makes it suitable for smaller volumes where flexibility is a concern. As I have discovered through my research, it’s important to compare these tooling costs against anticipated production scales in order to make an informed decision that complies with budgetary boundaries and project goals.
Which Method is Better for Plastic Parts Production?
In my analysis, choosing between injection molding and thermoforming depends on specific project requirements. When durability and precision are crucial in high-volume manufacturing, I tend to go with injection molding because of its superior quality and scale. But if flexibility and lower initial costs are more important, especially for small batches or prototypes, then thermoforming emerges as a better alternative. In conclusion, I think it is necessary to examine the intended application, production quantities, and financial resources available to select the most appropriate way of producing plastic parts.
How Does Plastic Injection Molding Work?
Plastic injection molding is a manufacturing process that melts plastic pellets and injects them into a mold to create components. The process commences by heating the plastic material until it liquefies. This melted plastic is then pushed under high pressure into an accurately made mold cavity, where it solidifies and cools to assume its required shape. Upon cooling, the molding opens, and the final part is ejected. Such high precision ability and complicated geometries make this method most appropriate in volume production with consistent quality for delicate plastics.
What is the Injection Molding Process?
Several distinct stages in the injection molding process provide accuracy and efficiency in producing parts from plastic materials. First, there is material selection, at which point pellets used for plastics are considered based on their properties as desired for the final product. These pellets are then placed in a hopper, heated up, and melted inside a barrel, leading to equalized molten form. Subsequently, this melt is introduced into the mold through high pressure, enabling it to fill all cavities, thus taking perfect shape. After cooling and hardening the molten plastics, the mold opens, allowing the removal of the finished piece. This method also allows complex shapes with tight accuracy requirements and is hence widely applied across industries such as the automotive, consumer goods, and electronics industries. For example, automotive, consumer products, and electronics.
What Equipment is Used in Injection Molding?
There are several equipment components required to make injection molding successful. The main parts include the injection molding machines consisting of a hopper, a barrel, a screw for melting the plastic, and a clamping unit that holds the mold during injection. Besides, molds play an essential role in this process; they are usually made of steel or aluminum and can be very intricate to produce particular shapes. Other equipment may comprise temperature control units needed to sustain appropriate heat while conveyors transport items post-ejection.
What Types of Plastic Are Used?
Different plastics are used in injection molding, and each one is chosen depending on their unique qualities suited for specific purposes. Some commonly used ones include:
- Polyethylene (PE): This supple and chemically resistant material has endless uses, ranging from containers to toys.
- Polypropylene (PP): It is mainly appreciated due to its weight ratio and resistance against fatigue that makes it suitable for consumer products such as automotive parts.
- Polystyrene (PS): Often selected because of its clarity and ease of molding, polystyrene is widely used in packaging disposable cutlery and insulating materials
- Polyvinyl Chloride (PVC): PVC stands out due to its robust nature as well as adaptability; hence, it’s commonly used in building materials, plumbing, electrical cable covering
- Acrylonitrile Butadiene Styrene (ABS): ABS has high impact strength coupled with toughness, thus widely applied in electronic housings and automobile dashboards
These demonstrate how versatile plastics can be when used in molding, allowing manufacturers to create various high-quality components serving distinct industries.
What are the Advantages of Thermoforming?
Thermoforming has various advantages that make it a common choice in manufacturing. First, the process is very efficient and can rapidly produce many parts with minimal wastage. Secondly, thermoforming allows for diverse materials, such as different kinds of thermoplastics, thus enabling flexibility in design and function. Thirdly, it typically requires few tools compared to other methods like injection molding, which may cause lower initial outlay. Besides, the thermoformed products are lightweight but strong enough, ideal for packaging, automotive parts, and other consumer goods. Lastly, complex shapes and features enhance the aesthetics and functionality of products fabricated by this method.
Why is Thermoforming Ideal for Large Parts?
The capacity to efficiently process vast plastic sheets makes thermoforming suitable for large-part production. The main benefit of using this method is that it allows us to produce more significant components without going through extensive tooling processes that take time and money in traditional ways. On top of that, uniform heating during thermoforming ensures even shaping of significant areas without sacrificing strength or structural integrity. Furthermore, it permits manufacturers to make lightweight yet rigid products, therefore suiting uses such as the automobile industry, where heavy objects must retain their strength at minimum weights (Harland 16). Finally, customizable aspects related to material choice and design enable the creation of different sizes and shapes according to individual application needs.
What is the Thermoforming Process?
Plastic sheets must be heated to the point of being pliant. I then place the sheet over a mold after it has been heated, and it captures its shape. It is done by applying a vacuum or pressure to pull the material against the mold, allowing it to form closely around any contours. When cooled and hardened, the separated material results in a final product. This makes it an efficient method that can accommodate many designs and uses; hence, it is widely employed across many industries.
How does Vacuum Forming enhance thermoforming?
Vacuum forming enhances thermoforming by increasing accuracy, precision, and plastic shape efficiency. Manufacturers who use vacuums during thermoforming have tighter tolerance levels; hence, more complex designs can be achieved when compared to other thermoforming methods. The heat plastic is pulled towards the mold tightly by vacuum, ensuring that even complex features are accurately reproduced. Additionally, this technique helps reduce wastage as it allows the use of thinner sheets while maintaining the structural integrity of such items because of the lower demand for raw materials due to the uniformity of thicknesses necessary for both strength requirements, among other things. That’s why this type of technology is beneficial when manufacturing large-sized components with consistent quality, so it fits nicely into sectors like packaging, automotive, or consumer goods. Finally, since this processing speeds up production cycle time; therefore manufacturers can respond quickly enough to market demands.
What are the Cost Implications of Injection Molding vs Thermoforming?
Various factors should be considered when considering injection molding and thermoforming costs. In most cases, initial setup costs for injection-molded products are higher because they require custom molds, which can be costly and time-consuming. Nevertheless, it is good at producing high-quality parts with great accuracy and consistency, leading to low per-unit costs in large-scale production. Conversely, thermoforming is usually more competitive for short runs or prototypes, as the tooling tends to be less expensive and allows for quicker design changes. While the per-unit costs for thermoformed products may exceed those of injection-molded items in large volumes, an attractive feature of thermoforming is its lower capital outlay together with malleability as an option suitable for many applications, especially sectors with rapid turnaround times and/or low volume production.
What is the Cost of Thermoforming?
The cost of thermoforming can vary dramatically based on some factors, including material type, design complexity, and production level. Typically, the initial tooling costs associated with thermoforming are lower than those related to injection molds, ranging from $ 5,000 to $ 100,000, depending on project specifications. Depending on such factors as material prices, quantity produced and design intricacies unit costs of thermoformed parts would typically be within the range $0.10-$5.00. It enables faster adjustments; hence it becomes more economical for small batches or prototypes when compared to other methods because there are now greater chances involved here in adjusting quickly without so much financial loss, which explains why companies prefer using them if they want to test new products or need quick modifications on their designs without spending money upfront in most instances.
How Does Tooling for Injection Molding Affect Costs?
From my experience, I noticed that the tooling used in injection molding significantly affects the costs because of its complexity and precise nature. Tooling can be costly, ranging from $10,000 to over $250,000 based on design intricacy and material used. Due to this initial cost it is essential to produce substantial volumes to spread out the tooling expense. Moreover, design changes made after the construction of tools will result in higher prices and lengthening lead times since new molds need to be manufactured. However, once the mold has been established, per-unit costs for mass production may be pretty low, making injection molding highly cost-effective for large-scale orders. This crucial trade-off between first tooling costs and future savings must be considered when deciding whether to proceed with injection molding.
Which Method Offers Better Production Run Economics?
The choice about which method—thermoforming or injection molding—offers better production run economics rests largely on project specifics. For example, according to industry informants, lower per-piece costs following the establishment of the tooling make injection molding preferable to thermoforming in large-volume productions. In particular, it is more beneficial when producing thousands or millions of similar parts since cost savings from lower production expenses counterbalance their initial investments in tooling.
On the other hand, thermoforming is often a cheaper choice for short runs or prototypes. The low upfront costs of tooling and the ability to easily modify designs without significant financial risks are some factors that make this process attractive, especially where firms intend to test new products or effect incremental changes in an ad hoc fashion, making it thus an acceptable option despite being not cheap at all for prototyping or small batch manufacturing purposes for businesses operating with limited budgets who need fast design shifts during early stages of product development.
Finally, these two approaches should match three things: the quantities required by our customers annually, the degree of complexity in terms of how much money we put into our technology, and the balance we want to strike between initial capital investments and continuous production expenses.
How to Choose Between Thermoforming and Injection Molding?
When deciding between thermoforming and injection molding, consider the following key factors:
- Production Volume: If high-volume production with consistent quality is required, injection molding is usually better. In case of low volumes or prototypes, thermoforming may be more cost-effective.
- Initial Investment: However, if budget constraints exist, it might be a good idea to go for thermoforming since injection molding has higher initial tooling costs.
- Design Flexibility: This makes it ideal for projects that might need iterations or changes during the production process, compared to thermoforming, where design adjustments during the production process are easy and quick.
- Material Options: Differentiate your materials. In finished products, injection molding offers greater toughness and accommodates a wider range of materials than any other system.
- Production Lead Time: Find out how much time you have. Generally, thermoforming has shorter lead times, making it suitable for projects involving shorter turnaround times.
However, generally speaking, match your project’s needs—volumes, budgets, design flexibilities, and materials—to the strengths of these methods for a well-informed choice.
When to Use Thermoforming?
Many situations call for the use of thermoforming, especially in low to medium volumes where changes in design are essential. This technique is beneficial in creating prototypes and testing products as it has a faster turnaround than injection molding. Furthermore, thermoforming is suitable for items that need large, thin-walled shapes, i.e., packaging or trays, where costs and material savings are essential. It is also popular with softer substrates such as PVC or PETG, which can be easily molded and remolded again. Ultimately, thermoforming may be your best choice if you want speed, cheaper price opportunities, and simple modifications.
When to Use Injection Molding?
I narrowly bet on the injection molding process as my primary option regarding high-volume production with uniform output quality and precision. This process perfectly suits complex shapes with intricate designs requiring close tolerance levels, which is vital for consumer goods and industrial components such as medical devices, among others. Also, injection molding can be done using a wide range of materials including thermoplastics and thermosetting polymers making them strong enough and neat enough to cater for end use product requirements. In case I am interested in having higher productivity, economies of scale, or customization after manufacturing, just like add-on colors or textures My project calls for efficient mass production at lower per-unit costs post-production customization, color, and texture, then injection molding remains the most convenient option that I would go by without thinking twice about this decision.
What to Consider for Plastic Manufacturing Needs?
When considering your plastic production needs, it is essential to evaluate the following areas:
- Volume of Production: Establish whether your project requires low, medium, or high volumes of production. This will determine whether you choose methods such as thermoforming, which is suitable for small quantities, or injection molding, which is efficient in mass production.
- Materials Selection: Choosing the right materials requires considering product factors like strength, flexibility, and ability to withstand different conditions. Thermoplastic materials, more rigid thermosetting polymers, and softer ones can be considered.
- Complexity of design: Determine the complexity of your design. Injection molding is appropriate for intricate shapes with narrow tolerances, while thermoforming may be chosen for its speed and flexibility when dealing with simpler designs.
- Cost Implications: From a budgetary perspective, compare upfront tooling costs against per-unit production costs. Thermoforming has lower entry costs but is better suited to smaller batches, whereas injection molding has higher initial costs but offers lower costs in mass production.
- Time to produce and Flexibility: Evaluate the timeframe needed to get the product into the market; normally, this determines some aspects. After all, thermoforming provides shorter lead times, thereby making it useful, especially when prototyping or developing test products, while others, like injection molding, tend to take longer because of tooling requirements.
By thoughtfully examining these variables, it becomes possible to make well-founded decisions that correspond with your project’s goals and meet the company’s operational requirements.
Frequently Asked Questions (FAQs)
Q: What are the primary differences between thermoforming and injection molding?
A: The primary differences between thermoforming and injection molding include the materials and processes involved. Thermoforming uses a plastic sheet that is heated and shaped over a mold, while injection molding involves melting plastic pellets and injecting them into a mold cavity. This results in different applications and properties for the final products.
Q: What are the advantages of using injection molding over thermoforming?
A: Injection molding offers several advantages compared to thermoforming, including producing highly detailed and complex parts, greater consistency in the final product, and suitability for high-volume production. Injection molding requires specialized injection mold tooling and can handle a variety of materials.
Q: When is thermoforming better suited for manufacturing needs?
A: Thermoforming is better suited for manufacturing needs when producing larger parts with less intricate details, especially in lower—to medium-volume production runs. Since thermoforming generally requires less expensive molds and shorter lead times, it is often more cost-effective for certain applications.
Q: How does the cost of thermoforming tooling compare to injection mold tooling?
A: Thermoforming tooling is typically less expensive than injection mold tooling. This is because thermoforming molds are generally more straightforward and less complex, making them cheaper and quicker. However, injection molding is ideal for high-volume production due to its efficiency and consistency.
Q: What materials can be used in thermoforming and injection molding?
A: Thermoforming uses a variety of plastic sheets, such as ABS, polycarbonate, and PVC. Injection molding, on the other hand, uses plastic pellets, including polyethylene, polypropylene, and polystyrene. The choice of material depends on the specific requirements of the part being produced.
Q: Can thermoforming achieve the same level of detail as injection molding?
A: Thermoforming generally cannot achieve the same level of detail and precision as injection molding. Injection-molded products benefit from the high pressure and specific mold designs used in the process, making them more suitable for complex and detailed parts. Pressure forming, a subtype of thermoforming, can achieve better detail but still not to the extent of injection molding.
Q: What are the typical applications of thermoforming compared to injection molding?
A: Common thermoforming applications include large, simple parts such as packaging, automotive panels, and trays. Injection molding is typically used for smaller, more detailed parts like electronic housings, medical devices, and consumer goods. Each process is selected based on the product’s specific needs, such as detail, volume, and material properties.
Q: How does the production speed of thermoforming compare to injection molding?
A: The production speed of thermoforming compared to injection molding can vary based on the complexity and size of the parts. Thermoforming generally has faster setup times and can produce large parts quickly, but the molding cycle for each part is typically longer than injection molding. Injection molding is used for high-speed production of smaller, detailed parts.
Q: What is the environmental impact of thermoforming and injection molding?
A: Both thermoforming and injection molding can have environmental impacts, mainly depending on the materials used and waste generated. Thermoforming often results in more waste due to trimming the plastic sheet, while injection molding can be more efficient with material usage. Both processes can use recycled materials to mitigate environmental impact.
Q: Why might a manufacturer choose thermoforming or injection molding for a specific project?
A: A manufacturer might choose thermoforming or injection molding based on production volume, part complexity, cost, and material requirements. Injection molding is typically selected for high-volume, detailed parts due to its precision and efficiency. In contrast, thermoforming is often chosen for more extensive, simpler parts and lower-volume runs due to its lower tooling costs and faster setup times.
