The Complete Guide to Mastering the Tapping Operation in Manufacturing

What is a Tapping Operation and How is it Used in Manufacturing?

Understanding the Basics of the Tapping Process

To start the tapping process, choose the right tap according to the material and desired thread size. Taps come in different forms such as machine taps and hand taps which are designed for particular uses. It is important to drill a hole that is slightly smaller than the major diameter of the tap before starting to tap. This pre-drilled hole, referred to as a tap drill hole, provides room for cutting threads.

Once you have prepared the hole, align your tap with it then turn it either manually or using a machine so as to cut internal threads. To ensure smooth and clean threading operation, use tapping fluid for lubricating and cooling purposes. The advancement of the tap should be done cautiously while occasionally reversing it slightly so as to break chips off thereby preventing breakage of taps and achieving accurate thread form.

It is necessary that you ensure your tap is at right angles with work piece otherwise cross-threading may occur. There should be continuous quality checks done throughout this process in order to confirm correctness and soundness of threads made during tapping. These procedures are useful in producing strong threaded parts which can be relied on for various manufacturing applications.

The Role of a Tap Tool in Thread Cutting

Thread cutting process is well known for the use of tap tools. These tools are used to create internal threads in pre-drilled holes with accuracy and efficiency being key. What happens is that these tools remove material so as to form a helical groove along walls of such holes. Different types of taps exist including taper taps, plug taps and bottoming taps each suitable for different threading applications as well as hole depths – where a taper tap is employed when starting threads; plug tap being used on through-holes while bottoming taps being perfect for blind ones which require tapping up to the end.

The design of a tap tool guarantees neat and correct thread profiles which are indispensable to the mechanical connection between industrial parts.Tough materials like high-speed steels or carbides should be used when making these tools because they need to withstand cutting stresses more so than any other equipment. Furthermore, it is important that one selects right kind of tap for given material being threaded together with providing adequate lubrication, failure of which may lead to short life span of taps hence low quality threads.Poor utilizationof tapping devices can greatly affect production efficiencies thereby causing longer downtimes besides compromising reliability of threaded components in various applications.

Differences Between Hand Tap and Machine Tap

Hand taps and machine taps are similar in that they both cut threads, but differ in design and use. Hand taps are operated by hand and are usually used for low volume or maintenance work. They have a straight shank and come as taper tap, plug tap, and bottoming tap for finishing the threading process. A few turns are made with a tap wrench to move the tap forward while cutting the threads gradually.

Conversely, automatic machinery is used with machine taps. The spiraled or straight fluted design of these taps makes them suitable for high-speed production. Machine taps can run continuously at a steady speed thereby shortening production time greatly. Moreover, chips are better evacuated from machine taps’ designs which reduces chances of thread clogging or damage.

The choice between these two types depends on what needs to be done exactly. Hand tapping gives more control hence fitting precision tasks in different fields whereas machine tapping is most efficient and consistent when it comes to bulk production environments.

How to Select the Right Tap Tool for Your Tapping Process?

Different Types of Taps and Their Applications

1. Hand Taps: Mainly used for manual threading operations. In this case, they come in sets comprising of a taper tap, plug tap, and bottoming tap which are used one after the other to cut threads gradually into a hole. Precision is offered by hand taps and they are perfect for small-scale or low-volume jobs. What they do best is thread workpieces during maintenance, repair or even production on a small scale.
2. Spiral Point Taps (Gun Taps): These taps are designed for high-speed machining and used when making through holes. They have cutting edges that are angular in shape and push chips ahead of the tap thereby clearing them easily hence preventing clogging. Spiral point taps should be used where there is need for fast tapping such as with materials that produce long stringy chips.
3. Spiral Flute Taps: Helical flutes found in spiral flute taps help lift chips out of the hole thus making them suitable for threading blind holes quickly. With this design feature it becomes possible to create accurate threads even if they are deeper because there will not be any chip buildup inside the hole. Especially effective when working with softer materials like aluminum or copper.

Factors to Consider: Tap Size, Drill Size, and Thread Profile

To ensure the best possible performance and quality of thread created, many things must be put into consideration when choosing the right tap for a particular job.

Tap Size

Tap size has to correspond with hole’s thread size and pitch that is supposed to be threaded. There are standard thread sizes which are governed by certain industry standards like ISO or ANSI among others. Therefore, it is important to select a correct tap size if you want threads which will match well with bolts or fasteners.

Drill Size

Drill size otherwise known as tap drill size refers to diameter measurement across an opening before tapping it. To achieve desired level of thread engagement and avoid excessive cutting off threads (which weakens them), you have to use appropriate drill sizes. Charts showing different diameters for bits based on taps can be found easily since they are readily available.

Thread Profile

Thread profile includes angle, depth and shape features of threads in relation to each other as well as their surroundings such as nut or bolt head. Unified Thread Standard (UTS) and Metric Thread Standard are two major types of profiles used universally. Every profile has unique uses and advantages; UTS is widely used in USA while Metric System is more common abroad due mainly because it allows for finer adjustments when loads need sharing between materials being joined together mechanically but also offers greater strength capabilities than most other systems at larger sizes too especially those involving metals subjected high stresses during operation period.. Selection should be guided by load bearing capacity required plus nature material being worked upon.

Considering these factors; namely tap size, drill size together with thread profile will lead to accuracy and long lasting threaded connections.

Best Practices for Tap Tool Geometry and Material

Tap Tool Geometry

The tap tool geometry must be optimized correctly to produce high-quality threads. Following are the main points of the tap tool geometry:

• Flute design: The number of flutes as well as their shapes affect chip removal and cutting efficiency. Spiral flutes are commonly used for blind holes whereas straight flutes work well with through holes.
• Tap point or chamfer: This ensures smooth entry into material and initial thread cutting; it can be a taper, plug or bottoming chamfer.
• Thread Relief: This helps in reducing friction and heat which extends life of tools while enhancing quality of threads produced. Relief is usually achieved by grinding away some material from behind the thread.

Tap Tool Material

It is also important that you select an appropriate material when making taps because different materials have unique features suitable for specific applications like:

• High Speed Steel (HSS): HSS is strong yet flexible making it cost effective therefore applicable in general purpose uses.
• Cobalt Alloy Steel(HSS-Co): With addition cobalt this material becomes harder hence more resistant to heat making them ideal towards tapping stainless steel among other hard metals.

• Carbide: It has got very high hardness plus wear resistance thus mainly utilized during high speed operations where accuracy matters most although brittle.

Coatings and Treatments

The life and productivity of a tap can be greatly increased by using special coatings and treatments. These are some of the most common choices:

• Titanium Nitride (TiN): This coating reduces friction and heat which means tools last longer. It can be used on many different materials.
• Black Oxide: An inexpensive treatment that improves lubricity while also increasing wear resistance.
• TiCN and TiAlN Coatings: These advanced coatings have excellent hardness as well as oxidation resistance making them particularly useful for high-speed or abrasive applications.

What Machines are Commonly Used for Tapping Operations?

Different machines can be used for tapping operations depending on their complexity, volume and precision. Some of the commonly used tapping machines are:

• Manual Tapping Machines: These machines are manually operated and need an operator to align and start the tapping process as they are best suited for low to medium volume production.
• CNC Machining Centers: These machines have high precision and automation which makes them good for high-volume production. They can also do multiple operations including tapping in one setup.
• Drill Presses: Drill presses are versatile and easy to use that can be equipped with tapping attachments for moderate precision and volume.
• Dedicated Tapping Machines: These machines are designed specifically for tapings; hence they offer high speed, accuracy, suitable for high volume as well as repetitive tasks.

• Vertical and Horizontal Milling Machines: These machines can adapt tapping tasks among other milling processes thus giving a machine shop flexibility.

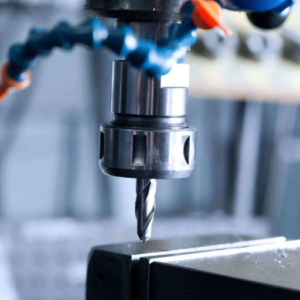

Using a CNC Machine for Tapping

Lathe and Drilling Machines for Tapping

The drilling machines and lathes are also frequently used in tapping operations. For tapping of large diameter holes, especially on round workpieces for threading operations, the lathes are very helpful. Lathes can perform both internal and external threading effectively if equipped with suitable attachments and tooling.

Drilling machines, conversely, can easily be fitted with tapping attachments or tapping heads to aid in thread cutting. These types of machines are generally more versatile than others; they can handle different materials and have various applications for tapping. They can be used in small workshops as well as large manufacturing facilities because they are adaptable and easy to use.

By introducing these tools into the process of creating a thread through a tap, it becomes flexible and efficient which guarantees uniformity and accuracy across different uses.

Specialized Tapping Machines

How to Prevent and Address Tap Failure?

Common Causes of Tap Failure

1. Mistaken Tap Selection: Error in choosing the right tap type for a material or application may cause it to wear out and snap too soon. An example is when one uses hand taps instead of machine taps on CNCs or selects taps made from an unsuitable material which leads to failure.
2. Wrong Lubrication: Without enough lubrication, friction increases and generates heat that makes the tap to stick and eventually break. It is important that suitable kind as well as adequate quantity of lubricant be applied depending on specific thread cutting needs and workpiece material being used.

3. Accumulation of chips: Failure to remove chips within the tapping zone can obstruct alignment hence breaking it. In order to keep the tap working smoothly without jamming, one should always clear away chips regularly.

Preventative Steps for Reducing Tap Wear and Breakage

1. Proper Tap Selection: Pick the right type of tap and its material for specific tasks with machines if necessary threaded items should be made with hands.
2. Adequate Lubrication: Use the proper lubricant that can decrease friction and heat dissipation which is also compatible with materials being worked on so that taps do not jam during operations.
3. Consistent Chip Removal: Regularly clear away chips from around workpieces lest they cause misalignment or break them; keep area clean using air guns or coolants under pressure.
4. Correct Cutting Speed and Feed Rate: Adjust cutting speeds as per instructions given by manufacturers taking into consideration properties of different metals. This helps in minimizing stress exerted on taps.
5. Regular Tap Inspection and Maintenance: Frequently check for signs of wearing out or damages on taps; replace worn out ones immediately to avoid inefficiency in performance.
6. Controlled Tapping Environment: Ensure tapping machines come equipped with precision controls that will stabilize them hence reducing chances of breaking taps. Automation increases uniformity and accuracy too during this process.
7. Pilot Hole Accuracy: Make sure pilot holes are accurately sized and aligned thus preventing unnecessary straining on the threads. Any oversized or wrongly drilled hole may lead to failure at this point.

Troubleshooting Techniques for Tackling Tap Breakage

Dealing with tap breakage requires finding and eliminating the underlying cause for good. Below are some recommended ways to solve the problem:

1. Study the point of fracture: If it broke at the cutting edge, this may be due to too high feed rate or poor lubrication. When it snaps near the shank there could be an alignment issue or inconsistency in tool material.
2. Inspect alignment and setup: Make sure that setup is strong enough while ensuring accurate alignment between tap and work piece. Misaligning these two items can subject tap into more stress which eventually results into breaking. Maintain correct alignment using fixtures as well as guides.
3. Ascertain material hardness: Confirm whether material being tapped has appropriate hardness levels. This is because extremely hard materials or those which have been hardened through working might over-stress taps. In case need arises, go for taps made for such high-hardness materials.
4. Regulate cutting speed plus feed rate: The manufacturer always gives recommendations on what speeds to cut at vis-à-vis how fast feeds should move; therefore they must be followed strictly. Incorrect settings can lead to over heating thereby putting more pressure on taps.
5. Ensure adequate lubrication: Select right kind together with quantity of lubricant that can minimize friction and heat development throughout tapping procedure.. Without enough oiling, threads may jam hence causing snapping.
6. Examine quality of thread cutter: Do not use any damaged or worn out taps without first checking them properly; they are likely going to fail during work operation if so used.

7. Use special thread cutters: For difficult-to-machine materials or complex threading operations, a spiral fluted tap would serve better than standard types because its design allows for easy chip removal thus reducing chances of breakage

By following these troubleshooting techniques, you can effectively identify the causes of tap breakage and implement solutions to enhance the longevity and performance of your taps.

What are the Different Methods of Tapping and Threading?

Different materials and applications require different ways of tapping and threading. Here are some of them:

1. Hand Tapping: This is the old way of doing it, involving a tap wrench, elbow grease, and a lot of patience. It’s good for small jobs or when you don’t have the benefit of precision machinery; however it requires skill to avoid breaking the tap.
2. Machine Tapping: A tapping machine or CNC machine is used to automate this method. You can get higher accuracy, faster speeds and more consistency with this method than any other. It works great for high volume production runs where toughness might be an issue for hand taps.
3. Form Tapping (Thread Forming): Instead of cutting threads into a hole like traditional methods do; form tapping displaces material around itself thus creating its own thread(s) as shown here. The result being stronger threads especially if you’re working with soft metals – because nothing gets removed during process which also means there’s no risk of tap breakage!
4. Power Tapping: In this method power tools are employed to drive taps into work pieces repeatedly at consistent torque / speed levels thereby minimizing chances that taps may snap due excessive force application against them while spinning too fast around their axes without any load on teeth Power tapping is typically done using both handheld and bench-mounted tools.
5. Helical Flute Tapping: For deep holes or long chips generating materials helix design comes in handy since such taps come equipped with spiral flutes which aid in evacuation chip during operation thus preventing clogging leading eventual damage breakage Helical flute tapping is best suited for threading deep holes or working with materials that produce long chips because it helps evacuate chips better than other methods

6. Serial Tapping: In some cases when creating threads tough materials are involved where high degree accuracy required then different types taper plug bottoming should be used consecutively order cut various stages as depicted above Serial tapping involves using series (taper-, plug- & bottoming) taps to gradually cut threads

Each of these methods has its own advantages, and the best method to use depends on factors such as the material being threaded, the required precision, and the production volume.

Form Tapping vs. Cutting Tapping

Tapping for form and cutting of threads are two different methods that can be used in creating grooves within materials, but each method has its own benefits and uses.

Form Tapping:

• Technique: It displaces material to create threads instead of removing them.
• Suitability for Material: Works best on soft metals such as copper and aluminium.
• Strength of Thread: Forms stronger threads because it hardens the material through cold working without any chips produced.
• Life span of Tools: Lasts longer since they wear out less frequently.
• Environment: The process is clean without any chips being formed.

Cutting Tapping:

• Technique: Cuts through materials to produce grooves by removing some matter during this operation.
• Material Suitability: Can work with many different types of substances ranging from harder metals like steel to plastics;
• Quality of Threads Made: Capable of generating high precision threads but creates chips that must be dealt with appropriately or else there will be problems related to management thereof;
• Life span of Tools: Shorter life expectancy due to wearing off caused by cutting action which results into tear and wear effect;
• Environment: Should have good chip control system if not may cause blockages leading to breakage elsewhere within the mechanism required for proper functioning while tapping holes

Thread Milling as an Alternative to Tapping

Thread milling is a versatile and efficient method for creating threaded holes, providing many more benefits than traditional tapping methods. In threading, unlike tapping, where threads are cut or formed directly by axial movement of the tool, a rotating tool moves along a helical path and cuts the material to form threads.

Advantages of Thread Milling:

• Versatility: It can cut both internal and external threads. Can be used on various materials including hard-to-machine alloys.
• High Precision: More superior thread profile control that allows for higher accuracy and better quality.
• Tool Life: Generally longer life as a result of lower cutting forces and heat generation.
• Chip Control: Produces short chips which can easily be controlled thus minimizing chances of clogs or breaking tools.
• Flexibility: Ability to machine different diameter threads using one tool through adjusting the path followed by the tool

Disadvantages of Thread Milling:

• Initial Cost: Higher investment needed for specialized thread milling tools and machines at first purchase stage.
• Complexity: Requires advanced programming skills in addition to CNC machining know-how.

Blind Hole Tapping and Its Challenges

Blind hole tapping threads a hole that does not pass through the material and is different in many ways from through-hole tapping. One important thing that needs to be done is ensuring that the threads go to the bottom of the hole without breaking or damaging it. Because of this, taps for blind holes must often have a spiral point or spiral flute which helps with getting rid of chips quickly.

Another issue involves accurately controlling how far the tap goes down into the workpiece (the depth). Since blind holes do not pass completely through materials, there is higher risk for bottoming out – which happens when you fail to fully form threads before reaching bottom surface – thus precise measurement and programming should be used especially in CNC operations so as to prevent tap breakages.

Lubrication and cooling are also quite challenging during blind hole tapping because space is confined hence leading to overheating and inadequate chip removal. Therefore, good quality cutting fluids with additives may be needed for tool life maintenance and cut quality improvement. Some of these problems can be solved by adopting peck tapping method whereby chips are cleared off by partially retracting taps periodically.

In conclusion; special tools have to be employed, control depths accurately as well as evacuate chips efficiently while cooling them down throughout blind-hole tapping process due its unique difficulties.

What are the Essential Parameters for a Successful Tapping Operation?

To ensure a successful tapping operation, there are several parameters which must be controlled with precision:

1. Choice of Tap: It is important to use the right kind of tap, e.g., spiral point or spiral flute taps for blind holes. This allows chips to be removed easily and threads created well.
2. Compatibility of Materials: The material used in making the tap should work with that of the workpiece so as to minimize wear and tear. High speed steel (HSS) or carbide taps are often employed because they can last longer.
3. Size and Accuracy of Hole: The hole drilled before tapping should closely match its dimensions according to specification. The correct thread pitch and profile would still remain if an accurate diameter is maintained.
4. Speed of Cutting and Feed Rate: Excessive wear may arise from poor selection on cutting speeds as well as feed rates which generate too much heat. These two variables depend on the type and nature of materials used together with the particular taps being considered.
5. Lubrication: Appropriate lubricants help reduce friction between surfaces thus making it easier for chips removal during machining processes like threading. Tap life can also be prolonged through good quality cutting fluids besides achieving better finishes on threads.
6. Control over Depth: It is necessary to control depths accurately when tapping blind holes lest one should break a tap thinking that all threads have been formed whereas none exists beyond certain points due to bottoming out effect.

7. Evacuation of Chips: Pecking technique serves well for evacuating chips while tapping thereby minimizing risks associated with overheating or blocking up holes during this process.

By carefully managing these parameters, the efficiency and quality of the tapping operation can be significantly improved.

Setting the Correct Tap Drill Size and Tap Size

To be successful in threading, it is important to establish the right tap drill size and tap size. The formula for finding the recommended tap drill size is: Tap Drill Size = Major Diameter – (Pitch). In metric taps, this usually means subtracting thread pitch from major diameter while in imperial measurements, it involves calculating based on threads per inch (TPI).

There might be need for different adjustments depending on materials and thread types. For instance, softer materials may require slightly larger sizes of drill bits so as not to distort threads. Also the finish and fit of threads should be taken into account; closer tolerances will demand more accurate drilling dimensions. Often times high speed steel(HSS) or carbide taps are preferred because they are tough and can last long thereby giving consistent results over wide range of applications.

By using tools such as tap drill size calculators or charts, machinists are able to achieve better quality threads which will improve performance and durability of tapped holes at the same time.

Optimal Tapping Speed and Spindle Speed

It is very important to determine the best spindle speed and tapping speed for high quality threads and long lasting tools. The general rule is that they should be of lower velocity than drilling speeds since more accuracy is required during this process while generating higher torque.

Several things affect the selection of tapping speeds. Such factors include the material being tapped, type of tap used i.e. spiral flute or straight flute or forming tap etc., as well as size of taps employed for different applications. Normally, slowest rates are recommended for harder materials whereas faster ones can be applied in softer materials.

A good range to start from when dealing with High Speed Steel (HSS) taps would be around 100-200 RPMs for hard materials and 200-300 RPMs for soft ones. But if you are using Carbide Taps which are more resistant towards heat and have greater durability then they should be run at higher speeds ranging between 150-400RPMs depending on how hard the workpiece is.

The tapping fluid used will also dictate what spindle speed should be adopted since proper lubrication reduces friction thus preventing overheating. Cutting fluids greatly enhance tool life besides increasing thread quality by a large margin so always go through manufacturer’s recommendations concerning specific taps & materials combinations to ensure highest performance levels are achieved.

By taking into account these considerations and making necessary modifications where applicable; operators can perform accurate threading consistently throughout their workpieces.

Importance of Using Proper Cutting Fluid

How to Achieve High-Quality Threads in Your Tapping Process?

Techniques for Accurate Thread Cutting

1. Use of Advanced Tools: Start with picking strong, high-quality taps and dies as these are essential for accurate thread cutting. Ensure the tools are sharp and suitable for the particular material being worked on.
2. Proper Alignment of Tools: Keep the tap or die aligned with the workpiece accurately. Misalignment can cause cross-threading and incorrect threads. When necessary, use a tapping guide or tap holder with a spring center to keep the alignment straight.
3. Speed of Cutting and Feed Rate Control: Depending on the hardness of materials being cut through and type of tap or die used, adjust cutting speed and feed rate. Generally, harder materials need slower speeds which prevent tool breakage while achieving finer threads.
4. Adequate Lubrication: Use appropriate cutting fluids that will help lower friction levels as well as heat generated during cutting process thereby prolonging tool life span besides improving surface finish quality for smoother more precise thread cuts.
5. Regular Tool Maintenance: Always keep an eye on your taps and dies; replace them if they wear out or become blunt so as not to compromise on thread quality. Regularly maintained tools perform best giving rise high standard threads.

Quality Control Measures: Inspecting Thread Quality

1. Visual Check: Begin by checking the threads visually to see if there are any obvious faults such as nicks, splits or uneven threads. If necessary, examine them more closely with a magnifying glass or even a microscope.
2. Thread Measurement Tools: Make use of thread plug gauges for internal threads and ring gauges for external threads to measure the size and tolerance of each one against required standards. These tools guarantee that all measurements are within acceptable limits while also ensuring that parts will fit together correctly.
3. Thread Pitch Measurement: Verify if thread has correct pitch by using a thread pitch gauge. It is essential that this measurement be accurate so that different elements can engage properly through their respective screw threads.

Enhancing Tool Life and Thread Profile Consistency

1. Proper Lubrication: To minimize tool wear, reduce friction and clean thread profiles are the results of using good lubricants frequently during the process of threading. It also helps heat to be dissipated while extending the life of a tool.
2. Optimization Of Feed Rate: It is important to adjust feed rates according to materials being worked on. A slower rate increases accuracy when profiling threads since there is prolonged contact between tools and workpiece which can also make them last longer.
3. Control Over Temperature: Overheating should be avoided as much as possible because this may lead into deformations within tools besides lowering cutting accuracy. Coolants or mist systems among other effective cooling techniques are supposed to keep our devices at optimum temperatures so that they work uniformly well with each other thus producing threads of high quality consistently.

Frequently Asked Questions (FAQs)

Q: What is tapping in the context of manufacturing?

A: Tapping is the process of cutting a thread inside a pre-drilled hole using a cutting tool. It involves using a tap to create screw threads, which can be either internal or external.

Q: What are the common types of taps used in thread tapping?

A: Different tapping methods require different types of taps, including hand taps, machine taps, spiral flute taps, spiral point taps, and form taps. The choice depends on the material and application.

Q: What is the role of a machine tool in tapping operations?

A: A machine tool like a lathe or milling machine is used to hold and power the tap during the thread tapping process. It ensures precision and can handle various cutting conditions to achieve optimal cutting performance.

Q: How do you ensure proper alignment when starting the tap?

A: Ensuring proper alignment when starting the tap involves securing the workpiece and using guides to align the tap axis correctly with the pre-drilled hole, which is critical for accurate thread depth.

Q: What factors affect tapping torque in mechanical engineering?

A: Tapping torque is influenced by factors such as the material being tapped, the size tap used, cutting conditions, lubrication, and the tool condition monitoring. Properly managing these can reduce torque and extend the life of the cutting tool.

Q: What are some common tapping procedures in manufacturing systems?

A: Common tapping procedures include manual tapping, semi-automatic tapping, and automatic tapping, each having distinct tooling setups and automation levels suitable for different manufacturing needs and materials used.

Q: How do cutting parameters influence the tapping operation?

A: Cutting parameters such as speed, feed rate, and lubrication significantly affect the cutting torque, cutting face quality, and overall cutting performance. Adjusting these parameters can enhance the efficiency of the threading process.

Q: What is the importance of tool condition monitoring in thread tapping?

A: Tool condition monitoring helps in detecting wear and damage to the cutting tool in real-time, preventing failures mid-operation, and ensuring consistent quality of the screw thread.

Q: How do different materials used impact the tapping process?

A: Different materials used in workpieces, such as aluminum, steel, or plastic, require specific cutting tools and parameters due to their varying hardness and machinability, which affect the tapping torque and the overall process of cutting threads.

Q: What are the advantages of using automatic tapping machines?

A: Automatic tapping machines offer increased precision, repeatability, and efficiency in tapping operations. They are beneficial for high-volume production environments where consistent thread quality and reduced cycle time are crucial.
