What is SLA 3D Printing and How Does It Work?

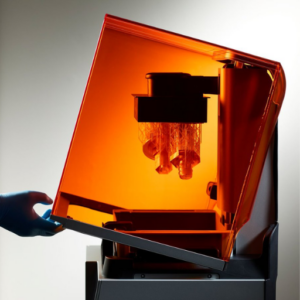

Image source: https://formlabs.com/
The 3D printing process known as Stereolithography (SLA) is an additive manufacturing technique that hardens liquid resin into plastic using a laser, layer by layer. It starts with a computer-generated 3D model and involves the use of photopolymer resins in vats which are selectively cured by UV lasers according to cross-sectional slices of the design. The build platform moves down incrementally as each layer completes curing and solidifying; this allows subsequent layers to be cured on top until completion. These prints are highly detailed and accurate, possessing smooth finishes and fine features which make them ideal for applications requiring high precision or ornate shapes.
Defining SLA: What Does Stereolithography Mean in 3D Printing?
Commonly abbreviated as SLA, Stereolithography is an additive manufacturing technique that prints 3D objects by converting liquid photopolymer resin into solid layers with the help of ultraviolet (UV) lasers. “Stereos” – a Greek word meaning “solid”, and “-graphia” – which means writing or drawing, were combined to create this term. Therefore, what happens in practice is that an item made entirely out of resin is built up from the bottom using a digitally designed 3D model which tells where to solidify certain areas within this bath full of liquid plastic; it does so by drawing them onto each layer successively. This method can produce very high-quality prints having smooth finishes and intricate shapes because of its capability for high resolution output containing fine details thus making such applications like dentistry, medicine and prototyping perfect candidates for this technology.
Key Components of an SLA Printer
Synonyms: An SLA printer is made up of different main parts that work together to create accurate 3D prints.
- Laser: This is the core light source in an SLA printer. It’s also called ultraviolet laser which cures photopolymer resin by layers. Preciseness shown by it affects directly on accuracy as well as resolution of final print.
- Resin Tank: A container with transparent underside where liquid photopolymer resins are stored until they cured into solid shapes one layer at a time by UV lights passing through them without any hindrance or interruption whatsoever.
- Build Platform: This stage moves down incrementally after every new layer has been cured and solidified, ensuring that each newly-formed part sticks firmly onto previous ones thus completing formation process.
- Galvanometers: These small mirrors (which can be moved thanks to motors) help to direct laser beams accurately over surfaces covered with resin depending on the slices’ design which contribute greatly towards accuracy improvement during printing process.
- Control System: Software plus electronic components responsible for guiding printers about what needs doing when carrying out overall printing tasks like following digital models, adjusting paths followed by lasers among other movements performed by platforms used during this procedure.
Every single part mentioned above serves significant functions during SLA printing thereby leading into production great precision along with high-quality 3D printed objects.
Step-by-Step Overview of the SLA 3D Printing Process
- Create a Design: The initial phase consists of producing a three-dimensional model through CAD software. This digital representation acts as the print’s template.
- Slice Up the Model: At this point, the 3D model is divided into flat and thin horizontal layers using slicing software. These programs turn the model into instructions that direct the printer’s laser in SLA.
- Prepare the Printer: Clean and secure the build platform while filling up the resin tank with liquid photopolymer resin. Print material and desired resolution will guide you in selecting appropriate print settings.
- Start Printing: Laser curing of resin by layers is initiated by SLA printer as it begins printing. With each new layer added and solidified, the build platform descends slowly.
- Post-Processing: Once all printing is done, take off an object from a build platform carefully. It might still contain some uncured resin which should be cleaned away – usually with isopropanol alcohol.
- Final Curing: Subject printed object to extra UV light exposure so as to ensure full curing of material thereby improving its mechanical properties and stability.
- Finishing Touches: In order to achieve desired look and functionality – sanding, painting or assembling multiple printed parts may be required during final steps.
This step-by-step procedure guarantees accurate and high-quality 3D printed objects produced using SLA technology systems.
What Materials are Used in SLA 3D Printing?
To begin with, we can say that SLA 3D printing uses liquid photopolymer resins as its material. These resins can solidify when exposed to a UV laser since they are photosensitive materials. There are many different kinds of resin that were made for various applications. For example, standard resins work fine if you need something general-purpose printed; tough and durable ones should be used when making functional parts; flexible resins come in handy if it has to bend or be soft; castable resins would be your best bet for creating molds in jewelry and industrial applications etcetera. On top of all these options, some specialized types even offer biocompatibility so they’re safe enough to use them medically while others withstand higher temperatures for engineering purposes.
Exploring Different Types of SLA Resin
- Standard resins: These are the most usual types of resin that is used in SLA 3D printing and are great for creating complex models and prototypes with very smooth surfaces. They have a smooth surface finish, making them ideal for visual models or functional parts.
- Tough resins: These types of resins have been designed with durability in mind as they possess excellent mechanical properties that allow them to withstand a lot of stress and strain which makes these perfect for functional prototypes or parts requiring impact resistance.
- Flexible resins: Used when pliability is required; flexible resins exhibit elastomeric properties that enable the creation of bendable or soft components such as grips, seals and soft-touch parts among others.
- Castable resins: Commonly used in jewellery & dental industries where cleanliness during casting process is critical; castable resins burn out clean without producing any ash or residue thus ensuring accuracy of moulds used during intricate/high quality casting procedures.
- High temperature resistant (or high temp) resin: Designed to withstand elevated temperatures hence applicable in thermally durable prototype development, industrial parts production etc., where stability under intense heat conditions matters most.
- Biocompatible Resins: Such materials comply with strict regulations on safety while being compatible with human bodies thereby finding use within medical/dental fields. For instance, surgical guides can be printed using biocompatible resin along other devices meant for health care industry.
Understanding different kinds of SLA printer’s materials will help users determine what will work best for their projects at hand so as not to compromise quality after performing 3D printing process. This ensures that one achieves the desired results without any difficulty whatsoever.
Comparing SLA Resin with Other 3D Printing Materials
Several differences stand out when comparing SLA resin to other 3D printing materials:
- Detail and Surface Finish: The exceptional surface finish and high level of detail associated with SLA resins have earned them worldwide recognition. This makes them ideal for use in applications that require smoothness and intricate designs. Conversely, FDM (Fused Deposition Modeling) materials show visible layer lines, which make them less suitable for detailed work while SLS (Selective Laser Sintering) materials give good detail but can be rougher on the surface finish than SLA prints.
- Properties of Materials: Different types of 3D printing technology yield different material properties. SLA resins can be made to be tough, flexible or resistant to high temperatures thus providing versatility for use in various applications. Typically thermoplastics such as PLA or ABS, FDM materials offer strong mechanical properties and are often more durable for functional parts. On the other hand, SLS materials made from nylon or other polymers are strong enough even as prototypes thereby being applicable both at this stage as well as in final products.
- Costs and Applications: In fields where precision is important like dentistry; jewelry design etc., among others; SLAs are preferred due to their ability to provide such finishes cost effectively though printers using these technologies may cost higher than those based on FDM which is widely used during rapid prototyping because it’s cheaper compared to SLS where complex geometries need not supported
Generally speaking thus far – while having better details and finishes on certain things only – other two methods have stronger functional properties coupled with broader application ranges alongside being cheaper alternatives for many people too.
What Are the Common Applications of SLA 3D Printing?
Due to its precision and perfect surface finish, SLA 3D printing is used in various sectors. In dentistry, it creates precise dental molds as well as bridges and crowns. The jewelry industry enjoys the fact that SLA can make complex designs with fine details thus making it suitable for custom jewelry fabrication. SLA is applied by engineers and designers for prototyping which allows them to come up with prototypes that are both detailed and functional hence resembling the final product closely. In addition to this, SLA is also used in making surgical guides, prosthetics and anatomical models within the medical field since such applications require high levels of detail and accuracy.
Producing Detailed Prototypes with SLA Technology
In order to attain accuracy and intricate detailing, there are some important steps that must be followed when creating detailed prototypes with SLA technology. Initially, a 3D model is created using CAD software before being sliced into thin layers by the software of the SLA printer. A UV laser cures the resin used in SLA printing layer by layer which results in a very smooth surface finish that is also highly accurate. For SLA prototypes, post-processing is essential; this involves washing off excessive resins from printed parts and then subjecting them under UV light for curing so as to improve strength as well as detail. These prototypes usually have high level of details thus making it possible for them to go through extensive tests for validation hence this makes such kind of technology useful in different areas where precision and complicatedness are needed.
SLA 3D Printing for Medical and Dental Applications
SLA 3D printing changed the game for medicine and dentistry because of how well it can make custom things that fit, are exact, and are compatible with the body. For example in dentistry this is helpful when creating bridges or crowns which need dental molds to be made first – these must fit into a specific spot perfectly or else they won’t work at all. On the other hand in surgery this technology is used for guides (which tell surgeons where to cut), prosthetics (replacement limbs etc) and models (replicas) of bodies parts showing what they look like inside out – such models help doctors plan operations better by giving them more information about what’s going on inside before they start cutting people open. This process greatly improves accuracy levels while producing functional items thereby enhancing patient care quality as well as treatment speed within healthcare industry.
Use of SLA in Jewelry and Art
Creativity and accuracy have been broadened in the jewelry and arts by the use of SLA 3D printing. In terms of originality, SLA technology allows for delicate designs to be created which would otherwise be difficult with conventional techniques. Intricate shapes or fine features can be printed using SLA printers that leave a smooth surface finish, casting them into metals for jewelry making. Artists are able to realize their imaginative ideas more precisely through rapid prototyping capabilities while still being able to do it fast. These one-of-a-kind works that blend technological innovation with artistic skills also challenge established norms about what constitutes craft workmanship.
What Are the Advantages and Limitations of SLA 3D Printing?
Advantages of SLA 3D Printing
SLA 3D printing offers several key advantages:
- Extraordinary Accuracy and Detail: SLA printers are renowned for their high resolution which allows them to create complex objects with very fine details.
- Sleek Surface Finish: The technology used in this type of 3D printer results in a smooth finish on parts, thus reducing the requirement for extensive post-processing.
- Wide Material Selection: Numerous photopolymer resins can be used including those that are biocompatible or flexible as well as durable ones among others.
- Prototyping and Production Capability: It is possible to use SLA for both rapid prototyping as well as small batch production runs thereby enabling faster turn-around times.
Limitations of SLA 3D Printing
In spite of its many advantages there are few downsides to consider with SLA 3d printing:
- Higher cost per material unit compared against other methods due mainly but not limited too; higher prices charged per litre volume capacity; additional handling costs incurred during transportation which may include insurance premiums levied based upon declared value amounts.
- Additional finishing operations required such like washing off excess uncured resin followed by uv curing so as achieve desired properties like hardness & strength etc., these steps take time delaying completion especially when working under tight schedules where speed matters most;
- Lower build volumes available than some other types thus making it impossible or impractical sometimes to create large-sized components using an sla machine alone;
-
Fragility objects produced through slas tend to be more breakable especially if subjected towards heavy loads unlike those manufactured via alternative means e.g fff (fused filament fabrication).
Benefits of SLA 3D Printing
There are many points to consider when talking about the advantages of SLA 3D printing.
- Precision and accuracy: What makes SLA 3D printing so good is that it can create really accurate parts with a lot of detail, so it’s perfect for things like dental models or jewelry where you need high precision.
- Surface quality: The smoothness of surfaces is one of the biggest selling points. You won’t have to do as much post-production work on them because they come out looking nice and you can see all the little lines better without them being interrupted by larger ones.
- Range of materials and versatility: Many different types of photopolymer resins can be used with this technology, each having its own properties such as flexibility, biocompatibility or even high resistance levels. It therefore becomes possible to adapt products according to specific needs across various sectors like medicine, construction and design among others.
- Speed and efficiency: If you want to make prototypes quickly then SLA printing is what you should go for since it allows fast iteration testing during development stages thereby shortening time frames required for creating new designs; not only that but also small batch productions which would take long using other methods can be done at once thus lowering costs significantly in terms of labor hours needed plus material waste generated throughout production process as well.
That said, these are some benefits which may make professionals interested in getting involved with more advanced 3D printers.
Challenges and Limitations of SLA Print Process
Although SLA 3D printing has many benefits, it also has some disadvantages and challenges. One of them is that the materials used in this type of printing can be very expensive compared to those used in other methods of 3D printing. This will increase the production cost per item. Besides, these resins are toxic and thus need to be handled with care as well as disposed properly.
The other challenge lies on brittleness of parts produced by SLA. Unlike FDM or SLS that make stronger and more resilient objects although they may not have much detail or smoothness like SLA prints; therefore such pieces cannot withstand high pressures nor do function prototypes require considerable flexibility or strength.
Moreover post processing is an essential but sometimes laborious step during slaying process processing . Resin must be removed from printed items which often take long to cure completely under ultraviolet light for them get desired properties finally. This adds time taken plus effort required for production thereby introducing more variables that can affect final part quality.
Lastly most stereolithography apparatus have smaller build volumes than their counterparts among various additive manufacturing systems thereby limiting size attainable within single batch run where after curing takes place . This poses great inconvenience whenever larger models need to be created at once for projects such as prototypes or final products.
Comparing SLA with FDM and Other 3D Printing Technologies
When it comes to comparing SLA (Stereolithography) technology with FDM (Fused Deposition Modeling) and other 3D printing methods, there are a few important distinctions and considerations.
Quality of Material and Print: The photopolymer resins used in SLA printing produce high-resolution prints with smooth finishes and intricate details due to the precision of the laser. Conversely, FDM employs thermoplastic filaments which may give rise to visible layer lines at lower resolutions compared to SLAs though they come cheaper.
Strength and Durability: Among additive manufacturing techniques like these two – Fused Deposition Modeling creates stronger objects that are less brittle than those made by Stereolithography Apparatus thereby making them more suitable for functional prototypes as well mechanical parts which could be subjected to stress over time or during usage. However detailed such items might be, they can easily break if mishandled because their fragility is too high.
Cost Effectiveness: In terms of affordability both in materials alone or entire setup inclusive; usually regarded as low cost option among many businesses looking forward towards embracing this technology into their workflow while keeping mind about budget constraints associated with such projects. For instance despite having higher prices on resins used by this method compared against others where detail finish needed still outweighs everything else
Ease Of Use: FDM printers typically require less post-processing and are easier to use compared with SLA 3d printers . When you print an object using stereolithography apparatus , apart from just cleaning the resin , it has also got to undergo UV curing process which makes whole procedure more complicated as well time consuming .
Build Volume Size: You can make larger parts at once when you have bigger build volumes which mostly come with fused deposition modeling machines . On the other hand if your project demands huge sizes then going for one that utilizes stereolithographic technique may limit production capacity due to small working area available .
Therefore choices between SLA/FDM or any other additive manufacturing technology are hinged on factors like level of detail needed , material properties , budget as well speed among others . Each method has its own unique set of strengths and weaknesses that make them suitable for different users with various application needs.
What Are the Best Practices for Design and Post-Processing in SLA?
When designing for SLA, one must take into account the orientation of the model because it greatly affects the quality of printing and the amount of support material needed. Putting the model at an angle frequently eliminates visible layer lines and enhances surface finish. In addition to this, it is advisable to have a minimum wall thickness and include drain holes to prevent resin trapping which can cause print failures.
There are several important stages of post-processing necessary to achieve the desired end product. Firstly, rinse the printed model in isopropyl alcohol carefully so as to remove any uncured resin. After that, subject the model to UV curing for increased strength and durability. Sanding can be used to remove any surface imperfections while additional finishing methods such as painting or coating can be applied for specific aesthetic qualities desired. Following these guidelines will result in high-quality, strong and detailed SLA prints.
Design Guidelines for Optimal SLA Prints
To get the best results with SLA printing, there are a few important things that designers should do:
- Thinning of Walls: Keep thinness or narrowness of walls between 1-2 mm to increase strength and reduce printing time. If the walls are thicker than this they may warp or have other problems while being printed.
- Drain Holes: Add drain holes into any hollow parts so that resin can flow out during the printing process which helps in preventing pools of resin and ensuring proper hardening.
- Optimization of Model Orientation: Place models at different angles which will not only minimize support material but also make layer lines less visible thus improving surface finish. Moreover, this orientation distributes mechanical stresses uniformly throughout print duration.
- Support Structures Addition: Support structures must be adequate and well placed to avoid drooping when it comes to overhangs and complex geometries. They should also be easy-to-remove without damaging the model itself.
- Consideration for Tolerances and Clearances: Make sure interlocking components have suitable tolerances and clearances to allow them fit together after post-processing without needing many adjustments thereafter.
- Post-processing Awareness: Account for different stages involved in finishing such as cleaning, sanding or curing by designing features like intricate textures or fine details that can withstand these processes without deteriorating too much.
These rules will enable designers produce SLA printed objects with superior detail, strength and surface finish quickly.
Post-Processing Techniques for SLA Printed Parts
Post-processing is the most important step in SLA printing if you want an item that has the desired properties and looks. What follows is a short guide from some of the best sources:
- Solidifying: When printing is complete, you have to solidify the workpiece with ultraviolet radiation for improved mechanical characteristics and complete polymerization. You can do this by putting it under UV light or in a dedicated station but make sure that all sides are equally exposed.
- Cleaning: Immerse the object into isopropyl alcohol (IPA) to remove any liquid resin that did not cure. For 5-10 minutes shake it gently inside an IPA bath so that no resin remains and then dry well.
- Finishing with sandpapering: To get smooth surfaces, start sanding your prints with coarse sandpaper before advancing to finer ones. Additionally, use polishing compound on sanded areas for a shinier look.
- Taking off supports: Remove support structures carefully using flush cutters; after which blend those points smoothly through sanding until they become seamless with other parts.
- Painting and Coating: Apply primer first before painting so that the paint can stick better onto it. Spray paints or airbrush should be used for even coats while clear coat may also be considered as a protective measure especially if you need more durability.
When these post-processing techniques are used together, functional aspects as well as appearance will greatly improve thereby refining SLA printed parts to higher standards.
Maintaining and Troubleshooting SLA 3D Printers
To keep an SLA 3D printer running well and for a long time, one must clean it often and calibrate it diligently. Here are some tasks that should be done:
- Resin Tank Cleaning: Always inspect the resin tank for cured resin or debris. In order to remove cured resin from the tank surface without scratching it, use a plastic scraper.
- Replacing Resin: If the resin has been in the tank for too long, think about putting fresh resin in its place. Before reusing old resins always strain them to remove impurities.
- Build Platform Checking: Make sure that your build platform is level and clean at all times. You should regularly check for any signs of wear or damage on this part as well as recalibrating when necessary.
- Laser And Mirrors Inspection: Dust particles or other small objects found on lasers/mirrors will definitely disrupt printing quality; hence they need to be cleaned off gently using compressed air or lens cloth so that clarity can be maintained while these devices continue functioning as required.
- Software And Firmware Update: Keep up with software firmware updates of printers so that you can take advantage of additional features improvements which may come along later on.
When dealing with common problems during troubleshooting:
- Print Failures: Check whether there’s adequate flow of resin into the machine plus ensure correct calibration of print bed; also look out for cured resins within tanks obstructing print jobs.
- Layer Shifting: Printer should be placed on stable ground with firmly fastened build plate otherwise slight vibrations caused by motion may lead to undesired shifts in between consecutive layers thereby compromising final output quality; tighten if necessary after noticing any wobbling movement during printing process.
- Surface Imperfections: Clean mirrors/lasers and consider checking composition of resins used because poor quality ones could result into such defects while contamination also plays a role here sometimes.
By following these maintenance tips together with troubleshooting procedures outlined above, one can be able to improve the dependability and efficiency of an SLA 3D printer towards always achieving high quality prints.
