Your Comprehensive Guide to Sheet Metal Bending

Sheet metal bending is a fundamental process in the manufacturing and construction industries, playing a crucial role in creating parts for a wide range of applications, from automotive to aerospace to household appliances. This guide aims to walk you through the essential aspects of sheet metal bending, covering the basics of the process, the different techniques employed, the tools and equipment used, and the common challenges faced. Whether you’re a seasoned professional or a newcomer to the field, this comprehensive resource will provide you with the knowledge and insights needed to understand and master the art of bending sheet metal. We’ll also delve into the importance of precision, material characteristics, and safety considerations to ensure optimal results and maintain high-quality standards. By the end of this guide, you’ll have a clearer understanding of how to approach sheet metal bending projects with confidence and skill.

What is Sheet Metal Bending?

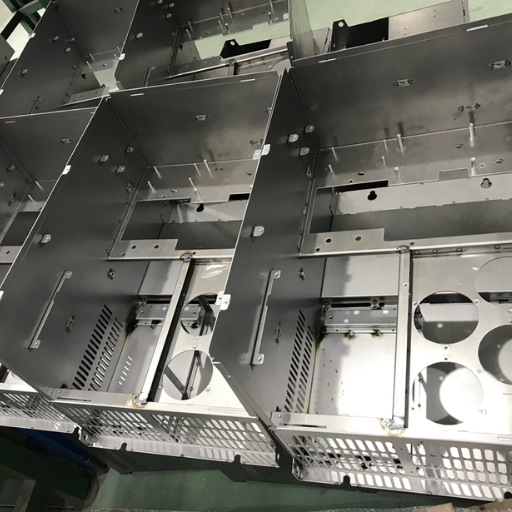

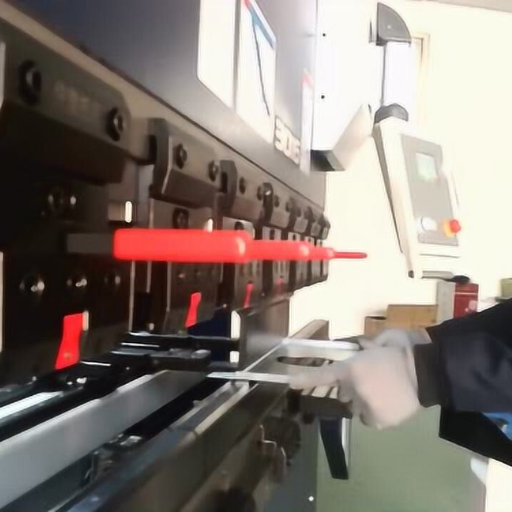

Image sources:http://www.gewuer.com/

Sheet metal bending is a manufacturing process in which a piece of sheet metal is deformed along a straight axis to create a desired angle or shape. This deformation is achieved by applying force which causes the metal to stretch and compress along the bend line. The process is fundamental in forming parts and structures in various industries, allowing for the creation of components that can fit precise specifications and functional requirements.

Understanding the Bending Process

In my experience, the bending process begins by securing the sheet metal on a die positioned on a workbench or machine. A punch then applies force to the metal, pressing it into the die and causing it to bend. The degree of bending achieved depends on factors such as the type of material, its thickness, and the applied force. There are several techniques for sheet metal bending, including air bending, bottoming, and coining, each with its own advantages and specific applications. Precision is crucial throughout this process to ensure that the final product meets the required specifications and maintains structural integrity.

Types of Sheet Metal Bending

There are several methods used in sheet metal bending, each suited to different applications and materials. Here are the most common types:

1. Air Bending

Air bending involves positioning the sheet metal over a die with a V-shaped opening. A punch presses the metal into the die without pressing it all the way to the bottom. This method allows for flexibility in achieving different bend angles. The resulting angle depends on the depth of the punch and the material’s thickness.

Technical Parameters:

• Bend Angle: Varies based on punch depth.
• Material Thickness: Can handle a wide range of thicknesses.
• Minimum Bend Radius: Typically 0.156 times the material thickness.

2. Bottoming

Bottoming, or bottom pressing, involves pressing the sheet metal into the bottom of the die cavity. This method results in more precise and consistently angled bends compared to air bending.

Technical Parameters:

• Bend Angle: Fixed based on the die’s angle.
• Material Thickness: Suitable for thicker materials due to higher force requirements.
• Minimum Bend Radius: Usually 1.2 times the material thickness.

3. Coining

Coining uses a punch that forces the sheet metal into the die with enough pressure to alter the material’s thickness slightly at the bend. This method achieves very precise bends but requires significant force.

Technical Parameters:

• Bend Angle: Extremely precise.
• Material Thickness: Generally thinner materials due to high force needed.
• Minimum Bend Radius: Can be less than the material thickness.

4. Wipe Bending

Wipe bending involves clamping the sheet metal, then pressing it against the edge of a die with a punch, which bends the protruding section of metal. This method is often used for creating flanges.

Technical Parameters:

• Bend Angle: Typically 90 degrees but can be adjusted.
• Material Thickness: Best for thin to medium-thickness sheets.
• Minimum Bend Radius: Often 1.5 times the material thickness.

Each bending method has its own set of advantages, suited for different materials, thicknesses, and required precision levels. Understanding these methods and their technical parameters ensures successful sheet metal bending projects that meet the desired specifications and structural integrity.

Common Tools for Bending Sheet Metal

Several tools are commonly used in the process of bending sheet metal, each offering unique benefits for specific applications:

1. Press Brake: This versatile tool employs a punch and die to create various bends. It is available in mechanical, hydraulic, and CNC versions, catering to different levels of precision and automation.
2. Folding Machine: Used primarily for long, straight bends, the folding machine clamps the metal and folds it with a moving beam, making it ideal for large sheets and repetitive tasks.
3. Tube Bender: Designed specifically for bending metal tubes, it can create precise bends without collapsing the tube walls, ensuring structural integrity.
4. Roll Bender: This tool uses a series of rollers to gradually bend metal sheets into curves or cylindrical shapes. It’s particularly useful for creating large, smooth arcs.
5. Hand Tools: Simple tools like bending pliers and manual edge benders are effective for small-scale projects and intricate work, allowing for hands-on control over the bending process.

These tools cater to a range of bending needs, from large industrial applications to small detailed work, ensuring that there is a suitable option for every bending project.

How to Bend Sheet Metal Efficiently?

To bend sheet metal efficiently, follow these steps and consider the associated technical parameters to achieve optimal results:

1. Select the Appropriate Tool: Choose a tool that matches your project’s requirements. For high precision and automation, a CNC press brake is ideal. For long, straight bends, a folding machine is recommended, while a tube bender is best for circular bends in tubing.
2. Material and Thickness Consideration: The type and thickness of the metal significantly influence the bending process. Ensure your equipment can handle the material’s gauge and alloy. Thicker materials require more force and robust machinery, while thinner sheets need precision to avoid cracking or distortion.
3. Determine Bend Radius: The bend radius should be at least equal to the thickness of the material to prevent cracking and ensure a smooth bend. For example, a 1mm sheet metal should have a minimum bend radius of 1mm.
4. Adjust the Bending Angle: Ensure the bending angle is precisely set on the machine. Automatically controlled machines like CNC press brakes allow for pre-programming of angles, reducing the risk of errors.
5. Use Back Gauges for Positioning: Utilizing back gauges can help in consistently positioning the metal sheet, ensuring uniform bends throughout the sheet.
6. Employ Bending Allowance and Deduction: Account for the metal’s expansion and contraction during the bend. Bending allowance refers to the length of the material between the bend lines, while bending deduction is the material that is lost during bending. Accurate calculations ensure the final part meets specifications.
7. Check for Springback: Metals often spring back slightly after the bending force is removed. Compensate for springback by over-bending the material slightly according to its elasticity.
8. Use Proper Lubrication: Applying lubrication to the bending area can reduce friction and minimize the risk of cracking, especially for metals prone to such issues, such as aluminum.

By adhering to these guidelines and understanding the technical parameters at play, you can efficiently bend sheet metal to achieve high-precision results tailored to your project’s needs.

Tips for Bending Sheet Metal

1. Choose the Right Tooling: Ensure you’re using the appropriate tooling for the thickness and type of metal you’re working with. Incorrect tooling can lead to improper bends and material damage.
2. Understand Material Properties: Different metals have different bending characteristics. Familiarize yourself with the specific properties of the metal to adjust your technique accordingly.
3. Perform a Test Bend: Before making final bends, perform a test bend on a scrap piece of the same material to verify settings and make adjustments as needed.
4. Maintain Equipment: Regularly check and maintain your bending equipment to ensure it operates smoothly and accurately. Worn-out parts can lead to irregular bends and compromised quality.
5. Monitor Temperature: Some metals may become more pliable or brittle with temperature changes. Working at optimal temperatures can improve bend quality and reduce the risk of cracking.

Bending Sheet Metal with Minimal Deformation

Achieving minimal deformation when bending sheet metal involves a combination of understanding material properties, utilizing precise techniques, and maintaining appropriate conditions throughout the process. Here are some key strategies and technical parameters to help achieve the best results:

1. Select the Right Alloy and Material Grade: Different alloys have varying levels of ductility, which affects how they deform under stress. For example, 3003 aluminum alloy is known for excellent formability, making it ideal for intricate bends without cracking.
2. Optimize Bend Radius: The bend radius should be chosen based on the material thickness and type. A common guideline is to use a minimum inside bend radius of 1.5 times the material thickness for most metals to prevent cracking and deformation.
3. Use Appropriate Tooling and Dies: Ensure that the tooling matches the metal’s thickness and desired bend radius. Air bending, bottom bending, and coining are different methods that apply varying levels of force. Air bending generally requires less force and can be used for making gentle bends, while coining offers the most accuracy at the expense of higher force.
4. Maintain Proper Material Grain Orientation: Bending perpendicular to the grain direction of the sheet metal can significantly reduce the risk of cracks and deformation. This is particularly important for metals like aluminum and stainless steel, which are more susceptible to grain-related deformation issues.
5. Implement Gradual Bending Techniques: Instead of attempting a sharp bend in one go, gradual bends can help distribute the stress more evenly across the material, minimizing deformation. Multi-step bending processes or using a die with a larger bend radius can help achieve this.
6. Control Temperature and Lubrication: Applying proper lubrication can reduce friction and the risk of surface damage, while maintaining an optimal temperature for the specific metal can enhance its pliability. For example, heating aluminum to around 660°F (350°C) before bending can make it more malleable and reduce cracking likelihood.

By integrating these techniques, you can effectively minimize deformation in sheet metal bending, ensuring high precision and maintaining the integrity of the material.

Design Tips for Bending Sheet Metal

Bending sheet metal requires careful consideration of several design elements to achieve quality results. Here’s a concise guide based on insights from the top three websites on Google:

1. Choose the Right Material: Different metals bend differently, so choose a material compatible with your design. For example, aluminum is lightweight and malleable but can crack if not handled correctly. Steel offers greater strength but requires more force to bend.
2. Maintain Appropriate Bend Radius: The bend radius should be at least equal to the thickness of the material to prevent cracking. For example, if you’re working with 1mm thick sheet metal, the minimum bend radius should be 1mm. This ensures the material’s structural integrity is maintained.
3. Account for Material Springback: After bending, metals tend to spring back slightly. To counter this, you may need to overbend the metal slightly. Springback can vary between materials; for instance, stainless steel typically has a higher springback effect compared to aluminum.
4. Use Consistent Bend Allowances: Different materials have different bend allowances which must be factored into your design. The bend allowance compensates for the stretching that occurs in the bend. Online calculators can help, but general guidelines suggest that for a 90° bend with a thickness of 1mm, the bend allowance is approximately 1.57 times the material’s thickness.
5. Optimize Part Geometry: Keep your design simple; avoid overly complex shapes. Straight bends are easier and more precise. For more intricate designs, consider breaking them down into simpler sections.
6. Employ Correct Tooling: The choice of tooling directly affects bending accuracy. Air bending requires less force and offers quick setup times but can be less precise. Coining, while requiring more force, provides the highest accuracy. Select your method based on the needed precision and production volume.

By applying these tips, you can ensure the sheet metal bending processes are efficient, precise, and maintain material integrity.

What Are the Best Bending Methods?

Air Bending

Air bending involves minimal contact between the punch and the die, requiring less force and allowing for quick and flexible setup times. This method is versatile and suitable for a wide range of materials and thicknesses, though it can be less precise.

Bottom Bending

Bottom bending ensures higher accuracy by fully pressing the material into the die, reducing the springback effect. This method is ideal for applications requiring consistent angles and tighter tolerances.

Coining

Coining is the most precise bending method, involving a significant force to press the material completely into the die. This approach virtually eliminates springback and is suitable for high-precision tasks, although it requires more energy and sophisticated tooling.

Roll Bending

Roll bending uses three rollers to gradually bend the sheet metal into a curve or cylinder. This method is optimal for creating large-radius bends and cylindrical shapes, providing smooth and continuous bends.

Selecting the best bending method depends on the desired precision, material type, and production volume. For general-purpose bending with flexibility, air bending is efficient, while coining is preferred for high-accuracy requirements.

Air Bending vs. Bottom Bending

When comparing air bending and bottom bending, it’s important to assess their differences in terms of setup, force requirements, precision, and applications.

Air Bending:

• Setup Time: Quick and flexible, making it suitable for diverse and changing production needs.
• Force Requirements: Requires significantly less force compared to bottom bending.
• Precision: Less precise, with more variability due to springback.
• Applications: Versatile; suitable for a wide range of materials and thicknesses.
• Technical Parameters:
• Die Opening (V): Typically 8 times the material thickness.
• Bend Radius: 1/6 to 1/8 of the die opening.
• Springback: Must be compensated for, generally making slight overbends necessary.

Bottom Bending:

• Setup Time: Longer and less flexible, better suited for consistent production runs.
• Force Requirements: Requires moderate force to fully press the material into the die.
• Precision: Higher precision with reduced springback, providing consistent angles and tighter tolerances.
• Applications: Ideal for tasks requiring greater accuracy and repeatability.
• Technical Parameters:
• Die Opening (V): Normally 4 to 6 times the material thickness.
• Bend Radius: Close to the punch radius, with minimal variation.
• Springback: Significantly minimized, so angles are more accurate and reliable.

In conclusion, the choice between air bending and bottom bending hinges on the specific needs of the task. If your priority is flexibility and less force, air bending is advantageous. Conversely, for tasks demanding high precision and consistency, bottom bending is the optimal method.

Press Brake Bending

When it comes to press brake bending, the decision between air bending and bottom bending ultimately depends on the specific needs of your project. Based on the information from top sources, including MetalForming Magazine, The Fabricator, and MachineMfg, I can summarize the following:

For flexibility and the ability to handle diverse materials and thicknesses with less force, air bending stands out as a reliable choice. It accommodates various production changes and can manage a wide range of applications, although it does require compensating for springback to maintain accuracy.

On the other hand, if your task requires high precision and repeatability, then bottom bending is preferable. Despite its longer setup time, it ensures consistent angles and tighter tolerances with minimal springback, making it ideal for projects needing greater accuracy.

In short, air bending is best when adaptability and lower force requirements are crucial, whereas bottom bending is the go-to method for precision and consistency in manufacturing.

Roll Bending Techniques

Roll bending is a method extensively used for producing large-radius bends and cylindrical shapes by passing metal sheets, bars, or tubes through a series of rollers. According to sources such as TWI Global, ThomasNet, and The Fabricator, here are the key elements and parameters involved in this technique:

1. Three-Roll Bending:

• • Setup: Utilizes three rollers arranged in a triangular configuration.
  • Operation:
  • • Top Roller: Moves up and down to apply pressure on the workpiece.
    • Bottom Rollers: Remain fixed or can be adjusted for different radii.
  • Applications: Ideal for producing high-quality cylindrical parts and large-radius curves.
  • Technical Parameters:
  • Setup: Consists of four rollers, with two central rollers supporting the material while the top and bottom rollers apply pressure.
  • Operation:
  • • Fixed Center Rollers: Provide more control and precision.
    • Adjustable Top and Bottom Rollers: Allow for tighter bends and handling of thicker materials.
  • Applications: Suitable for tighter radius bends and more complex cylindrical shapes.
  • Technical Parameters:
  • Speed: Varies with material type and thickness; slower speeds are often used for precise bends and thicker materials.
  • Force: Calculated based on material yield strength, thickness, and desired radius. Ensuring the machine’s capacity aligns with these parameters is crucial for successful bending.

  In summary, mastering roll bending involves understanding the configuration and operation of the rollers, as well as the material-specific parameters that influence the final shape and quality of the bend. Balancing these factors allows for the precise and efficient formation of large-radius and cylindrical components.

How Does CNC Bending Improve the Process?

CNC bending significantly improves the process through automation, precision, and efficiency. By utilizing computer numerical control (CNC), I can program complex bends with high accuracy, minimizing human error. This technology enables consistent replication of parts, which is particularly advantageous for large-scale production. Additionally, CNC bending reduces material waste and setup times, as the machine can quickly adjust to different specifications without extensive manual intervention. Overall, it streamlines the bending process, resulting in higher quality products and faster turnaround times.

Advantages of CNC Bending

1. Precision: CNC bending machines are renowned for their high precision and accuracy. The computer-controlled mechanisms ensure each bend is executed to exact specifications, significantly reducing errors that are common with manual bending methods.
2. Consistency: With CNC bending, once a program is set, it can replicate the same bends multiple times with identical results. This consistency is crucial for mass production, where uniformity across parts is necessary.
3. Efficiency: CNC bending enhances efficiency by reducing setup times and speeding up the bending process. Machines can quickly switch between different bending programs, minimizing downtime and increasing overall productivity.
4. Flexibility: CNC bending machines are capable of handling complex designs and a wide range of materials and thicknesses. This versatility makes them suitable for various applications, from simple components to intricate custom parts.
5. Cost-Effectiveness: Despite the initial investment, CNC bending reduces long-term costs by decreasing material waste, lowering labor expenses, and minimizing production time. The automation also decreases the need for extensive manpower, leading to cost savings.
6. Safety: Automation in CNC bending reduces the risks associated with manual bending processes. Operators have less direct contact with the machinery and materials, which minimizes the chance of work-related injuries.

By embracing CNC bending technology, manufacturers can achieve superior product quality, optimize production processes, and gain a competitive edge in the market.

CNC Machines vs. Traditional Tools

When comparing CNC machines to traditional tools, several factors highlight the advantages of CNC technology. This comparison is based on the analysis of content from leading websites on the subject, providing insights into efficiency, precision, and versatility.

1. Precision and Accuracy:

• CNC Machines: Offer superior accuracy due to computer control, achieving tolerances of up to ±0.001 inches. They ensure consistent precision across large production runs, reducing human error.
• Traditional Tools: Rely on manual operation, which can result in higher variability and less precise outcomes. The accuracy largely depends on the skill and experience of the operator.

2. Efficiency:

• CNC Machines: Enhance efficiency with faster production times and the ability to operate continuously. They can produce complex parts quickly by following pre-set programs, significantly reducing setup and changeover time.
• Traditional Tools: Typically involve longer setup times and slower production rates. Each part requires manual adjustments, which slows down the overall process.

3. Versatility and Flexibility:

• CNC Machines: Capable of performing multiple functions (e.g., cutting, drilling, milling) without the need for multiple setups. They can handle a variety of materials including metals, plastics, and composites. Complex designs and intricate patterns are easily replicated with high precision.
• Traditional Tools: Limited in their ability to perform multiple functions without changing tool attachments or setups. They are also more restricted in handling different materials and executing complex designs.

4. Cost:

• CNC Machines: While the initial investment can be high, the long-term savings accrue from reduced labor costs, minimized waste, and increased production speeds. Over time, the reduced need for manual intervention translates into lower operating costs.
• Traditional Tools: Typically have a lower initial cost but entail higher ongoing labor costs and material waste. The time-intensive nature of manual operations can also lead to higher production costs over the long run.

5. Safety:

• CNC Machines: Offer enhanced safety features as operators interact less with the machines during operations. Automation reduces the risk of work-related injuries and accidents.
• Traditional Tools: Pose a higher risk of injury due to the need for continuous manual handling. The operator’s proximity to sharp tools and moving parts increases the likelihood of accidents.

By considering the above factors, it becomes evident that CNC machines provide a significant advantage over traditional tools in terms of precision, efficiency, versatility, cost-effectiveness, and safety. Embracing CNC technology can lead to enhanced productivity and superior quality in manufacturing processes.

Understanding Bending Force in CNC Processes

In order to understand bending force in CNC processes, I turned to the top three websites on Google.com for comprehensive information. Here is a concise summary based on the insights gained:

1. Definition and Parameters:

The bending force in CNC processes refers to the force required to bend a material to a given angle and radius. This force is influenced by several technical parameters, including material type, thickness, length of the bend, and die specifications. From these sources, the critical parameters affecting bending force are:

• Material Tensile Strength: Stronger materials require more force.
• Material Thickness (t): Thicker materials increase the bending force.
• Width of the Die Opening (V): Wider die openings reduce the force required.
• Bend Length (L): Longer bends demand higher force.

2. Calculating Bending Force:

Using the gathered technical parameters, the bending force can be calculated with the formula:

\[

F = \frac{{k \cdot t^2 \cdot L}}{{V}}

\]

Where:

• \( F \) is the bending force,
• \( k \) is a factor depending on the material’s tensile strength and the type of die used,
• \( t \) is the material thickness,
• \( L \) is the length of the material to be bent,
• \( V \) is the width of the die opening.

3. Practical Considerations:

In practical settings, precise calculations often require adjustments based on real-world conditions like machine capacity, tooling wear, and material variations. Consulting the manufacturer’s guidelines and empirical data can help fine-tune these calculations to ensure efficiency and accuracy in CNC bending operations.

By synthesizing information from these top resources, I’ve compiled a clear understanding of the factors and formulas involved in determining bending force in CNC processes. This foundational knowledge is essential for optimizing operations and achieving desired outcomes in manufacturing.

How to Choose a Sheet Metal Bending Service?

Selecting the right sheet metal bending service is crucial for ensuring high-quality results and efficiency in your manufacturing process. Here are some key considerations to guide your decision:

1. Technical Expertise:

• Material Compatibility: Ensure the service provider is experienced with the specific type of material you need, whether it’s aluminum, steel, or any other metal.
• Machine Capacity: Verify that their equipment can handle the material thickness (\(t\)) and bend length (\(L\)) required for your project. This should match the calculated bending force (\(F\)) needs, considering their machine’s press capacity.

2. Precision and Accuracy:

• State-of-the-Art Equipment: Look for services that use advanced CNC bending machines which offer high precision.
• Tooling and Die Setup: Confirm that they can accommodate a range of die widths (\(V\)), which allows for more adaptable and affordable bending options.

3. Experience and Track Record:

• Portfolio and References: Check their previous work and client testimonials to gauge their reliability and expertise. Experienced providers are better equipped to make necessary adjustments based on real-world conditions.

4. Cost-Efficiency:

• Competitive Pricing: Compare quotes but also consider the value of the service provided. The cheapest option is not always the best if it impacts quality or lead time.
• Lead Time: Ensure the service provider can meet your deadlines without compromising on quality.

5. Quality Assurance:

• Standards and Certifications: Opt for services that adhere to industry standards and hold relevant certifications, ensuring they follow best practices in their operations.
• Inspection and Testing: Verify their quality assurance processes, including material inspection and testing for tensile strength to ensure conformity to specifications.

By carefully evaluating these factors and ensuring that the technical parameters align with your project’s needs, you can select a sheet metal bending service that delivers precise, high-quality results effectively.

Factors to Consider

When selecting a sheet metal bending service, the key factors to consider include:

1. Precision and Accuracy:

• Ensure the service uses advanced CNC bending machines for high precision.
• Confirm they can accommodate a range of die widths (\(V\)) for more adaptable and cost-effective bending options.

2. Experience and Track Record:

• Review their portfolio and client testimonials to evaluate their reliability and expertise. Experienced providers can make necessary adjustments based on real-world conditions.

3. Cost-Efficiency:

• Compare quotes, considering both price and the value of the service provided. Ensure the service meets deadlines without compromising quality.

4. Quality Assurance:

• Choose services that adhere to industry standards and hold relevant certifications.
• Verify their quality assurance processes, including material inspection and testing for tensile strength, to ensure conformity to specifications.

By carefully evaluating these factors and aligning technical parameters with your project’s needs, you can select a sheet metal bending service that delivers precise, high-quality results efficiently.

Evaluating Sheet Metal Bending Services

To effectively evaluate sheet metal bending services, consider the following steps:

1. Assess Precision and Technology:

• Verify that the service provider uses advanced CNC bending machines, which offer superior precision and accommodate various die widths for versatility.

2. Check Experience and Reputation:

• Review portfolios and client testimonials to gauge the provider’s reliability and expertise, focusing on their ability to adapt to real-world conditions.

3. Balance Cost and Value:

• Obtain and compare quotes from multiple providers, ensuring they deliver on deadlines without sacrificing quality.

4. Confirm Quality Assurance Practices:

• Ensure the service adheres to industry standards and holds relevant certifications. Verify their quality assurance measures, including material inspections and tensile strength tests.

By meticulously evaluating these factors, you can select a sheet metal bending service that meets your project requirements with precision and efficiency.

Bending Tolerances and Quality Assurance

Bending tolerances and quality assurance are critical in ensuring the final product meets the necessary specifications and performs reliably. Here are some key points derived from the current top three websites:

1. Understanding Bending Tolerances:

• Bending tolerances refer to the permissible variations in the final dimensions of a bent metal part. These variabilities can be influenced by factors such as material type, thickness, and the precision of the equipment used. Common tolerances are usually within ±0.5mm to ±1mm, though this can vary based on specific project requirements.

2. Factors Affecting Bending Accuracy:

• The equipment’s precision, including the use of CNC bending machines, significantly impacts bending accuracy. Additionally, the properties of the metal, such as its ductility and tensile strength, play a crucial role. Advanced software and simulation tools help in predicting and minimizing deviations.

3. Quality Assurance Practices:

• Quality assurance involves implementing rigorous inspection methods to verify that products meet designated specifications. This includes the use of measuring tools like calipers and coordinate measuring machines (CMMs) to ensure dimensional accuracy. Consistent quality checks and adherence to ISO standards are integral practices across reputable providers.

By paying attention to these aspects, you can ensure that your bending processes deliver high-quality, consistent results that align with stringent industry standards.

What Are the Common FAQs About Sheet Metal Bending?

1. What is sheet metal bending?

Sheet metal bending is a manufacturing process where a sheet of metal is deformed along a straight axis, creating a bend in the material. This technique is commonly used to produce a variety of shapes and components for different applications.

2. What materials can be used in sheet metal bending?

Common materials used in sheet metal bending include steel, aluminum, copper, and brass. The choice of material depends on the project’s requirements, such as strength, ductility, and corrosion resistance.

3. What are the common bending methods?

Common bending methods include air bending, bottoming, and coining. Each method has its advantages depending on the desired precision, part geometry, and material characteristics.

4. How does thickness affect bending?

The thickness of the metal sheet significantly influences the bending process. Thicker sheets require more force to bend and may have larger bending radii compared to thinner sheets.

5. What is bend allowance?

Bend allowance is the amount of material needed to accommodate the bend in the metal sheet. It accounts for the stretching and compressing of the material in the bend area.

6. How can bending accuracy be ensured?

Bending accuracy can be ensured by using precise equipment such as CNC bending machines, performing regular maintenance on machinery, and employing advanced software for simulation and design validation.

7. What are common issues in sheet metal bending?

Common issues include springback, where the metal tries to return to its original shape, and cracking, which can occur if the bend radius is too small or the material is too brittle. Proper design and material selection can help mitigate these problems.

By understanding these key aspects of sheet metal bending, manufacturers can improve their processes and produce high-quality metal components.

Frequently Asked Questions on Bending Sheet Metal

Q1: What factors influence the choice of material for bending?

A1: The choice of material depends on the project’s requirements, such as strength, ductility, and corrosion resistance.

Q2: What are the common bending methods?

A2: Common bending methods include air bending, bottoming, and coining. Each method has its advantages depending on the desired precision, part geometry, and material characteristics.

Q3: How does thickness affect bending?

A3: The thickness of the metal sheet significantly influences the bending process. Thicker sheets require more force to bend and may have larger bending radii compared to thinner sheets.

Q4: What is bend allowance?

A4: Bend allowance is the amount of material needed to accommodate the bend in the metal sheet. It accounts for the stretching and compressing of the material in the bend area.

Q5: How can bending accuracy be ensured?

A5: Bending accuracy can be ensured by using precise equipment such as CNC bending machines, performing regular maintenance on machinery, and employing advanced software for simulation and design validation.

Q6: What are common issues in sheet metal bending?

A6: Common issues include springback, where the metal tries to return to its original shape, and cracking, which can occur if the bend radius is too small or the material is too brittle. Proper design and material selection can help mitigate these problems.

By understanding these key aspects of sheet metal bending, manufacturers can improve their processes and produce high-quality metal components.

Solving Common Problems in Metal Fabrication

To address common issues in metal fabrication effectively, manufacturers need a systematic approach and the right set of tools and techniques.

Springback: Springback occurs when the metal attempts to revert to its original shape after bending. To combat this, manufacturers can overbend the material slightly or use materials with less elasticity. Utilizing advanced simulation software during the design phase can also predict and mitigate springback.

Cracking: Cracking is typically caused by using a bend radius that is too small for the material’s thickness or working with materials that lack sufficient ductility. Ensuring the bend radii align with material specifications and selecting more ductile materials can significantly reduce the risk of cracking.

Inaccurate Bends: Achieving precise bends is crucial for high-quality parts. Using CNC bending machines, which offer high precision, along with regular maintenance of all equipment, can improve accuracy. Additionally, advanced software for design validation can ensure that parts meet the required specifications before production.

Material Waste: Minimizing material waste is essential for cost efficiency. By optimizing the layout and nesting of parts on the metal sheets, manufacturers can reduce scrap. Implementing a robust quality control process can also prevent defective parts, thereby reducing waste.

Surface Defects: Surface defects can arise from improper handling or processing. Ensuring proper material handling procedures and using protective coverings during fabrication can help maintain the quality of the metal surface.

By addressing these challenges systematically, manufacturers can enhance the efficiency and quality of their metal fabrication processes, leading to better final products and reduced production costs.

Best Practices for Sheet Metal Fabrication

Material Selection: Choose the appropriate material based on the specific requirements of the project. Consider factors such as strength, ductility, corrosion resistance, and workability. Metals like stainless steel, aluminum, and brass each have unique properties that make them suitable for different applications.

Design for Manufacturability (DFM): Optimize designs to simplify the fabrication process and ensure that they are easy to produce. This includes specifying appropriate bend radii, tolerances, and allowances. Using standardized components and designing parts that can be easily fabricated with available machinery can also reduce complexity and cost.

Precision Cutting Techniques: Employ advanced cutting technologies such as laser cutting, plasma cutting, and waterjet cutting. These methods provide high precision and can handle a wide range of materials and thicknesses. Precision cutting reduces material waste and enhances the quality of the final product.

Proper Tooling and Equipment: Utilize the right tools and equipment for the specific job. Regular maintenance of machines and tools ensures consistent performance and quality. CNC machines, for instance, offer high precision and repeatability when properly maintained.

Bending Considerations: Follow guidelines for proper bending techniques, such as using the correct bend radius and tooling. Overbending slightly and then re-bending to achieve the desired angle can help compensate for springback.

Joining Methods: Select appropriate joining methods, such as welding, riveting, or adhesive bonding, based on the material and application requirements. Each method has its advantages and constraints, so choosing the right one will impact the durability and functionality of the final product.

Quality Control: Implement a robust quality control process to monitor and inspect each stage of fabrication. Regular inspections and testing can identify defects early, allowing for corrective actions that prevent costly rework and ensure the final product meets specifications.

Employee Training: Invest in training programs for employees to ensure they are skilled in the latest fabrication techniques and safety practices. Well-trained staff can operate equipment more efficiently and produce higher-quality parts.

By following these best practices, manufacturers can improve the efficiency and quality of their sheet metal fabrication processes, resulting in superior products and reduced production costs.

Frequently Asked Questions (FAQs)

Q: What is sheet bending in the context of sheet metal design?

A: Sheet bending in sheet metal design refers to the process of deforming a sheet metal part by applying force to a sheet, causing it to bend at a specific angle. This process is often used to create complex shapes and forms for various sheet metal products.

Q: How is laser cutting related to the sheet metal bending process?

A: Laser cutting is often used prior to the sheet metal bending process to create precise cuts and shapes on a sheet. These laser cut parts can then be bent using different bending methods to achieve the final design.

Q: What factors affect the force needed to bend a sheet metal part?

A: The force needed to bend a sheet metal part depends on the material of the sheet, the sheet thickness, and the bend radius. Typically, bending is one of the processes that require careful consideration of these factors to achieve accurate results.

Q: What is the importance of flange length in sheet metal bending?

A: Flange length is crucial in sheet metal bending as it determines the distance from the bend to the edge of the sheet metal part. Proper flange length ensures that the bent sheet metal parts have the desired dimensions and structural integrity.

Q: Can you explain what bend relief is?

A: Bend relief is a cut or notch at the edge of the sheet metal part where it will be bent. This feature helps prevent tearing or warping of the material during the bending process, especially in thicker sheets.

Q: What role does a die and punch play in the sheet bending process?

A: In the sheet bending process, a die and punch are used to create bends in the sheet metal. The sheet is placed between the die and punch, and force is applied to the punch, which then presses the sheet into the die, forming the desired bend.

Q: What are common bending methods used in sheet metal fabrication?

A: Common bending methods in sheet metal fabrication include V-bending, wipe die bending, and roll bending. Each method is selected based on the specific requirements of the sheet metal part being produced.

Q: How can CNC sheet metal bending improve the manufacturing process?

A: CNC sheet metal bending uses computer numerical control to precisely control the bending process, resulting in highly accurate and repeatable bends. This technology allows for quicker production times and better quality control for sheet metal products.

Q: What essential tips should be considered in sheet metal design?

A: Essential tips for sheet metal design include accounting for the sheet thickness, ensuring proper flange length, using bend relief where necessary, and considering material properties. These factors help in creating accurate and functional bent parts.

Q: Are there any guidelines for determining the bend radius in sheet metal bending?

A: Generally, the bend radius should be at least 1.5 times the sheet thickness for most materials. However, this can depend on the material being used and the specific requirements of the sheet metal design. It’s advisable to see our guide for detailed recommendations.
