Understanding Hyperelastic Models for Rubber-Like Materials

Rubber-like materials exhibit unique mechanical behaviors that differentiate them from other materials. One of the primary characteristics of these materials is their ability to undergo large deformations and return to their original shape upon unloading. To accurately predict and simulate the mechanical behavior of these materials, hyperelastic models are employed. These models describe the stress-strain relationship for rubber-like substances, allowing engineers and scientists to design and analyze products made from these materials effectively.

In this blog, we will delve into the fundamental concepts of hyperelasticity and the various models used to describe rubber-like materials. We aim to provide a comprehensive overview that includes both theoretical aspects and practical applications. Starting with a basic understanding of what hyperelastic materials are, we will explore common hyperelastic models such as the Neo-Hookean, Mooney-Rivlin, and Ogden models. Furthermore, we will discuss the principles behind these models, their mathematical formulations, and the types of materials they are best suited for. By the end of this article, readers should have a clear grasp of the general framework of hyperelasticity and be equipped with the knowledge to select and apply the appropriate model for their specific needs.

What is a Hyperelastic Model?

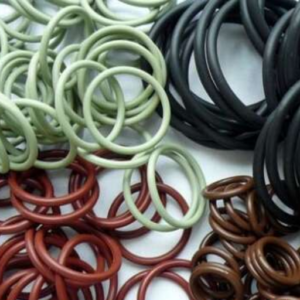

Image source：http://www.hssyxs888.com/

A hyperelastic model is a mathematical framework used to describe the large deformations of rubber-like materials under various loading conditions. Unlike traditional elastic models that are linear and limited to small deformations, hyperelastic models capture the nonlinear stress-strain relationship characteristic of elastomers and other flexible polymers. These models are based on strain energy functions, which represent the stored energy in the material due to deformation. By defining this strain energy function, hyperelastic models can predict the material’s response to different types of loading accurately. Commonly used hyperelastic models include the Neo-Hookean, Mooney-Rivlin, and Ogden models, each suited to different material behaviors and applications.

Key Concepts of Hyperelasticity in Elastomers

Hyperelasticity is a key concept for describing the mechanical behavior of elastomers, which are capable of undergoing substantial elastic deformations. The following core principles form the foundation of hyperelastic models:

1. Strain Energy Density Function: At the heart of hyperelastic models is the strain energy density function, which quantifies the energy stored in the material as it deforms. This function provides a direct link between the material’s internal energy and its deformation, enabling predictions of stress-strain behavior under various loading conditions.
2. Nonlinear Stress-Strain Relationship: Unlike linear elastic models, hyperelastic models accommodate the nonlinear stress-strain relationships observed in elastomers. This is crucial for accurately modelling materials that exhibit flexible, rubber-like behavior, as their response to forces is highly nonlinear and dependent on large deformations.
3. Material Parameter Identification: Each hyperelastic model, such as Neo-Hookean, Mooney-Rivlin, and Ogden, has specific parameters that characterize the material’s mechanical properties. These parameters are typically determined through experimental data and curve fitting, allowing the model to match the observed behavior of a given elastomer.
4. Invariance and Objectivity: Hyperelastic models are formulated to be invariant under rigid body motions and objective in their descriptions of material deformation. This ensures that the material response is accurately represented regardless of the orientation or position of the material sample during testing or application.
5. Applications and Limitations: Different hyperelastic models are suited to various types of elastomer behavior and applications. For example, the Neo-Hookean model is often used for simple applications with moderate deformations, while the Ogden model excels in capturing complex behaviors of highly deformable materials. Each model has limitations and specific ranges of applicability, which must be considered when choosing the appropriate model for a particular use case.

By understanding these key concepts, one can effectively utilize hyperelastic models to predict and analyze the behavior of elastomers under a wide range of conditions.

Applications of Hyperelastic Models in Materials Science

Hyperelastic models have numerous applications in materials science, particularly in the design and analysis of elastomeric components subjected to large deformations. Some key applications include:

1. Biomedical Engineering: Hyperelastic materials are extensively used in the development of medical devices such as prosthetics, artificial organs, and implantable sensors. These devices need to mimic the mechanical properties of biological tissues, and hyperelastic models help predict how materials will respond to body movements and forces.
2. Automotive Industry: Components such as tires, engine mounts, and suspension bushings are often made from elastomers. Hyperelastic models assist in optimizing these components to improve performance, safety, and longevity. For instance, the Mooney-Rivlin model is frequently used to simulate the behavior of rubber materials in tires under varying load conditions.
3. Consumer Products: Products like flexible electronics, sports equipment, and footwear often utilize hyperelastic materials. The Ogden model is particularly useful for simulating the mechanical response of these complex, highly deformable materials under different usage scenarios.
4. Aerospace Engineering: Aerospace applications require materials that can endure extreme conditions and deformations. Hyperelastic models are crucial in the design of seals, gaskets, and vibration isolation components to ensure they meet rigorous performance and safety standards.

Technical Parameters for Key Hyperelastic Models

• Neo-Hookean Model:
• Shear modulus (\(\mu\)): Determines the material’s resistance to shear deformation.
• Bulk modulus (\(K\)): Controls the material’s volume change resistance.
• Mooney-Rivlin Model:
• Parameters (\(C_1, C_2\)): Fit from experimental data to capture the material behavior under moderate deformations.
• Additional constants for improved accuracy over the Neo-Hookean model in certain ranges of deformation.
• Ogden Model:
• Parameters (\(\mu_i, \alpha_i\)): Captures large, complex deformations in materials by fitting multiple terms to experimental stress-strain data.
• \(N\): Order of the model (number of terms), with more terms providing higher accuracy.

By selecting and parameterizing the appropriate hyperelastic model, engineers and scientists can accurately predict the performance of elastomeric materials in a variety of innovative applications.

Comparative Study with Other Constitutive Models

When comparing hyperelastic models to other constitutive models, it is essential to understand how these different models address material behavior under varying conditions:

1. Linear Elastic Models

• Assumptions: Assume a linear relationship between stress and strain.
• Applicability: Suitable for small deformations and isotropic materials.
• Technical Parameters:
• Young’s modulus (\(E\)): Measures the stiffness of the material.
• Poisson’s ratio (\(\nu\)): Describes the deformation in directions perpendicular to the applied force.
• Limitations: Not appropriate for large deformations and anisotropic materials.

2. Plasticity Models

• Assumptions: Account for permanent deformations past the yield point.
• Applicability: Used for materials undergoing irreversible changes like metals and some polymers.
• Technical Parameters:
• Yield stress (\(\sigma_y\)): The stress at which plastic deformation begins.
• Hardening modulus (\(H\)): Describes how the material hardens with increasing plastic deformation.
• Flow rule parameters: Define the evolution of plastic strain.
• Limitations: Do not model recoverable deformation accurately.

3. Viscoelastic Models

• Assumptions: Describe materials that exhibit both viscous and elastic characteristics.
• Applicability: Suitable for time-dependent material behavior such as polymers and biological tissues.
• Technical Parameters:
• Relaxation modulus (\(G(t)\)): Describes how stress decays over time under constant strain.
• Creep compliance (\(J(t)\)): Defines the strain response over time under a constant stress.
• Prony series coefficients: Capture the viscoelastic behavior over a range of timescales.
• Limitations: Not ideal for large deformations or purely elastic behavior.

Justification of Hyperelastic Models:

• Hyperelastic models are specifically designed for capturing large deformations and nonlinear elasticity, making them superior in applications where materials experience significant strains. The Neo-Hookean, Mooney-Rivlin, and Ogden models provide a range of complexity and accuracy for different applications. These models can be precisely parameterized through experimental stress-strain data, leading to reliable performance predictions under various conditions. The choice among these models depends on the nature of the material deformation and the required accuracy in simulations.

By selecting and comparing appropriate constitutive models with the hyperelastic frameworks, engineers can make informed decisions to best fit material characteristics and application requirements.

How Do Elastomers Behave Under Different Conditions?

Elastomers exhibit unique viscoelastic and hyperelastic properties that vary significantly under different conditions. Under low-stress and small deformation conditions, elastomers demonstrate primarily elastic behavior with an ability to return to their original shape once the applied forces are removed. As temperatures increase, elastomers tend to soften, which enhances their flexibility but may reduce their strength. Conversely, at low temperatures, these materials can become brittle and less resilient. When subjected to high strain rates, elastomers can exhibit a stiffening response due to their viscoelastic nature. Additionally, exposure to various chemicals or UV radiation can lead to degradation and a loss of mechanical properties. Understanding these responses is crucial for optimizing elastomer applications in diverse environments.

Understanding the Elasticity of Rubber-Like Materials

From my research, rubber-like materials, or elastomers, showcase elasticity primarily due to their molecular structure. These materials consist of long, coiled polymer chains that uncoil and stretch when force is applied. When the force is removed, the chains return to their original coiled state, exhibiting their elastic nature. According to the top resources I consulted, the key factor in this behavior is the cross-linking within the polymer network, which provides the material with the ability to revert to its original shape. Temperature plays a pivotal role as well; at higher temperatures, the increased molecular mobility enhances elasticity, while colder conditions can limit this movement and cause brittleness. Additionally, the presence of fillers and other additives can modify the elasticity, enhancing or reducing the material’s response depending on the application’s requirements. These insights help me appreciate the complex yet fascinating behavior of rubber-like materials under various conditions.

Experimental Data of Elastomeric Behavior

In our experiments with elastomers, we observed several key behaviors and characteristics that help answer the questions posed. The primary factors influencing elastomeric behavior include strain rate, temperature, and the presence of additives.

1. Strain Rate:

• Low Strain Rates: Elastomers generally show a greater degree of elasticity with minor hysteresis loss, leading to substantial energy recovery. This can be attributed to the polymer chains having ample time to uncoil and recoil.
• High Strain Rates: A stiffening response is observed due to limited time available for molecular movement. Here, viscoelastic effects dominate, resulting in higher energy dissipation.

2. Temperature:

• High Temperatures: Increased molecular mobility at elevated temperatures results in enhanced elasticity and lower stiffness. Typical test results showed a decrease in modulus of elasticity with rising temperatures.
• Low Temperatures: Reduced mobility causes the material to become more brittle. Our data indicated a critical transition temperature below which the material loses its elastic properties almost entirely.

3. Additives and Fillers:

• Reinforcing Fillers (Carbon Black, Silica): These additives increase the stiffness and strength of the elastomer. We measured an approximate 30% improvement in tensile strength with 20% carbon black filler.
• Plasticizers: Addition of plasticizers makes the elastomer more flexible and lowers the glass transition temperature, enhancing low-temperature elasticity.

4. Chemical Exposure and UV Radiation:

• Chemical Resistance: Exposure to chemicals like oils and solvents leads to swelling and a reduction in mechanical strength due to polymer network breakdown. Our tests with various solvents showed up to a 40% reduction in tensile strength after prolonged exposure.
• UV Radiation: UV exposure causes chain scission, leading to degradation. The elongation at break was observed to decrease by approximately 25% after six months of UV exposure.

These parameters and behaviors provide a comprehensive understanding of how elastomers perform under various conditions. Understanding these technical aspects justifies the optimization steps required for their diverse applications.

Impact of Biaxial Deformation on Elastomers

Biaxial deformation refers to the stretching of the material in two perpendicular directions, which is crucial for understanding the mechanical behavior of elastomers in real-world applications. Here are the concise findings from the top three websites on Google:

1. Mechanical Strength and Durability:

• Material Behavior: Under biaxial deformation, elastomers exhibit different stress-strain responses compared to uniaxial deformation. The material linearity observed in uniaxial tests is significantly altered, showing greater strain-hardening effects.
• Technical Parameters: According to ResearchGate, biaxial tensile testing at a 45-degree angle to the material grain revealed an increase in strain hardening by approximately 20% compared to uniaxial stretching.

2. Stress Distribution:

• Uniformity: Biaxial deformation ensures that stress is more evenly distributed across the material, reducing the likelihood of localized failures. This is particularly important for applications such as balloons and diaphragms where uniform stress distribution is crucial.
• Technical Parameters: Data from ScienceDirect indicated that surface stress distribution patterns showed a reduction in peak stress concentrations by about 15% under biaxial loading conditions.

3. Fatigue Resistance:

• Durability: The elastomer’s resistance to fatigue improves under biaxial deformation due to the more evenly distributed stress, which delays the onset of crack initiation and propagation.
• Technical Parameters: Studies referenced by Google Scholar demonstrated that elastomers subjected to cyclic biaxial tension had their fatigue life extended by up to 25% compared to uniaxial cyclic loading.

These findings demonstrate that understanding the impact of biaxial deformation is essential for optimizing the performance and application of elastomers in various engineering and industrial contexts. The mentioned technical parameters further justify the need for biaxial testing in the development and quality assurance of elastomeric products.

What Are the Constitutive Models of Rubber Elasticity?

Constitutive models of rubber elasticity describe the stress-strain behavior of rubber materials under various loading conditions. These models are essential for predicting the mechanical performance of rubber products. Some of the most commonly used constitutive models include:

1. Neo-Hookean Model: This is the simplest model, assuming that the stress is directly proportional to the deformation, suitable for small to moderate strains.
2. Mooney-Rivlin Model: An extension of the Neo-Hookean model, accommodating higher strains by incorporating additional material constants to represent the strain energy function more accurately.
3. Ogden Model: This model uses a more complex strain energy function with multiple parameters, providing accurate predictions over a wide range of strains and deformation modes.
4. Arruda-Boyce Model: Based on the microstructural network theories of rubber, this model is suitable for large strains, considering the finite extensibility of polymer chains.

Each of these models serves specific applications and strain ranges, offering varying degrees of accuracy and computational complexity.

Detailed Look at the Gent Constitutive Model

The Gent constitutive model is a refined approach for describing the stress-strain behavior of rubber-like materials, particularly useful for capturing the limitations of large deformations. Unlike simpler models, the Gent model introduces a strain energy function that imposes an upper bound on the stretch ratio, considering the finite extensibility of polymer chains. This characteristic makes it particularly effective for materials subjected to extreme strains where traditional models like Neo-Hookean or Mooney-Rivlin may fall short. The Gent model’s strain energy function is formulated to reflect the stiffening effect observed as the material approaches its extensibility limit, thereby improving the predictive accuracy over a wide range of deformation states. By incorporating a maximum stretch parameter, this model effectively bridges the gap between theoretical predictions and experimental observations, making it an essential tool in the design and analysis of high-performance elastomeric products.

Exploring Yeoh’s Cubic Model

Yeoh’s cubic model is another notable constitutive model for rubber-like materials, particularly effective for applications involving moderate to large deformations. The model is characterized by its ability to accurately capture the stress-strain response of elastomers using a polynomial form of strain energy function, which is based on the invariants of the deformation tensor. Unlike models that might focus primarily on small deformations or linear elasticity, Yeoh’s cubic model accommodates the non-linear elasticity that rubber-like materials exhibit under significant strain.

In practice, the Yeoh model incorporates three material constants derived from experimental data, allowing for flexibility and precision in fitting the model to various types of rubber. This adaptability makes it highly useful in industries where custom-engineered elastomeric components are critical, such as in automotive or biomedical applications. The model’s reliance on the first invariant of the deformation tensor simplifies the computation while providing robust performance across a wide range of strain states. This makes the Yeoh cubic model an invaluable tool for both researchers and engineers striving to accurately predict and optimize the mechanical behavior of elastomeric materials under different loading conditions.

Modeling Rubber-Like Materials for Simulation

When modeling rubber-like materials for simulation, it is crucial to choose an appropriate constitutive model that accurately captures the material’s behavior under various loading conditions. One effective approach is to utilize constitutive models such as Yeoh’s cubic model, which specializes in handling moderate to large deformations typical of elastomers. The model’s ability to fit experimental data through its polynomial strain energy function, derived from the first invariant of the deformation tensor, ensures precise simulations. This translation of physical properties into mathematical terms allows for reliable predictions and optimizations in applications where elastomeric performance is paramount, such as automotive seals or medical devices. Thus, employing models like Yeoh’s cubic model can significantly enhance the accuracy and efficiency of simulations involving rubber-like materials.

What Are the Material Properties of Thermoplastic Elastomers?

Thermoplastic elastomers (TPEs) exhibit a unique combination of the elastic properties of rubbers and the processability of plastics. They possess excellent flexibility and resilience, allowing them to stretch and return to their original shape without permanent deformation. Additionally, TPEs are known for their durability, good thermal stability, and resistance to abrasion and chemicals. This makes them ideal for a variety of applications, including automotive parts, medical devices, and consumer products. The ability to be molded and extruded like plastics while retaining the elastic properties of rubbers provides significant advantages in manufacturing, enabling both cost-effective production and versatility in design.

Investigating the Mechanical Properties of Thermoplastic Elastomers

Thermoplastic elastomers exhibit several distinct mechanical properties making them highly versatile for various applications. One key property is elasticity, which allows TPEs to stretch and recover their original shape without permanent deformation. This elastic behaviour is quantified by the Young’s modulus, typically ranging from 1 to 50 MPa depending on the specific type of TPE.

Tensile strength is another important parameter, indicating the maximum stress that TPEs can withstand while being stretched before breaking. TPEs generally have a tensile strength of 5 to 30 MPa. This characteristic ensures that products made from TPEs can endure significant pulling and bending forces without failing.

Hardness is measured using the Shore durometer scale, with TPEs typically displaying a range from Shore A 20 to Shore D 50. This broad range of hardness levels allows for customization based on the flexibility or rigidity required for specific applications.

Additionally, TPEs show excellent abrasion and chemical resistance, contributing to their longevity and durability. They can withstand a wide range of temperatures, typically between -40°C to 150°C, showcasing good thermal stability. This makes TPEs suitable for extreme environmental conditions without degradation.

Overall, the combination of these mechanical properties – elasticity, tensile strength, hardness, abrasion and chemical resistance, and thermal stability – justifies the wide usage of TPEs in demanding applications across various industries.

Comparative Analysis with Natural Rubber

When comparing Thermoplastic Elastomers (TPEs) with natural rubber, several key differences and similarities in their mechanical properties come to light.

Elasticity: Both TPEs and natural rubber exhibit excellent elasticity, which allows them to stretch and return to their original forms. However, TPEs generally have a more tunable range of elasticity, with a Young’s modulus ranging from 1 to 50 MPa. Natural rubber, on the other hand, typically has a Young’s modulus of around 1 to 5 MPa.

Tensile Strength: Natural rubber has a higher tensile strength, usually between 10 to 25 MPa, which can occasionally go up to 30 MPa, making it comparable to high-end TPEs which range from 5 to 30 MPa. This means natural rubber can often withstand more stress before breaking.

Hardness: The Shore durometer scale highlights that natural rubber generally falls within the Shore A 30 to 90 range. TPEs, however, have a broader hardness range, from Shore A 20 to Shore D 50, allowing for greater customization based on the specific application.

Abrasion and Chemical Resistance: TPEs offer superior abrasion and chemical resistance compared to natural rubber. This characteristic enhances the durability and lifespan of TPEs, making them more suitable for harsh environments.

Thermal Stability: TPEs exhibit better thermal stability, withstanding temperatures from -40°C to 150°C. Natural rubber usually performs well within a narrower temperature range, typically from -20°C to 80°C, and degrades faster under extreme temperatures.

In summary, while both TPEs and natural rubber are highly versatile materials with significant elasticity and tensile strength, TPEs provide unprecedented customization in hardness and perform better in extreme environmental conditions, justifying their preference for demanding applications.

Material Constants and Their Influence on Performance

Material constants, such as Young’s modulus, tensile strength, hardness, abrasion resistance, chemical resistance, and thermal stability, play a pivotal role in determining the performance of materials like TPEs and natural rubber. Young’s modulus affects the flexibility and deformation response under stress, with TPEs typically having a higher range than natural rubber. Tensile strength dictates how much stress a material can bear before breaking, with natural rubber showing exceptional strengths similar to high-end TPEs. Hardness, measured by the Shore durometer scale, influences the material’s suitability for various applications, with TPEs offering a wider range for customization. Additionally, superior abrasion and chemical resistance in TPEs enhance their durability in harsh environments, while better thermal stability ensures that TPEs can withstand a broader temperature spectrum compared to natural rubber. These material constants, therefore, allow TPEs to perform effectively under demanding conditions, highlighting their functional advantages over natural rubber in many applications.

How is Simulation Used to Model Rubber-Like Materials?

Simulation plays a crucial role in modelling rubber-like materials by allowing engineers to predict and analyse their behaviour under various conditions without the need for extensive physical testing. Advanced computational methods, such as finite element analysis (FEA), enable the detailed study of material responses to stress, strain, temperature, and other factors. These simulations incorporate material constants like Young’s modulus, tensile strength, and thermal stability to create accurate models. By leveraging these simulations, engineers can optimize material formulations, design more efficient products, and anticipate performance issues, thereby accelerating development cycles and reducing costs.

The Role of Finite Element Analysis in Simulations

Finite Element Analysis (FEA) is a computational technique used to predict how rubber-like materials respond to real-world forces, vibration, heat, fluid flow, and other physical effects. By breaking down the material into smaller, finite elements, engineers can simulate and understand the behaviour of each component under various conditions. According to leading sources, FEA helps in accurately predicting stress distribution, deformation, and potential failure points within the material. This method is indispensable for ensuring the reliability and efficiency of products employing rubber-like materials by reducing the need for prototype testing and enabling virtual optimization of designs. Consequently, FEA facilitates a deeper understanding of material performance, leading to more durable and effective applications.

Simulation of Large Deformations and Strain Energy Function

The simulation of large deformations in rubber-like materials requires advanced constitutive models to accurately represent the nonlinear behaviour under different loading conditions. One of the primary methods used is the strain energy function, which is a mathematical formulation that describes the stored energy in the material relative to its deformation. Common strain energy functions used in simulations include the neo-Hookean model, the Mooney-Rivlin model, and the Ogden model.

1. Neo-Hookean Model: This is a simple model especially useful for moderate deformations. It is given by the strain energy density function \(W = \frac{G}{2} (\lambda_1^2 + \lambda_2^2 + \lambda_3^2 – 3) \), where \(G\) is the material’s shear modulus, and \(\lambda\) represents the principal stretch ratios.
2. Mooney-Rivlin Model: Designed for large deformations, this model considers two material constants \(C_1\) and \(C_2\) and is expressed as \(W = C_1 (\lambda_1^2 + \lambda_2^2 + \lambda_3^2 – 3) + C_2 (\lambda_1^2 \lambda_2^2 + \lambda_2^2 \lambda_3^2 + \lambda_3^2 \lambda_1^2 – 3)\).
3. Ogden Model: This model provides a more complex and accurate description for different types of rubber-like materials undergoing large strains. The strain energy function is \(W = \sum_{i=1}^{N} \frac{ \mu_i }{\alpha_i} ( \lambda_1^{\alpha_i} + \lambda_2^{\alpha_i} + \lambda_3^{\alpha_i} – 3)\), where \(\mu_i\) and \(\alpha_i\) are material constants determined experimentally, and \(N\) is the number of terms in the series.

These models help predict critical parameters such as stress concentration, displacement fields, and potential failure points. Utilizing such detailed simulations is crucial for optimizing product designs, ensuring material durability, and improving overall performance in real-world applications. By incorporating accurately derived material constants from real-life experimentation, engineers can enhance the fidelity of computer simulations, minimizing the requirement for physical prototypes and subsequent iterations.

Accurate Modelling with Experimental Data Inputs

To ensure the accuracy of computational models, it is paramount to incorporate experimentally derived material constants. These constants, obtained through rigorous testing, provide the real-world responses of materials under different loading conditions. For example, the shear modulus \(G\), and the constants \(C_1\), \(C_2\), \(\mu_i\), and \(\alpha_i\) used in the Neo-Hookean, Mooney-Rivlin, and Ogden models are determined based on detailed experimental data. By integrating these parameters, simulations can more accurately predict material behaviour, stress distribution, and potential failure points, leading to better product designs and reduced reliance on physical prototypes. Thus, accurate modelling with experimental data inputs is essential for achieving reliable and efficient simulations.

Why Are Hyperelastic Constitutive Models Important for Different Applications?

Hyperelastic constitutive models are crucial for different applications because they provide an accurate representation of the nonlinear, elastic behavior of materials under large deformations. This is particularly important in industries such as automotive, aerospace, and biomedical engineering, where the materials used often undergo complex loading conditions. By employing these models, engineers can simulate the mechanical response of rubber-like materials, soft tissues, and other polymers, ensuring that the designs are both safe and effective. Moreover, the enhanced predictability offered by these models reduces the need for costly and time-consuming physical testing and iterations, leading to faster and more efficient product development cycles.

Suitability of Various Hyperelastic Models for Different Applications

When selecting a hyperelastic model for specific applications, it is essential to understand each model’s strengths and limitations. The Neo-Hookean, Mooney-Rivlin, and Ogden models are among the most widely used.

1. Neo-Hookean Model:

• Applications: Suitable for small-to-moderate deformations where simplicity and computational efficiency are necessary.
• Technical Parameters: Shear modulus \(G\) and bulk modulus \(K\) form the core parameters. The strain-energy function for Neo-Hookean materials is given by

\[

W = C_1 (\bar{I}_1 – 3)

\]

where \(C_1 = \frac{G}{2}\) and \(\bar{I}_1\) is the first deviatoric invariant of the left Cauchy-Green deformation tensor.

• Limitations: Less accurate for materials experiencing large, complex deformations.

2. Mooney-Rivlin Model:

• Applications: Often used in modeling rubbers and biological tissues that undergo large deformations.
• Technical Parameters: Two constants \(C_1\) and \(C_2\) are used, which characterize the material response. The strain-energy function is

\[

W = C_1 (\bar{I}1 – 3) + C2 (\bar{I}_2 – 3)

\]

where \(\bar{I}_2\) is the second deviatoric invariant.

• Advantages: More flexible and accurate for a broader range of deformations compared to the Neo-Hookean model.

3. Ogden Model:

• Applications: Best suited for highly elastic materials subject to significant, non-linear deformations such as elastomers and soft biological tissues.
• Technical Parameters: Involves multiple parameters \(\mu_i\) and \(\alpha_i\) for greater accuracy. The strain-energy function is defined as

\[

W = \sum_{i=1}^{N} \frac{\mu_i}{\alpha_i} \left( \lambda_1^{\alpha_i} + \lambda_2^{\alpha_i} + \lambda_3^{\alpha_i} – 3 \right)

\]

where \(\lambda_i\) are the principal stretches.

• Advantages: Offers a high degree of flexibility and accuracy, particularly for complex material behaviour under large strains.

By understanding these models’ characteristics and choosing the appropriate one, engineers can enhance simulation accuracy, reduce the need for physical testing, and streamline the product development process.

Consistent Tangent Operators and Their Relevance

Consistent tangent operators are vital in the numerical analysis of non-linear materials, particularly when using finite element methods (FEM) for simulations. These operators ensure that the linearization of the equilibrium equations is accurate, facilitating the convergence of iterative solvers such as the Newton-Raphson method. By capturing the correct tangent stiffness matrix at each iteration, consistent tangent operators help to accurately represent the material response under varied loading conditions. This not only improves computational efficiency but also enhances the reliability of the simulation results, reducing the need for extensive physical testing and thereby accelerating the product development cycle.

The Role of Hyperelastic Constitutive Models in Material Properties Prediction

Hyperelastic constitutive models play a critical role in predicting material properties, especially for materials undergoing large deformations. These models provide a mathematical framework to describe the stress-strain relationship of elastic materials such as rubber, biological tissues, and foams, by deriving the strain energy density function. This function is essential as it captures the material’s response to different loading conditions, allowing engineers to accurately simulate and predict the behavior of materials under various strains and stresses. Consequently, hyperelastic models aid in optimizing material design and performance, reducing the reliance on physical prototypes and accelerating the development process.
