Within residential and commercial structures, fire-rated doors provide safety and compliance security. These specialized doors are a fundamental part of construction safety systems since they protect against extreme heat, as well as the spread of fire and smoke. Their features, classifications, and regulatory requirements must be understood by the architects and builders as well as by the facility managers and property owners. This guide aims to provide knowledge on fire-rated doors so that safety and legal compliance decisions can be made through risk-based analysis while fulfilling the safety and legal frameworks.

For more in-depth information you should view from fire rated doors manufacturer – YK

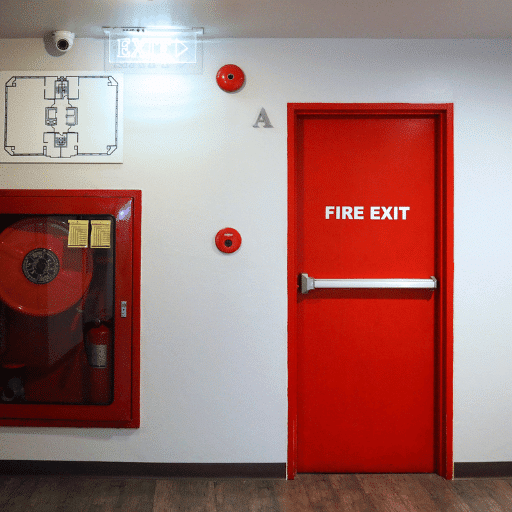

What is a Fire-Rated Door: Definition and Construct Components

By definition, a fire-rated door is a specially designed door assembly meant to endure enduring exposure to fire for a set duration of 20 to 120 minutes. These doors contain flames and smoke, enabling the safe evacuation of the occupants. To ensure safe evacuation while slowing down the spread of fire, fire-rated doors assist in both residential and commercial buildings. Such fire doors greatly mitigate damage to structure during a fire incident, while enhancing occupant safety, assisting compliance with fire safety regulations and building codes.

How Does a Fire-Rated Door Work?

Fire-rated doors are constructed with fire-resisting materials, sealing systems, and hardware spacer construction. Their composition typically includes steel, gypsum, or solid wood cores that resist fire and heat penetration. These doors also feature intumescent seals that form a protective smoke and flame barrier zone around the door edges, which expands when heated to high temperatures. Moreover, the door assemblies are equipped with self-closing fire door hardware and latch systems that provide automatic locking, ensuring secure closure during a fire event. Thus, compartmentalization effectiveness is preserved for the structure.

What Are the Benefits of Using Fire-Rated Doors?

While the advantages of fire-rated doors must not be overlooked in terms of meeting building safety compliance requirements, these kinds of doors provide an extra protective layer that can considerably reduce casualties and property losses during a fire incident. These doors protect escape routes by slowing down the spread of flames and smoke, thus enabling faster and safer evacuations. Additionally, they may increase building safety during a fire incident and enable first responders more time to contain and put out fires.

In What Ways Do Fire Doors Add to Safety in the Case of a Fire Outbreak?

Fire doors provide safety during emergencies by establishing effective fire divisions within a structure, restricting the spread of fire to specific zones. This not only defends escape routes but also reduces the danger of smoke inhalation, which is one of the major causes of death in fires. Fire doors are usually placed at critical locations including stairways, corridors, and accesses to major fire hazard zones because they contain the rapid attack of heat, smoke, and fire. Fire doors are operational and effective if tested and maintained routinely, helping to mitigate fire-related risks.

Which Fire Door Will Best Suit Your Needs?

What Needs to Be Considered While Identifying a Fire-Rated Door?

The building’s occupants and the structure itself is very important when choosing a suitable fire door to ensure protection and optimal performance.

What Else Needs to Be Taken into Account While Identifying a Fire-Rated Door?

As important as the occupancy type and its fire resistance rating, local regulations on fire safety also have a great impact. A door made of timber or steel, as well as its position within the structure (stairways, corridors, and exits) is also of great importance.

How to Establish the Correct Fire Door Rating?

Fire doors are rated by exposing them to flame for a specific duration, for example, FD30 or FD60 fire-rated doors. To ascertain what fire rating is appropriate for the door, the level of risk emanating from the area, adjacent zones, and the building as a whole along with its fire protection systems should be evaluated alongside compliance benchmarks or professional fire safety assessments.

How to Maintain Compatibility with the Door Frame?

Confirm that the fire door and frame have been tested and certified as a compatible system. The components have to coordinate correctly in order for the door to function properly. The accuracy of door frame measurements and fire door consultations with door suppliers ensures that proper fitting, sealing, and fire resistance integrity are maintained at installation.

What Are the Variations Between Steel Doors & Wooden Doors?

In Terms of Fire Resistance, How Do Steel Doors Measure Up to Wooden Ones?

Unlike wooden doors, steel doors provide much better protection against fire damage. This can be attributed to steel’s properties as a material which offers greater tolerance to heat and maintains its shape longer than wood. Steel doors marked for fire safety compliance undergo rigorous testing and can protect the premises for a given number of hours based on their designation. On the other hand, wooden doors can be treated to some degree for fire resistance, but are fundamentally ineffective since wood is a fuel that burns and weakens more quickly than stiff materials under extreme heat.

How Do Metal and Wood Doors Differ in Terms of Maintenance?

The maintenance requirements for metal doors and wood doors differ significantly due to their material properties. Cleaning and inspecting for rust marks, dents, or scratches are common tasks with steel doors, but they are low maintenance if treated with the right coatings. Unlike metal doors, wood doors need regular maintenance such as painting, sealing, or moisture-proofing to defend against warping and insect damage. Therefore, despite the fact that painted, stained, and polished wooden doors are more visually appealing than metal doors, the fragility of natural wood results in accelerated damage compared to metal doors.

What Is the Procedure for the Installation of Fire-Rated Metal Doors?

The fire safety measures integrated into facilities require metal doors to be installed because they are of extreme importance in regard to a building’s safety.

1. Verify Fire Precaution Certificate: Ensure the building has an appropriate fire precaution certificate.
2. Check Door and Frame Alignment: Confirm the frame and door are square, flush, level, and plumb.
3. Seal Gaps: Use caulk or sealants that are non-flame spreaders between the frame and wall.
4. Install Fire-Resistant Hardware: Mount the rated metal doors with fire-resistant hinges and locks.
5. Follow Manufacturer Instructions: Adhere to the manufacturer’s step-by-step installation guide.
6. Test the Door: Ensure the door operates smoothly, closes, and latches securely.

How to Maintain Fire-Rated Doors in a Business Properly?

Business fire-rated doors must undergo regular maintenance to ensure their reliability and safety:

• Clean Dirt and Debris: Remove any trapped dirt or debris from the door and frame.
• Inspect Hardware: Check hinges, latches, and closers for wear and replace as needed.
• Check Seals: Confirm fire-rated seals, intumescent strips, and gaskets are undamaged.
• Test Door Movement: Open and close the door to ensure smooth operation and self-latching.
• Follow a Maintenance Schedule: Adhere to local fire codes and regulatory guidelines.

Why It’s Important for Fire Doors to Have Regular Inspections

Fire door assemblies are critical parts of passive fire protection systems. Regular inspections are essential to:

• Confirm effectiveness during emergencies.
• Identify damage such as decay, gaps, or warping.
• Ensure compliance with fire safety requirements.
• Avoid fines and enhance overall safety.

What Are the Guidelines and Specifications for Commercial Doors?

What Are the Key NFPA Standards for Fire-Rated Doors?

• NFPA 80: Covers workmanship, inspection, testing, and maintenance of fire doors.
• NFPA 101: Life Safety Code for active use and management of fire doors.

How to Ensure Compliance with UL and Other Safety Standards?

• Adhere to UL 10B (neutral pressure) and UL 10C (positive pressure) fire tests.
• Acquire doors with relevant UL markings.
• Maintain testing documentation and work with licensed suppliers.

What Fire-Rated Steel Doors Documentation Requirements Exist?

• Manufacturer’s Certification: Certifies compliance with UL, NFPA, or other standards.
• Test Reports: Complete reports from recognized agencies.
• Installation Guides: Ensure compliance with instructions and regulations.
• Inspection Reports: Certify functional conditions of the door.
• Service Log: Record repairs and maintenance schedules.
