Understanding the Pullout Test: Ensuring the Pullout Strength of Hardened Concrete

What is a pullout test and why is it important?

A pullout test is a way to establish the pullout power of solidified cement and which is widely applied in the construction sector. It involves embedding a metal insert into the cement and then applying force to pull it out. The amount of force needed to extract the insert can be used to indicate how strong and even the concrete is. This important since it allows for its functioning under real life conditions hence enabling conformation that right safety as well as design standards are met. The purpose of this test is to assist engineers, contractors, and quality control staff to assure themselves about soundness and reliability of concrete structures improving safety levels in buildings and infrastructures.

Definition of the pullout test

Importance in evaluating hardened concrete

The significance of the pullout test in testing hardened concrete lies in its ability to provide direct and credible measurements of strength of concrete structures. It comes with a number of benefits, such as enabling location specific assessments within a structure hence making it very useful for quality assurance and verifying conformance to design specifications. Pullout tests can offer information about variations in consistency and other potential weaknesses that will not be obvious through other types of tests. It helps engineers and builders determine the structural safety and durability of their construction projects by simulating the actual conditions under which concrete will perform.

Comparing pull-out test with other methods

Various methods are used to compare pullout tests with the compressive strength test, Schmidt hammer test, and core sampling. The compressive strength test involves crushing a concrete sample to determine its maximum load-bearing capacity, which provides a comprehensive measure of overall concrete strength. However, this method requires the extraction of concrete cylinders or cubes from the structure, which can be labor-intensive and potentially damaging.

The Schmidt hammer test, also known as the rebound hammer test, is a method that is performed non-destructively by measuring surface hardness using an instrument measuring rebound value caused by impact on spring-loaded mass against concrete surface. Nevertheless, since it merely estimates surface hardness with relatively lesser capability at depth than does pull out tests, it takes quick time to do thus it may not be well fit in areas where there depth assessment required.

Core sampling entails drilling into concretes structures whereby cylindrical samples are extracted for direct compressive strength determination. Though core sampling gives highly accurate detailed information about the properties of concretes but is invasive and consume much time unlike the pullout tests.

In conclusion every technique has its own applications though among these techniques mentioned above only one completely satisfies them all that is why lots of experts say that this kind of testing stands out because using minimal intrusion this examination can supply reliable results representing real condition regarding quality control purposes.

How to conduct a pull-out test?

When carrying out the pullout test, it is important to ensure that accurate and reliable results are obtained. To make a start; at the time of pouring a particular insert or anchor is put into the concrete in order to have it where it should be. Next, after curing of concrete, the pulling apparatus is connected to this device. Using hydraulic jack or something else similar to this, pullout force gradually applied which forces needed for insertion removal from the shotcrete measured. Such power directly depends on compressive strength of concrete being tested. The outcomes are then recorded and examined in order to find out if the concrete structure has enough strength and integrity. For validity of test results proper calibration and testing protocols must be adhered to.

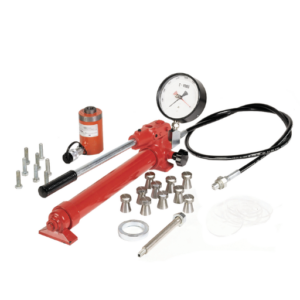

Necessary test equipment and test apparatus

Essential equipment and apparatus required for conducting a pullout test include:

1. Pullout Inserts or Anchors: These inserts are uniquely designed for casting in concrete that need to be positioned accurately during pouring process so as to achieve precise outcomes.
2. Hydraulic Jack or Test Machine: A hydraulic jack or special pullout test machine is needed for applying required pulling force. It should be able generate controlled slow increments of load.
3. Load Measuring Device: For measuring forces used during pullout tests there is need for an accurate load cell or dynamometer. Thus, readings taken must therefore come from calibrated measuring loads.
4. Calibrated Testing Frame: Maintaining stability and accuracy during a pull-out test requires a testing frame/rig that supports the hydraulic jack while aligning with an insert.
5. Analysis Software: This helps determine compressive strength and overall integrity of concrete by recording, analyzing and interpreting information collected during tests using software applications.
6. Safety Gear: Personal protective equipment (PPE) like gloves, safety glasses, hard hats among others should always be worn by people involved in carrying out these procedures in order to guarantee their safety.

Step-by-step test method

1. Prepare the Concrete Sample: Initially, cast the concrete sample using inserts or anchors for pulling out. The concrete should be allowed to cure as per test standard requirement.
2. Set Up the Testing Apparatus: Position the concrete sample in a calibrated testing frame or rig. Also, ensure that the hydraulic jack or test machine is aligned with pullout insert or anchor.
3. Attach the Load Measuring Device: Connect the hydraulic jack or test machine to a sensitive load cell or dynamometer. Make sure that it is well-calibrated and ready for force measurement.
4. Apply the Load: Slowly initiate application of controlled and gradually increasing force on the pullout insert by means of hydraulic jack or test machine. Observe accurately how a load measuring device works as far as this applied load is concerned.
5. Record the Data: Use software for analysis to record throughout the test data of load vs displacement. Ensure all readings are logged for further analysis.
6. Analyze the Results: At this point, one can determine from data obtained up to maximum loads at which these inserts were pulled out during such tests; compressive strength and integrity of concrete can now be analyzed accordingly.
7. Compile a Report: Prepare an elaborate report containing test parameters, procedures, observations and results. It should provide insight into how well (or poorly) concrete performed based on what was found from pullout tests done.
8. Ensure Safety: During entire process, make sure that all personnel have enough personal protective equipment (PPE) and that safe practices are observed thus reducing risk of any accident occurring.

Safety considerations during the test

Pulling out a test session is something that involves handling of heavy and potentially dangerous equipment, which is why it is important to give safety top priority in order to avoid injuries. Here some key safety considerations:

1. Personal Protective Equipment (PPE): Ensure that all personnel who are taking part in the test are putting on the right PPE such as safety goggles, gloves, hard hats and steel-toed boots.
2. Equipment Inspection: Regularly check all the equipments including hydraulic jack , load measuring device and rig frame for proper working condition .Replace or repair any defective equipment instantly.
3. Training: All persons should be well informed on how to operate hydraulic jack, load measuring devices and other relevant machines only certified competent professionals should conduct the pullout tests.
4. Area Clearance: Make sure you secure the testing area so that no one can access it without permission. Put up barriers plus conservation signposts to caution others about ongoing examination for any dangers involved.
5. Load Application: Apply load slowly and steadily to prevent sudden movements that may cause equipment failure or operator injury.
6. Emergency Protocols: Set down clear emergency protocols. All personnel have to know about emergency shutdown procedures including what they need to do when first aid needs to be provided.
7. Environmental Conditions: Take note of environmental conditions as you carry out your tests in a controlled environment. This will prevent concerns linked with harsh weather like rain, wind or too much heat thereby safeguarding both safety and test results.

What are the factors affecting pullout strength of concrete?

There are various factors that affect the strength of concrete. This makes it critical in a number of building and engineering applications.

1. Concrete Composition: The mix design with regards to type and ratio of cement, water, aggregates and any additives influences the strength of bonding as well as the strength of concrete.
2. Curing Conditions: Correct curing is important for achieving optimal strength in concrete; temperature, humidity and curing period are some factors which significantly affect the mechanical properties development in concrete.
3. Age of Concrete: Generally, pullout strength increases with age particularly within first 28 days after casting. The concrete mix and curing conditions determine how rapidly its strength increases.
4. Aggregate Properties: The size, shape, and types of aggregates used in a concrete mixture can have an effect on the pullout strength. Concretely angular well-graded ones bond better than round shaped ones.
5. Surface Preparation: Condition of the surface where this test is carried out on affects outcomes obtained from this test. Proper cleaning and roughening of the surface enhances bonding for overall increased strength.
6. Embedment Depth: Depth at which pullout fixture is embedded into concrete determines measured strengths. In general does greater embedment equal higher pullout.
7. Rebar Presence and Positioning: Presence, size, location or placement of reinforcing bars near to pull out samples may change results by altering stress distribution within concrete.

Role of concrete composition and quality

Quality and composition of concrete are determinant on its performance characteristics such as pull out strength. One can generally obtain high quality concrete by using proportioned mixes, good grade materials, and proper mixing techniques. The following are the important factors:

1. Cement Type and Content: The kind of cement that is used and its amount has a profound influence on the strength and durability of concrete. A higher content of cement usually increases bonding capacity and overall strength.
2. Water-Cement Ratio: Low water-cement ratios make for stronger denser concretes but workability must be balanced with this factor because overly stiff mixes may not be easy to place or compact.
3. Admixtures: Chemical admixtures like superplasticizers, accelerators or retarders can therefore be used to change the properties of concrete, improve them in terms of their curing process, workability, and increase in strength.
4. Aggregate Quality: The characteristic size, shape, cleanliness etc., of aggregates determine how strong the concrete will be as well as how well it will bond. Well-graded high-quality aggregates contribute to better overall performance.
5. Mix Consistency and Uniformity: Homogeneity must be achieved in mixtures. Distribution of components uniformly prevents weak zones thereby enhancing overall strength.

Influence of the anchor system

The anchor system, composed of bolts, rods, and other associated parts has a significant impact on the pullout strength and overall performance. These are important:

1. Anchor Type and Design: Different anchors such as mechanical, chemical and expansion have different performances. Correct selection ensures proper distribution of load and enhances pull out resistance.
2. Installation Technique: The correct set up is very important to ensure an excellent performance. Wrong drilling, cleaning or setting may lead to reduction in strength and even possible failure.
3. Embedment Depth: The depth at which an anchor is embedded in concrete greatly affects its pullout strength. Greater embedment usually means greater load bearing capacity.
4. Anchor Material: Durability and performance under different environmental conditions depend on various factors such as steel grade, coating etc.
5. Edge Distance and Spacing: Impact of distance from anchor to concrete edge and spacing between multiple anchors can determine their effectiveness. There should be enough space that would prevent splitting of concrete while maximizing load transfer.

Effect of embed depth

The pullout strength and overall performance of an anchor is controlled by its embedment depth, the most critical parameter. Leading sources state that greater depths of embedments are usually associated with higher load capacities and better resistance to tensile forces. For example, a deeper embedding provides more surface area for force distribution which reduces the risk of failure in anchors. Additionally, Deeper anchors normally have improved engagement in concrete which raises their mechanical interlock as well as bond.

Nonetheless, one should note that very deep embedments may sometimes be impractical or unnecessary and may lead to diminishing returns or installation problems. In this regard therefore, it is important to strike a balance depending on specific design requirements and environmental conditions so as to maximize on the performance of the anchor. The use of manufacturer’s recommendations coupled with industry standards will result to optimum embedment depths hence durability and reliability in structural use of these anchors.

How to interpret test results?

Start interpreting the test results of anchor system by comparing the measured values with specification performance requirements. Some of the key parameters to review include ultimate load capacity, displacement under load and any indication of material failure. This requires that they meet or exceed safety factor and design requirements provided in relevant standards and guidelines. In addition, one should also consider whether results are consistent across multiple tests samples as this will confirm their accuracy and reliability. There is a need to probe/discrepancies/outliers so that these points can be explained without causing doubts on any underlying problems. Through thorough analysis of these factors, it is possible to determine whether an anchor system is suitable in regard to its purpose.

Understanding the force required to pull

Correlation with compressive strength of concrete

Engineering research has thoroughly documented the relationship between the strength of an anchor and the compressive strength of concrete. Normally, as the compressive strength of concrete increases, so does so too does the pull-out strength of anchors within it. Some recent studies have attempted to quantify this correlation through empirical relationships where pull-out strength is usually proportional to square root or some other function of compressive strength.

Specifically, in strong concretes, anchors have greater resistance against pull out forces than in weak ones largely due to enhanced bonding characteristics and reduced susceptibility to concrete shear failure. Nevertheless, these associations are also dependent on other factors like; type of anchor, embedment depth and specific failure mode such as concrete cone failure versus anchor steel failure versus pull out. It is therefore necessary to account for these variables and perform comprehensive testing under controlled conditions so as to enable accurate assessment of how well an anchorage will perform in practice.

Common issues and troubleshooting

There are many typical problems that can be encountered when dealing with anchors in concrete. One of the most common is the poor installation of anchor which results into insufficient embedment and reduced resistance to load. Inaccurate drilling techniques, wrongly sized drill bits or deviation from the specified embedment depth are frequent causes of this issue. Additionally, cleaning out the hole properly after drilling will prevent pre-mature failure of an anchor.

Another common problem is material failure caused by unsuitable anchor materials for environmental factors like high moisture content or corrosive conditions. Such situation can be avoided if specific anchors meant for such conditions are used e.g. stainless steel and galvanized anchors.

Pull-out failures represent another challenge that is often attributed to lack of adhesion between concrete and anchor materials. This can be addressed through selection of suitable type of anchor for compressive strength of concrete and proper installation process.

Manufacturers’ guidelines and industrial standards must be strictly followed while addressing these problems. System failures may be avoided by conducting regular inspections as well as testing under realistic working conditions to identify likely problems beforehand. Moreover, in complex situations it is useful to consult engineering resources and opinions form experts for reliability and safety purposes during anchoring systems design process.

What is the standard protocol for pullout tests?

Typically, several essential steps are followed in the conventional pullout test protocol to ensure accuracy and reliability. First of all, a representative sample of anchors should be chosen and installed as per manufacturer’s specification ensuring that conditions reflect typical usage situations. Allow the anchors to cure when necessary. Then, use a calibrated pullout testing device that will gradually apply load until either the anchor is pulled out or its maximum load carrying capacity is attained. Record data including maximum load, and also any observations concerning failure modes. Such industry standards must be followed include those outlined by American Concrete Institute (ACI) or International Code Council (ICC) for confirmation purposes. Calibration of testing equipment on regular basis and strict adherence to standardized procedures guarantee consistency in outcome from tests done.

Review of ASTM standards

The ASTM (American Society for Testing and Materials) standards provide comprehensive guidelines for conducting pullout tests and ensuring consistent results. Some of the critical standards such as ASTM E488/E488M require that this process use representative samples of anchors which should be installed according to the manufacturer’s instructions before being properly cured if necessary. The equipment used for this pullout test must have been calibrated so as to apply force gradually with results carefully recorded in terms of maximum load carried by it and any failure mode observed.

Major sources from top websites indicate that application of ASTM standards promotes reproducibility during testing processes hence reliable results. Regular calibration of apparatuses is also advised while elaborate documentation concerning methodology applied plus what was actually seen during examination helps maintain objectivity of findings.It is compliance with these accepted guidances where professionals can conforming to best practices by consistently producing reliable test outcomes.

Compliance with ASTM C900

The ASTM C900 has specified the methods to be followed in carrying out a test to determine the pullout strength of hardened concrete. Several steps must be taken to comply with ASTM C900. Firstly, the test specimen should be prepared according to stipulated curing procedures and conditions. The sample should accurately mirror the environment under which it will be exposed when used in actual setting. Test apparatus must have accurate calibration that ensures proper measurement of applied load. In order to prevent errors emanating from abrupt loads that may arise during testing period, slow or steady application of force is necessary during pullout testing processes. The maximum force and failure mode must be documented adequately. Calibration of equipment on regular basis as well as adherence to these instructions guidelines guarantees reliable results that meet industry requirements.

International standards and variations

What are the advantages and limitations of the pullout test?

The pull-out test has some advantages. Among them is the fact that it directly measures in situ hardening concrete strength and thus offers a good estimate of its performance. Furthermore, this method could be considered as non-destructive since it doesn’t change or destroy the structure under investigation, which is crucial to keep the structure’s integrity intact. Moreover, the pull out can be used in different conditions such as construction sites or laboratory settings thereby making it highly adaptable.

There are however some limitations associated with the use of pull-out tests. One of the major downsides is that there must be accurate calibration and controlled testing conditions for correct results that may at times be difficult logistically to achieve. Similarly, these tests also require specialized tools and operators who may not always be at hand. More so, effects on such factors as age, moisture level in concrete and configuration or size of embedded insert may lead to variations in test results output; thus outcomes become inconclusive. Consequently, although a helpful means of establishing concrete strength, this procedure should account for these restrictions during implementation.

Advantages over other test methods

Pullout test shows several significant benefits when compared with other testing methods used to determine the strength of concrete. Pullout tests are nondestructive in nature and do not require the extraction and testing of concrete cores as opposed to compressive strength tests. In addition, pullout tests provide a more accurate measure of in-situ concrete strength than indirect methods like rebound hammer tests that are easily influenced by surface conditions and operator technique. On-site testing also makes it possible to get results faster since there is no need for transporting samples to a laboratory, therefore eliminating any delays. In addition, its versatility makes it ideal for use under different environmental settings both in the field and laboratory hence its usefulness in various construction situations.

Limitations and potential inaccuracies

Best practices for accurate test results

In order to get accurate results in pullout testing, the following practices are important:

1. Proper Installation of Inserts: Make sure that inserted embeds are well set up properly during concrete casting. One should observe their location, direction and depth as stated in the manual or otherwise be away from falsification.
2. Consistent Testing Procedures: This helps in minimizing variability during this test. There should be uniform equipment functions, consistent pullout rates and skilled man power.
3. Control Environmental Conditions: The tests must be conducted under controlled environment conditions. Among them includes temperatures, hygrometric level and presence of moisture.
4. Use of Complementary Tests: To get a broader picture about concrete strength with regard to the pullout test, other methods can be used together with it. Additional knowledge concerning core testing as well as non-destructive techniques can also validate pullout test outcomes.
5. Regular Equipment Calibration: It is very important that testing equipment is calibrated and kept maintained on a regular basis so that it ensures accuracy and reliability. Any malfunctioning or deviation in equipment operation can cause wrong readings.

Frequently Asked Questions (FAQs)

Q: What is a pull out test in the context of concrete engineering?

A: A pull out test in concrete engineering is a method used to assess the in-place strength of concrete by measuring the force required to pull a steel insert and the attached concrete fragment from a concrete surface.

Q: How does the pull out test contribute to determining the bond strength of concrete?

A: The pull out test contributes to determining the bond strength of concrete by applying a tensile force to pull a steel disc embedded in the concrete. The force required to pull the disc out reflects the bond strength between the steel insert and the surrounding hardened concrete.

Q: What is the procedure for carrying out a pull out test?

A: The procedure for carrying out a pull out test involves preparing a hole in the concrete surface, inserting a steel disc, allowing the concrete to harden, and then measuring the force required to pull the steel disc out from the surface at the test location.

Q: What is the role of the steel disc in a pull out test?

A: The steel disc in a pull out test acts as an insert that is embedded into the concrete. It is used to apply a tensile force during the test, and the force required to pull the disc out is measured to determine the bond strength of the concrete.

Q: What is the significance of the depth of 25 mm in a pull out test?

A: The depth of 25 mm is significant in a pull out test as it refers to the depth at which the steel disc or insert is embedded into the concrete. This depth ensures a consistent test setup for accurately assessing the tensile bond strength of the concrete.

Q: How does a capo test differ from other pull out tests?

A: A capo test is a variation of the pull out test used specifically to measure the bond strength of fresh concrete. Unlike standard pull out tests which apply to hardened concrete, the capo test can be divided into steps directly performed on fresh concrete, allowing for immediate assessment of concrete strength.

Q: What factors affect the accuracy of pullout test results?

A: Factors affecting the accuracy of pullout test results include the uniformity of the concrete mix, the proper placement of the steel disc, the consistency of the test setup, and the thoroughness in measuring the force required to pull the disc from the concrete surface concentric with the insert and attached concrete.

Q: Can post-installed pullout tests be performed on existing structures?

A: Yes, post-installed pullout tests can be performed on existing structures to assess the bond strength and in-place strength of the concrete. This type of test involves drilling holes into the concrete, installing steel inserts, and then measuring the pullout load required to remove the inserts.

Q: How does a pullout test compare to a compression test in concrete strength assessment?

A: A pullout test measures the tensile strength and bond strength of concrete by pulling a steel disc embedded in the concrete, whereas a compression test measures the compressive strength of concrete by applying a compressive force to concrete specimens. Both tests are complementary and provide different insights into the overall strength and durability of reinforced concrete.
