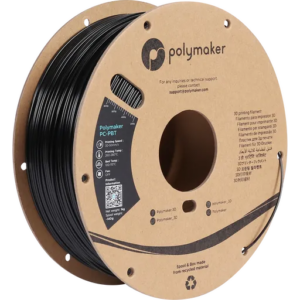

This is a guide about Polymaker PC-PBT, which is an excellent 3D printing filament with many uses. In this article we will go into details about the 1kg spool and 1.75mm filament, discussing what makes them distinctive, why they are good for and their best use-cases. Whether you have been doing 3D printing for a while or you are just starting out in the world of additive manufacturing, this resource will provide essential information as to why Polymaker PC-PBT is incomparable on the market. Starting from an impressive mechanical quality up to its easy usability, we will tackle all that you should know so as to get reliable and highly accurate prints.
What Are the Key Characteristics of Polymaker PC-PBT Filament?
There are a number of key features that make Polymaker PC-PBT filament a good choice for 3D printing. For instance, it has exceptional mechanical strength and endurance that enables the production of sturdy and long-lasting items. It possesses high resistance to heat therefore structural integrity is maintained even at high temperatures. Besides, Polymaker PC-PBT presents proper chemical resistance which allows its printed objects to survive being exposed to many various types of chemicals without degrading in any way. Further, it has low moisture absorption which boosts print quality as well as dimensional stability. Such a combination makes Polymaker PC-PBT an excellent filament for numerous demanding uses.
What is the Temperature Range for Polymaker PC-PBT 3D Printing?
Typically, the best temperature range for printing with Polymaker PC-PBT filament is around 250°C to 270°C. The heated bed should be set between 90°C and 110°C to ensure the best adhesion while minimizing warping. It is suggested that one uses an enclosed print chamber so as to maintain a stable printing environment which contributes more successful outcomes and improves on quality.
How Does It Offer Good Chemical Resistance?
Polymaker PC-PBT filament has good chemical resistance because it is a blend of polycarbonate (PC) and polybutylene terephthalate (PBT). This fusion combines the strengths of both materials; toughness and durability are provided by PC while PBT imparts solvent, oil, and other chemical resistances. PBT’s molecular structure consists of tightly polymerized chains that are a strong barrier against chemicals. Consequently, printed parts can maintain their mechanical properties even in the presence of a variety of chemicals without losing their structural integrity due to prolonged exposure.
Why Is It Ideal for Automotive Exterior Parts?
Polymaker PC-PBT is an excellent material for automotive exterior parts because of its fantastic mechanical characteristics as well as strong resistance to chemicals. The material’s natural strength and its ability to withstand high impact guarantee that components can survive the harsh environments outside such as temperature variations and impacts. In addition, its good UV resistance inhibits breakdown from long term exposure to sunlight, thereby maintaining the appearance and integrity of a component. Additionally, the filament’s low moisture absorption enhances dimensional stability of printed parts ensuring accurate fittings and finish. These properties have made Polymaker PC-PBT a trustworthy option when it comes to external automotive applications by offering durability and consistent performance.
How to Achieve Optimal Print Settings with Polymaker PC-PBT?
Polymaker PC-PBT
It is very important that the optimum print settings are used for a printer using Polymaker PC-PBT. Firstly, set the nozzle temperature between 260 and 280 degrees Celsius and bed temperature between 100 – 120 degrees Celsius. Keep your printer enclosed to avoid warping and to maintain a consistent printing environment. When looking for print quality versus time, try using a printing speed of 30-50 mm/s. Also, apply an adhesion booster such as PEI sheet or glue on top of your bed to enhance part sticking. You can produce Polymaker PC-PBT while having good mechanical and chemical properties by adjusting these parameters.
What Nozzle Temp and Annealing Settings Are Recommended?
The nozzle temperature for Polymaker PC-PBT should be between 260°C and 280°C in order to achieve the best results. This allows for the correct adhesion of layers within this range, reducing the possibilities of clotting or imperfect thread melting.
Annealing also helps to improve the mechanical properties and dimensional stability of a part. In order to anneal parts made from Polymaker PC-PBT, put the printed item into an oven which has been preheated at around 100-110°C and let it stay there for approximately two hours. Let it cool gradually inside the oven so as not to create rapid temperature variations which could lead to stresses or distortions on its inside surfaces.
This will ensure that your printed parts are high quality in terms of durability and performance by following these settings.
Does It Require a Heated Chamber?
It is advisable to use a heated chamber while working with Polymaker PC-PBT. The main advantage of the heated chamber is that it maintains a constant room temperature; this reduces thermal stress and prevents any deformation in the printed parts especially warping or cracking. Having this controlled environment ensures that part layers are fused uniformly resulting in fewer print failures, especially for larger or more intricate models. To sum up professional grade 3D printers for advanced materials usually have heated chambers as they provide the best print quality and dimensional accuracy.
What Are Common Applications of Polymaker PC-PBT?
Polymaker PC-PBT
Due to its better chemical and mechanical qualities, Polymaker PC-PBT is widely used in many industrial applications. The common uses of this substance are seen in automotive sector where it is applied in connectors, brackets and housings that require high strength and thermal resistance. It also utilized for electric enclosures as well as electronic which enhances its insulating nature alongside being durable. In addition to that, these plastic materials can be used to manufacture medical parts of a machine with the right amount of stability chemically friendly enough for sterilization. Its flexibility allows Polymaker PC-PBT to offer an exceptional solution when constructing tough components of top performance levels across different sectors.
Which Industrial Sectors Benefit the Most?
A number of industrial sectors derive great advantage from the utilization of Polymaker PC-PBT due to its outstanding mechanical and chemical properties.
Automotive Industry: This segment utilizes Polymaker PC-PBT in developing various sections such as joints, covers, and braces. In car parts, the material’s high strength and thermal resistance are important for guaranteeing endurance and dependability of the same.
Electrical and Electronics: Enclosures or any other components that need superior electrical insulation and chemical tolerance are produced with Polymaker PC-PBT. Electronic appliances and systems find a perfect match within this choice due to its ability to withstand harsh environmental conditions.
Medical Device Manufacturing: The medical industry employs Polymaker PC-PBT in the production of devices as well as parts subjected to exposure to chemicals during sterilization. Its chemical inertness alongside ruggedness guarantees both safe usage over long timeframes by medical equipment.
The main beneficiaries among these sectors are those who benefit most from the high-performance Polymaker PC-PBT products which ensure dependable output through efficient component production.
Why Is It Considered Ideal for Automotive Applications?
Polymaker PC-PBT is perfect for automotive applications in view of its exceptional combination of super strongness, thermal resistance and chemical stability which makes it unique. In addition, this material can tolerate extreme temperatures as well as endure the harsh environmental conditions an automobile may be subjected to. Its extraordinary mechanical properties guarantee that connectors, housings and brackets are not only strong but also reliable even when they are exposed to stress. Furthermore, Polymaker PC-PBT is resistant to automotive fluids and chemicals thereby enhancing its long-term durability. It has flexibility so that precision manufacturing concerning complex and customized parts needed in the automobile production can be done by Polymaker PC-PBT – a quality which makes it suitable for the demanding specifications of the car industry.
Customer Reviews: Is Polymaker PC-PBT Filament Worth the Investment?
Polymaker PC-PBT
According to various clients, Polymaker PC-PBT Filament is an investment worth making. Its strength, thermal resistance and chemical stability have been commended by users who believe that these attributes combine to make it perform well in automotive and electronic industries. It has also earned great trust from majority of customers due to its reliability and durability properties such that objects designed with this filament can withstand the harsh environments without breaking down. In sum, the general acclaim from different quarters demonstrates how worthy it is and efficient enough that it can be used for demanding manufacturing purposes.
What Feedback Do Users Have About Filament Quality?
Polymaker PC-PBT Filament is highly praised by most users due to excellent printing consistency as well as precision. Reliable performance of filament results in high-quality prints that can be used across different applications, thereby reducing warping and layer adhesion issues according to top reviews. Moreover, customers like its smooth surface as well as tough mechanical properties which can develop durable and intricate components satisfying strict specifications. A few comments mention that this filament works with several 3D printers therefore it is adaptable and easy to use. In general, reviews suggest the good quality of the filament; hence it becomes a must-have for those who practice 3D printing professionally.
How Does It Compare with Other 3D Printer Filaments?
Polymaker PC-PBT Filament, when compared to other 3D printer filaments, its mechanical properties and thermal stability are far better. Leading websites also suggest that this filament is strong and hard-wearing thus being more preferable for tough applications like automotive and electronic components than the standard PLA and ABS filaments. Apart from this, it offers greater chemical resistance than most of its counterparts, which makes it more durable under severe conditions. Dimensional stability as well as print quality have been improved by some users of Polymaker PC-PBT Filament who claim that it results in less warping of objects and layer adhesion is enhanced. Consequently, rather than many common filaments in accuracy as well as consistency Polymaker PC-PBT Filament can be regarded as a leading option catering for professional or industrial 3D printing requirements in terms of precision and reliability even above much traditional filament types.
Understanding the Toughness and Heat Resistance of PC-PBT Filament
Polymaker PC-PBT
Polymaker PC-PBT Filament is a combination of polycarbonate (PC) and polybutylene terephthalate (PBT) polymers to give a tough material with high resistance to heat. The inclusion of PC gives it strong impact strength thereby making it crack/fracture resistant when subjected to stress. On the contrary, PBT’s intrinsic stability enhances its efficiency in extreme temperatures up to 120°C, preserving its form. This synergy ensures that Polymaker PC-PBT Filament can withstand heavy mechanical loads and prolonged exposure to heat, making it an ideal choice for applications requiring high durability and thermal stability.
How Does It Perform at Low Temperatures?
At low temperatures, Polymaker PC-PBT Filament is still impressive. This filament is still flexible and does not become brittle when exposed to cold condition because it consists of a mixture of polycarbonate and polybutylene terephthalate. The material has got toughness and mechanical strength even in sub-zero temperatures thus can be used for demanding applications at very low temperatures. Moreover, its resilience in such circumstances may also indicate that it is ideal for industrial purposes where temperature changes are common.
What Are Its Tensile and Mechanical Properties?
Polymaker PC-PBT filament has excellent tensile and mechanical properties. With a tensile strength of around 45-60 MPa, this material can take extreme pulling forces without stretching unduly or fracturing. It’s tensile modulus or stiffness is typically about 2000-2500MPa which implies that it is highly rigid. Moreover, the elongation at break for PC-PBT is roughly 5-15% which indicates that even though the material is essentially stiff, it still has some flexibility to bear with slight deformation prior to breaking down. Because of these attributes, the PC-PBT filament is very apt for challenging applications which need greatly built mechanical performance as well as long-lastingness.
How to Properly Store and Handle PC-PBT Filament?
Polymaker PC-PBT
In order to store and handle PC-PBT Filament well, it is important that we keep it in low humidity condition so that it does not absorb moisture which might impact on the print quality. Make sure the filament is kept in an airtight container with desiccants inside for dryness. Also, work the filament using clean hands or wear gloves to avoid touching its surface with dirt. According to the manufacturer, upon non-use, this must be resealed in the original packaging and stored out of direct sunlight under extreme temperatures. By following these recommendations you will ensure longevity as well as good performance of your filaments.
What Is the Best Way to Dry the Filament?
To dry PC-PBT filament properly either use a filament dryer or put it into a conventional oven at a low setting. Normally, drying should occur at around 80-90°C (176-194°F) for about 4-6 hours. Ensure that there are gaps between filaments and maintain constant temperature within oven or dryer until this process ends completely. Using a 3D printing material specific filament dryer would give better control and convenience hence reducing risk of overheating or under drying the filament. Proper drying removes moisture which can affect print quality leading to stronger more reliable 3D printed parts.
How to Avoid Common Issues with Humidity and Moisture?
Avoiding common errors due to humidity/moisture requires the storage of your PC-PBT filament in a dry place; preferably using an air tight container with silica gel sachets for removing any extra water content present therein. Periodically inspect the silica gel and substitute whenever required so as to attain optimal results continuously. Invest in some proper dedicated FILAMENT DRYER especially if you want perfect printing of your artwork since most stuff will stick together if not dried after being washed and also carry out drying process under time limits given by producer’s instruction.In addition,a humidifier can also be used to make the air around your workplace more comfortable and less dry.
Summary: This source provides detailed information about Polymaker PC-PBT, a polymer blend known for its good heat resistance and toughness at low temperatures. The product page offers technical specifications, key features, and potential applications of Polymaker PC-PBT, making it a reliable source straight from the manufacturer.
Summary: This online resource presents specific details about Polymaker PC-PBT filament, including its industrial applications, filament diameter, and temperature requirements for optimal printing. It offers insights into the practical aspects of using Polymaker PC-PBT in 3D printing processes.
Summary: The source delves into the technical characteristics of PC/PBT polymer blend from Polymaker, emphasizing its heat resistance and high chemical resistance properties. It provides insights into the filament’s composition, printing settings, and suitability for various industrial applications, making it a valuable resource for those seeking in-depth technical information.
Frequently Asked Questions (FAQs)
Q: What is Polymaker PC-PBT?
A: Polymaker PC-PBT is a polymer blend which offers good heat resistance and toughness at low temperatures, making it ideal for a variety of industrial applications.
Q: What are the key properties of Polymaker PC-PBT?
A: This material offers good heat resistance, withstanding temperatures up to 260˚C, and also features good chemical resistance. It is known for its toughness at low temperatures and superior mechanical properties.
Q: What are some common applications for Polymaker PC-PBT?
A: Polymaker PC-PBT is commonly used in automotive exterior parts such as bumpers, roof rail brackets, and door handles, thanks to its durability and chemical resistance. These characteristics make it ideal for automotive applications.
Q: How should I print with Polymaker PC-PBT filament?
A: Print with a nozzle temperature around 260˚C and use a bed temperature between 100˚C and 110˚C. It is recommended to use an adhesive like Magigoo to help the print adhere to almost any surface.
Q: Can Polymaker PC-PBT be used with a 1.75mm nozzle?
A: Absolutely. The filament diameter for Polymaker PC-PBT is 1.75mm, making it compatible with most standard 3D printers equipped with a 1.75mm nozzle.
Q: What are the chemical resistance properties of Polymaker PC-PBT?
A: Polymaker PC-PBT also features good chemical resistance to organic acids, inorganic aqueous salts, hydrocarbon solvents, and automotive-type chemicals like lubricants, fuel, and certain cleaning agents.
Q: How does Polymaker PC-PBT perform in automotive applications?
A: This polymer blend offers good heat resistance and toughness at low temperatures, characteristics that make it ideal for automotive applications such as exterior parts and structural components.
Q: Are there any special considerations for storing Polymaker PC-PBT filament?
A: Yes, please note that it is best to store the filament in a cool, dry place. Use a sealed bag with desiccant to prevent moisture absorption, which can affect print quality.
Q: How can I stay updated on Polymaker products and promotions?
A: You can subscribe to the Polymaker newsletter to receive updates on new products, promotions, and other important information.
Q: Is there any specific preparation needed for the print bed when using PC-PBT?
A: It is recommended to treat the print bed surface with a thin layer of Magigoo adhesive to ensure proper adhesion of the printed part and to prevent warping during the print process.
