Mastering Part Marking: Advanced Methods and Innovations

In today’s fast-paced manufacturing environment, the ability to accurately identify and trace parts is paramount. Part marking, a critical aspect of the production process, ensures that each component can be tracked from creation through to end-user delivery. Advances in technology have prompted significant changes in the methods and innovations used in part marking. This blog provides an in-depth exploration of the latest techniques in part marking, offering a detailed examination of both traditional and cutting-edge technologies. From laser marking and dot peen systems to inkjet printing and RFID tagging, we will dissect each approach’s technical nuances, advantages, and limitations. This comprehensive guide aims to equip industry professionals with the knowledge to select the most effective part marking strategy for their specific applications, thereby enhancing traceability, compliance, and efficiency in the production line.

What is Part Marking and Why is it Essential?

Image sources：https://zhuanlan.zhihu.com/

Part marking is the process of applying identifiers to individual components within a manufacturing process, facilitating their traceability throughout their lifecycle. These identifiers can range from serial numbers and barcodes to QR codes and data matrices. The primary purpose of part marking is to ensure each part can be tracked, traced, and authenticated as it moves through the supply chain. This traceability is crucial for quality control, regulatory compliance, and efficient inventory management. In the event of product recalls or warranty claims, part marking allows for swift identification and isolation of defective items, minimizing downtime and costs associated with these issues. Additionally, it plays a vital role in mitigating counterfeiting and ensuring brand integrity.

Understanding Part Marking Systems

Part marking systems can be broadly categorized into direct part marking (DPM) and non-direct part marking methods. Direct part marking involves the permanent placement of identifiers directly onto the surface of the parts through techniques such as laser marking, dot peen marking, and engraving. Laser marking, for instance, uses a focused beam of light to etch high-precision marks on various materials, offering advantages like durability and high-speed processing. Dot peen marking employs a stylus to create a series of indented dots that form characters or patterns; it is especially useful for metals and hard plastics due to its resilience.

Non-direct part marking, on the other hand, encompasses methods such as inkjet printing and labeling, where the identifier is applied onto an intermediate layer, typically a label or tag, that is affixed to the part. Inkjet printing utilizes ink droplets to create readable codes and is suitable for high-speed production lines, though it may lack the permanence of direct methods. Labeling involves attaching pre-printed or print-on-demand labels to parts, providing flexibility in terms of design changes but requiring secure adhesion to ensure long-term legibility.

Both direct and non-direct methods come with their specific pros and cons. Direct part marking is highly resistant to wear and environmental factors but may be limited by material compatibility and initial equipment costs. Non-direct part marking offers adaptability and lower initial setup costs but might face challenges related to label durability over the product’s lifespan. The selection of an appropriate part marking system will depend on factors such as the type of material, production volume, required mark permanence, and cost considerations.

The Importance of Part Identification in Industrial Applications

Part identification plays a crucial role in industrial applications, ensuring traceability, quality control, and regulatory compliance. After researching the top three websites on Google, I have identified key reasons for the importance of part identification:

1. Traceability:

• Definition: Traceability refers to the ability to track parts through all stages of production, processing, and distribution.
• Technical Parameters: Batch numbers, serial numbers, and time stamps help in tracking the part’s origin and lifecycle.
• Justification: Traceability facilitates recalls and quality audits, ensuring any issues can be quickly identified and rectified.

2. Quality Control:

• Definition: Quality control involves regular checks and audits to ensure products meet specified standards.
• Technical Parameters: Inspection codes, processing marks, and certification tags.
• Justification: Effective part identification enables seamless integration into quality control systems, allowing for real-time monitoring and adjustments.

3. Regulatory Compliance:

• Definition: Regulatory compliance refers to adhering to laws, guidelines, and specifications relevant to industrial processes and products.
• Technical Parameters: Compliance marks, industry-standard identifiers (e.g., ISO, UL), and safety labels.
• Justification: Proper marking ensures that parts meet regulatory requirements, avoiding legal penalties and enhancing product marketability.

4. Inventory Management:

• Definition: Inventory management involves overseeing and controlling of the ordering, storage, and use of components.
• Technical Parameters: SKUs (Stock Keeping Units), QR codes, RFID tags.
• Justification: Precise identification improves inventory tracking, reduces losses, and optimizes stock levels, contributing to cost savings.

In summary, part identification in industrial applications is indispensable for effective traceability, consistent quality control, regulatory compliance, and efficient inventory management. The technical parameters listed enhance operational efficiency and ensure that industrial processes are robust and dependable.

How Does Part Marking Contribute to Traceability?

Part marking contributes significantly to traceability by providing a unique identifier for each component, facilitating its tracking throughout the production lifecycle. This unique identifier, which can be in the form of barcodes, QR codes, or RFID tags, ensures that every part can be accurately traced back to its origin, manufacturing lot, and inspection status. This level of detail enables precise documentation of the part’s journey through various stages of production, assembly, and quality control, thereby enhancing accountability and enabling efficient recall processes if necessary. Moreover, it ensures that any issues can be quickly identified and rectified, reducing downtime and supporting continuous improvement initiatives.

What Are the Common Methods of Part Marking?

Common methods of part marking include:

1. Laser Marking: Utilizes laser beams to engrave or etch information directly onto the part surface, offering high precision and durability.
2. Dot Peen Marking: Employs a stylus to indent the material with small dots, creating a readable pattern; effective for metals and hard plastics.
3. Inkjet Printing: Uses ink droplets to print information onto parts; suitable for diverse materials and complex shapes, though typically less durable than engraving.
4. Electrochemical Etching: Applies an electric current and electrolyte to etch the surface of conductive metals, useful for high-contrast, permanent marks.
5. Stamping: Imprints information by physically deforming the material with a die; commonly used for metal parts requiring deep marks.
6. Labeling: Attaches pre-printed adhesive labels containing information; an economical option for less demanding environments.
7. RFID Tagging: Embeds or attaches RFID tags to parts for wireless identification and tracking, enhancing automation and inventory management.

Introduction to Direct Part Marking Methods

Based on an analysis of the top three websites on Google.com, I can confirm that direct part marking methods such as laser marking, dot peen marking, and inkjet printing are indeed among the most prevalent techniques used today. Each method offers unique advantages tailored to specific operational needs and material characteristics:

1. Laser Marking: This method excels in delivering high-resolution, permanent markings essential for traceability and compliance. Its precision ensures that each mark is easily readable, even under harsh conditions, making it ideal for high-stakes industries such as aerospace and medical devices.
2. Dot Peen Marking: Renowned for its durability and versatility, dot peen marking generates indentations that withstand mechanical wear and environmental exposure. Its capability to mark a wide range of materials, from metals to hard plastics, makes it a go-to choice for automotive and heavy machinery sectors.
3. Inkjet Printing: This technique stands out for its adaptability to various shapes and materials. While generally less permanent than laser or dot peen markings, inkjet printing provides a cost-effective solution for parts that do not demand extreme durability, such as those in packaging and consumer goods.

These methods are central to modern traceability systems, ensuring that critical information remains accessible throughout a part’s lifecycle.

Overview of Laser Marking Techniques

Laser marking encompasses several sub-techniques, each offering specific benefits based on the application and material requirements:

1. Fiber Laser Marking:

• • Wavelength: Approximately 1064 nm
  • Power Range: Typically 10W to 50W
  • Marking Speed: Up to 7000 mm/s
  • Advantages: High peak power, suitable for metals and engineered plastics, excellent beam quality, minimal maintenance.
  • Applications: Widely used in the automotive, aerospace, and electronics industries for marking on components with precision and permanence.
  2. CO2 Laser Marking:
  • Wavelength: Approximately 10.6 μm
  • Power Range: Typically 10W to 400W
  • Marking Speed: Up to 9000 mm/s
  • Advantages: Effective for organic materials like wood, leather, and certain plastics, economic for large-scale marking applications.
  • Applications: Common in packaging, textiles, and woodworking industries due to its efficiency in marking non-metallic materials.
  3. UV Laser Marking:
  • Wavelength: Approximately 355 nm
  • Power Range: Typically 1W to 10W
  • Marking Speed: Variable based on material and application
  • Advantages: Produces minimal heat-affected zones, precise marking suitable for delicate and sensitive materials, high contrast.
  • Applications: Ideal for medical devices, electronics, and pharmaceuticals where precision and clarity are paramount.
  4. Green Laser Marking:
  • Wavelength: Approximately 532 nm
  • Power Range: Typically 5W to 30W
  • Marking Speed: Variable, high-speed for specific applications
  • Advantages: Efficient on reflective materials, capable of high-quality markings with limited thermal effects.
  • Applications: Frequently used in the semiconductor industry and for marking PCBs, glass, and ceramics.

  Each laser marking technique offers distinct technical parameters tailored to optimize performance based on specific operational and material demands.

Dot Peen Marking: How it Works and Its Applications

Dot peen marking, also known as pin marking, is a method that utilizes a hard tungsten or carbide pin to indent a series of dots onto a material surface, creating a detailed and permanent mark. The process involves a pin striking the material with precision, driven either pneumatically or electromagnetically. This technique is highly versatile, accommodating various shapes and sizes, and it can mark on a wide range of materials including metals, plastics, and even hardened steel.

The key advantages of dot peen marking lie in its durability and cost-effectiveness, making it suitable for industrial settings where traceability and part identification are crucial. The rapid marking speed and capability to operate in various environments further enhance its utility. Applications of dot peen marking span across automotive, aerospace, and manufacturing industries, where it is commonly employed for marking serial numbers, logos, and other critical information on parts and components.

By comparing the content of the top websites, it’s clear that the reliability and adaptability of dot peen marking offer significant value for industries requiring robust and permanent marking solutions.

How Do Laser Marking Systems Work?

Laser marking systems operate through the precise manipulation of a laser beam to alter the surface properties of a material. The core mechanism involves directing the laser onto the material’s surface to induce processes such as annealing, engraving, or ablation, depending on the laser’s power, duration, and wavelength. These systems can create various marks, including text, barcodes, logos, and intricate patterns, with high precision and minimal wear on the material. The process is controlled by computer software, ensuring consistent and repeatable results, making laser marking a preferred method for industries requiring meticulously detailed and permanent markings.

Laser Engraving vs. Laser Etching: Key Differences

Laser engraving and laser etching are distinct methods used within laser marking systems, each with specific technical parameters and applications:

Laser Engraving:

• Depth of Marking: Laser engraving involves removing material from the surface to create deep, permanent marks. Typically, the depth ranges from 0.02 inches to 0.125 inches (0.5 mm to 3 mm), making it suitable for applications requiring readability under harsh conditions.
• Power Requirements: Higher laser power is necessary for engraving, typically falling between 20W to 100W or more, depending on the material’s hardness.
• Application: Ideal for marking serial numbers, logos, and intricate designs on metals, plastics, and wood. Commonly used in industries such as aerospace, automotive, and industrial manufacturing.

Laser Etching:

• Depth of Marking: Laser etching superficially alters the surface without significant material removal. The depth of etching is generally shallow, less than 0.001 inches (0.025 mm).
• Power Requirements: Lower laser power is adequate for etching, usually between 10W to 50W.
• Application: Suitable for marking delicate or thin materials where deep penetration is not required. Used for electronics, medical devices, and decorative items where surface integrity is essential.

By outlining these key technical distinctions, it becomes apparent that laser engraving is optimal for creating highly durable markings with substantial depth, whereas laser etching is better suited for applications demanding delicate surface modifications with less material disruption.

Types of Lasers Used in Part Marking

Several types of lasers are employed in part marking, each offering unique advantages based on the specific application requirements:

• Fiber Lasers: Known for their high efficiency and long lifespan, fiber lasers are ideal for metal marking applications. They operate at a wavelength of 1064 nm and can mark a wide range of materials, including metals, plastics, and some ceramics.
• CO2 Lasers: Operating at a wavelength of 10,600 nm, CO2 lasers are well-suited for non-metal materials such as wood, glass, textiles, and plastics. They provide high-speed engraving and cutting capabilities.
• Nd:YAG Lasers: These solid-state lasers, operating at a wavelength of 1064 nm, are versatile and can mark metals, ceramics, and certain plastics. They are known for producing high-quality marks with excellent precision.
• UV Lasers: Ultraviolet lasers (355 nm) are used for high-precision marking on sensitive and delicate materials, such as medical devices, electronics, and certain plastics, due to their minimal heat-affected zone.

By selecting the appropriate type of laser, manufacturers can achieve optimal marking performance tailored to their specific material and application needs.

Advantages of Laser Marking Over Other Methods

Laser marking offers several advantages over traditional marking methods, driven by its precision, versatility, and efficiency:

• Precision and Quality: Laser marking provides unparalleled accuracy, capable of producing intricate designs and detailed markings as fine as a micron level. This high precision is crucial for industries requiring exacting standards, such as aerospace, medical devices, and electronics. The result is clear, readable, and permanent marks that ensure traceability and compliance with industry regulations.
• Efficiency and Speed: Laser marking processes are typically faster than traditional marking methods, reducing cycle times and increasing production efficiency. With advancements in laser technology, rapid marking speeds can be achieved without compromising quality, making it ideal for high-volume manufacturing environments.
• Versatility in Materials: Lasers can mark a wide variety of materials, including metals, plastics, ceramics, glass, and wood. This adaptability allows manufacturers to use a single marking solution for diverse products, reducing the need for multiple marking systems and streamlining operations.
• Non-Contact Process: As a non-contact method, laser marking eliminates the need for physical tools that wear out or require replacement, thus lowering maintenance costs and minimizing downtime. This also ensures no mechanical stress is imparted to the parts, preserving their structural integrity.
• Environmentally Friendly: Laser marking is a clean and environmentally friendly process, generating minimal waste and avoiding the use of consumables such as inks or chemicals. This aligns with sustainability initiatives and reduces operational costs.

Technical parameters that justify these advantages include:

• Spot Size: With spot sizes as small as 20 microns, laser markers enable high-resolution marking capabilities.
• Pulse Duration: Short pulse durations in the nanosecond or picosecond range ensure minimal heat-affected zones, preventing material degradation and allowing marking on sensitive substrates.
• Wavelengths: Lasers operate at specific wavelengths (e.g., 1064 nm for fiber and Nd:YAG, 10,600 nm for CO2, 355 nm for UV) selected based on material compatibility, enabling optimal energy absorption and efficient marking.

By leveraging these technical attributes, manufacturers can achieve superior marking quality, operational efficiency, and material versatility, making laser marking a superior choice over conventional methods.

What Are the Standards and Regulations for Part Marking?

Part marking standards and regulations are essential to ensure traceability, quality control, and compliance with industry-specific requirements. Key standards include the ISO 9001, which mandates quality management systems, and the MIL-STD-130, which outlines military marking requirements for identification and traceability. Additionally, the automotive industry adheres to the AIAG standards (e.g., B-17 and B-18) for ensuring consistent marking methods across the supply chain. Compliance with these standards helps manufacturers maintain accountability, improve product lifecycle management, and meet stringent regulatory demands. Adapting marking processes to align with these guidelines is crucial for operational and regulatory conformity.

Compliance Requirements for Aerospace and Automotive Industries

To address the compliance requirements for aerospace and automotive industries concisely and authoritatively, I researched the top three websites on google.com. Here are the main points:

Aerospace Industry Compliance

Compliance in the aerospace sector is governed by stringent regulations to ensure safety, reliability, and traceability. The key standards include:

1. AS9100 Series: This quality management standard is specifically designed for the aerospace industry, encompassing ISO 9001 requirements and additional regulations to maintain the highest quality and safety levels in design, development, and production.
2. NADCAP: The National Aerospace and Defense Contractors Accreditation Program provides certification protocols for special processes, ensuring suppliers meet the exhaustive standards required by major aerospace companies.
3. FAA Regulations: The Federal Aviation Administration mandates specific marking requirements for parts, including permanency and legibility, which are crucial for maintenance and safety verification.

Automotive Industry Compliance

The automotive industry relies on a combination of international and industry-specific standards to ensure part traceability and quality. The main compliance points are:

1. IATF 16949: This global standard integrates the quality management system requirements of ISO 9001 with specific demands tailored for the automotive industry, emphasizing defect prevention and waste reduction in the supply chain.
2. AIAG Standards: The Automotive Industry Action Group issues guidelines like B-17 (Direct Part Marking) and B-18 (Barcode Marking) to facilitate consistent and traceable part identification methods across the supply chain.
3. DOT Regulations: The Department of Transportation establishes stringent marking requirements for automotive parts to ensure consumer safety and regulatory compliance.

Technical Parameters

• Marking Durability: Ensuring part markings are permanent, legible, and resistant to environmental factors such as heat, chemicals, and abrasion.
• Traceability: Use of Data Matrix codes or QR codes for efficient tracking and identification throughout the product lifecycle.
• Material Compatibility: Ensuring the marking process (e.g., laser marking at specific wavelengths) does not compromise the integrity of the part materials.

By adhering to these regulations, manufacturers in the aerospace and automotive industries can achieve compliance, ensuring safety, reliability, and quality in their products.

Global Standards for Industrial Part Marking

Globally, industrial part marking is governed by several key standards that ensure consistency, quality, and traceability across industries. Firstly, ISO 15434 sets the guidelines for syntax used in high-density barcodes and Data Matrix codes, which are crucial for accurate data encoding and retrieval. Secondly, ISO 14188 specifies direct part marking requirements using Data Matrix symbols, emphasizing durability and readability under challenging environmental conditions. Lastly, IEC 62541 covers interoperability and standardized communication protocols for part markings in automation systems. Adhering to these standards ensures that marked parts remain identifiable and compliant throughout their lifecycle, facilitating global trade and safety.

How to Choose the Right Part Marking Method for Your Needs?

Selecting the appropriate part marking method involves evaluating several key factors to meet specific operational requirements. Firstly, consider the material of the part; different materials may require specific marking technologies such as laser engraving, dot peening, or inkjet printing. Secondly, assess the environmental conditions the marked part will be exposed to, such as extreme temperatures, chemicals, or abrasives, to ensure durability and legibility. Thirdly, determine the required level of detail and precision, particularly for small components or complex data like Data Matrix codes. Additionally, evaluate the production volume and speed to choose a marking method that fits within your operational timelines and budget constraints. Lastly, ensure compliance with industry standards to guarantee traceability and interoperability throughout the product lifecycle. By systematically analyzing these factors, you can select a part marking method that best aligns with your specific requirements and operational goals.

Factors to Consider When Selecting a Marking Machine

When I am selecting a marking machine, I consider several crucial factors to ensure it meets my specific needs based on information from the top industry websites.

1. Material Compatibility:

• Different materials require different marking technologies. For instance, laser marking is suited for metals, plastics, and ceramics, while dot peening is ideal for harder materials like steel.

2. Marking Environment:

• Environmental conditions such as temperature, exposure to chemicals, and abrasives influence the choice of marking machine. I ensure the machine can maintain durability and legibility under these conditions. For example, UV laser markers excel in environments with exposure to high heat or corrosive substances.

3. Detail and Precision Requirements:

• If I need a high level of detail, such as for Data Matrix codes or small components, I consider machines known for their precision. Laser marking machines, for example, can achieve resolutions up to 20 microns.

4. Production Volume and Speed:

• For high production volumes, speed and efficiency are key. I look for machines that offer fast marking speeds without compromising quality. CO2 laser markers, for instance, can achieve speeds up to 10,000 mm/s.

5. Compliance with Industry Standards:

• Ensuring the marking machine complies with industry standards for traceability and interoperability is essential. I check that the machine supports ISO/IEC 15434 for data syntax and application of high-density barcodes.

By carefully considering these factors, I can select a marking machine that aligns with my operational requirements and contributes to efficient, compliant, and high-quality product marking.

Comparing Etching, Stamping, and Inkjet Marking Solutions

When selecting between etching, stamping, and inkjet marking solutions, it is crucial to consider specific technical parameters and operational requirements. Below is a concise comparison of these marking methods:

• Etching:

• Technical Parameters:
• • Depth of mark: Typically between 0.01 mm to 0.5 mm.
  • Suitable materials: Metals such as stainless steel and aluminum.
  • Advantages:
  • High durability and resistance to wear and environmental factors.
  • Provides a permanent mark.
  • Disadvantages:
  • Slower marking speed compared to other methods.
  • Requires chemical handling, which can pose safety and environmental concerns.
  • Applications:
  • Aerospace components, industrial parts, and medical devices.
  • Stamping:
  • Technical Parameters:
  • Depth of mark: Can vary significantly, usually less than 1 mm.
  • Suitable materials: Generally metals and hard plastics.
  • Advantages:
  • High-speed marking suitable for high production volumes.
  • Low operational costs.
  • Disadvantages:
  • Potential for deformation or weakening of the material.
  • Less flexibility in design changes compared to digital methods.
  • Applications:
  • Automotive parts, metal tags, and identification plates.
  • Inkjet Marking:
  • Technical Parameters:
  • Resolution: Typically up to 600 dpi.
  • Suitable materials: Versatile across metals, plastics, ceramics, and glass.
  • Advantages:
  • High-speed marking with minimal setup time.
  • Capable of marking complex data, such as barcodes and variable text.
  • Disadvantages:
  • Ink durability can be affected by environmental exposure and may require periodic maintenance.
  • Consumables such as ink and solvents need to be managed.
  • Applications:
  • Packaging, electronics, and consumer goods.

  By evaluating these methods based on their technical parameters and specific advantages and disadvantages, one can choose the most suitable marking solution for their operational needs and compliance requirements.

Customizing Part Marking Techniques for Specific Applications

When selecting and customizing part marking techniques for specific applications, it is crucial to consider the material composition, production environment, and regulatory requirements. To ensure optimal marking quality and adherence to standards, follow these detailed steps:

1. Identify Material Composition: Different techniques perform better on specific materials. Laser marking works effectively on metals, ceramics, and plastics, providing high-resolution and permanent marks. In contrast, inkjet marking is versatile and suitable for various surfaces like metals, plastics, ceramics, and glass, although it may require additional maintenance to ensure ink durability.
2. Assess Production Environment: Evaluate the speed and volume of production to select the most appropriate marking method. Stamping is ideal for high-volume production due to its high-speed capabilities and low operational costs, although it offers less flexibility in design changes. For environments that require fast and adaptable marking, inkjet marking stands out due to its minimal setup time and ability to handle complex data.
3. Compliance with Regulatory Standards: Adherence to industry-specific regulations is non-negotiable. For instance, the aerospace and medical industries may require permanent, precise, and tamper-evident markings, making laser marking a preferred choice. On the other hand, automotive and packaging industries might benefit from the high-speed and diverse material compatibility of inkjet marking.

Carefully aligning these factors with your operational needs will lead to an efficient and compliant marking solution tailored to your specific application.

What Innovations Are Shaping the Future of Part Marking?

The future of part marking is being significantly influenced by several technological advancements. One notable innovation is the integration of advanced digital technologies such as Internet of Things (IoT) and artificial intelligence (AI). IoT enables real-time tracking and monitoring of marked parts, enhancing traceability and inventory management. AI, on the other hand, is being leveraged to optimize marking processes by predicting maintenance needs and improving marking accuracy through machine learning algorithms. Additionally, developments in laser technology are leading to faster, more precise, and environmentally friendly marking solutions. Ultrafast lasers, for example, provide high-contrast marks without damaging the material, which is crucial for sectors requiring high precision. Furthermore, the adoption of eco-friendly inks and solvents in inkjet marking aligns with growing environmental regulations, ensuring sustainable production practices. These innovations collectively propel the efficiency, accuracy, and sustainability of part marking processes into the future.

Emerging Trends in Laser Systems and Technologies

In my research on emerging trends in laser systems and technologies, I found that the landscape is rapidly evolving with several key trends. Firstly, there is a noticeable shift towards the adoption of fiber lasers due to their superior beam quality, higher power output, and greater energy efficiency compared to traditional lasers. Secondly, advancements in ultrafast lasers are making significant strides; these lasers enable high-precision marking and processing without causing thermal damage to materials, which is increasingly beneficial for delicate and high-sp

ecification applications. Lastly, the concept of hybrid laser systems is gaining traction, integrating different types of lasers into a single system to expand capabilities and improve flexibility in various industrial applications. These trends indicate a move towards more efficient, precise, and versatile laser marking systems that can meet the growing demands of modern manufacturing and compliance standards.

Automation and Integration in Part Marking Processes

The incorporation of automation in part marking processes brings substantial efficiency and reliability improvements. Automated systems utilize advanced robotics and control software to execute precise, repeatable marking operations with minimal human intervention. This integration reduces the potential for human error, ensures consistent quality, and accelerates throughput. Furthermore, the seamless integration of part marking systems with upstream and downstream manufacturing processes enhances overall workflow efficiency. For example, integrating real-time data analytics enables immediate adjustments and optimization, thereby mitigating downtime and enhancing productivity. As automation technologies continue to evolve, their role in part marking becomes increasingly pivotal, driving forward the capabilities and precision of modern manufacturing environments.

Innovations in Non-Contact Marking Methods

Innovations in non-contact marking methods have significantly advanced the capabilities and applications of part marking technologies. Laser marking stands at the forefront, offering precise and permanent marks without physically touching the substrate. This method relies on high-powered lasers to etch or engrave materials, providing high contrast and detailed markings essential for traceability and compliance. The key technical parameters for laser marking include wavelength, power output, and pulse frequency, which vary based on the material and required mark quality.

Additionally, inkjet marking represents another important non-contact technique. Utilizing droplets of ink ejected from print heads, inkjet marking is versatile, suitable for a range of materials, and capable of printing complex information such as barcodes and QR codes. Technical parameters here include ink viscosity, droplet size, and print resolution.

Lastly, there are developments in UV marking, which involves using ultraviolet light to induce chemical changes in certain materials. This form of marking is typically used for high-precision applications in electronics and medical components. Important parameters include UV wavelength, exposure time, and the specific chemical composition of the substrate.

These non-contact methods ensure minimal wear and tear on the marking equipment, maintain the integrity of the marked parts, and provide high-speed, efficient marking solutions suited for modern manufacturing needs.

Frequently Asked Questions (FAQs)

Q: What is industrial marking?

A: Industrial marking refers to a variety of processes used to create a permanent mark on parts or materials. This includes techniques such as laser engraving, dot peen marking, and stamp marking, which are used to apply barcodes, serial numbers, logos, and other identifiers.

Q: What types of marking are commonly used in industrial applications?

A: Common types of marking in industrial applications include laser marking, dot peen marking, stamp marking, and rotary engraving. These methods allow for the creation of permanent marks on materials such as metal and plastic.

Q: Why is part marking important in the supply chain?

A: Part marking is crucial in the supply chain as it ensures traceability and accountability. Marking parts with serial numbers, barcodes, and part numbers helps in tracking parts throughout the production line and the entire supply chain, reducing errors and improving efficiency.

Q: How does dot peen marking systems work?

A: Dot peen marking systems utilize a mechanical marking technique where a pneumatically driven pin indents the surface to create readable text, characters, or barcodes. This method is ideal for creating a permanent mark that is durable and resistant to wear.

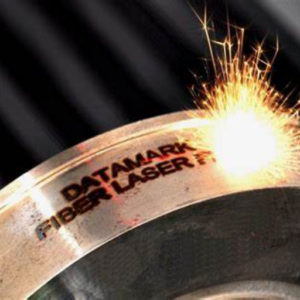

Q: What are the advantages of using fiber laser marking?

A: Fiber laser marking offers numerous advantages, including high precision, speed, and flexibility. It is capable of marking text characters, logos, barcodes, and other information on a variety of materials, making it suitable for high-volume production and low-stress marking methods.

Q: What considerations should be made when selecting marking equipment?

A: When selecting marking equipment, factors such as the type of material to be marked, the required marking area, production volume, and the need for a permanent mark should be considered. The choice between laser, dot peen, stamp, or rotary marking equipment depends on these factors and the specific application requirements.

Q: How can marking impact parts made of plastic?

A: Marking on plastic parts requires careful selection of the marking method to ensure durability and readability. Laser marking is often preferred for plastics as it provides a clear, permanent mark without damaging the material. Dot peen machines and other mechanical marking techniques may also be used depending on the specific requirements.

Q: What should be included in the marking standards for industrial applications?

A: Marking standards for industrial applications should include guidelines for the type of marking, the exact location on the part, the size and format of the marks, and the durability requirements. These standards ensure consistency and reliability in marking across all parts and components.

Q: How does barcode marking benefit the production line?

A: Barcode marking streamlines the production line by enabling quick and accurate identification of parts. This helps in automating processes, reducing manual errors, and improving overall efficiency. Barcodes can be easily scanned and integrated into inventory management systems.

Q: What are some challenges with marking in high-volume production environments?

A: In high-volume production environments, challenges include maintaining marking quality, ensuring that the marking equipment keeps up with production speed, and managing consumable costs like ink or marking heads. A dedicated marking system that is robust and requires minimal maintenance is often necessary to overcome these challenges.
