Efficiency and accuracy are the most important things in today’s manufacturing industry. Changes in Computer Numerical Control (CNC) technologies have led to changes in this respect. In particular, modular fixturing has changed everything especially when it comes to flexibility, cost-effectiveness and efficient operations. The aim of this blog is to explore the various benefits of modular fixtures that are transforming CNC workholding and fixturing systems. We shall look at modularity in design, its essence as well as examples from different industries so we can have a comprehensive view on why there is rapid acceptance of modularity based on advanced manufacturing environments. This article will unlock their full potential enabling CNC machinists to attain maximum productivity and accuracy.
What is a Modular Fixture and How Does It Work?

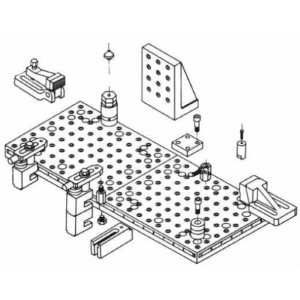

Image source: https://www.carrlane.com/
A modular fixture is a versatile and adaptable workholding solution used in CNC machining and other manufacturing processes. It has a set of several standard parts such as base plates, clamps, locators, and supports that can be assembled easily rearranged or expanded to accept different jobs and materials. Manufacturers are able to change tools quickly with modular fixtures by setting them up fast, adjusting them, reorganizing them as needed for each case of use without relying on custom made job specific fixtures. This kind of changeover cuts down not only the setup time but also brings down costs significantly by minimizing multiple dedicated fixtures. The main function of a modular fixture is to hold the work-piece firmly during machining so as to ensure accuracy throughout the process while reducing downtimes arising from tooling changes required in handling different shapes and sizes of work-pieces.
Understanding the Basics of a Modular Fixture
In essence, a modular fixture is made up of a grid system that allows for much customization and flexibility. Base plates, T-slot tables, angle plates and clamping elements are some standard components which have been developed to fit perfectly together. The system can quickly be reconfigured to adapt to different machining requirements because of its versatility. This adaptability is particularly advantageous in prototyping and low-volume production where quick turnaround times are required. In addition, the modular nature guarantees precision and repeatability as the part tolerances are always tightly controlled. It’s also an economical way to go since such fixtures can be used again in many set ups hence reducing the need of specialized one-use fixtures.
Components of a Modular Fixturing System
Typically, a modular fixture system consists of multiple components working together to deliver flexibility and accuracy. The main features are as follows:
- Base Plates and T-slot Tables: These underpin the system by providing a grid of slots and holes for secure attachment of other modules; they have strong design ensuring stability during machining.
- Clamping Elements: Clamps, vices or other fasteners secure the workpiece. These parts can be easily repositioned or interchanged to allow for different types of materials in various sizes.
- Angle Plates and Blocks: They hold variously angled work pieces while executing intricate cutting tasks. They provide firm support and can be adjusted to meet specific shape specifications.
- Locating and Positioning Elements: For instance, dowel pins or bushings ensure repeatable accurate placement of workpieces. This helps to align and position the part with minimum deviation thereby providing consistency across many machining operations.
- Adjustable Supports and Subplates: When necessary these provide additional support and help adjust heights according to dimensions of different workpieces. In addition, subplates may be personalized or reused in diverse configurations hence assisting in making it more flexible.
These components come as an integrated unit which ensures high accuracy, versatility, cost effectiveness in CNC machining as well as other processes used in manufacturing.
The Role of Fixture Plates in Modular Fixturing
Modular fixturing systems employ fixture plates, which is also referred to as base plates and tooling plates. As a foundation, they provide a stable and accurate surface where other components can be mounted. They are made of high-quality materials that guarantee their durability and resistance against wear and tear. These plate designs have grids of threaded holes or slots that permit clamps, locators, and other devices to be positioned in different ways. This flexibility allows it to adapt to a wide range of workpiece sizes and shapes hence increasing the efficiency and accuracy in the machining process. Manufacturers can save time during setup thanks to fixture plates which facilitate quick changes thereby minimizing downtime while boosting productivity in manufacturers’ premises. By using fixture plates, accuracy becomes repeatable as much as manufacturers would prefer as such quality depends on what happens at repeatable stages of production processes leading to consistent quality in the finished products.
How Does Modular Fixturing Enhance CNC Workholding?
Modularized holding makes computer numerical control workholding much better with extraordinary flexibility, accuracy and speed. This system is easy to adjust and reconfigure, hence enabling it to suit various sizes and shapes of work pieces without having to stop for long periods for resetting the machine. This saves time in setting up, reduces delays in production and minimizes total operational costs. Furthermore, modular porting is specially designed to position accurately, guarantee secure gripping that preserves machining quality standards. Consequently, manufacturers can ensure process optimization; raise output through-put and gain reliable results every time by using CNC fixturing.
Benefits of Modular Workholding over Traditional Methods
- More Flexibility: These malleable fixtures are easily modified and adjusted to accommodate different sizes and shapes of workpieces. There is always a likelihood that the use of custom-made fixtures for every new job will be ignored because of this feature, thus saving time and money.
- Increased Precision: The components in modular fixturing systems are designed to achieve high readiness and repeatability. Milling errors are lessened or even avoided, as there is minimal variation in work quality.
- Better Efficiency: Quick setup time and changeover times are achieved using modular systems. Overall machine downtime is, therefore, reduced boosting efficiency which increases productivity in the manufacturing department.
- Cost-Effective: Modular parts can be used again thus there is no need to make a lot of exact copies, hence reducing material costs as well as the labor required for them. This saves a lot over a long period.
-
Applications Versatility: Modular workholding suits both simple and complex machining applications alike. Hence it has many uses across various industries and machining processes.
Improving Setup Times and Flexibility
The application of modular fixturing systems is crucial for the enhancement of CNC workholding’s speed and flexibility. Standardizing components is a key enabler to reducing the need for a lot of custom fixture design and fabrication. This will not only help in simplifying but also significantly quickening transition between different activities.
Additionally, employing fast change tooling systems can improve setup time efficiency considerably. These facilitate instant tool or component replacement without recalibration that takes lots of time therefore minimizing machine downtimes. It further promotes versatility among machining operations through use of universal fixturing elements like vices and clamps which can be adjusted to accommodate different workpieces.
Incorporating automation technologies such as robotic arms for loading and unloading parts would contribute towards shortening setup times. Among other benefits, automation can eliminate repetitive actions hence ensuring uniformity precision thereby leading to increased production rates with lower operator intervention. As a result, they make manufacturing more flexible and market-oriented by being capable to adapt quickly to any changes in the level of demand.
Applications in CNC Machines and Machining Centers
A wide variety of industrial applications depend on CNC machines and machining centers. These devices are already employed heavily in the automotive industry for making engine parts, transmission components, and body panels with a high degree of precision and consistency. In the aerospace sector, CNC machined components such as turbine blades and airframe structures must conform to strict safety and performance standards. In medicine, this technology is used to create accurate surgical instruments that will not fail. Moreover, complex circuit boards and covers are made using CNC machines in electronics industries. All these different sectors have one thing common; that is versatility of CNC machining centers that leads to accuracy as well as repeatable processes.
What Are the Typical Fixtures and Components Used in Modular Fixturing?
In modular fixturing systems base plates, clamping devices, locating pins and supports are common features for most fixtures. Base plates form the bedrock upon which fixture setup is supported. Clamping devices keep the workpiece in place during machining; some common types being toe clamps and toggle clamps. Locating pins guarantee accurate positioning and repeatability while supports and risers alter the height and support of the workpiece. They are designed to be easily reconfigurable so that changeover times can be minimized and adaptation to various works or machining operations can occur without difficulty.
Common Modular Fixtures and Their Uses
- Toe Clamps: Toe clamps are multifunctional pressure devices which push downward and sideways thereby ensuring that the workpieces are gripped in place during machining. These clamps are best used when strong holding force is required and invisibility is needed at least.
- Toggle Clamps: Toggle clamps are quick-acting and releasing devices. They can be utilized where there is a need for frequent altering of the setup at higher rates of speed. In most instances, they are used to improve speed and efficiency levels in these areas.
- Locating Pins: Locating pins enable exact positioning and repetition of unit operations on each part. They fit into corresponding holes to guarantee accurate alignment upon every mounting.
- Base Plates: Modular fixturing setups use base plates as their structural foundation. This creates an unyielding and steady backing that other modular components can mount or modify as required.
- Supports and Risers: Supports/risers serve to elevate work pieces above the workplace floor while providing extra support for them. This facilitates accommodation of workpiece’s different shapes/sizes thus ensuring that machining operations do not become unstable or misaligned when running.
These common modular fixtures streamline the setup process, enhance flexibility, and improve the accuracy and efficiency of machining operations across a variety of industries.
Examples of Tooling Plates and Clamps
- Tooling Plates:
- Grid Plates: These plates have an array of holes that are positioned with great precision hence they can be used repeatedly for any arrangement. They have high levels of accuracy and adaptability in holding different work pieces.
- Dedicated Fixture Plates: These plates are made specifically for certain applications and parts, so that when the workpiece is set, it is optimally positioned and clamped.
- Universal Adapter Plates: They are characterized by their ability to take in various clamping systems as well as modular components. This makes them ideal for flexible manufacturing environments purposes.
- Clamps:
- Swing Clamps: For fast loading, unloading of workpieces, these types of clamps can pivot to swing into place applying vertical pressure to secure the workpiece.
- Edge Clamps: Side force applied ensures no obstructions to the top surface. They allow easy access to the top surface of a work piece during machining operations at its highest plane.
- Vacuum Clamps: Mostly used when handling delicate or thin materials that would be spoiled by mechanical means due to suction these hold the work piece in place without releasing it.
These tooling plates and clamps are vital in machining activities since they provide essential precision, flexibility and efficiency which facilitate quality production standards on large scale.
Using Vise and T-Slot Systems in Modular Fixturing
Essential Components of Modular Fixturing: How Are Vise And T-slot Systems Applied In Workholding?
Vise Systems: These are versatile compression instruments for different machining tasks, which can be quickly adjusted and repositioned. There are numerous types, including one-station clamps for individual parts and two-station vises for multiple pieces simultaneously. Machining processes become easier with precision and repeatability as these workpieces stay exhibited.
T-Slot Systems: T-slot tables and plates provide a highly adaptable platform for securing workpieces. The bolts and nuts ensure the alignment of the fixtures in place using grooves in these systems. T-slot configurations offer high versatility since they can be easily adjusted to accommodate different machined components dimensions.
This combination enables modular fixturing to handle complex machining operations better in terms of productivity and time consumed. Thus, interoperability between vises and t-slots is of great importance in enhancing efficiency during manufacturing.
How to Optimize Welding and Assembly with Modular Systems?
To achieve maximum efficiency in welding as well as assembly processes using modular systems, the initiation of a modular fixturing table is essential with flexible clamping options. You will be able to position the workpieces accurately and reduce set up times by employing adjustable clamps and positioning components. For example, use precision rulers and gauges to make sure that you get accurate measurements throughout the assembly process. This means the modular systems can be easily remodeled for different tasks thus reducing workflow inefficiency. Moreover, making use of repeatable fixtures and jigs significantly reduces human errors resulting in higher quality welds as well as assemblies. In this case, production rate fires up while adaptability and better accuracy are realized in manufacturing operations as well.
Advantages of Modular Welding Fixtures
Modular welding fixtures offer a number of benefits, which explain why they are an essential part of present-day manufacturing processes:
- Flexibility and Adaptability: These can be rearranged with ease to suit different types of products. In this case, one can save time spent on fittings and therefore change from one project to another quickly, thereby boosting productivity.
- Improved Precision and Consistency: Through the use of these tools, it is possible to ensure that components are positioned correctly. Because human error in manufacturing is minimized through the use of standard parts and repeatable setups as well as better quality control, more consistent products are produced.
- Cost-Effectiveness: Modular systems reduce the need for new tooling with every project thus reducing overall cost. The modularity itself allows reusing them for longer periods hence saving money over time resulting into a higher ROI from an engineering standpoint.
- Enhanced Efficiency: With modular welding fixtures, it’s easier to put together jigs and remove them both; this makes the turn-around time faster. This ability is very helpful especially where there are tight schedules in production processes or machine breakdowns occur.
- Scalability: In the event that business grows bigger or changes its focus modular systems can be expanded or modified without significant investments. These features make them ideal for small industrial applications as well as large scale operations.
Leveraging these advantages enables manufacturers to create highly efficient, accurate, and cost-effective welding processes that give them a competitive edge in their market niche.
The Importance of Locating and Clamping Methods
In order to obtain accurate and high-quality welded assemblies, effective methods of locating and clamping are necessary. Accurate locating ensures that each piece is placed correctly and consistently during welding process, which is critical for maintaining close tolerances and producing parts as per precise requirements. Equally important are proper clamping techniques because they stabilize the workpiece ensuring there is no movement during welding that may result in defects. The use of high quality clamps and locating devices in this case will minimize the distortion as well as residual stresses in the weld joints thus leading to a more reliable and durable final product. Finally, when robust techniques for locating and clamping are incorporated into the welding process, it enhances both productivity and product quality thereby making these methods to be very vital in current manufacturing settings.
What Are the Best Practices for Implementing a Modular Fixturing System?
- Thorough Planning: Start by making a comprehensive evaluation of your production necessities that involves factors like kinds of work pieces, welding processes and needed precision levels. This will assist in selecting the right fixture components and layout.
- Standardization: Use standardized parts wherever possible to allow for compatibility and flexibility. This will enable fast changes over times and reduce set-up time.
- Quality Components: Invest in high-quality strong components that are reliable and last long. Poor quality fixtures can cause inaccuracies as well as more wear on them.
- Ease of Adjustment: Go for a system that is easy to adjust and can be quickly reconfigured. This will enhance its adaptability to diverse projects hence reduce downtime during changeovers.
- Operator Training: Make sure all operators have been adequately trained on how to use modular fixturing systems. Proper training is essential in maximizing efficiency while maintaining safety standards.
- Regular Maintenance: Develop regular maintenance schedules for the fixturing system to keep it in optimal state. Periodic checks can forestall unpredictable breakdowns thus extending the lifetime of these constituents.
Following these guidelines, manufacturers will succeed in implementing a modular fixturing system in welding which improves productivity, accuracy, and resilience.
Selecting the Right Fixture Needs for Your Operation
Several important factors need to be kept in mind when deciding on the right fixturing requirements for your operation. First of all, determine what your production calls for, such as the types of work pieces, welding processes and accuracy degree required in order then to figure out which fixturing components are most suitable. Secondly, keep flexibility and modularity at the top of your list when choosing fixture solutions. Productivity can be improved a lot by having this kind of system that is flexible enough to change and reconfigure easily leading to less setup times. Lastly, make sure that you go for fixtures that are durable and high quality because inaccurate measurements will not occur while wear and tear will be minimized over time. In looking at these key aspects one can therefore choose the best fixturing system which suits his operations needs better improves productivity and does not have the problem of wearing down with time as a result.
Maintaining and Adapting Your Modular System
To keep your modular fixturing system running for a long time and performing at its best, regular maintenance and adaptability must be carried out. A systematic routine that involves cleaning, lubrication, and inspection of all components is a way to maintain the system. For instance, clean surfaces so that they are devoid of debris which can hinder precision while you can lubricate moving parts to facilitate smooth operations. Thereafter worn out parts should be replaced immediately.
Updating fixtures by reconfiguring them is important in adapting your modular system according to changing production needs. Occasionally check if the new work pieces or welding techniques can be used with your systems. If there is a need to increase the capability of this system some more modules may have to be purchased. To ensure efficiency in using the system, operators should be trained on how it works and maintained with current configurations. This keeps processes productive and precise as you maintain and adapt your modular system.
Consult with Fixturing Experts to Enhance Process
Enlisting the help of fixture professionals can greatly improve your manufacturing processes as well as streamline your operations. They have expertise in choosing appropriate modular components, ensuring they match your specific needs and reconfiguring it for better efficiency. They have a vast experience drawn from different applications and industries that you can use to bench mark or come up with new ideas. Fixturing experts also provide aid in problem resolution, installation of advanced practices and training on new schedules and servicing measures. By working together with seasoned practitioners, one will improve accuracy, dependability and efficiency of a modular fixturing system.
Reference sources
Frequently Asked Questions (FAQs)
Q: What is a modular fixture system in CNC workholding?
A: A modular fixture system is a versatile setup that utilizes standardized components and plates to create customizable fixturing solutions for various machining tasks. This type of system increases efficiency and flexibility in CNC workholding, making it easier to adjust and repurpose fixtures for different workpieces.
Q: How does a welding table contribute to modular fixturing systems?
A: A welding table provides a stable and flat surface where workpieces can be securely fixed. This table often features grid patterns or modular fixture plate setups that allow for precise positioning and flexible adjustments, making it an essential part of modular and custom fixturing solutions.
Q: What are the advantages of using a Tosa Tool in a modular fixture setup?
A: Tosa Tool offers high-quality products like modular fixture plates and fixture components designed for precision and durability. Using Tosa Tool in a modular system allows for greater adaptability and accuracy, benefiting machinists who need reliable, multi-purpose fixturing solutions.
Q: How can fixture tooling improve CNC machining processes?
A: Fixture tooling improves CNC machining by ensuring that workpieces are securely held in place, minimizing movement and vibration. This leads to more accurate machining results and extends the lifespan of the machine tool. The ability to customize fixtures can further enhance productivity and efficiency.
Q: What are the benefits of modular workholding fixture solutions over dedicated fixturing systems?
A: Modular workholding fixtures offer greater flexibility and cost-efficiency as they can be easily reconfigured for different tasks and workpieces. Unlike dedicated fixturing systems, which are designed for specific parts, modular solutions can be adapted for a broader range of applications, reducing the need for multiple, single-purpose fixtures.
Q: How do CMM fixtures integrate into modular fixturing systems?
A: CMM fixtures are used to securely hold workpieces during coordinate measuring machine (CMM) inspections. They can be integrated into a modular fixture system using modular tooling and plates, enabling precise and repeatable measurements. This integration facilitates easier adjustments and more accurate quality control.
Q: What is a modular fixture plate, and why is it important?
A: A modular fixture plate is a foundational component of a modular fixturing system. It provides a standardized surface with a grid pattern or holes for attaching various fixture components. This plate is important because it allows machinists to quickly set up and modify fixture configurations, enhancing the overall efficiency and versatility of the fixture system.
Q: Can a modular fixture system be used for vision fixtures?
A: Yes, a modular fixture system can be highly effective for vision fixtures. These systems provide adjustable and stable setups that can support vision inspection processes. Using modular components, machinists can create customized fixtures that hold workpieces accurately in the field of view of vision systems, ensuring precise inspection results.
Q: What are some common applications for a Rayco fixture in a modular system?
A: Rayco fixtures are commonly used in modular systems for tasks such as machining, assembly, and inspection. They offer high precision and reliability, making them suitable for a variety of applications where accurate workpiece positioning is crucial. The modular nature allows them to be easily reconfigured for different projects.
Q: How do plates and components enhance the functionality of a modular fixture system?
A: Plates and components are essential elements that offer the building blocks for creating customized fixturing solutions. They enable machinists to set up, modify, and dismantle fixtures rapidly and efficiently. These modular components provide the flexibility to adapt to various machining tasks and workpieces, enhancing the overall productivity of the machine tool.
