Metallurgical failure means the unsought destruction or malfunction that happens unexpectedly on components of metals due to many different things. This is a very crucial occurrence particularly in industries like aerospace, automotive and construction where metal reliability is everything. This study will explore common causes leading to such breakdowns, ways of analyzing failures as well as preventive measures that can be put in place towards avoiding such problems. Knowledge of the basic mechanisms and attendant variables assists companies in increasing the longevity and quality of metal structures while enhancing safety and effectiveness. The aim of this article is to provide a comprehensive overview which will serve as the basis for further detailed discussions and understanding on metallurgical failure.

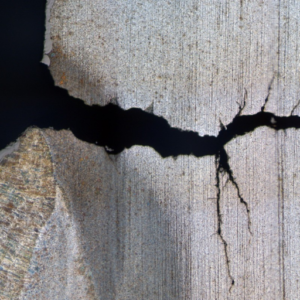

What is metallurgical failure?
Image source: https://idtl.in/
In most instances, metallurgical failure occurs through material defects, environmental conditions, mechanical stresses or improper manufacturing procedures leading to fractures, deformations or corrosion causing degradation in performance and safety levels for affected structures. By thoroughly understanding the reasons behind these kinds of failures it becomes easier to detect them effectively with an eye towards their avoidance in future times.
Defining metallurgical failure
Metallurgical failure happens when the metal components do not perform their intended purpose for various reasons. These factors usually include material defects such as inclusions or improper grain structure, environmental conditions like exposure to extreme temperatures or corrosive substances, and mechanical stresses arising from excessive loads or fatigue. There are also other causes of metallurgical failures which may be as a result of wrong manufacturing processes including poor welding practices or insufficient heat treatment. These challenges can be sorted out through comprehensive investigations that would help identify the root cause(s) and thereafter apply necessary actions to avoid future recurrence.
Common causes of metallurgical failure
Some of the causes of failures in metallurgical process are:
- Material Defects: These are defects in the materials used, such as imperfect grains or inclusions, which might impair the integrity and strength of metallic components. Such defects could be inherent since the raw material stage or may occur during manufacture.
- Environmental Conditions: Intense temperatures, corrosive surroundings, and interaction with harsh chemicals usually result in significant deterioration of metallic parts. The corrosion is also a common failure mode especially for metals exposed to moistures or acid.
-
Mechanical Stresses: Too much loads, cyclic stresses and fatigue may cause metal structures to break apart, deform them or even experience catastrophic failures. Repetitive cycles of mechanical overloading and stress cause gradual weakening of metal leading to risks associated with its breaking down.
Impact of metallurgical failure on industries
Different industries, namely aerospace, automotive, construction and energy sectors are affected by metallurgical failures. In the aerospace industry there may be catastrophic accidents resulting in the loss of lives and huge financial implications through grounded fleets and repairs. The same risks are faced by the automobile sector where safety can be compromised due to failure of metallic materials and it results in costly recalls that can damage a brand’s reputation. Construction projects may be delayed, cost more or lead to severe safety problems for workers as well as occupants because of metallurgy-related structural flaws. The oil and gas industry widely experiences this problem because pipeline and drilling equipment metallurgical failures cause environmental catastrophes, stop production processes, and necessitate expensive repairs. There is thus need for understanding and prevention of metallurgical failures which are important for maintaining safety, reducing costs incurred in these sectors while making sure industrial operations remain reliable.
How do you perform a metallurgical failure analysis?
The various steps involved in metallurgical failure analysis are systematic inspection methods to determine the causes of a failure. The first step is gathering information about the component that failed, for example, its service life and conditions of operation, among other incidents. Next, it involves intensive visual and microscopic study that identifies any of them contributing factors like surface fractures and microcracks resulting in the loss of integrity. Analysis shows the composition of material whereas mechanical testing offers knowledge on material properties. Non-destructive testing techniques such as ultrasonic examination or X-ray will be useful in detection of internal defects. In conclusion, one should review all relevant industry standards and specifications based on which findings are made about what could result in a similar disaster and remedies can be suggested.
Steps in a metallurgical failure analysis
- Data Collection: Gather extensive data concerning the failed part including its designing, making, servicing and working conditions. This preliminary step is crucial for understanding the circumstances in which the failure happened.
- Visual Inspection: Examine the part thoroughly by looking at it. Take note of physical features like deformation, discoloration, or any patterns of fracture. To capture this observation, high-resolution pictures may be taken.
- Microscopic Examination: Sample analysis by use of optical and electron microscopes at very high magnification is necessary. It helps in determination of microstructural properties, such as grain size distribution and phase relationships as well as possible microcracks or inclusions.
- Qualitative Chemical Analysis: Conduct chemical analysis through techniques like spectroscopy (e.g., X-ray fluorescence, energy-dispersive X-ray spectroscopy) to determine the elemental composition of a material with precision. Is its composition what was intended?
- Mechanical Testing: Carry out mechanical tests such as tensile tests, hardness tests and impact tests to determine whether or not a material meets specific standards set by various organizations. These tests provide insights about its strength; how brittle it is; and how much it can deform before breaking apart.
- Non-Destructive Testing (NDT): Employ non-destructive testing (NDT) methods e.g., x-ray inspection, ultrasonic inspection and magnetic particle testing to identify both internal and surface defects without causing any damage to the components being tested. They help to expose hidden flaws.
- Data Analysis and Comparison: Analyze the collected data vis-à-vis industry standards and specifications. This step involves identification of deviations from expected behavior that could signal potential failures modes.
- Root Cause Analysis: Combine all available information gathered during steps 1 through 7 above to find out why the component failed using failure models and consultations with materials scientists/engineers/experts.
-
Report Writing and Recommendations: Prepare a comprehensive report stating what was found during this exercise; conclusions drawn from those findings and suggested remedial measures that may include but not limited to design changes, material substitution or operational modifications in order to avoid recurrence of similar failure.
Key tools and techniques for analysis
- Scanning Electron Microscopy (SEM): SEM provides high-resolution imaging for surface structure and composition analysis of materials. It helps to identify microstructural features and defects that are responsible for failures.
- Energy Dispersive X-ray Spectroscopy (EDX): This method, in combination with SEM, offers an analysis of chemical elements in the sample tested. Also necessary in detecting any form of failure due to compositional irregularities.
- X-ray Diffraction (XRD): The crystallographic structure of a material is analyzed by means of XRD which shows the phases and their correct phase proportions. This aids in understanding the mechanical behavior and stability of the material.
These facilities are essential tools for analyzing failures, giving full property information on the material, as well as potential reasons for its failure.
Role of scanning electron microscopes in failure analysis
Material surfaces and structures are detailed and have high resolutions because of the role played by Scanning Electron Microscopes (SEMs) in failure analysis. This helps investigators to consistently identify surface topology features, fracture modes as well as microstructural defects that lead to failure. On the other hand, they allow analysts to focus on regions of interest at greater than 100,000 times magnification power thus making it possible for them to detect very minute defects and inconsistencies.
Furthermore, SEMs in conjunction with Energy Dispersive X-ray Spectroscopy (EDX) can be used to determine elemental compositions at specific locations. The importance of this two-mode capability is related with the detection of material inconsistencies, contaminations or deviations from specified compositions. The visual and analytical data produced through SEM examination constitutes a strong foundation for establishing reasons why materials fail such issues include manufacturing defects; environmental damage; or mechanical stress.

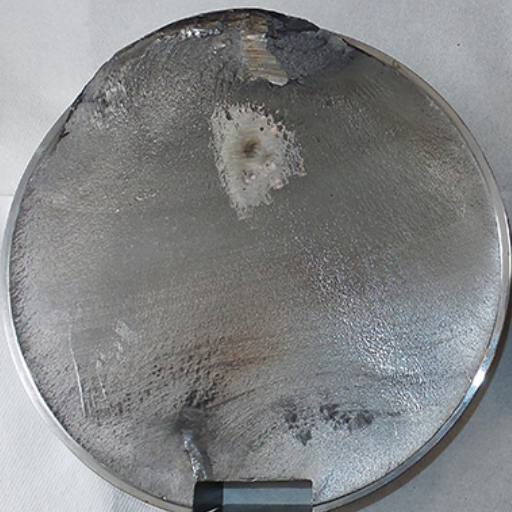

What are the common types of fractures in metals?
Metals can experience different kinds of fractures depending on the circumstances and loads to which they are exposed. These are:
- Ductile Fracture: Ductile fractures, which commonly have a dimpled rupture surface, show substantial plastic deformation prior to separation. They usually absorb much energy in their course that results in slow- staged ruptures.
- Brittle Fracture: Brittle fractures often have a shiny flat granular surface with little or no plastic deformation. Such failures can propagate at high speeds with low amounts of energy, making them very abrupt and catastrophic.
- Fatigue Fracture: Fatigue fractures which are induced by cyclic or repeated stresses over time exhibit distinct striations or beach marks on the fracture surface. Often these start from sources of stress concentration such as sharp edges, inclusions or surface flaws.
- Creep Fracture: Creep fractures occur when materials are subjected to long- term stresses at high temperatures and hence show rough fibrous appearance. Normally, these progress along grain boundaries and hence can be encountered in applications involving high temperatures.
- Stress Corrosion Cracking (SCC): SCC is an intergranular or transgranular failure caused by a combination of tensile stress and corrosive environments. The broken face usually exhibits branching patterns.
Knowledge concerning these types of fractures helps in identifying causes of failures and instituting appropriate preventive measures in metallurgical applications.
Characteristics of a brittle fracture
Some of the factors that can be used to define a brittle fracture and prevent it from occurring are well known. A major distinguishing feature includes the absence of a considerable plastic deformation prior to failure, resulting in a clean break with a flat surface. The surface is bright and has an appearance like grains, which may look like cleavage or crystallographic planes. Brittle fractures usually propagate at high velocities with minimal energy absorption leading to sudden catastrophic failures. Additionally, brittle fractures commonly occur when there are preexisting defects for instance microcracks or inclusions which act as the points of initiation. Lastly, brittle fractures usually take place at lower temperatures where materials tend to be less ductile and more susceptible to crack propagation. This knowledge is vital in predicting and reducing the probability of brittle failure in engineering materials.
Understanding ductile fractures
Ductile fractures differ greatly from brittles ones by having extensive plastically deformed areas before rupture point occurs. In cases of ductile fracture, significant bending or stretching happens leading to much energy being taken up even though this can’t be seen directly. Ductile fracture surfaces generally appear rough and fibrous with often exhibiting cup-and-cone pattern due to microvoid coalescence growth and nucleation.This particular characteristic arises because the material has the capacity for extensive plastic deformation that prevents it from being ruptured under stress conditions.Ductile fractures commonly happen at higher temperatures than brittle ones where materials are more strong or remain intact under increased strain stresses.This finding is fundamental towards improving toughness and reliability of materials used in critical applications of metallurgical and material engineering

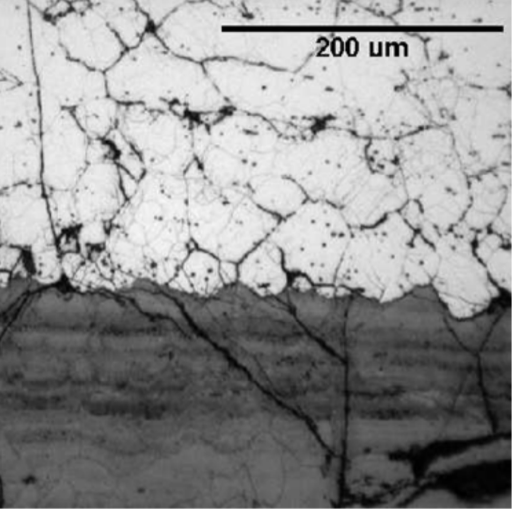

Identifying stress corrosion fractures
Stress corrosion fractures occur because of the combined effect of stress that is applied to a material, which may rupture it and the presence of an aggressive medium. Stress and corrosive agents are therefore responsible for this kind of failure mode which is often characterized by slow crack growth leading to stress corrosion cracking (SCC). Normally, such fractures start at locations where there is high stress such as notches, welds or residual stresses and advance with time even at lower than yield strength stresses. Stress corrosion cracking (SCC) fracture surface normally exhibits characteristics of both brittle and ductile in nature, where intergranular or transgranular propagation could be present. It is crucial also to identify SCC effectively through control over material compositions, environmental factors and level of stresses as well as using protective coatings while applying inhibitors so as to minimize exposure times towards corroding agents. The final part will discuss how regular inspections including non-destructive testing can assist detect early signs of SCC in infrastructure thereby preventing catastrophic failures.
How do environmental factors like corrosion impact metals?
Metals’ structure and content deteriorate in the long run due to environmental factors such as corrosion. Corrosion is when metals react with elements within their environment such as oxygen, moisture, chemicals, and pollutants. This reaction leads to formation of oxides and other compounds that destroy the surface of the metal, leading to loss of material, reduction in strength levels and hence impaired structural integrity. Factors like temperature, humidity, corrosive agents determine how fast or slow corrosion can take place.
The role of corrosion in metallurgical failure
Corrosion degrades metals resulting in reduced mechanical strength and decreased structural integrity hence playing a significant role in metallurgical failure. Examples include pitting corrosion; cracking involves brittle fracture along grain boundaries; thinning reduces cross-sectional area until they fail if it becomes too thin; stress corrosion cracking (SCC) occurs under certain tensile stresses. The key mechanisms through which corrosion cause metallurgical failure are uniform corrosion, galvanic corrosion and localized corrosion such as crevice or pitting corrosion. Choosing materials carefully for use in different environments helps reduce the negative effects of corrosion including erosion on metallic components’ lifespan. These steps will help identify early signs of decay well before they become severe cases that may result into catastrophic failures at any time.
Techniques to prevent and mitigate corrosion
There are several techniques which are generally recommended to effectively prevent and mitigate corrosion.
- Material Selection: It is possible to reduce the risk of corrosion by selecting materials that are resistant to corrosion, such as stainless steel, aluminum or alloys made specifically for withstanding corrosive environments.
- Protective Coatings: Paints, galvanization or specialized films that provide resistance against corrosion can be applied in order to shield the metal from any direct contact with these corrosive elements. Powder coating or anodizing methods can also be used to improve durability and protection.
- Cathodic Protection: This procedure involves using sacrificial anodes or impressed current systems in order to control metal structure deterioration due to corrosion. The principal metallic structure will not suffer from corrosion if a more easily corroded metal (sacrificial anode) is used or by passing through it an electrical current (impressed current).
- Environmental Control: Controlling the environment can help prevent corrosion by reducing exposure to moisture, oxygen, and corrosive chemicals. For example, this may involve dehumidification, ventilation and use of desiccants.
- Corrosion Inhibitors: Addition of chemicals inhibiting corrosion into the environment e.g., cooling systems or pipe lines could lessen corrosive reactions. These inhibitors form a protective film on the surface of metals thereby preventing their exposure to corrosives.
To prolong their life span while ensuring dependability in different uses one must apply regular check up together with implementing these approaches.
Investigating corrosion during failure analysis
When investigating corrosion through failure analysis, you should systematically determine the causes and mechanisms of corrosion. Here are some important steps:
- Visual Inspection: Start with a thorough examination of the surface to identify patterns of corrosion such as pitting or any other form of uniform or stress-corrosion cracking. Examine areas that have corroded with attention to the extent to which they are affected.
- Material Analysis: Find out what kind of material has been affected and study its composition and microstructure. Common methods for material characterization include spectroscopy, electron microscopy and X-ray diffraction among others in addition to elemental analysis for studying both the material itself and its corrosion products.
- Environmental Assessment: Consider environmental factors where failure occurred . These include temperature, humidity, presence of corrosive agents (chemicals,salts etc) even biological activity may enhance corrosion.
- Electrochemical Testing: Use techniques like potentiodynamic polarization and electrochemical impedance spectroscopy (EIS) to glean information about the electrochemical behavior of a material during service.
- Stress Analysis: Analyze mechanical loads impinging on materials similar to those in question, as stress can work synergistically with corrosive mediums all leading towards accelerated failure modes such as stress-corrosion cracking.
- Comparison with Standards: Match results against relevant industry standards and historical data that would explain whether expected performance was attained by the component or if it deviated due to unforeseen circumstances.
Through these steps, you will be able to pinpoint exactly why certain kinds of failures were caused by corrosion as well as make plans on how they can be mitigated in future.
What is the importance of failure investigation?
Crucially, failure analysis helps identify the cause of a failure so that future failures can be avoided. Knowing how materials were defective, environmental factors or misuse contributes to failure gives us an opportunity to implement necessary actions. This improves both safety and reliability while at the same time reducing unexpected downtime and associated costs. Moreover, knowledge gained from analyzing faults allows for design development as well as choice of building materials and maintenance procedures that will encourage new ideas and updates.
Principles of root cause analysis in failure investigations
These four essential principles guide the effective application of RCA in a failure investigation:
- Data Collection: This will involve gathering comprehensive data on the problem such as materials, environmental conditions, usage history and any observed anomalies that may be useful for future analysis.
- Failure Mode Identification: How did this failure happen? Look at physical evidence and use analytical techniques like fracture analysis, chemical tests or microscopy.
- Multidisciplinary Approach: In order to comprehend why these failure mechanisms exist as well as what causes them, experts from different areas such as Material Science, Engineering and Quality Control are important.
- Why to Why Method: Use iterative questioning often referred to as “5 Whys” technique which enables you to drill down from immediate cause up to very fundamental root causes. This is because it uncovers more fundamental systemic issues rather than surface level symptoms.
- Validation and Verification: Test and experimentally validate the hypothetical root cause so that the suspected cause consistently leads to similar failures under similar conditions
- Corrective and Preventative Actions: Develop actionable solutions towards addressing identified root causes so that they don’t occur again in future. It can include; modification of design or material change or process improvement.
Following these guidelines strictly would result in an excellent detection of the origin of faults leading to improved reliability, enhanced safety measures and minimized costs linked with unexpected breakdowns.
Learning from past failures to prevent future ones
1. Evaluate Failure Data: It is very important to gather detailed information about previous failures. From this data, establish a common trend so as to what went wrong and the reasons why. Some of these may involve statistical analysis; while others may be monitoring of performance parameters like KPIs for assessing reliability and performance over a period.
2. Implement Continuous Improvement Processes: Employ techniques such as Six Sigma and Lean Management that focus on eliminating waste and improving quality. As we learn from past mistakes, these continuous improvement processes aim at creating more resilient systems that are less prone to failure.
3. Foster a Culture of Learning and Adaptation: Encourage an organizational culture that learns from its blunders rather than trying to put blame on someone else (Kotter & Cohen 2012). This includes organizing regular training sessions, establishing channels for reporting issues openly between workers, and building a workforce that can easily adapt in solving problems proactively.
Through using these strategies consistently in organizations they are able to turn past failures into valuable learning experiences that foster innovation and prevent recurrence of similar problems in future days ahead.
Case studies of significant metallurgical failures
1. The Titanic
The sinking of the RMS Titanic in 1912 is a subject of intense scrutiny for those interested in engineering failures. A major metallurgical failure that caused this tragedy was seen at the ship’s hull and some of its rivets. Analysis of the wreckage indicated that some inferior quality iron rivets were used in certain areas of the ship. Brittle rivets such as these broke when the Titanic hit an iceberg, leading to separation between hull plates and thus allowing entry of water into the vessel. This failure underscores just how important proper material choice and quality control are in ship construction.
2. The Aloha Airlines Flight 243 Incident
Aloha Airlines Flight 243 had a catastrophic fuselage failure in 1988, which resulted in the upper section of the aircraft roof being lost. It was traced back to corrosion and metal fatigue that led to aluminium lap joint failure.The materials underwent fatigue after many takeoffs and landings cycle within an aircraft.The lack of adequate maintenance and inspections played a role in this failure.Case like this tells about requirement for regular maintenance programs with strict checks on materials to avoid their fatigue.
3. The Eschede Train Disaster
An Eschede train disaster took place in Germany during 1998 as one of Germany’s deadliest high-speed train crashes due to a wheel metallurgical fault . A crack from fatigue on one wheel caused it to disintegrate followed by derailment . Insufficient inspection practices led to detection failure of this crack . Such a catastrophe shows why strict inspection should be observed so that there is use of resilient materials for high-speed railway constructions aiming at protecting passengers from harm.
How do manufacturing processes affect failure modes?
Different manufacturing processes affect the failure modes of materials and structures significantly. Materials selection, quality of raw materials, control over manufacturing methods such as welding, casting or machining are important for ensuring the integrity of a final product. Poor manufacturing quality can introduce defects like cracks, voids or inclusions which act as stress risers leading to failure initiation. Variations in processing conditions such as temperature and pressure can also influence material microstructure and mechanical properties, thus leading to problems such as brittleness or residual stresses. As a result, strict regulation and monitoring of manufacturing procedures are inevitable for reducing the occurrence of material failures and assuring dependability and safety of the final item.
Role of welding in metal failure
Welding is a critical contributor in metal breakdown under diverse causes. Deficient welding methods may introduce flaws e.g. cracks, porosity and inclusions that serve as stress concentrators thereby causing reduced strength on welded joints. While performing welding exercise poorly controlled heat can lead to cases such overheating which brings changes into metal microstructure resulting into brittleness or residual stress effects. Besides this, poor weld quality creates weaker areas vulnerable to fracture and fatigue cracking upon cycling loads application. This calls for adherence to proper welding guidelines using experienced welders who should constantly monitor their work against these developments so as not to risk integrity of metal structures involved.
Impact of improper heat treatment
Metal mechanical properties and their performance can be greatly affected by incorrect heat treatment. Annealing, quenching, and tempering are among the many techniques employed for this purpose. They induce hardness, ductility and strength by modifying metallic microstructure. Nonetheless, when wrong, poor heat treatments may result in excessive hardening, increased fragility as well as stress that is left after processing during material manufacture which affects its ability to withstand operational loads. This results in premature failure through cracking, distortion or decreased fatigue resistance of metals. Thus, it is necessary to avoid negative consequences by ensuring accurate heating/cooling rates control as well as precise temperature management.
Effect of defects introduced during manufacturing
Manufacturing defects can significantly compromise the structural integrity and performance of metallic parts. Among the most common manufacturing defects are porous surfaces, inclusions, cracks as well as incorrect dimensions. Porosity results from trapped gas when casting or welding is taking place leading to formation of voids causing reduction in both metal strength and fatigue resistance. The inclusion is used when describing non-metallic substances that are compacted within a given metal thereby acting as stress concentrators which greatly enhance crack initiation and propagation under load. Cracks created during machining or forming procedures may become conduits for failure under stress. Further, not conforming to designated sizes can result in poor fitting components leading to premature wearing out or malfunctioning of mechanical assemblies. These defects need to be prevented through accurate inspection protocols, adherence to specific manufacturing standards as well as meticulous quality control so that the reliability and strength of metal items could be achieved.
Frequently Asked Questions (FAQs)
Q: What is metallurgical failure analysis?
A: Metallurgical failure analysis is the process of investigating the cause of failure in metals and alloys. It involves identifying the nature of the failure, whether it be corrosion, mechanical damage, stress concentration, or other factors, to prevent future failures. This analysis is often performed by a failure analyst or metallurgist.
Q: How is a crack identified in failure analysis?
A: A crack in failure analysis is identified through various nondestructive and destructive testing methods. Techniques like penetrant inspection, ultrasonic testing, and metallography are used to detect cracks and assess their characteristics.
Q: What role does fracture surface examination play in failure analysis?
A: Fracture surface examination involves analyzing the broken surfaces of a material to determine the cause of failure. This can reveal features such as secondary cracks, areas of oxidation, and evidence of stress concentration that help pinpoint the failure’s origin.
Q: How does embrittlement affect metals?
A: Embrittlement is a loss of ductility in metals, making them more susceptible to cracking under stress. This phenomenon can cause failures in metal components, which can be detected through tests like tensile testing and toughness testing.
Q: What types of tests are used to determine the cause of mechanical damage in metals?
A: Tests such as hardness testing, tensile testing, and corrosion testing are commonly used to determine the cause of mechanical damage in metals. These tests provide data on material properties and help in identifying the cause of failure.
Q: What is the importance of macroscopic and metallographic examinations in failure analysis?
A: Macroscopic and metallographic examinations provide detailed insights into the structural integrity of metals and alloys. Macroscopic examination looks at the overall failure pattern, while metallographic examination uses microscopes to study microstructural features, both crucial for understanding the cause of failure.
Q: How are nondestructive testing methods used in failure analysis?
A: Nondestructive testing methods like ultrasonic testing, X-ray radiography, and optical emission spectroscopy are used to detect flaws in materials without causing further damage. These methods help in identifying potential failure points and assessing material health.
Q: What is the significance of background data in performing failure analysis?
A: Background data comprises the historical, operational, and environmental conditions of the failed component. This information can also determine if external factors like applied mechanics, design defects, or improper material selection caused the failure.
Q: How do associated specifications and astm standards guide failure analysis?
A: Associated specifications and ASTM standards provide guidelines and best practices for conducting various tests and analyses. They ensure consistency and reliability in identifying the cause of failure and devising prevention strategies.
Q: Why is it important to inspect for signs of corrosion and oxidation in failed metals?
A: Inspection for signs of corrosion and oxidation is vital because these processes can weaken metals and cause failure. Identifying such issues through methods like corrosion testing and etching helps in taking preventive measures to avoid future failures.
