When it comes to manufacturing intricate metallic parts, there are two main processes: Metal Injection Molding (MIM) and Die Casting. It is therefore important to understand the variations between them in order to choose the one that best suits your specific needs because they both have their own pluses. This paper gives a comprehensive overview of both Metal Injection Molding and Die Casting, focusing on such factors as material choice, production efficiency, cost considerations and product suitability. By the end of this guide, you will be better able to choose the best method for your manufacturing requirements by understanding your options more clearly; thus enhancing productivity while also meeting quality targets.
What Is the Metal Injection Molding Process?
Image source: https://www.alphaprecisionpm.com/
The Metal Injection Molding (MIM) is a manufacturing process which fuses the malleability of plastic as used in injection molding and strength of metals. The process starts by first blending a feedstock, which entails combining metal powders with a binder. This blend is then injected into molds under high pressure to form a green part. After debinding the green part, sintering follows whereby compressed metal particles are heated just below their melting point resulting in dense solid product. MIM is the most preferable method for manufacturing large quantities of complex, high-precision metallic components that have fine physical properties.
How Does Metal Injection Molding Work?
Metal injection molding is a process which involves several steps that are carefully coordinated to create metal components with high precision. For instance, it starts by mixing fine metal powders and thermoplastic binders into a feedstock. At this stage, the mixture is granulated before being fed through an injection machine and injected into a mold cavity at high pressure forming what we call “green parts”
Debinding follow thereafter as the green part is relieved of its plastics binders often through either solvent extraction or thermal debinding. The resulting component, now called a ‘brown part,’ is porous and fragile. Lastly, sintering occurs whereby the brown part is heated to almost the melting point of the metal powder making them coalesce and solidify thereby reducing their volume significantly causing formation of a dense metallic component which has good mechanical properties.
What Is the Role of Metal Powder in MIM?
Metal powder is of great importance to Metal Injection Molding (MIM) since it acts as the base material for the ultimate metal component. The caliber, size and shape of the metal powder are responsible for formulation of feedstock that also dictate during injection molds flow characteristics and final properties of molded parts. Fine metal powders are mixed with thermoplastic binders to make a uniform feedstock which is then injected into molds. During sintering, the brown part densifies and solidifies into a strong, precise high precision metal component through diffusion bonding between particles of the metal powder. The choice of metal powder is very critical in determining mechanical property, dimensional accuracy and overall performance of a part in its intended application.
Understanding the Sintering Process in MIM
Metal Injection Molding (MIM) depends heavily on sintering, a process that turns the brown part into a sturdy and dense metal article. The brown part is heated to almost the melting point of the powder metal in a controlled atmospheric environment, through which it becomes denser. The high temperatures cause metallic particles to bond together creating shrinkage and removing any pores. By giving rise to an indivisible solid mass, the structure of sintering aids in improving mechanical features, dimensional constancy and general performance for this end-use application. For achieving desired outcome with MIM product design, careful control of sintering parameters requires appropriate setting of temperature, time and atmosphere.
How Does the Die Casting Process Work?

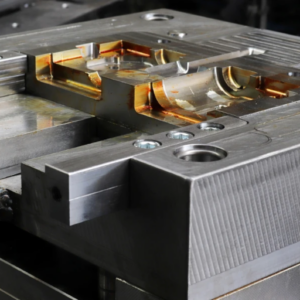

To make a die casting, metal is forced into the mold cavity at high velocity and under high pressure. It begins with melting metals such as aluminum, zinc or magnesium to their molten state. This molten metal is then injected into tough metallic molds referred to as dies that take shape once filled. The clamping of these dies is very strong to ensure that they can withstand the great pressure upon them. After cooling and solidification of the metal, the mold is opened and cast part ejected. This approach enables production of intricate parts with good surfaces finishes and mechanical properties thus suitable for mass-production applications in industries like auto, aerospace and consumer electronics.
Step-by-Step Guide to Die Casting
- Die Preparation and Lubrication: It is a primary step to get ready the die casted mold by means of preparing and lubricating it. These dies are created from strong steel which are cleaned up and sprayed with oil in order to remove the final casting, to regulate temperature inside.
- Melting the Metal: Furnace for heating metal (most commonly used aluminum, zinc or magnesium) until it melts. It is vital to maintain correct temperature because it allows the metal flows well.
- Injection: The liquid metal is later injected into the die cavity by high-pressure piston. Pressure ensures that all the intricate details of the mould are filled with molten material.
- Cooling: After filling a mold with molten metal, it should be left there so as to enable cooling and solidifying. This time will differ depending on type of metal as well as size of part you want to cast.
- Ejection: When solidified, the die is opened allowing ejector pins to force out any leftover casting from mold cavity. The part has to be released cautiously not causing harm on them.
- Trimming: This involves cutting off any excessive metals such like flash that might have formed during the process of casting which could be done using trimming dies or manual processes so that required shape and finish can be achieved.
- Finishing: Depending on what may be required some additional finishings like machine, polish or coat can also be done to ensure that they meet specifications for final product.
What Are the Different Types of Die Casting?
Several Die casting methods are available for the metal fabrication. There are main types of die casting and they include:
- Hot Chamber Die Casting: It is most appropriate for metals with low melting points such as zinc, magnesium, and lead. In this process, the injection mechanism is submerged in the molten metal which allows faster cycle times and efficient production.
- Cold Chamber Die Casting: This method is suitable for materials that have a high melting point like aluminum and copper alloys. The molten metal is poured into a cold chamber before being injected into a mould. Although it takes more time compared to hot-chamber, this technique is necessary to avoid damaging hot chamber components by certain substances.
- Squeeze Die Casting: Squeeze die casting combines traditional die casting with forging whereby molten metal fills a preheated mold before being forcefully squeezed out under high pressure. For example, this technique finds application in the manufacturing of parts needed to possess elevated mechanical properties such as aluminum and magnesium alloys.
- Vacuum Die Casting: When minimized porosity and high precision are aimed at. The vacuum assists in pulling molten metal into the die so as to minimize gas entrapment thereby resulting in better castings with fewer defects.
Each type of die casting has unique benefits associated with it so choosing one depends on aspects like the kind of metal used, desired product characteristics as well as production efficiency factors.
The Role of Molten Metal in Die Casting
Crucial Element in the die casting process is molten metal which fills the cavity of the die to form the desired shape. The final casting’s quality and properties largely depend on the temperature and composition of the molten metal. Correct control of such factors guarantees that the metal flows correctly into all parts of the mold thus guaranteeing production of intricate and precise components that have smooth surfaces. Additionally, molten metal must be handled carefully so as to prevent contamination and sustain its intended properties thus ensuring structural integrity and strength of final casting. Molten metal characteristics significantly affect the efficiency and speed of die casting cycle leading to high-quality die cast parts.
Metal Injection Molding vs Die Casting: Key Differences
Metal Injection Molding (MIM) and die casting are two different advanced manufacturing techniques used for production of metal parts. However, they differ in certain aspects.
- Process: MIM involves mixing metal powders with a binder to form a feedstock, which is then injected into a mold. The binder is removed after molding and the remaining metal part sintered at high temperatures. On the other hand, instead of using this process, die casting entails forcing molten metal under high pressure into a mold for it to take shape.
- Materials: Due to the powder metallurgy techniques that are applied during MIM, it can accommodate various types of metal alloys including stainless steel, titanium and complex alloys. On the contrary, die casting mainly works with non-ferrous metals such as aluminum, magnesium and zinc.
- Part Complexity and Precision: With its ability to produce highly intricate shapes with close tolerances and fine details, MIM is suitable for small intricate parts. Die casting also makes complex parts but does better when creating larger components with smooth surfaces and good dimensional accuracy.
- Production Volume: Die casting has shorter cycles explaining why it is more preferable for huge output productions. Conversely, because MIM can produce these smaller parts on medium-scale-high volume basis.
- Mechanical Properties: It should be noted that typical properties of Materials made by MIM have superior mechanical properties as well as higher density compared to die-cast ones due sintering process that binds them stronger leading increased structural integrity.
To sum up, selecting between MIM or die-casting depends upon the specific requirements in terms of complexity; material; mechanical properties; production volume etc., each part needs from its end users
Comparing Raw Materials: Metal Powder vs. Alloy
There are a number of things one has to consider when comparing alloy and metal powder as raw materials. On the other hand, when it comes to MIM process, Metal powders can be used for a variety of metals and alloys types making them more versatile than alloys. They allow complex shapes which cannot be created with the traditional alloying methods, improved surface finish, intricate details which require very expensive machining operations. Additionally, this allows better control over composition leading to materials having improved mechanical properties and densities after sintering.
However, in processes like die casting, the utility of alloy materials is limited for non-ferrous metals such as aluminum, magnesium and zinc. For high-volume production they have excellent flow characteristics facilitating rapid cooling rates thus enabling quick cycle times to be achieved. Alloys may not match mechanical properties or complexity available with metal powders but they are good at producing larger parts with consistent dimensional accuracy.
In summary, choosing between metal powder and alloy depends on what kind of production is required. Metal powders offer better versatility for smaller intricate parts requiring superior mechanical properties while alloys are suited for large components that need high efficiency in manufacturing techniques.
Efficiency in Production Runs
Manufacturing efficiency in production runs is a crucial consideration and often depends on the chosen materials and processes. Metal injection molding (MIM) which uses metal powders has high material utilization and can create intricate geometries with little waste. This method is particularly suitable for small to medium-precision manufacturing where there are fine details, and they require good mechanical properties.
On the other hand, die casting in most cases involving alloys is incomparably efficient for large-scale production. The process outperforms others in terms of speed as it has rapid cooling rates and excellent flow characteristics that make it ideal for making large numbers of components with predictable quality and close tolerances.
In sum, MIM using metals powders excels in low to medium volume runs that demand complex shapes and high precision while die casting employing alloys is preferable for mass production that prioritizes dimensional accuracy, tolerance levels.
Quality and Precision of mim parts versus Die-Casted Parts
Several important factors must be taken into account when comparing the quality and precision of die-casted parts with those made from Metal Injection Mold (MIM). This is because MIM parts, which are made up of fine metal powders tend to show a better precision and detail; hence there is more ease of creating complex geometries that have excellent dimensional control. As such, most components produced using this technique do not require any form of post-processing.
Conversely, die-casting normally with alloys excels in producing high-strength parts quickly and effectively. However, die-cast parts may be limited in terms of details accuracy as well as requirements for additional finishing operations to achieve desired tolerance levels and surface quality standards.
In summary, where applications demand high precision and intricate designs, MIM has an edge over die casting while die casting takes the lead when it comes to large scale production focusing on strength and speed.
What Are the Die Casting Applications?
Die casting is a popular production technique used in a multitude of industries because it is capable of creating high strength components with good dimensional accuracy in short time frames. In the automotive sector, for example, die castings such as engine blocks, transmission housings and heat sinks are indispensable for vehicle performance. The electronics industry also takes advantage of this process to fabricate components like casings and connectors that can withstand rough handling and maintain tight tolerances. Moreover, household appliances along with power tools as well as aerospace equipments often incorporate die casted parts due to their toughness and cost-efficiency in large scale manufacturing processes. Die casting is versatile enough to suit any application requiring strong, dependable and intricate metal parts.
Industries That Rely Heavily on Die Casting
Die casting is an essential process in various important industries. The automotive industry uses die casting as a major tool for getting components like engine blocks, transmission cases and structural parts which need to have high strength and dimensions that are accurate. The aerospace industry makes use of this form of casting to produce parts that can take on tough environments even as they remain light in terms of weight such as aircraft parts and instrument housings. Lastly, consumer electronics have been boosted by die casting such that durable and precise housings as well as connectors are made for smartphones, laptops, among other things. It is evident from these sectors how versatile and efficient the technique is in high toughness, accuracy applications.
Common Products Made Using the Die Casting Process
Due to the capability to make convoluted forms with high precision and identicalness, die casting is a versatile method of producing different products across numerous industries. Here are some typical examples of products manufactured using die casting:
- Automotive Components: Engine blocks, transmission housings, alloy wheels among other structural parts are often die-casted to provide the necessary strength, precision and heat dissipation required in automotive applications.
- Consumer Electronics: Die casting is widely used for manufacturing smartphone, laptop, tablet housings and connectors among other electronic devices. This process guarantees that these parts are rugged yet light weight and dimensionally accurate.
- Aerospace Parts: Die casting is used in the fabrication of components such as aircraft instrumentation housings, engine parts and others that require high strength; resistance to heat as well as reduced weight.
- Household Appliances: For instance, microwave oven components are made through die casting among other washing machine parts or heat sinks for multiple home electronics thus improving their durability and performance.
- Industrial Equipment: Power tools as well as machinery parts including pump housings have complex geometrical features that necessitate their production through the use of die casting because they need to be strong and durable.
The utilization of die casting for these items demonstrates its effectiveness in large-scale production of detailed metal objects which are of high quality and reliable.
Which Is Better for Your Needs: Injection Molding vs. Die Casting?
To determine whether injection molding or die casting is more suitable for your manufacturing, it is essential to bear in mind the particular requirements of your project. Injection molding is commonly used in the production of plastic parts. It has a high production speed, excellent surface finish and suitable for large scale manufacturing which is cost effective. On the other hand, die casting is mainly preferred when making metal pieces that require complex shapes and high strength. Precisely, it stands out with its robustness, exactness and suitability for building strong heat resistant objects. In summary, the choice between these two processes depends on plastic vs. metal material requirement; desired physical properties; production volume and budgetary limits.
Determining the Right Manufacturing Process
To select the right manufacturing process; it is necessary to consider your project’s specifics. For plastic parts, injection molding is often considered due to its capability of producing large volumes quickly with excellent surface finish and cost effectiveness. On the other hand, die casting comes to the forefront for metallic components requiring complex designs as well as significant strength. It makes high-strength and heat-resistant parts that are suitable for use in industrial applications. Ultimately, by taking into account such issues as material type, precision required, production volume and budget you may choose a method that fits best to your manufacturing goals.
Considering Cost and Efficiency in Injection Molding and Die Casting
There are many things that must be considered when evaluating the cost and efficiency of injection molding and die casting. Due to its capacity for vast production of plastic parts in bulk within shorter periods and with little waste, injection molding usually costs less per unit for high volume runs. While initial tooling costs may be high, low variable costs over large volumes offset these. Besides, it should be stated that injection molding has a great surface finish which eliminates the need for post-production activities.
On the other hand, die casting is characterized by expensive tools and machinery leading to high upfront costs. However, it is exceptional in producing strong metal components having complex structures and extremely precise tolerances. Die casting is very efficient for applications requiring robust heat resistant components although its per-unit cost is usually more than that of injection molding. Nevertheless this process remains popular because strength as well as complexity are main concerns in manufacturing metal parts.
In short, while injection molding is inexpensive for mass-produced plastic part production; die casting is best suited to fabricating intricate metallic parts with complex shapes that have strength requirements beyond what plastics can offer. Decisions on whether to use either of the methods should factor on the number expected to be manufactured or used at a given time, type of material required and nature of the work involved.
The Future of MIM and Die Casting
Technological advancements and industry needs will drive the evolution of metal injection molding (MIM) and die casting into the future. Industry 4.0 revolution has seen smart manufactory and automation becoming central to MIM and die casting process thereby increasing accuracy, efficiency, and scalability. The developments in material sciences are also key with new composites and alloys opening up more opportunities for performance of components as well as their application diversity.
Moreover, sustainability is now an important consideration leading to the adoption of green practices and materials. Both MIMs and die castings have moved towards reducing energy use as well as reducing waste to align with global environmental targets.
Market trends indicate that there is a growing demand for lightweight but strong components especially in areas such as automotive, aerospace, or medical applications. This has led to the discovery of new uses in these industries because MIM can make high precision complex small-to-medium sized metal parts. Similarly, through advancements in die casting process it is possible to produce stronger larger intricate parts that are able to last longer.
In summary, MIM and die casting are heading for a bright future due to advanced technologies coupled with sustainability agenda and evolving market demands.
Frequently Asked Questions (FAQs)
Q: What are the main differences between Metal Injection Molding (MIM) and Die Casting?
A: When comparing Metal Injection Molding (MIM) vs. Die Casting, MIM uses powdered metal which is molded into shape under heat and pressure, while in Die Casting, molten metal is injected into a die. MIM can produce intricate shapes with high precision, whereas Die Casting is typically used for larger, more straightforward designs.
Q: When should I choose Metal Injection Molding over Die Casting?
A: MIM is ideal for producing complex, small to medium-sized metal parts and components with tight tolerances and fine details. If your requirements emphasize high precision and intricate geometries, MIM can produce these more efficiently compared to Die Casting.
Q: What materials can be used in Metal Injection Molding (MIM) and Die Casting?
A: Die casting materials typically include aluminum, zinc, and magnesium alloys because they flow well when molten. In contrast, MIM can use a wider range of powdered metal, including stainless steel, copper, and titanium, allowing for greater versatility in material properties.
Q: How do the costs of Metal Injection Molding compare to Die Casting?
A: The initial tooling costs for MIM can be higher than Die Casting, but for small, complex parts, MIM can be more cost-effective in the long run due to reduced material waste and less machining post-process. Die casting’s costs might be lower for high-volume, less intricate parts.
Q: What are the advantages of using Die Casting?
A: Die casting is commonly used for producing high-volume parts because it allows for rapid production cycles. Additionally, the process can produce metal parts with excellent surface finishes and dimensional consistency, making it ideal for large and bulky components.
Q: Are there any limitations to using Metal Injection Molding (MIM)?
A: MIM’s primary limitations include the initial high tooling cost and a relatively longer production time for creating the initial molds. However, for producing complex geometries with high precision, the long-term benefits of MIM can outweigh these limitations.
Q: How does the strength of parts produced by MIM compare to those produced by Die Casting?
A: MIM can produce metal parts with high strength and density, often comparable to wrought metals. In contrast, parts from Die Casting, while strong, may sometimes exhibit porosity due to the rapid cooling of molten metal, which can affect their mechanical properties.
Q: Can Die Casting and MIM be used together in a manufacturing process?
A: Yes, die casting and metal injection molding can complement each other in a manufacturing process. For example, Die Casting might be used for larger structural components, while MIM can produce smaller, complex parts that require high precision, allowing manufacturers to leverage the strengths of both processes.
Q: What kind of parts are best suited for Gravity Die Casting vs. Metal Injection Molding?
A: Gravity die casting is typically suited for larger, less complex parts where the metal is injected into the die by gravity, offering excellent strength and dimensional accuracy. In contrast, Metal Injection Molding is better for small, intricate parts requiring high detail and precision.
Q: Can MIM produce parts as quickly as Die Casting?
A: Typically, Die Casting processes are faster due to the rapid cooling of molten metal and quicker ejection from the die. MIM involves additional steps like debinding and sintering, which can lengthen the process time. However, for producing complex and detailed parts, MIM offers advantages that can justify the longer production time.
