Laser spot welding is an advanced technique widely used in manufacturing and assembly because of its speed, precision, and versatility. This guide gives readers a comprehensive understanding of laser spot welding basics, applications, and benefits. Moving deeper into how it works, we will examine how this technology improves efficiency across diverse sectors such as automotive or electronics. Be it an engineer, manufacturer, or someone just interested in the modern welding techniques available, this inclusive guide will help you understand why laser spot welding carries such significance in today’s production environment.
What is Laser Spot Welding?

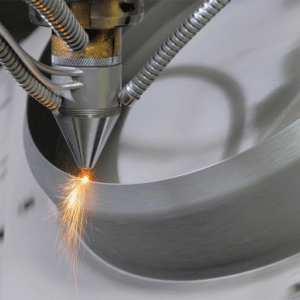

Image source: https://www.thefabricator.com/
Laser spot welding is an energy-focused weld with a high-powered laser beam to create localized joints. The powerful heat produced by the beam causes the metals at the joint to melt swiftly, resulting in solid bonds when molten material hardens. This method is particularly cherished for its capacity to connect dissimilar metals and thin materials with less thermal deformation. Assembling components like battery packs, circuit boards, and structural parts are some applications of this technique that are typically found in various industries like automotive and electronics. The accuracy with which laser spot welding can be done makes it possible to have control over his/her welding parameters, thus guaranteeing high-quality, dependable outcomes.
How does the laser welding process work?
Laser welding is a process whereby a laser produces a concentrated beam of light that is directed onto the materials to be joined. When the laser beam strikes the surface, it creates high heat and melts metal precisely at the joint. The mechanics of this process involve several crucial steps: firstly, lasers are focused on small areas, usually through lenses, to make them more intense. This facilitates the effective passage of laser beams through the materials being worked upon. When they melt, two metals produce a molten pool, which cools down, solidifying into solid welds. To obtain optimal results with minimal heat-affected zones and retain the structural soundness of surrounding materials, adjustments must be made on parameters like laser power, speed, and focus during its application.
What are the key differences between spot welding and laser welding?
My research found significant differences between spot welding and laser welding in terms of technique and applications. Using two electrodes to press against the materials and pass electric current results in heat at the joint in spot welding processes. Therefore, this technique is ideal when joining thicker metals but often has more thermal distortion than laser welding. Conversely, in the case of thin or dissimilar substances in use, laser use allows for greater precision and control since they employ focused beams of light instead. In addition, this type of joining provides cleaner finishes with less contamination besides being able to adapt itself to automated systems, thereby becoming common within advanced industries such as electronics plus aerospace engineering sectors, among others. Ultimately, selecting either method depends on material thickness and accuracy required by given projects concerning size or nature, including volume requirements for production purposes.
What materials can be used in laser spot welding?
Laser microwelding is versatile and can be used on various materials such as:
- Metals: Laser micro welding works with various metals, including steel, stainless steel, aluminum, and copper. This process is particularly beneficial for thin sections of these metals because it has a high degree of accuracy and low thermal distortion.
- Plastics: Certain thermoplastics can also be laser welded, resulting in solid bonds without additional adhesives or mechanical fasteners. This technique is becoming increasingly popular, especially in the automotive and medical device sectors.
- Dissimilar Materials: Laser microwelding excels at bonding together different materials, such as metal to plastic or other types of metal, which may not be feasible using traditional welding methods.
In general, the choice of material for laser microwelding should be influenced by parameters such as thickness, heat sensitivity, and desired joint strength.
What are the Advantages of Laser Spot Welding?
There are several notable advantages of laser micro-welding over conventional welding methods. First, it has excellent precision, and the weld depth and heat input can be controlled well, reducing the risk of damage to other materials. Second, the process leads to fewer contaminants in welds, achieving better-quality joints that require less post-processing after welding. Additionally, it enhances production efficiency while ensuring uniformity in large volumes,, making it suitable for automated systems. Lastly, however, it can effectively join thin or dissimilar materials, thus expanding its field across industries like auto motives electronics and medical devices. These benefits make laser spot welding an attractive option for many manufacturing processes.
How does laser power affect the welding process?
The laser power is an important thing to consider in welding since it affects the depth of penetration, welding speed, and the overall quality of the weld. Higher laser powers usually allow for faster welding speeds and more profound adherence to the materials, especially on thicker ones. However, excessive power can cause overheating and distortion in workpieces, resulting in poor joint quality. On the other hand, lower power settings may be more appropriate for thinner materials since they give better control and minimize the risk of burn-through. Operators optimize their welding process on different materials and thicknesses by adjusting the pulse duration, frequency, and laser power with other parameters, resulting in solid and reliable joints. Hence, there has to be a balance between what is required to arrive at its expected outcomes and treating such joined parts with honor that will not compromise their integrity.
What are the industrial applications of laser seam welding?
From my research, I have discovered that laser seam welding is used in several industries. One such use is in the automotive sector, where it helps fabricate body panels and fuel tanks so that they get strong enough to withstand all sorts of stresses brought about by environmental factors. Also, it has wide application in electronics manufacturing, particularly in assembling components that require high precision and minimal thermal distortion. Furthermore, medical device makers also employ these techniques when producing equipment under sterile conditions, requiring highly reliable bondings for safety. Therefore, considering its versatility coupled with accuracy, laser seam welding is the most preferred method among advanced manufacturing methods.
How does fiber laser welding improve efficiency?
Fiber laser welding enhances efficiency in several significant ways. To begin with, it provides a better beam quality and more focused laser spot, thus allowing for faster welding speeds and improved penetration. This increased efficiency drastically shortens processing time compared to conventional welding methods. Moreover, fiber lasers are more cost-effective considering their energy efficiency, requiring less power to achieve the same or superior results. The production of fiber laser systems is easy because they can be integrated into automated manufacturing environments easily, reducing downtime while streamlining production processes. Moreover, low maintenance requirements allow for continuous operation, promoting overall manufacturing productivity.
What Equipment is Needed for Laser Spot Welding?
Several vital pieces are required for the adequate performance of laser spot welding. Firstly, a high-quality laser source, usually solid-state or fiber lasers, is needed with the necessary power and accuracy. A suitable optics system, including focusing lenses and mirrors alongside the laser source, is also essential to correctly guide and concentrate the optical path required for precision welding. Lastly, safety equipment such as protective eyewear and enclosures must be in place to protect operators from harmful radiation from lasers during operation. Lastly, cooling systems can help manage heat generated during welding, leading to long-lasting equipment performance.
What is a laser welding machine?
A highly advanced tool, a laser welding machine employs focused laser beams that can join materials together with pinpoint accuracy and at high speed, typically metals or thermoplastics. In doing so, these machines concentrate a beam of high-intensity lasers onto the surface of the material being welded, melting them and causing fusion when they cool down. Laser welding is famous for creating clean welds with minimal distortion or heat-affected zones. The technology finds applications in industries such as automobiles, planes, spacecraft, and electronics because of its efficiency, versatility, and capability to work on intricate designs and thin-walled components.
What types of welding systems are available?
From my research, I came across various welding systems, each with advantages. Here are several types:
- MIG Welding: This system uses continuous wire feed that melts to form welds. It is known for its speed and simplicity, making it suitable for beginners.
- TIG Welding: Tungsten Inert Gas (TIG) welding involves using a non-consumable tungsten electrode, which offers more control over the weld and thus produces quality results. It is usually used on thin materials and delicate applications.
- Stick Welding: In this method, an electric current creates an arc between the electrode and the workpiece. It can be used in versatile ways and is also efficient outside, though it might not be neat like MIG or TIG.
- Laser Welding: As mentioned earlier, this system uses concentrated laser beams, resulting in accurate, strong welds, making it perfect for slim pieces requiring complicated design.
- Plasma Arc Welding: Much like the TIG method, this one utilizes ionized gas to form an arc at very high temperatures for excellent control and penetration, which is mostly suitable when welding exotic materials.
The choice between these systems depends on factors such as the specific application, material being joined, desired weld quality, and operational efficiency.
How do laser welders differ in performance?
Laser welders have distinct performance characteristics that can vary broadly depending on the kind and purpose. These include:
- Welding Speed: When it comes to speed, laser welding usually surpasses traditional welding methods, allowing for quick material production. This high-speed capability makes it ideal for large-scale manufacturing settings.
- Amount of Heat Used: Compared with other methods, laser welding generally requires less heat input, thus minimizing thermal distortion and allowing thin sheets of metal to be welded without much warping. This precision is particularly advantageous in delicate or intricate applications.
- Depth of Penetration: Laser welders can achieve deep penetration significantly with negligible power input. This implies that thicker materials are well suited to practical welding, improving the weld’s overall structural strength.
- Automated Integration: Many laser welder systems can be effortlessly integrated into automated production lines, which enhances efficiency and consistency compared to other types of processes. This feature is especially useful in manufacturing environments where uniformity is imperative.
- Versatility: Laser welders are adaptable across various industries because they can be used to fabricate a wider range of materials, including metals, plastics, and composites.
These differences in performance result in the increasing popularity of laser welding in many applications, especially where precision and fastness are essential.
What is the Welding Process for Laser Spot Welding?
Laser beam welding is an accurate welding technique that uses a high-powered laser beam to focus on material surfaces for joining. It starts with arranging the materials, which are usually close to each other. After being aligned, the laser beam is aimed at a specific point where it quickly heats up and melts the materials. As the molten material cools down, it solidifies, forming a solid weld. This method is beneficial for joining thin metal sheets and is thus often applied in industries like automotive and electronics, where accuracy and speed are vital.
What are the steps in the spot welding process?
The spot welding process consists of several essential steps:
- Preparation: To ensure good bonding, the surface of the materials should be clean and contamination-free. Proper alignment of parts is also critical.
- Clamping: Clamps press the pieces together, thereby ensuring intimate contact between their surfaces during the welding process.
- Focusing of Laser: A concentrated light beam is focused at the point of the joint between these two materials. This results in fast metal heating at this focal point by this ray.
- Welding: At this point, a pool of molten metal forms as a result of the laser beam’s meltdown. The desired weld depth and strength can only be achieved by controlling precisely both the duration and intensity of the laser pulse.
- Cooling: Right after the Melt Pool Is Created, cooling off occurs when the heat source ceases, leading to quick solidification and a strong bond between the metals.
- Inspection: Finally, before further processing stages commence, quality inspection must ensure that such requirements regarding bond specifications have been met.
These stages provide a general overview of the spot welding process, which may vary slightly depending on the specific lasers employed for welding or the type of materials used.
How does keyhole welding work in laser applications?
Based on my understanding, keyhole welding is the most efficient laser welding method that provides a high depth of penetration weld by forming a vapor cavity or “keyhole” in the workpiece material. In this process, the laser beam is initially focused on the material surface, causing it to heat up and melt the metal. As the laser advances, it vaporizes part of the molten metal, creating a vacuum. To let in more light into the primary material, pushing from the liquified surrounding pool keeps the keyhole open. This technique enables speed growth of up to 1m/min, giving solid and narrow welds, which are highly preferred for thicker materials or those requiring a high-quality finish. Additionally, I can directly influence weld dimensions by changing settings, thus enabling me to meet specific requirements.
What are the critical process parameters to consider?
To achieve desirable results, several essential parameters must be considered when carrying out laser welding. These include:
- Laser Power: The intensity of the beam influences how deep it will go into these materials and even its melting effect on them. More power might lead to higher levels of melting, while less power may fail to produce enough heat necessary for melting.
- Welding Speed: The rate at which the laser moves across a workpiece ultimately affects both the heat-affected zone (HAZ) and the overall quality of the joining made by the welding process. Faster speeds may lead to insufficient heating, while lower rates may cause over-melting or warpage.
- Focus Position: The focus point should be adjusted so that the maximum amount of energy enters through one spot, increasing the chances of getting maximum concentration at the workpiece’s surface and improving penetration depth and bead shape.
- Shielding Gas Flow: The type and quantity of gases used play a major role in preventing atmospheric contamination during the fusion phase so that impurities do not enter through vessel walls into the molten weld pool, where they might react with metals present there. Proper use of gas improves the final result here.
- Material Thickness: Thicker parts require more energy to be supplied by lasers, as these need higher powers and slower travel speeds for the two pieces to bond.
- Beam Quality: Mode and spot sizes are some of a beam’s characteristics that have a direct impact on the welding process since they determine how energy is delivered. Higher-quality beams lead to better weld control.
By carefully balancing these parameters, optimal results can be achieved in laser welding applications, resulting in solid and precise joints.
What are the Applications of Laser Spot Welding in the Automotive Industry?
Due to its accuracy and effectiveness, laser spot welding is commonly applied in the automotive industry. It joins materials like steel and aluminum with minimal heat distortion, thus used for assembling car body parts. It is beneficial in making lightweight structures that improve overall vehicle capability and fuel efficiency. Laser spot welding also connects electrical components and sensors that ensure reliable connections with electricity and durability. Its high-quality joints can be produced even under challenging places; hence, it is suitable for complicated designs of modern automotive frameworks. Overall, laser spot welding plays a crucial role in creating safer, more efficient vehicles.
How is laser seam welding used in automotive manufacturing?
Laser seam welding is applicable within the automotive industry due to its ability to form continuous, strong seams for various assembly processes. This method is particularly effective when joining thin materials where traditional processes may produce too much heat, resulting in welded deformations. One critical use case is the production of car body parts where laser seam welding allows tight control over weld bead shape, thus ensuring equal strength throughout and low thermal influence. Furthermore, it has extensive applications in manufacturing leak-proof fuel containers and exhaust systems made from robust materials only. Laser seam welding matches the precision requirements inherent to lightweight design in this field, thus increasing fuel economy and the performance of an automobile. In conclusion, integrating laser seam welding into automotive applications enhances factory productivity, enabling complex geometries essential for advanced vehicle designs.
What are the benefits of using laser welding in automotive assembly?
I have experienced that automotive assembly requires some excellent reasons to go with laser welding. Firstly, its precision allows the most minor heat input so that parts made of delicate materials do not distort easily. This is particularly important when dealing with new lightweight materials currently used in car designs. Secondly, speed in laser welding promotes production efficiency, enabling manufacturers to deliver on high-demand targets without affecting quality. Furthermore, solid and consistent joints contribute to overall vehicle safety and durability. Finally, by allowing for complex geometries, laser welding makes innovating and adapting to modern vehicle requirements easier. In summary, adopting laser welding techniques dramatically influences the production process, accelerating advancements in automotive manufacturing.
What challenges are faced in automotive laser welding?
While many advantages are associated with laser welding, it poses various challenges. One significant issue is that it requires highly skilled and proficient operators in both laser technology and material science since incorrect settings may lead to defects such as lack of fusion or excessive penetration depth into the workpiece. Moreover, the initial capital investment needed to purchase a complete set-up can be huge, impeding many companies from considering this option. It should be noted that reliance on quality control matters because any inconsistencies regarding joint integrity may have safety implications. Lastly, its compatibility with different types of materials, especially as the automotive industry shifts towards advanced lightweight composites and alloys, may lead to complications during joining, necessitating continued research and development to address effective material behavior during welding.
What are the Challenges and Limitations of Laser Spot Welding?
Even though laser spot welding is an ideal method for precision and speed, it still has some obstacles and constraints. Limited penetration depth poses a crucial problem, making it ineffective for thicker materials. In addition, achieving the desired weld quality usually demands careful control of parameters such as laser power, speed, and focus; any misalignment can lead to weak joints or flaws. Additionally, the technology is not always efficient with all combinations of materials, making it less flexible for different manufacturing applications. Also, the initial cost involved in buying equipment may be very high, discouraging most small to medium enterprises from embracing this technique. Last but not least, stringent safety protocols are required due to health concerns associated with high-intensity lasers, thus increasing the complexity of their implementation.
What are the common issues in resistance welding?
Resistance welding is expected to cause several issues, affecting the quality and efficiency of resulting bonds. The first one is inconsistent weld quality caused by electrode wear and contamination. Electrodes can degrade and become coated with impurities that hinder their ability to conduct electricity effectively as they are used. Secondly, workpieces misaligned during welding result in varying pressure levels, leading to weak bonds. Furthermore, if current settings are too low, insufficient heat will be generated, causing the material not to melt adequately.
In contrast, too much heat will result in burning, compromising component integrity. Lastly, a stable cooling rate must be maintained because rapid cooling may cause cracking at the weld joint, while slow cooling may lead to undesirable changes in microstructure. These issues can only be tackled through regular maintenance of equipment and observing various parameters to maximize its performance.
How does traditional welding compare to laser welding?
From my research, I have come to appreciate the advantages and disadvantages of traditional welding in contrast to laser welding. Traditional welding, such as MIG (metal inert gas) and TIG (tungsten inert gas), is typically more general-purpose and can be applied to a wider range of materials and thicknesses. It generally requires less capital expenditure on equipment and can be more accessible for some applications, specifically those in non-precise environments.
Laser welding, on the other hand, offers higher accuracy and control, making cleaner welds possible with minimized heat-affected zones. It leads to more robust joining due to greater precision, significantly reduces post-weld finishing tasks, and helps maintain the integrity of the joined materials. However, it has high initial investment requirements while using high-intensity lasers, which necessitate strict safety measures. Consequently, traditional versus laser welding is hinged on specific project requirements such as material type(s), desired weld quality, and fiscal constraints.
What advancements are needed for further development in laser spot welding?
Several vital areas must be addressed to improve laser spot welding technology further. Firstly, there is a need for increased flexibility in using laser systems for different materials and thicknesses. This will include developing advanced laser sources and beam-shaping techniques capable of handling diverse applications. Second, better automation robot systems integration can improve effectiveness and accuracy during brazing or soldering tasks. Lastly, research into improved monitoring and control systems is also critical for real-time feedback during welding operations, aiding quality maintenance while reducing defects. These improvements will help make laser spot welding technologically affordable for greater industrial adoption across sectors than ever before.
Frequently Asked Questions (FAQs)
Q: What is laser spot welding?
A: Laser spot welding is a welding technique that uses a concentrated laser beam to create small, precise welds. This method efficiently joins materials with minimal heat input, which helps prevent warping and distortion.
Q: How does a laser beam work in the welding process?
A: In laser spot welding, the laser beam is focused on the workpieces, generating intense heat that melts the materials at the joint. Once the laser is removed, the molten material cools and solidifies, forming a solid bond.
Q: What are the advantages of using a laser welding system over traditional welding methods?
A: A laser welding system offers several advantages, including higher precision, faster welding speed, and the ability to weld thin materials without causing thermal damage. It also allows for non-contact welding, reducing the risk of contamination.
Q: What types of materials are suitable for laser welding applications?
A: Laser welding can be used on various materials, including metals like steel, aluminum, and titanium, as well as thermoplastics. This versatility makes this welding technique ideal for many industrial applications.
Q: What are the typical applications of laser welding in industries?
A: Laser welding applications include automotive manufacturing, electronic device assembly, medical device production, and aerospace engineering. Its ability to create solid and precise welds makes it valuable in these fields.
Q: Can you explain the difference between laser spot and seam welding?
A: Laser spot welding creates individual weld points, while laser seam welding produces a continuous seam along the joint. Spot welding is typically used for localized joins, whereas seam welding is ideal for longer connections.
Q: What is keyhole spot welding, and how does it differ from other welding techniques?
A: Keyhole spot welding involves creating a keyhole in the material as the laser beam penetrates deeply, allowing for solid welds even in thicker materials. This differs from traditional resistance spot welding, which relies on heat generated by electrical resistance.
Q: How does welding speed impact the effectiveness of laser spot welding?
A: Welding speed is crucial in laser spot welding; too fast may lead to weak joints due to insufficient heat input, while too slow can cause overheating and distortion. Optimizing welding speed is essential for achieving high-quality welds.
Q: What is the role of a CO2 laser in laser welding applications?
A: CO2 lasers are commonly used in laser welding because they produce high-quality beams that can efficiently weld various materials. Their versatility makes them suitable for spot and laser seam welding applications.
