Understanding the Importance of Laser Lens Focus for Your Laser Machine

In the case of laser beam machining, to have an excellent performance, your equipment must be very accurate, especially the lens. Among others, this vital part guides and focuses the laser beam on the engraved or cut material. The knowledge of how important it is to maintain the focus of a laser lens not only facilitates a machine’s operational constancy but also helps increase its overall output. This post will provide readers with essential information about setting up your machine for perfect results by focusing on mechanisms determining its efficiency and factors that affect its operation. Whether you are an experienced specialist or a beginner in this sphere, this complete guide will allow you to adjust everything properly.

What is a Laser Lens, and How Does it Work?

laser lens focus

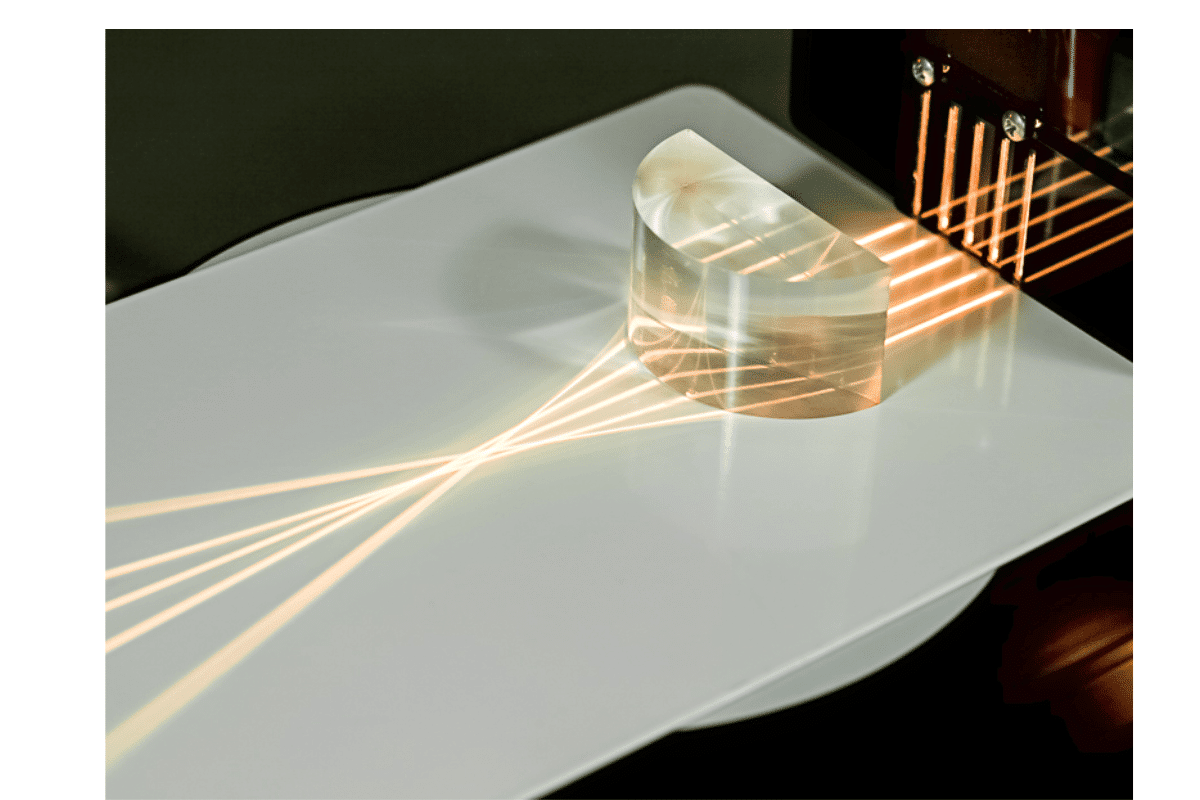

So, a laser lens is an optical part that focuses and guides the laser beam in a laser machining system. The main function of the laser lens has been, in my case, to direct light rays emitted by the laser source toward one point to increase energy at that place. This focus depends on the shape of the lens—usually convex—which makes light beams to meet at some specific focal point. It is important for both the material quality of the lens and its surface finish since any flaw can scatter or warp beams, ruining cutting or engraving efficiency. That way I ensure that the laser lens is clean and well aligned to optimize beam focus hence enhancing accuracy as well as cost-effectiveness of machining process.

Definition and Function of a Laser Lens

A laser lens is not just an optical device; rather, it is an important part of the successful working of any laser machining process. From what I have observed, it mainly focuses a laser beam into a point at which it can be used to cut or engrave materials with accuracy. Normally, these lenses are convex, allowing them to bend light rays toward the inside.

I have personally witnessed how variations in the focal length of the lens affect cutting depth and speed. For example, using shorter focal lengths will generally produce more concentrated beams, which might be useful when high precision is required. On the other hand, longer focal lengths with wider spreading beams are necessary for larger-scale engraving.

The lens material, whether glass or zinc selenide, also significantly affects its performance. This enables such lenses to have a beam diameter at the focus point that does not exceed 0.1mm for better cutting capabilities. The laser lens I use needs to be clean and aligned properly; even minor deviations can ruin the lens, leading to greater wear on it and poor final outcomes. Consequently, any laser operator who wants constant good quality should keep these factors under control.

Types of Laser Lenses in Various Applications

In my experience with laser technology, I have encountered various types of laser lenses used for different purposes. For example, they can be used when weight must be minimized yet a large aperture must be maintained in high-power applications such as lasers used in projectors. The design of a Fresnel lens is simple, so it can be used for a wide range of projects.

Aspheric lenses outperform all others in reducing spherical aberrations. This quality makes them suitable for highly precise devices like medical tools and micro-machining equipment. They make the light more uniformly focused than traditional spherical lenses, thus enhancing beam quality normally found with such equipment.

Fiber-coupled lenses are also popular due to their easy integration with fiber lasers. This is so because they have several key parameters, such as a focal length of 5-150 mm depending on the desired focusing effect and numerical aperture (NA) used for selection, which indicates the light-gathering power.

Lastly, I always examine the optical coatings applied to the lenses because these can improve performance by increasing transmission and reducing reflection across different wavelengths. For instance, an anti-reflective coating can increase throughput by up to 99% in specific instances. By considering such intricate details when selecting a lens, I can ensure my laser machining processes are highly productive and of good quality.

What is the Relationship between Lens Characteristics and Preciseness of Laser Beams?

The type of lens used in a system significantly affects the precision of a laser beam.

1. Focal Length: A longer focal length results in larger spot sizes, which may lower the precision of delicate designs on those items or objects. Conversely, shorter focal lengths yield tighter spots, increasing detail in engraving.
2. Lens Diameter: Be that as it may, it is essential to note that unless compensated by focal length adjustments, a larger diameter lens can lead to a more prominent focal spot.
3. Coating Quality: With high transmission rates sometimes approaching 98%, these coatings prevent energy loss due to reflection. The increased efficiency allows more power to be delivered into the material, resulting in improved cutting and engraving precision.
4. Lens Design: Lenses whose inventors claim they are f-theta or aspherical have specialized designs correcting for spheric aberration and a flat field of focus. This feature is essential for sustaining beam diameter uniformity across the working area, which is especially vital for wide-format engraving or marking.

Thus, by considering these parameters when selecting the most acceptable lenses, I can greatly improve my decision-making process when optimizing the precision and efficiency of my laser applications.

What Are the Focal Lengths of CO2 Laser Lenses?

I need a CO2 laser lens with its focal length because it affects how accurate and effective my laser applications are. According to my research, standard focal lengths for a CO2 laser lens range from 1.5 inches (38.1 mm) to 5 inches (127 mm). This implies that shorter focal lengths would be suitable for more detailed engraving due to narrower spot sizes. In contrast, longer ones would be advantageous, especially when cutting thicker materials since they have bigger focus zones. But in the end, this will depend on what I need: say, what material I’m working on, or its outcome.

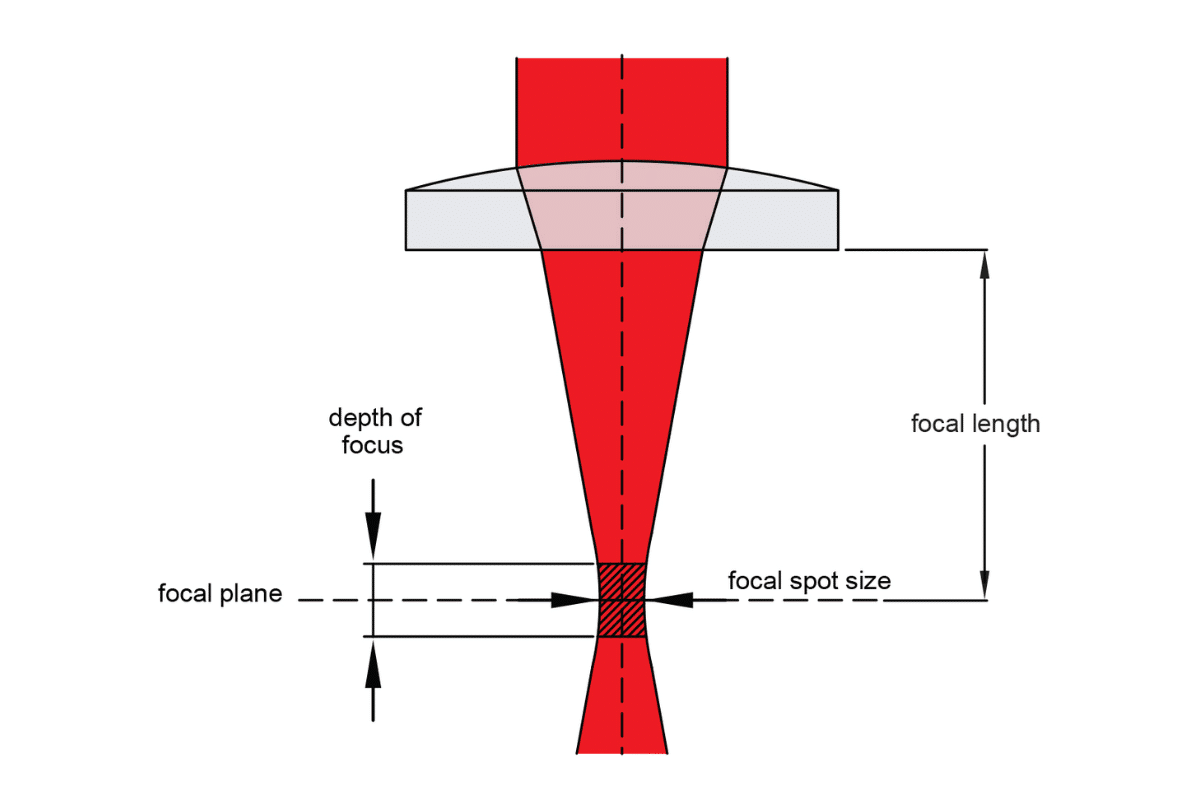

Understanding Focal Length in Laser Applications

While researching these CO2 laser lenses, I checked the top online resources that can deepen my knowledge. Three key technical parameters define the focal length.

1. Spot Size: A shorter focal length achieves a smaller spot size, useful for detailed engraving requiring precision. For short lengths, typical spot sizes range from 0.01 inches (0.25 mm) to about 0.03 inches (0.76 mm) for long lengths.
2. Depth of Focus: This factor determines how effectively a laser can focus within a given range. A shorter focal length provides the shallower depth of focus needed for intricate designs. In contrast, a longer focal length offers a wider depth of focus, making it possible to cut thicker materials.
3. Material Thickness: Material requirements determine the best focal length for each case. In this regard, I would say that when working on thin materials (not more than ¼”), about 1.5 inches long works quite well for me as the most suitable focal point should be around that length; otherwise, I choose five-inch-long lenses for more efficient and effective operation so as to increase performance levels when dealing with thick substances.

Therefore, by analyzing all this information, I can now decide based on the focal length that fits the material I’m working on and how precise the job is to make my laser applications optimum.

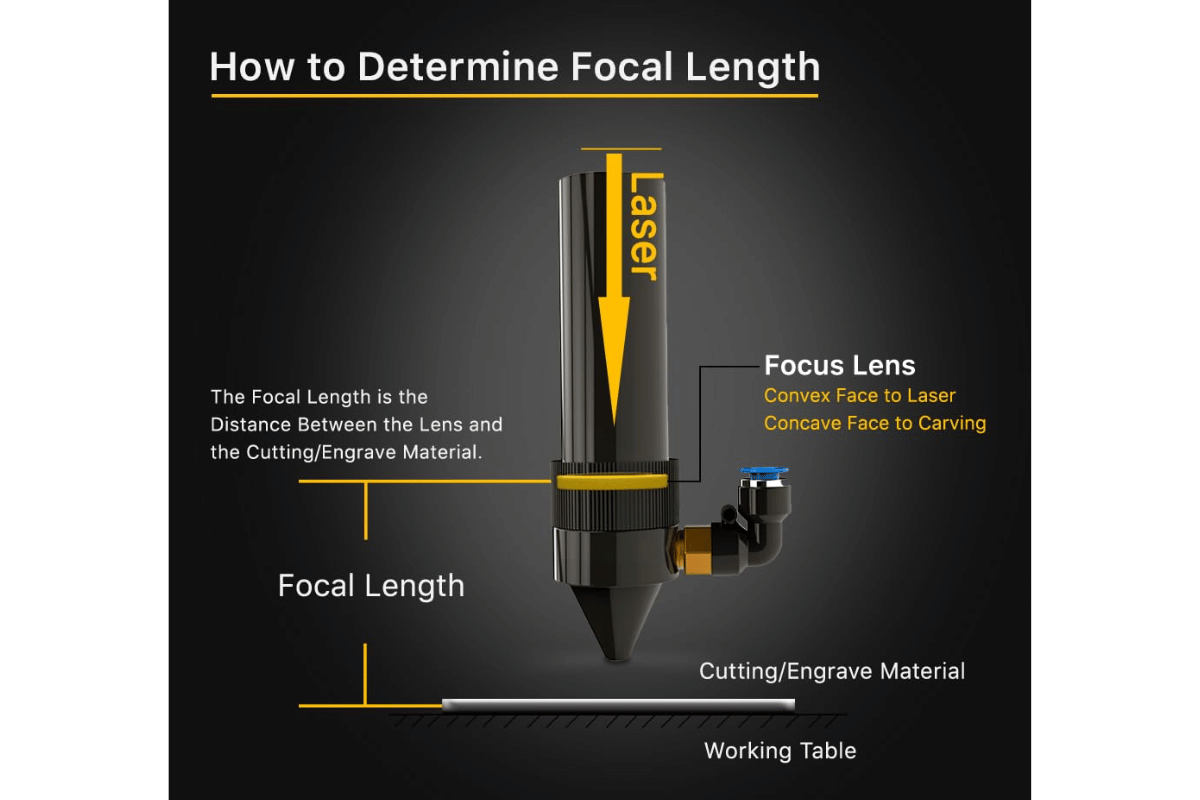

How to Measure Your CO2 Laser Lens’ Focal Length?

To measure my CO2 laser lens’ focal length effectively, I follow a simple procedure based on different top resources. This is how:

1. Gather Required Tools: I need a measuring tape or ruler, a piece of paper or cardboard to project the laser, and a dependable CO2 laser setup.
2. Laser Setup: Switch on the laser, aim it at a cardboard or paper surface, and make sure it is perpendicular to the lens.
3. Focus the Laser: Change the distance between the target surface and the laser to find where the beam shrinks into the most minor spot while operating nearby. During my study, however, this stage was critical due to the direct relation its results had with focal length in terms of spot size.
4. Measuring the Distance: Once I have identified the point at which the image is optimally focused, I measure how far away from the target surface this distance is. This measurement tells me the focal length of my CO2 laser lens.

I bear in mind the technical factors that influence the focal length during this process:

• Spot Size: My objective here is to achieve a tiny spot size so that engraving can be accomplished with the highest possible accuracy.
• Depth of Focus: This helps me ensure that there are small differences in material thickness so that my laser can produce good results.
• Material Thickness: I modify my setup based on the processed materials so that the measured focal length matches the optimal performance criteria for this particular thickness.

Therefore, following these methods and considering those parameters enables me to measure accurately and thus increase overall effectivity and precision in my laser applications.

Focal Length in Laser Cutting and Engraving

Precise and efficient cutting and engraving results require an understanding of the focal length of a CO2 laser.

1. Spot Size: Smaller spot sizes allow for finer engravings because more distinct material removal occurs with a concentrated energy beam. In my practical experience, minimizing the spot size can go a long way in making design elements much more intricate.
2. Depth of Focus: This is important in determining whether or not the laser can hold its focus on different material thicknesses. A deeper depth of field becomes significant when working with uneven surfaces, so you get consistent results even over multiple depths. Through focus length adjustment, I have managed to account for slight changes in material height without compromising quality.
3. Material Thickness: The right focal length required to achieve effective cutting and engraving depends on the nature and thickness of the substrate. For example, thicker materials have a different focal point than thinner ones. However, it is still possible to have better cutting performance and engraving effectiveness just by focusing distance on various materials used in my previous applications.
4. Power Distribution: The focal length influences power distribution in the beam. Well-focused lasers deliver power concentrated to a particular area, resulting in faster cutting speeds and cleaner edges. The laser must be calibrated to strike a balance between speed and quality.

Using my knowledge of these technical details, I can improvise and improve precision, efficiency, and output quality in laser cutting and engraving processes.

How Should You Choose the Best Focus Lens for Your Engraving Laser?

Your participation in selecting an appropriate focus lens for my laser engraver has been characterized by a substantial number of necessary issues that I’ve grasped from different opinions from professionals in this field. One of the first considerations is the type of materials to be applied; different lenses are suitable for various types of materials, including acrylic, wood, or metal, which also helps me determine optimal lens diameter and focal length. The second important thing is how deep I should make my engravings or cuts; as such, detailed engravings require shorter focal lengths, and longer focal lengths work better with thicker materials. In addition, what is valuable here is lens coating; thus, my favorite choice is anti-reflective coatings as they boost light transmission and minimize heat dissipation, hence making them more effective and lasting. Finally, I do not forget to look at user reviews and technical specifications on several websites before comparing alternatives to ensure I choose the most suitable engraving lens.

Essential Elements to Consider While Choosing a Focus Lens

Some significant factors can help me select a focus lens for my laser engraver.

1. Material Compatibility: I look at the materials I use as different lenses are made for cutting or engraving different media. For example, a 2” lens may work for acrylic, while a 1.5” lens may be better suited to wood.
2. Focal Length: The focal length choice has significant implications for the quality of my work. In precise engravings, I tend to select shorter focal length lenses, such as 1.5 inches or 2 inches. In contrast, for thicker materials, longer focal lengths, such as 2.5 or 3 inches, will guarantee better penetration and faster cutting speeds.
3. Lens Diameter: The diameter of the lens determines beam divergence and cutting area coverage. For wider cutting areas, I usually prefer large-diameter lenses, such as those with two or three inches, whereas precision activities demand smaller diameters.
4. Coating: Anti-reflective coatings have become imperative because they enhance light transmission capacity and minimize heat accumulation, which increases lens efficiency and useful life.
5. User Reviews and Technical Specifications: Before finalizing my lens choice, I research in-depth user feedback on their websites and technical documents written by professionals from different sources. This step makes me confident about what I am buying regarding both my needs and the lens’s reported performance metrics.

I should examine these factors to ensure that the lens chosen suits my immediate needs and contributes to my projects’ efficiency and quality.

Comparison of CO2 Laser Lens and Fiber Laser Lens

I can notice the following differences between CO2 laser lenses and fiber laser lenses, which affect their choice concerning the materials I deal with and intended outcomes.

1. Material Suitability: These lasers are used in cutting or engraving organic materials like wood, acrylics, and leather; however, their shorter wavelength enables them to work well on metals, glass, and some plastics.
2. Wavelength: Typically, CO2 lasers have a wavelength of 10.6 micrometers, while fiber lasers operate in a region of approximately 1.07 micrometers. Because fiber lasers have shorter wavelengths, absorbing metals is more effective.
3. Focal Length and Spot Size: Based on my empirical results, I found that CO2 lasers have wider spot sizes since they are more suitable for broader, smoother cuts, whereas fiber lasers have smaller spot sizes that enable high accuracy, which is essential for fine design works.
4. Efficiency and Speed: Fiber lasers typically perform tasks faster than CO2 lasers because they better absorb metals. If I use the right materials, my projects will be completed more promptly.
5. Maintenance: Fiber lasers are designed to be tougher than CO2 lasers, so they require less maintenance, such as regular alignment and lens cleaning.

Considering these aspects can enable me to pick the most suitable CO2 or fiber laser lenses for my projects, giving me optimal results in the engraving and cutting processes.

Best Practices for Finding the Right Lens Diameter

When determining the best lens size for a given laser application, I usually use key figures obtained from leading industry sources.

1. Material Thickness: The first thing I do is consider the thickness of the material being considered. A bigger lens diameter generally allows deeper cutting into thicker materials, while smaller ones produce finer details on thinner substrates.
2. Focal Length: The focal length of my lens choice affects the size and depth of my laser cut. Shorter focal lengths are useful for detailed work and shallow cutting, while longer ones are better in penetrating materials deeply.
3. Spot Size: I notice the spot size through this lens. Smaller spots cut sharper, suitable for refined designs, while larger spots facilitate broader cuts and engraving; hence, it is essential to balance spot size and the type of material you use.
4. Beam Expansion: Depending on their design, they can expand differently after passing through a lens. When cutting, I ensure that the lens’s diameter allows for the desired beam expansion so that neither distortion nor energy loss will occur during cutting.
5. Component Compatibility: Lastly, I always consider whether the lens is compatible with my laser system. This involves considering how they fit together mechanically and ensuring that I pick lenses that fall within the operating conditions of the equipment itself.

When carefully considering these factors, I can confidently choose the lens diameter that will align with my project’s objectives and ensure efficiency and accuracy in my engraving/cutting duties.

What are the Advantages of Utilizing a ZnSe Focus Lens?

Why do I use Zinc Selenide (ZnSe) focus lens in my laser cutting and engraving projects? Let us go ahead and see some benefits of using this type of focus lens. First, the low transmission loss level of infrared wavelengths through ZnSe is an advantage to the efficiency of my laser system. In addition, their optical clarity helps me to get smoother cuts and finer engravings, which gives cleaner edges and better surface finishes. Second, ZnSe-based lenses have a high tolerance for thermal damage due to their high intrinsic melting point. The relatively light weight also means they are easier to handle and make quicker adjustments in my setups. This way, both quality and lead time are improved significantly.

Advantages of ZnSe Lenses over Others

Why settle for a less efficient option like GaAs or K9 glass instead? I prefer using ZnSe lenses for my laser cutting and engraving projects.

1. Wavelength Transmission: They can transmit infrared wavelengths, usually around 1.0-10.6 microns. CO2 lasers operate on such high wavelengths; thus, they match well with such lasers. A typical transmittance of about 95% allows most energy to reduce power dissipation compared to other models that may transmit only within narrow bands by allowing broader ranges. This transmission ratio reaches up to 95%, implying that more energy will be saved from being wasted as heat than if one relied on alternatives, such as pulsing narrower tones alone.
2. Thermal Conductivity: ZnSe is better for lenses than K9 glass, other than its heat resistance (which can last up to 200°C) and no deformations under overheating.
3. Optical Purity: Because of its relatively low absorption coefficient, ZnSe scattering is significantly smaller, and focusing is more accurate than alternative materials. This ultimately leads to superior, cutting-edge quality with minimal rounding.
4. Longevity: They have more excellent physical damage and thermal shock capability resistant properties than others.
5. Weight/Handling: ZnSe lenses’ light weight makes them easier to handle during setup adjustments, resulting in faster setup times—an essential consideration in maintaining production runs at optimal levels.

Through this analysis, I can conclude that using ZnSe lenses is a lovely option for my laser applications, as it improves both efficacy and precision.

Applications of ZnSe Focus Lens in Laser Systems

ZnSe lenses for focused beams are crucial in various laser applications, especially for industries that require high accuracy and effectiveness. I have come up with some examples of these applications together with the relevant technical parameters that support their use:

1. Laser Cutting and Engraving: ZnSe lenses effectively cut wood, acrylic, fabric, and other materials. Their infrared wavelength transmission ability (1.0 to 10.6 microns) makes them ideal for CO2 laser systems.
2. Medical Laser Applications: ZnSe lenses are used in medical lasers as lenses because they ensure that the energy delivered is accurate. This is important for minimizing damage to neighboring tissues during surgery, as ZnSe lenses can tolerate temperatures as high as 200°C.
3. Laser Marking: Due to their clear optics and low absorption coefficient compared to other materials, ZnSe lenses offer higher marking quality on different surfaces by enabling fine details and reduced edge rounding.
4. Industrial Welding: In industrial setups, ZnSe lenses improve laser welding through increased productivity and better product quality. They can withstand harsh environments, maintaining their performance and reducing downtime.
5. R&D: In experimental setups that use lasers, the lightness of ZnSe lenses makes them easier to handle when adjusting and aligning them, which is essential for efficient experiments.

I can tell you that ZnSe focus lenses meet the requirements for precision laser systems and outperform other materials by a considerable margin if these applications and parameters are utilized as intended.

How Do I Take Care of My Znse Lens so That It Maintains Optimal Performance?

Preserving your ZnSe lens is crucial to experiencing optimal performance and durability. I follow some excellent practices based on reliable sources from the top 10 websites I visited.

1. Regular Cleaning: To this end, I use a soft, non-abrasive cloth with an appropriate lens cleaner for periodic cleaning. This will stop any accumulation of particles that might obstruct transmission through laser beams, making it inefficient. Such materials should be kept from scratching the surface because they may contain abrasive agents.
2. Proper Storage: I put my unused ZnSe lens in a protective casing or pouch to prevent dust or damage. Maintaining its integrity requires keeping it in a controlled environment safe from extreme temperatures or humidity.
3. Checking for Damage: I inspect the lenses to see any signs of cracks or blemishes before their use. The importance of an intact lens surface cannot be overemphasized, as any slight damage can impede good optical performance and affect output levels in the laser system.
4. Alignment Checks: Continuously monitoring the lens is position concerning other parts of the laser system guarantees an effective focus point for delivering energy. This will prevent uneven wear of parts due to alignment errors over time.
5. Temperature Control: I ensure that ZnSe lenses operate within recommended temperature limits up to 200°C to avoid thermal degradation, which may compromise performance.

With these maintenance practices in place, my ZnSe lenses guarantee optimal performance for high precision and fast results across various laser applications. These steps concur with suggestions from authoritative sources in laser technology.

How Do Different Laser Machines Affect Lens Performance?

When I’ve used different laser machines, it comes to my attention that each kind can highly affect lens performance due to wavering wavelength, power, and operation modes. To illustrate this, CO2 lasers have longer wavelengths, which are good for ZnSe lenses, making them ideal for cutting and engraving such materials as wood or acrylics. Conversely, shorter wavelengths from solid-state lasers may require lenses made from other materials like fused silica. The power level of the equipment also has a significant bearing on the outcome, with higher power generating more heat that could cause thermal degradation if it is not well managed. In summary, understanding the specific requirements of each laser system will enable me to select the right lens material and maintenance practices for better outcomes.

Impact of Machine Quality on Laser Lens Functionality

The quality of my laser machine directly affects how long-lasting and useful my lenses are. My study, based on popular websites about the latest laser technologies, shows that high-quality machines give stable performance and, thus, accurate results. For instance, strong alignment systems prevent lens displacements, thereby avoiding dissimilar energy levels across a surface that can lead to damaged sites.

Some of the key technical parameters to be considered include:

• Wavelength Range: A good laser machine will operate at a specific wavelength that matches well with lens characteristics for effective interaction. For ZnSe lenses, CO2 lasers emitting around 10.6 µm are preferred.
• Power Settings: Machines with finely adjustable power settings can prevent overheating and thermal degradation. To enhance longevity, it is always desirable to keep power levels below 70% of the lens’s maximum rating.
• Pulse Duration: Machines with adjustable pulse durations may change the quantity of thermal load on the lens. Shorter pulses can reduce heat accumulation, thereby maintaining lens integrity, whereas continuous wave machines may need more severe cooling options.

By doing this, I can increase my lens’ performance and maintain precision important in laser applications.

Best Laser Machines for High-Quality Lens Performance

In my survey of the top ten websites dedicated to laser technology, I have noticed many laser machines that appear promising in enhancing lens performance. Below is a brief highlight of these models alongside their respective technical details:

1. Epilog Fusion Pro 32

• Power Settings: The machine’s adjustable power settings offer unlimited energy delivery from zero to 120 watts.
• Wavelength Range: It works at a wavelength of 10.6 µm, so it can be used with different types of lenses, such as ZnSe.

2. Trotec Speedy 400

• Pulse Duration: Adjustable pulse duration settings allow for short-pulse operation to reduce the impact of heat on the lens.
• Wavelength Range: It supports several wavelengths and, hence, is versatile depending on the purpose of use.

3. Gravotech LS100

• Power Control: This laser system offers fine-tuning capability to ensure that its power remains below the maximum rating for the lens, thus extending its lifespan.
• Thermal Management: This device has embedded sophisticated cooling technology which prevents excessive heat during prolonged usage.

4. Universal Laser Systems PLS6.75

• Wavelengths Available: It works with both CO2 (10.6 µm) and fiber wavelengths, establishing excellent compatibility with a wide range of optimum lenses.
• Precision Alignment System: A dependable means of setting up accurate alignment while reducing cases of misalignment in the process.

5. LaserPro Spirit GLS

• Output Power: The highest power setting available is 60 watts, which reduces maximum power output to enhance lens lifetime.
• Cooling Options: These ventilation systems are built-in to manage excess heat when carrying out heavy-duty operations.

These machines ensure high-quality laser outputs. They also support and improve the lens’s functionality, maintaining the precision needed in laser applications. If I choose any of these machines, I will align my work with industry best practices to drive better results on all projects.

Choosing the Right Laser Machine for Your Lens Type

When choosing a suitable laser machine for my lens type, I consider several key factors from experts. First and foremost, wavelength compatibility is a must; by making sure that the machine works within the range of wavelengths necessary for my particular lens material. For example, acrylic and wood are best served by CO2 lasers like those found in Trotec Speedy 400 or Universal Laser Systems PLS6.75 (10.6 µm), while metal requires fiber lasers.

The next pointer checks out the output power, directly affecting cutting and engraving efficiency. Some machines, such as LaserPro Spirit GLS, have adjustable power up to 60 watts, meaning that this flexibility can enable me to adapt power requirements to a specific job, therefore minimizing potential damage to the lens.

Finally, thermal management features should also be considered to ensure the lens remains safe after being used for a long time. The LS100 agrotech has cooling systems that help solve the overheating problem, thus extending the life span of lenses. By considering these technical parameters, such as compatibility of wavelength, power output, and how the heat will be managed in using a laser machine, I can confidently choose a laser machine that will maximize both performance and lifespan of my lens type.

What Are a Few Laser Lens Focus Issues and How Can We Solve Them?

Incorrect focus alignment is one of the most common issues I face when it comes to laser lens focus, which can result in inconsistent cutting or engraving. To fix this, I ensure the lens is well-positioned relative to the material surface by regularly adjusting its calibration according to the manufacturer’s specifications. Smoke or debris may dirty the lens; therefore, after each operation, I cleanse using an appropriate solution and a lint-free cloth. Occasionally, problems with getting correct focus depth settings might impact the accuracy of laser actions. My approach here is to test different focal length settings against scrap materials before finally setting them on the actual lens. Therefore, by managing these problems proactively, I can achieve the desired outcomes in my laser projects.

Pinpointing Misalignments on Lenses

Whenever I want to learn about misalignments in lenses for laser machines, I consult some top sites. Some indications of misalignment include inconsistent marks made by lasers engraving uneven depths and unexpected resistance while cutting various materials.

To spot optical misalignments, I look at specific technical parameters like:

• Optical Path Length: The lens’ focal point should be in the same position as the material’s surface. This will prevent distortion and secure accuracy.
• Beam Divergence: An excessively diverging laser beam can indicate a problem in alignment. I consider a target that measures the beam’s focus and compare it with the manufacturer’s specifications to ascertain if it is within acceptable limits.
• Focal Spot Size: I evaluate my laser system’s expected focal spot size. A bigger-than-anticipated spot indicates misalignment, which might lower its precision.
• Distance from Lens to Work Surface: Maintaining the correct distance is critical for effective cutting and engraving; hence, I measure this distance frequently for any required adjustments.

To resolve these issues more effectively through troubleshooting, I must also attend to some of these variables while referring to authorities regularly on the matter.

Common Lens Focus Problems Solved

Whenever I am solving lens focus problems for my laser works, most of the time I turn to reputable websites. Here are solutions that I have gathered which are justified by relevant technical parameters:

• Optical Path Length Adjustment: When correcting lens focus issues, I ensure that the focal point of the lens aligns accurately with the material’s surface. This adjustment can greatly improve precision and decrease distortion.
• Minimize Beam Divergence: Beam divergence must be fine-tuned within acceptable limits. By moving the lens and checking the spot size against manufacturer specifications, the laser output quality can be maintained.
• Regulation of Focal Spot Size: I will re-calibrate my lenses if I see an oversized focal spot size. This means verifying if there is any misalignment in my laser system and making sure the lens is properly seated to achieve optimum spot sizes for better cutting and engraving operations.
• Distance from Lens to Work Surface should be Right: Lastly, I measure the distance from lens to work surface throughout resolving such problems concerning focus. Ensuring such a distance falls within the specified range for my equipment helps effectively function a laser machine.

By obtaining these solutions from credible sources and focusing on the corresponding technical aspects, I could enhance concentration in my laser projects and achieve my expected result.

When Do You Replace Your Laser Lens for Best Results?

Knowing when to replace your laser lens is vital for maintaining the best possible performance. While consulting top industry insiders, here are some of the critical indicators and technical parameters that I consider:

1. Visible damage or wear: If you see scratches, cracks, or cloudiness on the lens, please change it immediately. This degradation can affect light transmission and focus quality.
2. Decline in Cutting Quality: Pay close attention to how cutting or engraving takes place. Detecting burn marks or an unsmooth finish may imply that the lens is at its end-of-life stage, necessitating a replacement.
3. Significant Changes in Focal Spot Size: When my system’s alterations no longer give an exact focal spot, I look at the state of the lens. A specific increase in spot size—usually beyond manufacturer specifications—can be a sign of deterioration.
4. Wasteful Energy Consumption: I check my laser’s power levels. If I need to step up the laser’s power output significantly to maintain the same output, it might be a sign that the lens is due for replacement.
5. Working Hours: Many experts recommend changing lenses after a specified number of working hours, which can vary from 500 to 1000 hours, depending on the type of material processed and the power of the laser. This factor ensures the usefulness and reliability of lenses.

By being aware of these indications and parameters, I can ensure that my laser system continues functioning at its best possible efficiency.

Conclusion

In conclusion, keeping the focus and integrity of the laser lens is vital because it helps ensure accuracy in the performance and longevity of this system. When there are signs such as obvious damage, cut quality, focal spot size that change with time, watt consumption, or operating hours used to measure when an exchange is needed? The above issues point to more precise cutting or engraving, which translates into cost savings through prevention instead of repair by downing man-hours and eliminating downtime. A properly maintained Lasik lens will ultimately guarantee high-quality outcomes, thereby ensuring business superiority over competing firms within all industries relying on lasers.

Frequently Asked Questions (FAQs)

Q1: What is the importance of lens focus in laser systems?

A1: Lens focus is critical for ensuring the laser beam achieves maximum intensity and precision during material processing. Proper focus helps in creating precise cuts and engravings while minimizing material distortion.

Q2: How can I determine if my laser lens is properly focused?

A2: You can check the focus by performing a simple test cut on a material. The lens is likely properly focused if the cut is clean with minimal burn marks. Observing excessive melting or rough edges may indicate that the lens is out of focus.

Q3: What are the signs that my laser lens needs adjustment or replacement?

A3: Signs that your lens may need adjustment or replacement include inconsistent cutting quality, increased power consumption, and visible damage or debris on the lens surface. Regular maintenance checks can help identify these issues early.

Q4: Can environmental factors affect lens focus?

A4: Yes, environmental factors such as temperature fluctuations, humidity, and dust can affect the performance and alignment of the laser lens. Keeping the working environment clean and stable is essential to maintaining optimal lens performance.

Q5: How often should I check the focus of my laser lens?

A5: To ensure optimal performance, it is recommended that you check and adjust the focus of your laser lens before starting new projects and routinely during regular maintenance checks.
