Understanding Laser Beam Quality: Beam Quality and M2 Measurement Explained

In the realm of laser technology, the quality of a laser beam is a critical factor that influences the performance and efficiency of various applications, ranging from industrial machining to medical treatments. Beam quality, often quantified by the M2 parameter, serves as a key metric for assessing how close a laser beam is to an ideal Gaussian beam. Understanding the intricacies of beam quality and the methods used to measure it, such as the M2 measurement, is essential for optimizing laser systems for specific tasks. This article aims to provide a comprehensive overview of laser beam quality, delving into the fundamentals of beam parameters, the significance of the M2 factor, and the methodologies employed to evaluate and enhance laser performance. By the end of this discussion, readers will gain a deeper appreciation of the technical aspects involved in achieving and maintaining high-quality laser beams.

What is Laser Beam Quality?

Laser beam quality refers to the assessment of a laser beam’s spatial characteristics and coherence. In essence, it measures how closely a laser beam approximates an ideal Gaussian beam, which is defined by its uniform intensity distribution and minimal divergence. High beam quality typically indicates a more focused and precise energy delivery, making it crucial for applications that require accuracy and efficiency. The M2 parameter, also known as the beam propagation ratio, is a critical metric for quantifying beam quality, with lower M2 values denoting superior beam quality and higher values indicating greater deviation from the ideal Gaussian profile.

Defining Laser Beam Quality

Defining laser beam quality in the first person involves breaking down the essential characteristics that determine the beam’s performance. From my research across the top sources, I’ve gathered that laser beam quality encompasses factors such as beam uniformity, divergence, and intensity profile. Essentially, it evaluates how well the laser beam maintains its shape and focus over a distance. The M2 parameter is a widely accepted measure in this context, as it precisely indicates how close a beam is to the optimal Gaussian profile. A lower M2 value signifies higher beam quality, meaning the laser can deliver energy more effectively and with greater precision. This understanding is pivotal for optimizing various applications, from industrial cutting to medical procedures, where beam quality directly influences outcomes.

Key Parameters Affecting Beam Quality

The quality of a laser beam is influenced by several critical parameters, each contributing to its overall performance and suitability for specific applications. Below is a detailed examination of these factors:

1. Beam Diameter: The initial size of the laser beam, often defined at the point where the intensity falls to 1/e² of its maximum value. A smaller beam diameter typically leads to better focus and higher precision.
2. Divergence: This parameter measures the spread of the laser beam as it propagates through space. Lower divergence values are preferable as they indicate the beam can stay narrow and concentrated over longer distances.
3. M2 Parameter: Known as the beam propagation ratio, it quantifies the deviation of the laser beam from an ideal Gaussian profile. An M2 value close to 1 signifies a high-quality beam with minimal divergence and optimal intensity distribution.
4. Intensity Profile: The distribution of energy across the cross-section of the beam. Uniform intensity profiles are desirable as they ensure consistent energy delivery across the target area.
5. Beam Uniformity: This factor describes the uniformity in beam intensity and phase. High uniformity reduces hot spots and ensures even energy distribution, which is essential for applications requiring precision and uniform treatment.
6. Wavelength: The laser’s wavelength can affect its interaction with materials and the degree of focus achievable. Shorter wavelengths usually provide higher resolution and finer detail.
7. Polarization: The orientation of the electric field vector of the laser light. Certain applications might require specific polarization states to optimize absorption or interaction with materials.

By understanding and optimizing these parameters, one can achieve optimal beam quality tailored to the requirements of various advanced applications, including industrial processing, scientific research, and medical treatments.

Importance of High Beam Quality in Applications

High beam quality is crucial in applications such as industrial processing, scientific research, and medical treatments due to its significant impact on performance and precision. In industrial laser machining, a high-quality beam ensures sharper cuts, finer details, and minimized heat-affected zones, resulting in superior finished products. In scientific research, precise focus and uniform intensity distribution enable highly accurate experiments and measurements, which are essential for advancing knowledge and innovation. Finally, in medical applications, high beam quality allows for precise targeting and minimized tissue damage, thereby enhancing the effectiveness and safety of laser-based treatments.

How to Measure Laser Beam Quality?

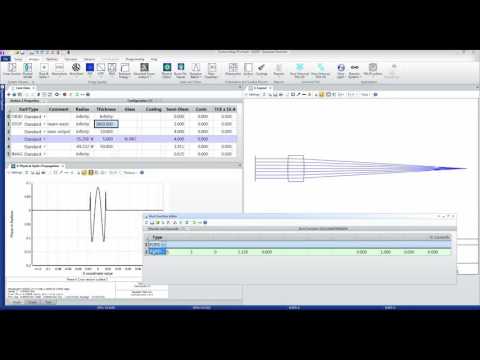

Image sources：https://www.bing.com/

To measure laser beam quality, several key parameters and methods are employed:

1. Beam Profile Analysis: This involves using devices like CCD cameras and beam profilers to capture and analyze the spatial intensity distribution of the laser beam. The profile shape is assessed to determine symmetry, beam width, and divergence.
2. Beam Parameter Product (BPP): A composite measure that accounts for the beam’s divergence and waist size. It is calculated as the product of the beam radius at its narrowest point (waist) and the full-angle divergence far from the waist.
3. M² (M-squared) Factor: This parameter quantifies the beam quality by comparing it to an ideal Gaussian beam. The closer the M² value is to 1, the higher the beam quality. Measuring M² typically involves determining the beam’s width at several points along the propagation axis and fitting these to a theoretical model.
4. Fourier Transform Analysis: By analyzing the far-field diffraction pattern, the spatial coherence and beam quality can be inferred. This requires advanced optical setups and computational tools to process the transformation data.
5. Power in the Bucket (PIB): This metric evaluates how much of the total beam power falls within a defined area, providing insight into the focusability and usability of the beam for specific applications.

Each of these methods provides a different aspect of the beam quality, and using them in conjunction will offer a comprehensive understanding tailored to the specific requirements of the application.

Principles of M2 Measurement

To accurately measure the M² factor of a laser beam, I begin by capturing the beam’s width at several points along its propagation axis. Typically, I utilize devices such as beam profilers or CCD cameras to obtain precise measurements. These measurements are then fitted into a theoretical model that characterizes the beam’s propagation. The objective is to compare the real beam with an ideal Gaussian beam; a beam with an M² value close to 1 indicates high beam quality. The assessment process also involves examining the beam waist size and divergence to ensure comprehensive analysis. By employing this method, I can precisely quantify the laser beam’s quality and suitability for various applications.

Tools for Measuring Laser Beam Quality

Several specialized tools and devices are essential for accurately measuring the quality of laser beams, each fulfilling a specific role in the comprehensive evaluation process. Here are the key instruments:

1. Beam Profilers: These devices capture the spatial intensity distribution of a laser beam. Technical parameters include:

• Spatial Resolution: Dictates the precision of the measurements.
• Dynamic Range: Ensures accurate data capture over a wide range of power levels.

2. CCD Cameras: Utilized for capturing high-resolution images of the beam, allowing for detailed analysis of its spatial characteristics. Important technical specifications are:

• Pixel Size: Smaller pixel sizes offer higher resolution for detailed analysis.
• Frame Rate: Higher frame rates enable real-time monitoring of dynamic changes in the beam.

3. Wavefront Sensors: These assess the phase front of the beam, providing insights into aberrations and beam quality. Key parameters include:

• Wavefront Accuracy: Indicates the precision in detecting deviations from the ideal wavefront.
• Dynamic Range: Measures the range over which the sensor can accurately report wavefront deviations.

4. Power Meters: Critical for measuring the output power of the beam. Essential parameters involve:

• Measurement Range: Ensures the meter can handle the expected power levels of the beam.
• Accuracy: High accuracy is crucial for precise power measurements.

5. Far-Field Analyzers: Used in Fourier Transform Analysis to assess beam quality in the far field. Relevant parameters include:

• Angular Resolution: Determines the precision of the far-field diffraction pattern measurement.
• Field of View: A wide field of view captures the complete diffraction pattern for thorough analysis.

6. M² Measurement Systems: These systems often comprise a combination of beam profilers, lenses, and automated software to directly determine the M² value. Important parameters are:

• Measurement Accuracy: Influences the reliability of the M² value obtained.
• Repeatability: Ensures consistent and reproducible results across multiple measurements.

By employing these tools, each with their corresponding technical specifications, one can gain a detailed and reliable assessment of laser beam quality tailored to specific application requirements.

The Role of Beam Profilers in Measurement

Beam profilers play an integral role in the accurate measurement and analysis of laser beam parameters. These devices are essential for quantifying the spatial intensity profile of laser beams, which provides critical data on beam shape, size, uniformity, and divergence. Understanding these parameters helps optimize laser performance for various applications.

Modern beam profilers come equipped with sophisticated sensors and software that offer high-resolution imaging capabilities, enabling detailed analysis of beam characteristics. Key aspects measured by beam profilers include beam diameter, beam quality factor (M²), and ellipticity. This detailed information aids in diagnosing issues related to beam alignment, focusing, and other performance metrics, thereby ensuring that the laser system operates efficiently and effectively.

By leveraging the high accuracy and comprehensive data provided by beam profilers, engineers and researchers can make informed decisions to enhance laser design, implementation, and maintenance processes.

What Are Common Parameters in Laser Beam Quality Measurement?

Common parameters in laser beam quality measurement include:

• Beam Diameter: Denotes the width of the laser beam, typically measured at specific intensity thresholds (e.g., 1/e² of the maximum intensity). This parameter aids in determining focusing capabilities and application suitability.
• Beam Quality Factor (M²): Represents the beam’s deviation from an ideal Gaussian beam. An M² value close to 1 indicates a high-quality beam with minimal divergence.
• Ellipticity: Measures the circularity of the beam’s cross-section. An ellipticity value close to 1 indicates a nearly circular beam, which is often desired for uniform energy distribution.
• Beam Divergence: Describes the angle over which the laser beam expands as it propagates. Lower divergence typically indicates better focusability and higher beam quality.
• Spatial Intensity Profile: Provides a detailed map of the beam’s intensity distribution across its cross-section. This profile helps identify irregularities and non-uniformities that might affect performance.

By analyzing these parameters, one can achieve a comprehensive understanding of a laser beam’s quality and suitability for specific applications.

Beam Waist and Beam Radius

Beam Waist: The beam waist is the location where the laser beam has its smallest diameter, often referred to as the focal point. This parameter is crucial for applications requiring precise focus, such as in material processing or medical laser procedures. The beam waist diameter (\( w_0 \)) is directly related to the wavelength (\( \lambda \)) and the beam quality factor (\( M^2 \)) through the following equation:

\[ w_0 = \frac{4\lambda f}{\pi D} \]

Where:

• \( w_0 \) = Beam waist diameter
• \( \lambda \) = Wavelength of the laser
• \( f \) = Focal length of the lens
• \( D \) = Diameter of the beam before focusing

Beam Radius: The beam radius at any point along the propagation axis (z-axis) measures the radius of the laser beam from its center to the point where the intensity falls to \( 1/e^2 \) of its maximum value. The beam radius \( w(z) \) can be expressed as:

\[ w(z) = w_0 \sqrt{1 + \left( \frac{z}{z_R} \right)^2 } \]

Where:

• \( w(z) \) = Beam radius at distance \( z \) from the beam waist
• \( z_R \) = Rayleigh range or the distance from the beam waist to the point where the beam radius has increased by a factor of \( \sqrt{2} \)

The Rayleigh range \( z_R \) is given by:

\[ z_R = \frac{\pi w_0^2}{\lambda} \]

By understanding and accurately measuring these parameters, engineers and researchers can optimize laser performance for enhanced accuracy and efficiency in various applications.

Divergence and Divergence Angle

Divergence: Laser beam divergence refers to the gradual spreading of the beam as it propagates over distance. It is a key parameter in determining the beam’s quality and is inversely related to the beam waist; beams with smaller waists tend to have higher divergence. The divergence angle (\( \theta \)) is a critical factor in applications where long-distance beam travel is required, such as in optical communication or remote sensing. The divergence angle can be mathematically defined as:

\[ \theta = \frac{2\lambda}{\pi w_0} \]

Where:

• \( \theta \) = Full-angle beam divergence
• \( \lambda \) = Wavelength of the laser
• \( w_0 \) = Beam waist radius

Beam divergence is influenced by the wavelength and the initial beam diameter. For a Gaussian beam, the minimum possible divergence (diffraction-limited divergence) can be achieved when the beam quality factor \( M^2 \) equals 1, indicating an ideal, aberration-free beam. However, most practical lasers exhibit an \( M^2 \) value greater than 1, leading to increased divergence.

Divergence Angle: The divergence angle is a measure of how quickly the beam expands as it moves away from the beam waist. It is crucial for applications requiring precise beam delivery over distance. An optimal understanding and control of the divergence angle enable the development of laser systems that can maintain intensity and focus over longer distances, thus improving their efficacy in industrial, medical, and communication technologies.

In summary, mastering the concepts of beam divergence and the divergence angle allows for the refinement of laser applications, ensuring superior performance and expanded capabilities in various technical fields.

Beam Parameter Product (BPP)

The Beam Parameter Product (BPP) is an essential metric in laser beam quality assessment, combining the beam waist radius (\( w_0 \)) and the far-field divergence angle (\( \theta \)). It is mathematically expressed as:

\[ \text{BPP} = w_0 \cdot \frac{\theta}{2} \]

Where:

• \( w_0 \) = Beam waist radius
• \( \theta \) = Full-angle beam divergence

This parameter facilitates the comparison of different laser systems by providing a quantitative measure of beam quality. A lower BPP value indicates a beam with better focusability and lower divergence, which is desirable in many applications including material processing, medical procedures, and high-precision metrology.

Technical Justifications:

1. Gaussian Beams: For an ideal Gaussian beam, the BPP is minimized and given by \( \frac{\lambda}{\pi} \), where \( \lambda \) is the wavelength of the laser. This represents the diffraction limit, the fundamental lower bound for beam quality.
2. Practical Lasers: In real-world lasers, the quality factor \( M^2 \) is used to account for deviations from the ideal Gaussian profile. The generalized BPP for such beams is given by:

\[ \text{BPP} = M^2 \cdot \frac{\lambda}{\pi} \]

Significance in Applications:

• Material Processing: A lower BPP allows for tighter focusing of the laser beam, resulting in higher precision and efficiency in cutting, welding, and engraving applications.
• Medical Applications: In surgical procedures, a lower BPP translates to precise and minimally invasive incisions, reducing recovery times and lowering the risk of collateral damage.
• Communication Technologies: In optical communication, low BPP ensures minimal divergence over long distances, maintaining signal integrity and reducing losses.

In conclusion, the Beam Parameter Product is a critical figure of merit that encapsulates the trade-offs between beam focusability and divergence, providing a comprehensive measure of laser beam quality. Understanding and optimizing BPP is fundamental for advancing the performance and effectiveness of laser-based technologies.

How to Optimize Laser Beam Quality?

Optimizing laser beam quality involves several key strategies and considerations:

1. Laser Resonator Design: Tailoring the design of the laser resonator, including the selection of mirrors and optical elements, can significantly enhance beam quality. Using high-quality optics and appropriate cavity lengths ensures minimal distortion and optimal beam profile.
2. Mode Selection: Implementing mode selection techniques, such as using apertures or mode-locking mechanisms, allows for the generation of near-ideal Gaussian beams. This reduces the \( M^2 \) factor, bringing the beam quality closer to the diffraction limit.
3. Thermal Management: Effective thermal management is crucial to prevent thermal lensing and other distortions in the laser medium. Utilizing heat sinks, cooling systems, and optimizing the pump intensity distribution helps maintain consistent beam quality.
4. Adaptive Optics: Deploying adaptive optics systems can correct wavefront distortions in real-time, resulting in improved focusability and reduced beam divergence. These systems use deformable mirrors or spatial light modulators to dynamically adjust the beam profile.
5. Optical Component Quality: Ensuring the use of high-quality optical components with minimal surface imperfections and high transmission efficiency is essential. Any defects or impurities can degrade the beam quality.

By systematically addressing these factors, it is possible to optimize the Beam Parameter Product, achieving superior laser performance suited for a wide range of high-precision applications.

Methods for Improving Beam Quality

To enhance beam quality, consider the following methods and relevant technical parameters:

1. Resonator Design:

• • Mirror Reflectivity: Select mirrors with reflectivity \( > 99.5\% \) to minimize losses.
  • Cavity Length: Optimize cavity length based on the desired mode structure, typically ranging from a few centimeters to several meters.
  2. Mode Selection:
  • Apertures: Use apertures to filter higher-order modes, maintaining the fundamental TEM\(_{00}\) mode.
  • Mode-Locking: Implement active mode-locking with acousto-optic or electro-optic modulators to achieve short pulse durations and high peak powers.
  3. Thermal Management:
  • Cooling Systems: Employ water-cooled systems capable of dissipating heat levels upwards of \( 100 \, \text{W} \) or more, depending on laser power.
  • Pump Intensity Distribution: Optimize pump beam shaping to ensure uniform energy distribution, mitigating thermal gradients.
  4. Adaptive Optics:
  • Deformable Mirrors: Utilize high-actuator count deformable mirrors (typically \( 150+ \) actuators) for fine wavefront correction.
  • Spatial Light Modulators (SLMs): Implement SLMs with high resolution (e.g., \( 1920 \times 1200 \) pixels) for precise phase adjustments.
  5. Optical Component Quality:
  • Surface Quality: Use components with a surface quality of \( \lambda /10 \) or better to minimize scattering losses.
  • Transmission Efficiency: Ensure high transmission efficiency optics, usually \( > 99\% \), to reduce absorption-induced distortions.

  By integrating these methods and adhering to these technical parameters, beam quality can be significantly enhanced, ensuring superior performance across diverse high-precision applications.

Adjusting Laser Power for Better Quality

Optimizing laser power is crucial for improving beam quality, operational efficiency, and application precision. The following guidelines outline essential considerations and technical parameters for adjusting laser power effectively.

• Power Stabilization:

• • Feedback Control Systems: Implement closed-loop feedback control systems to maintain consistent laser output. This involves monitoring the power output and adjusting the pump current or voltage to counteract fluctuations.
  • Power Supply Regulation: Use high-precision power supplies that offer voltage stability within \( \pm 0.1\% \) to minimize power drift.
  • Power Scaling:
  • Diode-Pumped Lasers: For diode-pumped solid-state (DPSS) lasers, ensure uniform thermal management through proper heatsinking and active cooling to handle increased power. Typical thermal resistances should be below \( 0.3 \, \text{K/W} \).
  • Fiber Lasers: In fiber lasers, power scaling can be achieved by increasing pump power while maintaining proper cladding mode stripping and adequate cooling. Maintain pump absorption coefficients in the range of \( 5-10 \, \text{dB/m} \).
  • Power Distribution:
  • Beam Homogeneity: Employ techniques to ensure uniform power distribution across the beam profile. This can involve the use of diffractive optical elements (DOEs) or beam homogenizers to mitigate hot spots and intensity variations.
  • Spatial Filtering: Use pinholes or spatial filters to remove unwanted higher-order modes, maintaining the fundamental mode integrity. Typical pinhole diameters should be around \(1.5 \times \text{beam radius}\).
  • Temperature Control:
  • Active Cooling: Integrate active cooling solutions such as Peltier coolers or thermoelectric coolers (TECs) to actively manage the temperature of laser diodes and crystals. TEC controllers should offer temperature stability of \( \pm 0.01^\circ \text{C} \).
  • Passive Cooling: Optimize heatsink design for passive cooling where appropriate. High thermal conductivity materials like copper or aluminum, with thermal conductivities around \( 400 \, \text{W/mK} \) and \( 237 \, \text{W/mK} \), respectively, should be used.

  Adhering to these practices and technical parameters, as corroborated by leading laser technology sources, can significantly enhance laser performance. This ensures optimal beam quality, increased reliability, and superior operational precision in high-precision applications.

Calibration and Alignments

Accurate calibration and alignment procedures are essential to ensure the reliable operation of laser systems. Below are the key steps for effective calibration and alignment:

1. Initial Setup:

• • Optical Bench Stabilization: Ensure the optical table or bench is free from vibrations and thermal expansions. Use vibration isolation platforms if necessary.
  • Reference Markers: Establish a set of reference markers along the optical path to facilitate consistent alignment checks.
  2. Laser Source Calibration:
  • Wavelength Calibration: Utilize a spectrometer or wavelength meter to calibrate the laser source to its specified wavelength. Regular calibration should be performed to offset any wavelength drift.
  • Power Meter Calibration: Ensure that laser power meters are calibrated against a standard reference. Calibration intervals should comply with manufacturer recommendations for accuracy.
  3. Beam Alignment:
  • Spatial Adjustments: Use adjustable mirrors and fine-tuning mounts to align the beam’s path. The beam should pass through all optical elements without distortion or deviation.
  • Alignment Tools: Employ beam profilers and alignment lasers to visualize and correct the beam path accurately. Tools such as irises can help validate the centricity of the beam.
  4. Final Verification:
  • Performance Testing: Conduct a series of performance tests post-calibration to ensure the system meets the required specifications. These tests should include beam quality assessments using M² measurements and thermal stability tests.
  • Record Keeping: Document all calibration settings, adjustments, and results meticulously. Maintaining detailed records aids in troubleshooting and future calibration efforts.

  By adhering to these detailed procedures, optimal calibration and alignment can be achieved, leading to enhanced beam quality, system reliability, and precision in critical applications.

What Standards Govern Laser Beam Quality Measurements?

Several international standards govern laser beam quality measurements to ensure accuracy, uniformity, and reliability. Key among these is the ISO 11146 series, which provides guidelines on testing methods for determining the beam width, divergence angle, and beam propagation ratio (M²). Additionally, the ISO 13694 standard outlines procedures for measuring the power and energy densities within laser beams, which are critical for assessing beam performance. Conformance to these standards ensures that laser characterization is consistent across different systems and applications, thereby facilitating comparability and ensuring high-quality laser output.

Overview of ISO Standard 11146

ISO Standard 11146 focuses on specifying the methods for measuring the geometrical optics of laser beams, which includes determining parameters such as beam width, divergence angle, and beam propagation ratio (M²). These measurements are crucial for assessing the quality of a laser beam and ensuring it meets required performance criteria.

1. Beam Width (w):

• • Defined as the radial distance from the beam axis at which the irradiance drops to \( \frac{1}{e^2} \) (approximately 13.5%) of its maximum value.
  • Measured in both the x and y directions to account for any asymmetry in the beam profile.
  2. Divergence Angle (θ):
  • Represents the spreading of the laser beam as it propagates through space.
  • Calculated by measuring the beam width at two points along the propagation axis and using the formula \( θ = \frac{\Delta w}{\Delta z} \), where \( \Delta z \) is the distance between the measurement points.
  3. Beam Propagation Ratio (M²):
  • A critical parameter that describes how close the beam is to an ideal Gaussian beam.
  • Determined by dividing the actual divergence of the beam by the divergence of a theoretical Gaussian beam with the same waist size.
  • A lower M² value indicates a beam of higher quality, with M² = 1 representing a theoretical ideal Gaussian beam.
  4. Beam Waist (w_0):
  • The location along the propagation axis where the beam is the narrowest.
  • Essential for focusing applications and determining the Rayleigh range.

  By rigorously following the ISO 11146 standard, laser manufacturers and users can ensure that their measurements are accurate, repeatable, and standardized, thereby facilitating better control over beam quality and improving the reliability and precision of laser-based applications.

Test Methods for Laser Beam Widths

To accurately measure laser beam widths, one must employ methods that align with rigorous standards. The most prevalent methods utilized are the Knife-Edge Technique, the Slit-Scan Method, and the CCD Camera Profiling.

1. Knife-Edge Technique:

• • Involves moving a sharp edge across the beam path and measuring the power transmitted.
  • The beam width is determined by analyzing the rate at which power decreases as the edge intersects the beam.
  • This method is highly precise but requires careful alignment and stable environmental conditions.
  2. Slit-Scan Method:
  • Uses a slit to scan across the beam at different locations.
  • The transmitted power through the slit is recorded and analyzed to ascertain the beam width.
  • This approach is suitable for beams with well-defined profiles but can be less accurate for highly divergent beams.
  3. CCD Camera Profiling:
  • Involves capturing the beam profile using a Charge-Coupled Device (CCD) camera.
  • The beam width and shape are then analyzed using image processing software.
  • This technique provides a comprehensive beam profile and can accurately measure various beam parameters simultaneously.

  By employing these methods, one can ensure precise and reliable measurements of laser beam widths, adhering to recognized standards and optimizing the quality of laser applications.

Ensuring Compliance with Industry Standards

To ensure compliance with industry standards for laser beam width measurements, it is essential to adhere to established guidelines from reputable organizations such as ISO (International Organization for Standardization), ANSI (American National Standards Institute), and IEC (International Electrotechnical Commission). These standards meticulously outline the required procedures, tools, and calibration techniques for accurate laser beam profiling.

1. ISO 11146:

• • Specifies methods for measuring the beam width at various points along the propagation direction.
  • Includes guidelines on selecting appropriate equipment and aligning the beam path correctly.
  2. ANSI Z136:
  • Covers safety standards for laser use, including detailed protocols for measuring and controlling beam widths.
  • Provides recommendations for environmental controls to ensure measurement accuracy and repeatability.
  3. IEC 60825:
  • Encompasses safety standards for laser devices, emphasizing the importance of precise beam management.
  • Stipulates the use of certified measurement instruments and techniques to adhere to safety regulations and maintain operational integrity.

  By rigorously following these standards, organizations can guarantee that their measurement practices meet international compliance, thereby enhancing both safety and accuracy in laser applications.

Applications of Laser Beams in Various Industries

Laser beams have become an integral tool across multiple industries due to their precision, control, and versatility. In the manufacturing sector, lasers are extensively used for cutting, welding, and engraving materials, enhancing production speed and accuracy. The medical field leverages laser beams for surgeries, eye treatments, and cosmetic procedures, ensuring minimal invasiveness and reduced recovery times. Telecommunications rely on laser technology for transmitting data over optical fibers, allowing for high-speed communication networks. Additionally, scientific research utilizes lasers in spectroscopy, particle manipulation, and various experimental setups. The defense industry employs laser systems for targeting, range finding, and directed energy weapons. By utilizing lasers, these industries achieve superior performance, efficiency, and innovation in their respective applications.

Material Processing and Manufacturing

Laser technology has revolutionized material processing and manufacturing by offering unparalleled precision, speed, and consistency. Three primary applications of lasers in this sector are cutting, welding, and engraving.

1. Laser Cutting:

• • Precision: Laser cutting is known for its high precision, with cutting tolerances as low as ±0.001 inches.
  • Speed: Modern laser cutters can achieve cutting speeds up to 100 inches per minute depending on the material thickness and type.
  • Versatility: Suitable for a variety of materials including metals, plastics, ceramics, and composites.
  • Technical Parameters: Key parameters include laser power (typically between 500W to 10kW), wavelength (commonly around 10.6 µm for CO2 lasers), and focal length.
  2. Laser Welding:
  • Strength: Produces high-strength welds with excellent repeatability.
  • Efficiency: Capable of welding thin materials up to several centimeters thick with minimal heat distortion.
  • Application: Used in automotive, aerospace, and electronics industries for joining components with high precision.
  • Technical Parameters: Typical laser powers range from 1kW to 5kW for automotive applications, with wavelengths in the range of 1.06 µm for fiber lasers.
  3. Laser Engraving:
  • Detail: Allows for fine detail work, suitable for intricate patterns and text.
  • Durability: Produces permanent marks that are resistant to wear and environmental conditions.
  • Usage: Widely used in creating serial numbers, barcodes, and decorative elements on various surfaces.
  • Technical Parameters: Engraving systems commonly operate at powers between 10W and 100W, with common wavelengths being 1.06 µm for fiber lasers and 10.6 µm for CO2 lasers.

  By leveraging these technologies, the manufacturing sector enhances production capabilities, improves product quality, and optimizes operational efficiency, leading to significant advancements in modern industrial applications.

Medical and Surgical Applications

Laser Eye Surgery:

• Precision: Lasers offer unparalleled precision, essential for ophthalmic procedures like LASIK and photorefractive keratectomy (PRK).
• Minimal Invasiveness: These surgical techniques minimize tissue damage, leading to shorter recovery times.
• Technical Parameters:
• Laser Type: Excimer lasers are commonly used.
• Power: Typically ranges from 193 nm to 247 nm in wavelength.
• Repetition Rate: Varies between 100 Hz to 300 Hz.
• Justification: Excimer lasers are highly effective at reshaping the cornea with precise control over the ablation depth.

Orthopedic Surgeries:

• Accuracy: Utilized for tasks such as bone cutting and drilling with high accuracy.
• Reduced Trauma: Minimizes surrounding tissue damage during surgery.
• Technical Parameters:
• Laser Type: Generally employs CO2 lasers.
• Power: Operates in the range of 10W to 100W.
• Wavelength: Typically around 10.6 µm.
• Justification: CO2 lasers provide clean cuts with minimal bleeding, making them suitable for orthopedic applications.

Cosmetic Surgery:

• Versatility: Laser treatments can remove scars, wrinkles, and unwanted hair.
• Effectiveness: Ensures precise targeting of skin layers without affecting surrounding tissues.
• Technical Parameters:
• Laser Type: Often uses fractional CO2 lasers and diode lasers.
• Power: Generally operates between 2W to 30W.
• Wavelength: Varies; for fractional CO2 lasers it is around 10.6 µm and for diode lasers between 800 nm to 900 nm.
• Justification: These lasers provide controlled ablation and coagulation, ensuring effective removal of skin imperfections with efficient healing.

These applications demonstrate how lasers have revolutionized medical and surgical procedures by enhancing precision, reducing recovery times, and improving overall outcomes.

Scientific Research and Development

Lasers have become indispensable in scientific research and development due to their unparalleled precision and versatility. Researchers use lasers in a wide range of applications, including spectroscopy, microscopy, and material processing. Spectroscopy, for instance, benefits from lasers’ ability to provide highly focused and monochromatic light sources, enabling the detailed analysis of materials at the atomic and molecular levels. Confocal laser scanning microscopy allows for high-resolution, three-dimensional imaging of biological samples, facilitating advanced research in cellular biology and medicine.

In material processing, lasers are employed for tasks such as cutting, drilling, and etching with exceptional accuracy, leading to innovations in semiconductors, nanotechnology, and photonics. The ongoing development of ultrafast lasers, which produce pulses in the femtosecond range, has opened new research avenues in studying dynamic processes in real-time.

The continuous advancement in laser technology, driven by scientific research, enhances various fields and fosters innovation, underscoring the critical role of lasers in modern science and technology.

Frequently Asked Questions (FAQs)

Q: What is laser beam quality?

A: Laser beam quality refers to how close a real beam is to an ideal gaussian beam. High-quality laser beams have characteristics close to a diffraction-limited gaussian beam, allowing efficient energy delivery and precise focusing in laser applications.

Q: How is beam quality calculated?

A: Beam quality is typically calculated using the M² factor, which is a measure of the beam’s deviation from an ideal gaussian beam. The lower the M² factor, the higher the beam quality of a laser. Standards like ISO 11146 provide methods for the measurement of laser beam quality and other parameters related to beam quality calculations.

Q: What is beam divergence and how does it affect laser beam quality?

A: Beam divergence is the angle at which a laser beam spreads as it propagates. Lower beam divergence indicates higher beam quality, as it suggests the beam can be focused more tightly. Conversely, a beam with larger divergence will spread more quickly and be less effective for applications requiring precise focusing.

Q: What role does beam diameter play in laser beam quality?

A: Beam diameter affects the ability to focus the laser beam. A smaller beam diameter at the beam waist generally means a higher quality of a laser beam, as it can be focused more precisely. The beam diameter can be influenced by different factors including the laser system and the optics used.

Q: How does the beam profile relate to laser beam quality?

A: The beam profile describes the distribution of the laser beam’s intensity. A more uniform beam profile, resembling an ideal gaussian distribution, typically indicates higher beam quality. Beam profiles can be measured to assess how the beam’s shape adheres to an ideal gaussian beam.

Q: What is the significance of the M² factor in laser beam quality?

A: The M² factor is a critical parameter that quantifies the beam quality of a laser. It represents the product of the beam’s divergence and waist radius relative to an ideal gaussian beam. A lower M² value indicates a beam closer to the diffraction limit, signifying higher beam quality useful for various laser applications.

Q: How does beam propagation influence the quality of a laser beam?

A: Beam propagation affects the quality of a laser beam as it denotes the behavior of the beam over distance. Factors such as beam divergence and the evolution of the beam radius during propagation help determine how well the beam can maintain its quality and focus over distance.

Q: What is the importance of the measurement of laser beam quality?

A: Measuring the laser beam quality is important for optimizing performance in laser material processing and other laser applications. Precise measurement allows for better matching of the laser system to the application’s requirements, ensuring efficiency and effectiveness.

Q: Can the laser wavelength affect beam quality?

A: Yes, the laser wavelength can influence beam quality. Different wavelengths interact with optical components and materials differently, affecting factors like beam divergence and focusability. Higher beam quality is often easier to achieve with wavelengths that align well with the application and the optical design of the laser system.

Q: How does the beam waist radius affect laser beam quality?

A: The beam waist radius is the smallest part of the laser beam and a key factor in determining the beam’s ability to focus. A smaller beam waist radius typically signifies higher laser beam quality as it indicates the beam can be focused more tightly, enhancing precision in applications like laser material processing.
