Injection molding is a well-known manufacturing process that is employed in several industries to produce high-quality plastic parts quickly. In this regard, there are two major approaches: soft tooling and hard tooling. These methods vary in terms of materials, cost, production volume, lead time and durability, making it crucial for manufacturers to choose between them carefully. The intention of this paper is to provide an inclusive review of soft tooling and hard tooling by stressing their major differences as well as the situations under which each method becomes most beneficial. Once these disparities are understood; readers will be able to decide on the most appropriate approach for their injection molding needs depending on whether they adopt either hard or soft tools.

What is Hard Tooling in Injection Molding?

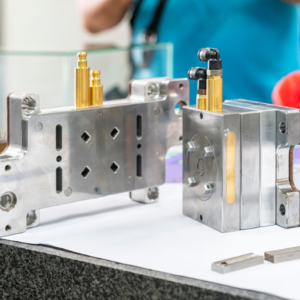

Hard Tooling
Soft vs. Hard Tooling
Image source: https://www.3erp.com/
Hard tooling in the context of injection molding is the act of utilizing persistent, hardened substances like steel which are used to mold other substances. It is designed to withstand the high pressure and temperature inherent in injection molding and therefore ideal for producing many parts at once with consistent quality. On the other hand, hard tooling molds have a higher initial costs and lead time but their long lasting nature permits them to produce hundreds of thousands or even millions of parts without significant wear and tear hence a cost effective choice for large production runs.

Hard Tooling and Its Use Cases

Manufacturers often require large-scale production of products with high precision and consistency. For instance, hardened steel molds used in this process are perfect for parts that must be within tight tolerance levels and feature complex geometries since they can retain their form and quality throughout extended period of production. Hard tooling is commonly used in industries like automotive, aerospace, and consumer electronics because they need long-lasting materials of high accuracy. Furthermore, hard tooling is favored for projects that run a long time or products which have a long market lifecycle as the higher initial costs are spread over lower per unit costs in subsequent years.

Tooling Process for Hard Tools

Various strategic steps must be followed to achieve “hard tools” for injection molding process to meet the demand of high-volume production. The beginning point is known as design phase in which engineers create complex computer aided design (CAD) models of parts they want and molds to be used for this purpose. After finalizing the design, material selection is done whereby high toughness materials that are resistant to wear and tear like hardened steel are preferred.

Once the materials have been determined, then manufacturing of mold takes place by utilizing delicate machinery processes such as CNC milling, EDM (Electrical Discharge Machining), grinding among others, so that intricate geometries with small tolerances can be made. This stage ensures that molds can endure high pressures and temperatures of the injection moulding procedure without getting damaged or losing dimensions.

This subsequently calls for a series of heat treatments on machined molds aimed at further strengthening their hardness as well as long life. At this stage, strict quality checks and trials are conducted to ensure each mold conforms to dimensional accuracy and surface smoothness specifications. Once these examinations have been passed then only should one use them in mass productions so that uniformity is achieved through many cycles of injection molding in terms of quality and performance.

Advantages of Hard Tooling

High volume production is one of the benefits that make hard tooling the best tool for high volume manufacturing. Its long lifespan enables it to survive continuous operations without much damage. Consequently, this leads to reduced costs on a per-unit basis in the long run since molds can be used for extended periods without having them replaced frequently. Furthermore, hard tooling ensures excellent dimensional accuracy and surface finish, which are indispensable qualities when making parts with very small tolerances requirements. Another advantage is uniformity in part production; in other words, hard tooling produces similar quality across large quantities where minimal fluctuations or defects occur. Lastly, there is wide range of possible shapes and sizes that can be made using hard tools unlike any other methods. Generally put together these benefits turn hard tooling into an economical approach that works out well during large scale productions in different companies such as those from various industries.

How is Soft Tooling Different from Hard Tooling?

Soft vs. Hard Tooling
Soft vs. Hard Tooling
Unlikely hard tooling, softer tools can be made from materials such as urethane or aluminum that are less robust and easily machinable. In other words, the time spent on construction is shorter and the costs incurred in production are reduced significantly, hence making it preferable for prototyping and small-scale manufacturing. Conversely, this bargain forces users to sacrifice durability since it cannot survive under harsh conditions like those which hard tooling thrives in. This means that there will be frequent maintenance or replacement of parts thus raising the cost of operating such a system in the long run when used beyond its intended purpose. Although, soft tooling would not offer similar precision levels while still molding as hard tooling does giving attention to project-specific requirements.

The Difference Between Soft and Hard Tooling

Different purposes are served by soft tooling and hard tooling, and they cater for different production requirements. Soft tooling with short turnaround times and low cost of ownership is usually made from materials like aluminum or urethane. The suitability of this type of molding increases as one move to scenarios where the required volumes of manufacturing are small, i.e., prototyping such as when developing new products in the market. Nonetheless, it has a reduced durability hence less ideal for high load bearing environment and high volume environment that requires repair often or replacement more frequently. On the other hand, hard-tooling which is made using durable metals such as steel is characterized by excellent dimensional accuracy, surface finish and consistency over large quantities. The robustness means that it is highly appropriate for mass production but has higher capital costs than its counterpart while lead time may be longer. Simply put, the decision between soft and hard tooling depends on factors such as; production volume; budget; dimensional tolerances desired; and service life requirements among others.

Soft Tooling vs Hard Tooling: Use Cases

During the process of choosing between soft tooling and hard tooling, application and production requirements play a crucial role.

Soft Tooling:

When prioritizing lead time and cost considerations for prototyping and low-volume production runs, soft tooling is highly recommended. In such situations, it is employed by industries such as consumer products, aerospace, automotive etc., to quickly produce prototype parts used for testing and validation. Therefore, because of its flexibility and quicker turnaround times, it is an ideal choice for early-stage product development.

Hard Tooling:

The best place to use hard tooling with its superior durability and dimensional accuracy is in high volume production environments. For instance,the medical device production industry uses hard tollling while on the other hand the electronics manufacturing industry employs their use in mass producing components that have to be consistent enough and accurate. Even though there is a higher upfront investment required, hard tooling has a long life span which enables it withstand the stress brought about by ongoing high-volume manufacturing processes.

Ultimately, whether to select soft or hard tool will depend on details including specific production volumes; cost constraints; parts precision needs among others.

Soft Tooling for Prototype Development

Prototype development values soft tooling, which is a cheaper option when compared to hard tooling on account of its lower set up time and faster lead times. As a result, manufacturers can achieve the quick production of accurate and functional prototypes without incurring the long setup periods or high costs associated with hard tools. This gives room for design adjustments and feedback-driven refinements as it allows one to iterate through models quickly. Furthermore, since soft tooling boasts comparable material properties with those of the final product, this makes it crucial for evaluating performance, ergonomics as well as manufacturability. It therefore acts as an efficient “bridge” between initial design stages and the actual manufacturing process hence making development quicker.

What are the Benefits of Soft Tooling in Molding?

Soft vs. Hard Tooling
Soft vs. Hard Tooling
Soft tooling in molding has numerous and significant benefits, particularly at the beginning of product development. Soft tooling, as opposed to hard tooling, allows quick and relatively cheap production of prototypes that considerably decrease lead times. This advantage is critical for iterative design process that needs manufacturers to make changes quickly and improve their products. Other than this soft tooling can almost imitate the final material properties of a product thus giving insight on its performance, ergonomics and manufacturability aspects. The purpose of ensuring that the prototypes manufactured are functional and reliable enough when it comes to testing purposes can be achieved by this kind of approach. Finally, soft toolings facilitate a more adaptive method of product development making them not only less costly but also increasing the speed with which they reach consumers.

Soft Tooling as a Cost-Effective Method

A cost-effective method in the manufacturing process, soft tooling, stands out for several reasons. Firstly, it has much fewer initial costs compared to hard tooling because of its reliance on less pricey inputs as well as simple production techniques. This reduced start-up expenditure makes it feasible to smaller companies and startups with restricted budgets. Secondly, the time taken for production and change is very less hence quick design iterations and adjustments are possible with soft tooling. Efficiency such as this can lead to faster advancements or shorter product development cycles which is very important in fast moving markets. Lastly, small batch production runs are effectively supported by soft tooling making it possible for manufacturers to test and validate their designs without committing themselves into mass scale production. Such flexibility helps minimize waste while ensuring that only well-validated designs move onto mass manufacturing, thus reducing overall manufacturing costs.

Advantages of Soft Tooling

Several key benefits exist in using the soft tooling for manufacturing.

1. Cost-Effectiveness: Soft tooling is far cheaper to produce than hard tooling. This is mainly because of inexpensive materials and simpler construction techniques used to make it. Hence, it is especially useful for start-up businesses and small organizations with limited budgets.

2. Flexibility and Speed: The production and modification rates of soft tooling are much higher compared to traditional hard tooling. This enables rapid prototyping as well as faster iterations hence enabling designers and engineers to rapidly fine-tune their products. This can significantly reduce overall product development cycle time by reducing lead times.

3. Small-Batch Production: In this regard, soft tooling is suitable for small volume production runs which are essential for testing, validating, refining designs before committing them to mass production thus preventing overproduction minimizing waste and ensuring that only thoroughly vetted products are produced on a large scale.

4. Material Mimicry: Soft tooling replicates accurately the material properties of final products thereby giving valuable insights on performance and ergonomics of such items. It ensures functional and reliable prototypes through tests thus validation purposes are met.

In general, soft-tooling offers an adaptable, effective, economical solution that quickens product development while keeping manufacturing costs low.

Soft Tooling and Low Volume Production

Soft tooling is a necessity for the low volumes of production because it is affordable, its production is fast and it can adopt to different purposes. Unlike traditional hard tooling, soft tooling can be produced quickly and at low costs, making it ideal for prototyping as well as small-batch manufacturing. This allows firms to change designs within short periods, undertake iterative testing and enter into markets faster without having to put up with huge amounts of money required by hard tooling.

Additionally, soft tooling assists in producing parts that have qualities and material properties which closely resemble the final product thereby offering invaluable insights during testing and validation phases. For instance, through using prototype tooling for low volume runs companies may reduce waste while optimizing their manufacturing processes leading to lower cost per unit and decreased lead times. By making use of soft tools in low volume manufacturing, businesses can minimize waste generation while at the same time optimizing their production processes as well as ensuring quality without having to incur high costs or long cycle times associated with conventional means of manufacture.

When to Use Soft Tooling vs Hard Tooling?

Soft vs. Hard Tooling
Soft vs. Hard Tooling
The demand for hard tooling or soft tooling is dependent on your specific project requirements and constraints. You can employ soft tooling when doing low-volume production, prototyping, or if you anticipate design changes. It is cost-effective for designing a product quickly and at lower costs than hard tooling which may require expensive testing. Also, it facilitates frequent adjustment of iterative prototypes before making the final iteration. Conversely, hard tools are mostly used in manufacturing large numbers of parts because they last longer than others do. Therefore, high quality products with consistency over long production runs are achieved by such kind of a method that becomes very effective when the design is final and not expected to be altered anymore. In conclusion choice between these approaches should depend on variables such as quantity produced, budgetary concerns, deadlines set and how mature the product’s design is.

Choosing Between Soft Tooling and Hard Tooling

The following are key considerations to take into account when choosing between soft and hard tooling.

  1. Production Volume: Soft tooling is generally better suited for low volume production, prototyping and small batch manufacturing while high volume production runs that justify the cost of a longer lasting investment in tooling is best done with hard tooling.
  2. Cost and Budget: Low initial costs make soft tooling ideal for projects that operate on small budgets or anticipate design changes. Hard tooling initially costs more but its durability leads to lower per unit prices in mass production.
  3. Project Timeline: Short turnarounds are possible through the use of soft tooling in fast track projects. It takes longer to set up hard tooling but it’s suitable for long-lasting and highly productive projects.
  4. Design Stability: When there is likelihood of redesigns or multiple iterations needed, soft tooling has more flexibility at a reduced cost. However hard tooling should be used when the designs are stable without frequent changes.
  5. Material and Quality Requirements: Both types can produce parts of high quality though some materials require closer tolerances over many thousand pieces requiring consistent part repetition that’s why most industries prefer using hard tools. Soft tools may not be as accurate as they should although they can also help make very good quality products especially in significant volumes compared to hard tools.
Assess these factors so that you can decide wisely based on your specific project needs within defined boundaries.

Tooling for Short Production Runs

While considering tooling for short production runs, it is necessary to consider flexibility, cost effectiveness, and quickness. Generally, soft tooling is the preferred choice due to its lower initial costs, faster lead times than others and ability to accommodate design changes. Most of these tools are made from less strong materials such as silicone or urethane which are ideal for producing little number of parts.

However, some projects may require rapid tooling methods like 3D printing or CNC machining. These enable prompt fabrication and alterations without long tool setup process. Above all this presents a challenge on the tradeoff between hard tooling’s high expenses versus better quality of parts’ molding when volume can’t justify the cost.

Ultimately, various factors have to be considered before selecting the right tooling for short production runs that include: budgetary allocations; project schedules; and complexity of design among other issues in such cases. Choosing flexible approaches ensures that there remains a way through satisfying immediate manufacturing needs while also maintaining control over expences.

Tooling Methods for Different Production Volumes

Tooling methods can differ greatly depending on the production volume, and this method selection will depend on factors such as budget, lead time and precision required. For small volume production, methods like soft tooling and rapid prototyping via 3D printing or CNC machining are often the best suitable. Soft tooling is cost-effective and flexible, accommodating quick changes with lower initial costs. Rapid prototyping technologies allow for quick iterations and design modifications which are good for perfecting a product before it goes to mass production.

Bridge tooling is commonly used in medium volume production. It includes material such as aluminum or hybrid molds that balance between expenses and durability. Bridge tooling offers more uniformity than soft tooling and higher quality components which are produced in hundreds to thousands numbers.

High volumes call for strong and durable tooling ways including hard tools often from hardened steel. It assures consistency, durability, accuracy during long running of productions thereby making it ideal for producing several hundreds up to millions of parts. Although there is a relatively high upfront cost involved in this approach, but per part cost decreases significantly over large quantities rendering it an economical answer for huge-scale manufacturing.

In summary, choice of the method should be pegged on the production volume while balancing issues such as cost, flexibility, and finesse necessary to meet specific project requirements.

How Do Tooling Materials Impact the Production Process?

Soft vs. Hard Tooling
Soft vs. Hard Tooling
The choice of tooling materials has a significant impact on the production process in various ways. First, the type of material used affects how long lasting and strong tools will be. For example, hardened steel is very durable and can withstand heavy usage in high volume production ensuring consistent quality as well as precision. Conversely, metals like aluminium are less durable but more flexible and cost-effective for medium-volume production. Furthermore, thermal conductivity of the tooling material also determines cycle times and hence overall production efficiency. For instance, apart from reducing cooling time which accelerated manufacturing processes, materials with higher thermal conductivities were used. The other determining factor for a good tooling material is its machinability that defines its ease to shape or modify it thus affecting lead times plus ability to make design adjustments. Consequently, cost, efficiency and quality within the entire production process should be optimized by selecting the right tooling material.

Materials Used in Hard Tooling

Hard tooling is renowned for its durability and high accuracy in mass production. Such materials used include hardened steel and carbide. The preference for hardened steel is due to its outstanding wear resistance as well as its ability to hold close tolerances during long production runs. However, carbide has higher hardness and heat resistance compared to hard steel but it is more expensive thus making it suitable for machining hard materials with a high degree of precision. These affordances ensure that hard tooling can stand up against the demands of prolonged usage while still producing consistent parts quality. The choice of material for the fabrication of hard tooling is crucial in cost-effective manufacturing that will maintain production requirements.

Soft Tool Material Options

In soft tooling which is often used for prototyping and low to medium volume production, materials like aluminium, mild steel and urethane are commonly used. Aluminum which is light in weight and easy to machine makes it faster for the tooling process with lower costs. Mild steel though not as strong as hardened steel offers a balance between cost and working life making it suitable for moderate production runs. Urethane is a flexible material that can be twisted, shaped or bent into desired shapes, this makes it perfect for molding of complex geometries during testing and low-volume production runs. All these materials have different advantages but guarantee suitability of soft tool material selection according to the specific project requirements considering such factors as cost, lead time and durability needed on projects.

Considerations for Tool Design

When designing tools for manufacturing, a few important aspects need to be considered in order to ensure efficiency, accuracy and long life. First of all, it is important to understand the particular needs of the production process such as tolerances, material characteristics and production volumes. Moreover, designers should look at the geometry of the tool ensuring that it is optimized for both machining processes and materials being worked on. The employment of computer-aided design (CAD) and finite element analysis (FEA) can tremendously help in improving the process of designing tools by enabling performance prediction as well as detection of problems before production.

Another vital factor is selecting suitable coatings and surface treatments which can reduce wear and friction hence enhancing tool life and performance. Additionally, ease of maintenance and potential for modification are critical factors that should be incorporated into the design process thereby extending its usefulness while accommodating changing demands over time. Finally, collaboration with manufacturers will also produce practical decisions regarding how best to accommodate manufacturability whilst keeping costs down. By mixing these considerations together, they will facilitate an efficient way towards constructing tools suitable for modern manufacturing environments.

What is the Role of Sheet Metal in Tooling?

Soft vs. Hard Tooling
Soft vs. Hard Tooling
The importance of sheet metal is it provides a resistant and elastic material for making different tools and parts. Because sheet metal has good mechanical properties and is easy to make, it is widely used in the manufacture of dies, molds, and other forming tools. Its ability to be cut, bent, or shaped very accurately makes sheet metal suitable for many manufacturing processes. The other reason why it can be cost-effective to use sheet metal tooling is due to its ability to support large volumes of production while still easily being changed when design changes occur. In order to achieve efficient manufacturing outputs which are accurate, the strength and adaptability of sheet metals stands as an essential tool.

Sheet Metal Tooling Process

The process of tooling for sheet metal involves several key steps that start with design and engineering, where the exact specifications and tool paths are created using CAD software. Then in material selection, appropriate metals for sheet like steel, aluminum or stainless steel are picked based on their characteristics and project requirements. Thereafter, fabrication uses techniques such as cutting, bending and stamping to change the shape of the metal sheets to its desired form. Advanced processes like laser cutting and CNC machining have improved precision and made work easier. Finally, finishing methods like coating, polishing or heat treatment have been applied to enhance durability as well as aesthetics and functionality respectively. The use of these methodologies guarantees high quality yet cost-effective production of tools and components made from sheet metal.

Using Sheet Metal in Injection Molding

Injection molding process has an important role to play in the making of molds with sheet metal being one of the major materials used. The strength and resilience which are a characteristic feature of sheet metal make it good for making mold bases, support plates and cavity inserts. The pressure and temperature that is usually involved in injection molding calls for a material that can withstand these two forms of energy. Also, with precision sheet metal fabrication techniques, a molded part is expected to meet its specifications while reducing defects in mass production by ensuring the same shape is produced every time. Moreover, the malleability of sheet metal allows easy maintenance and modifications during tooling life span, thus eliminating down-time during production. Thus, among others, there are some factors that are covered under integration of sheet metals into injection molding such as increased efficiency reliability and long life span of the moulding tools.

Tool Life and Production Runs

Tool longevity is a vital issue in injection molding and affects directly the number of batches’ runs that can be made and thus, efficiency level achieved within manufacturing processes. The high-quality tool materials, such as sheet metal, significantly improve the strength and life of molds thus making it possible to increase production runs without changing tools frequently or replacing them. Manufacturers must use advanced fabrication techniques as well as strong materials that will make the molds maintain their precision for long periods so that part quality may become consistent while production costs go down.

Longer tool life allows uninterrupted production for longer which is necessary to meet high volume manufacturing requirements. Injection moulds with these objects will withstand regular inspections and timely repairs, ensuring longer service life spans. This reduces downtime and increases productivity levels by maintaining schedules of production and keeping output consistent.

To sum up, durable materials including sheet metal are critical in enhancing tool life in injection molding alongside effective maintenance practices.

Reference sources

  1. 3ERP – Soft vs. Hard Tooling for Injection Molding

    • This article from 3ERP offers an in-depth comparison of soft and hard tooling methods in injection molding. It discusses the advantages and disadvantages of each type, as well as their specific use cases within various industrial applications.
    • Source: 3ERP

  2. Fictiv – Soft Tooling and Hard Tooling for Injection Molding

    • Fictiv provides a comprehensive overview of both soft and hard tooling techniques used in plastic injection molding. The guide explains the processes, benefits, and typical applications for each method, making it a valuable resource for understanding their practical differences.
    • Source: Fictiv

  3. SyBridge Technologies – Soft Tooling vs Hard Tooling: Pros, Cons, Pricing

    • This resource from SyBridge Technologies delves into the pros and cons of soft and hard tooling, including pricing considerations. The article highlights key factors that influence the choice between these two tooling methods, providing insights into their economic and functional implications.
    • Source: SyBridge Technologies

Frequently Asked Questions (FAQs)

Q: What is the primary difference between soft tooling and hard tooling?

A: The primary difference between soft tooling and hard tooling lies in the materials and durability. Soft tooling is usually made from urethane, silicone, or other flexible materials, making it cost-effective for low volume of parts. Hard tooling, on the other hand, is made from steel or aluminum, which are more durable and suitable for higher production cycles.

Q: When should I opt for soft tooling in injection molding?

A: Soft tooling is a cost-effective method of tooling that is best used for prototyping, short runs, and testing since it is quicker to produce and less expensive than hard tooling. Soft tools don’t handle high temperatures and pressures as well, so they’re ideal for applications where the production cycle is limited to a low volume of parts.

Q: What type of tooling is known as hard tooling in injection molding?

A: In injection molding, hard tooling refers to molds made from steel or aluminum. These materials are durable and can withstand higher temperatures and pressures, making them suitable for large volume manufacturing and production runs lasting thousands of shots.

Q: Are there any disadvantages to using soft tooling?

A: Yes, while soft tooling is a cost-effective method of producing parts, it has limitations. Soft tools don’t last as long and may not provide the same level of product quality and precision as hard tooling can. Additionally, they cannot withstand higher temperatures and pressures, limiting their use to short production cycles and small batches.

Q: How does hard tooling affect the finished product quality in injection molding?

A: Hard tooling typically provides a higher level of product quality due to the durability and precision of materials like steel or aluminum. This type of tooling usually allows for smoother finishes, more intricate mold patterns, and consistent part dimensions over long production runs.

Q: What are the cost implications of using soft tooling versus hard tooling?

A: Soft tooling is generally less expensive and faster to produce, making it suitable for short runs and prototyping. Hard tooling involves a higher initial investment due to the materials and precision required, but it is more cost-effective for mass production due to its long lifespan and ability to withstand numerous production cycles.

Q: What types of materials are typically used in soft tooling techniques?

A: Soft tooling techniques often use materials such as silicone, urethane molding compounds, and cast urethanes. These materials are ideal for creating flexible molds that are quicker and less expensive to produce compared to the steel or aluminum used in hard tooling.

Q: Why might a company choose hard tooling for short production runs?

A: A company might choose hard tooling for short production runs if the products require higher precision, better durability, and consistent quality. Although more expensive initially, hard tooling can produce parts with a smoother finish and more detailed mold patterns, which may justify the cost for high-quality or complex parts even in short runs.

Q: Can soft tooling be used for casting urethanes in injection molding?

A: Yes, soft tooling can be used for casting urethanes in injection molding. This method of tooling is suitable for creating prototypes and short-run parts with flexible materials. However, it is less durable and may require extra machining for precision compared to hard tooling.

Q: What are some common applications for soft tooling in injection molding?

A: Common applications for soft tooling include prototyping, short-run production, testing, and low-volume manufacturing. It is particularly useful when quick turnaround times and lower production costs are critical, such as in the development and refinement stages of product design.
