The manufacture of intricate plastic objects with high accuracy is normally done by injection molding. Nonetheless, many defects usually hinder the attainment of a desired quality in the final product. Among these, flow lines are one of the most common and problematic problems that manufacturers face.Flow lines are easily recognizable marks or patterns appearing on the molded part’s surface that show how molten plastic flowed within a mold cavity.These blemishes can markedly mar the look and durability of an end product resulting into increased reject ratesand expensive rework.
This article will tackle some major reasons behind flow line formation during injection molding, as well as take a look at practical solutions for preventing it. In understanding what causes this particular defect and following best practices, manufacturers can improve the quality and uniformity of their molded parts thus enhancing customer satisfaction while reducing production expenses.

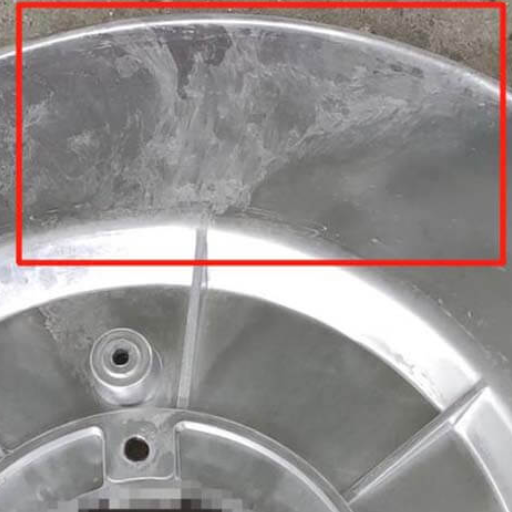

What Causes Flow Lines in Injection Molding?
https://www.intouch-quality.com/
Primary causes of flow lines in injection molding are uneven cooling and improper flow of molten plastic through the mold cavity. They include:
- Inconsistent Melt Temperature: When the molten plastic is not heated uniformly, it may become cold at different rates around such features.
- Varying Mold Temperature: Non-uniform temperature during the solidification process can result in visible lines.
- Injection Speed and Pressure: Low or high speeds and pressures cause incorrect filling of molds leading to these flaws.
- Material Viscosity: High viscosity materials may not flow smoothly resulting in evident streaks.
- Mold Design: Complex geometries or sudden changes in wall thickness can interrupt the resin’s movement forming these imperfections.
These factors, if considered, can go a long way in reducing the incidences of flow lines hence improving quality of molded parts by manufacturers.
Role of Mold Design in Flow Mark Formation
Flow marks are molded as a result of the nature of the mould design. There are certain aspects of mold design that can influence these defects:
- Gate Location and Size: Right position and size of gates ensures even flow of molten plastic into the cavity. Flow marks may occur when gate placement is not in proper order leading to an imbalance in flow.
- Runner System Design: Good runner systems enhance smoothness and uniformity of flow for plastics. Inadequately planned runners induce turbulence and uneven filling.
- Wall Thickness Uniformity: Disharmonized wall thickness allows varied cooling rates, which lead to flow marks. This problem can be minimized by having constant wall thickness.
- Ventilation: In case there is sufficient venting in the mold, trapped air will be released before it causes any disturbances during the flow process resulting in marks.
- Surface Finish: The way melted plastic moves inside a mold as well as cools down is affected by texture plus finish on its inner layer, affecting visibility of flow lines or marks on it.
Optimizing these design elements can significantly reduce the appearance of flow lines, making them less visible and thus improve outcome quality, thereby enhancing aesthetics in molded products should be focused on during molding processes.
Impact of Injection Pressure on Flow Lines
A pivotal role in determining the occurrence of flow lines in molded parts is played by injection pressure. High injection pressure can result in too much shear stress that accompanies the moving molten plastic, therefore causing it to move excessively fast and leave flow lines behind. Conversely, inadequate injection pressure could lead to imperfect cavity filling and thereby contribute to formation of these flow lines. Injection pressure must be optimized so as to achieve smooth consistency of flows and reduce defects. This is a delicate balance which needs to consider factors such as the specific material properties of the plastic employed, mold design and complexity of the part being manufactured. Adjusting the injection pressure within its ideal range for given parameters can significantly reduce these flow lines making way for better finished products’ quality.
How Material Flow Affects Molded Parts
The final quality of a product depends on the flow of materials in a mold. Material flow determines the uniformity, strength and aesthetics of a component. Unpredictable flows may cause structural defects such as buckling, air bubbles or flow lines that reduce its aesthetics. Ensuring that molten plastic is evenly distributed in the mold cavity prevents these defects. The temperature at which the plastic is being molded, design of the mold and speed of injection are all factors affecting material flow. With good optimization parameters for example, injection pressure and rate manufacturers can produce parts with reduced defects.
How Can You Prevent Flow Lines in Injection Molded Products?
Combining several approaches help prevent flow lines in injection molded products:
- Optimize Injection Pressure and Speed: Properly setting injection pressure and speed will promote equal distribution of molten plastic during molding thus reducing chances for occurrence of Flow Lines.
- Control Mold Temperature: Maintaining an even temperature within the mold helps to maintain consistent flow of plastic thereby preventing formation of Flow Lines.
- Material Selection and Preparation: Identifying appropriate material for use in specific application and ensuring it’s well dried before injecting process can minimize defects.
- Improve Mold Design: Molds that have smooth path ways through which material can pass smoothly or vents which allow free movement form outlet to inlet so as to avoid formation of any flowing patterns.
- Adjust Gate Location and Size: Proper location and size will facilitate effective control including reduction in shear stress as well as minimizing formation of Flow Lines when feeding into the cavity.
Optimizing Mold Temperature for Better Flow
To ensure that the injection molded products have high material flow and low incidence of defects, it is necessary to optimize mold temperature. If a uniform and adequate mold temperature is maintained, plastic will remain at optimum viscosity thus enabling smooth and even filling of the mold cavity. This makes it possible for flow lines and other surface imperfections to be formed.
For optimization of mold temperature, specific properties of the material being used should be considered. Different plastics have different optimal temperatures ranges and conforming to these ranges improves their flow ability. Furthermore, using sophisticated approaches in controlling temperatures can help keep constant temperatures within the molds during injection process.
The cooling rate of a molded part also depends on how it’s regulated thermally which affects its mechanical properties as well as dimensions accuracy. Manufacturers may improve finished product quality by carefully monitoring and adjusting for this case, finding an ideal equilibrium between solidification and fluidity.
Adjusting Injection Speed to Minimize Defects
Minimization of defects in injection molded products is strongly dependent on the adjustment of the injection speed. Optimizing the rate at which molten plastic is shot into a mold may help regulate flow lines, sink marks, and weld lines. Speeding up can enhance material flowability and minimize premature solidification risks ensuring thatthe cavity of the mould fills completely and uniformly. On the other hand, slowing down injections can reduce shear stress and protect delicate substances from degradation.
To determine optimal injection speeds, manufacturers must consider properties of materials as well as intricacy and design of molds. By testing various injection speeds and assessing resultant product quality, ideal settings for defect minimization are identified. Additionally, advanced monitoring and control systems can be used to fine-tune injection speeds thereby ensuring consistency in production.
By selectively adjusting the pace at which injections are done, manufacturers can strike a balance between swift filling of molds without wasting time on common errors that occur during this process resulting in better quality goods with minimal wastage.
Importance of Cool and Consistent Mold Surface Temperatures
It is important to have cool mold surface temperatures that are stable throughout the injection molding process so as to ensure high-quality products. Rapid solidification of the outermost layer of molten plastic helps in generating a smooth and blemish free finish on the surface; therefore, cooling the cavity rapidly becomes extremely vital. Consistency in temperature control eliminates variations which can affect dimensions leading to warping, sink marks or other surface defects. Additionally, constant mold temperature may lead to reduced cycle times by increasing cooling speed hence enhancing overall productivity. This ensures that there is appropriate temperature control through use of advanced thermal management systems and regular maintenance of molds thus resulting into more consistent manufacturing outcomes.
How to Improve Flow in Plastic Injection Molding?
To enhance the flow of plastic injection molding, there are several ways. First, optimizing mold design through proper ventilation and balancing of the runner system can greatly improve the molten flow of plastics. Secondly, choosing the right kind and grade of plastic material compatible with specific molding conditions can make for smoother flow and better cavity filling in the mold. Thirdly, process parameters such as melt temperature, injection pressure and injection speed should be adjusted due to their direct effect on viscosity and flow characteristics of the materials. Moreover, using a simulation software for predicting possible issues before manufacturing will help during mold designing stage. Ultimately, without interruptions as well as optimal flow in both components by ensuring that molds and injection machines are maintained accordingly.
Significance of Proper Mold Design
For instance, in plastic injection molding, proper mold design is important because it affects both the quality of the final product and the efficiency and cost-effectiveness. Quality parts can be made in a well-designed mold due to its uniform flow as well as cooling, reducing chances of defects like warping, sink marks and cavities not being filled properly. This results into better parts with higher levels of reliability. Equally, a good choice of mold design can increase manufacturing efficiency through decreasing cycle times hence reducing waste thus decreasing overall manufacturing cost. In this case, achieving consistent results and enhancing longevity of the mold can only be possible if certain features like efficient venting system, gating systems and cooling channels are included. Lastly, paying attention to superior mold designs pays off since it leads to improved performance, fewer production problems and increased profitability.
Adjusting Injection Molding Machine Settings
One of the most important things in optimizing production process and ensuring highest quality of molded parts is adjusting injection molding machine settings. The key settings to focus on include:
- Melt Temperature: Understandably, the correct melting temperature guarantees that the plastic material has been melted properly and flows smoothly into the mold cavities. This temperature should be set as per manufacturer’s specification to avoid degradation and for consistent part quality.
- Injection Pressure: It determines how hard molten plastics push through the molds. Alterations in its pressure help achieve full cavity filling and reduce defects such as short shot and flash. However, it is very important to strike a balance so as to prevent damage on parts.
- Injection Speed: The flow and cooling rates are influenced by how fast material is injected. Proper injection speed can resolve issues like weld lines or flow marks. Slow speed is usually preferred for complex geometries in order to ensure even filling.
- Holding Pressure and Time: Holding pressure and time after initial Injection help properly pack material and compensate for shrinkage leading to better dimensional stability and surface finish.
- Cooling Time: Adequate time must be given for parts to solidify before they can be ejected out from a machine. Setting appropriate cooling time reduces internal stresses and warping thus improving part quality and cycles efficiency.
- Clamp Force: Proper clamping force should be appropriately set so that mold would remain closed during injection thereby avoiding flash and proper alignment of molds.
When these adjustments are precisely calibrated, there is an improved performance, product excellence, uniformity throughout the injection molding operations leading to high end cost effective manufacturing outcomes.
Choosing the Right Plastic Material for Enhanced Flow
It is very important to choose the right plastic material for injection molding because it optimizes flow and guarantees high-quality parts. Here are some top materials recommended for their improved flow properties:
- Polypropylene (PP): Polypropylene is widely used in automotive parts, consumer goods, and packaging due to its excellent flow characteristics. It has low viscosity enabling it to fill complex mold geometries efficiently, resulting in reduced cycle times and better part uniformity.
- Acrylonitrile Butadiene Styrene (ABS): ABS is a versatile thermoplastic with good flow properties and finds extensive applications in the automotive industry, electronics sector as well as household items. For this reason, the balance between its strength, rigidity and ease of processing makes it a dependable option when detailed and complex molds are needed.
- Polyamide (Nylon): Nylon can flow smoothly, is highly resistant to wear and chemicals; hence ideal for making durable components. In addition to this nylon is commonly used in industrial applications where gears or mechanical parts are being produced; it can operate under severe environments with high precision maintained.
The right choice of material entails considering aspects such as fluidity behaviour, mechanical properties as well as application requirements. Additionally, consulting with suppliers of materials and conducting flow simulations can ensure an informed decision that will improve efficiency and quality of the injection molding process.
What are Common Defects in Injection Molding, and How to Address Them?
The final product’s quality and performance can be greatly affected by some frequent defects in injection molding. Some examples of such defects and their solutions are listed below:
- Warping: When cooling is not done uniformly, parts tend to bend or twist. For minimum warpage, ensure uniform cooling through optimum mold design and cooling rates. Material selection variations and process parameters tuning also help.
- Sink Marks: These are depressions or indentations formed due to uneven contraction during materials’ cooling. To reduce sink marks, increase the time spent on cooling, pressure, or change the mold design so as to maintain equal wall thickness.
- Flash: Excess material that leaks out of the mold cavity is referred to as flash. The prevention of flash involves maintaining correct clamping force, ensuring proper alignment of the two halves of a mold and adjusting injection pressure and speed.
- Short Shots: It means that material did not fill up completely in the mold cavity for this defect. For short shots to be eliminated, injection pressure should be increased as well as temperature while flow rate of material should also be increased. Having free flowing passages can also solve this problem.
- Burn Marks: Burn marks are discolourations caused by trapped air or degraded resin. They could be avoided by enhancing venting in a mould decreasing the injection speed and decreasing material temperature.
- Bubbles and Voids: Trapped air or gases may result into bubbles within the part hence forming voids inside it.This bubble formation incidence can be reduced through improving venting characteristics; controlling material temperature and optimizing injection pressure.
Manufacturers who comprehend these general flaws in manufacturing processes will stand better chances for improved quality besides effective production if they take necessary curable measures.

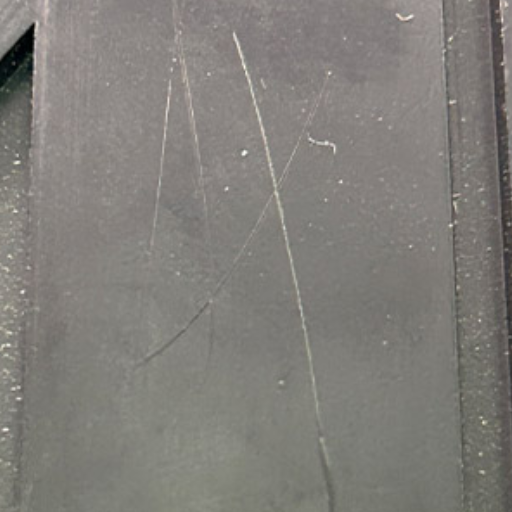

Understanding and Fixing Flow Marks in Injection Molding
Flow marks also called flow lines are a common defect in injection molding that is characterized by wavy patterns or lines on the surface of the molded part. These usually result due to variations in material flow rate as it fills the mold cavity. Here are some effective strategies to address and fix flow marks:
- Optimize Injection Speed and Pressure: Injection speed and pressure settings can be adjusted to ensure an even material flow that hampers the occurrence of flow marks. Balanced injection speeds discourage fast cooling hence uniform filing.
- Control Mold and Material Temperature: Correct temperature settings for both mold and material are essential. Raising mold temperature allows smoother, even flowing while monitoring and maintaining an optimum material temperature prevents from early cooling.
- Improve Gate Design and Placement: Flow patterns significantly depend on how well positioned or shaped gates, through which the material enters into the mold, were designed. Changing gate sizes or positions can improve distribution of materials thus minimizing the formation of these marks.
- Use Optimal Material: Different materials have different flow properties. Choosing a material with better fluidity characteristics or introducing flow improving agents reduces appearance of these marks.
- Modify Mold Design: Altering mold design by including more balanced flow paths, avoiding abrupt changes in wall thicknesses, and ensuring smooth transitions helps reduce disturbances during material’s movement.
Manufacturers can greatly curtail occurrences of this type of imperfection as well as improve overall quality of their injection-molded products through these actions.
Other Injection Molding Defects and Their Solutions
- Sink Marks: Sink marks are tiny indentations that may emerge on the surface of molded parts. To mitigate sink marks, manufacturers can:
- Increase Packing Pressure and Time: Proper pressure and time during packing phase eradicates voids which causes sink marks.
- Optimize Wall Thickness: Similar wall thicknesses reduce uneven cooling speeds thus reducing sink mark appearances.
- Improve Cooling System: Efficient cooling systems ensure even rates of cooling thereby avoiding the formation of sink marks.
- Warping: Warping is described as any bend or distortion in final molded part. Defeating warping involves:
- Control Cooling Rates: Balanced cooling rates across the part’s surface prevent differential shrinkage.
- Design for Uniform Wall Thickness: Consistent wall thickness helps stabilize cooling and shrinkage.
- Material Selection: Using materials with low shrinkage rates can reduce warping.
- Short Shots: Incomplete filling occurs when there is a short shot. Addressing short shots includes:
- Increase Injection Pressure: Higher pressure ensures that the material reaches all parts of the mold.
- Optimize Mold Design: Improved venting and balanced runner systems help in achieving complete molding.
- Material Quality: Ensure material has good flow characteristics and is free from contaminants.
By addressing these common injection molding defects with targeted strategies, manufacturers can enhance part quality and production efficiency.

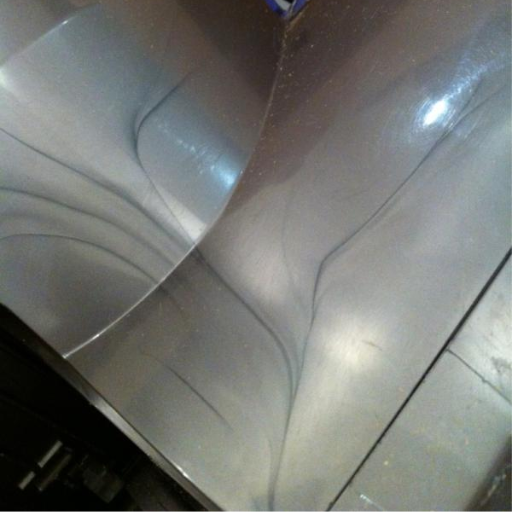

Effective Strategies to Reduce Flow Lines
Flow lines appearing as the lines or streaks on the surface of the molded part can be lessened by following these strategies:
- Increase Injection Speed and Pressure: Increasing speed and pressure during injection process ensures better filling of the mold with material reducing flow lines’ possibility.
- Optimize Mold and Gate Design: Proper mold design plus proper gate placement may facilitate smother flow of material that reduces flow line disruptions.
- Improve Material Temperature Control: Having consistent and correct temperatures for materials prevents premature cooling, as well as flow distractions which are a common reason for flow lines.
- Use Uniform Wall Thickness: Making sure that parts have even wall thickness helps in promoting uniform running of materials across mold thus avoiding formation of flow lines.
- Enhance Venting: Adequate venting in molds allows air to escape from its trapping point so that there are no interruptions in molten polymer travelling through it causing bad surface finish.
How to Optimize the Injection Molding Process for Better Results?
To obtain highly improved results during injection molding process, follow these key steps:
- Fine-tune Processing Parameters: Adjust and calibrate parameters like temperature, pressure, and speed of injection so as to create appropriate environment tailored for the particular material or part design.
- Regular Mold Maintenance: A routine maintenance schedule should be implemented to maintain good molds by cleaning them inspecting for defects and if necessary repairing them.
- Quality Control of Raw Materials: In order to achieve higher end product consistency and performance, one has to ensure that high quality raw materials with consistent properties are used in minimal contamination.
- Advanced Mold Design: Investment in advanced mold designs with such features as balanced runner systems, efficient cooling channels as well as correctly situated vents can boost material flow and reduce cycle times.
- Automation and Monitoring: Real time monitoring systems and automation enable detection of problems that need immediate attention resulting in a uniform quality at all times thus reducing downtime.
- Skilled Workforce: The operators’ training program should also fully acquaint them with the correct way of handling various complications which might arise during processes that involve injecting molten plastics.
By focusing on these strategies, manufacturers can achieve superior part quality, increased efficiency, and reduced defect rates in their injection molding processes.
Monitoring Mold Temperature and Injection Speed
The precision of the injection molding process largely depends on how well the mold temperature and the injection speed are monitored.
- Mold Temperature: It is vital to maintain an appropriate mold temperature that guarantees smooth plastic flow and complete filling of the mold. By adopting accurate temperature control equipment, manufacturers can avoid defects like warping, sinking or internal stress. Higher mold temperatures lead to better surface finish and material flow while lower ones may result in shorter cycle times but may suffer from incomplete filling. Uniform cooling and solidification of a part requires consistent mould temperature.
- Injection Speed: The quality and uniformity of final parts depend much on their injection speed. Appropriate injection speeds help in achieving a balance between fast filling for preventing premature solidification and avoiding jetting or flash due to high-speed injection. Faster than normal injections have benefits such as shorter cycles hence increased productivity; but it’s important to strike the right compromise between production timelines and quality levels. Advanced monitoring systems adjust dynamic speed based on real-time data to maintain proper flow rates.
Manufacturers could increase the accuracy, surface texture, and mechanical properties’ uniformity of molded parts by intensely controlling these parameters.
Analyzing Material Flow and Its Impact on Quality
The quality of the final product is significantly impacted by material flow in injection molding. A regular and predictable flow of material ensures that the liquid plastic uniformly fills every part of the mold cavity, thus minimizing defects and improving general integrity of parts. If it is irregular or turbulent, such a flow may be prone to problems like entrapment of air, weld lines or voids that can compromise the part’s capacity as a structure and its beauty at large.
Additionally, consistent material flow relies on thermal uniformity within the mold cavity. Temperature fluctuations can lead to different viscosities resulting in uneven filling and potential weak points in a part. Modern simulation tools together with real-time monitoring systems can identify and rectify these anomalies which ensure optimal materials flow throughout the entire process of molding.
Moreover, how the mold is designed including issues like gate locations, runner sizes and cavity layout directly affects material flow. These factors have to be put into consideration by engineers when designing molds so as to allow for smooth flow patterns; thereby reducing pressure losses while enhancing quality of parts. With these considerations combined with accurate control mechanisms; manufacturers can make their injection molding processes more efficient both in terms of yield and quality.
Ensuring Balanced Flow Direction within the Mold
To get high-quality injected products, it is very important to make sure that the flow direction in a mold is evened and balanced. One way of doing this is by use of balanced runners that enables all the cavities to fill at the same time and uniformly, thus reducing chances of defects like sink marks and warpage. Another critical factor is placing the gates strategically; they should be placed well so as to allow for uniform distribution of flow and reduce weld line formation. Furthermore, using flow analysis software can provide invaluable information on potential imbalances in order to improve mold design prior to manufacturing stage. Indeed, proper mold maintenance together with consistent processing parameters further contribute towards maintaining balanced flows hence improving overall efficiency and consistency in injection molding process.
Frequently Asked Questions (FAQs)
Q: What are the causes of flow lines in injection molding?
A: Flow lines are typically caused by issues such as uneven material flow, low injection pressure, and improper temperature of the mold. These factors lead to flow lines appearing on the surface of the molded part.
Q: How can I prevent flow marks on molded parts?
A: To prevent flow marks, ensure uniform melt flow direction, adjust the temperature of the mold, and increase the injection speed. Proper maintenance of the plastic injection nozzle and avoiding sharp changes in the direction of flow also help in preventing flow lines.
Q: What roles do the injection nozzle and melt flow play in causing flow lines?
A: The plastic injection nozzle and melt flow direction are critical in minimizing flow line defects. If the nozzle is clogged or if there is uneven melt flow, it can lead to flow lines on the parts. Regular maintenance of the nozzle and ensuring consistent melt flow are essential.
Q: How does uneven material flow contribute to flow lines?
A: Uneven material flow leads to different areas of the mold cooling at different rates, which results in flow lines, also known as flow marks. Ensuring uniform flow and consistent mold temperature can mitigate these issues.
Q: What is the impact of mold temperature on flow lines?
A: The temperature of the mold impacts the solidification rate of the plastic. If the mold is too cold or too hot, it can lead to nonuniformity in the flow and thus create flow line defects. Proper mold temperature management is crucial.
Q: How do sharp corners in the mold design lead to flow lines?
A: Sharp corners in the mold design increase flow resistance and contribute to flow line defects. Redesigning mold corners to be more rounded or gradual can help in reducing flow lines by facilitating smoother material flow.
Q: Why does low injection pressure cause flow lines?
A: Low injection pressure is insufficient to push the hot plastic uniformly into all areas of the mold cavity. This poor material flow causes flow lines. Increasing the injection pressure ensures better fill and reduces flow line defects.
Q: What are some solutions to minimize flow line defects?
A: Solutions include increasing the injection speed, optimizing the temperature of the mold, maintaining the plastic injection nozzle, and ensuring a uniform melt flow direction. These measures help in creating high-quality plastic parts with fewer flow line defects.
Q: How does increasing the injection speed affect flow lines?
A: Increasing the injection speed reduces the likelihood of flow lines by ensuring that the hot plastic reaches all areas of the mold more quickly and uniformly. This reduces the risk of nonuniformity in the flow and helps in better mold filling.
Q: What is the relationship between mold design and flow lines?
A: The design of the mold, including the cavity and areas of the mold, plays a significant role in the formation of flow lines. Proper mold design can reduce flow resistance and ensure even material flow within the mold, thus preventing flow lines.
