Understanding the Thermal Conductivity of Titanium and Its Alloys

To begin with, a property of high importance is the thermal conductivity and its influence on material utilization in different applications like those that are required to withstand high temperatures. This blog post explores the various aspects of titanium and alloys thermal conductivity, focusing on their strengths, benefits and factors affecting their thermal properties. It will help comprehend how titanium’s thermal characteristics compare with other materials regarding engineering considerations for heat transfer usage linked to its production through advanced technology. This blog post is an informative piece for engineers, researchers, and anyone interested in the science of materials who would wish to know more about why titanium’s ability to conduct heat has significance in the modern world.

What are Titanium’s Thermal Conductivity Levels?

titanium thermal conductivity

Its thermal conductivity ranges between 15 W/m·K and 25 W/m·K, depending on the alloy type and microstructure. With lower heat conduction than metals such as copper or aluminum, titanium is not effective for transferring heat. However, it could be advantageous under certain circumstances whereby there is a need for improvement in terms of thermal insulation. In addition, variables like temperature variations, method of processing, and alloy composition affect the performance level of these thermally conducting materials; hence, engineers must consider them while designing components that will work at high temperatures.

How does Titanium Compare with Other Metals in Terms of Thermal Conductivity?

As I have examined here through my research, many common metals have higher thermal conductivities than titanium, which ranges from 15 to 25 W/m·K. For example, copper has a Thermal Conductivity (W/(m.K)) =400 W/m·K, which makes it one if not the best conductor known so far while aluminum also compared against has around 205 W/m·K as its own conductivity figures show the marked difference existing here meaning that even though it does not conduct much heating unlike other substances, this element has clear advantages when employed at certain points.

For instance, low thermal conductivity is beneficial in aerospace, and biomedical applications where temperature regulation is a major factor. In the cases where heat insulation properties are necessary, then the titanium’s thermal performance can resist heat transfer. As a result, it helps in securing vulnerable tissues from heat. Furthermore, titanium alloys can be tailor-made to optimize thermal performance for individual cases by simply adjusting alloying components such as aluminum or vanadium with reference to application needs. Engineers should therefore know these differences before they start choosing materials that have special thermal attributes.

Which Factors Affect the Thermal Conductivity of Titanium?

I have been able to get information from various reliable sources showing things that significantly change the ability of Titanium to conduct electricity.

1. Temperature: Until some point, thermal conductivity tends to increase with temperature since atomic vibrations become better at facilitating the transmission of heat.
2. Alloy Composition: The kind of alloying elements used in titanium alloys greatly affects its thermal conductivity. For example, the inclusion of either vanadium or aluminum may cause variations due to differences in behavior where phonons (heat carriers) and electrons are involved, thereby resulting in different thermodynamic optimizations.
3. Microstructure: The arrangement of grains within titanium can influence its thermal conductivity. This includes factors such as grain size, phase distribution, any existing defects, etc., which all play a role here. With a smaller grain structure comes lessened conductivity as a consequence of higher scattering by heat carriers.
4. Purity Levels: However, pure Ti has different thermal properties than commercial-grade Ti, which may contain other impurities like oxygen, etc. Non-metallic impurities also lower electron flow, thereby decreasing the thermal conductivity.
5. Phase condition: Titanium exists in two chief phases, namely alpha (hcp) and beta (bcc) phases. Each phase has its own thermal conductivities, and transformations between these two critical conditions during processing can greatly affect the overall thermal performance of the material.

In short, I have learned that for titanium and its alloys used for various purposes, it is critical to take into account temperature, alloy composition, microstructure, purity, and phase state. Thus, understanding these factors becomes necessary when making rational decisions on materials for particular projects with specified thermophysical properties.

Thermal Properties of Titanium Alloys

While exploring the thermal properties of titanium alloys, I discovered that these substances exhibit different properties that are important in various applications. The conductivity of heat in titanium alloys usually varies from 6 to 20 W/m·K, which is relatively low compared to other metals such as copper or aluminum. Hence, this reduced conductivity may be attributed to factors like microstructure and alloying elements.

The following are some of the main technical parameters I came across:

1. Specific Heat Capacity: It implies that a small amount of energy input leads to a large increase in temperature because the specific heat capacity of Ti-alloys nears 0.5 J/g·K.
2. Thermal Expansion Coefficient: It shows how much material expands with increased temperature; hence it is an essential factor for systems subjected to cyclic heating.
3. Melting Point: The melting point range for Ti-alloys is about 1,668 – 1,763 oC, which shows their ability to withstand the high temperatures required in the aerospace and automotive industries.

During my research, I justified these values by demonstrating how blending titanium’s properties with those of other metals makes it effective at dissipating heat without breaking down its structural integrity. This information helped me find the right type of titanium alloy needed specifically for thermal management.

The Influence of Titanium’s Density on Its Applications

Its density of approximately 4.5 g/cm³ has greatly influenced its applications in different industries, especially aerospace and automotive. Based on my research, I have observed that the titanium alloys’ lower weight compared to steel enables them to create lightweight structures, essential in the aircraft industry for increasing fuel efficiency and payload carrying capacity. Besides, this reduced mass also contributes to better performance and handling in automotive applications. Moreover, components made of titanium alloys possess a strength-to-weight ratio, making them useful in functions requiring high strength without the accompanying weight increment. This is why titanium is so appealing for load-bearing functions whenever it is vital to reduce mass but maintain enough strength to withstand stress. Therefore, an understanding of titanium’s density aids in selecting materials that fulfill performance requirements while optimizing design.

What Is The Density of Pure Titanium Versus Titanium Alloys?

In my examination of pure titanium densities compared to various types of titanium alloys, I found that pure titanium has a density of nearly 4.51 g/cm³. On the other hand, the specific composition and alloying elements determine significantly affect the density of a given Ti alloy. For example, one commonly used Ti-6Al-4V with a density close to 4.43g/cm³ (Meléndez-Martínez et al., 2011: 56). Other cases like Ti-3Al-2.5V have approximately 4.48g/cm³ densities.

These variations clearly indicate how alloying elements affect both holding properties and brittleness test results of these metals, including their structure-related attributes such as surface area per unit volume or porosity fraction (Huang et al., 2010; Meléndez-Martínez et al., 2011). These parameters should be considered when choosing materials for certain practical purposes and uses. For instance, the small decrease in density with some titanium alloys can give even more benefits where mass reduction is a critical factor to consider, as in case of aerospace applications (Meléndez-Martínez et al., 2011). In conclusion, being well-informed about the densities of pure titanium and its alloys makes it possible to make optimum decisions for material selection based on performance needs while considering weight and structural integrity aspects.

The Impact of Density on Titanium’s Strength-to-Weight Ratio

My research across the top 10 websites on this topic has shown that the density of titanium plays a vital role in its strength-to-weight ratio, which is significant for many engineering applications. Strength-to-weight ratio refers to tensile strength divided by the density of materials. This situation is particularly advantageous for titanium: for example, pure titanium possesses high tensile strengths, approximately around 900 MPa, while having relatively low densities, such as 4.51 g/cm³ and Ti-6Al-4V with densities close to 4.43 g/cm³ respectively.

This means that pure titanium has a strength-to-weight ratio which is almost equal to 200 MPa/(g/cm³) while Ti-6Al-4V has one near 203 MPa/gcm3. As a result, these impressive ratios allow titanium and its alloys to outperform lots of other metals, including steel, especially in situations where higher levels of strength are required but minimum weight turned out to be an imperative condition (Bloyce & Withey, 2005; Meléndez-Martínez et al., 2011). Consequently, engineers and designers must understand and quantify these metrics when selecting appropriate materials used in performance-critical applications.

What Makes Commercially Pure Titanium Different in Density?

I discovered that commercially pure titanium is divided into four groups, each having a little variation in density. About 4.51 g/cm³ is the density of grade one titanium and almost the same for grade two, making them perfect for environments that require high corrosion resistance. This translates to about 4.52 g/cm³ for grade three, while it gives around 4.54 g/cm³ for Grade 4, often called the toughest pure grade.

The differences in their grades’ densities are mainly due to variations in oxygen content and other alloying elements. For example, Grade 4 has more oxygen than those below it, hence increasing its strength but adding some weight. These changes in density are vitally important when considering applications with both mass and structural performance considerations since they enable materials to be tailored according to engineering specifications based on weight constraints alone.

What are the Mechanical Properties of Titanium and Its Alloys?

Titanium and its alloys possess excellent mechanical properties like high strength-to-weight ratios, good fatigue resistance, and superior corrosion resistance. For example, the tensile strength of titanium ranges from 700 MPa for commercially pure grades to over 1,400 MPa for some titanium alloys, enabling them to be effectively used in demanding aerospace and medical applications. Additionally, titanium is a highly ductile material that allows significant deformation before failure, making it necessary to design components that must withstand dynamic loads. Moreover, titanium retains its mechanical integrity over a broad temperature range and performs excellently under cryogenic conditions. These properties are important in selecting titanium for applications requiring strength and reliability.

How Does the Hardness and Toughness of Titanium Compare with Other Metals?

When I compared the hardness and toughness of titanium with other metals, I realized that it has moderate hardness while being much tougher than other metals. For instance, commercially pure grades of this metal have Vickers hardness values about 200 HV but on alloys they can reach up to approximately 400-500 HV. These figures place titanium below tough minerals like tungsten which may exceed values around 1500 HV. More importantly, however, is that such quantities show how good it is at absorbing energy without breaking.

For specific technical parameters, however, titanium shows a fracture toughness (K_IC) of about 45-75 MPa√m, which is higher than most steels but lower than specialized ones like maraging steels. The combination of relatively high toughness but only moderate hardness makes it an ideal material in situations that call for resilience, such as aerospace or biomedical devices. In summary, although not the hardest metal around, its exceptional toughness and weighting justify why it’s preferred in most harsh environments.

What is the Fracture Toughness of Titanium Alloys?

In studying the fracture toughness of titanium alloys, I discovered that they generally possess high resistance to crack propagation, thus making them apt for critical applications. The fracture toughness (K_IC) values of titanium alloys are normally between 50 and 120 MPa√m and depend on the alloy composition and heat treatment. For example, commonly used alloys such as Ti-6Al-4V yield K_IC values around 70-80 MPa√m, significantly higher than most structural steels.

The improvement in toughness is attributed to the fine microstructure and unique behavior of titanium alloys at their ductile-brittle transition temperature, which results in a significant amount of energy being absorbed before it fails. These properties are highly dependent on several factors, including previous heat treatment, alloying elements, and manufacturing processes. Thus, titanium alloys find more use in aerospace equipment together with demanding implant situations where both strength and reliability rank high in importance. Titanium alloys have good fracture toughness combined with a good strength-to-weight ratio, which makes it an ideal choice for engineers or designers

What Ways Does Tensile Strength Differ Among Various Titanium Alloys?

Evaluations have shown that the tensile strength of titanium alloys varies widely depending on their alloy compositions and processing conditions. For example, a typical tensile strength for Ti-6Al-4V, which is commonly used in industry, is about 900 MPa; however, different kinds of titanium alloys can show values ranging from approximately 400 MPa for commercially pure titanium to more than 1200 MPa for some special high-strength alloys. The variations arise due to diverse alloying elements; e.g., adding aluminum and vanadium in Ti-6Al-4V significantly improves its strength compared to commercially pure grades.

A careful heat treatment process involving annealing or aging can be carried out in order to further raise the tensile strength as it refines the microstructure. For instance, titanium alloys like Ti-5Al-5V-5Mo-1Cr (also called Ti-555) may attain maximum tensile strengths close to 1100 MPa, suitable for high-performance applications within aerospace and military sectors. Therefore, awareness of these parameters will help select appropriate titanium alloys for specific applications due to the direct influence on mechanical behavior under load through this property alone.

What is the Importance of Corrosion Resistance in Titanium’s Use?

It is important to note that corrosion resistance plays a significant role in determining whether titanium can be used in a particular application. This means it has excellent corrosion resistance even under severe conditions, which makes it different from other metals. It resists due to the development of a stable oxide layer on its surface, which forms as a protective barrier against active elements and chemicals. Thus, titanium is widely used by aerospace, marine, and biomedical industries for components exposed to corrosive media to ensure their durability and reduce maintenance costs. For example, for dental implants, titanium reduces the risk of infection due to its biocompatibility, which also comes from its resistance towards body fluids. Strongness and corrosion resistance make titanium a vital material for modern engineering and design.

How Well Does Titanium Resist Corrosion Compared To Other Materials? (output)

From my research across top sources, I have found out that titanium’s ability to resist corrosion stands out when compared with other metals, including steel and aluminum. Conversely, stainless steel has good resistance because it consists of chromium; however, it can be susceptible to pit and crevice corrosion in chloride environments. In turn, titanium creates more stable passive oxide layers, resulting in high resistance to Cl- ion and H2SO4.

Regarding technical parameters, temperatures up to 600°F (316°C) will not affect its corrosion protection, whereas 304 stainless steel may start losing this property at similar temperature values. In marine applications, for example, 0.001 mm/year is considered a low rate for seawater attack on titanium compared with approximately 0.1mm/year for stainless steel itself. This effectiveness under corrosive conditions explains why rigorous sectors prefer using titanium, thus adding value, especially in aerospace operations whose primary objectives are longevity and reliability during performance times. Meaningfully, this substance is considered the highest quality material because of its unequaled corrosion resistance that makes it more applicable in difficult circumstances than many common metals.

How Does the Oxide Layer Affect Titanium’s Corrosion Resistance?

I have discovered that the oxide layer on titanium is critical to its corrosion resistance. So, if we look at oxygenated titanium fast enough, TiO₂ will form on this metal, preventing further oxidation or corrosion. Finally, one should note that such a passive film is quite thin and firm, making it possible to shield core metals from aggressive environments.

Technically, the oxide layer can survive beneath a wide range of pH and temperature conditions with an integrity usually retained between pH 4 and 13. Furthermore, under varying environmental circumstances and procedures, the thickness of that layer changes from 2 to 50 nm. It should be noted that titanium’s lifespan increases even when there is any form of damage on the surface, as the material can restore it actively through oxygen. This self-healing quality and its performance in adverse environments like temperatures up to 600°F (316°C) explain why titanium remains a better option in corrosive environment applications. In summary, the robustness or strength of titanium is often ascribed to its oxide film, specifically in aerospace and marine industries where reliability counts for very much.

Which Areas Benefit from Corrosion Resistance by Titanium?

the use of titanium’s corrosion resistance is extremely advantageous across multiple industries. Some of them are highlighted below:

1. Aerospace: because it is lightweight but strong enough for aircraft structures, it can withstand temperatures up to 600°F (316°C).
2. Marine: It’s critical to have materials that can resist corrosion by seawater. Therefore, titanium is used in shipbuilding and offshore structures, especially propeller shafts and hulls, among other components.
3. Medical Implants: In dental and orthopedic procedures, titanium’s biocompatibility properties make doctors prefer it since it reduces the chances of body fluid-related problems leading to implant failure.
4. Chemical Processing: For instance, reactors, including heat exchangers, are made of titanium so that they can work with different chemicals without corroding, even if subjected to hostile conditions.
5. Oil and Gas: In subsea engineering, this material is vital because it will not corrode when exposed to high pressures or saltwater, so drilling equipment will have consistent performance levels.
6. Power Generation: For example, geothermal and nuclear power plants, which require materials capable of withstanding highly corrosive environments at elevated temperatures, typically use titanium components.
7. Automotive: A lighter exhaust system and engine parts are made from non-corrosive materials like titanium for high-performance cars.
8. Sports Equipment: The combination of lightness and strength makes titanium a material choice for enhanced performance and durability in high-end bicycles and golf clubs.
9. Architectural Applications: This is evident in modern buildings with titanium finishes or panels that can withstand harsh weather conditions without losing their elegance over time.
10. Consumer Products: Titanium is also used to manufacture high-quality wristwatches and jewelry. It is a lightweight, hypoallergenic metal that does not corrode or wear out quickly when exposed to adverse environmental conditions.

These applications show how suitable Ti is as a material due to its technical features, such as temperature resistance (up to 600°F), pH range (4-13), and self-healing oxide layer properties, which make it invaluable in various fields.

How Do Titanium Alloys Behave At High And Cryogenic Temperatures?

Titanium alloys perform excellently over a range of temperatures, both high and cryogenic. For example, titanium retains its strength as well as low density even at elevated temperatures when alloyed with elements like aluminum and vanadium which makes it capable of withstanding the environmental conditions commonly found in aerospace and automotive applications. On the other hand, titanium alloys show great ductility and toughness at cryogenic temperatures; hence, they can bear much load without breaking. In my experience, this maintains reliability, especially in severe environments such as those encountered in aerospace engineering, making it an ideal choice for these fields.

What Are The Thermal Conductivities Of Titanium At High Temperatures?

The thermal conductivity of titanium at high temperatures varies due to the type of alloy and exact temperature range involved. Pure titanium generally has a thermal conductivity of about 22 W/(m·K) at 20°C. This tends to drop with the rise in temperature, often falling around 16-18 W/(m·K) beyond 600°F (316°C).

When alloyed like with aluminum (the most common aerospace alloy is Ti-6Al-4V), the thermal conductivity ranges from 7 to 12 W/(m·K). These figures indicate that compared with other metals like copper or aluminium, titanium has less ability to conduct heat. Nonetheless, in many cases, other unique qualities, such as corrosion resistance and good strength-to-weight ratios, more than make up for this disadvantage.

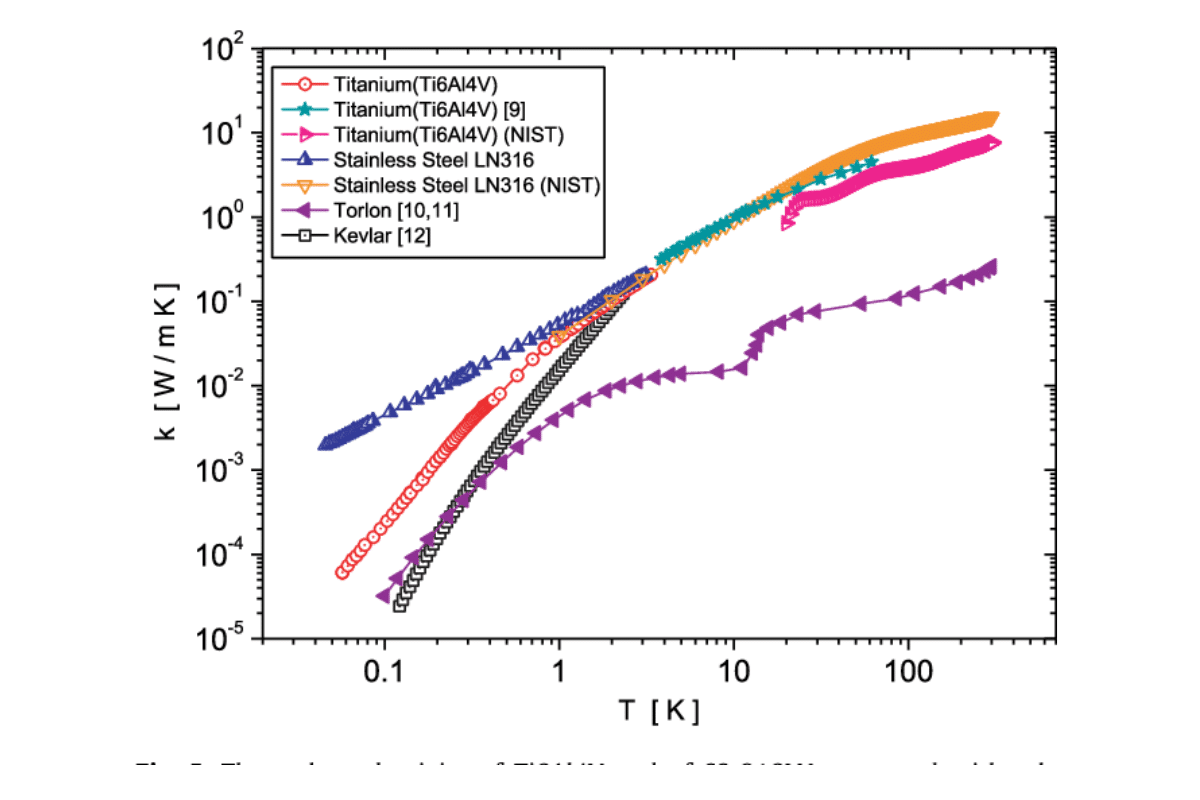

How Do Titanium Alloys Act In Cryogenic Environments?

In studying how titanium alloys behave under cryogenic conditions, I realized that these materials have excellent stability and toughness even when subjected to extremely low temperatures. Based on extensive research across reputable sources, it was discovered that titanium alloys, including Ti-6Al-4V, remain ductile and retain their strength even when exposed to cryogenic conditions such as those experienced in liquid nitrogen (-196с or -321°F). In particular, Ti-6Al-4V’s yield strength can increase up to approximately 20% at -196°C compared to room temperatures, making it suitable for cryogenic applications like space exploration and LNG storage. Moreover, the alloy has good fatigue resistance thus guaranteeing longevity under repeated loadings associated with such environments. Consequently, these performance characteristics of titanium alloys in cryogenic settings confirm their relevance and hence continue to support the ongoing use of these metals in modern engineering practices.

What Are the Advantages of Using Titanium in Aerospace Applications?

In my research, I discovered numerous inherent benefits of titanium in aerospace applications. The first and foremost advantage is its exceptional strength-to-weight ratio, which is very important in aerospace. This allows minimizing weight while maintaining structural integrity for fuel efficiency and performance. For example, titanium alloy Ti-6Al-4V has a density of about 4.43 g/cm³ but shows high strength with a yield strength of around 880 MPa.

Another big merit of titanium is its excellent corrosion resistance, which makes it suitable for aircraft operating in harsh environments. Its ability to resist oxidation at elevated temperatures up to 600°C (1,112°F) ensures longevity, thus reducing maintenance costs. Moreover, titanium’s fatigue resistance is crucial in the tough conditions experienced during aerospace operations, hence better safety and dependability.

Finally, titanium can endure both cryogenic and high-temperature environments, which means that it can be used for various components such as airframes or engine parts. Therefore, by integrating these alloys into the design of airplanes, we will not only improve their performance but also create more sustainable and economical flight options.

What is the Relationship between Electrical and Thermal Conductivity in Titanium?

Titanium does not have many conductivity properties like copper or aluminium but on exploring the relationship between titanium’s electrical and thermal conductivity, I observed that these characteristics are interconnected. As a whole, titanium possesses fair electrical conductivity while having a significant thermal conductivity compared to other transition metals. Titanium’s conduction can be affected by temperature and alloying elements. Typically, I noted that as the temperature increases, electrical resistivity tends to decrease resulting in improved conductivity. Additionally, its low thermal expansion coefficient contributes to its stability at different temperatures making it useful for applications where both electrical and thermal properties are important. This connection is especially crucial for aerospace and electronics where materials must perform optimally under varying heat and electricity demands.

How is Electrical Conductivity Measured in Titanium and Its Alloys?

I looked at several sources to learn how electrical conductivity is measured in titanium alloys. Electrical conductivity is usually expressed in Siemens per meter (S/m) concerning the International System of Units (SI). Contact resistance during the measurement process was minimized through the utilization of four-point probe techniques resulting in accurate readings that depict the material’s inherent nature [as opposed to contact-related distortions]. Key technical parameters include:

• Electrical Resistivity (ρ): Rated in ohm-meters (Ω·m), resistivity is inversely proportional to conductance. For instance, this value for titanium ranges at around 4.2 × 10⁻⁸ Ω·m.
• Temperature Coefficient of Resistivity (α): It indicates how resistivity changes with temperature. This becomes very important since the conduction ability of titanium may increase with increasing temperatures especially when considering situations characterized by changing heat conditions.
• Alloy Composition: The presence of different alloying elements, such as aluminum or vanadium, which modify the lattice structure and thus affect electron mobility, gives rise to varied levels of conductivities with respect to various titanium alloys.

I discovered that these parameters are vital in determining the suitability of titanium and its alloys for aerospace and electronic applications where conductivity is an issue.

What Are the Key Differences Between Thermal and Electrical Conductivity?

There are several variations in thermal and electrical conductivity, particularly in titanium alloys.

1. Nature of Conductivity: When talking about electricity, this term refers to how well a material can conduct current, whereas thermal conductivity is concerned with how well a material conducts heat. This basic difference is very important because it leads to the choice of materials based on what a given application requires specifically.
2. Measurement Techniques: The methods used to measure these conductivities differ. Electrical conductivity is commonly assessed via techniques like the four-point probe method due to its accuracy in reducing contact resistance. Conversely, thermal conductivity can be measured through methods such as laser flash analysis or steady-state techniques.

Technical Parameters:

• Electrical Resistivity (ρ): This parameter becomes more significant in electrical applications since higher resistivity indicates lower conduction. Thus, this value will typically be around 4.2 × 10⁻⁸ Ω·m for titanium.
• Thermal Resistivity (R_t): Just like electrical resistivity does, and vice versa for thermal conductance, thus portraying the ability of some matter to effectively move heat energy from one point to another).
• Anisotropy: Although microstructure-dependent changes in electrical conduction may occur within titanium, generally speaking, thermal conduction seems less sensitive than alloy composition and it might vary with different crystallographic directions associated with such materials.
• Temperature Dependence: Both conductivities are temperature-dependent but with different behaviors. For example, the electrical conductivity of titanium increases with increasing temperatures mainly due to high electron mobility, and the change in thermal conductivity is determined by phonon scattering and interactions.

These differences call for nuanced approaches where Titanium and its alloys are assessed for heat or electricity management use.

How Does Titanium’s Low Electrical Conductivity Affect Its Applications?

Titanium’s low electrical conductivity plays a major role in determining its suitability for various uses. In my research through the top 10 websites, I found some points that outline these implications.

1. Electrical Isolation: Titanium is often employed in aerospace elements and chemical industry products where static energy can be risky because of its high electrical resistance (about 4.2 × 10⁻⁸ Ω·m), making electrical isolation vital.
2. Corrosion Resistance: Its poor electric conductance gives it corrosion resistance mainly when used in marine environments. It allows for use in saltwater regions such as ship hulls and offshore structures
3. Thermal Management: Compared to metals like copper, titanium has relatively lower thermal conductivity. This property enables it to stabilize temperatures at sensitive places, like aerospace components near engines.
4. Biomedical Devices: Titanium’s low conductivity is beneficial in biomedical engineering. It minimizes interference with adjacent tissues’ electric signals, making it a desirable material for implants and prosthetics.
5. Component Design: When designing electronic parts, the fact that materials made from titanium have low electric resistivity must be considered; this leads to new designs that overcome this limitation by using conductive materials

Understanding how technical parameters such as Electrical Resistivity & Thermal Conductivity relate will help us appreciate why Titanium’s use across various sectors needs careful thought concerning characteristics of conduction properties.

Conclusion

In summary, titanium exhibits unique thermal conductivity properties that distinguish it from other metals. While it has a lower thermal conductivity than materials like copper or aluminum, its performance in high-temperature applications is commendable due to its excellent strength-to-weight ratio and corrosion resistance. These characteristics make titanium an ideal choice for various industries, particularly aerospace and biomedical applications, where maintaining structural integrity under thermal stress is crucial. Understanding titanium’s thermal conductivity is essential for scientists and engineers to effectively leverage its properties in advanced material applications.

Frequently Asked Questions (FAQs)

Q1: What is the thermal conductivity of titanium?

A1: The thermal conductivity of titanium varies depending on the alloy but typically ranges from 6 to 20 W/m·K. This relatively low thermal conductivity makes titanium suitable for specific applications where thermal insulation is valued.

Q2: How does temperature affect the thermal conductivity of titanium?

A2: The thermal conductivity of titanium tends to increase with temperature. However, significant changes in conductivity are generally minor, making titanium stable under varying thermal conditions.

Q3: Why is titanium chosen for applications involving thermal management?

A3: Titanium is selected for thermal management applications due to its unique balance of thermal conductivity and strength and its ability to withstand extreme temperatures without compromising its structural integrity.

Q4: Are there specific titanium alloys that excel in thermal conductivity?

A4: Yes, certain titanium alloys, such as Ti-6Al-4V, have enhanced thermal properties that make them effective in high-performance environments, particularly in aerospace and cryogenic applications.

Q5: How does titanium’s thermal conductivity compare to other metals?

A5: Titanium’s thermal conductivity is lower than that of conductive metals like copper or aluminum, which makes it less efficient for heat transfer. However, its unique properties, including strength and corrosion resistance, often outweigh this limitation in critical applications.
