The Fascinating World of Titanium Crystal Structure

Scientists and engineers have long been fascinated by Titanium, a remarkable element due to its strength, lightweight, and corrosion resistance. At the core of this material’s unique properties is its complex crystal structure, which significantly determines the mechanical behavior and characteristics of the material in diverse circumstances. The present blog will also take us through different phases of titanium crystal structures, such as alpha and beta phases, explaining how these structures influence titanium applications in the aerospace industry and medical equipment, among others. It is vital that readers understand some basics about the atomic arrangement in titanium to know why it remains one of the most sought-after metals necessary for technological advancement. Let’s discover together some truths behind the crystalline nature of titanium and how it matters to science.

Why is Titanium Important in Alloy Manufacturing?

titanium crystal structure

The role of titanium in alloy manufacturing cannot be underestimated, especially given its peculiarities. Its alloys are famous for their high-strength-to-weight ratio, which makes them ideal for weight reduction applications without compromising strength, such as aerospace or automotive industries. Additionally, the excellent corrosion resistance exhibited by titanium further enhances the life cycle of components installed in harsh environments. Moreover, because it can be engineered for specific property requirements, titanium alloys may be customized to meet the stringent demands of medical implantation and surgical procedures.| Lastly, using titanium during alloy manufacturing is a versatile process promoting technological advancements and fostering innovation across numerous areas.

Understanding Crystal Structure In Titanium Alloys

The Alpha phase, mostly hexagonal close-packed (HCP), dominates the crystal structure of titanium and its alloys, while the Beta phase is body-centered cubic (BCC). This biphasic structure determines the mechanical properties and performance of Ti alloys.

Alpha phase has properties like good ductility at high temperatures, making it suitable for aerospace applications where stressed performance is required at elevated temperatures. HCP causes a higher tendency towards deformation, thus increasing the life expectancy of designed components.

On the other hand, the beta phase exhibits improved machinability and toughness, making it advantageous in applications requiring complex shaping and forming. BCC has better ductility at room temperature, a significant property for high-strength Ti alloys used in harsh environments.

Key Technical Parameters:

• Alpha Phase (HCP) Stability: It is stable up to approximately 882°C and provides high strength at elevated temperatures.
• Beta Phase Transition Temperature: It typically forms above 882°C and transitions to a BCC structure, which imparts enhanced ductility.
• Strength-to-Weight Ratio: Titanium alloys can reduce weight by approximately 40% compared to steel alloys without sacrificing strength.

These structural characteristics demonstrate titanium’s versatility in different applications and point out its significance in modern engineering and technology advancement.

Metallurgy of Titanium & its Alloys

The metallurgy of titanium and its alloys is defined by their unique phase transformations, microstructures, and mechanical properties. It consists of two major phases – alpha (α) phase and beta (β) phase with distinct characteristics dependent on temperature and alloying additions.

1. Alpha Phase (HCP) Characteristics:

• Phase Stability: Remains stable below approximately 882°C, providing excellent strength and creep resistance in high-temperature applications.
• Mechanical Properties: Excellent formability and great resistance to straining are the main factors that make titanium ideal for high-performance aerospace components.

Beta Phase (BCC) Characteristics:

• Phase Transition: It begins above 882°C, where the BCC structure makes it more ductile and demanding than the α-phase.
• Applications: Due to its improved toughness and workability, it can be used for various applications that require extensive machining and shaping.

2. Alloying Elements:

• The properties of titanium alloys can be significantly altered by adding elements such as aluminum and vanadium. For example, aluminum stabilizes α phase while vanadium stabilizes β phase, thus making them suitable for specific mechanical property tailoring or thermal stability requirements.

Technical Parameters:

• Density: Titanium’s density ranges from 4.43 g/cm³ to 4.51 g/cm³, providing a high strength-to-weight ratio important in aerospace and automotive industries.
• Corrosion Resistance: In marine and chemical industries, titanium alloys present outstanding corrosion resistance, extending their life cycle and enhancing performance.

These parameters also demonstrate how diverse titanium is as a metallurgical material in modern engineering applications, emphasizing performance, durability, and weight savings.

Phases of Titanium Alloys and Their Exploration

Through understanding the different phases of titanium alloys, I realized that they mainly comprise two types of crystalline structures: the alpha (α) phase and the beta (β) phase. The α-phase has an HCP structure, distinguished by its high strength, low density, and excellent resistance to corrosion at lower temperatures. However, as the temperature increases above 882°C, titanium changes into the β-phase with a BCC structure, which offers improved ductility and toughness critical for high-performing applications. To enable such phases to be manipulated to suit specific engineering requirements, alloying elements such as vanadium and aluminum are used, and they help stabilize these phases. This adaptability is why titanium alloys find wide application in the aerospace industry and automotive companies, among others, where there is demand for materials that can withstand extreme conditions.

Characteristics of β Phase in Titanium Alloys

The β phase in titanium alloys exhibits a body-centered cubic (BCC) structure, providing numerous distinct advantages for various engineering applications. These characteristics include:

1. Increased Ductility: The superior ductility over the α-phase results from the BCC structure of the β-phase. This allows more deformations without breaking, making β-alloys ideal for manufacturing processes requiring complex shapes.
2. Improved Toughness: Alloys with a beta phase demonstrate excellent toughness, especially at elevated temperatures. This attribute is indispensable in aerospace components where impact resistance becomes necessary under high-stress environments.
3. Heat Resistance: Compared to the α phase-β phase, properties hold within a range of temperatures more comprehensively, providing stability under high-temperature conditions. This feature plays an important role when handling equipment-prone thermal shocks.
4. Alloy Composition: More often than not, such stabilized elements include Molybdenum (Mo), Vanadium (V), and Niobium (Nb). For example, Ti-6-7-2(Ti-6%Al-7%Nb-2%Mo), a standard β-titanium alloy, strength and ductility are significantly improved by these additives.
5. Mechanical Properties: This indicates that the yield strength of β phase alloys can be between 800 to 1200 MPa and an elongation percentage from 15% to 30%. Such properties demonstrate their suitability for use in high-performance applications.
6. Weight Savings: Despite being strong, titanium alloys belonging to the beta phase have low densities; hence, they are lighter than similar materials like steel. This is very beneficial in industries where weight reduction is needed.

In summary, the β-phase of titanium alloys plays an important role in high-performance applications, especially regarding the flexibility, toughness, and heat resistance needed therein. Their properties can thus be fine-tuned by manipulating the alloying elements to suit diverse requirements across varying stressful sectors.

Relevance of α Phase in Titanium Alloys

The importance of the α phase in titanium alloys cannot be overemphasized mainly because of its unique characteristics and practical uses in different industrial sectors. Some key points in this respect:

1. Stability under Alpha Phases: The mechanical features improve due to good stability within the α phase upon heating at elevated temperatures. It is typically found at lower temperatures (up to 882°C) and has a hexagonal close-packed (HCP) crystal structure contributing to strength and toughness.
2. Enhanced Ductility: High fraction α phase alloys exhibit superior ductility, making them easier for manufacturing processes like forging or machining. Such formability is essential for parts requiring complex shapes or experiencing extensive deformation.
3. Corrosion Resistance: The intrinsic resistance against corrosion, among other things, is attributed to alpha phases in titaniums. In marine and chemical environments where corrosive media exposure occurs, this property becomes vital.
4. Fatigue resistance: Fatigue performance is enhanced in titanium alloys by α phase. This is especially important in aerospace and automobile industries where materials must support cyclic loading without failure.
5. Low density: Titanium alloys with α phase just like the β phase have low densities, this makes it a lightweight solution that is required in sectors with high emphasis on efficiency such as aerospace.

Regarding technical parameters, the yield strength of α-phase titanium alloys usually ranges from 600 to 900 MPa, and ductility levels reach up to 25%. These values highlight the versatility of α-phase alloys for structural and high-performance applications. In general, the unique combination of attributes of α-phase alloys means it should form one of the bases for developing advanced titanium alloy designs.

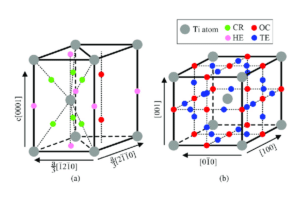

Hexagonal vs. body-centered cubic structures in titanium alloys

When considering the microstructural characteristics of titanium alloys, the distinction between hexagonal close-packed (HCP) and body-centered cubic (BCC) structures becomes critical. While researching the best resources available online, I discovered that HCP, which dominates the alpha phase in titanium, imparts higher strength and ductility due to its closely packed arrangement. Such structure allows for predictable behavior in applications where toughness and plasticity are needed.

However, BCC structure which prevails within β phase has better high-temperature stability and can bear more stress under certain circumstances; this is particularly advantageous for aerospace parts subjected to elevated temperatures.

In technical terms, HCP titanium alloys typically have yield strengths ranging from 600 – 900 MPa, while BCC TIs can have strengths of as much as 1200 MPa under specific conditions. The ductility varies significantly as well; HCP demonstrates levels up to 25%, while BCC generally shows decreased ductility but higher hardness.

By understanding these differences, informed decisions can be made regarding alloy selection based on the requirements of specific applications to ensure optimal performance and justify engineering choices made in the design process.

How Does the Composition of Titanium Alloys Affect Their Properties?

In my research on how titanium alloy compositions affect material properties, I found that specific elements added to the titanium matrix can significantly alter some characteristics such as strength, ductility, and corrosion resistance. For example, the inclusion of aluminum raises the strength-to-weight ratio, particularly in HCP structures, making them suitable for aerospace applications. Similarly, adding vanadium can improve BCC titanium alloys’ fracture toughness and overall resilience.

Besides, changes in composition directly influence the alloy’s phase stability under various thermal conditions. Balanced composition is important for better mechanical performance while allowing flexibility in application. Therefore, comprehension of these compositional effects is necessary to optimize intended use or selection based on engineering demands.

Effect of Alloying Elements on Titanium Crystal Structure

The crystal structure of titanium can greatly be affected by alloying elements added to its matrix. The two main temperature-dependent crystal forms are hexagonal close-packed (HCP) and body-centered cubic (BCC), which are influenced by the addition of some specific alloying elements.

1. Aluminium (Al): This metal is usually included in titanium alloys to increase their HCP stability at higher temperatures. It improves tensile strength without significant weight gain; however, the best composition often involves 5-6% Al, which raises yield strength and maintains good ductility.
2. Vanadium (V):This element stabilizes the BCC phase, so it’s often used alongside aluminum. 3 percent is a common value for vanadium in titanium alloys, which enhances fracture toughness and is thus suitable for load-bearing applications.
3. Molybdenum (Mo): Mo also helps stabilize the BCC phase, similar to vanadium, especially at elevated temperatures. A typical Mo content range is 2 – 10%, thereby enhancing high-temperature capability and corrosion resistance.
4. Iron (Fe): Controlled amounts (<1%) of iron, commonly seen as an impurity, can enhance both strength and toughness, necessary where functionality is paramount.
5. Tin (Sn): Typically, tin is included in small amounts (about 2-4%) to reduce transformation temperature, thus improving ductility and ease of manufacture.
6. Zirconium (Zr) is usually added for better corrosion resistance (1-2% typical). Thus, it can improve the alloy’s overall stability under different processing conditions.
7. Carbon (C): It is used in minute amounts, but when present, carbon significantly increases strength; however, excess can result in embrittlement. The usual content ranges from around 0.1 – 0.2%, which enhances hardness while maintaining ductility.
8. Oxygen (O): Though it promotes increased strength, high oxygen levels can decrease or eliminate ductility altogether. For best performance, oxygen is usually kept at less than 0.2%.
9. Nitrogen (N): Nitrogen, when used as a strengthening agent, should be below 0.1 %; otherwise, it might have an adverse effect on the alloy’s ductility. Hence, metal designers should carefully balance these two elements.
10. Hydrogen (H): Embrittlement becomes prominent at higher concentrations of hydrogen. At the most avoidable limit of hydrogen averts its influence on brittleness since keeping it below 0.01 % allows for ductile behavior.

These alloying elements determine the crystal structure of titanium alloys, so it’s important for engineers to consider this when designing materials specifically for certain purposes. Selective choice of alloy compositions may also enhance mechanical properties, ensuring that material performance requirements are met under various conditions.

Titanium Alloys and Their Corrosion Resistance and High Strength

The high strength-to-weight ratio and outstanding corrosion resistance of Titanium alloys makes them perfect for various demanding applications, from aerospace to biomedical devices. The corrosion resistance in titanium alloys is predominantly due to the formation of a stable oxide layer on their surfaces which acts as a barrier defense against corrosive substances. In addition to contributing to the mechanical strength, including elements such as aluminum (Al) and vanadium (V) also enhances the alloy’s corrosion resistance in salt environments.

The following technical parameters are evidence of titanium alloys’ corrosion resistance and high strength values:

• Yield Strength: Typical values for titanium alloys range from 800 to 1,200 MPa, where alloys like Ti-6Al-4V stand out for their superior mechanical performance.
• Ultimate Tensile Strength (UTS): UTS generally varies between 900 to 1,200 MPa, indicating that it is robust enough for high-stress applications.
• Corrosion Rates: For instance, in a seawater environment, titanium corrodes at rates as low as 0.01 mm/year compared with stainless steel.
• Hardness: Depending on the alloy, microhardness can vary from 300 to 400 HV, thus denoting good wear resistance, particularly under harsh conditions.
• Fatigue Strength: Ti has a high cycle fatigue strength exceeding 500 MPa, making it suitable for components experiencing cyclic loading.

These parameters demonstrate how vital each alloying element and processing condition is in achieving a balance between corrosion resistance and mechanical strength that ensures reliability in different engineering applications.

Applications and Benefits of Titanium Crystal Structures

My research into titanium crystal structures taught me that they play critical roles in various industries. The unique hexagonal close-packed (HCP) and face-centered cubic (FCC) structures of titanium lead to its exceptional properties. Significantly, in aerospace, the use of lightweight but strong titanium alloys for aircraft parts has improved fuel consumption and weight reduction, respectively. Moreover, the biocompatible nature of titanium used in the medical field allows implants to be easily integrated into human bones, resulting in a superior healing process. The ability of this metal not to corrode makes it appropriate for marine industry uses as well as chemical production because it can stay for long even when used in adverse conditions. Titanium is versatile due to its crystal structure, thus making it commonly used in engineering processes ranging from building constructions to roads, among other things, since it combines strength with durability and adaptability.

The Use of Titanium Alloys in Various Industries

Due to their extraordinary strength, lightness, and corrosion resistance, titanium alloys are now increasingly important in many commercial and industrial sectors. Here is a brief summary of them drawn from top sources:

1. Aerospace: For instance, Ti-6Al-4V is a popular alloy commonly employed in making airplane components because it has a high tensile strength-to-weight ratio. It has a tensile strength of about 900MPa and good fatigue endurance, useful for structural applications.
2. Medical Devices: Implants made from titanium must be biocompatible; these include Ti-6Al-4V ELI (Extra Low Interstitial). This alloy, on the other hand, yields between 828 MPa and 860 MPa, which strengthens bones and improves the chances of a successful outcome after orthopedic surgery.
3. Marine Engineering: Marine applications like hulls or parts of desalination plants require good seawater corrosion resistance, such as those found with Ti-3Al-2.5V alloy. These alloys have some strength even in extreme conditions.
4. Chemical Processing: In various fields, such as the pharmaceutical and petrochemical industries, titanium is inert to many chemicals. Thus, Grades 1 to 4 titanium with good corrosion resistance are used. For example, grade 2 titanium has a tensile strength of approximately 400MPa, which can be applied to pressure vessels or pipes.
5. Automotive Industry: The purpose of using alloyed materials in the manufacturing sector is to reduce weight and increase efficiency, especially for high-performance cars. Alloy Ti-6Al-4V helps to shed weight by being used in exhaust systems and connecting rods without giving up strength.
6. Sports Equipment: Performance improvement occurs when using high-end bikes or sports equipment made from these lightweight alloys with strengths ranging around 900MPa.Such long-lasting but light gears are fashioned out of such a feature.

Thus, the application of these types of alloys has always been guided by their mechanical characteristics, corrosion resistance, and adaptability, which make them suitable for different industrial requirements.

The Influence Of Heat Treatment On Material Properties In Titanium Alloys

Heat treatment is a key procedure for improving the mechanical properties of titanium alloys, such as strength, ductility, and toughness. Solution treatment and aging are two major methods utilized during this process, which significantly affects material microstructure.

1. Solution Treatment: This method involves heating the alloy above its temperature range containing alpha and beta phases, then rapidly quenching it. By way of illustration, Ti-6Al-4V is typically treated at about one thousand degrees Fahrenheit (950°C) for an hour, resulting in a uniform microstructure.
2. Aging: Aging is an additional step in which the alloy is subjected to lower temperatures (typically 480-650°C or 896-1202°F) for enhanced strength. Consequently, this process allows alpha and beta-phase particles to precipitate while increasing tensile strength. For Ti-6Al-4V, aging at 500°C (932°F) for 4 hours can give the material’s yield strength approximately 900 MPa.
3. Stress Relief Annealing: This process reduces residual stresses after forming processes or heavy machining. It typically involves heating the material to about 600°C (1112°F) for one hour, which leads to a more uniform stress distribution across the alloy.
4. Impact on Properties: The resulting microstructures enhance fatigue resistance, ductility, and toughness. An example of such heat-treated Ti-6Al-4V exhibits greater elongation ranging from 15% to 20%, thus making it useful in applications where mechanical performance matters.

In different industries, these heat treatment processes may be adapted accordingly to fulfill certain requirements, which explains their significance in optimizing titanium alloys.

Enhancing Mechanical Performance via Titanium Alloy Design

Several design considerations and processes should be considered to improve the mechanical performance of titanium alloys. Important among them are selecting alloy elements, controlling microstructure during processing, and manufacturing optimization.

1. Alloy Selection: The choice of alloy composition significantly affects mechanical properties. In particular, Ti-6Al-4V is known for its excellent strength-to-weight ratio and corrosion resistance, making it ideal for aerospace applications.
2. Microstructural Control: Contrived cooling rates and heat treatment enable specific microstructures with tailored properties. For instance, various cooling rates can produce different amounts of alpha and beta phases, which impacts the mechanical behavior of alloys.
3. Manufacturing Techniques: The current focus is on additive manufacturing (3D printing), which can produce titanium components with complex geometries optimized for weight and strength. Parameters such as layer thickness and build orientation can influence the final microstructure and, consequently, the material properties.
4. Mechanical Testing Parameters: Important mechanical properties include:
5. Tensile Strength: For Ti-6Al-4V post-heat treatment, tensile strength can be around 1000 MPa.
6. Yield Strength: After suitable aging, this alloy can achieve a yield strength of approximately 900 MPa.
7. Elongation: Heat-treated titanium alloys can achieve elongation percentages of about 15-20%, which is enough to make them ductile for critical applications.

Focusing on these areas will significantly improve the performance of titanium alloys, enabling their use in demanding sectors like aerospace, automotive, and biomedical engineering. It is important to evaluate such parameters based on specific application requirements in order to fully exploit the potential offered by titanium alloy designs.

Conclusion

In summary, titanium’s mechanical properties and performance depend mainly on its unique crystal structure at lower temperatures characterized by a hexagonal close-packed (HCP) arrangement. In contrast, it adopts a body-centered cubic (BCC) structure at elevated temperatures. Thus, understanding how an alloy’s behavior relates to its crystal structure allows new processing and manufacturing methods. As microstructural control advances along with mechanical testing capability, more uses will be found for titanium alloys, thereby opening up newer technology space for intricate, reliable materials in aerospace, automotive, and biomedical engineering, among other critical sectors. Therefore, further research into optimizing the properties of titanium is necessary if we are going to create high-performance, lightweight components that can cope with modern engineering demands.

Reference Sources

1. Donachie, M. J. (2000). Titanium: A Technical Guide. Materials Park, OH: ASM International.

This comprehensive guide provides insights into titanium’s properties, including its crystal structure, and discusses various titanium alloys and their applications in the industry.

2. ASTM International. (2021). ASTM F1470/F1470M – 21 Standard Specification for Titanium and Titanium Alloy Bar, Rod, Wire, Foil, and Disks for Surgical Implant Applications.

This standard outlines specifications for titanium materials, highlighting relevant mechanical properties influenced by crystal structure and processing methods.

3. Young, A. (2018). The Mechanical Behavior of Engineering Materials. Wiley.

This text covers fundamental concepts of materials science, including the relationship between crystal structures and mechanical properties, specifically focusing on titanium and its alloys.

Frequently Asked Questions (FAQs)

Q1: What is the crystal structure of titanium?

A1: Titanium primarily exhibits a hexagonal close-packed (HCP) structure at room temperature, transitioning to a body-centered cubic (BCC) structure at elevated temperatures. This unique characteristic influences its mechanical properties and overall performance in various applications.

Q2: How does the crystal structure of titanium affect its mechanical properties?

A2: The HCP structure at lower temperatures gives titanium high strength and moderate ductility. As it transitions to a BCC structure at higher temperatures, titanium’s properties can be adjusted to meet specific engineering demands, improving toughness and formability.

Q3: What are the implications of titanium’s crystal structure in manufacturing?

A3: Understanding titanium’s crystal structure is crucial in tailoring processes such as alloying, heat treatment, and deformation techniques. Manufacturers can optimise these processes to enhance titanium components’ mechanical properties and performance, making them suitable for critical applications.

Q4: Are there different types of titanium alloys based on crystal structure?

A4: Yes, titanium alloys are generally classified into alpha (α) and beta (β) alloys, corresponding to the HCP and BCC structures, respectively. Each type exhibits distinct properties and behaviors, influencing their suitability for various applications in aerospace and biomedical engineering industries.
