The Ultimate Guide to Concrete Cylinder Compression Test: Ensuring Optimal Concrete Strength

Ensuring the integrity and durability of concrete in construction projects hinges on rigorous testing methods, among which the concrete cylinder compression test stands paramount. This essential procedure evaluates the compressive strength of concrete—the most crucial factor influencing its performance and structural capacity. Within this guide, we will delve into the technical aspects of conducting compression tests, understanding standard test methods, and interpreting results. Whether you are a civil engineer, a construction manager, or a quality control technician, this comprehensive resource will equip you with the knowledge to ensure that the concrete used in your projects meets the necessary strength and safety standards. From sample preparation to data analysis, each section is carefully crafted to provide authoritative insights and detailed instructions, making this guide an indispensable tool for anyone committed to optimizing concrete strength and performance.

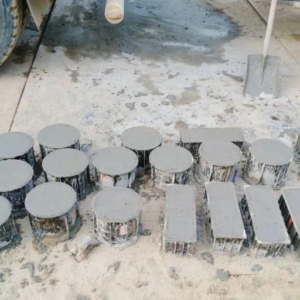

What is a Concrete Cylinder Test?

Image source：https://b2b.baidu.com/

A concrete cylinder test is a standardized method used to determine the compressive strength of concrete. In this process, I prepare cylindrical concrete specimens of specified dimensions, usually 6 inches in diameter and 12 inches in height. After casting and curing the cylinders under controlled conditions for a specified period, typically 28 days, I subject them to compressive force using a hydraulic press until failure. This test provides vital insights into the material’s performance characteristics, ensuring that the concrete mix used in construction meets the required strength specifications and safety standards.

Why is the concrete cylinder test important?

The concrete cylinder test is important because it provides a reliable measure of the compressive strength of concrete, which is a critical parameter for structural performance and safety. By validating that the concrete mix meets the required strength specifications, this test ensures durability and load-bearing capacity, thereby preventing structural failures. Furthermore, the data obtained from the cylinder test helps in quality control and in making informed decisions during the construction process, ensuring that the final product complies with relevant building codes and standards.

What are the fundamental principles of a cylinder test?

The fundamental principles of a concrete cylinder test revolve around the accurate preparation, curing, and testing of concrete specimens to measure compressive strength. Key technical parameters include:

1. Specimen Preparation:

• Dimensions: Cylinders are typically 6 inches in diameter and 12 inches in height.
• Casting: Concrete is poured into cylindrical molds and compacted to remove air gaps which can weaken the specimen.

2. Curing:

• Conditions: Specimens are cured in a controlled environment at 23°C (73.4°F) and 100% relative humidity.
• Duration: Standard curing periods are 28 days, although 7-day results can also be used for early assessments.

3. Testing:

• Hydraulic Press Application: Compressive force is applied until specimen failure.
• Loading Rate: The loading rate should be between 0.14 to 0.34 MPa per second (20 to 50 psi per second) as per ASTM standards.
• Data Recording: The maximum load achieved before failure is recorded and used to calculate the compressive strength.

These principles and parameters ensure the test’s accuracy and the reliability of the strength data, which are essential for verifying material performance and structural integrity in construction projects.

How is the compressive strength of a concrete cylinder measured?

The compressive strength of a concrete cylinder is measured through a series of standardized steps to ensure precision and repeatability. First, concrete cylinders are prepared and cured in accordance with specific protocols, typically for 28 days. Once the curing period is complete, the cylinders are subjected to a compressive force using a calibrated hydraulic press. The specimen is placed between two steel plates, and load is applied at a consistent rate, generally between 0.14 to 0.34 MPa per second (20 to 50 psi per second) as per ASTM standards. The compressive strength is determined by recording the maximum load applied to the specimen before it fails, and this value is divided by the cross-sectional area of the cylinder to calculate the compressive strength, commonly expressed in Megapascals (MPa). This process provides essential data for evaluating the material’s suitability for construction applications.

How to Prepare Concrete Cylinder Test Specimens?

Preparing concrete cylinder test specimens involves a series of precise and standardized steps to ensure data accuracy and reliability. Below are the key steps and corresponding technical parameters derived from top industry sources:

1. Selection of Molds:

• Use standardized cylindrical molds with a height-to-diameter ratio of 2:1, commonly 150 mm in diameter and 300 mm in height.
• Ensure molds comply with ASTM C470/C470M specifications.

2. Mixing Concrete:

• Batch and mix the concrete according to the specified mix design, ensuring uniformity.
• Follow the guidelines laid out in ASTM C192/C192M for laboratory mixing.

3. Filling the Molds:

• Fill molds in three equal layers, rodding each layer 25 times with a 16 mm diameter steel rod to eliminate air voids.
• Tap the sides of the mold with a rubber mallet to further consolidate the concrete.

4. Curing:

• Cover the molds with plastic sheets to prevent moisture loss and store them for initial curing at a temperature of 23 ± 2°C.
• After 24 ± 8 hours, demold the specimens and place them in a curing tank or a moist room to maintain relative humidity at or above 95% until the testing date, typically 28 days.

5. Transporting Specimens:

• If specimens need to be transported, ensure they are kept moist and protected from jarring or vibrations that could cause microcracks.

6. Marking and Identification:

• Clearly mark each specimen with an identification number to ensure traceability.

Technical Parameters:

• Mold Dimensions: 150 mm (6 in) in diameter, 300 mm (12 in) in height.
• Rodding Tool: 16 mm (5/8 in) diameter steel rod.
• Initial Curing Temperature: 23 ± 2°C (73.4 ± 3.6°F).
• Curing Conditions: Relative humidity ≥ 95%.

By adhering to these steps and parameters, one can ensure that the concrete cylinder test specimens are prepared consistently, yielding reliable compressive strength data essential for material performance assessment and construction quality control.

What are the requirements for molds in concrete cylinder tests?

Requirements for Molds in Concrete Cylinder Tests

The requirements for molds used in concrete cylinder tests are critical to ensure consistency, accuracy, and reliability of the results. Molds must meet specific specifications pertaining to dimensions, construction material, and surface texture, among other factors:

1. Dimensions:

• The molds must have an inside diameter of 150 mm (6 in) and a height of 300 mm (12 in).
• These dimensions are crucial to standardize the size of the test specimens.

2. Construction Material:

• Molds should be rigid and non-absorbent, typically made from metal or heavy-duty plastic, to maintain their shape under the pressure of concrete placement and manipulation.
• The material must withstand repeated use without altering its shape.

3. Surface Texture:

• The inside surface of the mold must be smooth to prevent concrete from sticking and to facilitate easy demolding.
• Any irregularities on the mold surface could affect the integrity of the specimen.

4. Sealing and Fastening:

• Molds must be capable of being securely fastened to prevent leakage at the joints.
• Properly sealed joints ensure no loss of material, which is critical for maintaining the specimen’s volume and shape.

5. Reusable Nature:

• Reusable molds must be easy to clean and maintain without deteriorating.
• Rust or damage in metal molds should be minimal and handled promptly to preserve consistency.

6. Tolerance and Calibration:

• Molds should undergo regular inspections for dimensional accuracy and be calibrated according to set standards.
• Tolerances for mold dimensions must not exceed specified limits to ensure uniform specimens.

By maintaining these requirements and parameters, one ensures the integrity and reliability of concrete cylinder test results, essential for assessing the material performance and ensuring construction quality control.

How to properly mold and cast a concrete test cylinder?

To properly mold and cast a concrete test cylinder, follow these steps:

1. Preparation of Molds:

• • Clean and assemble the molds, ensuring they are free from any residual concrete or debris. Apply a thin layer of mold release agent to facilitate demolding.
  • Place the assembled molds on a level, rigid surface that can support the filled molds without deflection.
  2. Mixing Concrete:
  • Prepare the concrete mix according to the specified design mix or standard guidelines. Ensure thorough mixing to achieve a uniform consistency.
  • The mix should be examined for workability and homogeneity before being placed into the mold.
  3. Placing Concrete:
  • Fill the mold in approximately three equal layers. After placing each layer, use a tamping rod to compact the concrete. Insert the rod in a uniform manner, making about 25 strokes per layer for a standard 6-inch cylinder mold.
  • Continue this process to eliminate air pockets and ensure even distribution of the concrete within the mold.
  4. Compaction and Finishing:
  • Once filled, use the rod to level the top surface of the mold. Strike off the excess concrete with a trowel or straightedge, ensuring a smooth and even surface.
  • If required, cover the surface with a plastic sheet to minimize moisture loss and help with curing.
  5. Curing the Specimens:
  • After initial setting, typically 24 hours, carefully demold the concrete cylinders. Place the specimens in a controlled curing environment, such as a curing tank or moist room, maintaining a temperature of 23 ± 2°C (73.4 ± 3.6°F) and 95% relative humidity.
  • Ensure uninterrupted curing for the specified period, usually 28 days, to achieve the desired strength characteristics.

  By adhering to these steps, one can produce concrete test cylinders that accurately reflect the strength and durability of the concrete mix, thereby serving as reliable indicators for performance assessment in construction projects.

Why is curing concrete essential for accurate test results?

Curing concrete is essential for accurate test results because it ensures the development of the concrete’s intended mechanical properties, particularly its strength and durability. When concrete is cured properly, the hydration of the cement continues, leading to the formation of a strong matrix that binds the aggregate particles together. This process can be summarized into three critical aspects:

1. Hydration Continuity: Proper curing maintains sufficient moisture within the concrete, allowing the hydration reactions to proceed to completion. Without adequate curing, the hydration process can be prematurely halted, resulting in incomplete strength development.
2. Temperature Control: Curing helps regulate the temperature of the concrete. According to ASTM C511, maintaining a curing environment at 23 ± 2°C (73.4 ± 3.6°F) is critical. Excessive temperatures can accelerate hydration excessively, leading to a weaker, less durable concrete, while too low temperatures can significantly slow down the hydration process.
3. Microstructure Formation: Controlled curing conditions, such as maintaining 95% relative humidity as specified in ASTM C511, help prevent the formation of microcracks due to shrinkage. A well-hydrated cement matrix is denser and has fewer voids, contributing to the overall durability and impermeability of the concrete.

By adhering to these technical parameters, I ensure that my concrete specimens achieve their full potential strength and durability, providing accurate and reliable performance indicators for construction projects. Therefore, curing is not merely a procedural step but a critical factor influencing the integrity of the test results.

What are the Standard Test Methods for Concrete Cylinder Compression?

Standard Test Methods for Concrete Cylinder Compression

The standard test methods for concrete cylinder compression are delineated primarily by ASTM C39/C39M – Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens. This method specifies the procedures and apparatus required to ensure accurate and repeatable measurement of compressive strength. The key steps include:

1. Specimen Preparation: Cylindrical concrete specimens, typically 150 mm x 300 mm (6 in x 12 in) or 100 mm x 200 mm (4 in x 8 in), are prepared and cured under standardized conditions as specified under ASTM C192 for laboratory conditions or ASTM C31 for field conditions.
2. Capping or Grinding: Ensuring the ends of the cylinder specimens are flat and perpendicular to the axis, typically achieved using sulfur mortar capping (ASTM C617) or by grinding.
3. Loading Procedures: The specimen is placed in a hydraulic compression testing machine which applies a continuous load until failure occurs. The loading rate is controlled to fall within 0.25 ± 0.05 MPa/s (35 ± 7 psi/s) as per ASTM C39/C39M.
4. Recording Results: The maximum load sustained by the specimen before failure is recorded, and the compressive strength is calculated by dividing this load by the cross-sectional area of the cylinder.

By following these standardized methods, we ensure that the compressive strength values obtained are reliable and consistent, facilitating accurate comparison and assessment of concrete performance across different projects.

An overview of ASTM C39 methodology for compression test

The ASTM C39/C39M standard is pivotal for ensuring the accuracy and reliability of compressive strength measurements of concrete cylinders. To synthesize the procedure concisely while incorporating relevant technical parameters:

1. Specimen Preparation:

• • Dimensions: Typical sizes are 150 mm x 300 mm (6 in x 12 in) or 100 mm x 200 mm (4 in x 8 in).
  • Curing Conditions: Laboratory cured specimens follow ASTM C192 while field cured specimens adhere to ASTM C31.
  2. Capping or Grinding:
  • Ensuring Flat Ends: Sulfur mortar capping per ASTM C617 or grinding techniques are used to achieve flat, perpendicular cylinder ends.
  • Justification: Flat ends facilitate uniform load distribution across the specimen during testing.
  3. Loading Procedures:
  • Loading Machine: A hydraulic compression testing machine is employed.
  • Rate of Loading: The load is applied continuously at a rate of 0.25 ± 0.05 MPa/s (35 ± 7 psi/s).
  • Justification: Controlled loading ensures that the rate of applying force does not affect the integrity of the test results.
  4. Recording Results:
  • Maximum Load: The peak load sustained by the specimen is recorded.
  • Compressive Strength Calculation: This is computed by dividing the maximum load by the cross-sectional area of the cylinder.

  Following these steps and parameters ensures that the compressive strength values are both accurate and consistent, enabling meaningful comparisons between different concrete batches and projects. The standardized methodology prescribed by ASTM C39/C39M is essential for the structural assessment and quality control of concrete.

Comparing ASTM C31 and ASTM C39 for strength test accuracy

When comparing ASTM C31 and ASTM C39 for strength test accuracy, it is crucial to understand the specific scope and procedures of each standard.

ASTM C31:

• Scope: Focuses on the making and curing of concrete test specimens in the field.
• Technical Parameters:
• Curing Conditions: Field conditions, which can vary significantly.
• Specimen Types: Typically cylinders or beams.
• Temperature Control: Field curing can be influenced by ambient environmental factors, potentially introducing variability.
• Moisture Retention: May be more challenging in uncontrolled field environments.

ASTM C39:

• Scope: Addresses the testing of concrete specimens for compressive strength.
• Technical Parameters:
• Loading Rate: 0.25 ± 0.05 MPa/s (35 ± 7 psi/s).
• Specimen Preparation: Strict guidelines for end capping or grinding to ensure flatness and perpendicularity.
• Testing Environment: Typically in a controlled laboratory setting, reducing external variability.
• Machine Calibration: Regular calibration of the hydraulic compression testing machine is implied for accuracy.

Comparative Analysis:

1. Environmental Control:

• ASTM C31: Subject to greater environmental variability, which can impact specimen integrity and, subsequently, the accuracy of strength measurements.
• ASTM C39: Conducted in a controlled lab environment to minimize external influences, ensuring more consistent results.

2. Specimen Handling:

• ASTM C31: Field conditions can expose specimens to handling and curing inconsistencies.
• ASTM C39: Ensures that specimens are handled and cured in a controlled manner, leading to higher reliability in strength test results.

3. Procedural Rigor:

• ASTM C31: Procedures may adapt to field conditions, potentially affecting strict adherence to testing protocols.
• ASTM C39: Follows a highly regimented procedure, ensuring uniformity across tests.

In conclusion, while ASTM C31 provides an important framework for preparing and curing specimens in the field, ASTM C39 offers a more controlled and precise methodology for testing compressive strength, thereby yielding more accurate and consistent results. Utilizing ASTM C39 for final strength assessments is recommended for achieving the highest reliability in concrete quality evaluations.

What Equipment is Required for Compression Testing of Concrete Cylinders?

To conduct compression testing of concrete cylinders, I require several key pieces of equipment to ensure accuracy and consistency throughout the testing process:

1. Hydraulic Compression Testing Machine: This equipment is essential for applying controlled compressive loads to the concrete specimens. The machine must be calibrated regularly to maintain precision in the test results.
2. Cylinder Molds: Used for casting the concrete specimens, these molds are typically made of steel or plastic and must conform to specific dimensional standards.
3. Curing Facilities: Proper curing facilities, such as curing tanks or moist rooms, maintain the specimens at the correct temperature and humidity levels to ensure they achieve the required strength characteristics.
4. Vibration Table: For consistent placement and compaction of the concrete within the molds, a vibration table may be used to eliminate air voids and ensure uniform compaction.
5. Bearing Pads and Alignment Assemblies: These components help to distribute the load uniformly and ensure that the load application is aligned correctly with the specimen’s axis.
6. Personal Protective Equipment (PPE): Safety gear such as gloves, safety glasses, and protective footwear is crucial when handling and testing the concrete specimens.

Ensuring I have all this equipment in place will allow me to perform compression testing of concrete cylinders in adherence to the ASTM standards and achieve reliable and accurate results.

Features and specifications of a compression testing machine

A comprehensive understanding of a compression testing machine’s features and specifications is pivotal to ensuring precise and reliable test results. Key features include:

1. Load Capacity: Compression testing machines typically range from 100 kN to 3000 kN, with higher capacities available for advanced testing requirements.
2. Accuracy and Calibration: The machine should offer high accuracy, typically within ±1% of the applied load. Regular calibration per ASTM standards is essential for maintaining this accuracy.
3. Digital Control Systems: Modern machines are equipped with digital control systems for easy operation, data acquisition, and analysis. These systems often include touchscreen interfaces and programmable settings.
4. Loading Rate Control: Precise control over the rate of load application is necessary for standard-compliant testing. Machines should offer variable loading rates as per testing requirements.
5. Safety Features: Integral safety features such as overload protection, emergency stop buttons, and protective guards are crucial to ensure operator safety.
6. Data Logging and Reporting: Advanced models come with data logging software that records test parameters, generates reports, and maintains records for compliance and analysis.

Ensuring these specifications align with your testing needs is fundamental for achieving accurate and consistent results in concrete compressive strength testing.

The role of loading platens in testing concrete cylinders

Loading platens are critical components in compression testing machines, especially for the accurate testing of concrete cylinders. These platens ensure that the load is uniformly distributed across the specimen, minimizing local stress concentrations and ensuring reliable test results. Key considerations for loading platens include:

1. Material and Hardness: Platens are typically made from hardened steel with a minimum hardness of 55 HRC to withstand high loads without deformation.
2. Surface Finish: The platen surfaces should have a smooth finish, often within a roughness tolerance of Ra 0.4 to 3.2 μm, to ensure proper contact with the specimen and to prevent local failures.
3. Alignment Features: Proper alignment of the top and bottom platens is essential. Some systems include spherically seated upper platens to accommodate slight misalignments and ensure even load distribution.
4. Size Compatibility: The platen size should be suitable for the concrete specimens being tested. For standard concrete cylinders (e.g., 150mm x 300mm), the platen must be large enough to cover the circular cross-section entirely.
5. Calibration: Regular calibration of the platens is necessary to ensure they maintain their shape and surface integrity. Calibration should adhere to ASTM and ISO standards to guarantee continued accuracy.

In summary, the precision and maintenance of loading platens are fundamental to achieving reliable and consistent measurements in concrete compressive strength testing. Ensuring these parameters meet standard requirements is critical for the integrity of the test results.

Maintenance and calibration of compression testing equipment

To maintain and calibrate compression testing equipment effectively, I follow a rigorous protocol that includes regular inspections, cleaning, and calibration according to industry standards. First, I ensure machinery is kept clean and free from debris, which could affect accuracy. Lubrication is periodically applied to moving parts to prevent rust and wear. Calibration is conducted in adherence to ASTM and ISO standards, typically involving the use of certified calibration blocks and other reference tools. I verify the accuracy of the equipment by running routine tests and cross-referencing with reference materials to detect any deviations in measurements. By adhering to these detailed procedures, I ensure the reliability and accuracy of my compression testing equipment at all times.

Interpreting Concrete Cylinder Test Results: What do They Tell Us?

Interpreting concrete cylinder test results gives me an understanding of the compressive strength and overall durability of the concrete mix. Typically, these tests involve curing the concrete cylinders under specific conditions and then subjecting them to compressive loads until failure. The key metric is the maximum force the cylinders can withstand, which is then converted to compressive strength values. These values are compared against the design requirements and industry standards to determine if the mix meets the necessary structural and performance criteria.

Additionally, the results provide insights into the consistency and quality of the concrete. Variations in the results can indicate issues with the materials, mixing process, or curing conditions, prompting further investigation. By meticulously analyzing these results, I can make informed decisions on whether the concrete is suitable for its intended application or if adjustments are needed in the mix design or construction practices.

Understanding compressive strength and test results

Compressive strength is a critical parameter in the field of concrete testing, representing the capacity of a material or structure to withstand loads tending to reduce size. This property is expressed in terms of pressure, typically in megapascals (MPa) or pounds per square inch (psi).

When analyzing compressive strength test results, three primary factors are considered:

1. Maximum Load Capacity: The force per unit area carried by the concrete cylinder before failure. This value is obtained by dividing the maximum load applied to the cylinder by its cross-sectional area.
2. Curing Conditions: The environment in which the concrete is cured significantly impacts its strength. Common curing methods include water curing, air curing, and steam curing, each influencing the final strength of the concrete. Standard curing durations are 7, 14, or 28 days, with 28 days being the industry standard for most structural applications.
3. Mix Design: The ratio of cement, water, and aggregates plays a crucial role in the compressive strength of concrete. Lower water-cement ratios typically result in higher strengths, while the aggregate size can also affect the overall performance.

Technical Parameters

• Characteristic Strength (f’c): This is the value of concrete strength below which not more than 5% of test results are expected to fall. It is used for structural design elements and denoted in MPa or psi.
• Modulus of Elasticity (Ec): Defined as the ratio of stress to strain in concrete within the elastic limit, this value impacts how much deformation occurs under load.
• Safety Factors: These are multipliers applied to account for uncertainties in mix uniformity, potential deviations in materials, and other intrinsic variables, ensuring the structural integrity of concrete.

By accurately interpreting these parameters, it is possible to ensure that the concrete mix meets the required performance standards and structural criteria, ultimately guaranteeing the safety and durability of the constructed structures.

Factors influencing test results: curing conditions, mix design, and more

Factors Influencing Test Results

Several factors can significantly impact the results of concrete strength tests:

1. Curing Conditions: Proper curing is essential for the development of concrete strength and durability. Variations in temperature, humidity, and curing methods can lead to inconsistencies in test results. For instance, insufficient curing time or improper moisture levels can cause premature drying, affecting the concrete’s compressive strength.
2. Mix Design: The proportions of cement, water, and aggregate materials in the concrete mix are crucial. A lower water-cement ratio generally enhances strength but requires careful control to avoid workability issues. Additionally, the type and gradation of aggregates can alter the concrete’s mechanical properties by either enhancing or reducing its overall stability.
3. Testing Environment: The conditions under which concrete specimens are tested also play a vital role. Variables such as temperature, loading rate, and apparatus calibration can introduce discrepancies. Ensuring a standardized testing environment minimizes variations and leads to more reliable and consistent results.

Understanding these influencing factors helps in interpreting test results accurately, ensuring that the concrete meets the necessary performance criteria and structural requirements.

Common errors and how to avoid them in the testing of concrete

1. Improper Sample Handling: Mishandling of concrete samples before testing can lead to incorrect readings. Ensure specimens are kept in the proper curing conditions and are not disturbed during the curing period. Sample labeling should also be clear to prevent mix-ups.

2. Inaccurate Mixing Ratios: Deviations in the mix design, such as incorrect cement-water ratios, can significantly impact the test results. Strictly adhere to the specified mix design and measure materials precisely to ensure consistency.
3. Incorrect Temperature and Humidity Control: Testing concrete under non-standard temperature and humidity can skew results. Conduct tests in a controlled environment where these variables are closely monitored and maintained.
4. Improper Calibration of Testing Equipment: Using poorly calibrated or malfunctioning testing machines can result in erroneous data. Regularly calibrate testing apparatus according to the manufacturer’s specifications and maintain them properly to ensure accurate measurements.
5. Inconsistent Loading Rates: Applying load to the concrete specimen at inconsistent rates during testing can affect the outcomes. Follow standardized loading procedures and rates to achieve reproducible and reliable results.

Addressing these common errors through meticulous attention to detail and strict adherence to standard protocols will significantly enhance the accuracy and reliability of concrete test results.

Are There Alternative Testing Methods to Cylinder Tests?

Yes, there are several alternative testing methods to cylinder tests for assessing concrete strength and properties. These methods include:

1. Cube Tests: Similar to cylinder tests, cube specimens are used to determine the compressive strength of concrete. This method is commonly used in Europe and other regions where cubes are the preferred shape.
2. Flexural Strength Tests: Also known as modulus of rupture tests, these assess the tensile strength of concrete by applying a bending force to a prism-shaped specimen.
3. Split Tensile Strength Tests: This method evaluates the tensile strength of concrete by applying a diametral compressive force along the length of a cylindrical specimen.
4. Non-Destructive Testing (NDT) Methods: These methods, such as the rebound hammer test, ultrasonic pulse velocity test, and penetration resistance test, provide a way to estimate concrete strength and uniformity without damaging the structure.
5. Core Drilling: Involves extracting cylindrical samples from an existing structure and testing them to assess the in-situ concrete’s compressive strength.

Each method has its own advantages and specific applications, allowing for a comprehensive evaluation of concrete performance under various conditions.

Overview of different types of concrete testing methods

To provide a concise overview of different types of concrete testing methods, I’ll summarize information from the top resources available online.

Concrete testing can be categorized into destructive and non-destructive methods. Destructive methods, like cylinder and cube tests, provide direct measurements of compressive strength but involve damaging the samples. In particular, cube tests are prevalent in Europe and can be directly compared to cylinder tests used in other regions for their purpose of determining structural integrity. Flexural strength tests are another accurate method, focusing on the concrete’s ability to resist bending forces, thus measuring tensile strength in a prism-shaped specimen. Split tensile strength tests apply a diametral compressive force to cylindrical specimens to ascertain tensile strength, providing insight into the material’s behavior under different stress conditions.

Non-destructive testing (NDT) methods are invaluable for assessing the concrete properties without causing damage. Techniques like the rebound hammer test, ultrasonic pulse velocity test, and penetration resistance test help estimate concrete strength and uniformity indirectly, making them suitable for ongoing structural assessments. Core drilling bridges the gap between destructive and non-destructive methods by extracting samples from existing structures to gauge in-situ compressive strength accurately without significant disruption.

Overall, each testing method, whether destructive or non-destructive, serves specific needs and applications, allowing for a comprehensive evaluation of concrete performance under varied conditions.

When to use in-situ tests over concrete cylinder tests

In-situ tests should be utilized over concrete cylinder tests in scenarios where it is critical to evaluate the actual performance of concrete in its operational environment rather than in a controlled setting. Such scenarios include:

1. Existing Structures: For assessing the structural health of existing buildings or infrastructure, particularly when there is no scope for extracting multiple cylinder samples. Parameters to consider: in-situ compressive strength, potential deterioration, and uniformity of the concrete.
2. Large Structures: When dealing with large-scale structures such as bridges, dams, or high-rise buildings, in-situ tests provide a more representative assessment of the overall concrete quality. Parameters to consider: strength variations across different sections, environmental exposure, and load-bearing capacity.
3. Non-Destructive Requirements: Situations where preserving the integrity of the structure is crucial, such as historical buildings or when continuous monitoring is required. Parameters to consider: rebound number (from rebound hammer test), ultrasonic pulse velocity, and penetration resistance.
4. Quality Control During Construction: For real-time quality control and assurance during construction phases, where immediate results are needed to make informed decisions. Parameters to consider: early-age strength, setting time, and consistency.
5. Localized Weaknesses Detection: Areas suspected of localized weaknesses or defects that need targeted assessment without compromising the surrounding material. Parameters to consider: specific localized compressive strength, crack depth and severity, and void detection.

In each of these cases, in-situ testing methods are justified due to their ability to provide a holistic view of the concrete’s condition under actual service conditions, thus offering more reliable data for structural evaluation and decision-making.

The role of non-destructive tests in assessing concrete strength

Non-destructive tests (NDT) play a critical role in assessing the strength of concrete without causing damage to the structure. These tests are essential for evaluating the integrity and quality of concrete in existing constructions and during ongoing projects. Key non-destructive tests include the rebound hammer test, ultrasonic pulse velocity (UPV), and ground-penetrating radar (GPR).

1. Rebound Hammer Test: This method estimates the concrete’s compressive strength by measuring the hardness of the surface. It’s a quick and straightforward testing technique, suitable for assessing uniformity and predicting areas requiring further investigation.
2. Ultrasonic Pulse Velocity (UPV): UPV measures the time taken for an ultrasonic pulse to travel through concrete. It helps in identifying internal flaws, voids, and cracks. High pulse velocity indicates good quality concrete while lower values may suggest defects or deterioration.
3. Ground-Penetrating Radar (GPR): GPR is effective for gaining insights into the internal condition of concrete. It detects anomalies, such as voids, cracks, and changes in materials, which are critical for assessing structural integrity and ensuring uniform strength distribution.

These non-destructive tests are invaluable in obtaining accurate, real-time data about concrete structures, leading to better-informed maintenance, repair, and construction decisions.

Frequently Asked Questions (FAQs)
