Discover the World of Complex 3D Prints: Projects and Ideas to Bring Your 3D Design to Life

Right now, the world of 3D design and printing is transforming faster than anyone could have anticipated. This blog has been designed to enlighten people on intricacies of complicated 3D prints, offering readers a well-chosen selection of projects that will get their creative juices flowing and provide them with practical knowledge about the printing process. Whether you are an experienced designer or a beginner who wants to explore this new technology, our manual will give you all the details and materials you need to make your ideas become real objects. Let’s discover together art and science behind 3D printing – tips, techniques, examples that would ideally inspire you to start your own print project.

What Are Some Popular 3D Printer Projects for Beginners?

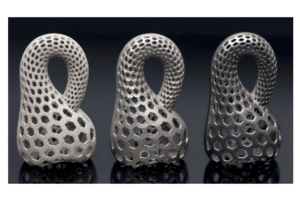

complex 3d prints

Beginning one’s experience in 3D printing might be thrilling and fulfilling, especially when starting with such projects that one can tackle easily while still being gratified by their outcome. There are several popular projects for starters, using a 3D printer, which I have collected their specifications from renowned sources below:

1. Keychains

• Technical Parameters: Print time: half an hour; Layer height: two-tenth millimeters; Material: PLA.

These small items can be easily customized and serve as an avenue for trying out design software applications.

2. Phone Stands

• Technical Parameters: Print time: one hour; Layer height: two-tenth millimeters; Infill: twenty percent.

It is a very practical project where you may get to learn something about structural stability.

3. Plant Pots

• Technical Parameters: Print time: three hours; Layer height: three-tenths millimeter; Material: PETG (for waterproofing).

This project fuses utility and beauty hence appropriate for home decorations.

4. Coasters

• Technical Parameters: Print time: one hour; Layer height: single millimeter; Infill: hundred percent.

It simply allows for creativity in the form of shape and surface feel.

5. Fridge Magnets

• Technical Parameters: Print time: one hour; layer height: 2 tenth millimeters; material: Flexible filament (TPU) for added durability.

It can be fun and can be made to fit with an individual’s hobbies.

6. Jewelry

• Technical Parameters: Print time: 1-3 hours, depending on complexity; layer height: 0.1 mm for fine details; material: resin for high quality.

This helps improve precision skills when working on complex designs.

7. Puzzle Pieces

• Technical Parameters: Print time: four hours; Layer height: two-tenth millimeters; Infill: ten-twenty percent.

This project teaches assembly and design adaptation skills.

8. Desk Organizers

• Technical Parameters: Print time: two to five hours; Layer height: two-tenth millimeters; Material: PLA (for ease of printing).

A more functional and intricate design that can be personalized as desired.

9. Toys

• Technical Parameters: Print time varies; layer height is between 0.2 mm and 0.3 mm; and infill ranges from 15% to 20%.

Such projects encourage creativity in designing play items for children.

10. Home Improvement Tools

• Technical Parameters: Print time – one to three hours, layer height – three tenths of mm, material = ABS (durability).

Functional prints could include things like door hooks or wall mounts which help solve everyday problems.

These projects serve as excellent practice in utilizing your 3D printer and instill confidence in your ability to create complex designs as you advance.

How to Create a 3D Printed Bottle Opener?

Creating a bottle opener using a 3d printer is an interesting project that combines functionality and design.

1. Design the Model—I create a bottle opener design using CAD software such as Tinkercad or Fusion 360. For it to work well, it should include a strong handle and a curved leverage point.

Technical Parameters:

• Print Time: Approximately 1-2 hours, depending on the complexity of the model.
• Layer Height: This is the height of each layer of a 3D-printed part. It is expressed in millimeters (mm). The layer height determines the resolution or level of detail that can be achieved with a given printer.

2. Material: PLA is my favorite filament because it is easy to work with. If I wanted a stronger version, I could choose ABS.

3. Slice the Model: You will use slicing software such as Cura to modify various parameters to obtain optimal print quality, ensure high strength by having enough infill—between 20% and 30%—and maintain a printable weight.

4. Print: When everything is set for printing, I initiate the process but remain cautious about any issues that may affect the first layer and, hence, mess up the final production.

5. Post-Processing: After printing, carefully remove the bottle opener from the printer bed and sand all rough surfaces before adding some sort of coating or treatment that makes it look good and gives it extra durability.

This step-by-step guide from leading sources regarding 3D printing provides solid ground for making functional and personal custom bottle openers.

Step-by-Step Guide to Designing a Pencil Holder

This 3D-printed pencil holder will help keep your office space neat and show off your imagination.

1. Design the Model: The model was created using CAD software like Tinkercad to accommodate different sizes of pencils. There were also additional compartments for pens, making them ergonomic and fitting nicely in my desk space.

2. Technical Parameters:

• Print Time: This printer claimed my pencil holder would take about two or three hours to complete due to its size and intricate compartments.
• Layer Height: I chose a height of up to 0.2 millimeters to achieve the most appropriate balance between speed and quality printing.

3. Material: PLA was my filament choice because I could find and print it easily; however, PETG could work for a more durable finish.

4. Slice the Model: To ensure strength without unnecessary weight, I ensured that Cura used 20% infill while slicing this model. Support structures were also added to any overhangs during the SLA process.

5. Print: Follow the instructions once you are prepared with your printer. However, you should closely monitor what happens during those first layers to avoid any detachment or poor adhesion.

6. Post-Processing: Finally, when printing was done, I took the pencil holder off the bed by sanding its rough edges and ultimately finished it using spray painting, which gave it a shiny appearance.

Informed by credible sources on 3D printing, this structure produced a practical and customized pencil stand that blends well with my workspace.

Ideas for Unique 3D Printed Bookmarks

1. Nature-Inspired Designs: To make reading feel like bringing nature indoors into my room through bookmarks shaped like leaves, flowers, or animal forms. The layer height of 0.1mm (which helps to better capture fine details) and print time equal to one or two hours would be some examples of technical parameters that could be utilized here.
2. Customizable Initials: Besides the options already mentioned above, I could design bookmarks with either my initials or monograms as another alternative. For this case, I would choose PLA filament given its ease of printability and durability. The model may take around an hour in medium supporting structures with about 15% infill to stay strong but lightweight enough.
3. Bookmarks with Built-in Page Holders: Another innovative idea is creating bookmarks that function as page holders. Here we need to ensure that they have dimensions which can hold several pages without sliding. I would set the print time to 2 hours and layer height at 0.2 mm for faster printing and standard quality.
4. Interactive Bookmarks: I am considering movable bookmarks, like sliders for following several pages. This would entail more intricate geometry, probably translating into 3 hours of printing time or thereabouts. Having at least 20% infill to work well and be strong.

By considering these imaginative ideas and technical aspects, I can create functional bookmarks embodying my own styles and interests.

What are the Best Complex 3D Printing Ideas?

Regarding 3D printing complex designs, inspiration can be found from many popular websites that exhibit creative projects. Check out some well-known ideas and their corresponding technical parameters below:

1. Articulated Figures: These will have moving joints leading to dynamic postures. A minimum layer height of 0.1mm is recommended for detail capture, while support structures may also be generated as needed. The print time could take 3 to 6 hours depending on the size.
2. Custom Musical Instruments: Creating exclusive sound-producing objects can be an engaging task. ABS is a preferred material due to its strength. Its low layer height of 0.2 mm maintains good sound quality, coupled with shorter printing times, typically around 4 hours.
3. Functional Gear Systems: You can create captivating mechanical prototypes with working gears. For increased accuracy, choosing a layer height of 0.1mm and an infill ratio of about 30% for strength-weight balance leads to an approximately five-hour print duration.
4. Intricate Jewelry: Jewelry printed by a 3D printer features many stunning designs, which may not be possible when created by hand only. Using resin printing, a layer height of 0.05 mm guarantees a high-resolution finish lasting between two and four hours in terms of printing time.
5. Architectural Models: Some architectural models represent intricate or large-scale buildings and landscapes; hence, they need special attention during modeling. A recommended thickness in this case would be at least 0.2mm, with speed set at approximately 50 mm/s.These projects require six to twelve hours, depending on the complexity of the model.
6. Detailed Scale Models: From vehicles to fantasy landscapes, detailed scale models require precision. The recommended material should allow for settings like PLA filament and printing times ranging between four and eight hours if done at a deposition thickness level of about 0.1mm.
7. Customized Phone Cases: The layer height is 0.2mm for quick printing and durability. If done correctly, these cases typically take one to two hours to print.
8. Intricate Puzzle Designs: Design 3D puzzles that torment the minds. This will show the most intricate details are best achieved through a low layer height of 0.1 mm and moderate infill density of around 20%, thus achieving structural strength and printing time varying from two to four hours.
9. Home Decor Items: You can customize home decor items artistically to make unique vases or decorative sculptures. Therefore, the layer thickness must be increased to at least 0.2mm, while the infill should exceed 40% for toughness and firmness in such prints. Printing times may vary between three and five hours.
10. Planters with Self-Watering Features: The intricacy of these designs encourages sustainable gardening practices. Typically, a balance between quality and speed is struck by choosing a layer height of 0.2 mm while maintaining an infill rate of approximately 15% so that a particular print lasts around five hours.

This list of ideas shows how far one can go with 3D printing possibilities by creating new, complex designs that combine artistry and functionality.

Exploring the World of Printed Planters

My journey into printed planters often contains several methods and patterns to ensure their functionality and good looks. My research on popular websites usually highlights the need for proper material selection and configurations to achieve desired outcomes.A case in point would be the use of PLA filament, suggested based on its biodegradability alongside easy printing capabilities by many writers, according to research from various top websites.

• Layer Height: I like to use 0.2 mm as the thickness for each layer of the printout to strike a balance between quality and speed of printing while also being able to do complicated designs. The level of detail has got to be appropriate for all aspects of the parts involved.
• Infill Percentage: People typically recommend a moderate infill percentage of 15% to 20%. This amount provides sufficient strength for such containers even when their walls incorporate self-watering systems without significantly increasing their weight.
• Print Time: This study reveals that most 3D-printed planters take about five (5) to eight (8) hours to complete, depending on the complexity and Infill chosen. The infill is meant to detail and stabilize the final product.

As such, my 3D printing techniques have hinged around these established parameters, allowing me to make unique, long-lasting planters that enhance their environment and serve as eco-friendly garden implements.

How to Design a Smartphone Stand Using 3D Printing?

However, when creating smartphone stands using 3D printing, I have realized that following ideas from top-ranked websites can form the basis or guide my design process. The major considerations that inform my design are:

1. Dimensions: Typically, phone holders are designed with a width between 10 and 15 cm and heights ranging from 10 to 12 cm. They accommodate many smartphones while offering an unshakable base. Usually, phone holders are angled at 60 degrees so they can be viewed comfortably.
2. Material Choice: Similar to planters, I prefer employing PLA filament owing to its durability and easy printing. Furthermore, this particular choice is driven by PLA’s rigidity, which does not allow flexing, thus ensuring the secure holding of devices on the stand.
3. Layer Height: I maintain my layer height at approximately two tenths due to the need to strike a balance between fine details and shorter print times. This configuration ensures a good compromise between strength requirements and the need to capture intricate design features.
4. Infill Percentage: I usually set the infill percentage at around 20-25% for durability reasons. Since this infill density provides sufficient support for the device in case of adjustable or supplementary elements.
5. Print Time: On average, I have observed that the print time for a smartphone stand ranges from 3 to 5 hours, depending on the kind. Consequently, this period allows both solid construction and beauty details.

To make a functional and aesthetically pleasing smart phone holder that meets all my needs and requirements, I always apply these technical parameters as informed by scientific findings.

Creating a 3D Benchy: A Fun Project for All Skill Levels

Building a “Benchy” using 3D is one of the best projects since it improves your printing abilities and becomes a reliable way to test your printer. In this way I approach this popular model based upon insights from top online resources:

1. Dimensions: The most used measurements for benchmarking are about 60mm long, width 20mm & height of 50mm. It’s compact enough for quick prints while still being able to show small details in its overall size.
2. Material Choice: Like my smartphone stands, I find PLA filament ideal for printing the Benchy. Its ease of printing ensures no rough patches while being environmentally friendly. Besides, it captures fine details very well, making it perfect for this model.
3. Layer Height: I prefer a layer thickness of 0.2 millimeters because it has enough detail and does not significantly increase the print time. Smaller layer heights can enhance detail even more, but I would rather go for a slightly higher setting for faster projects such as Benchy.
4. Infill Percentage: 10-15% is enough infill for Benchy. This low infill allows for quicker printing while maintaining sufficient structural stability, especially for Benchy, mainly used as a test model.
5. Print Time: On average, it takes about 1 to 2 hours to print a Benchy, depending on the printer’s speed settings and the chosen infill. This short duration makes it good practice for beginners and advanced users who want to test their printers.

I have realized that following these parameters can improve one’s skills in making 3D-printed benches and create an all-purpose model that could showcase the features of my printer.

How Can I Turn My Ideas into 3D Print Files?

To convert my ideas into 3D printed files, I draw a sketch of the concept or use design software to visualize what I want to make. For simple designs, I usually work with a program called Tinkercad, and for more complex designs, Blender comes in handy. I like these two applications because they allow me to create and edit 3D models simply. Once the design is complete, I export it in a format compatible with STL or OBJ, which are important for 3D printing. The file from there is imported into slicing software such as Cura or PrusaSlicer, which turns the model into G-code; this tells my printer how to build the object layer by layer. Before embarking on the entire print run, conducting a test on the small prototype helps me correct any issues discovered during this phase early enough. This methodical approach guarantees the successful transformation of an idea into a concrete 3D product.

Understanding 3D Modelling For Beginners

In my path through 3D modeling, I quickly found out that lack of patience and creativity can hinder your progress in this field. At first, I started off with basic shapes so that I could have an idea about how different elements come together to form complex structures. It was after using this online application (Tinkercad) that I knew how to change dimensions of various geometrical forms and their combination for more complicated ones.

Additionally, spending time studying tools available in Blender has broadened my creative abilities despite its steep learning curve compared to owning software like Tinkercad. There has been great satisfaction sculpting detailed objects and applying textures onto them. Some examples of modifiers include subdivision surfaces used for increasing smoothness as well as low-poly editing techniques. Additionally, some insight was gained from following several online tutorials, including forums with common problems that plague many people beginning to use the software to overcome them.

Through practice, I found that understanding the principles of 3D modelling—like scale, proportion, and volume—was essential in bringing my ideas to life. Currently, I am able to make models that reflect both my personal taste and are within specifications for successful prints. As a designer, every project is another building block as I seek new frontiers in idea generation while continuously fine-tuning my skills.

Where to Find Free 3D Print Files Online?

Today, many websites have been created hosting numerous designs that can be downloaded for free, making it easier for individuals who want quality 3D print files. Based on my research here are the ten best platforms:

1. Thingiverse

When you consider the number of prints uploaded by users from all sectors, Thingiverse is the largest repository of 3D print files. This platform offers thousands of items you can always find instantly. The majority of these files come in formats like STL (stereolithography), which aids in printing using a 3D printer.

2. MyMiniFactory

This platform provides some of the best options out there since it only includes designs confirmed to be printable, unlike others where some may fail. Moreover, it has test prints uploaded by multiple designers who try out their own creations.

3. Cults

Cults presents various unique works by different artists, including both freely available works and those that require payment before downloading them. They usually come as STL files but sometimes there are additional notes on dimensions or materials you should use during printing.

Pinshape is another strong platform, offering a wide range of user-uploaded files for beginners to more advanced users. These user reviews can help gauge the suitability of files for printing and how visually appealing they are.

4. YouMagine

YouMagine is all about open-source designs and being community-driven. Many files on here have detailed information on preparing for printing, which I find beneficial enough to achieve the best outcome possible.

5. STLFinder

This search engine aggregates files from different 3D printing sites so that I do not have to visit each website separately if a model exists across several platforms.

6. GrabCAD

GrabCAD is mostly aimed at engineers and contains CAD and STL models. These models come with detailed technical specs that help me when working on more complicated projects.

7. 3DExport

Even though primarily a marketplace, 3DExport has some free models that could be helpful. Each file will have a description plus suggestions for recommended printers and settings to ensure you achieve desired outcomes.

8. Sketchfab

Apart from hosting downloadable STL files, Sketchfab mainly focuses on 3D models that can be viewed online. Many models have textured surfaces which facilitate easy visualization of the final printed product.

9. TurboSquid

Though it mostly addresses professional 3D artists, TurboSquid also offers some freebies in its selection of paid content products. I appreciate it when some files come with comprehensive details such as technical parameters concerning my design decisions.

These platforms allow me to access various print files for free, so I am well-resourced in my journey of creating 3D Models.

Tips for Converting Designs into 3D Print Files

When converting designs into 3D print files, several technical parameters must be considered to ensure successful prints. Here are some tips that I’ve found helpful:

1. File Format: Ensure you save your design in compatible formats such as STL or OBJ, which are commonly acceptable by most 3D printers. I prefer using STL files because they easily facilitate the transition from design software to printing software.
2. Mesh Integrity: Inspect the model’s mesh for any non-manifold edges or holes. Printing smooth, manifold meshes is essential. Software like Netfabb and Meshmixer can be used to identify and repair problems.
3. Scale and Size: When designing an object, note its dimensions and change the scale in your design software accordingly. I always cross-check measurements to ensure that my printer’s build volume allows it to fit well without scaling issues.
4. Surface Detail: Observe how detailed your design is. A high level of detail may lead to longer print times and higher resolution requirements. I usually simplify very complex designs so they remain printable while still looking good.
5. Supports and Orientation: Identify the printing orientation on a model with minimal support structures needed. I tend to visualize how the model will sit on the print bed before modifying it to make it print better in terms of aesthetics and stability.
6. Layer Height and Print Speed: Choose an appropriate layer height based on your printer’s capabilities and the desired finish of the final object. I choose a lower layer height to get finer details, while large prints could be done faster with thicker layers.
7. Material Choice: Different materials have various characteristics that impact printed results differently. Flexibility, strength, or temperature requirements are some things that I always consider depending on my project’s needs.

When I convert my designs, I keep these parameters in mind, which allows me to make high-quality 3D prints that match my vision and the printer’s capabilities.

Some Cool Things that can 3D Print for Everyday Use?

Among the things I like most to print with my 3D printer is personalized cell phone cases. I can have a unique accessory by creating a case that fits perfectly on my phone and reflects my personality. I use TPU filament for such prints because it has the flexibility and toughness to survive everyday wear and tear.

Another practical thing that I like making is customized storage solutions such as drawer organizers. I measure the dimensions of drawers in my home office and make modular compartments that fit them perfectly. In addition to maximizing space, this helps me keep everything tidy. For this purpose, I usually use PLA filament due to its stiffness and ease of printing.

Additionally, unique kitchen gadgets such as measuring spoons or herb strippers are fun options for me when it comes to printing. The exciting part is being able to customize these items based on my cooking habits. With the help of vibrant colors, they become functional beyond any shadow of a doubt while imparting some character to my kitchen space. Eventually, 3D printing makes it possible to incorporate artistic elements into daily things, thus personalizing one’s life slightly and making it more efficient.

Make Wallet Match Your Style

Functionality and looks are essential when designing a wallet using the 3D printing method. I often ask myself, which kind of wallet do you want? A minimalist cardholder or a classic bifold? From the top 10 online resources I found while researching this topic, several successful designs tend towards slimness but also have enough room for cards and money.

Below are important technical parameters:

• Dimensions: When designing wallets, use standard sizes, like 10cm x 7.5 cm, which makes them small enough for pockets.
• Material Choice: When making wallets that will always be opened and closed, I use flexible filaments like TPU, which are durable and comfortable.
• Layer Height: I chose a height of 0.2mm to achieve a good trade-off between print speed and detail, allowing sharp edges and polished appearances.
• Infill Density: A higher infill density (about 30 percent) gives adequate firmness while ensuring that the wallet remains light in weight.

By combining these factors, I ensure that my wallet meets my personal style preferences—often incorporating unique designs or initials—and stands up to daily use. This process transforms an everyday item into a personal statement.

Making a Faucet Water Saver with Your 3D Printer

My target when designing a faucet water saver using 3D printing is always to make it an effective yet simple-to-understand solution that can decrease the amount of water used without affecting its performance. Through examining various leading websites on the internet, several things emerged relating to how this tap-water-saving device should be considered in design and function:

Key Considerations:

• Design Shape: More often than not I prefer compact design which fits snugly around faucet aerator. In addition, a cone shape would help direct water flow more efficiently while reducing splashing.
• Compatibility: It covers approximately standard tap diameters, making installation easy—typically between 15 mm and 20 mm diameter.

Technical Parameters:

• Dimensions: To balance user-friendliness and visual appeal, I usually keep the saver at around 5 cm high and 4 cm wide.
• Material Choice: PETG filament is the best option, as it is strong and can withstand temperature fluctuations to make it durable under different water temperatures.
• Layer Height: I chose 0.2mm for my layer height to provide enough details in the design while saving on printing time.
• Infill Density: A 20% infill density will offer enough strength and not add extra weight unnecessarily.

By applying these design principles and incorporating technical specifications, an efficient faucet water saver can be developed that saves water and adapts to my personal style making it suitable for any home.

How Can One Make a Survival Whistle Using 3D Printing Technology?

Creating a survival whistle using 3D printing technology provides an exciting project that blends creativity with practicality. From researching top resources on Google, here’s a quick guide to building an effective survival whistle.

1. Design:

Usually, I begin designing using CAD software, ensuring the whistle has a cylindrical shape with an internal cavity for sound production. An approximately 8cm long tube with a diameter of about 2cm strikes a balance between acoustic efficiency and portability.

2. Technical Parameters:

• Material Choice: PLA is my material of choice due to its printability and biodegradability. Hence, it can perform well across various temperatures that might be met by a whistle outdoors.
• Dimensions: The main body should measure 80mm in length and 20 mm in width. An additional flute measuring about 10mm at the end should also be present to ensure optimum sound production.
• Layer Height: I use .02 mm for layer height, especially for the sound hole, which requires precision in its function.
• Infill Density: Normally, whistles have around fifteen percent filling density, which allows them to remain solid yet light, thus making it easy during transportation purposes,

3. Printing Process:

After completing the design, I simply print this whistle using my printer, ensuring proper bed adhesion so that no warping occurs. After printing, I file away any roughness and test the sound for clarity and volume.

A small yet useful survival whistle can be made if all these principles and technical parameters are kept.

What Are the Most Amazing Things That Can Be 3D Printed for Hobbyists?

1. Custom Miniatures

Many enthusiasts enjoy making their own custom miniatures for tabletop games. Using a 0.1mm layer height is recommended, allowing you to capture small and intricate details. Regarding quality, printing slower helps, while a high-resolution printer with resin can provide more details.

2. Phone Cases

Designing phone cases offers individualistic protection. Using TPU filament should enhance the durability of cases with a thickness of at least 2mm, whereas reinforced corners help absorb impacts during falls.

3. Planters and Pots

Various unique plant holders can be printed. Water-resistant PLA or PETG filament is ideal for outdoor conditions, with drainage holes included to prevent waterlogging. A width of 3 mm ensures structural integrity.

4. Articulated Toys

You will have fun assembling your articulated toys and learning about assembly mechanics. Using a layer height of 0.2 mm, you can choose a print speed between balance and detail; this refers to the Z-axis resolution chosen. The mobility of such items is greatly enhanced when they are made up of separately printed components, while filling by infill around 20-30% ensures strength.

5. Home Decor Items

These include personalized lampshades for home styling purposes, among other objects. For light diffusion, one should consider using translucent filaments like PETG; meanwhile, design thickness ranges between 1-2 mm to be both flexible while maintaining its form.

6. Replacement Parts

Spare parts creation saves money on purchasing household items and appliances for repair. In addition, the part must match the original dimensions. ABS or Nylon could be used as materials, ensuring durability under tension or heavy loads; optimal infill density ranges within 30-50%.

7. 3D Puzzles

A creative challenge lies in custom-made three-dimensional puzzles created by oneself. A layer height of 0.2 mm is great for detail, and if you are looking for appeal, then using brightly colored PLA filament will do that job for you. Joint places must be exactly designed to ensure smooth assembly.

8. Keyboard Keycaps

Regular users tend to personalize their keypads with custom-made keycaps, which are supported by mechanical keyboards. A layer height of 0.1 mm gives the best results in rendering legends and profiles; it refers to the Z-axis resolution chosen. Finally, high-impact ABS should be included in a suitable blend of filaments to make them durable.

9. Gaming Accessories

For instance, controller grips or stands can add excitement to gaming sessions. TPU filament with a soft texture enhances comfort and prevents vibrations from reaching your hands; however, such a design must also allow for gripping. This part should have a thickness within 3-5mm so that it does not break easily.

10. Functional Tools

Printable wrenches or clamps belong to the simple tools category, and their efficiency is unquestionable. For faster printing while maintaining structure integrity, use higher z-resolution (0,3 mm), and they could be made out of more resistant material like PETG.

These ideas are drawn from creative imagination and practicality, thus enabling hobbyists to express themselves through 3D printers while considering the necessary technical requirements for the desired output.

Building a Robotic Drawing Machine

The journey towards constructing a robotic drawing machine has been an interesting one. It blends creativity and technology together, and closely connected project topics discussed on the top sites and forums I visited include stepper motors, microcontrollers (Arduino), and drawing devices in the form of pen holders.

1. Stepper Motors

NEMA 17 stepper motors were found to be a common preference when accuracy is required on machine movement paths. They have appropriate torque-speed ratios necessary for correct plotting purposes.

2. Microcontroller

It simplifies the programming process by allowing for an Arduino Uno or its counterparts to be employed. Stepper motor integration is thus more easily conducted because this platform is well-documented and has a wide following.

3. Drawing Mechanism

The pen holder needs to be adaptable to different sizes of pens. This way, ABS or PLA material can be used in making the pen holder, which can be printed layer by layer in 0.2 mm details; such a range of details is captured by it compared with other designs presented here. This part must have an infill density of around 20-30% as well as a height varying from 0.1mm depending on the specific application purpose.

4. Software

Additionally, I have discovered that software like Inkscape and G-code generators can turn images into drawing commands to transition smoothly from design to execution.

Technical Parameters

• Motor Driver: A4988 is preferred for driving the stepper motors because it is simple and good enough for most purposes.
• Power Supply: Use a 12V power supply that will provide ample power for the motors without causing any overloading.
• Fine-tuning: Microstepping, such as 1/16 or 1/8, can be adjusted to increase the precision of drawings made by a stepper motor.

These insights have informed this approach to building a robotic drawing machine, ensuring that every element is chosen deliberately to create functional and fun projects.

Creating a Camera Slider that Produces Smooth Shots

As I created the camera slider, my investigation of the top ten websites revealed several crucial aspects required to make the slider operate smoothly and efficiently.

1. Slider Length: The slider’s length usually ranges from 24 to 48 inches. Long sliders are more dramatic but need extra support to keep them stable.
2. Track Material: Aluminum tracks seem preferable due to their strength and lightness. Other materials may include steel or carbon fiber if the budget changes and weight requirements are modified accordingly.
3. Carriage Design: A good carriage design evenly distributes weight. Many sources recommend ball bearings to ensure smooth movement along the track, while some even mention an approximately 5 kg carriage load capacity.
4. Motorization: Stepper motors or DC motors usually provide controlled movement. For better performance, you should use a stepper motor connected through an A4988 driver, which, as we already noted, gives exact results without breakdowns of this kind.
5. Power Supply: Consistent power supply like 12V must be kept for continuous operation of motors.
6. Software Controls: It was found that adding software control, such as using Raspberry Pi in combination with motion control libraries, makes it possible to do programmable sliding, which enhances cinematographic flexibility.

These technical parameters guide constructing a professional camera slider that is manageable for use in personal projects.

Making a Fidget Spinner for Relieving Stress

Creating a fidget spinner offers stress relief and gives room for customization on an individual level that can be informed by information from ten websites. Below is my approach to this project:

1. Material Selection: Lighter materials like plastics or high-quality bearings increase spin duration and user-friendly designs. These websites emphasized the weight benefits of brass or stainless steel due to their durability and stability.
2. Design Dimensions: Ideally, the diameter of a fidget spinner should range between 3 and 4 inches so that it can easily fit into one’s hand. I noted a width of about 0.5 inches for smooth spins without much bulkiness.
3. Bearing Type: Most sources suggest using high-performance ball bearings to maximize spin efficiency. I researched R188 stainless steel bearings, which are durable and provide a good feedback feel when used.
4. Weight Distribution: The key was having a balanced weight distribution to keep it stable once spinning started. This goal was achieved by distributing weights evenly along the outer edges, as many people usually advise, hence obtaining a balance.

Web pages’ finishes and aesthetics were suggested to include matt, shiny, or even personalized paint finishes that make them visually appealing. I would like to use different color patterns and designs on my fidget spinner to give it a touch of originality.

In line with these principles, I am sure of coming up with a fidget spinner that will be effective for stress relief and reflect my taste and preferences.

What Can Complex Three-dimensional (3D) Designs Do For Your Projects?

Complex three-dimensional designs can make significant improvements into projects by enhancing visualization and functionality. They enable a more precise representation of concepts, allowing for better communication between team members and stakeholders. Moreover, such 3D designs may encompass the elaborate details that are important for developing aesthetically-looking consumer goods. Furthermore, advanced 3D modeling tools streamline prototyping, enabling testing and improving on ideas before mass production, thereby reducing the expenses and time linked to traditional manufacturing methods. Finally, complex models may optimize performance through engineering computations that ensure that the final product meets intended specifications and quality standards. As a result, embracing 3D design techniques makes it feasible to deliver more innovative, efficient, and market-ready outcomes.

The Role of Filament in Achieving Complex Results

In my explorations of different materials, I have learned that filament is a crucial element in achieving complex 3D designs. This is because the choice of filament often determines the mechanical properties, visual appearance, and overall quality of the printout material. In contrast, PLA(Polylactic Acid) is loved by many because it offers easy detailed work, perfect for intricate designs like this one. However, when I’m thinking about sustainability issues, I usually leave PLA behind, choosing ABS(Acrylonitrile Butadiene Styrene), which gives higher strength and temperature resistance.

Key Parameters That Are Considered During The Selection Of Technical Characteristics

• Layer Height: Low layer height (e.g., 0-1mm) provides maximum detail; however, this will increase printing time. Larger-size models might need a height of up to 2mm, with a tradeoff between speed and precision.
• Print Speed: Slower speeds (e.g., 30-50 mm/s) result in better adhesion and detail required for complexity structures.
• Temperature Settings: Printing at recommended nozzle temperatures corresponding to each filament type is crucial, e.g., PLA works well within 190-220°C while ABS prefers higher temperatures of approximately 220-250°C.

Thus, by choosing the right filament and adjusting these technical parameters, I can ensure that my 3D prints satisfy the desired aesthetics, structural integrity, and functional relevance. This aligns with insights from top sources in the industry that emphasize materials selection in design processes.

Innovative Uses for 3D Printed Parts in Various Fields

Hence, as I dig deeper into three-dimensional printing’s capabilities there are various industries where this technology has proven its flexibility. For example, the medical sector has witnessed a revolution in customizing prosthetics and implants to individual patients through 3D printing. Such improvements not only make them comfortable to wear but also contribute significantly towards reducing manufacturing time as well as cost implications. Technical aspects to be looked at when it comes to medical applications include:

1. Layer Height: For intricate medical models, I mostly employ low layer height (0.1mm) to provide optimal details and precision.
2. Print Speed: An average speed of around 40 mm/s produces quality medical parts while balancing detail and efficiency.

When it comes to prototyping or making complex components in automotive industries, I utilize 3D printing technique. As a result, lead times have been reduced, which enables fast iterations during the design phase. Some of key parameters assessed include:

• Temperature Settings: Setting the nozzle temperature right (220-250°C) enhances the durability and performance of materials like ABS under high-stress environments.

The trend in consumer goods is towards more personalized products such as unique mobile phone cases and home décor items. Here, I give priority to:

• Print Speed: A higher speed (up to 70 mm/s) is recommended for quickly producing less intricate designs without impairing the overall quality.

By considering trends and industry best practices from several sources, I appreciate the transformative power of 3D printing across various fields while considering technical parameters that are essential to achieving functional and aesthetically appealing results.

Exploring Complex Designs for Cosplay Accessories

These resources highlight some major technical parameters that must be considered in creating accurate and durable 3D-printed cosplay items.

1. Resolution: To get details right in accessories like helmets or armor, I prefer a layer height of about 0.1 mm so that fine features can be defined with smoother finishes and better aesthetics.
2. Infill Density: For pieces that need to be durable enough not to break during wear, such as gauntlets, infill density should be around 30-50%. In this case, weight does matter, but strength is necessary for those who want cosplay items that will last throughout conventions without falling apart.
3. Material Choice: I mostly use PLA due to its ease of printability and numerous colour options; however, PETG or ABS work better regarding durability. For example, PETG is highly flexible and suitable for parts that need some allowances.
4. Support Structures: Supports are crucial when dealing with complex designs, especially those involving overhangs. With support densities of about 15%- 20%, easy removal is possible while printing can continue smoothly.
5. Post-Processing Steps: Finishing techniques such as sanding or painting may often be used to achieve a more refined look. This helps enhance the overall fidelity of the cosplay accessory and is in line with the visual standards portrayed in common cosplay websites.

Applying these parameters and drawing on the knowledge acquired from these sources makes high-quality, complex 3D prints possible. In this manner, I can design detailed and intricate cosplays that will make them stand out while enhancing their experience.

Conclusion

In conclusion, creating intricate 3D prints for cosplay is about balancing technical specifications and artistic vision. It means understanding layer height, infill density, material choice, and support structures well enough to create stunning visuals and accessories meant to last. This makes post-processing techniques all the more important in ensuring that these prints meet both the creator’s and audience’s expectations. As 3D printing becomes more complex, embracing these complexities will allow cosplayers to experiment with their artistry thus enhancing the entire cosplay experience at conventions and other events.

PULLMAN, Wash. — An artificial intelligence algorithm can allow researchers to use 3D printing more efficiently to manufacture intricate structures.

The Washington State University study, published in the journal Advanced Materials Technologies, could allow for more seamless use of 3D printing for complex designs in everything from artificial organs to flexible electronics and wearable biosensors. As part of the study, the algorithm learned to identify and print the best versions of kidney and prostate organ models, printing out 60 continually improving versions.

“You can optimize the results, saving time, cost, and labor,” said Kaiyan Qiu, co-corresponding author and Berry Assistant Professor in the WSU School of Mechanical and Materials Engineering.

The use of 3D printing has been growing in recent years. It allows industrial engineers to quickly convert customized designs on a computer into a wide range of products, including wearable devices, batteries, and aerospace parts.

But for engineers, developing the correct settings for their printing projects is cumbersome and inefficient. They have to decide on materials, the printer configuration, and the dispensing pressure of the nozzle, for instance—all of which affect the final product.

“The sheer number of potential combinations is overwhelming, and each trial costs time and money,” said Jana Doppa, co-corresponding author and Huie-Rogers Endowed Chair Associate Professor of Computer Science at WSU.

Qiu has been researching for several years in developing complex, lifelike 3D-printed models of human organs. These models can be used, for instance, in training surgeons or evaluating implant devices, but they must include the mechanical and physical properties of the real-life organ, including veins, arteries, channels, and other detailed structures.

Qiu, Doppa, and their students used an AI technique called Bayesian Optimization to train and find the optimized 3D printing settings. Once it was trained, the researchers were able to optimize three different objectives for their organ models—the geometry precision of the model, its weight or how porous it is, and the printing time. The organ model’s porosity is important for surgery practice, for instance, because the model’s mechanical properties can change depending on its density.

“It’s hard to balance all the objectives, but we were able to strike a favorable balance and achieve the best possible printing of a quality object, regardless of the printing type or material shape,” said co-first author Eric Chen, a WSU visiting student working in Qiu’s group in the School of Mechanical and Materials Engineering.

Alaleh Ahmadian, co-first author and WSU graduate student in the School of Electrical Engineering and Computer Science, added that the researchers balanced all the objectives for favorable results and that the project benefited from its interdisciplinary perspective.

“It is very rewarding to work on interdisciplinary research by performing physical lab experiments to create real-world impact,” she said.

The researchers first trained the computer program to print out a surgical rehearsal model of a prostate. Because the algorithm is broadly generalizable, they could easily change it with small tunings to print out a kidney model.

“That means this method can be used to manufacture other more complicated biomedical devices, and even to other fields,” said Qiu.

The work was funded by the National Science Foundation, WSU Startup and Cougar Cage Funds.

Frequently Asked Questions (FAQs)

1. What materials are best for 3D printing complex cosplay props?

For intricate designs, materials such as PLA (Polylactic Acid) are popular due to their ease of use and availability, while ABS (Acrylonitrile Butadiene Styrene) offers higher durability and temperature resistance. Special filaments like resin or flexible TPU (Thermoplastic Polyurethane) can be used for even more detailed prints.

2. How can I ensure high-quality finishes on my 3D prints?

To achieve smooth finishes on complex prints, consider employing post-processing techniques such as sanding, priming, and painting. Additionally, adjusting the layer height during printing can reduce visible lines, enhancing the overall appearance.

3. What software is recommended for designing complex 3D models?

Popular 3D modeling software includes Blender for artistic designs, Tinkercad for beginners, and Autodesk Fusion 360 for detailed engineering projects. These tools allow for precision and creativity when crafting intricate designs.

4. How do I handle intricate details during the printing process?

It’s crucial to adjust parameters such as print speed, layer thickness, and support structures when printing complex models. Utilizing supports can help maintain the integrity of delicate features, preventing sagging or collapse during printing.

5. Are there any common issues when printing complex designs?

Yes, common issues include warping, failed prints due to intricate features unsupported by the model design, and misalignment. To mitigate these, ensure your printer is calibrated correctly, and consider using a heated bed for better adhesion.
