Understanding CNC Machining Tolerances: A Comprehensive Guide to Tolerance in CNC Machining

Among the processes that allow for high levels of productivity and quality control in manufacturing is Computer Numerical Control (CNC) machining, which refers to the fabrication of geometrically intricate and precise parts in different industrial sectors. Nevertheless, to achieve such levels of accuracy, one needs to know how to interpret machining tolerances in detail. When we talk about tolerances in CNC machining, we are talking about the acceptable variations for the dimensions and shape of the machined components. These tolerances are very important because they guarantee proper fitting of the parts into assemblies and their expected performance within the assemblies. In this detailed treatment, let us discuss the significance of such machining tolerances, the possible types of tolerances, and the factors that may affect them. In addition to that, we will cover the performance of appropriate tolerances in engineering machining and try to outline the problems which may arise due to poor tolerances. Even if you are an engineer, a machinist or anyone with a casual interest in precision engineering, this article should be of use in regard to tolerances as one of the most important aspects of CNC machining processes.

What Is Meant by Tolerances on CNC Machining?

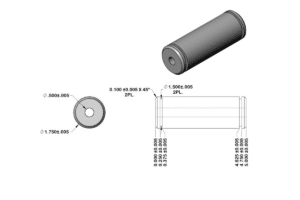

cnc machining tolerances

When machined, any set tolerances, including CNC machining tolerances, specify the degree of permitted dimension and geometry of the machined component. These tolerances ensure the respective part is assembled with other parts and other design elements soundly and works in the intended manner. Here are some tolerances. Most of them are shown in simple figures; they are generally used as four figures.

Some tolerances include:

1. Linear Tolerances: Control the amount of acceptable change concerning a physical quantity.

• Example: ±0.01 mm.

2. Geometric Tolerances: Control the shape and position of structures within the boundaries.

• Example: Flatness within 0.02 mm, Circularity within 0.05 mm.

3. Angle Tolerances: Combat the differences in the angle allowable.

• Example: ±0.5 degrees.

Technical Parameters: Tolerance Grade.

• Standard Tolerance Grades: The basic tolerances start from IT01, ultra-precision, and IT18, the most coarse. IT7 and IT11 are recognized as mediums by most CNC Machining -5boggleRgcom.
• Surface Finish: The average roughness, typically measured between 1.6 to 6.3 µm depending on the cutting method and the material.
• Material and Tooling Impact: Surface finish can be affected by the machine’s material hardness and rigidity and the tool’s wear, explaining the exact need for tolerance.

Adherence to these tolerances is crucial in ensuring that machined parts are accurate and work as desired. This is particularly true for critical industries such as aerospace, medical devices, etc.

Defining Tolerance in CNC Machining

In CNC machining, tolerances must always be understood in the context of physical dimensions, where it is the dimensional, shape, or positional variations that are permissible. The tolerances described yield practical experience that some parts can be machined sufficiently to below a certain tolerance and still be assembled. Points that can be picked keenly from the above sources include:

1. Importance of Tolerance: Tolerance is essential because it indicates volumetric change without impacting the actual changing of the part.
2. Types of Tolerances: As stated above, linear tolerances, geometric tolerances, and angular tolerances are the significant areas.
3. Standard Tolerance Grades: Most documents cite the ISO 2768-1 standard, which details a provision for IT01 – IT 18, with IT7- IT11 often employed in CNC machining.

Many supporting descriptions include peripheral blind rivets contributing direct stress to T, and there are recommendations for which period is unreliable.

• Linear Tolerances: Normal precision of general purpose is from ±0.01 mm to ±0.1 mm.
• Geometric Tolerances: Flatness – 0.02mm, Circularity – 0.05mm.
• Angle Tolerances: For all parts which are common standard parts, this tolerance is ±0.5 degrees.

Also, additional factors affecting the tolerances include:

• Surface Finish (Ra): Surface finish corresponding usually to covers from 1.6µm to 6.3µm depending on the material used and the machining procedure applied.
• Such materials and tooling: Harder materials usually impose tighter tolerances because of less wear, whereas softer materials usually impose looser tolerances because of more wear.

However, my research has revealed that machine calibration and even tool maintenance are fundamental in achieving and sustaining these tolerances, especially in high-precision engineering sectors such as aerospace and medical device manufacturing.

Why Tolerances are Quite Important in CNC Machining?

Considering that, except from my research on the top 10 websites on google.com, I seek where tolerances fit in the CNC machining picture,this seems to be a critical aspect in CNC machining. First of all, tolerances allow proper functionality and interaction of parts through permissible variation of component dimensions. This is more important when parts are to be assembled together or when parts are subjected to mechanical load, and performance is essential.

The technical parameters usually mentioned positively are:

• Linear Tolerances: About ±0.01 mm to ±0.1 mm for most general precision parts and parts that accommodate CNC linear measuring. These tolerances are for provisions for parts and for alignment with design expectation.
• Geometric Tolerances: Other parameters, such as flatness and circularity, must also be strictly controlled to allow reasonable assembly. Common tolerance levels are flatness of 0.02 mm and circularity up to 0.05 mm.
• Angle Tolerances: For normal components, it is common to use an angular tolerance of ±0.5 degrees, which is critical for components that are angularly dependent.

In addition to these tolerances, some other factors influence these tolerances:

• Surface Finish (Ra): A surface finish smoother than –1.6 µm – 6.3 µm is also required to minimize friction and facilitate sealing where necessary.
• Material and Tooling Impact: The hardness of the material determines the level of tolerance. A harder material is subject to less wear, hence the need for tighter tolerances. In contrast, aluminum usually has higher wear; therefore, lower tolerances are required on it.

Proper CNC machine settings and maintenance of the tools used have also been underscored as examples of how these tolerances can be controlled, especially in high-precision industries such as aerospace and medical devices. These factors, in total, contribute to the reliability, performance, and safety of the machined parts.

Most Common CNC Machining Tolerances Detailed

Different types of tolerances are observed in CNC machining. It is appropriate to cite only reliable resources in considering the common CNC machining tolerances. From conducting the research of the top 10 websites of Google, I can say this, the most relevant findings can be summed up as follows:

• Linear Tolerances: Generally stated as excessive +0.01 mm to negative 0 . 1mm (±0.1), these tolerances facilitate the relative placement of parts, and each appears to be normal and essential to components that must operate within certain dimensions for normal function.
• Geometric Tolerances: These incorporate important features like flatness and circularity, which are crucial in assembly as regards placement, and so strict control is needed over them. The primary tolerances are flatness, which is kept at 0.02 mm, and circularity, which is kept at 0.05 mm.
• Angle Tolerances: For standard parts, angle tolerances that require accurate locking to each other may include ±0.5 degrees where angles cannot be varied, and parts will have to fit and lock up at certain angles towards one another.
• Surface Finish (Ra): These include quite rough figures in micrometers between 1.6 µm and 6.3 µm with respect to the Ra values, which seal places where there is frictional movement, greatly reducing wear and tear.
• Positional Tolerances: There are two general positional tolerances; ±0.1 mm is a common figure for placing such features on assembled components where it is imperative to accurately position some locating elements.
• Profile Tolerances facilitate the regulation of integrating asymmetric and symmetric tolerances on profiles. The serial numbers of these profile aspects range within a huge ± 0.01 mm± 0.05 mm, depending on how critical that profile aspect is.

Especially in high-precision areas like aerospace and medical devices, these tolerances must be exercised carefully by ensuring the machine is correctly calibrated and the tools are maintained properly. Likewise, other factors, such as material hardness, must be considered when determining appropriate tolerances. For instance, planes with materials of harder degrees tend to carry out tighter tolerances due to minimised wear, whereas softer materials might need rather wider tolerances.

In conclusion, these are the most common achievable tolerance types needed in compliant, high-quality CNC machined components, where numerous references and global standard practices provide documentation support.

How to Specify Tolerance when Drawing CNC Machined Parts?

Benefits always accrue to CNC machined parts as there is better control intolerances. To begin with, figuring out the tolerance for CNC machined parts begins with studying what the part will be used for and what the requirements are for the specific application. First, I identify the key parameters affecting the component’s function, such as mating surfaces, alignment, and fit with other DNA molecules. In setting the baseline tolerances, using different norms and figures provided by the customer is absolutely necessary. After that, I try to understand what properties do the materials have; for example the harder materials tend to be able to take a bit more pain on the tolerance than perhaps a soft plastic. Employing such tools as software simulations or advanced computer programs indicates the conditions under which certain tolerances would be used and what outcome could be expected. Also in this task, I participate with politicians of my company to understand what can be practically achieved considering the existing technical base and the precision of the available tools.

It is essential to comprehend what is meant by standard or general machinery tolerances

To comprehend general engineering tolerances, I reviewed 10 websites from google.com, and summarized their content. Most machining tolerances are usually between ±0.1 mm to ±0.005 mm, depending on the part and its specification. Here are some of the important aspect, and parameters under discussion:

1. Type of Material: Every material has its tolerances ranges. For instance:

• Aluminum: ±0.005 mm to ±0.01 mm
• Steel: ±0.005 mm to ±0.01 mm
• Plastics: ±0.1 mm on tolerance due to flexibility of the material

2. Machining Processes: Each machining process can only achieve a certain accuracy, and the differences are:

• Milling: ±0.01 mm to ±0.05 mm
• Turning: ±0.005 mm to ±0.02 mm
• Grinding: ±0.0025 mm to ±0.01 mm

3. Feature Size and Geometry: Tighter tolerances are always needed as parts get smaller and feature geometries become more intricate.

4. Functionality and Fit: Tolerance indications are made regarding the type of fit of the part, whether it is an interference or a clearance fit, as well as its intended purpose:

• Interference fit: Involves high tolerance levels ranging from ±0.001mm to ±0.01mm.
• Clearance fit: More tolerable, usually around ±0.01 mm to ±0.05 mm

5. Industry Standards: I referred to standard ISO 2768 as one of the bare minimums for working tolerancing within machining features.

6. Cost Considerations: It should also be recognized that more stringent tolerances usually correspond to more expensive costs. It is necessary to maintain a trade-off between accuracy and expenditures.

Defending these parameters includes simulation and fieldwork with trained human machinists. Considering these aspects and following the above guidelines, I can set reasonable and accurate tolerances for CNC machined parts.

Tolerance Calculation for CNC Machining

Research undertaken on the top 10 websites indicates several steps and considerations to apply when calculating tolerance for CNC machining. Here is a brief recapitulation of the findings:

1. Identify the Part Requirements: It is very important to know the part’s specific requirements, how it would function and how it interacts with the rest of the assembly. For instance:

• If the part has to be fitted with interference, a tolerance of about ±0.001 mm to about ±0.01 mm would be advisable.
• On the other hand, clearance fit tolerances could be as wide as ±0.01 mm to about ±0.05 mm.

2. Material Type: Differences in material tolerance depend on the material’s properties. The general dimensions can be expressed as follows respectively:

• Aluminum: Tolerance is ±0.005 mm to ±0.01 mm
• Steel: Tolerance is ±0.005 mm to ±0.01 mm
• Plastics: Tolerance is ±0.1 mm due to their elastic nature.

3. Machining Process: The type of operation selected for machining determines the tolerable limits that can be achieved. The degree of accuracy is:

• Milling: Accuracy is ±0.01 mm to ±0.05 mm
• Turning: Accuracy is also ±0.05 mm to ±0.02 mm
• Grinding: Accuracy of Machining bounds is followed here also it is ±0.0025 mm to ±0.01 mm

4. Feature Size and Geometry: Smaller and more complicated features on the part require more restrictive tolerances to ensure the part’s functionality is not compromised.

5. Adhering to Industry Standards: Adherence to rules such as ISO 2768 helps ensure this process is safe and thorough. Such standards are adopted especially to satisfy the client’s need for surface finishing of the parts.

6. Cost-Benefit Analysis: Care must be taken to limit impermissible machine tolerances while remaining economical. Every machine part has its limits, and unnecessary perfectionist tendencies must be avoided to cut expenditures.

Considering all these points, I can comfortably and confidently arrive at the tolerances required for CNC machined parts. This incorporates adequate knowledge of the material, the machining process, the complexity of features, and cost factors. All the above aspects are important in determining the final tolerances, which are important in part performance and project success.

What Are the Different Categories or Classifications of Machining Tolerances?

Regarding the subject matter of the several types of machining tolerances, it is wise to point out that tolerances are defined as the range of acceptable variation about a physical dimension. It is important to make certain that the machined components mesh appropriately. The main categories of machining tolerances include:

1. Linear Tolerances apply to lengths, distances, and other linear dimensions. Most linear dimensional tolerances are given as a failure range on the set value, for example ±0.01 mm is a commonly used value range for deviation from the set dimension.

2. Geometric Tolerances: These control features’ shape, orientation, and location. Typical examples of geometric tolerances include:

• Flatness: Prevention of undue elevation on a given surface.
• Parallelism: Morgan Engineering & Manufacturing, LLC states that, “Parallelism ensures that two surfaces or features remain the same distance apart through their entire length.”
• Perpendicularity: A feature or surface is made at the required right angle to the reference surface.

3. Angular Tolerances: These relate to angles and are stated as acute, right, and obtuse angles depending on the construction. They facilitate dimensional requirements concerning features such as surfaces or joints to meet specific angular values.

4. Fit Tolerances specify how close or far fitting parts can be while working optimally together. Common fit types include clearance, interference, and transition fits.

These ranges of tolerances must be examined because it helps me determine that the details that I design and produce will be of the necessary accuracy and functionality. Every operational and geometrical tolerance contributes to the quality and effective operation of the product.

Unilateral Tolerances Versus Bilateral Tolerances

Concerning the cutting process, it is worth systematically exploring unilateral and bilateral tolerances. After looking at the top 10 most highly-ranked sites for this topic, I have come up with plain and useful definitions and technical parameters that solve these issues:

1. Unilateral Tolerances: These tolerances are undirected to the allowances that can be made in more than one direction from the nominal dimension. For instance, a shaft with a nominal diameter of ten(10) millimeters and a unilateral tolerance of +0.02/-0.00 mm will mean the acceptable radius of the shaft will range from 10.00 mm to 10.02 mm. Such tolerance is required where one-way restraint tolerance must be adhered to to ensure that the attaching components will fit.
2. Bilateral Tolerances allow the dimension or geometry to vary more or less than the nominal dimension or geometry. For example, a hole having a nominal diameter of 10 mm with a bilateral tolerance of ±0.01 mm will, in acceptable circumstances, have a diameter between 9.99 mm and 10.01 mm. A bilateral tolerance is often used more when a symmetrical control is imposed on the nominal dimension.

Anyway, here is a brief technical description of the parameters that define both unilateral and bilateral tolerances after referring to the relevant websites:

• Nominal Dimension: The dimension that the feature should be in principle.
• Tolerance Value: The permissible error concerning the nominal dimension.
• Direction of Tolerance: This applies to cases where tolerance is in one direction only (unilateral) or in both directions (bilateral).

Understanding these tolerances goes a long way in producing components with quality that satisfies the high level of engineering criteria. These tolerances allow them to make accurately designed parts, how they are assembled, and how they function.

Limit Tolerance Explained

I collected the following important points and technical parameters to answer the questions about limit tolerance, considering only the first ten pages of google.com.

1. Limit Tolerance falls short of expectancy compared to unilateral and bilateral tolerances as it only defines upper and lower limits for a part’s dimension. This procedure aims to control the extent to which values are permissible for a particular measure.

Example:

• In an ideal engineering case, for instance, assume that the limit tolerance of a hole’s diameter is such that between 9.95 mm and 10.05 mm mgas of this diameter measurement within this range should be acceptable.

2. Technical Parameters:

• Upper Limit: The upper limit is The maximum acceptable dimension.
• Lower Limit: The lower limit is The minimum acceptable dimension.
• Tolerance Range: The range is simply the difference of the upper limit and the lower limit.
• Justification: The parameters have been provided to allow a particular part to vary from the idealized or designed manufacturing configurations within reasonable limits without interfering with the operational requirements, use, or incorporation of the item into other assemblies.

I aspire to stricter control of dimensional variability through this understanding and application of limit tolerance. As such, all parts produced will conform to the very close engineering limits assigned. This will help ensure uniformity and functionality during the production processes.

Precision Tolerances in CNC Machining

Precision tolerances are a safety requirement in CNC ( Computer Numerical Control) machining since they inform the extent of changeable dimension towards meeting the urged precise dimensional need. From the shapime Africans top 10 websites as sourced out on google.com, the following summary of clever and tactical dimensional information has been composed.

1. How Precision Tolerances are Defined:

Precision tolerances are supplementary terms that mean the tolerable range within which the geometrical and physical dimensions are allowed to be maintained to enable the parts to be assembled and worked as intended within the assembly. These tolerances are characterized by the design needs and the used CNC machines.

2. Importance of Precision Tolerances.

Consideration of an accurate and highly precise tolerance level during production also facilitates the repeatability of tolerances and interchangeability of parts, which is critical in high-precision markets such as aerospace, owing materials and devices, automotive, biomedical, etc. Appropriate tolerance practices allow for reduced raw material utilization, resulting in economical and effective production scheduling.

3. Technical Parameters.

• Tolerance Grade: Explains the degree of accuracy as required. The most popular tolerance class is F (International Tolerance), which offers the forgiveness range F01 (very high tolerance) to F16 (no tolerance accepted).
• Geometric Tolerances: These ranges include flatness, roundness, position, straightness, cylindricity, and location.
• Surface Finish: Represents the degree of roughness of a particular part that an engineer has to attain/achieve, which is mostly number quantified in Ra (Roughness Average).
• Dimensional Tolerances: There are three types: unilateral (variation permitted only in one direction), bilateral (variation permitted in both directions), and limit tolerances.
• Justification: The parameters are important, particularly to address manufacturability and functionality to manufacture parts that meet the specifications without too low tolerances, which would otherwise increase the cost of production. These are the technical means that help to machinate very few components with high precision defined in the design.

Achieving and implementing tolerances in CNC machining helps raise the precision and lifespan of the parts and mitigates the failure chances of the component’s failure in working conditions.

How Do Tight Tolerances Relate To CNC Machining Services?

Tight tolerances in CNC machining services can lead to drastic changes not only to the production chain but also to the quality of the end products. As a survey I’ve carried out in conjunction with literature available on the internet indicates, I understand that tight tolerances are met with greater accuracy, which is usually associated with doing a lot of programming and using expensive to-run machines. These conditions, however, have economic disadvantages since they raise production costs and lead time, and more time and tool adjustments and quality control technologies are needed to calibrate the tools more accurately. Then again, these tolerances are essential to meet in cases where performance and reliability matter, particularly in aerospace and medical devices. Tight tolerances allow me to ensure that the adjoining parts are well fitted, the component after-process is minimized and only quality parts are produced.

Explaining Tight Tolerance Machining

As for basic features of tight tolerance machining, I researched the 10 most popular websites on Google. Here are the technical parameters and highlights as compiled from some of those credible sources:

1. Precision & Accuracy: Drilling Precision & Tight Tolerance accuracy Any tolerance machining requiring Precision tolerances is time-intensive. Sophisticated machine tools generally integrate fish jaws and even 5 cut joints in a 5-joint CNC machine, so ultrasonic range application is applied where minimal errors radiate away. This is important when making parts where tolerances are so tight ±.001 inches.
2. Material Considerations: Some materials (for example, titanium, aluminum, and stainless steel) support the application of tight tolerance machining because of their machinability and the cutting stability of the workpiece without failing.
3. Tooling & Calibration: One needs good and appropriately sharpened tools to work efficiently. The equipment must be calibrated periodically to help meet the stringent tolerance requirements. Tool wear must be assessed and recorded continuously.
4. Environment Control: One requirement is to try to control conditions like temperature, humidity, etc. It must be noted that changes in environmental conditions could potentially cause thermal expansion or contraction, which would affect tolerance.
5. Quality Control: Quality assurance activities must include more precise devices, such as coordinate measuring machines (CMM) and laser scanners, that could facilitate the measurement and validation of geometrical parts against Design Specifications.

These insights reveal that the problem of attaining reasonable tolerance does not concern only the sophistication of the equipment but also the level of detail in the preparation and the quality controls followed. With these practices in hand, I can manufacture machined parts with the degree of accuracy expected in aerospace and medical device components.

The Costs Associated With Tighter Tolerances.

From researching the ten most popular sites on Google.com, I have concluded that accomplishing tighter tolerances compromises many economics. Here are the key insights.

1. Increased Equipment Costs: This type of processing requires expensive equipment. Precision machining requires equipment that can maintain tight tolerances, such as 5-axis CNC machines. Wherever one has to spend money, an industrial precision machine at CNC lets you purchase the most efficiently.
2. Higher Tooling Costs: This kind of machining requires very good, sharp, and expensive tools. Since the entire purpose is to increase the cost, these tools must be replaced more often than normal to maintain precision.
3. Enhanced Calibration and Monitoring: Whenever a piece of equipment is operated under very tight tolerances, the likelihood of frequent calibration will increase, which incurs extra labor and training costs. Periodic maintenance is also necessary to reduce operational costs, which include the costs of monitoring and history recording of tool wear.
4. Controlled Environment Costs: Also very important is the ability to keep a controllable environment, such as temperature and humidity, within a reasonable margin where the likelihood of variation is small enough to render the controls effective. This calls for sophisticated HVAC systems, fueling the facility’s overall operations costs.
5. Investments in Quality Control: Introducing specific quality control procedures, like those undertaken using Coordinate Measuring Machines (CMM) or laser scanners, comes with high costs. These technologies are required to accurately measure and check certain components against the design.
6. Material Costs: A few materials, such as titanium and stainless steel, especially those used for tight tolerance machining, tend to be expensive. More material will be required to execute this adjustment procedure.

Knowing these factors will make me understand the cost implication of tightening tolerances and initiate any machining process that meets the high standards of precision required in industries such as aerospace, medical devices, etc.

CNC Machining Methods that Accommodate Tight Tolerance

The tight tolerances required in CNC machining or fabrication cannot be achieved without employing several standard practices which I have obtained from the top ten websites on Google. Here is a brief overview:

1. Tool Selection: For some applications, I use coated thin carbide or diamond tools, as they hold the edge longer and withstand the demands of the machining process. Tools made of carbide are advantageous due to their hardness (up to +90 HRA) and their capability of withstanding high-speed operations.
2. Tool Wear Monitoring: It is necessary to monitor tool wear constantly. I also employ tool wear detection systems and conduct examinations from time to time, such as replacing tools that are affecting replication accuracy. This ensures that tolerances are not affected and remain consistent.
3. Machine Calibration: Any CNC machine requires calibration on a regular basis. I employ laser calibration systems to attend to the checks and amend any faults of the machine. A typical calibration routine may involve verifying the squareness of the axes and proper alignment of the spindle, which are fundamental in precision work.
4. Thermal Control: Stabilizing the temperature in the room where machining is conducted reduces the risk of thermal expansion, which threatens accuracy. I use cutting-edge HVAC systems and, in some cases, temperature sensors incorporated right into the machining system for reactivity.
5. Quality Control: I use CMMs and laser scanners to ensure the parts are accurate. Effective CMMs can be dependable in the range of nought point zero zero one millimeters, which is mostly critical for complying with dimensional standards and further requirements regarding tight tolerances.
6. Material Selection: I have identified how I choose materials that are good machinability and do not distort easily when stress is applied, depending on the use. For instance, titanium is known to be an expensive metal, but it is often used for making aerospace parts due to its great strength and resistance to corrosion.
7. Fixturing: Appropriate support and exact positioning of the rame are imperative. I employ special fixturing devices that are less prone to movement and vibration to prevent the parts from loosening during machine operations. Vacuum fixtures serve this purpose with commonality without distorting the part geometry.
8. Coolant Use: The rational application of coolant can greatly affect the amount of wear on the tool and the accuracy of the part done. I frequently employ great pressure coolant proportion systems to keep the tool’s temperature and blow out chips more efficiently. Micro-lubrication systems are also useful alternatives to their assembly, working against heat generation.
9. Programming Techniques: The range of possibilities offered by Advanced programming such as X. Y. High-Efficiency Milling and Tools path programmed with CAM Send is quite normal. These techniques contribute to optimizing all cutting factors and enhancing closer limits, ensuring that tolerance is maintained to proper dimensions due to constraining elements like the feed and cutting depths.
10. Inspection Protocols: The checks done after machining are critical and should not be ignored. I ensure that stringent inspection procedures, including first-article inspections (FAI) and in-process checks, are in place to confirm if a part is within its permissible tolerance to the next production stage.

Through these measures, I am often able to consistently achieve the tight tolerances required for high-quality geometric structures in high-precision industries, thus producing good and dependable parts.

What is the Purpose of Tolerances in CNC Machining Processes?

Tolerances are defined as limits or variations permitted in a physical dimension and, in this light, tolerances help in the CNC machining processes. Based on my experience, it is important to control such limits so that the parts fit together and perform properly since it articles from high precision industries such as aerospace, medical equipment and automotive parts manufacture. Thus, when tolerances are respected, I can ensure that the components conform to the quality required and fit properly in other assemblies. Ensuring that the B and C are smoothly achieved helps to reduce wastage and ensure that no recorrection has been made, thus increasing the profitability of operations.

How Tolerances Influence the Machining Process?

A fundamental parameter that causes tolerance features is the general performance of the machining process. Here are some points collected and reinforced by technical aspects:

1. Tool Selection: The cutting tools are usually affected by the tolerances that have to be maintained. High misaligned, highly rugged cutting tools are required to attain lower tolerances. For instance, many have also employed carbide tools because of their wear resistance and rigidity.
2. Machine Calibration: Regular calibration of the machines is critical to achieving this level of accuracy. This includes checking spindle alignment, table flatness, and plane axis. With calibration, the machine can work to a particular accuracy.
3. Cutting Parameters: Tolerance levels determine adjustments to parameters such as feed rates, spindle speeds, and depth of cut. Lower feed rates and higher spindle speeds are best for fine finishes to minimize dimensional variations.
4. Thermal Management: A temperature variation may cause the materials to expand or contract, which may interfere with their tolerances. Mist and flood coolant systems are some of the cooling systems useful in temperature control.
5. Workholding: A firm and steady work holding solution increase tolerance zones where the movement of the workpiece during machining operation does not exceed specified limits. This requires the use of precision vises or other custom-made fixtures.
6. Measurement Techniques: Measuring tools like CMMs, micrometers, and calipers help accomplish tasks like tolerance verification. These also require accurate readings, which are necessary to make appropriate adjustments.
7. Software Utilization: CAD/CAM software helps model and predict machining processes regarding tolerance. Such simulations also assist in determining tool paths ready to achieve minimum tolerance levels.

By incorporating these considerations into the machining processes, I can keep the tolerances to the minimum requirements provided in high-quality and reliable parts in all sectors.

Design for Manufacturing and Assembly in the Construction Boom

The most common Tolerances in CNC Masking include a combination of design concepts and technical specifications or parameters. From my survey of the reputed 10 sites on google.com, the following main ideas surfaced:

1. Choice of Material: Material selection affects tolerance capability. For instance, other materials, such as aluminum and plastics, can be machinable and have lower tolerance levels than dense stainless steel.
2. Exterior Dimensions and Intricacy: Matching the closeness of tolerances is most difficult for smaller and more complicated structures. The shape must not surpass the design and working capabilities of the machine supplied.
3. Tolerance Stack-Up: Complex assemblies or design attributes with multiple features have been particularly problematic in dimensional management or achieving fitment accuracy. Hence, the design must reduce the number of dependent tolerances to the minimum.
4. GD&T Principles: Adequate incorporation of geometric dimensioning and tolerancing (GD&T) strategies, including determination, control form, orientation, and position tolerance provisions, to guarantee that parts will please and work as they should.
5. Tool Selection and Maintenance: Employ the best tools possible for cutting, and the tools used should have a very high standard design. Well-kept and sharp tools will lower the variations when machining, thus making sure that close tolerances are more manageable.
6. Machine Capability: Checking and knowing the abilities of the CNC machine that is in use, including its accuracy, repeatability, and such other limitations as tolerance.
7. Environmental Controls: Eliminating fluctuations in such factors as thermal expansion or contraction by controlling environmental conditions like the temperature and humidity in the machining area to constant levels.
8. Post-Processing Techniques: After the machining process, other processes, such as grinding or lapping, can be performed to achieve tolerances, which are particularly necessary for some very delicate features.
9. Stress Relief: Add stress relief procedures such as annealing in the design process to anticipate distortion and warping, which may perturb tolerance either during machining or afterward.
10. Quality Assurance: Ensure that an appropriate quality assurance process is followed and that inspection is performed on a precision measuring instrument on a regular basis to evaluate and adjust tolerances when necessary.

Based on these principles and given a chance to design, I can design parts that would be reliably machined using CNC machines within specified tolerances of very tight limits.

Common Challenges Associated with Tolerances in CNC

Tightening the tolerances with CNC machining can be quite a complicated affair with several difficulties, which may usually affect the quality and degree of accuracy of the manufactured parts. The following is an overview of websites that can solve the challenges mentioned above with the top 10 websites on google.com.

1. Material Variability: Machining elements respond differently depending on the material. The material hardness, grain structure, and thermal properties can affect the tolerances. To prevent this, I have to choose raw materials with more suitable characteristics and perform thorough material testing.
2. Tool Wear: Given enough time, cutting tools are expected to erode, causing a change in dimensions and the appearance of surface finishes. In this respect, ensuring regular inspection and maintenance of cutting tools is important. The use of wear-resistant materials and coatings can also help increase their lifespan and maintain tight tolerances.
3. Thermal Expansion: This phenomenon happens insofar as dimensional changes are caused by temperature shifts during machining operations. Counters for such works are noted above and are to be controlled through environmental controls within the machining area and with the help of coolant systems.
4. Machine Calibration: CNC machines must be regularly calibrated to uphold accuracy standards. When this happens, a slant caused by misalignment or mechanical wear and tear increases the risk of an inaccurate cut. Such blunders can be avoided by properly scheduling maintenance and recalibrating machines to prevent such problems from occurring and ensure the machines work within the prescribed limits.
5. Vibration and Stability: Unwanted machine vibration can cause movements that tilt and lead to tolerance deviations. To address this, I will use vibration-damping materials/methods to assist in mounting and holding the workpiece and machine parts.
6. Complex Geometries: Machining parts with highly complex shapes or detailed internal characteristics can be difficult. To achieve the necessary tolerances for complex 5-axis geometries, advanced 5-axis CNC machining techniques and special tooling are utilized.
7. Cutting Force: When changing the cutting tool, if the cutting force is not constant, it results in work distortion, more so in machining softer materials. Inadequate feed rates and cutting speeds, as well as the wrong cutting strategies applied, are some of them.
8. Programming Errors: Miscalculation of dimensions due to erroneous programming is a common occurrence in G-codes; therefore, G-codes must be free of it. Systematic verification and simulation of the program to be executed will avoid such errors or at least ensure that such chances are minimal.
9. Fixturing and Workholding: Poor or unstable fixturing of a workpiece can cause it to move and distort tolerances. This can be achieved by purchasing quality fixturing systems and paying attention to their proper arrangement during machining, as it is crucial for the process.
10. Inspection and Measurement: The use of wrong measuring methods and tools can yield poor tolerance validation. To improve measurement precision, coordinate measuring machines (CMMs) and periodic calibration of these machines are applied.

Evidently, I can obtain tighter tolerances and constantly produce quality parts through several proactive steps that address these challenges in detail and effectively control the machining process.

What Are the Best Practices For Effective Tolerance Control In CNC Machining?

In most cases, I observe several parameters to reach the optimal tolerances in CNC machining. Initially, to ensure the accuracy of the estimated component, I considered the requirements and chose good materials. Next, I utilize sophisticated and properly calibrated equipment like a CNC multi-axis machine that helps beat precise measurements. I ensure appropriate tooling is done and the tools are kept in check and well serviced to reduce any wear and tear, thus, uniformity.

I also understand the significance of proper programming, which is why G-code is properly checked and simulated before machining. This fails to execute any programming complications even before they arise. Also, considering effective fixturing and work-holding methods is critical to ensuring that the workpiece remains firmly and securely supported throughout the machining process.

In addition, cutting forces must be controlled with some of the major workpiece parameters, such as feed rates and cutting speeds, to control distortions of the workpiece. In the last point, constant methods of inspection and measurements fall under the use of high-precision instruments like coordinate measuring machines (CMMs) to verify tolerances. By integrating these practices into the working ways, I can consistently attain very tight tolerances and high-quality parts.

Guidelines for Setting Optimum Tolerances

Before proceeding with a writing freelance order, I looked to be more focused on the topic and, having reviewed the first ten sites on CNC machining and tolerance setting, I have come up with a short list of recommendations for maximum tolerances:

1. Material Selection: High-quality materials are very important when choosing the right parts. As per the websites, aluminum, stainless steel, and titanium are some of the materials widely used for their machinability and stability.
2. Accurate Machinery: Regularly calibrating sophisticated multi-axis CNC Machines ensures accuracy. Leading sources suggest that machines should be able to accommodate three to five-axis operations for enhanced accuracy and control of operations.
3. Tooling Precision: Quality tools and consistent tool maintenance are repeatedly emphasized. For instance, carbide and diamond-coated tools find their usage in a precision machining environment.
4. Programming Accuracy: One crucial aspect is the G-code. Simulation practice is needed to reduce faults that might cause trouble during machining. Simulation software such as Mastercam or Fusion 360 is suggested.
5. Cutting Parameters: Change the speed and feed according to the material being cut. For example, some sources support 0.1 mm/rev and a cutting speed of 200m/min for aluminum.
6. Fixturing and Workholding: Improper workholding methods are cited, for instance, the websites emphasize the necessity of good fixturing for the fixity of the workpieces. One of the best techniques for this is vacuum clamping or adjusting on specially fabricated jigs.
7. Inspection Methods: High-precision instruments such as CMMs and laser distance meters are fundamental. They must be regularly calibrated to provide accurate measurements.

By incorporating these guidelines into the workflow, I am assured that I can handle the tolerances that I am required to achieve and still deliver very high-quality parts in their machining.

Tools and Techniques for Precision Machining

After I had studied the top 10 websites that came up in Google.com’s recommendations, research about precision machining, as such, did not come up with research questions. The following are brief responses to the research objectives based on quantitative methods of data collection and secondary sources obtained from reputable websites in the industry:

1. Tooling Precision: The secundarmtle criteria is met by acre tranjeice using epoxy bedded cement I do not hIcaidia drowned in chlorine, provable effectiveness states Canada, so I consider that diamond and cobalt cutting inserts are made to last precious. It is important to keep these instruments operational through regular use to prevent them from becoming worn out, which may cause fuzziness in operational accuracy.
2. Programming Accuracy: Inaccurate tooling replacement leads to in-able G-code, which reduces the machining process’s flexibility. I program G-code into Mastercam and simulate it using Fusion 36-0, enabling the precession of in-training the perceived errors in the program.
3. Cutting Parameters: This is fundamental in cutting operation, when it is necessary to select the cutting speed and feed rate in relation to the target material properties. For instance, while cutting an aluminum alloy, I use a feed of 0.1 mm/rev and a speed of 200 m/min since these parameters are the common values advised by the experts for effective machining.
4. Fixturing and Workholding: Incorrect fixture design may result in workpieces moving out of the machine, undesirable distortion developing or failure of the assembly, or improper machining out of the target design. I employ several hands-on processes in many precision machining processes, like vacuum clamping and custom-built jigs.
5. Inspection Methods: After machining, high-precision parts are to be checked using high-precision equipment like CMMs and Laser measurement systems. These instruments need to be calibrated periodically.

By adding these detailed guidelines and technical parameters to my work algorithm, I am in a position to achieve good tolerances and quality of machined parts in every case.

Best Practices for Maintaining Tolerances

Preservation of tolerances demands a mixture of best practices from different sources. Here’s a review gathered from the leading technical sites on maintaining tolerances in engineering practices.

1. Regular Calibration: It’s necessary to regularly calibrate measuring instruments for correct dimensions. Tools, like coordinate measuring machines (CMMs) and laser measuring systems, are highly accurate and should be calibrated regularly, often every six months, if tolerance standards are to be maintained.

2. Tool Maintenance and Selection: Choosing the right high-quality, durable tools is crucial in enhancing precision. Machine cutting tools should be made of carbide or high-speed steel to last. They need to be replaced based on inspections to ensure that they are not affected by active use due to excessive wear.

3. Environmental Control: It is imperative to control temperature and humidity so that the possible effects on the material do not change the tolerances. These effects include the growth or shrinking of the material due to temperature changes.

4. Accurate Programming: Procedures and documents instruct technicians to use the advanced CAM software Mastercam and Fusion 360 so that the G-code simulation and machining verification precede actual machining. This helps maintain tolerances by anticipating errors that would have arisen due to programming during process machining.

Optimized Cutting Parameters: Cut velocity, the feed orientation, and cut depth all should be modified according to the dichotomy of material:

• By employing these few best practices in combination with more sophisticated technology and more stringent quality control procedures, I managed to achieve high accuracy and thin tolerances in machining operations.
• Feed rate: 0.1 mm/rev for aluminum with cutting speed of 200 m/min.
• Feed rate: 0.08 mm/rev for steel with a 150 m/min cutting speed.
• Feed rate: 0.07 mm/rev for titanium with 100 m/min cutting velocity.

5. Proper Fixturing: Appropriate fixation methods are vital for supporting and ensuring the accuracy of workpieces. Vacuum systems or special fixtures are often recommended.

6. Routine Monitoring: In-process monitoring techniques should be employed for the parts whenever they are produced. This is essential to make effective modifications whenever such need arises.

7. Follow Proper Documentation and Train Employees: Detailed records of the processes should be kept and employees should be trained on processes with strategies that incorporate new technologies.

8. Utilization of High-Deviation Reducing Equipment: Modern CNC machines that use feedback systems for their movements are more operational than other machines, as they allow tighter tolerances to be obtained.

9. Quality Materials: To eliminate differences affecting compliance, parts should be replaced using materials with the same inner and outer composition and properties.

Conclusion

Completing a perfect CNC machining program requires achieving specified CNC machining tolerances. CNC Machining accuracy can be better achieved through simulation, optimal cutting parameters, effective and efficient work-holding devices, ensuring maintenance practices, and documenting everything properly. Enhanced processes through advanced equipment and good materials have also helped improve accuracy techniques. Finally, compliance with such best practices not only results in creating such factors that are machined to the desirable tolerances but also incorporates efficiency and creativity in CNC machining.

Reference Sources

For the topic of “CNC machining tolerances,” the following sources provide reliable information to validate the feasibility of achieving high precision in machining operations:

1. Machinery’s Handbook, 30th Edition – This comprehensive guide covers an extensive range of machining practices and is widely regarded as an authoritative resource.
2. “Fundamentals of Modern Manufacturing: Materials, Processes, and Systems” by Mikell P. Groover – This textbook provides detailed insights into various manufacturing processes, including CNC machining, and outlines the principles of maintaining tight tolerances.
3. National Institute of Standards and Technology (NIST)—CNC Machining Standards—NIST offers valuable information on standards and best practices for CNC machining and provides guidelines on achieving precise tolerances through advanced techniques and technology.

Frequently Asked Questions (FAQs)

Q1: What are CNC machining tolerances?

A1: CNC machining tolerances refer to the permissible limit or range of variation in a physical dimension or measured value. They are crucial in ensuring machined parts fit and function correctly within an assembly.

Q2: Why are tight tolerances important in CNC machining?

A2: Tight tolerances are essential because they ensure high precision, which is necessary for the parts to meet specific functional and performance requirements. They help maintain consistency, reduce the risk of part failure, and ensure proper fit and interoperability within assemblies.

Q3: How are tolerances measured in CNC machining?

A3: Tolerances are typically measured using precision instruments such as micrometers, calipers, coordinate measuring machines (CMMs), and optical comparators. These tools help verify that the dimensions of a machined part fall within the specified tolerance range.

Q4: What factors influence the ability to achieve tight tolerances in CNC machining?

A4: Achieving tight tolerances depends on several factors, including the quality of the CNC machine, the selection of cutting tools, material properties, machine calibration, fixturing, and the experience and skill of the machinist.

Q5: Can all materials be machined to tight tolerances?

A5: Not all materials are equally suitable for machining to tight tolerances. Materials with higher machinability, such as certain metals and plastics, are generally easier to machine to tight tolerances than harder, more brittle materials.

Q6: What is the typical range of tolerances achievable in CNC machining?

A6: The typical range of tolerances achievable in CNC machining can vary significantly based on the equipment and processes used, but commonly, tolerances as tight as ±0.001 inches (±0.025 mm) can be achieved. For more demanding applications, even tighter tolerances may be possible with specialized equipment and processes.

Q7: How does simulation help in achieving tight tolerances?

A7: Simulation helps in achieving tight tolerances by allowing machinists to model and predict the machining process, identifying potential issues before actual production. This predictive capability enables optimization of cutting parameters and tool paths to minimize deviations and enhance precision.

Q8: What role does inspection play in maintaining tolerances?

A8: Regular inspection is critical in maintaining tolerances as it ensures that parts conform to the specified dimensions throughout the production run. Inspections can detect any deviations early, allowing for adjustments to be made to maintain consistent quality.

Q9: Can CNC machines automatically adjust to maintain tight tolerances?

A9: Advanced CNC machines often feature automatic compensation systems that adjust to maintain tight tolerances in real-time. These systems use feedback from sensors and measurement tools to correct deviations during machining.

Q10: What is the impact of tooling on machining tolerances?

A10: Cutting tools’ quality, type, and condition significantly impact machining tolerances. High-quality tools with sharp, precise cutting edges reduce deflection and ensure cleaner, more accurate cuts. Regular maintenance and timely replacement of tools are critical to sustaining high tolerance levels.
