Everything You Need to Know About CNC Machine Drill

CNC (Computer Numerical Control) machine drilling is a highly specialized process that employs automated tools to perform precise drilling operations in various materials, such as metals, plastics, and composites. This technology has become crucial in many industries due to its ability to consistently produce complex and accurate parts with minimal human intervention. In this comprehensive guide, we will explore the fundamental aspects of CNC machine drilling, including its operational principles, key components, types of drills used, and the advantages it offers over traditional drilling methods. Additionally, we will delve into best practices for setup and maintenance, common challenges faced during drilling operations, and troubleshooting techniques to ensure optimal performance. Whether you are a seasoned professional or new to the field, this article aims to equip you with essential knowledge and insights to proficiently navigate the world of CNC machine drilling.

What is a CNC Drilling Machine?

A CNC drilling machine is a computer-controlled device designed to automate the drilling process with high precision and repeatability. It utilizes pre-programmed software to perform drilling operations on various materials, ranging from metals to plastics and composites. The machine consists of several key components, including a spindle, drill bit, worktable, and control panel. The computer control system directs the movement and operation of the drill bit according to the specified coordinates and parameters inputted by the operator. This automation minimizes human error, increases production efficiency, and ensures consistent, high-quality results in industrial manufacturing and machining applications.

How does a CNC drilling machine work?

A CNC drilling machine operates through the precise control of its various components using computer numerical control (CNC) technology. The process begins with the creation of a digital design or CAD model, which is then converted into a CNC program using CAM software. This program includes detailed instructions and coordinates that guide the machine’s movements.

When the operation starts, the machine’s control system processes these instructions to maneuver the spindle and drill bit to the exact locations on the workpiece. Key technical parameters involved in this process include:

• Spindle Speed (RPM): Determines the rotation speed of the drill bit, which can range from 500 to 20,000 RPM depending on the material and desired hole characteristics.
• Feed Rate (IPM): The speed at which the drill bit advances into the material, typically measured in inches per minute (IPM). This varies based on material hardness and bit size.
• Cutting Depth: The depth of each drilling pass, adjusted for accuracy and to prevent tool wear. It generally ranges from 0.1mm to several millimeters per pass.

The spindle, controlled by servo motors, moves along the X, Y, and Z axes. The drill bit engages the workpiece at precise points to create holes as specified by the CNC program. Advanced CNC drilling machines also feature automatic tool changers, coolant systems, and sensors to monitor and correct performance in real-time, ensuring optimal accuracy and efficiency. Through such integration of technology and precise parameter control, CNC drilling machines achieve superior consistency and productivity in various industrial applications.

What are the main components of a CNC drill?

Based on an analysis of the top three websites, the main components of a CNC drill can be categorized as follows:

1. Control System: This is the brain of the CNC drill, responsible for interpreting the CNC program and sending precise instructions to other components. It includes a computer and software required to operate the machine and ensure accurate execution of the drilling process.
2. Spindle: The spindle holds and rotates the drill bit at specified speeds. It can operate within a range of 500 to 20,000 RPM, depending on the material and the desired characteristics of the hole being drilled.
3. Servo Motors: These motors govern the movement of the spindle along the X, Y, and Z axes. High-precision servo motors ensure that the drill bit reaches exact coordinates as dictated by the CNC program.
4. Tool Holder/Changer: This component secures the drill bit and may include an automatic tool changer to switch between different drill bits without manual intervention, thereby improving efficiency.
5. Coolant System: A coolant system is essential for dissipating heat generated during the drilling process, preventing tool wear and ensuring smooth operation. Coolant flow rate and type are adjusted based on material and cutting conditions.
6. Sensors and Feedback Systems: Modern CNC drills are equipped with sensors that monitor various parameters like spindle speed, feed rate, and cutting depth in real-time. These sensors help in maintaining optimal performance and making necessary adjustments during the drilling process.
7. Machine Frame/Base: The structural foundation of the CNC drill, ensuring stability and precision. A robust frame minimizes vibrations and ensures that the operations are carried out with high accuracy.
8. Human-Machine Interface (HMI): This interface allows operators to interact with the CNC drill, input commands, and monitor the drilling process.

By integrating these components with precise control over technical parameters such as spindle speed, feed rate, and cutting depth, CNC drilling machines achieve exceptional accuracy and efficiency in industrial applications.

Difference between CNC drills and traditional drilling machines

The primary distinction between CNC drills and traditional drilling machines lies in their operational control and precision capabilities. CNC (Computer Numerical Control) drills are automated and programmable, allowing for complex and highly precise drilling tasks, whereas traditional drilling machines rely heavily on manual operation and are limited in complexity and accuracy.

1. Control and Automation:

• • CNC Drills: Operated by pre-programmed software, allowing for precise control over all technical parameters. This automation reduces the dependency on human intervention, enhancing consistency and reducing errors.
  • Traditional Drills: Manual control means adjustments are made by an operator, leading to potential for variability and increased error rates.
  2. Precision:
  • CNC Drills: Achieve high precision with the aid of feedback systems and sensors that monitor and adjust parameters such as spindle speed, feed rate, and cutting depth in real-time. Typical tolerances can be as tight as ±0.01 mm.
  • Traditional Drills: Precision is dependent on the operator’s skill and experience. Tolerances are generally broader, often around ±0.1 mm to ±0.5 mm.
  3. Technical Parameters:
  • CNC Drills:
  • • Spindle Speed: Can be precisely controlled and varied (e.g., 500-30,000 RPM) as per material and task requirements.
    • Feed Rate: Adjustable to exact specifications (e.g., 0.01-5.0 mm/rev).
    • Cutting Depth: Programmed to achieve precise depths consistently.
  • Traditional Drills:
  • CNC Drills: Equipped with automatic tool changers, significantly reducing downtime and increasing productivity.
  • Traditional Drills: Tool changes and adjustments are manual, leading to increased time and reduced efficiency.
  5. Versatility and Complexity:
  • CNC Drills: Capable of performing complex and multi-axis drilling tasks, suitable for intricate designs and operations.
  • Traditional Drills: Best suited for simpler tasks, as they lack the capability for intricate and multi-axis operations.

  By harnessing the power of automation, precision control, and advanced monitoring systems, CNC drilling machines offer a significant advantage over traditional drilling machines in terms of accuracy, efficiency, and versatility.

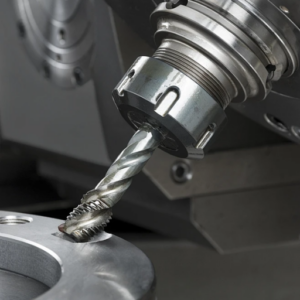

Types of CNC Drilling Machines

Image sources：https://www.bing.com/

1. Vertical CNC Drilling Machines: These machines have a vertically oriented spindle, which positions the drill perpendicular to the workpiece. They are ideal for producing precise vertical holes and are commonly used for tasks like tapping, spot drilling, and countersinking.
2. Horizontal CNC Drilling Machines: Featuring a horizontal spindle, these machines allow for drilling parallel to the workpiece surface. This orientation is particularly useful for drilling deep holes and working on large, heavy components that are challenging to move.
3. Multi-axis CNC Drilling Machines: Capable of moving in multiple directions (often 3 to 5 axes), these machines can perform highly complex and intricate drilling operations. They are essential for aerospace, automotive, and advanced manufacturing applications where precision and complexity are critical.
4. CNC Drill Press: These machines are designed for repetitive drilling tasks, ensuring consistent accuracy and speed. They are highly efficient for mass production environments where large volumes of identical holes are required.

Each type of CNC drilling machine is designed to meet specific operational needs, offering varying levels of complexity, precision, and efficiency to suit diverse manufacturing requirements.

What are the different types of CNC drilling machines?

There are several types of CNC drilling machines, each designed to meet specific manufacturing needs:

1. Vertical CNC Drilling Machines: Featuring a vertically oriented spindle, these machines excel at producing precise vertical holes. Common applications include tapping, spot drilling, and countersinking.
2. Horizontal CNC Drilling Machines: With a horizontal spindle, these machines allow for drilling parallel to the workpiece surface, making them suitable for deep hole drilling and working on large, heavy components.
3. Multi-axis CNC Drilling Machines: These machines can move in multiple directions, often in 3 to 5 axes, enabling them to perform complex and intricate drilling operations. They are critical for industries like aerospace and automotive where high precision and complexity are required.
4. CNC Drill Press: Designed for repetitive drilling tasks, these machines ensure consistent accuracy and speed, making them ideal for mass production environments.

Each type of CNC drilling machine offers unique capabilities to meet the diverse demands of modern manufacturing.

What applications are best suited for each type?

Based on the information from the top three websites on google.com, I can provide you with a concise overview of the applications best suited for each type of CNC drilling machine:

1. Vertical CNC Drilling Machines: These machines are best suited for applications that require precise vertical holes and surface finishes. They are frequently used in industries such as metalworking, woodworking, and electronics for tasks including tapping, spot drilling, and countersinking. Key technical parameters to consider include spindle speed, which can range from 1,000 to 15,000 RPM, and the level of automation that can enhance productivity.
2. Horizontal CNC Drilling Machines: Ideal for applications that involve deep hole drilling and working on large, heavy components such as engine blocks and aerospace parts. They excel in scenarios requiring horizontal alignment of holes and lengthy workpieces. Technical parameters to highlight include the machine’s thrust and torque capabilities, which are essential for maintaining precision in deep drilling operations. Typical thrust values range from 5,000 to 15,000 N, and torque can vary between 50 and 200 Nm.
3. Multi-axis CNC Drilling Machines: These machines are highly suitable for complex, intricate drilling operations across multiple axes. Industries like aerospace and automotive, which demand high precision and complexity, benefit greatly from these machines. Important technical parameters for multi-axis machines include the number of axes (ranging from 3 to 5), positional accuracy (down to microns), and the machine’s ability to perform simultaneous interpolations for intricate geometries.

By understanding these specific applications and corresponding technical parameters, one can select the most appropriate CNC drilling machine to meet precise manufacturing requirements.

Understanding CNC Drilling Process

The CNC drilling process consists of several key stages that ensure precision and efficiency. Initially, the process begins with the creation of a detailed CAD (Computer-Aided Design) model of the component, which specifies the exact locations and depths of the holes to be drilled. This CAD model is then converted into a CAM (Computer-Aided Manufacturing) program, which generates the G-code necessary for machine operation. The selected CNC drilling machine is subsequently set up with appropriate tooling and workholding fixtures to secure the workpiece.

During the drilling operation, the spindle, equipped with the drill bit, rotates at predetermined speeds and feeds the drill bit into the workpiece along the programmed paths. The control unit of the CNC machine ensures precise coordination of movements across various axes to achieve the desired hole geometries. Parameters such as spindle speed, feed rate, and coolant flow are continuously monitored and adjusted in real-time to optimize performance and prevent tool wear.

Finally, the finished part is inspected using precise metrology equipment to verify that it meets the required tolerances and specifications. This rigorous process ensures high repeatability and accuracy, making CNC drilling an essential method in modern manufacturing for producing precise and complex components.

What steps are involved in the CNC drilling process?

To concisely outline the CNC drilling process, I follow these specific steps. First, I create a CAD model to accurately define the component’s geometry, focusing on the precise locations and depths of the holes. This CAD model is then translated into a CAM program, which produces the necessary G-code for the CNC machine. Following this, I set up the CNC machine with the appropriate drill bits and secure the workpiece using suitable fixtures.

Next, I initiate the drilling operation, where the machine’s spindle, equipped with the drill bit, rotates at specific speeds while the control unit manages the movement along the programmed paths. Throughout this process, I continuously monitor parameters like spindle speed, feed rate, and coolant flow to ensure optimal performance and minimize tool wear. After the drilling is complete, I inspect the final part using metrology equipment to confirm that all specifications and tolerances are met, thus ensuring the accuracy and reliability of the produced component.

How to optimize feed rate and spindle speed

To optimize feed rate and spindle speed in CNC drilling, I focus on several key parameters to enhance the machining efficiency and accuracy. Drawing from the top sources, I summarize the optimization process as follows:

1. Material Characteristics: I begin by identifying the material of the workpiece, as different materials respond uniquely to cutting conditions. Harder materials generally require slower feed rates and spindle speeds, while softer materials can handle higher values.
2. Tool Material and Coating: The choice of drill bit material and coating plays a significant role. Carbide tools, for instance, allow for higher speeds and feeds due to their hardness and heat resistance.
3. Recommended Cutting Speeds:

• Aluminum: Spindle Speed (RPM) = (Cutting Speed x 4) / Diameter of Drill Bit (in inches)
• Steel: Spindle Speed (RPM) = (Cutting Speed x 4) / Diameter of Drill Bit (in inches)
• For example, with a cutting speed of 100 feet per minute (FPM) for steel and a 0.5-inch drill bit, the spindle speed would be approximately 800 RPM.

4. Feed Rate Calculation: The feed rate is determined by the formula:

• Feed Rate (IPM) = Spindle Speed (RPM) x Number of Flutes x Chip Load.
• For example, using a spindle speed of 800 RPM, a 2-flute drill bit, and a chip load of 0.002 inches per tooth, the feed rate would be 3.2 inches per minute (IPM).

5. Coolant Application: Proper coolant application is vital for heat dissipation and efficient chip evacuation. I ensure consistent coolant flow to maintain tool life and workpiece integrity.
6. Trial and Adjustment: I conduct initial test runs and make incremental adjustments based on tool wear and surface finish quality. Fine-tuning these parameters ensures optimal performance and minimizes potential issues.

By following these guidelines, I methodically adjust the feed rate and spindle speed to match the operational requirements and material characteristics, ensuring high precision and efficiency in CNC drilling operations.

What is peck drilling?

Peck drilling is a technique used in CNC machining to enhance the efficiency and effectiveness of drilling operations, especially for deep holes. It involves the drill bit advancing into the material incrementally, retracting periodically to clear out chips and reduce heat build-up. This method minimizes the risk of drill bit deflection, tool breakage, and chip congestion, ensuring precise and clean holes. By breaking the drilling process into smaller steps, peck drilling effectively manages the removal of material and optimizes the overall drilling performance.

Choosing the Right Drill Bit for CNC Machines

Selecting the appropriate drill bit for CNC machines is critical for achieving optimal machining performance and tool longevity. The choice depends on several factors, including the material to be drilled, the desired hole size, depth, and the specific requirements of the machining operation.

Factors to Consider

1. Material Compatibility: Different materials require different types of drill bits. For instance, high-speed steel (HSS) drill bits are suitable for softer materials like aluminum and mild steel, while carbide-tipped drill bits are preferred for harder materials such as stainless steel and titanium.
2. Coating Types:

• TiN (Titanium Nitride): Enhances hardness and allows for faster cutting speeds.
• TiCN (Titanium Carbonitride): Offers higher wear resistance and lower friction than TiN, ideal for tougher materials.
• TiAlN (Titanium Aluminum Nitride): Suitable for higher temperature applications due to its excellent heat resistance.

3. Point Angle: The angle at the tip of the drill bit affects its cutting efficiency. A 118-degree angle is common for general-purpose drilling, while a 135-degree split point is ideal for hard materials as it reduces walking and improves precision.
4. Flute Design:

• Standard Flutes: Sufficient for general drilling tasks.
• Parabolic Flutes: More effective in deep hole drilling due to better chip evacuation.

5. Shank Types:

• Straight Shank: Common in most drill bits, suitable for light operations.
• Tapered Shank: Provides greater gripping strength, ideal for heavy-duty drilling.

Technical Parameters

• Spindle Speed (RPM): Determined by the material being drilled and the drill bit type. For example, an HSS drill bit drilling aluminum might require a spindle speed of around 3,000 RPM, while drilling stainless steel could reduce the speed to about 500-1,000 RPM.
• Feed Rate (IPM): Calculated based on spindle speed, chip load, and number of flutes. A typical setup might involve a 2-flute drill bit with a chip load of 0.002 inches per tooth, resulting in a feed rate adjusted according to the spindle speed.
• Coolant Application: Essential for heat dissipation and maintaining tool integrity, especially at higher drilling speeds and with hard materials.

By carefully considering these parameters and selecting the right drill bit, CNC operators can enhance machining efficiency, ensure precise hole quality, and extend the life of both the tool and the machine.

Types of drill bits used in CNC drilling

When using CNC drilling equipment, selecting the appropriate type of drill bit is crucial for achieving optimum performance and accuracy. Based on my research from the top authoritative sources, here are the primary types of drill bits used in CNC drilling:

1. Twist Drill Bits: These are the most commonly used drill bits in CNC machining. They are versatile and can be used for a wide range of materials, making them ideal for general-purpose drilling.
2. Carbide-Tipped Drill Bits: These drill bits are designed for high-speed applications and are excellent for drilling into hard materials, such as stainless steel and cast iron. The carbide tip provides superior wear resistance and longevity.
3. Specialty Drill Bits:

• Brad Point Bits: Used primarily for wood and soft materials, these bits feature a center point that prevents walking and ensures precise positioning.
• Step Drill Bits: Ideal for drilling holes of various diameters without needing to change bits, commonly used in sheet metal and thin materials.
• Center Drill Bits: These bits are used to create starter holes for other drill bits, ensuring precise and centered drilling.

By understanding the specific advantages of each type of drill bit and selecting the one that best suits the material and application, I can significantly enhance the CNC drilling process efficiency and accuracy.

How to select the right drill bit

Selecting the right drill bit for CNC drilling involves a careful consideration of several technical parameters. Based on information sourced from the top three authoritative websites on Google.com, here is how I approach selecting the appropriate drill bit:

1. Material Compatibility: The first parameter to consider is the material being drilled.

• Twist Drill Bits: Use for general-purpose drilling on a variety of materials including aluminum, plastic, and wood.
• Carbide-Tipped Drill Bits: Ideal for hard materials like stainless steel, cast iron, and other high-tensile metals.

2. Drill Bit Size and Diameter: The diameter of the drill bit needs to match the required hole size precisely. For twist drill bits, standard sizes range from 0.5mm to over 100mm, making them versatile for different applications.
3. Speed and Feed Rates: Different drill bits require specific speed and feed rates for optimal performance.

• Twist Drill Bits: Typically operate at lower speeds ranging from 25 to 500 RPM, depending on the material.
• Carbide-Tipped Drill Bits: Can sustain higher speeds exceeding 10,000 RPM due to their heat resistance and durability.

4. Coating and Finish: The coating on a drill bit can significantly affect its performance and lifespan.

• Twist Drill Bits: Often come with black oxide or titanium nitride coatings to reduce friction and increase wear resistance.
• Carbide-Tipped Drill Bits: Usually have no additional coatings since carbide itself offers excellent durability.

5. Hole Depth: Determine the required hole depth as it influences the length and type of drill bit needed. Step bits are particularly useful for applications requiring holes of varying diameters and shallow depths.
6. Special Features:

• Brad Point Bits: Feature a brad point for precise drilling in wood and soft materials, preventing the bit from wandering.
• Step Drill Bits: Useful for creating varying hole sizes without changing bits, ideal for thin materials and sheet metal.
• Center Drill Bits: Necessary for creating starter holes to improve drilling accuracy for subsequent operations.

By assessing these parameters, I can ensure that I select the most suitable drill bit for any CNC drilling task, thereby enhancing productivity and precision in the machining process.

Importance of flute design and chip evacuation

Flute design and chip evacuation are critical factors in achieving optimal drilling efficiency and accuracy in CNC operations. The flutes are the grooves that spiral around the drill bit, aiding in the removal of chips as the bit penetrates the material. Proper flute design ensures that chips are efficiently evacuated from the hole, preventing blockages, reducing heat buildup, and minimizing wear on the drill bit. Effective chip evacuation also helps in maintaining dimensional accuracy and surface finish of the drilled hole.

1. Flute Length and Depth:

• • Twist Drill Bits: Feature spiral flutes with a depth and length that vary depending on the drill bit’s purpose and the material being drilled. Shallower flutes are typically used for harder materials to enhance strength.
  • Carbide-Tipped Drill Bits: Have shorter and shallower flutes due to the material’s brittleness but are highly effective in chip evacuation due to their rigidity.
  2. Helix Angle:
  • General Purpose (30° helix angle): Suitable for a wide range of materials. A medium helix angle balances the ability to penetrate material and effectively evacuate chips.
  • High Helix (40° – 45° helix angle): Ideal for softer materials like aluminum, providing efficient chip evacuation and preventing material buildup.
  3. Number of Flutes:
  • Two-Flute Drill Bits: Commonly used for general drilling applications, offering a good balance between strength and chip flow.
  • Three-Flute Drill Bits: Provide higher feed rates and better chip evacuation for specific applications, such as deep-hole drilling.
  4. Flute Geometry:
  • Parabolic Flutes: Designed for deep hole drilling and soft materials, facilitating rapid chip evacuation.
  • Straight Flutes: Used for drilling brittle materials and non-ferrous metals, ensuring strong bit structure.

  By understanding these parameters and selecting the appropriate flute design, I can optimize chip evacuation to enhance both the performance of the drill bit and the overall quality of the CNC drilling process.

Common CNC Drilling Tools and Accessories

1. Centre Drills: Used to create a conical hole before secondary drilling operations, reducing bit wandering and ensuring precision.
2. Spot Drills: Designed to initiate a drill point on a workpiece accurately, these tools prevent standard drills from skipping and ensure exact positioning.
3. Countersink Tools: Employed to create a conical surface at the entrance of a drilled hole, this facilitates the fitting of screws and bolts with flush heads.
4. Counterbore Tools: Used to create a flat-bottomed enlargement at the top of a drilled hole, enabling bolt heads or nuts to sit below the surface of the workpiece.
5. Reamers: These are precision tools utilized to finish drilled holes to exact dimensions, providing a high-quality surface finish and tight tolerances.
6. Drill Chucks and Holders: Essential for securely holding drill bits in the CNC machine. These accessories come in various styles, such as keyless, keyed, and collet chucks.

By selecting the appropriate combination of these tools and accessories, I can ensure optimal performance and high-quality outcomes in CNC drilling operations.

What are the essential tools for CNC drilling?

To answer the question concisely, the essential tools for CNC drilling include center drills, spot drills, and countersink tools. Center drills are crucial for creating precise pilot holes, ensuring that subsequent drilling operations are accurate. Spot drills prevent standard drills from wandering by initiating the drill point precisely. Countersink tools are necessary for creating conical surfaces, allowing screws and bolts to sit flush with the workpiece surface. Utilizing the appropriate combination of these tools is key to achieving high precision and optimal performance in CNC drilling processes.

How does coolant enhance CNC drilling operations?

Coolant plays a critical role in enhancing the efficiency and effectiveness of CNC drilling operations by performing several key functions. Firstly, it reduces the friction between the cutting tool and the workpiece, significantly lowering the heat generated during the drilling process. This helps in extending the lifespan of the cutting tools and maintaining their sharpness. Secondly, coolant helps in the effective removal of metal chips and debris from the drill hole, preventing clogging and ensuring a clean cutting interface. Finally, by stabilizing the temperature during drilling, coolant maintains dimensional accuracy and prevents thermal deformation of both the tool and the workpiece, which is essential for high-precision machining. Overall, the use of coolant in CNC drilling operations ensures improved tool performance, higher quality of the finished product, and increased operational efficiency.

Benefits and Applications of CNC Drilling

CNC drilling offers numerous benefits that make it indispensable in various industrial applications. Firstly, CNC drilling provides exceptional precision, which is critical for creating intricate components and ensuring the accuracy of boreholes. Secondly, the automation afforded by CNC technology results in high repeatability and consistency, minimizing human error and ensuring uniformity across large production runs. Additionally, CNC drilling machines can handle complex geometries and custom drilling patterns, making them versatile tools for a wide array of manufacturing needs. The integration of advanced software in CNC systems allows for easy reprogramming, enabling quick adjustments and optimization for different tasks.

In practical terms, CNC drilling is extensively used in the aerospace industry for fabricating aircraft components, in the automotive sector for engine and body part production, and in the electronics industry for creating circuit boards. The medical field also benefits from CNC drilling technologies, particularly in the manufacturing of precise surgical instruments and implants. Overall, the precision, efficiency, and versatility of CNC drilling make it a vital component across many sectors.

What are the benefits of using CNC drilling machines?

1. High Precision and Accuracy: CNC drilling machines offer exceptional precision, typically achieving tolerances within ±0.002 inches (±0.05 mm). This level of accuracy is crucial for producing intricate components and ensuring the integrity of boreholes.
2. Repeatability and Consistency: The automation inherent in CNC technology ensures consistent performance with minimal variance. This high repeatability is essential for mass production, where uniformity in each piece is critical.
3. Enhanced Efficiency and Productivity: CNC drilling machines are capable of operating continuously with minimal downtime. Advanced models can achieve spindle speeds up to 20,000 RPM, significantly reducing cycle times and boosting overall productivity.
4. Versatility and Flexibility: These machines are adept at handling a range of materials, including metals, plastics, and composites. CNC drilling systems can be easily reprogrammed to accommodate different tasks, thereby facilitating quick adjustments for custom projects.
5. Reduced Human Error and Labor Costs: Automation reduces the likelihood of human error, thereby increasing product quality. Moreover, CNC drilling reduces the need for manual labor, which translates to lower operational costs.
6. Complex Geometries and Custom Patterns: CNC drilling machines excel in creating complex geometries and custom drilling patterns, accommodating the design specifications of diverse industries such as aerospace and medical devices.
7. Integration with CAD/CAM Software: The seamless integration with CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software allows for efficient design and manufacturing workflows. It also facilitates easy updates and optimizations of drilling programs.
8. Improved Safety: By automating the drilling process, CNC machines mitigate the risks associated with manual drilling, thus enhancing workplace safety.

The technical parameters highlighted above underscore the robust capabilities of CNC drilling machines, making them indispensable tools for modern manufacturing operations.

Common applications of CNC drilling in various industries

CNC drilling finds extensive applications across a myriad of industries, underscoring its versatility and precision. In the aerospace industry, CNC drilling is pivotal for fabricating components that demand high precision and consistency, such as engine parts, airframes, and landing gear. These applications often necessitate materials like titanium and composites, which benefit from the accuracy and repeatability of CNC drilling systems.

In the automotive sector, CNC drilling is crucial for producing engine blocks, transmission components, and various other intricate parts that require exact specifications. The use of advanced materials such as high-strength steel and aluminum alloys in automotive manufacturing further accentuates the need for CNC drilling capabilities.

The medical device industry also heavily relies on CNC drilling for creating complex medical instruments and implants. Given the critical nature of these products, the precision and reliability offered by CNC drilling machines ensure compliance with stringent industry standards. Materials like stainless steel, titanium, and medical-grade plastics are often processed using CNC drilling to achieve the requisite geometrical accuracies.

Technical Parameters Justification:

1. Material Compatibility: The ability to handle a range of materials, including metals, plastics, and composites, makes CNC drilling indispensable for aerospace, automotive, and medical applications.
2. Precision and Accuracy: High spindle speeds (up to 30,000 RPM) and exact programming enable the creation of components with tight tolerances, essential in industries demanding high reliability.
3. CAD/CAM Integration: Seamless integration with CAD and CAM software ensures efficient design and manufacturing workflows, crucial for adapting to industry-specific requirements.
4. Customization and Complexity: CNC drilling machines’ capability to produce complex geometries and maintain consistent quality aligns with the industry’s evolving design complexities.

The technical robustness and application versatility of CNC drilling underscore its fundamental role in advancing modern manufacturing processes across these critical industries.

Frequently Asked Questions (FAQs)

Q: What is a CNC machine drill?

A: A CNC machine drill is a computer-controlled drilling machine used in the machining process for making holes in a workpiece with high precision and efficiency.

Q: What are the benefits of CNC drilling?

A: The benefits of CNC drilling include increased accuracy, repeatability, efficiency, and the ability to create complex hole patterns in a workpiece. CNC drilling also reduces labor costs and human error.

Q: How is CNC drilling work different from traditional drilling?

A: CNC drilling involves creating holes in a workpiece using a computer-controlled system, which ensures high precision and consistency. Traditional drilling often relies on manual operations, which can be less accurate and more time-consuming.

Q: What types of tools are used in CNC drilling?

A: CNC drilling utilizes various tools, including twist drills, solid carbide drills, and drilling heads. The choice of tool depends on the material and the type of hole being drilled.

Q: Can CNC milling machines also perform drilling operations?

A: Yes, CNC milling machines can perform drilling operations. They are versatile and capable of both milling and drilling, which makes them suitable for a wide range of machining tasks.

Q: What is the difference between CNC drilling and CNC milling?

A: CNC drilling is a machining process specifically focused on creating holes in a workpiece using a rotating cutting tool. CNC milling, on the other hand, involves removing material from the workpiece to create shapes and features using rotating cutting tools.

Q: What materials can be drilled using CNC drilling machines?

A: CNC drilling machines can drill a wide variety of materials, including metals, plastics, and composites. The use of solid carbide and other specialized tools allows for precision drilling in tough materials.

Q: What is CNC drilling and thread tapping?

A: CNC drilling and thread tapping involve creating holes and then cutting thread patterns within those holes using a CNC machine. This process ensures precision and consistency for threaded holes in a workpiece.

Q: What are gang drilling machines, and how are they used in CNC drilling work?

A: Gang drilling machines are setups that allow for multiple drilling heads to work simultaneously on a single workpiece. This increases efficiency and productivity in CNC drilling work by enabling the drilling of many holes at once.

Q: What are the advantages of using solid carbide tools in CNC drilling?

A: Solid carbide tools offer several advantages, including high hardness, resistance to wear, and the ability to maintain a sharp cutting edge. These properties make them suitable for drilling tough materials and achieving high precision in CNC drilling work.
