The landscape of manufacturing is changing a lot, because of new ways that promise to make things faster and cheaper and give more opportunities for design. One method that deserves special attention among these developments is 3D printing with binder jets. This entails using powder binders to make detailed components layer by layer. It has many advantages over conventional methods of manufacture. In this article we shall look at what binder jet 3D printing is, why it’s useful and where it can be applied across different sectors. If they understand the workings and potential impact of this technology, readers will have an in-depth understanding as to why modern industry sees binder jetting additive fabrication as revolutionary.

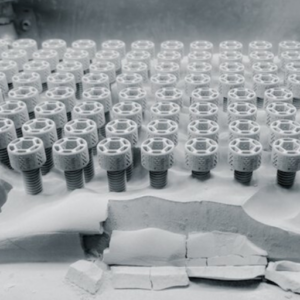

What is Binder Jet 3D Printing?
Image source: https://amfg.ai/
Binder Jet 3D Printing is an additive manufacturing technique which involves selectively depositing a liquid binding agent onto layers of powdered material so as to create parts step-by-step. The initial phase starts when a layer of powder is spread over the build platform; then the print head sprays particles together according to predefined shapes by sticking each particle with another using some adhesive substance called “binding agent”. This process continues until completion whereby post-processing steps like curing or sintering may need be done for increased final product strength durability properties improvement. What sets this strategy apart from others are its ability to allow complex geometries shaping capability realization; reduced wastage on materials utilised during production hence cost saved on materials; time taken for making things being much quicker than traditional methods.
Understanding Binder Jet Technology
There are several steps involved in Binder Jet 3D printing that set it apart from other forms of additive manufacturing. To begin with, instead of employing conventional methods, this process utilizes a powdered material like metal, sand or ceramics and evenly spreads it in layers on top of each other over the build platform. Then a liquid binding agent is precisely deposited onto the surface area of the powder bed by the print head to form the first layer of the object. This cycle continues until all necessary layers have been printed and fused together while adding more powders each time.
Refining is important to improve properties displayed by final products. Curing or thermal sintering may be done on printed parts depending on their composition; these two activities help in strengthening and solidifying components. Sintering entails heating below melting points so atoms can move around thereby bonding particles closer without changing overall shapes while infiltration among other post-processing techniques may be applied where metal materials fill gaps within objects leading to desired mechanical capabilities.
This technique has various advantages including complex geometries realization capability, significant material saving through waste reduction as well as potential for large scale production at low cost per unit without custom tooling requirement. Different sectors such as aerospace industry, automotive sector and consumer goods producers have found use for Binder Jet 3D printing which enables fast prototyping fabrication along with tool making besides manufacture end-use parts too at affordable prices within short periods of time.
How Does Binder Jetting Work?
Binder Jetting works by depositing a binder selectively onto a powder bed. At first, a very thin layer of powdered material (such as metal, ceramic or sand) is evenly spread over the build surface. The print head then moves across the powder bed and jets tiny droplets of binder precisely where the part needs to be solidified according to the digital CAD model. After one layer is finished, another layer of powder is spread and the process is repeated; this cycle continues until the whole object has been created within the print bed.
The built part – still surrounded by loose powder – is subjected to a final curing or sintering stage that enhances its strength and durability. Depending on particular mechanical and aesthetic requirements, additional post-processing steps might include infiltration, machining or coating among others. Binder Jetting’s ability to produce complex geometries with high precision and material efficiency in one go makes it an ideal choice for many industrial applications where additive manufacturing is needed.
Key Components of Binder Jet Printers
To achieve high-precision and efficient additive manufacturing, Binder Jet Printers are made up of several interdependent parts. The most important ones are as follows:
- Print Head: The task of the printing head is to deposit the binding agent onto the powder bed selectively. It moves with great precision and jets very small droplets of binder according to the digital design file so as to create the necessary shape.
- Powder Bed: Layer by layer, powdered material such as metal, ceramic or sand is evenly spread over a foundation known as powder bed. Fine distribution ensures evenness and accuracy in final product.
- Recoat Mechanism: After every binder application it makes sure that there is uniform layering by uniformly scattering another layer of powder around build platform where subsequent binder will be deposited for optimum material distribution.
- Control Software: This software controls all printing process starting from slicing digital CAD model into individual layers up to movement control of print head and binder application. It guarantees accuracy, efficiency and user friendliness.
- Curing or Sintering Oven: Once printed, assembled part still surrounded by loose powder undergoes curing or sintering process for solidification and strengthening of material thereby achieving desired mechanical properties and durability.
- Post-Processing Tools: Infiltration, machining or coating may be required depending on specific needs hence additional tools/equipment used for post processing steps which refine final part making it better functionally aesthetic wise also.
All these elements work together towards making Binder Jet Printing a versatile technique in additive manufacturing that can be applied across different industries to produce complex high performance parts.
What Materials Can Be Used in Binder Jet 3D Printing?
Binder Jet 3D Printing is an incredibly versatile type of printing that can use many different materials. Some of the most commonly used materials are as follows:
- Metals: Such as stainless steel, bronze, cobalt-chrome or titanium which provide strength and durability for metal parts.
- Ceramics: Like alumina or zirconia which offer high-temperature resistance and mechanical strength required by some industrial applications.
- Sand: An ideal material for making molds and cores needed in casting processes because it allows flexibility and fast production of complex shapes.
- Polymers: Although not widely adopted yet, there are certain types of polymer powders also applicable in this technique thus expanding its potential uses.
- Composites: Through combining various substances binder jetting enables creating items with specific properties designed for particular purposes according to a binder jetting overview.
The ability to work with so many different materials makes Binder Jet 3D Printing suitable for a wide range of industries. For example aerospace & automotive industry where parts need to be strong but light weight at once or medical & industrial manufacturing sector where high precision is crucial.
Metal Powder in Binder Jetting
The powder made from metal is a vital part of Binder Jetting. It serves as the basic material for creating complex and strong parts. The commonly used types of metal powders are stainless steel, bronze, cobalt-chrome and titanium because each has different properties that are suitable for different applications. Its strength and resistance against corrosion makes stainless steel good for industrial components while bronze works well in decorative objects as well as engineering components due to its favorable mechanical properties. Cobalt-chrome is popularly known for high wear resistance and strength therefore it finds wide usage in medical and dental fields whereas titanium has excellent strength-to-weight ratio coupled with biocompatibility hence its large scale use in aerospace industry together with medical implants. For these reasons among others such as achieving high accuracy levels during production stage need fine-grainedness combined with uniformity of these metallic powders which contribute towards better surface finish on final products.
Ceramic and Sand Materials for Binder Jet 3D Printing
Materials like ceramic and sand are important in Binder Jet 3D Printing as they have certain unique benefits for specific applications. Ceramics normally include powders such as alumina, zirconia, and silicon carbide that can withstand high temperatures, are chemically inert, and possess good mechanical properties. Hence, these features make ceramics suitable for aerospace, automotive, electronics manufacturing among other sectors. Alumina is frequently used because it is extremely hard while also being thermally stable; on the other hand, zirconia is used due to its toughness coupled with durability whereas silicon carbide which has higher hardness than others mentioned above also has thermal conductivity hence can be applicable in wear resistant parts where heat dissipation is paramount.
Binder jetting technology utilizes sand materials mainly silica sand or foundry sands during its operation which involves metal casting processes through creation of molds and cores. It enables the production of intricate shapes at high accuracy levels with finer details compared to conventional tools thus reducing them significantly. This method finds much use when printing large sized objects customized according to individual specifications within foundries where there are many different types required for each component manufactured there. The industrial adoption rate for this type of 3d printing machines using silica sands mixed with binders like polymers remains very high due to their versatility alongside cost effectiveness not forgetting about scalability too which makes them ideal candidates especially when fast tracking prototyping needs arise during production stages at various industries all over the world.
Innovative Binder Systems
New binder systems are changing Binder Jet 3D Printing. These systems improve the cohesion between particles as well as allow for a wider range of printable materials. Aqueous-based binders are among such cutting-edge systems and are often preferred because they are environmentally friendly and cost-effective too. They do not necessitate hazardous solvents, thus creating a safer working place. Furthermore, polymer-based binders have started gaining popularity due to their strong adhesive properties which enable them to create high-density parts having excellent mechanical characteristics while another breakthrough approach utilizes inorganic binders that can endure high temperatures thereby making them most suitable for applications requiring superior thermal resistance as well as other improvements in binder formulation continue to stretch what can be achieved with Binder Jet 3D Printing towards more sturdy, adaptable and higher performance printed components across different industries.
What Are the Advantages and Disadvantages of Binder Jet 3D Printing?
Advantages:
- Cost-Effective Material Use: Binder jetting typically uses low-cost materials like sand, thus reducing overall production costs.
- Large-Scale Production: Ideal for producing large and complex parts especially in foundry and casting industries.
- No Need for Support Structures: Unlike other 3D printing techniques, binder jetting does not need support structures hence allowing creation of intricate geometries.
- Rapidity: This method is relatively fast which makes it suitable for quick prototyping and production cycles.
- Material Versatility: It can work with different types of materials such as metals, ceramics among others thereby enhancing its applicability across various sectors.
Disadvantages:
- Post-Processing Requirements: Often times parts may require significant post-processing like curing, sintering or infiltration to achieve desired properties.
- Lower Mechanical Strength: Mechanical properties of binder jetted parts may be lower compared with those made using different 3D printing methods like SLM or SLS.
- Material limitations: The variety of efficiently usable materials in binder jetting is still small when compared to other manufacturing methods.
- Powder Handling: Management and recycling powder materials can be difficult thus posing risks for safety as well contamination concerns too.
- Porosity: Produced items could have higher porosity therefore requiring additional measures to improve density and strength.
These pros and cons show why it is important that application specific requirements are considered during the evaluation process of binder jet 3D printing technology for manufacturing purposes.
Pros of Binder Jetting Additive Manufacturing
- Complex Geometries and Design Freedom: The possibility to produce parts with a high degree of complexity without the need for auxiliary structures is unparalleled.
- Material Efficiency: Waste is minimized during this process thereby making it cheaper for both prototyping and production in small to medium quantities.
- Scalability and Speed: This technology can be scaled up rapidly and it is much faster compared to most other 3D printing methods thus being suitable for quick turnaround manufacturing.
- Wide range of materials: Binder Jetting has the ability to work with different kinds of materials such as metals, ceramics or polymers which provides versatility for various applications.
- Affordability: Binder jetting may have low operational costs plus ability to create large numbers within short periods hence becoming more cost-effective than alternative additive manufacturing techniques.
Cons and Limitations of the Technology
- Surface Finish and Accuracy: A great number of times binder jetting leads to rough surface texture on the one hand, and low dimensional accuracy on the other. The desired specifications can be achieved only through post-processing.
- Mechanical Properties: Additional processes are needed to improve strength and durability because mechanical properties exhibited by binder jetting parts are usually lower than those made using alternative methods in additive manufacturing.
- Materials Restriction and Coloration: Some applications may not be suitable for binder jetting due to limited material characteristics as well as color consistency.
- Expensive Materials: Occasionally, the specialized powders required for binder jetting are priced highly thereby negating any cost benefits arising from a decrease in waste generation.
- Post-Processing Requirements: Sintering, curing or infiltration among others have to be carried out which adds both cost and time into production workflow since extensive post-processing is necessary for most parts.
Comparing Binder Jetting with Other 3D Printing Methods
When one compares Binder Jetting with other 3D printing techniques like Fused Deposition Modeling (FDM), Stereolithography (SLA), and Selective Laser Sintering (SLS), some differences are apparent.
- Speed and Cost: Generally, Binder Jetting is faster and cheaper for making many objects at once which makes it ideal for mass production. However, FDM and SLA are slow due to their process that works layer by layer.
- Material Versatility: Unlike FDM which mainly uses thermoplastics or SLA that mostly uses photopolymer resins, binder jetting can work with a wider range of materials including metals, ceramics, composites.
- Surface Finish and Accuracy: While SLA gives the highest precision levels plus smoothest finishes; on the other hand it may be rougher with poor dimensional accuracy than binder jetting . So then what about SLS? It falls in between these two extremes regarding finish quality vis-a-vis accuracy but balances them both whereas FDM falls below average in terms of achieving this balance.
- Mechanical Properties: Compared to traditional manufacturing methods such as machining or casting; sintering parts made through sls have better mechanical properties thus being closer in strength although additional post processing may be required for binder jetting. On the flip side this variation is high when dealing with fdm & sla depending on materials used where strength can not match up against others anyway.
- Post-Processing Requirements: For example sintering or infiltration could still be done after using binders during binding agent removal which usually takes place prior to curing while support removal remains necessary after completion lest we forget about powder handling when it comes to post processing steps involved in sls where excess should also come out so as not affect surface quality improvement.
In conclusion, evaluators should consider these factors when selecting a 3D printing technology based on their specific application requirements and resource limitations.
Where is Binder Jet 3D Printing Used?
Because it can be used for many different purposes and is very efficient, binder jet 3D printing is found in a lot of industries. In aerospace and automotive, it makes parts quickly – especially complicated ones – out of metal or prototypes. Medicine uses it for things like personalized implants or surgical tools with Binder Jetting technology. Another common use is making consumer goods out of ceramics for manufacturing companies who need industrial applications. Architects might use this type as well because they can create models using any material they want; artists could too since binding agents let them work on designs before finalizing anything.
Applications in Metal Manufacturing
In metal manufacturing, binder jet 3D printing is highly useful because it allows for the production of cheap delicate metallic parts with high precision. This type of technology works best for small to medium volume runs in production, prototyping and custom manufacturing. Particularly, automotive and aerospace industries utilize binder jetting to make strong lightweight parts that cannot be manufactured through traditional means. Businesses also employ this technique for making functional metal prototypes thereby enabling quick changes and reducing time-to-market. Additionally, binding together different powders has been known to help create tooling such as molds or dies which are necessary at different stages during metal fabrication processes.
Use Cases in Ceramics and Sand Molds
Binder Jet 3D printing is extremely useful in the development of ceramics and sand molds due to its accuracy and capability to manage complex geometries. In this industry, it allows for the creation of intricate ceramic components that can be used in many different applications such as consumer goods or industrial parts among others. With rapid prototyping, design iterations are fast which significantly shortens development cycles.
In terms of sand casting, Binder Jetting is used to create high-quality sand molds and cores. These molds are needed in metal casting processes where molten metal is poured into them so as to shape metal parts. What makes Binder Jetting valuable in automotive and aerospace industries is its ability to produce detailed and precise sand molds quickly at low cost. It also enables creation of complex internal geometries which would be difficult or impossible with traditional sand casting methods. Essentially, Binder Jet 3D printing simplifies manufacturing process, cuts lead times and improves final products’ accuracy too.
Impact on Industrial 3D Printing
Industrial manufacturing is being revolutionized by binder jet 3D printers that have radically improved efficiency and accuracy. In the words of many top-ranking businesspeople, this technology’s ability to produce complicated geometries within close tolerances has completely changed how companies approach product design and development. The most significant impact is that it cuts costs and time spent on making things, which lets manufacturers get their products into stores more quickly. Also, we can’t forget about sustainability; because binder jetting reduces waste materials, it makes manufacturing processes greener too. Major businesses also emphasize how scalable binder jet systems are – they can be used for both small-scale prototype creation as well as large scale production runs – which means this method could find use in many different industries such as automotive or aerospace or medical fields among others depending on where you need them most. Therefore binder jets are considered a key factor of future industrial revolutions in 3D printing according to leading enterprises.
How Does Binder Jetting Compare to Metal Injection Molding?
Metal Injection Molding (MIM) and Binder Jetting are two methods for producing metal parts with different processes and applications. MIM mixes metal powders with binders which are then injected into molds to create feedstocks. This technique is suitable for making small complex pieces in bulk quantities while binder jetting builds up objects layer by layer through fusion of metal powders using a liquid binder.
One key difference lies in the preparation as well as post processing; debinding and sintering steps are required by MIM whereas only sintering is focused on during post-processing among other things when it comes to Binder Jetting. Generally speaking, the latter provides faster production times and more design freedom especially for complicated geometries that may be hard to achieve with MIM. However, very high-strength applications often favor MIM over binder jetting while components requiring high material density benefit from near full-density parts consistently produced by this method since it can achieve near full-density parts more consistently than any other process known today. The particular advantages of each approach depend on such factors like part complexity, material properties or even production volume needed for a given project.
Differences in Production and Cost
According to the latest information from reputable sources, there are quite a few key differences between Metal Injection Molding (MIM) and Binder Jetting when it comes to production and cost.
Production:
MIM is ideal for mass producing large quantities of small parts with intricate details and excellent material properties. It involves several steps such as mixing, molding, debinding, and sintering which may take time but yield high-density durable parts.
Contrarily; speed, design flexibility among other factors are the major advantages of Binder Jetting compared to any other method. Parts are built up layer by layer directly from a digital model thus allowing for quick production as well as creation of complicated geometries that would be difficult or impossible using MIM. The main post-processing step in Binder Jetting is sintering hence simplifying production workflow.
Cost:
Set up costs can make MIM relatively expensive due to molds required at initial stages along with multi-step manufacturing process involved however this cost can be amortized over large production runs making it more affordable for high volume manufacturing.
On one hand binder jetting generally has lower initial setup costs since no expensive molds are needed hence suiting low – medium production volumes or custom parts better. For large scale productions per part cost may be higher than that of MIM although considering complexity or customization then binder jetting becomes cheaper due to additionality nature and less amount of materials wasted during process.
In conclusion, if you need dense strong parts produced in huge numbers then go with MIM but if faster flexible production is desired for complex lower quantity applications then choose binder jetting.
Quality and Mechanical Properties of 3D Printed Parts
Among the various printing technologies and materials, both the quality and mechanical properties of 3D printed parts are significantly different. These are some of the most important things to consider according to authoritative sources:
- Choice of Material: The material is highly responsible for the mechanical properties i.e., tensile strength, elasticity etc. For instance, polymers offer flexibility which makes them easy to print while metals give strength and durability.
- Printing Technology: Surface finish, dimensional accuracy and structural integrity of final parts can be affected by methods like Stereolithography (SLA), Fused Deposition Modeling (FDM) or Selective Laser Sintering (SLS). More specifically; SLA has high precision with smooth surfaces suitable for detailed designs whereas SLS allows creation of robust complex structures without support material.
- Post-Processing: Mechanical properties and aesthetic quality can be improved through steps such as curing, sintering or surface treatment during post-processing. Imperfections can be reduced which in turn increases strength and overall part performance.
- Layer Adhesion and Density: Printing density as well as layer adhesion is influenced by optimal layering during printing process. When not done correctly it may result into weak points that reduce mechanical strength for the entire part.
In summary, getting high-quality 3D printed parts requires a comprehensive approach that takes into account material compatibility, appropriate printing technology and effective post-processing techniques.
Scalability and Mass Production Capabilities
Advancements in scalability and mass production capability in 3D printing have made it an attractive option for large scale manufacturing.
- Speed of production: The speed at which printing can be done has been greatly increased by newer technologies as well as printers with multiple nozzles. This allows parts to be produced rapidly. High-speed sintering (HSS) and continuous liquid interface production (CLIP) are examples of technology that have improved throughput.
- Automation and workflow integration: Seamless workflows can be achieved through integration with advanced software and automated systems. This reduces the need for manual intervention, thus enhancing consistency and efficiency. In addition, automatic post-processing systems contribute towards making mass production more feasible.
- Economies of scale: As time goes by and improvements continue being made on this technology; economies of scale become more realizable. Cost per unit drops with increasing volumes of production hence making it affordable across different sectors such as automotive, aerospace, medical among others.
These improvements mean that 3D Printing is no longer just a tool for prototyping but also an effective solution for mass producing goods in various industries.
Can Binder Jet 3D Printing Help in Customized Manufacturing?
Custom manufacturing can be greatly helped with Binder Jet 3D printing. This technology is great for customization because it works by adding layers on top of each other, allowing it to handle complicated shapes and patterns without needing special tools. It also has the ability to work with many different materials such as metals, ceramics, and composites which makes it suitable for a wide range of applications. Moreover, this method can create several parts at once which increases efficiency and reduces lead time. So Binder Jet 3D printing is really good for personalized manufacturing that serves specific customers’ needs in niche markets.
Benefits for Small Batch Production
For small batch production, there are various benefits brought about by binder jetting 3d printers which make them an attractive option for companies looking to produce limited quantities accurately. Firstly, this technique enables fast prototyping and shorter iteration cycles allowing manufacturers to refine their designs quickly thus getting products into the market faster. Secondly, binder jetting eliminates or reduces tooling costs both in terms of money spent on tools themselves but also time required to make them since no moulds or specialized equipment are needed leading overall lower production cost. Finally, its ability to create intricate designs with low material wastage enhances its affordability and environmental friendliness. Therefore binder jet 3d printer would be perfect for small batch productions ranging from one-off pieces up-to limited editions series.
Design Flexibility and Complex Geometries
There are no other 3D printing technologies that can compete with Binder Jetting when it comes to design freedom and complex geometries, which are often impossible or prohibitively expensive using conventional methods. By adding one layer at a time, the additive process can create intricate lattices, channels inside the object, and other advanced features without the need for additional support structures. This not only opens up new possibilities for design but also allows parts to be optimized for weight reduction, better performance and material usage efficiency according to many leading industry sources. They point out that this makes it easy for manufacturers to tailor-make components in order to meet specific requirements thus creating bespoke answers for unique challenges where such capabilities are considered critical by them especially in aerospace automotive medical industries where there is high demand of complicated precise elements.
Potential for Prototyping and Development
The affordability, speed, and versatility of design offered by binder jet 3D printing makes it the method of choice for prototyping and development. 3D Systems, ExOne, Desktop Metal etc., can produce prototypes quickly with Binder Jetting and allow designers and engineers to iterate through them fast and effectively. Aside from being able to use different materials such as metals or ceramics which produce functional prototypes that closely resemble final products; this process also cuts down on setup time because there are no molds required nor any special tools used – resulting into lower costs too – thus making it possible for new designs be brought into market faster than ever before. These qualities therefore establish binder jetting as an innovation powerhouse across all sectors where its adoption could lead not only to better performing products but also those having improved designs.
Frequently Asked Questions (FAQs)
Q: What is Binder Jet 3D Printing?
A: Binder Jet 3D Printing is an additive manufacturing technology that uses a binder jetting machine to selectively deposit a binding agent onto a powder bed, creating layers that are built up to form a solid 3D part. This method of 3d printing is capable of producing highly detailed and complex parts.
Q: What materials can be used in binder jetting?
A: Binder jetting materials include metal powders, ceramic material, and even sand. These materials are bonded together using a binder, creating a solid structure as the layers are built up. Common materials used for 3d printing in binder jetting include stainless steel, bronze, and ceramics.
Q: How does the binder jetting process work?
A: The binder jetting process involves spreading a thin layer of powder over the build platform. A printhead then deposits a liquid binder onto the powder bed in the shape of the desired part’s cross-section. The process repeats, layer by layer, until the entire part is formed. The binder jetting system then typically requires post-processing, like sintering, to achieve the final properties of the 3d printed metal part.
Q: What are the advantages of binder jetting over other 3D printing methods?
A: One advantage of binder jetting is its ability to produce large batches of parts quickly and inexpensively. It also allows for high levels of detail and complexity in designs. Unlike some other methods, binder jetting does not require support structures, which can save time and materials.
Q: What types of 3d printers are used in binder jetting?
A: There are various types of 3d printers used in binder jetting, including metal binder jetting machines and sand 3d printers. Notable manufacturers, such as ExOne, produce 3d printers specifically designed for this technology, offering commercial binder jetting systems that can handle different types of powders and binders.
Q: How is metal binder jetting utilized in industrial applications?
A: Metal binder jetting is used for the production of metal parts in industries such as aerospace, automotive, and medical. These industries benefit from using 3d printing to create complex geometries that would be difficult or impossible to produce with traditional manufacturing methods. The metal 3d printing process also allows for rapid prototyping and small-batch production.
Q: What post-processing steps are needed for parts produced by binder jetting?
A: Once a part is produced by binder jetting, it often requires post-processing to achieve the desired final properties. This can include sintering to fuse the powder particles together and improve strength, infiltration to add additional materials for enhanced properties, and various finishing techniques to improve surface quality and precision.
Q: Can binder jetting be used for large scale production?
A: Yes, binder jetting is particularly well-suited for large scale production because it can produce many parts simultaneously in a single build cycle. The efficiency and speed of this additive manufacturing technology make it ideal for producing large quantities of 3d parts.
Q: How do the characteristics of binder affect the 3d printing process?
A: The characteristics of the binder, such as its viscosity and adhesive properties, directly impact the accuracy and strength of the final parts. Choosing the right binder is crucial for ensuring that the parts produced by binder jetting have the desired mechanical properties and surface finish.
