Agricultural irrigation pipes play a crucial role in ensuring optimal water delivery to crops, thereby enhancing agricultural productivity and sustainability. As water scarcity becomes an increasingly pressing concern, understanding the various types of irrigation pipes, their applications, and their benefits is essential for farmers and agricultural professionals alike. This blog will explore the different materials and designs of irrigation pipes, their installation and maintenance, as well as best practices for effective irrigation systems. By providing comprehensive insights, this article aims to equip readers with the knowledge needed to make informed decisions that will ultimately lead to healthier crops and more efficient water use.

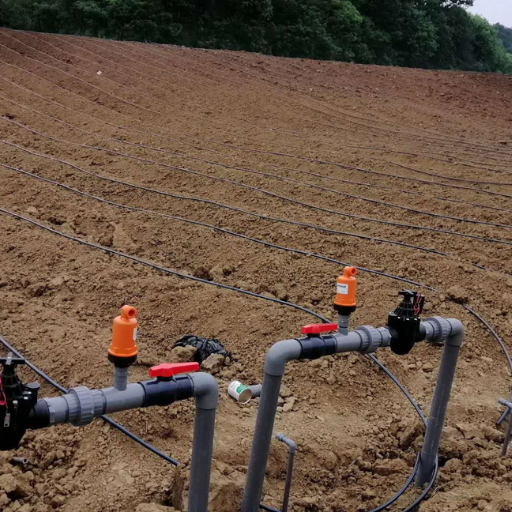

What is an irrigation pipe?

Image source：http://e.shandonghuasu.com/

An irrigation pipe is a conduit used to transport water from a source, such as a well, river, or reservoir, to agricultural fields for the purpose of watering crops. These pipes are typically made from various materials, including polyethylene, PVC, and metal, and are designed to withstand the pressure and environmental conditions associated with irrigation. Irrigation pipes facilitate efficient water distribution, ensuring that crops receive the necessary moisture for optimal growth while conserving resources. Their usage is crucial in modern agriculture, particularly in regions facing water shortages.

Definition and types of irrigation pipe

Irrigation pipes are essential components of modern irrigation systems, designed to convey water efficiently to crops. They come in various types, each suitable for specific applications and agricultural requirements. The primary types of irrigation pipes include:

Polyethylene (PE) Pipes:

Description: Flexible, lightweight pipes made from high-density polyethylene.
Technical Parameters: Typically available in diameters ranging from ½ inch to 6 inches. They have a pressure rating of up to 160 psi, making them suitable for low to medium-pressure applications.
Justification: Their flexibility allows for easy installation and adaptability to various terrains.

PVC Pipes:

Description: Rigid plastic pipes that are durable and resistant to chemical corrosion.
Technical Parameters: Commonly available in sizes from ½ inch to 12 inches, with pressure ratings up to 450 psi for schedule 40.
Justification: Their high strength and smooth interior facilitate efficient water flow and are ideal for high-pressure systems.

Metal Pipes:

Description: Typically made from galvanized steel or aluminum, these pipes are tough and long-lasting.
Technical Parameters: Size ranges from 1 inch to 12 inches in diameter, with pressure ratings varying based on wall thickness.
Justification: Their durability makes them a preferred choice for permanent installations, though they may be heavier and require more effort to install than plastic options.

Drip Irrigation Tubing:

Description: A subtype of polyethylene, designed for delivering water directly to the root zone of plants through emitters.
Technical Parameters: Available in ¼ inch to 1 inch in diameter, with flow rates ranging from 0.5 to 2 gallons per hour per emitter.
Justification: This method maximizes water efficiency, reducing wastage and evaporation while providing precise moisture levels for crops.

Understanding the types of irrigation pipes and their technical specifications helps farmers choose the most suitable options for their specific irrigation needs, thereby optimizing water use while enhancing crop productivity.

Common materials used in agricultural irrigation

PVC (Polyvinyl Chloride): Widely used for its affordability and resistance to corrosion. PVC pipes are lightweight and easy to install, making them a popular choice for various irrigation systems.
HDPE (High-Density Polyethylene): Known for its strength and flexibility, HDPE pipes are highly resistant to chemicals and UV radiation. They are often used in both above-ground and underground installations.
Galvanized Steel: Valued for its durability, galvanized steel pipes are less susceptible to physical damage. However, their weight and risk of rust may necessitate additional maintenance over time.
Drip Tape: A thinner alternative to traditional drip irrigation tubing, drip tape is designed for annual crop use and is efficient in delivering water directly to the plants’ root systems.

Each of these materials plays a crucial role in optimizing water distribution methods in agricultural irrigation, contributing to improved crop yields and sustainable farming practices.

Advantages of using pvc irrigation pipe

Cost-Effectiveness: PVC pipes are relatively inexpensive compared to other materials, making them a budget-friendly option for farmers and agricultural businesses looking to install efficient irrigation systems.
Lightweight and Easy to Handle: The lightweight nature of PVC pipes allows for easier transport and installation, reducing the labor costs and time required for setup.
Corrosion Resistance: PVC is highly resistant to different environmental factors, including moisture and chemicals, meaning it does not corrode over time. This durability ensures longevity and less frequent replacements.
Versatile Applications: PVC pipes can be used in various irrigation systems, from drip irrigation to sprinkler systems, making them a versatile choice for different agricultural needs.
Low Maintenance: Once installed, PVC irrigation systems require minimal maintenance, allowing farmers to focus more on their crops rather than on upkeep.
Efficient Water Flow: The smooth interior surfaces of PVC pipes facilitate an efficient flow of water, reducing friction losses and ensuring that water reaches plants effectively.

How to choose the right irrigation pipe for your farm?

Selecting the appropriate irrigation pipe for your farm involves several key considerations. First, assess the specific irrigation method you plan to implement—whether it’s drip, sprinkler, or surface irrigation—since different pipes perform better with certain systems. Next, evaluate the size of your farm and the flow rate needed; this will help determine the diameter and material of the pipe suitable for your water supply. Additionally, consider your local soil conditions, as certain materials may withstand soil pressure and corrosion better than others. Finally, factor in your budget and maintenance capabilities; opting for durable, low-maintenance options like PVC can lead to long-term savings and efficiency.

Factors to consider: size, material, and pressure

When selecting the right irrigation pipe, consider the following factors:

Size: The pipe diameter is crucial for ensuring optimal water flow. For small farms using drip irrigation, a diameter of 0.5 to 1 inch is often sufficient. For larger areas or sprinkler systems, consider pipes with diameters ranging from 2 to 6 inches, depending on the flow rate needed (measured in gallons per minute, GPM). It’s essential to match the pipe size to the output capabilities of your water source.
Material: Various materials are available for irrigation pipes, each with specific benefits. PVC is popular for its durability and low maintenance needs. High-Density Polyethylene (HDPE) is also a robust choice, especially in areas with harsher soil conditions due to its resistance to corrosion. Assess local environmental conditions to choose a material that will withstand soil pressure, temperature variations, and chemical exposure.
Pressure: Understanding the pressure requirements of your system is vital. Ideal operating pressure typically ranges from 30 to 60 PSI (pounds per square inch) for most irrigation systems. Ensure your chosen pipe can handle at least this range to prevent burst pipes and ensure efficient water delivery. Check manufacturer specifications for pressure ratings corresponding to different sizes and materials to make an informed choice.

By carefully evaluating size, material, and pressure, you can ensure your irrigation system operates efficiently and meets the specific needs of your farm.

Comparing pvc, poly, and steel pipes

When determining the best choice for irrigation pipes, it’s essential to compare PVC, Polyethylene (Poly), and Steel pipes based on their properties, costs, durability, and suitability for different applications.

PVC Pipes:

Durability: Highly resistant to corrosion and chemical damage, making it ideal for many irrigation applications.
Pressure Rating: Commonly rated up to 400 PSI, suitable for high-pressure systems.
Cost: Generally inexpensive and readily available.
Weight: Lightweight and easy to handle, simplifying installation.
Temperature Limitations: Not suitable for extreme temperature fluctuations, as they can become brittle in very cold conditions.

Polyethylene (Poly) Pipes:

Flexibility: Highly flexible, making it resistant to cracking and able to adapt to ground movement.
Pressure Rating: Typically ranges from 60 to 100 PSI; suitable for low to moderate-pressure systems.
Cost: Comparable or slightly higher than PVC but often perceived as easier to install due to its flexibility.
Temperature Resistance: Performs better in extreme temperature conditions compared to PVC.
UV Resistance: Black Poly pipes are UV resistant, while others should be buried or protected from sunlight.

Steel Pipes:

Strength: Extremely strong and durable, ideal for high-pressure systems and rugged applications.
Pressure Rating: Can withstand very high pressures, making them suitable for industrial and commercial uses.
Cost: Generally the most expensive option and can require more maintenance due to corrosion unless coated or treated.
Weight: Heavy and may require specialized tools for installation.
Longevity: While steel can have a long life, it may suffer from rust and corrosion if not properly maintained.

In conclusion, the best choice depends on your specific irrigation needs, environmental conditions, and budget. PVC is excellent for lightweight, cost-effective solutions with moderate pressure needs, Poly offers flexibility and is ideal for diverse temperatures, while Steel serves high-pressure and demanding applications but at a higher cost.

Best practices for pipe selection in different soil conditions

When selecting pipes for irrigation based on soil conditions, it’s crucial for me to consider factors such as soil type, moisture levels, and the presence of corrosive elements. Here’s a concise guide based on insights from leading sources:

Clay Soils:

Pipe Material: I prefer to use PVC or Poly pipes since they are lightweight and resistant to soil movement.
Technical Parameters: Given their rigidity, PVC is typically suitable for moderate pressure systems (60-100 PSI), which is ideal in saturated clay environments that can expand and contract.

Sandy Soils:

Pipe Material: In this type of soil, I often opt for Poly pipes due to their flexibility, allowing them to adapt to shifting soil without cracking.
Technical Parameters: As Poly can handle low to moderate pressure, it’s suitable for sandy substrates where high drainage potential exists.

Loamy Soils:

Pipe Material: For loamy soils, which are a mixture of sand, silt, and clay, I find Steel pipes to be an excellent choice when high durability and pressure ratings are needed.
Technical Parameters: Steel pipes can withstand very high pressures, making them suitable for demanding irrigation systems. Their strength is a key factor in loamy conditions where ground movement can occur.

Overall, my approach to pipe selection hinges on evaluating the soil’s characteristics to ensure optimal performance and longevity of the irrigation system while considering the specific environmental factors and cost implications associated with each type of piping material.

What are the installation steps for a pvc irrigation pipe?

To install a PVC irrigation pipe effectively, I follow these concise steps:

Planning and Layout: First, I map out the irrigation system, marking the locations of the pipes and any fittings needed. This helps me visualise the installation process and ensures efficiency.
Gathering Materials: I collect all necessary materials, including PVC pipes, fittings, primer, and cement. Having everything on hand saves time during the installation.
Cutting the PVC Pipes: I use a pipe cutter or saw to cut the PVC pipes to the desired lengths, ensuring that the cuts are straight for a proper fit.
Cleaning the Edges: After cutting, I clean the edges of the pipes and fittings with a rag to remove any debris or dust, which helps in achieving a strong bond.
Applying Primer and Cement: I apply PVC primer to both the pipe and fitting, allowing it to dry for a few seconds before applying PVC cement. I ensure even coverage and quickly connect the pieces together before the cement sets.
Joining and Securing: Once the pipe sections are joined, I hold them together for about 30 seconds to secure the bond. I also check for any leaks once the pipes are installed.
Backfilling and Testing: Finally, after everything is in place, I backfill around the pipes with soil and test the system by turning on the water to check for any leaks or issues.

Following these steps ensures that my PVC irrigation pipe installation is efficient and durable, providing a reliable system for effective water distribution.

Preparing the field for irrigation

To prepare my field for irrigation, I start by assessing the soil type and moisture levels to determine the specific irrigation needs. This involves conducting a soil test and examining drainage patterns to ensure the water will be effectively distributed. Next, I clear the area of any debris and handle any necessary grading to promote proper water flow. I also plan the layout of my irrigation system, considering factors such as plant spacing and water requirements. By gathering all necessary materials, including pipes and fittings, I ensure that I’m ready for installation. Lastly, I establish a schedule for regular maintenance to keep the system operating efficiently.

How to lay pvc irrigation pipe?

Laying PVC irrigation pipe involves several key steps to ensure an effective and durable installation. Here’s a concise guide:

Determine Pipe Size: Choose the appropriate diameter based on flow rate and area size, typically ranging from 0.5 to 3 inches. For instance, a 1-inch pipe is suitable for small to medium gardens, whereas larger areas may require a 2-inch pipe.
Plan the Layout: Design a layout that minimizes bends and turns. Ensure that pipes can easily follow the natural contours of the field to maintain water flow. Use a hose to visualize the desired layout before digging.
Excavate the Trench: Dig a trench approximately 12-18 inches deep and 6-12 inches wide, depending on local frost lines and water table levels. This depth helps prevent damage from freezing temperatures and allows for proper drainage.
Install a Gravel Base: For improved drainage, add a layer of gravel at the bottom of the trench. This should be about 2-3 inches deep to help prevent water pooling around the pipes.
Place the PVC Pipes: Lay the PVC pipes in the trench, ensuring the joints are oriented correctly. Use a slight slope (1-2% incline) to facilitate drainage and water movement.
Connect Fittings and Valves: When connecting the pipes, ensure all fittings are compatible and secure. Utilize T-junctions for branching out and gate valves for controlling flow.
Testing: After installation, conduct a pressure test. This typically involves filling the system with water and checking for leaks. Ensure that the pressure does not exceed the rated value for the pipe, usually around 160 PSI for standard PVC pipes.
Backfill with Care: Carefully backfill the trench to avoid damaging the pipes. Compact the soil gently while avoiding sharp objects that could puncture the PVC.

Following these steps while considering the technical parameters will result in a well-functioning PVC irrigation system that meets your agricultural or gardening needs.

Connecting joints and fittings

When connecting joints and fittings in a PVC irrigation system, it’s crucial to ensure a secure and watertight seal. Begin by cleaning the ends of the PVC pipes and the inside of the fittings using a primer designed for PVC. This removes any debris that might interfere with the adhesion. Next, apply PVC cement evenly to both the pipe and the fitting, then firmly push the two pieces together, giving them a slight twist for an even distribution of the adhesive. Hold them in place for about 30 seconds to allow the bond to set before moving on to the next joint. Be sure to check for compatibility of the fittings and ensure that any threaded connections are sealed with Teflon tape to prevent leaks. By following these steps, you can create a durable system that will effectively manage water flow in your irrigation network.

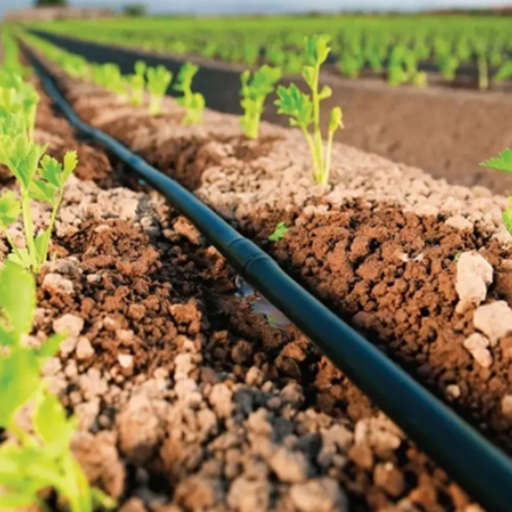

How does a drip irrigation system work?

A drip irrigation system works by delivering water directly to the root zone of plants through a network of tubing and emitters. Water is released slowly and at a controlled rate, allowing it to seep into the soil and minimize evaporation and runoff. This method ensures that each plant receives a consistent and precise amount of water, promoting healthier growth while conserving water resources. The system typically includes a water source, a pressure regulator, filters to prevent clogging, and emitters that can vary in flow rate depending on the plants’ needs and the surrounding soil conditions. By efficiently targeting the water where it’s needed most, drip irrigation enhances both water efficiency and crop yield.

Components of a drip irrigation system

A drip irrigation system consists of several key components that work together to ensure efficient water delivery:

Water Source: This is the primary supply point for the system, which can be a well, pond, or municipal water supply.
Main Line or Tubing: The main line channels water from the source to various zones in the irrigation system. It is typically made of durable materials such as PVC or polyethylene.
Emitters: These are small devices attached to the tubing that regulate and release water directly to the plants’ root zones. Emitters can have different flow rates to accommodate various plant needs.
Pressure Regulator: This component ensures that water is delivered at the proper pressure, preventing damage to the system and ensuring the emitters function correctly.
Filter: Filters are crucial for keeping debris and particles from clogging the emitters, ensuring a consistent flow of water.
Fittings and Connectors: These components help connect different parts of the system, allowing for flexibility and expansion as needed.
Backflow Preventer: This device protects the water source from contamination by preventing backflow of water.

Together, these components create a reliable and effective drip irrigation system that maximizes water efficiency while promoting healthy plant growth.

Advantages of using drip irrigation tape

Drip irrigation tape is a specialized form of drip irrigation that offers numerous advantages, particularly for small-scale farming and gardens. Here are some key benefits and relevant technical parameters associated with its use:

Water Efficiency: Drip irrigation tape delivers water directly to the root zone, significantly reducing evaporation and runoff. This can lead to water savings of up to 50% compared to traditional irrigation methods.
Uniform Water Distribution: Tape emits water uniformly across its length, ensuring each plant receives an adequate supply. This consistency can be quantified with a typical flow rate of 0.5 to 2.0 gallons per hour per emitter, depending on the tape design.
Reduced Weed Growth: By delivering water directly to the plants, less moisture is available for weeds, which can help reduce weed growth. This minimizes competition for nutrients and water.
Flexibility and Adaptability: Drip tape is available in various lengths and diameters (commonly 8mm to 22mm), allowing users to customize layouts based on field size or crop arrangement.
Cost-Effectiveness: Drip irrigation tape is generally more affordable than other drip irrigation components, with installation costs estimated at around $0.10 to $0.30 per foot, depending on the specifications.
Ease of Use: The lightweight and flexible nature of drip tape makes installation and maintenance simpler, allowing for easy adjustments and the ability to cover uneven terrain effectively.

By incorporating drip irrigation tape into agricultural practices, growers can enhance their water management strategies while promoting sustainable farming methods.

Common issues and solutions

Clogged Emitters: Over time, emitters can become clogged due to sediment or mineral buildup. Solution: Regularly flush the system and install filters to prevent debris from entering the drip tape.
Improper Installation: If the tape is incorrectly laid out, it may lead to uneven water distribution. Solution: Ensure that the tape is installed according to the manufacturer’s guidelines and check for any bends or kinks that could affect flow.
Damage from Pests or Equipment: Animals or agricultural equipment can damage the drip tape, leading to leaks. Solution: Regularly inspect the tape for signs of wear and implement protective measures, such as barriers or visual markers.
Insufficient Water Pressure: Low water pressure can impede the effectiveness of drip irrigation systems. Solution: Install a pressure regulator to ensure consistent water delivery and check for any obstructions in the system.
Temperature Sensitivity: Extreme temperatures can affect the longevity of the tape. Solution: Use UV-resistant materials and store excess tape in a cool, dry area to prolong its life.

What are the maintenance requirements for irrigation pipes?

Maintaining irrigation pipes is essential for ensuring optimal performance and longevity. Regular inspection for leaks, cracks, and corrosion should be conducted to identify potential issues early. Cleaning the pipes to remove sediment and debris is crucial, as buildup can hinder water flow and affect pressure levels. Additionally, checking and adjusting fittings and joints is important to prevent leaks. Insulating pipes in areas prone to freezing can protect them from damage during cold weather. Lastly, it’s advisable to flush the system periodically to clear out any blockages and maintain efficient water delivery.

Regular inspections and cleaning

To ensure the efficiency and durability of irrigation pipes, regular inspections and cleaning are critical. Inspections should be performed at least twice a year or after significant weather events. Look for signs of leaks, cracks, or corrosion, noting any need for repair. For cleaning, implement the following technical parameters:

Pressure Check: Measure the water pressure in the system; it should typically range between 25 to 60 PSI (pounds per square inch) for most irrigation systems. If pressure drops below this range, it may indicate a blockage or leak.
Flow Rate Assessment: Calculate the flow rate using the formula – Flow Rate (GPM) = (Diameter²) x (0.7854) x (Velocity). Ensure the flow rate aligns with the system’s design specifications for effective irrigation.
Sediment Removal: Regularly flush the system with water to clear out sediment. This should be done every 3 to 6 months, or more frequently in areas with hard water or heavy sediment.
Joint Integrity: Check all fittings and joints for leaks; if any are found, ensure they are tightened to manufacturer specifications (usually between 1/4 to 1/2 turn beyond hand-tight).

Justifying these parameters ensures efficient operation and prolongs the lifespan of your irrigation system. Regular maintenance safeguards against unexpected failures, leading to more effective water management.

Identifying and repairing leaks

Identifying and repairing leaks in your irrigation system is essential for maintaining optimal efficiency and conserving water. Begin by conducting regular visual inspections of the entire system, including pipes, fittings, and emitters, looking for any signs of moisture or water accumulation. If you suspect a leak but can’t see it, you can perform a soil moisture test; areas that remain unusually wet may indicate a hidden leak. For repairing leaks, follow these steps:

Turn Off the Water Supply: Always shut off the water before attempting any repairs.
Isolate the Problem Area: If applicable, close the valves to isolate the section of pipe suspected to have a leak.
Inspect and Repair: Examine the affected area for cracks or damaged fittings. Depending on the severity of the damage, you may need to replace sections of pipe or tighten loose fittings. For small leaks, using a pipe repair tape or sealant can be an effective temporary fix.
Test the Repair: Once repairs are made, turn the water back on to check for any remaining leaks and ensure proper functionality.

Addressing leaks promptly prevents water wastage and helps to maintain the overall health of your irrigation system. Regularly monitoring and attending to potential issues ensures a reliable and efficient watering process.

How to ensure the longevity of irrigation pipes?

To ensure the longevity of my irrigation pipes, I focus on a few key practices. First, I make it a point to choose high-quality, durable materials that are resistant to corrosion and UV damage. Proper installation is crucial, so I ensure that the pipes are laid at the correct depth to avoid damage from freezing temperatures and physical impacts. Regular maintenance checks are essential; I perform visual inspections and monitor for any signs of wear, ensuring that I address leaks and damage promptly. Additionally, I take care to flush the system periodically to remove build-up and sediments that can cause blockages. Lastly, using pressure regulators helps maintain the correct water pressure, reducing the risk of stress on the pipes over time. By following these practices, I can significantly extend the life of my irrigation system.

Frequently Asked Questions (FAQs)

Q: What is a PE irrigation pipe?

A: A PE irrigation pipe is a type of polyethylene pipe commonly used in agricultural settings for irrigation. It is known for its durability, flexibility, and resistance to UV rays and chemicals, making it ideal for various irrigation methods.

Q: How do PE irrigation pipes compare to other irrigation tubes?

A: PE irrigation pipes are more flexible and durable than many other types of irrigation tubes. They meet or exceed quality standards such as ASTM, and are highly resistant to environmental stress, making them ideal for long-term use in sprinkler irrigation systems and surface irrigation.

Q: What are the benefits of using a micro spray belt with PE irrigation pipes?

A: A micro spray belt used with PE irrigation pipes provides efficient water distribution for greenhouse and nursery applications. This combination ensures that water reaches the roots effectively, promoting better plant growth and conservation of water.

Q: What is the standard PSI rating for PE irrigation pipes?

A: The standard PSI rating for PE irrigation pipes varies depending on the specific application and pipe diameter. However, they are designed to handle pressures typically seen in sprinkler irrigation systems and other agricultural applications.

Q: Can PE irrigation pipes be used in orchard and vineyard settings?

A: Yes, PE irrigation pipes are ideal for orchard and vineyard settings. Their flexibility and resistance to environmental factors make them suitable for delivering consistent water flow to the roots of trees and vines.

Q: How do I install a PE irrigation pipe in a furrow irrigation system?

A: To install a PE irrigation pipe in a furrow irrigation system, first layout the pipes along the furrows. Connect the pipes to a water source and ensure that the outlets are positioned correctly for effective water distribution. Gradually increase the water flow to check for leaks and ensure proper irrigation.

Q: Are PE irrigation pipes suitable for use with mechanical irrigation systems?

A: Yes, PE irrigation pipes are suitable for use with mechanical irrigation systems. Their strength and flexibility allow them to withstand the mechanical stresses often encountered in such systems, ensuring reliable water delivery.

Q: What are the common characteristics of a high-quality PE irrigation pipe?

A: High-quality PE irrigation pipes typically meet or exceed ASTM standards, have high resistance to UV rays and chemicals, are flexible yet strong, and possess a long lifespan. These characteristics make them suitable for various agricultural irrigation needs, including sprinkler and surface irrigation.

Q: How can I get a quote for PE irrigation pipes?

A: To get a quote for PE irrigation pipes, you can contact us through our website or provide your requirements via email. Our team will provide you with detailed information and pricing based on your specific needs.

Q: What types of irrigation are PE pipes commonly used in?

A: PE pipes are commonly used in sprinkler irrigation, surface irrigation, and micro irrigation systems. They are also suitable for greenhouse and nursery applications, furrow irrigation, and even flood irrigation, thanks to their versatility and durability.
