In the rapidly changing world of 3D printing, flexible filaments are game-changers because they expand the boundaries of what can be done with this innovative technology. In this article, we will explore various types of flexible materials for 3D printing and explore their distinct properties and uses. As we traverse through these versatile filaments’ capabilities, our objective is to equip readers with a better understanding of how they can use them effectively in their projects, for example, prototyping works, functional parts, or art pieces. By covering both the advantages and disadvantages of using flexible materials, this Blog post aims to give an all-round view of the possibilities inherent in integrating such creative elements into your 3D printing.
What is Flexible Filament in 3D Printing?

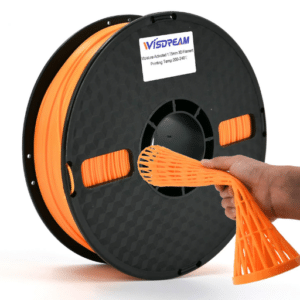

Image source: https://www.simplify3d.com/
Flexible filament describes a class of 3D printing materials with rubber-like qualities, enabling them to flex, strain, and compress without breaking. Thermoplastic elastomers (TPE) and thermoplastic polyurethane (TPU) are typically used to make these filaments, which have strength combined with elasticity and endurance, unlike conventional solid filaments, which have no flexibility or resilience needed for parts like customized handles/grips or wearables or prototypes for soft-bodied designs that require flexible bodies. Their ability to change shape without losing integrity makes them unique and essential for any forward-looking application of 3D printing with flexible filaments.
Understanding the Basics of Flexible Materials
Regarding 3D printing, flexibility in materials is mainly characterized by their ability to bend when subjected to pressure and return to their original form, which is crucial for the production of functional and durable prototypes. The commonly used flexible filaments are TPU and TPE, with varying levels of flexibility, hardness, and chemical resistance, hence the occurrence of different applications. This makes them ideal for products needing a great deal of elasticity, including phone cases, custom-fit items, or components with shock absorption. Additionally, some unique properties of flexible materials require modification of the printing process, such as print speed, nozzle temperature, and bed adhesion, so that good results can be achieved. These basics will enable makers and designers to enhance their creativity while taking advantage of the unique benefits associated with using flexible materials in 3D-printed items.
Types of Flexible Filament: TPU, TPE, and More
The types I most frequently come across when it comes to flexible filaments used in 3D printing are Thermoplastic Polyurethane (TPU) and Thermoplastic Elastomer (TPE). TPU is highly rated due to its mechanical strength. It offers a delicate balance between elasticity and sturdiness, making it an attractive thermoplastic elastomer for applications demanding wear resistance, like protective garments, gloves, or elastic hinges. On the other hand, TPEs provide a softer feel and greater flexibility; this renders them suitable for making products such as soft touch grips or gaskets. Other types include nylon and polypropylene, which may also exhibit flexibility and unique properties suited for specific uses. Understanding these materials allows me to choose the best filament for my projects, optimizing performance and functionality according to particular requirements.
Applications of Flexible 3D Prints
The unique features of flexible 3D printing make it highly applicable in different industries. The automotive industry is one primary beneficiary of this technology, which uses flexible components like car interior parts and seals to improve comfort and minimize noise. Additionally, the medical field widely uses flexible 3D prints to make custom prosthetics and orthotic devices, providing tailored support systems with enhanced user comfort. On the other hand, the consumer goods sector depends on flexible filaments to produce wearables, phone cases, and ergonomic grips that are both tough and comfortable. In general, the adaptable nature of flexible 3D printing makes it a priceless tool for innovation in various fields.
How to Get Started with Flexible 3D Printing?
To start with flexible 3D printing, you should initially choose a compatible 3D printer capable of handling flexible filaments; many FDM printers can handle them, but make sure the extruder and feed mechanism are compatible. Afterward, you should consider selecting an appropriate filament based on its specific properties, such as elasticity, durability, etc. It might also be necessary to tune your printing settings: lower print speeds and a heated bed can enhance adhesion while reducing stringiness. Lastly, develop or look out for models designed for flexibility and run test prints to finalize the optimization process. Therefore, by following these steps, you can already create functional and innovative designs using a flexible 3D printer.
Choosing the Right 3D Printer for Flexible Filament
- Extruder Design: Instead of a Bowden set-up, pick direct-drive extruder printers. Direct-drive ones have better control over filaments, which minimizes the risk of jamming and enhances flexibility.
- Temperature Control: Your printer must have consistent heat, mainly from a heated bed. This will enhance adhesion and minimize warping in flexible materials.
- Compatibility and Versatility: When purchasing printers, look for TPU (thermoplastic polyurethane) and TPE (thermoplastic elastomer) flexible filaments. A versatile printer is more likely to produce high-quality prints across flexible materials.
- Print Speed and Calibration: When it comes to printing specifically with flexible filament, we can choose models that allow for adjustable print speeds, as slower ones usually lead to better outcomes. Similarly, these devices’ calibration settings, which are easily configurable, may be conducive to fine-tuning parameters specific to printing using flexible filaments.
Pay attention to these features while selecting a 3D printer capable of effectively handling flexible filaments.
Essential Hardware Requirements for Printing with Flexible Materials
To successfully print with flexible materials, I’ve found several essential hardware requirements to remember. First, a robust 3D printer with a direct drive extruder is crucial, as it provides the precise control needed to handle the bending and flexing of these filaments. I also consider a heated bed vital, as it helps maintain proper adhesion during printing. Adequate cooling systems can prevent warping, ensuring high-quality prints. Lastly, having an adjustable print speed is vital; I prefer printers that allow me to slow down during critical sections of the print. Additionally, I prefer printers with a user-friendly calibration interface since it enables me to set the correct parameters for the materials I employ for better outcomes.
Preparing Your 3D Printer’s Nozzle and Extruder
You must follow a few essential steps to achieve optimum performance while setting up your 3D printer’s extruder and nozzle for printing with flexible materials. Firstly, ensure the nozzle is clean and free of remnant filament or debris. One can use a cold pull technique or nozzle cleaning tool to do this. After that, examine the size of the nozzle; it is often advisable to utilize a larger one (for instance, 0.4mm or above) in case one is working with flexible filaments, which require more effortless flow during printing, thereby minimizing risks of blockages.
Moreover, ensure that the extruder is tightly gripping the filament without squashing it. If too much pressure is applied, filament deformations may occur, whereas insufficient pressure will result in slipping off track. One suggestion would be to calibrate your extruder steps per mm to get accurate amounts of plastic coming out when you print, which could be especially important considering various inconsistencies found in many flexible materials used for 3d printing. Finally, remember that you may need to try adjusting temperatures; unlike traditional filaments, flexible ones tend to require lower thermal profiles so as not to string out or ooze while melting inside the hotel. By doing all this right on time before setting up your printer and its nozzle, you shall be fully ready to make flawless prints using TPU material.
What Are the Best Practices for Printing with Flexible Materials?
Some best practices can help you meet these challenges when working with flexible materials. First, if available, a direct drive extruder is preferred, as this helps control how filament feeds through it better than other devices. Secondarily, slow down your speed since flexibles are less rigid than regular plastics; thus, they require more care at about 20-30 mm/s. Typically, you’ll want to maintain an even temperature, so watch your printers’ settings closely. Also, consider using PEI sheeting or glass bed surfaces because they provide better adhesion and prevent warping while 3d printing. Finally, use a brim or raft to better hold your print and minimize lifting, especially for larger models. When you follow these best practices, you can successfully deal with the challenges of printing with flexible materials.
Optimizing Print Settings for TPU and TPE Filaments
One should concentrate on accurate print settings to have the finest results when printing with TPU (Thermoplastic Polyurethane) and TPE (Thermoplastic Elastomer) filaments. Start by adjusting the nozzle temperature between 220°C and 250°C depending on specific filament specifications, given that TPU and TPE often demand above-average temperatures. The bed temperature should be slightly higher at around 50°C to increase adhesion while reducing warping.
To better control its flexible material, it is advisable to lower your print speed to range between 20-30 mm/s so that no filament jams occur during the process. These recommendations can also be considered for retraction settings; going for shorter distances and slower speeds of retractions helps to prevent clogging from excessive pressure build-up. Also recommended is an all-metal hot end that ensures stable heat and allows for higher temperatures, which are required in the process. By adhering to these personalized configurations, you can enhance prints’ quality and trustworthiness with TPU and TPE filaments.
Ensuring Proper Adhesion for Flexible 3D Prints
I find that preparation is critical when it comes to ensuring proper adhesion for flexible 3D prints. First, I clean the print bed thoroughly to eliminate dust and grease, which can hinder adhesion. I prefer using a heated bed set to around 50°C, which helps keep the print layer stuck to the surface. Additionally, I often use a combination of adhesive sprays or glue sticks specifically designed for 3D printing to provide that extra hold. Implementing a brim for larger prints or those with intricate designs can significantly reduce the chances of lifting at the edges during printing. Following these steps helps me achieve consistent adhesion and successful prints with flexible materials.
Common Issues and Solutions in Flexible Filament Printing
Several common issues might arise when printing with flexible filaments such as TPU and TPE, but they can usually be resolved by making a few practical modifications.
- Stringing and Oozing: When moving, too much material is discharged, leading to stringing and oozing. To prevent this, you should slightly decrease the print temperature and increase the retraction speed so that filament does not ooze out of the nozzle when it moves from one part to another.
- Poor Bed Adhesion: Prints may warp or lift if they do not adhere to the bed. Enhance adhesiveness by ensuring that there is no dirt on the print surface. Moreover, use special glue for 3D printing. A brim can also be used for large prints; this will reduce the lifting risk.
- Clogs and Jamming: These types of filaments can easily jam an extruder, especially if bent or kinked. By adopting direct-drive extruders rather than Bowden sets, a continuous flow of filament is realized. Moreover, reducing the amount of pressure built up in the hotel by adjusting retraction settings helps.
Addressing these problems with their solutions in advance can improve your experience and help you make successful prints using flexible materials.
How Does Shore Hardness Affect Flexible Filaments?
Shore hardness measures how much a material resists deformation under load, typically graded from 0-100. For flexible filaments like TPU, lower shore hardness indicates more flexibility, enabling more stretchability, which makes it suitable for applications requiring elasticity, phone cases, and gaskets. In contrast, higher Shore hardness values indicate more complex material, which may provide less flexibility but greater strength and wear resistance properties. Therefore, choose the proper Shore hardness depending upon use since it directly impacts the product’s performance and usability at the last stage.
Understanding Shore Hardness: 85A vs. 95A
When comparing the Shore hardness scales of flexible filaments that rate at 85A and 95A, one can see that their main difference is their flexibility and suitability for use. Filaments with a grade of 85-A on the Shore scale are more supple and yield easily, making them perfect for applications that require significant amounts of bending or stretching, like wearables and soft grips. Also, because it is smoother, there will be more deformation before breaking, leading to greater comfort and shock absorption.
On the other hand, they are stiffer compared to 95-A ones, exhibiting less resilience, resulting in improved endurance to abrasion. For these reasons, such materials are suitable where more muscular structures are needed, including applications that require impact resistance or protection from heavier loads. In conclusion, your choice between 85A and 95A must consider what you want from your project regarding its flexibility versus durability.
The Impact of Hardness on Elasticity and Flexibility
I have discovered how hard a material gets significantly affects its ability to stretch or bend. It has always been my experience that when subjected to stress, softer substances, such as those rated at 85A, undergo much more deformation, making them ideal for situations where comfort and shock absorption play a role. Conversely, materials such as those graded at 95-A possess greater firmness but lesser plasticity, becoming long-lasting items with low susceptibility to wearing out. These considerations keep my preferred material effective in its specific purpose. The idea is just knowing how these qualities help me select appropriate filaments for different projects I undertake.
Choosing the Right Shore Hardness for Your Project
It’s true that when selecting the right Shore hardness for your project, it’s important to consider functional requirements and the environment in which the material will be used.
- Find Out What The Application Needs: Begin by establishing the component’s main role—is it going to require flexibility or support, or is it more vital for durability? For example, in applications such as wearable technology or grips, softer materials (85A) are preferred, whereas firmer materials (95A) excel.
- Rate Environmental Variables: Some of these variables include temperature, exposure to chemicals, and mechanical stress. If a material softens at high temperatures, it may not perform well here; alternatively, if a given material gets particularly stiff under extreme stressors, it may crack.
- Prototyping and Testing: Many sources suggest prototyping your product with different levels of hardness to get feedback from reality. This hands-on method enables you to make changes to performance before final production.
Considering these aspects ensures that you pick a Shore hardness that fits your specific project needs, resulting in better performance and a longer product life.
What Are the Advantages of Using Flexible 3D Printer Filament?
Using flexible 3D printer filament can improve printed parts’ quality and functionality in many ways. First, these materials have an intrinsic elasticity, enabling them to create parts that can bend or flex without breaking, making them perfect for use in protective cases, ergonomic grips, and wearables. In addition, flexible filaments yield lighter components, contributing to reduced overall weight in assembled products. Moreover, they tend to provide superior shock absorption and impact resistance compared to their rigid counterparts, thus enhancing their resilience even under demanding conditions. Furthermore, various types of flexible filaments exist today; hence, one can select those with different levels of shore hardness, thus ensuring that they meet any form requirement while maintaining beauty aesthetics.
Benefits of Flexibility in 3D Printed Parts
In 3D printing, the flexibility of components has several advantages that improve their performance and usefulness. Another significant benefit is the ability to create intricate designs and complex geometries for parts that have to be able to move or bear stress and consequently not be compromised. This versatility opens doors in consumer electronics, robotics, and automobiles, where dynamic elements are mandatory. Additionally, this type of flexibility can make wearable technologies more comfortable by permitting them to transform themselves into shapes that match people’s bodies rather than just creating pressure points on top of them. Besides, some flexible filaments have different hardness levels, enabling manufacturers to tweak the mechanical characteristics of their items for particular uses, thus leading to novel approaches beyond what was previously possible with rigid materials.
Cost-Effectiveness of Using Flexible Materials
I discovered that using flexible materials for 3D printing can reduce production costs considerably with time in terms of cost-effectiveness. More often than not, flexible filaments require less finishing work than hard ones; this saves both labor costs and time. Furthermore, it means less waste during manufacturing when complex lightweight structures can be printed. Also, they last a long time, so replacement costs will become minimal. By investing in flexible materials, I will get freedom in my design but still maintain a very budget-friendly approach, making them a good choice for many types from investment perspectives.
Durability and Performance of Flexible Filaments
Flexible filaments are famous for their durability and performance attributes that make them appropriate for multiple applications. The top flexible materials, like TPU (Thermoplastic Polyurethane), have excellent wear resistance and may withstand diverse environmental pressures, including impact and abrasion. The elongation at the break of these filaments allows them to absorb shocks; hence, they are perfectly designed for items that experience constant motion or flexing, such as phone cases or protective gear. Furthermore, many flexible filaments are unaffected by chemicals and UV light, thus ensuring that the print does not degrade even in harsh conditions. Performance metrics often indicate that adequately optimized prints with flexible filaments can achieve mechanical properties comparable to traditional materials, improving final product functionality.
What Materials are Compatible with Flexible Filament Printing?
Several materials are compatible with printing with flexible filaments. For instance, common substrates include PLA (Polylactic Acid) and PETG (Polyethylene Terephthalate Glycol-Modified), both of which offer good adhesive properties and support the filament material’s flexibility. Other materials like nylon or polycarbonate can also be employed, particularly where enhanced strength and durability are needed. Moreover, adequate preparations should be made on the build surface, while printer settings must accommodate specific extrusion demands for flexible filaments to facilitate adequate workability and quality during final prints.
Comparing PLA, PETG, and Other 3D Printing Materials
When comparing PLA and PETG, it is imperative to contemplate their characteristics and ideal applications. Polylactic Acid (PLA) is particularly easy to print, environmentally friendly, and has great detail, thereby making it suitable for starters and non-thermal challenging projects. It usually prints at relatively low temperatures of around 180°C —220°C and can decompose.
Nevertheless, PETG (Polyethylene Terephthalate Glycol-Modified) demonstrates more durability and flexibility than PLA; thus, it is a better choice for functional impact-resistant parts. Unlike PLA, PETG exhibits better heat resistance and less fragility, which makes it applicable in structures such as mechanical units or outdoor items. The temperatures for printing with PETG ranges from 220 to 250 degrees Celsius.
Moreover, other materials like ABS and Nylon have specific advantages, too. ABS is known for its strength and sturdiness but needs a heated bed and is less friendly concerning warping issues. Conversely, nylon gives excellent wear resistance attributes and robustness but may be harder to print due to its hygroscopic properties.
Ultimately, the selection between these two materials relies on specific requirements associated with the project at hand, such as resilience, pliability, or even printability.
Mixing Flexible Filaments with Standard Plastics
From my own experiences, I have learned that combining flexible filaments with standard plastics hinges on ensuring compatibility regarding print settings and material properties. Flexible filaments such as TPU (Thermoplastic Polyurethane) need different temperature and speed settings than rigid materials such as PLA or PETG. To deal effectively with the stretchiness of flexible filaments during printing, the print speed should be slower than usual, which will help minimize issues like jamming or incomplete extrusions. Moreover, blending these materials together can increase impact resistance and improve printed parts’ overall durability, making them suitable for applications requiring both flexibility and strength. Ultimately, one has to experiment with different ratios and print settings while maintaining a certain level of quality.
Future Trends in 3D Printing Flexible Filaments for 2024
Some key trends in 3D printing flexible filaments will emerge in 2024. Material technology is advancing, and new composite filaments with enhanced features like better UV resistance and improved thermal stability will likely be developed, making them more versatile for broader applications. Manufacturers will also highly demand sustainable printing solutions, prompting them to design eco-friendly flexible filaments derived from renewable resources or recycled content. Lastly, intelligent technologies are being integrated into 3D printers, including things like IoT capabilities that allow for real-time monitoring during printing to optimize output by reducing flexible failure rates. These changes mark essential developments in the capabilities and applications of flexible filament materials serving consumer and industrial requirements.
Frequently Asked Questions (FAQs)
Q: What are flexible filaments used for in 3D printing?
A: Flexible filaments are commonly made from thermoplastic elastomers like TPU and TPC to create objects that require elasticity and durability, such as gaskets, prototypes, and items that need to bend without breaking. They are used to create objects that require elasticity and durability.
Q: How do I choose the suitable elastic filament for my project?
A: When selecting an elastic filament, consider factors like the material’s hardness (measured in Shore A), flexibility, temperature resistance, and the specific requirements of your project. For example, flexible TPU filament is popular for projects requiring high-impact resistance.
Q: Can I use flexible filaments with any FDM 3D printer?
A: Not all FDM 3D printers can handle flexible filaments. It is essential to ensure that your printer is compatible and can manage the filament’s characteristics. Look for printers with a direct-drive extruder and adjustable tension settings to improve print quality with flexible materials.
Q: What is the difference between TPU and TPC flexible filaments?
A: TPU (thermoplastic polyurethane) is known for its excellent elasticity and durability, while TPC (thermoplastic copolyester) offers enhanced temperature resistance and chemical stability. The choice between the two depends on the specific application and performance requirements.
Q: Why is 3D printing with flexible filaments considered difficult?
A: 3D printing with flexible filaments can be challenging due to their tendency to string and cause jams in the extruder. To mitigate these issues, it’s crucial to appropriately adjust printing speed, temperature, and retraction settings.
Q: What are the benefits of using PLA filament compared to flexible filaments?
A: PLA filament is more accessible to print and more forgiving than flexible filaments. However, PLA lacks the elasticity and impact resistance that flexible materials provide. For projects that require flexibility, using materials like TPU or TPC is recommended.
Q: How should I store my flexible 3D printing filaments?
A: Flexible filaments should be stored in a cool, dry place to prevent moisture absorption, which can affect print quality. They should also be kept in a sealed spool or bag with desiccants to maintain their properties.
Q: What printing settings should I consider for flexible TPU filament?
A: When printing with flexible TPU filament, use a slower print speed, increase the retraction distance, and set the nozzle temperature between 220 °C and 250 °C. Additionally, ensure that your bed is properly leveled to avoid adhesion issues.
Q: Are there any ISO standards for flexible materials in 3D printing?
A: Yes, ISO 10993 evaluates the biocompatibility of materials used in medical devices, including flexible 3D printing materials. If your project requires biocompatibility, ensure the selected filament meets these standards.
