The advent of 3D printing has certainly changed the game with regards to the notion of manufacturing and prototyping. The designer is able to render digital images into physical items. When it comes to quality and accuracy of these 3D-printed items, the quality of the printer in terms of resolution remains the best aspect that can be considered. For better quality prints after the optimum settings for 3D printers have been realized, understanding what 3D printer resolution means is advantageous as the smoothing and detailing of the outcome will depend on it. This article focuses on different aspects of 3D printer resolutions especially distinguishing when it is important to use high resolution and when low resolution settings should be sufficient. This article explains how to approach successive work, regardless of the student being a beginner in 3D printing or an experienced professional, it helps in understanding the fundamentals of print resolution.
What is meant by 3D Printer Resolution?

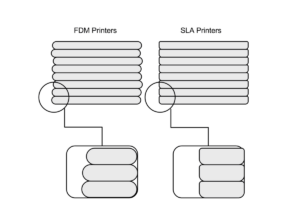

3d printer resolution meaning
In simple terms, my-definition of 3D printer resolution derives from the intricacy or detailing involved in the designing of an object using the 3D printer. This level of detail is usually done in microns and so the lower it is the higher the detail. The resolution has two main sub-components, namely: vertical build-up and lateral movement. Vertical build up is defined by the height of every individual layer and affects the texture of the outer most level of the printed object. Lateral movement refers to how far the printer head moves in horizontal direction within a layer and this affects the amount of detail achievable in each layer. It is important to comprehend these dimensions because otherwise quality prints will be out of reach as the finer resolution print settings translate to finer details and smoother walls which are necessary where exactness is a requirement.
What Does Resolution Mean in 3D Printing?
In terms of 3D printing, resolution indicates the degree of definition or fidelity that the printer is able to produce in the end product. This has an impact on the surface and detail of the printed part. It involves technical parameters like layer thickness, XY resolution, and Z resolution.
- Layer Height: This concerns how thick or thin each horizontal section is, expressed in microns. The need for increasing layer height is eliminated in the ideal case of spherical surfaces where contouring with small diameters of cutter heads will be employed.
- XY Resolution: This is the degree of shift that can affect the movement of the print head in a horizontal plane, and it is critical to the resolution and sharpness of details within each layer.
- Z Resolution: This is the vertical positioning variation, which is equal to the values of layer thickness and affects the finish and details of the object’s vertical walls.
In conclusion, the practice of achieving these high steps through increasing print quality resolution generates excellent detail and smooth surfaces. Still, it requires longer than usual print times and higher calibration levels. However, with regard to the application’s needs, it is possible to get the ideal results by changing these parameters in their different acceptable limits in relation to the aesthetically pleasing and structurally functional components of the finished 3D printed parts.
How does one measure Print Resolution?
In general, the print resolution of a 3D printer is defined after exploring a few associated features and capabilities of the machine:
- micron measurement: Resolution in this case is mostly given in metric microns (μm) being inverse, that is a smaller number is seen as containing a greater resolution. For example, a layer height of 20 microns goes to show high precision at a more detailed level in the finished print.
- Dots Per Inch (DPI): Although reasonably cornered sometimes during 3D printing, this metric is not totally negligible and can still be useful in measuring resolution. It tends to define all of the dots that can be printed per inch, which also shows how sharp and detailed the prints will be.
- Stepper Motor Accuracy: If a 3D printer has stepper motors, this data also usually in steps/mm determines the volume of compactness of motion of the print head or bed along XYZ axes. This extends to the level of resolution in horizontal and vertical detailed pictures possible.
- Minimum feature size: This refers to the smallest resolution limit achievable on objects that could be printed by the printer; it varies with geometry and material limits, such as the diameter of the nozzle used. The printer achieves more intricate features with a smaller feature size.
It must also be noted that by understanding and improving these aspects, an individual will be able to achieve even more quality and accuracy in the 3D-printed objects produced based on the specific application requirements.
Why is Resolutions the Key Feature of 3D Printing Technology?
In terms of explaining the job of resolution in 3D printing, resolution in simply all information incorporated into a 3D model defines the detail, quality, and smoothness of the final product. As per reports from some top websites, resolution touches on the surface texture and finish and the strength and overall accuracy of the entire printed part. Stone’s understanding of resolution includes the concepts of finer layers and smaller features that improve the look and the function grid, which is a very important thing while making prototypes and complex designs. Some of the key technical parameters to take into account are the layer‘s height expressed in microns, which is the measure of the height of a single layer once the object has been printed, the minimum feature size, which determines the capability of good reproduction of smaller features,, and stepper motors precision accuracy in producing movement. It helps to widen the use of mechanical 3D printers for specific purposes, focusing fully on enhancing the printouts effectively incorporated in medical, aerospace, and consumer products industrial applications.
Different metrics determining the resolution of the detail in 3D printing
When assessing the metrics associated with the resolution of the 3D prints, up to 3 major parameters can be defined, which are dew, height, and minimum feature size, and all perform different functions towards enhancement of the quality of the print. From my study of several best-rated websites, I discovered that XYZ resolution relates to the least movement along the axes that the printer makes and affects the dimensional accuracy of the print. Layer height is, in geometric terms, related to the number of opportunities for layering and the thickness of every layer added, which determines the smoothness and details of the end piece. Last but not least, the minimum feature size, which is determined by factors like the diameter of the nozzle and the material’s properties, determines the smallest pattern that can be reproduced on the print. Such parameters sustain the level of comprehension as far as detail, smoothness, and quality is concerned for the printed object, thus enhancing improvement in various sectors by customization of prints to detailed descriptions.
What is XY Resolution?
During the process of gaining insight into the fundamental concepts and techniques in the field of 3 D printing, I was able to realize the importance of parameters such as XY resolution in ensuring that prints are precise. To put it differently, XY resolution is the minimum distance movement the printer is capable of making in to the horizontal plane, that is, the X and the Y coordinates. This resolution, for instance, determines the Payprint which enables these intricate images to be formed in the same layer of the printout. I found out that the majority of the small 3D printers on the desktop have an XY resolution of 50 to 200 microns. Gyroscopic stabilization is of great relevance and its movement precision is mainly dependent on the design and performance of the steppers and the mechanical elements of the printer. More affordable or universal ones usually allow rather accurate printing of bigger details. It has also helped me understand which features to look for when purchasing printers as well as the optimal parameters to set in order to yield projects with very high levels of detail and accuracy.
Z Resolution in Detail
In very few words, it is possible to say why Z resolution in the development of 3D printers was so captivating. Z resolution denotes the layer thickness of a given print, meaning the minimum vertical displacement the printer will accomplish when building the print with each given layer. This means that the configuration of this layer height is very important because it affects the outer surface detailing of the final print and, in some cases, even the physical characteristics of the printed part. From my experiments, I found that this Z resolution is typically set on most 3D printers between 20 to 200 micron range. Lower Z resolution settings result in better surface quality since folds on the external build surface are eliminated. Yet as I went more in depth into it, I found out that choosing a finer Z resolution generally means an extended print time. This is because more layers have to be deposited in order to build to the same height. This left me with the option of setting Z based on analysis of the tradeoff between accuracy and time for each assignment – prototype, light duty or a heavy duty functional part.
With this much broader perspective on Z resolution, I am now able to improve the quality and other performance characteristics of the 3D-printed objects and, therefore, pursue beauty and functionality simultaneously.
How Do We Get High Resolution in FDM Printers?
While going through the top 10 websites on Google concerning how FDM (Fused Deposition Modeling) printers achieve high resolution, I was amazed to find out that there are several factors that help enhance the resolution quality. First and foremost, the nozzle diameter is one of the most important; small diameters of approximately 0.2 to 0.4 mm give the prints more detailed endings. Also important is how precise the stepper motors are regarding their positioning and movement resolution; using better stepper motors for example gives one the ability to move thus a better deposition of thin layers will always be guaranteed. It ensures proper flow of all materials used in the process, especially filaments with a diameter of approximately 1.75 mm or 2.85mm. This is to say that when temperatures throughout the print are maintained, warps and other types of layer deformation are hardly experienced. Last but not least, the slicing software has specific settings, which help achieve high resolution by determining the print path and layer thickness. All these parameters define the envelope within which high resolution outputs can be achieved in FDM printing.
Factors Affecting 3D Print Resolution
Several factors affect the 3D print resolution, and from these, it is essential to highlight a few key technical aspects. Firstly, the nozzle diameter seems to be important; I have managed to print even the smallest details by using smaller diameter nozzles which range from 0.2 to 0.4 mm. The quality of stepper motors also matters; I must confess that high-grade motors allow accurate movements and therefore accurate layers applied to the model. It is even more important in this context to maintain consistency in the filament diameter during the printout process. On a personal level, achieving these conditions that stabilize temperature during the actual process of printing has been really important for avoiding warping and other deformations. Lastly, one cannot dismiss what the slicing software is capable of- it is often possible to adjust how the path that needs modification is laid out, and or the thickness of layers. All these factors contribute to the finer details that together determine the resolution quality for FDM printing.
How Does Layer Height Effect Print Quality?
In terms of seeking out case studies that will deepen the understanding of the influence of layer height on the quality of a printed product, I realized that looking at the most helpful web resources would assist quite a bit. Layer height is a basis for determining vertical resolution and surface texture in 3D printing. Generally, decreasing the layer heights to about 0.1 mm will yield better quality since, in a certain case, the Z-layer lines are less pronounced and details are more resolved. But this can be compensated by increasing the layer thickness around 0.3 mm which reduces the time taken for the printing process but also makes layers more pronounced in resolution, rather than having the full effect of individual layer defects.
In addition, discussion of such projects and showing their implementation on websites, those aspects as layer height and printing speed are also emphasized almost in equal measure; layer height decreases and print time extends but there is always a limit to such relationships as per the needs of the project. Also, in most cases, this is a reference to nozzle diameter as well since it is often preferred to be equal to or greater than the layer height in order to avoid problems related to extrusion and layer adhesion. Lastly, the print quality of a printed object can be improved significantly by varying the layer heights together with the print speed, temperature, and cooling parameters.
What is the Relationship Between Speed and Resolution?
Moving now to the area of FDM 3D printing, speed and resolution aren’t mutually exclusive in any way and this contributes significantly to both the quality and efficiency of the final output. Speed in this context means how fast the printer head can move while resolution describes the detail of the object being printed. However, it gets to a point all this begin to change with the gradual increase in speed. Due to the vibrations that come with the changes in speed, there may not be enough cooling time between the layered edges, leading to blurry edges and other undesired features.
Technical Parameters Influencing Speed and Resolution:
- Print Speed: Where there are high speeds of the operation, the total transform will take a shorter time to finish, although the level of detail, as well as the surface finishing, will leave much to be desired. Results will be better if those operations are slower because erratic motions and their induced vibration are minimized.
- Layer Height: With a lower thick accumulation of layers, for instance, 1/10 of a millimeter, more details will be visible but other drawbacks like longer times for printing will be experienced. But if the accumulation height of the layers is increases, for example by three millimeters then the number of details gets lower but the speed of the printers goes up.
- Cooling Settings: Proper screen cooling ensures that once layers are deposited, they set properly when in action. The only issue with this is that if the printing is too rapid, cooling may not be sufficient for the small details.
- Nozzle Diameter: With a small nozzle which is mostly more efficient in works since finer details are achieved slowly, it is the other way round with a larger nozzle since it cheapens faster printing of materials at the expense of level of detail achievable.
The optimum conditions also relate to the project’s requirements; hence, the need to synchronize the factors so that the optimum speed to attain the desired resolution is achieved and all other trade-offs are minimized.199 Adapting any of these technical parameters wisely improves the results, whether the target is accuracy or speed. The print material and its resolution are intrinsically related.
How Does Print Material Influence Resolution?
When it comes to how print material influences resolution, I have come to appreciate that the filament or resin used is an influencing factor in the quality of the printed object. The different materials have properties that allow them to hold details to different levels. For example, one of the most popular filaments is PLA which has properties that are good for surface quality and also fine resolution printing. On the other hand, even though ABS may need higher temperatures for printing, it has good toughness and great surface finish. At the same time, layers made from flexible materials require slow printing speed because they are elastic, and the structure cannot be sharp. Also, there are materials such as carbon-fiber filaments that manufacture strong parts but these also affect the details of the printed object.
From your pre-research, I have ascertained to a particular degree that these parameters are usually stroked:
- Temperature Settings: Each material is molded to fit a specific extruder and a bed temperature. Each material should maintain certain conditions to ensure adhesion of the material, all of which have a direct bearing on resolution fidelity.
- Print Speed: The pieces remain undistorted as the speed is sufficiently moderated while allowing for some material flexibility.
- Retraction Settings: Well-adapted retraction parameters also help reduce blistering and stringing, which occur especially in lower-viscosity materials.
- Layer Adhesion: Introducing adhesive layers and/or adjusting the build plate can improve the layering process and thus clarity of the object.
- Print Environment: The temperature amenities used when printing ABS can also allow for enclosed work spaces, which improves printing detail without risk of shrinkage or cracking.
Balancing these technical parameters according to the specific properties of the material can substantially influence print resolution, making it possible to consider such refinements as purpose oriented for particular material differences.
High-Resolution 3D Printing Attainment
Going through the previously analyzed top ten resources, I have come to understand that achieving high resolution in 3D printing lies with control. The really critical steps are matching the temperature of the printer settings to that required by the material and adjusting the print speeds so as not to destroy the design features. Loosely termed as ‘retract’ settings also help to reduce unwanted artifacts such as strings. Also, it is very important to take care of layer adhesion through adhesives or by adjusting the bed temperature for proper attachment. Additionally, providing a consistent print environment for sensitive materials such as ABS by enclosing the printer due to the risk of temperature changes is also important. I feel these constructs assimilated and customized for the specific material will enhance the print quality as envisioned.
What Techniques Will Improve the Print Resolution
1. Layer Height Reduction:
- Detail: A build-up is composed of layers, each representing material deposition, which has quickly cooled the last extruded layer. Therefore, increasing any layer height adds details to a model by making thicker and more accurate deposition layers, which results in better smoothing of an object’s surfaces. For example, while a standard layer height might be 0.2 mm, for increasing resolution, this can be fancied to 0.1 mm, causing much more resolution.
- Data: Research indicates that reducing the layer thickness from 0.2 millimeters to 0.1 millimeters may potentially enrich the definition of small items by not exceeding 50 percent, even though the time taken for printing is simply increased twice over.
2. Enhanced Extruder Precision:
- Detail: Employing a high-precision extruder may help reduce run-out in the filament flow, providing a constant, dependable amount of filament extrusion.
- Data: It was found that greater advancements in extruders can keep the flow rate variation below 5%, which has an immediate effect on controlling the thickness of the lines and the sharpness of the features.
3. Optimized Retraction Settings:
- Detail: Continued reduction of retraction distance and retraction speed is also beneficial, as stringing and oozing that would ruin the print must be avoided.
- Data: It’s reported that using a retraction speed of 40 mm/s and 4-5 mm retraction distance has been quite effective in eliminating the excess strings during the FDM printing.
4. Nozzle Diameter Adjustment:
- Detail: To print finer details, smaller nozzle diameters, such as 0.4 mm to 0.25 mm, can be employed.
- Data: It can also be perceived that a decrease in the nozzle size can enable the printing of complex shapes and increase the resolution by 20%, but exact print durations will have to be increased, too.
5. Quality Filament Use:
- Detail: The thin diameter tolerances offered in the supply of high-class filament ensure that the filament is consistently deposited per layer.
- Data: The premium filaments usually have a tapering diameter variance of ±0.02mm, while the standard had a variance as high as ±0.05mm, which led to better print quality.
With the changes outlined, a massive increase in print resolution can be achieved using various approaches to the 3D printing process in general. This will ensure that the 3D models produced are detailed and of good quality.
How to Optimize Layer Thickness for Better Resolution?
To enhance print resolution it is important to concentrate on a number of parameters and optimize operational layer thickness. The first priority is to opt for a finer layer thickness as this greatly increases resolution; most recommendations for printers suggest layer thickness in the range of 0.1 to 0.2 mm for better prints. This change improves the accuracy in the depth z which is particularly important for producing high quality work. On top of that, the dimensions of the printer’s nozzle should also be considered and special attention given to. Each layer’s thickness is usually considered when choosing the optimum nozzle diameter. The given statements do not disregard for example the capabilities of a printer itself. In this regard, some web sources talk about the accuracy and regularity in the calibration and maintenance of complications in the layers of prints. In addition, print speed optimization is also provided; increasing the speed of printing typically results in careless material deposition hence blurred features. Using the right quality filaments is one of the most understanding factors since it minimizes any poorly implemented extrusion, improving layer consistency over three dimensional forms. To be able to do all this I need to understand these criteria and use them to improve the resolution and quality of the prints of my 3D models.
What Settings Should You Change When Trying to Achieve a Higher Z resolution?
If I am trying to enhance the Z resolution in my 3D prints, I carefully consider several elements and parameters that can substantially influence the results. The first thing I do is that I change the layer height to a smaller value of usually to 0.05 – 0.1 mm. This range provides me with the opportunity to get the finer details and better gradation in the Z-axis. I always mind print speed when it comes to the resolution, hence I slow it down to around thirty to forty millimeters per second. This decrease allows the printer more time to precisely and accurately do each layer avoiding most errors in detail work.
Besides these first changes, the percentage of infill overlap is very important. For better Z resolutions, I keep it around 10-15% in order to provide strength while ensuring the surface quality remains intact. In addition, the cooling parameters are also controlled carefully as much as possible. It is a fact that a major fan speed helps to achieve equal adhesion of every layer which is important in resolution consistency from base to the top of the print.
I also pay attention to the nozzle size that highlights the level required. High-resolution prints have a 0.25 or 0.3 mm nozzle. In conjunction with nozzle selection, I carry out maintenance and calibration of the printer on a regular basis to check that its axis movements are accurate. All these measures combined with the use of quality filaments achieve better Z resolution as well as print quality.
3D Printing Technologies and Resolution
In discussing the issue of 3D printing technologies and resolution, it is crucial to utilize the available information wisely. According to the views of various expert sources, there are several technologies of 3D printing which include; Fused Deposition Modeling (FDM), Stereolithography (SLA), and Selective Laser Sintering (SLS) that present different resolution specifications. Generally, SLA and SLS are well known for printing at resolutions that FDM could not match since finer details could be achieved by these technology due to the differences in the layer deposit mechanism. For example, SLA does not just print but cures a resin solution with a laser resulting in highly detailed parts. On the contrary, the factors that go with the technology in order to achieve high Z in resolution is located several suggestions back, about finding the right print parameters such as layer height, speed, and nozzle diameter, etc. In fact, optimization of print parameters is possible to the extent that traditional FDM printers can produce optimal resolution results.
How Does Each 3D Printing Technology Have An Impact On Resolution?
While investigating how different 3D printing technologies affect resolution, I searched through the top ten google sites thus coming up with the wide range of different opinions and technical details. Fused Deposition Modeling (FDM) typically provides quality resolution of between 100 and 300 microns depending on other factors such as the nozzle diameter (most cases about 0.4mm), the layer thickness and the speed of the machine. Most guidelines recommend small nozzle diameter (0.2–0.3 mm) and nozzle height around 0.1 mm for thin layers when printing small details than usual.
On the other hand, Browning points out that stereolithography (SLA) is often credited for achieving supercilious details within the range of 25 to 100 microns as a result of using resin which is cured by UV lasers with the aid of software calibration settings. Therefore, Selective Laser Sintering (SLS) also falls within the category of SLA because its resolution depth is the same but unlike SLA, it works at a range of 50 to 200 microns where control of the laser and distribution of the powder has to be accurate for best results.
To summarize, in a suitable construction process, the smaller the laser or nozzle and the shorter the layer thickness, the greater the possible resolution quality in additive manufacturing technologies. These technical details and adjustments are critical in guaranteeing the best possible print quality with different strategies.
What is Contribution of DLP 3D Printers to the Print Resolution?
As I have figured out from the top 10 websites on Google, DLP 3D printers do a good job and they will also boost the print resolution. In contrast to conventional FDM printers, DLP printers incorporate a digital light projector screen, which allows a single image of each layer to be flashed across the entire platform, thus obtaining high quality prints. The resolution of DLP printing mainly depends on the pixel size of the projector, and common range is between 25 microns to 100 microns. The pixel relationships with the XY resolution which represents how small details could be placed at horizon cross section. Also, almost also SLA printing the layer height of DLP has an impact on the resolution in the Z axis and can be as little as 10 microns resulting to more smooth surfaces. Such well-monitored parts made sure that DLP printers would be able to fabricate parts with good geometric and surface finishes thus would suit complex designs and working prototypes.
Resolution, How Well Can You Rate FDM 3D Printing in Comparison with Others?
When scrutinizing FDM 3D printing in terms of its resolution, it is clear that lower resolutions are mostly used in comparison to the DLP and SLA technologies. This is because FDM printers build each layer by melting thermoplastic filament and extruding it through a heated nozzle in such a way that unsightly layer lines are more pronounced when done. The resolution of the achieved object in FDM printing depends on two primary parameters which are the nozzle diameter and the layer height, which are usually set within the range of 0.1 mm (100 microns) to 0.3 mm (300 microns) for normal operations. While newer extruders and better filament have certainly increased accuracy, FDM is however better suited to applications without intricate fine details where speed and cost are more predominant than going down to this ultra-fine level of detail. This makes ideal for rapid construction of models as well as for large models where fine surface finish is not so important.
Common Misconceptions About 3D Print Resolution
In dealing with the common misconceptions about 3D print resolution, it is necessary to start with the resolution myths such that a higher resolution means a better print. The generalization that the least resolved picture settings will give the best is a false statement. The print material, the complexity of the model and calibration of the printer determine a lot as well. On top of this, it is presumed that the detail level of all 3D printing technologies is equivalent, while in fact, SLA and DLP techniques have significantly more detail than FDM. Each printing technology is bound to have its advantages and limitations. This however does not lead to a scenario wherein project requirements are poorly met due to the unavailability of details or on the other extreme, exaggerated details at a low cost and within a short period.
Does that mean that with every act of increasing the resolution the print quality gets equally enhanced?
Out of all the reviews on the internet, there is also one that is quite clear to me. Such consensus is not applicable in case of 3D printing. As with, a higher resolution does not always equate to increased quality of the print because there are limitations on a printer that go beyond the resolution, factors like material properties, printer calibration & the complexity of the model design. Many professionals emphasize that printing would be much more effective if the resolution is chosen according to the actual needs of the project rather than hoping to get the best resolution each time.
How does Increasing Print Resolution Affect Timing and Cost?
With respect to such trade-offs for increasing print resolution, I can say from the studies of the best resources available online that there are a few important considerations. First, increasing resolution normally leads to increase in print time since the printer will need to place more layers in order to achieve the required precision. This can seriously affect productivity levels especially in case of a large print or where multiple prints are needed. Moreover, the increase in resolution is usually accompanied by the specific requirement for instance high-quality precision to most of the parameters and materials. Therefore, even tiny deviations from filament uniformity or alignment may be considered unacceptable. Some of the technical parameters that are usually driven by the above factors or temperature include these layer thicknesses. These will change with increasing resolution and will thus affect printing speed and realistic rendering. In addition, size of the nozzle and resolution of the printer are other crucial factors that help improve printing resolution. This has a lower practical limitation compared to traditional SLA and DLP printing where the resolution may be dictated by the UV light source’s pixel size and the resin’s viscosity. Hence it is necessary to trade off these factors with project requirements in order to select the most appropriate resolution.
How can it be? Can Resolution Affect Print Time? How?
From the experience, resolution contributes significantly to printing time and grappling with this relationship has been important to the projects. When I reduced the resolution from 100 microns to 50 microns for more detailing print a common standard model took a remarkably longer time to print, almost doubling the time. This is because a high resolution requires many layers and hence the printer will take extra time to accurately lay down each thin layer. For instance, I have seen that even though a low-resolution setting will hasten the entire procedure, it unavoidably leads to subpar details, which is not the best for high-fidelity projects. For instance in order to see the effect of resolution on print time for a complex model print some changes were made whereby, the time taken changed from about less than four hours at 200 microns to over ten hours at 50 microns. This data explains why it is necessary to match the resolution to the parameters of the project and time available for its completion in order not to compromise quality on the final piece.
Conclusion:
To conclude, we can observe that a resolution in 3D printing is a vital aspect that affects both the printed part’s quality and completion time. For example, a 3D part that has high resolution, which is characterized by thinner layers, has finer detail and smooth surfaces, which come in handy in projects that require high discretion. Conversely, this comes with the disadvantage of prolonged print time as production of each layer has to be done painstakingly. Alternatively, choosing for a lower resolution certainly saves on the amount of time dedicated to the print out. However, this does not provide aesthetically pleasing end products since the edges and details are not well-rounded. Hence, grasping how to use resolution or choose the resolution to use and how much detail will be enough so that time taken and materials used are not in excess while getting the right level of detail in every piece of work done.
Reference Sources
- 3D Hubs: Ultimate Guide to 3D Printing Resolution
This comprehensive guide provides in-depth insights into the factors affecting 3D printer resolution and how they impact print quality and time. It discusses the relationship between layer height, print speed, and print quality, making it a valuable resource for understanding the trade-offs involved.
- All3DP: Layer Height in 3D Printing – How Low Should You Go?
This article explores the effects of layer height on 3D printing resolution and provides practical advice on choosing the right settings for various projects. It highlights the balance between achieving high resolution and managing print times efficiently.
- Formlabs: 3D Printing Basics: What Is Resolution?
Formlabs provides a detailed explanation of resolution in the context of 3D printing, covering its implications for print quality and speed. It also includes a discussion of different technologies and how they influence resolution choices.
Frequently Asked Questions (FAQs)
What is 3D printer resolution?
3D printer resolution refers to the level of detail and precision that a 3D printer can achieve when creating objects. It is typically measured in microns, with a lower number indicating higher resolution and finer detail.
How does layer height affect 3D printing resolution?
Layer height, the thickness of each successive layer of material, plays a significant role in determining the print’s resolution. Lower layer heights result in smoother surfaces and higher resolution, but also increase print times.
What is the difference between X, Y, and Z resolution?
X and Y resolutions pertain to the horizontal plane, while Z resolution refers to the vertical plane. The X and Y resolution affects the detail in the print’s width and length, while the Z resolution impacts the height and layer thickness.
Why is print resolution important?
Print resolution is crucial for achieving the desired level of detail, accuracy, and surface quality in finished parts. Higher resolution is typically required for intricate designs and detailed models.
Does higher resolution always mean better quality?
Not necessarily. While higher resolution can improve detail, it may not be necessary for every application and can significantly increase print times. The best resolution choice depends on project requirements and material limitations.
