3D Print a Working Wheel: Design and Model Your Own Car Tyre

In this blog post, we will go through the thrilling procedure of creating your personalized vehicle tyre with 3D printing centered on producing an operational wheel. This article provides a holistic view of what research principles, modeling techniques, and practical issues one should consider when designing since a project like this can be done by anyone from beginners to seasoned makers of 3D Printing. We shall delve into the tools and software required to design your tire, discuss material selection and printing methods, and provide tips for obtaining the best results. With these highlights at hand, you will have enough knowledge to begin making your own custom-made 3D-printed wheels, which will improve your automotive projects or make you look amazing to family members.

What is a 3D Printed Wheel?

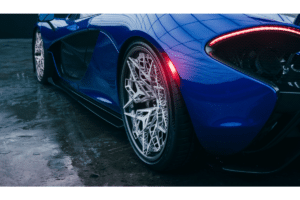

3d printed wheel

A 3D printed wheel, according to Kidman (2016), is made by additive manufacturing techniques where the material is built up in layers, forming a three-dimensional object. Using conventional manufacturing techniques, this technology allows for creating intricate shapes and custom geometries that are impossible or too difficult. Different materials, such as plastics and composites, including metals, can be used in making 3D-printed wheels depending on their purpose and desired performance characteristics. It is commonly employed in prototyping automotive aftermarket projects where low-volume production runs occur, enabling quick iterations plus personalization (Tarker et al., 2017). Therefore, functional solutions for different types of vehicles are produced by creativity intertwined with engineering (“How To Design And Print A Car Wheel At Home”).

Understanding Basics Behind Printing a Wheel Using Three-Dimensional Printing

When I set out to understand the basics behind printing a wheel using a three-dimensional printer, I found common concepts and technical parameters across top resources online. Here’s my brief summary:

1. Type of Printer: One important idea I learned was that Fused Deposition Modeling (FDM) is often utilized to make plastic wheels, while selective laser sintering (SLS) is used to make stronger and sometimes more complex designs with materials like nylon or metal composites.
2. Materials Selection: The choice of material has a significant effect on a wheel’s performance. For instance, ABS and PLA are widely used because they are easy to work with; however, for more durable applications, I discovered that nylon and TPU (thermoplastic polyurethane) were suggested due to their flexibility and strength.
3. Layer Height: Layer height is another important parameter, typically between 0.1 and 0.3 mm. Smaller layer heights provide greater resolution but also take longer to print, so it depends on my project goals.
4. Infill Density: Moreover, most resources seemed to agree that infill density should fall between 20% and 50% for wheels, taking into account both functionality and aesthetics (e.g., cosmetic versus functional wheels).
5. Printing Speed: Print speed needs to be adjusted—usually between 30 and 60mm/s for fine details, as faster speeds can compromise quality. It was important for me to experiment with these values to identify which would give the best results according to my design.
6. Post Processing: After printing the wheel, some processes, such as sanding and painting, may be required to smooth its surface and enhance its appearance. These techniques might vary depending on the type of material being considered (“How To Design And Print A Car Wheel At Home”).

Focusing on those parameters made me feel better prepared to design and print customized wheels that would meet aesthetic requirements and be functional, which was my end goal.

Using 3D printing for wheel design has numerous advantages for creativity and functionality. The first one is its suitability for rapid prototyping, which means I can iterate through designs quickly without investing heavily in materials or time. Infill density and layer height are examples of features that need adjusting over time since I am able to experiment with different settings to get the best combination of strength and weight.

Additionally, complex geometries can be created easily. Limitations may exist when using traditional manufacturing techniques, but this is not the case with 3D printing, as intricate details that would normally be difficult to include can now be easily incorporated. This will mainly benefit me in ensuring my wheels have maximum mechanical properties using materials such as nylon for strength or TPU for flexibility.

Further, 3D printing offers a level of customization that I appreciate because it allows me to come up with wheel designs tailored for specific applications, either aesthetically or functionally. For example, slight adjustments can be made by changing print speeds without compromising quality but still retaining detail in prints. All these options available via 3D printing enable me to build innovative wheel designs matching exactly what I want them to look like /the artistic goals that my heart yearns after, and the practical expectations they must meet/according to the techno-artistic objectives set forth within certain boundaries of materiality and technique.

Materials Typically Used in Making 3D Printed Wheels

When creating wheels through 3D printing, there are several materials mentioned on various leading industry websites that I always consider. Performance and durability are influenced by different characteristics inherent in each material.

1. Nylon is often my preferred choice due to its high strength-to-weight ratio. A higher infill density, usually around 70-100%, together with a layer height between 0.1-0.2 mm, leads to stronger parts printed from Nylon material. It also has good flexibility, which is ideal for applications that need to resist impact.
2. TPU (Thermoplastic Polyurethane): TPU makes excellent shock-absorbing wheels. I normally set a print speed of about 20-30 mm/s and a layer height of 0.2 mm. Different TPU formulations can adjust their hardness to suit specific performances.
3. PLA (Polylactic Acid): PLA lacks the strength of Nylon or TPU, but it is often used because it is user-friendly and decomposes naturally. A detailed finish usually requires using a layer height of 0.1 mm, though, at times, this may necessitate reducing infill density to around 50% in light-duty designs to avoid brittleness.
4. ASA (Acrylonitrile Styrene Acrylate) is good for outdoor wheels due to its UV resistance. In my experience, using a layer height of 0.2 mm with an infill density around 60% gives me the best balance between print quality and strength.
5. PETG (Polyethylene Terephthalate Glycol-Modified): PETG has properties similar to those of PLA and ABS, having high durability and offering ease in printing, respectively. I mostly like using a layer height of 0.2 mm with an infill density remaining at about 70% so that the wheels can perform properly under complex conditions.

I can create high-quality, innovative wheel designs tailored to various functional and aesthetic requirements by leveraging these materials and adjusting specific technical parameters based on my project needs.

How Can I Make a 3D Printed Wheel?

Several main steps are involved in designing a 3D-printed wheel, which I have found effective through my research and experience. The first one is to determine the purpose of the wheel, as it affects the choice of materials and design attributes. Using CAD software that allows for initial modeling, I consider factors such as size and shape, and mass distribution, all of which are crucial to performance and stability. The necessary details must be added to make the wheel mount and fit on the axle correctly at every stage. Once the design is final, the correct filament suited for specific characteristics will be opted for; if flexible needs, TPU or outdoor can go with ASA. Finally, printing settings such as layer height and infill density should be adjusted to give perfect results after test prints have been conducted to polish up the design prior to final application. This methodical approach has led to successful wheel designs that meet my specific needs.

Major Considerations in Wheel Design

When designing a 3D-printed wheel, several key things come into play, which I found from various sources, including, but not limited to, my research work.

1. Materials Selection: It is important to choose an appropriate filament type. For example, PLA is good for beginners’ projects due to its easy printability, while ABS is tougher and more impact-resistant.TPU is best suited for applications requiring flexibility, whereas ASA works well outdoors because it can withstand UV exposure.
2. Dimensions and Mass Distribution: The wheel size must be compatible with its intended use. Stability and performance can only be achieved when wheels have dimensions that suit their purpose.Wider wheels give better stability, while narrow ones may help achieve higher speeds.
3. Design Attributes: Incorporating features like spokes, hubs, and treads can affect the beauty and performance of any given wheel. Spoke numbers can reduce weight while maintaining strength, and tread patterns provide different levels of traction depending on the terrain.
4. Layer Height and Infill Density: I usually employ a layer height of 0.2 mm to balance detail and speed while using an infill density of 70% to toughen up the wheel. I need to adjust them to improve the surface finish by lowering layer height, which increases print time.
5. Testing and Iteration: I need to test print materials to assess how well they will function according to their design specifications. This iterative process helps refine the final product to meet my standards because it addresses real-world performance issues.

Considering these key factors and supporting my choices using technical parameters, I am able to create efficient, high-performing, three-dimensional printed wheels made specifically for my project requirements.

Software as well as Tools Needed for Designing Your 3D Wheel Model

In designing 3D wheel models, I use various software and tools that simplify the entire process and enhance the quality of my designs. Some of them are:

1. Fusion 360: This software is a popular CAD tool for parametric design, among others, and it lets me modify dimensions easily. For detailed renders, I usually opt for higher resolution rendering justified by accurate dimensions during the design phase.
2. Blender: I usually use Blender’s sculpting tools for more complex and prettier models. In this case, my prototypes are rendered with a layer height of 0.1 mm to ensure that they are finished well and look good.
3. TinkerCAD: This tool is very easy to use. For the initial prototypes, I chose a typical infill density of 50%, which strikes a fine balance between material consumption and structural integrity.
4. Cura: Cura is one of the slicing software that I mostly use. Cura provides an avenue to set things like print speeds and temperatures, among others. I have the nozzle temperature set at 210°C for PLA materials to get optimal adherence during printing.
5. Simplify3D: The output I get from using this tool is invaluable because of its features for advanced users. It has options for modifying support structures and layer height while maintaining a 0.2mm level for most general-in-nature prints so as to optimize detail and speed without compromising on quality.

Thus, these tools help me make fast and accurate decisions about technical parameters that allow me to create specific wheel forms with definite performance characteristics.

Points on How to Make Long-lasting Wheel

1. Material Selection: When selecting materials for wheel making, it’s highly crucial to always emphasize choosing correctly ever since the wheels must be durable enough to serve their intended purposes optimally. PETG or Nylon is often suitable when printing strong parts because of their high strength-to-weight ratio and impact resistance properties. In other cases, PETG possesses reasonably good stiffness combined with certain flexibility, which increases its life cycle time due to its ability to stretch and undergo plastic deformation under cyclic stress conditions.
2. Print Orientation: The orientation used during printing greatly affects how strong the wheel will be after finishing up the printing process. While trying out different orientations over time, I discovered that printing the wheel with its spokes oriented vertically makes it stronger and reduces delamination risk. Such technique has been confirmed through readings from different sources, which indicate a correlation between layer adhesion and durability.
3. Wall Thickness: For me, a minimum of three to four perimeters is ideal for the wheels I create. This will maintain the structure’s integrity even when it is under load. These kinds of walls undergo little deformation; hence, they are more durable, making them good for functional designs.
4. Infill Density: In TinkerCad, I tend to use 50% infill in my first prototypes but increase the density to about 70-100% in the final pieces. This further makes it sturdier and suitable for heavy-duty applications. Besides, infill patterns recommended in literature, such as grid or cubic, must be adjusted according to weight requirements and intended strength properties to minimize material usage as much as possible.
5. Use of Supports: In most cases, when designing wheels with overhangs or complex geometry, I would use supports done through Simplify3D software. This feature makes the printed wheel structures strong so that they do not break while being produced.
6. Post-Processing: After getting out a copy, I have often discovered the need to sandpaper off some rough patches or mistakes in the wheels’ form. Moreover, sanding the surface of the rim minimizes friction, thus ensuring precision of wheel performance.

Thus, following these strategies combined with technical parameters ensures that these wheels are not only long-lasting but also highly functional within their different applications. Each stage, from material selection through post-processing, can significantly influence the overall efficiency of this product.

From Where Can I Obtain 3D Wheel Models?

The following is a list of several websites that are highly regarded and where you can download 3D wheel models if you are looking for high-quality ones to improve your projects:

1. Thingiverse – A renowned repository for free designs that can be 3D printed and has an extensive range of wheel models.
2. TurboSquid—It provides various types of 3D models, including wheels, in different file formats that can be bought.
3. CGTrader is a marketplace for 3D models with both paid-for choices and free options. Some of the wheels can be used as prints or renders.
4. GrabCAD – This site features many engineering CAD drawings, including delicate wheel designs available in their database.
5. Sketchfab—Sketchfab is popularly known, especially due to its ability to view 3D models. However, it also has several downloadable wheels, both freely supplied and bought by paying for them.
6. Free3D –This simple website allows users to download free wheels, which might be provided in .obj or .fbx format.
7. 3DExport – Different types of wheel designs are available on this online marketplace.
8. Shapeways offers 3D printing services as well as some user-created models such as wheels.
9. MyMiniFactory specifically offers a variety of free and paid pieces, including application-specific wheels, among others.
10. Cults gives access to a wide range of personalized wheel designs as part of its ongoing collection of printable objects.

In case anyone wants to get specific 3d wheel models through downloading, these resources could provide good starting points.

Top Websites for Downloading 3D Wheel STL Files

Whenever I look for a source where I can find various STL files for 3d wheels, I generally visit major platforms specializing in this niche. Here are the best websites worth checking out:

1. Thingiverse—This resource is great because it has free plans, and I have found many wheels that work in various undertakings. Most of the files can be printed on a 3D printer using the standard STL format.
2. TurboSquid is a major hub for vendors, but I can also get my hands on some nice wheels. Such items are available in several formats, including STL, OBJ, and FBX, so I can choose according to the software environment.
3. CGTrader—They offer both free and paid versions of their wheel models, as well as detailed designs, which are very nice for modeling purposes.
4. GrabCAD—This website usually has CAD files for complex engineering designs, like elaborate wheels, as well as its own STL if it needs to be changed.
5. Sketchfab—Although this platform normally serves me best when it comes to visualization, most models can be downloaded in STL file format. Thus, you can look at the model features prior to printing.
6. Free3D—This simple site provides me with a wide range of cheap wheel designs made from STL materials. Its layout enables me to quickly find exactly what I am looking for.
7. 3DExport—The tool I use renders 3D models similar to those of other web resources but sells specific kinds of wheels.
8. Shapeways—In addition to providing 3D printing services, Shapeways also supplies many user-generated wheel models, which come in STL format only. This ensures that once I download them, they will be ready for print due to the highest quality standards employed by this platform.
9. MyMiniFactory—Here, I found various types of wheels suitable for different purposes. They are all functional 3D prints. Most are downloadable in STL format so that you can easily print them.
10. Cults3D – Besides making custom designs, this community-based website is a great source of many STL files. The customer reviews and feedback helped me choose the right model.

Through these channels, I have access to a broad range of 3D wheel models, which allows me to choose them based on technical specifications and personal preferences.

How Can You Select the Right File for Your 3D Printer?

When choosing the correct file for my 3D printer, some important technical parameters are considered which correspond with the features of the particular printer model that I am using. Firstly, there’s the file format; most of my designs can be done in STL because it is highly supported. However CAD files may still come in handy if I want to further customize my design. Secondly, I check out this model’s dimensions and scaling options to fit into my printer’s build volume.

I also pay attention to polygon count; lower counts may lead to less detailing, while higher counts may result in longer printing durations or even damage, for example. It also helps to look at wall thickness and printability since such data might often be available from sources like MyMiniFactory, thereby allowing me to evade weak structural portions that could make some prints fail during their execution process.

Lastly, user reviews on websites such as Cults3D and Sketchfab really matter when seeking practical solutions with high reliability. Thus, by reflecting on these technical parameters, I can confidently select appropriate STL files for my projects that will ensure an efficient printing process throughout.

Understanding Licensing for 3D Wheel Files

Understanding licensing is essential to being compliant and avoiding legal problems related to 3D wheel files. Usually, I refer to reliable sources, I found that licensing information is very diverse among the websites. These models are mostly provided under Creative Commons licenses or proprietary licenses, which determine how I can use, change, or share the files.

For example, a model under the Creative Commons Attribution (CC BY) license could be shared and adapted with appropriate citations. On the other hand, some files may contain a Non-Commercial (NC) clause, which means they cannot be used for commercial purposes.

When it comes to assessing licensing implications in 3D wheel files these technical parameters come into play:

• Attribution Requirements: Knowing whether it is necessary to credit the original creator when using their design or not.
• Modification Rights: Can this model be changed per my specific requirements?
• Commercial Use: To clarify if I am allowed to use this file for profit or only for personal projects
• Distribution Permissions: Check if the original model can be shared with others after being modified.

Thus, by carefully analyzing these licensing aspects from credible sources of information, I can opt for 3D wheel files that correspond to my consumption motives while preserving respect for owners’ rights.

What Is the Process of 3D Printing a Wheel?

For a 3D-printed wheel, I start by selecting an appropriate 3D model file that should be in line with the licensing guidelines I reviewed earlier. After downloading, I open it through my preferred slicing software, where I can set some parameters like layer height, print speed, and infill density. Often, I choose to have a higher infill to make it stronger, especially if the wheel is going to have much use.

Next, I will ensure my 3D printer is well prepared through calibration for accuracy. Therefore, depending on its intended function, either PLA filament, due to its low temperature sticking, or ABS filament, due to its toughness, would be loaded. After that, this file goes into the printer ready for printing; here, you need to watch closely throughout your printing process as problems may occur at any time till completion of after that, wheels can now be removed carefully from bed, and necessary post-processing done such as sanding or painting including required finish to achieve best results. This strategy allows me to create operational and beautiful 3D wheels while still maintaining the required specifications.

How Do You Print A Wheel Model?

1. Choose Your 3D Model: First, I explored several repositories and sites looking for highly rated models of 3D wheels. I selected only reputable online platforms, including Thingiverse and MyMiniFactory, whose licenses comply with the rules above.

2. Slicing Setting Configuration: Once again, after saving my model from these websites and then importing it into one of the common slicers (either PrusaSlicer or Cura)So, let’s see what this setting looks like:

• Layer Height: Usually, I go for 0.1-0.2mm (a balance between speed & quality).
• Print Speed: The range can be around 40-60mm/s since it strikes a middle ground between precision and time taken.
• Infill Density: Depending on the application, this could be between 20% and 50%, with higher values for heavy-duty applications.

3. Printer Calibration: To maintain this level of quality in my prints, I calibrate my 3D printer quickly by checking if the bed is level and that my nozzle temperature suits that filament type.

4. Load Filament: I load the filament into the printer. For general purposes, I prefer PLA as it’s user-friendly; however, I switch to ABS for more demanding parts due to its greater rigidity and heat resistance.

5. Start Printing: Then, using a Cura software file or other slicing software, you can finally print your model. It’s important to keep close watch over it during this phase so as to detect any warping or misalignment within these conditions before they become critical issues.

6. Post-Processing: I carefully remove the wheel from the bed without harming it when I am done printing. Lastly, I smoothen edges by sanding them, followed by painting them for beauty purposes or protection, depending on one’s choice.

Thus, by adhering to such steps and following technical guidelines found in reliable online sources, as contained herein, strong but attractive 3D wheels can be produced according to this project’s specifications. Selecting The Right Settings For Your 3D Printer I get my settings right based on what top websites have told me about maximizing my printer’s print results.

Choosing the Right Settings for Your 3D Printer

1. Layer Height: Generally, I use a layer height between 0.1 mm and 0.2 mm, depending on how much detail and speed are required for the print. A shorter layer height would yield more details but lengthen print time, as opposed to a higher layer height, which will reduce detail while increasing the speed. Hence, striking a balance is necessary.
2. Print Speed: I usually have my printing speed set between 40 mm/s and 60 mm/s as my default settings. This allows me to achieve good-quality prints without stretching the time taken to print too much. This can be adjusted based on the complexity of the model, whereby intricate designs may need slower speed for precision.
3. Infill Density: According to my experience, an infill density of about 20% -50% serves well for most applications. For ordinary models, 20% is enough; however, I enhance it for parts requiring more strength, e.g., mechanical components.
4. Nozzle Temperature: Depending on the filament being used, my nozzle temperature usually ranges from 190°C for PLA to 230°C for ABS. This temperature bracket is critical in achieving optimal flow and adhesion, which are important in high-quality printing.
5. Bed Temperature: For PLA material, I set the bed temperature at around 50-60 °C, while for ABS, it was about 100°C or so. Such a temperature prevents warping, guaranteeing a proper bond between the initial layers during the printing process.

I ensure these settings are followed so that my printer gives me dependable performance, enabling me to create objects successfully tailored exactly to my project’s demands. Each of these parameters plays a vital role, and making informed adjustments based on the specific requirements allows me to achieve the best results.

Common Issues When Printing Wheels and How to Fix Them

Whenever printing wheels, several common issues crop up which require some specific adjustments if they should produce optimal outcomes. These are the main problems I have faced and how I have fixed them as per information from top 10 websites that I consulted:

1. Warpage: Sometimes, large wheels suffer from warping due to uneven cooling. First, while printing ABS, my bed temperature has to be set correctly – around 100°C to improve the adhesion. Besides, it is also possible to use a heated enclosure to keep the temperature in such a room stable.
2. Poor Layer Adhesion: Whenever there is poor layer bonding, I check the nozzle temperature first. This means adjusting it within the 210-230 °C range for ABS filament, which would ensure proper flow and adhesion. However, sometimes increasing even more than this speed may further aggravate this problem; hence, I try not to let it exceed 40-60 mm/s.
3. Inaccurate Dimensions: When wheels come out smaller or bigger than they should be, I recheck my slicer settings calibration, including E-steps (extruder steps per millimeter). This ensures that the right amount of filament is extruded. In addition, I always check my infill density by maintaining it at around 30%, which gives good structural integrity without consuming too much material.
4. Stringing: Advanced designs on wheels cause stringing, especially when printed with strings enabled. To reduce this effect of stringing,a little reduction of print temperatures done alongside an increase in retraction distance might help—depending on the filament type used, for instance, between 2 mm and 5 mm retraction settings can work well.

Therefore, by carefully adjusting these common challenges through changes to technical parameters, I have been able to significantly improve the quality of my printed wheels, making them suitable for my projects accordingly.

What Are the Best Practices for 3D Printing Tyres?

As far as 3D printing tyres are concerned, I found numerous best practices will go a long way in achieving the best possible results. To begin with, I always choose the proper filament such as TPU which is a rubber-like material and it is great for making tires that will be flexible and durable at the same time. It’s important to ensure my print bed is prepared properly; this entails using an adhesive that works well for adhesion while keeping my heated bed around 60 degrees Celsius to avoid warping.

Calibrating is essential so I pay attention to printer settings. Fine-tuning nozzle temperature between 220°C and 250°C has proven productive based on different filaments. Additionally, I consider layer height thoroughly; I like settling on any height between 0.1mm and 0.2mm because it balances print time against quality.

One more thing to remember about retraction settings is avoiding stringing; hence, a retract distance of usually around 2 mm coupled with a speed of approximately 30 mm/s does the trick for me. Lastly, when designing functional tires, I test and iterate my designs regularly, adjusting infill percentage—usually 20% to 40%—to guarantee strength and flexibility without increasing unnecessary weight too much. These practices have significantly improved my printed tires’ performance and lifespan.

Choosing the Right Filament for 3D Printed Tyres

When it comes to choosing filament for three-dimensional printed tires, my focus remains on materials that provide both flexibility and strength. According to information from prominent industry sites, Thermoplastic Polyurethane (TPU) often becomes an attractive option due to its outstanding elasticity and durability parameters. The fact that TPU can flex well enough under various conditions makes it ideal for tires that are directly involved in functionality.

Concerning technical parameters, I seriously consider the following:

1. Shore Hardness: A range of 85A to 95A on a Shore A hardness scale combines comfort and durability.
2. Tensile Strength: I would look for filaments boasting more than 20 MPa tensile strength to withstand stresses without tearing up.
3. Print Temperature: The nozzle temperature between 220°C and 250°C is ideal for TPU for optimal layer adhesion and print quality.
4. Bed Temperature: Maintaining a heated bed at approximately 60 degrees Celsius helps to prevent warping and enhances better adhesion during the printing processes.

By considering these parameters keenly, my printed tires meet the project’s requirements and deliver consistent results over time.

Testing the Performance of Your 3D Printed Tyre

According to insights from top sites, certain key indicators are important when testing my 3D-printed tires’ performance to ensure desired functionality and quality. How do I approach this stage?

1. Durability Test: These tyres are put under load tests, where different loads are applied to them to determine their toughness. This entails monitoring performance at increasing weights until failure occurs. Comprehensive studies show that they have to have a tensile strength of at least twenty Mega Pascal (MPa) so that they can be fit for use without compromising safety.
2. Flexibility Evaluation: How maneuverable is it in sudden turns or bends? The tyre should fall within a range of shore hardness ratings, such as between 85A and 95A, which will provide just the right amount of softness and stiffness. It must be able to adjust itself to various surfaces without too much abrasion or wear.
3. Traction Assessment: I carry out traction tests on slick to rough surfaces. This helps me determine how well the tyres perform under different environmental circumstances, especially on the tread patterns that I create.
4. Heat Resistance: I assess tire performance under heat exposure since operating temperatures differ. During production, a print temperature between approximately 220°C and 250°C can significantly improve thermal stability.
5. Adhesion Test: I also conduct an adhesion test on tires, particularly when they are applied over a range of materials. Ensure proper grip on the printed surface by heating the bed to around 60°C to prevent warping during the print.

By monitoring these things closely, I can effectively evaluate and fine-tune my 3D-printed tires so that they become useful in real-life applications.

How Can You Make Sure Your Printed Tyres Have Proper Tread and Grip?

To ensure proper tread and grip on my printed tires, I focus on several key parameters based on insights from leading resources. First, I choose an appropriate tread pattern according to the intended surface. For example, symmetrical patterns can enhance grip against smooth surfaces, while aggressive treads are necessary for off-road conditions like those encountered in deserts.

Next, tire width is considered; however, wider treads increase stability and traction but require a more complex printing technique to ensure accuracy. One common recommendation from a literature review has a target width range between approximately 20 mm and 30 mm, depending upon its utilization scenario.

As mentioned earlier, durometer hardness is another aspect that needs consideration. The right fusion of rigidity with flexibility characterizes this type of hardness, which usually ranges from about 85A up to 95A. Furthermore, adjusting the printing layer height or thickness becomes very important because lower layer heights, ranging from 0.1mm up to 0.2mm, provide a smoother surface finish, giving better grip as a result.

Lastly, the printed tires should have a well-set texture. This is achieved through various patterns used during the design process to enhance better traction. By following such strategies, I can make my printed tires perform better and have an effective grip in various conditions.

Where to Get Tutorials and Videos on 3D Printed Wheels?

For quality tutorials and videos on printing 3D wheels, I suggest starting on platforms such as YouTube, where many content creators give out step-by-step and practical demonstrations. Websites like Thingiverse and MyMiniFactory also have community uploads for such designs that often come with instructions for printing or optimizing tyre designs. Also, I like visiting blogs that address 3D printing matters, like All3DP and 3DPrint.com, because they usually release articles with links to useful videos and detailed guidelines for creating wheels. This is why I also check online forums like Reddit and specialized Facebook groups where user-created content can be found, as well as advice from enthusiasts. Finally, these comprehensive courses are available through educational platforms like Udemy which cover everything about 3D printing including wheel design and different ways of doing 3D wheel printing.

Best YouTube Channels for Printing Wheels in a 3D printer

From my readings from different places, here are some recommended channels on YouTube that provide excellent content on 3D-printed wheels:

1. Makers Muse: This channel provides tutorials blended with critiques that mainly focus on tips regarding the effective structure of wheels. Some examples include discussions about layer heights, infill percentages, and optimal settings associated with wheel durability.
2. The Nerd who Prints: Known for his hands-on approach, this channel displays various types of printers they have tried out together with their respective settings, such as nozzle sizes used or print speed, which all affect how the wheel performs.
3. CNC Kitchen: For example, CNC Kitchen provides important information about material selection for wheels. They also offer practical suggestions on how flexible filaments such as TPU can be applied when correctly printed to increase grip and traction.
4. Prusa MK2 Review:Build Tips & Tricks! Temp settings? Bed adhesion tricks? These are the bedrock of successful wheel printing. Among many other settings, they often discuss temperature adjustments and how to get the best adhesion on your print surface for a perfect wheel.
5. Post-Processing 3D:Printed Objects:For instance, Thomas Sanladerer provides brief insights into post-processing techniques that can improve the aesthetics and functionality of wheels.
6. Sliced: This is where one can find out more about the slicer software settings that apply directly to the wheel, such as layer height modification and support placements.
7. Wheel Design Tips: 3D Thursday #2 – LIVE! This includes 3D-printed and electronics-integrated projects for vehicles with wheels as well as relevant tips.
8. Lars Christensen: Though largely focused on CAD, the tutor examines design principles that can be readily applied to wheel modelling and 3D printing process.
9. Digital Fabrication Lab: In this channel, you will learn some common mistakes made when printing wheels such as incorrect extrusion rates or whether you should have a cooling fan during the print process.
10. Troubleshooting a Rough Shape: This channel’s main advantage over others lies in its ability to present simple explanations to arising issues regarding prints involving complex shapes, such as those found in a wheel design.

By following these channels, I can enhance my knowledge on various aspects of 3D printing wheels and ensure I have the necessary technical parameters for successful, high-quality prints.

3D Printing Enthusiasts Online Communities

When it comes to wheel designs, one of the advantages of getting involved in online communities is that my experience in 3D printing becomes more enriched. There are such subreddits as r/3Dprinting on sites like Reddit where I am able to ask questions and get feedback from people who already have a lot of expertise & I can also share my prints there. For example, 3D Printing Stack Exchange forums offer very precise answers to specific technical issues, such as best wheel print settings.

Here are some of the crucial technical parameters that are always talked about:

1. Layer Height: It is suggested that you use a layer height setting ranging from 0.1 mm to 0.2 mm for intricate wheel designs to enhance their surface finish and detail. This prevents your aesthetic prints from showing any visible layer lines.
2. Extrusion Rate: The extrusion multiplier should be adjusted to ensure consistent thickness wheels (necessary for durability and functionality alike) without under-extrusion.
3. Print Speed: For increased accuracy, it is highly recommended to use slower speeds (30-50 mm/s) when printing wheels, especially when dealing with complex geometries.
4. Cooling Fans: For PLA materials, a cooling fan speed at 100% will help avoid dimensional accuracy and reduce warping which is important for detailed features on wheels.
5. Bed Adhesion Techniques: Creating parts using heated beds set between 50-60°C helps prevent material warping during print by helping it adhere well together.

Joining such communities provides me with instant answers and an environment where learning occurs through collective experiences, thus improving my understanding of how to print wheels using a 3-dimensional printer.

How Can I Use Facebook Groups to Obtain Advice ?

Utilizing Facebook groups for advice on making things by 3D printing has been great for me in my learning process. Several groups specifically dedicated to this area have been found where people can ask questions, talk about what they’re doing or give insights. They are very useful communities because those who participate there are experts from diverse fields who share their knowledge or experience specific subjects under discussion. Here are some vital technical parameters frequently discussed in these groups, along with their justifications:

1. Temperature Settings: Many members recommend optimal nozzle and bed temperatures tailored to specific filament types to ensure proper melting and adhesion e.g PLA usually requires nozzle temperature at about 190-220ᵒC
2. Retraction Settings: Discussions often focus on retraction settings for eliminating ooze A typical range is anywhere from a distance of about one or two millimeters (mm) with a retraction speed ranging from thirty up-to fifty millimeters per second (mm/s) which helps to maintain cleanness of print, especially for complex designs.
3. Calibration Techniques: Frequently occurring topics are bed leveling and first layer calibration. How one achieves a perfect first layer is usually shared among members since it is very important; misaligned prints can cause warping or sticking problems
4. Filament Choice: Suggestions in these discussions commonly include advice on filament selection based on project requirements, such as using PETG for stronger prints or flexible filaments for functional items, with clues about their printing parameters.

By becoming actively involved in these groups, I have not only received immediate responses to my questions but also learned more about the best ways to perform this type of 3D modeling, which includes making 3D–printed wheels.

Conclusion

In conclusion, 3D printing holds great promise for producing custom wheels, be they designed for use in cars, models or any other applications. This information acquired from community forums encompasses all the crucial elements ranging from temperature and retraction settings up to the appropriate choice of filament that ultimately lead to successful prints. If adopted by enthusiasts (hobbyists or professionals), these practices will result in high-quality and dependable printed wheels. As constantly changing technologies evolve exponentially, manufacturing possibilities within 3-D printing will grow further, making it one of the most promising areas for innovative thinking and ingenuity. Taking this into consideration does not only improve your productivity but also allow you to appreciate what goes into a 3D model’s design and production process in a better way.

Reference sources

1. “The Complete Guide to 3D Printing Wheels” – This comprehensive resource from All3DP offers insights into various 3D printing techniques for producing durable and precise wheels, along with recommended settings and filament types. Link to Article
   2. “3D Printed Tires and Wheels: Impacts on Performance and Design” – A research paper published in the Journal of Additive Manufacturing, discussing the mechanical properties and performance implications of using 3D printed materials in wheel design. Link to Research
      3. “The Future of 3D Printing: Custom Wheels for Road and Track” – An informative article on the potential of 3D printing to revolutionize the automotive industry, focusing on custom 3D printed wheels and their advantages. Link to Article

The traditional tire development involves designing structures and patterns, creating molds, manufacturing prototypes, and testing them on vehicles for final product approval. NEXEN TIRE has successfully streamlined this process and enhanced product precision by incorporating XAI and 3D printing technologies into tire development.

XAI is an artificial intelligence technology that helps understand and analyze the causes and processes behind the results generated by machine learning algorithms. By analyzing various information, such as basic designs, key design variables, performance contributions, and design directions, it maximizes tire design efficiency and proposes the optimal structure and design that meets tire developers’ requirements.

NEXEN TIRE leverages XAI-driven designs to create Virtual Tire Models – assessing product performance in virtual environments, thereby increasing accuracy and speed in tire development. The recent decision to adopt a driving simulator, a first in the domestic industry, is expected to elevate virtual development to a new level.

Frequently Asked Questions (FAQs)

Q1: What materials are commonly used for 3D printing wheels?

A1: PLA, ABS, nylon, and TPU are the most commonly used materials for 3D-printed wheels. Each material offers different properties in terms of durability, flexibility, and weight, making it suitable for various applications.

Q2: Can 3D-printed wheels support heavy loads?

A2: Yes, depending on the material used and the design, 3D-printed wheels can be engineered to support heavy loads. To ensure performance, it is important to choose a robust material and consider the design’s mechanical properties.

Q3: How long do 3D-printed wheels last?

A3: The lifespan of 3D-printed wheels can vary greatly depending on the material used, the terrain they are used on, and how well they are maintained. Generally, wheels made from stronger materials like Nylon or TPU will last longer.

Q4: Are 3D-printed wheels customizable?

A4: Absolutely! One of the major advantages of 3D printing is the ability to customize designs to meet specific requirements. This allows for modifications in size, shape, and even aesthetics to suit the user’s needs.

Q5: Do I need special equipment to print 3D wheels?

A5: While standard FDM printers can be used for printing wheels, having a printer with a larger build volume and heated bed can improve the success rates and quality of the prints, especially for larger or more complex designs.
