3D Printed Molds for Casting: Revolutionizing the Foundry with Advanced 3D Print Techniques

In recent times, the age-old foundry industry has started undergoing a sea change largely because of state-of-the-art 3D printing techniques. This innovative method has made it possible to manufacture highly detailed and intricate molds faster than ever before with great accuracy. Besides that, the use of 3D printed patterns for casting also streamlines the production processes while lessening material wastage as well as overall cost efficiency. This blog post will look at how mold-making is being reshaped by integrating 3D printing into the foundry sector, what they bring to the table, and powerful applications which challenge what is doable in casting technology. Step into our world and find out more on how 3D printed molds are leading us towards an era where industrial manufacturing is being revolutionized.

What is 3D Printed Mold Making?

3D Printed Casting Molds

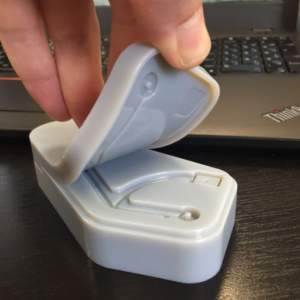

Image source: https://www.aniwaa.com/

3D printed mold making involves using advanced 3D printing technologies to produce molds used during casting process. Unlike traditional means that involve excessive labor in machining or manual craftwork, 3D-printing allows creation of complex and highly detailed casts directly from digital designs. By using specific resins or sands among others materials, this process helps in achieving molds that can endure high temperatures and pressure associated with casting applications. The outcome is an efficient, accurate, adaptable way of producing molds which greatly increases possibilities for creativity as well as personalization in manufacturing industries.

Understanding the Basics of Mold Making

This is where mold making comes into play because it is the creation of a mold that will shape the final product. Normally, basic mold making involved designing the mold, selecting and preparing material and then shaping the mold through various methods like machining or carving by hand. This can be slow and requires much labor in traditional ways.

However, 3D printing has made all this possible as molds can now be created directly from digital models. With this technology complex molds can be accurately fabricated at high speeds with reduced wastage of materials. The resins, sands or even metals used for 3D printing in molding applications may depend on what type of molten casting they are to be used for. This transition fastens production processes while adding more creativity and customization thus having huge benefits within industrial manufacturing.

Advantages of 3D Printed Molds

There are several advantages of 3D printed molds over traditional methods of mold making. First, they drastically reduce the lead times which results in quick iterations and quick production of prototypes. In industries where time-to-market is important, this speed is very useful. Secondly, 3D printing offers more flexibility in design and greater complexity allowing for the creation of complicated geometries that might be difficult or impossible to achieve with conventional techniques. Furthermore, 3D printed molds tend to be cheaper particularly in cases such as low-volume production runs or highly customized parts because they do not require expensive tooling and have reduced wastage of material. This technology also supports on-demand manufacturing thereby minimizing inventory costs and allowing efficient just-in-time production. As a whole, the use of 3D printed molds helps make industrial manufacturing more efficient, innovative, and cost-effective.

Applications of 3D Printed Molds in Casting

The casting industry has been experiencing a shakeup due to the advent of 3D printed molds that offer unmatched versatility and efficiency. A major application area lies in rapid prototyping where companies can quickly fabricate molds for testing purposes within their research labs hence minimizing product development cycle duration significantly. Another main application is found in the aerospace and automotive industries for building complex lightweight components that maximize performance. The other critical area involves medical device manufacturing whereby implants tailor-made for specific patients can be created with high precision through designing and casting techniques amongst others. Jewelry-making or art is another industry where these types of molds are handy when it comes to producing intricate designs that would have otherwise been impossible using conventional mold-making methods. Generally speaking, with adaptability plus accuracy; new doors open across different sectors embracing potentialities making the manufacture process more streamlined plus contemporary oriented.

How Does the 3D Printing of Molds Work?

3D printing molds is a process that involves several essential steps. Primarily, the mold is created in digital form by means of computer-aided design (CAD) software. This model is then converted into another format suitable for 3D printing such as stereolithography (STL) file among others. STL files are read by 3D printers to construct the mold one layer at time using materials like polymers, resins or metal powders. Each layer is placed and cured precisely according to the design’s instructions. After completion of the print, it might be necessary to undertake post-processing operations on the mold including cleaning, curing or surface finishing so as to achieve required properties and dimensions. Thus, this technique allows quick production with high quality and precision of intricate molds which otherwise cannot be produced by traditional methods.

CAD Design for 3D Printed Molds

The role of computer aided design (CAD) software in 3D printing of molds cannot be underestimated since it enables complex designs that are highly detailed and accurate. Usually, this starts with designing an intricate digital model using enriched CAD packages. The powerful software allows designing geometries as well as features which are specific to final application purposes only (Gibson et al., 2010). A complete model is changed into STL file which acts as a blueprint for 3D printer. Advanced CAD tools such as AutoCAD, SolidWorks and Fusion 360 provide different functionalities such as parametric modeling, controlling surfaces and simulation that enable thorough examination before ensuing fabrication process commences (Sun & Zhou, 2016). Consequently, the level of accuracy delivered ensures that a final copy made from a three-dimensional printer will meet all specifications thus offering an edge over regular methods of making molds.

Choosing the Right 3D Printer

The right 3D printer for mold creation depends on many factors such as material compatibility, build size, and resolution requirements. In terms of industrial-grade applications, the printers that have been mentioned above offer high precision and can work with various materials such as Formlabs Form 3, Ultimaker S5, or Stratasys F370. If one prefers this type of model, it means they are considering resin including polymer and metal as alternatives in production. Furthermore, larger or more molds must be accommodated by the build size during a print job whereas a higher resolution is necessary for creating molded parts that are highly detailed and accurate anyway. Evaluating total cost ownership inclusive of maintenance costs together with material expenses is also very important in decision making.

Materials Used in 3D Printing Molds

When it comes to 3D printing molds, the choice of material plays a critical role in ensuring its strength and functionality. Some most frequently used materials include:

Resin: Good for high detail molds, resin materials like those used in SLA (Stereolithography) and DLP (Digital Light Processing) printers display excellent surface finish and fine details that makes them perfect for intricate mold designs.
PLA (Polylactic Acid): PLA is an easily printed biodegradable plastic with good dimensional accuracy. It is used to make molds for short run manufacturing or prototyping purposes.
ABS (Acrylonitrile Butadiene Styrene): ABS is known for its toughness and durability therefore; this material is often chosen for molds that require resistance to higher temperatures as well as mechanical stress.
PETG (Polyethylene Terephthalate Glycol): PETG combines printability and flexibility hence another popular choice when developing sturdy clear molds that are suitable both at the intermediate and final stages of production.
Nylon: It has excellent mechanical traits such as high strength, flexibility making it good for tough application where long life and toughness are essential.

By selecting the appropriate material based on the specific requirements of the mold and the intended application, manufacturers can ensure a successful and efficient production process.

What are the Types of Casting Using 3D Printed Molds?

Investment Casting: This traditional method entails developing a wax design that is afterwards enclosed in a stoneware shell. The wax would be melted out, and then poured molten metal into the ceramic mold. As for 3D printing, an intricate wax model could be rapidly crafted thereby improving the accuracy of the end metallic casting.
Silicone Molding: Complex and flexible silicone products may be developed by using 3D printed molds. At this point, silicone is filled into the 3D printed mold before being allowed to harden so as to produce a replica of the design of the mold. Therefore it is widely used in making items such as medical equipment, wearable gadgets and consumer goods.
Sand Casting: Sand molds are created using a 3D-printed pattern in this case. Subsequently, final metal part would be obtained through pouring molten metal into this sand mold. This technique will come in handy when you want to produce large scale metallic components or those that have complex geometries.
Urethane Casting: Urethane casting employs liquid urethane which is poured into a mold made from a 3-D printer producing hard plastic parts that can last long enough with respect to their application area. In most cases, it is recommended for manufacturing prototypes and short run production parts as an alternative to injection molding.
Concrete Casting: For architectural elements and custom concrete pieces, there are designs which can only be realized with flexibility provided by 3D printed molds rather than traditional means of molding. The materials like concrete put into these molds form unique structures and shapes after they harden.

These casting techniques enable cost-effective mass-production methods across multiple industries for high-quality components because of adaptable precision offered by 3D printed molds.

Resin Casting with 3D Printed Molds

Resin casting using 3D-printed molds is an adaptable method for creating detailed and strong parts. It begins by designing and printing a 3D mold that can be customized for complex geometries which are difficult to reproduce with traditional methods. The resin is poured carefully in the prepared molds and then left to cure. This technique stands out due to its ability to replicate fine details and produce highly finishes. Usually, it is utilized in jewelry craft, prototyping and making custom components among others. Additionally, use of 3D printed molds eliminates waste while allowing for rapid iteration, therefore addressing cost issues associated with small/mid volume production runs.

Sand Casting Process Using 3D Printed Patterns

The technique of sand casting involving the use of 3D printed patterns merges traditional sand casting techniques with modern additive manufacturing technology. Starting this process involves the design master pattern through a three dimensional printing machine. The printed pattern is used as the former for the sand mold cavity. Next, pour molten metal into the resulting hollow after compacting sand around such model.

Several benefits arise from using 3D-printed patterns such as intricate designs that would have been hard or impossible to create using conventional pattern-making strategies. Moreover, this technology may reduce lead times and costs by eliminating conventional tooling costs associated with it thus speeding up production pace. Also, they provide flexibility for quick prototyping and redesigns enabling them serve as good options for prototypes as well as short-run products.

Industries like automotive, aerospace, manufacturing could efficiently deliver high-quality yet complex metal parts using combination of accuracy in 3-D printing techniques with reliability from sand casting at low-cost level.

Metal Casting Techniques with 3D Printed Molds

Classic manufacturing processes are being transformed by metal casting techniques using 3D printed molds. This creative technique involves constructing molds directly via additive manufacturing thereby cutting the lead times and costs linked to traditional mold-making.

Another way is Direct Printing onto Sand Molds, where the mold is 3D printed from sand itself thus removing the need of physical patterns. This is advantageous, especially for generating large complex shapes quickly and economically.

Lost PLA Casting incorporates the use of 3D printed PLA patterns that are encased in sand and then burnt out to form a cavity for pouring molten metal. This method helps create prototypes or small-batch parts with intricate geometries.

Investment Casting is another technique where ceramic shells are made from wax or plastic patterns that have been printed using 3D technology. After the shell has been formed, the pattern is melted away and liquid metal is poured into a given space, resulting in highly-precise metal parts having quite intricate details.

These advanced methods take advantage of the accuracy and flexibility offered through three-dimensional printing thus allowing manufacturers to create complicated metallic items faster than ever before with never seen before accuracy, which opens up new possibilities within aerospace, automotive as well as medical devices.

What are the Steps for Creating a Sand Mold with 3D Printing?

Design the Mold: Use CAD software to design a detailed digital model of the required mold. Ensure that all specifications and characteristics are precise.
Prepare the 3D Printer: Choose the right 3D printer and sand material for printing sand molds. Set up the printer according to material and design requirements.
Print the Mold: Start printing where the 3D printer places layers of sand material as per the digital model designed in step one. This step may include binder jetting or any other relevant 3D printing approach in line with sand.
Post-Processing: Once done with printing, take out the printed mold from the printer. Clean it and inspect for imperfections or obstructions within its system.
Coring and Assembly: In case cores (interior supporting structures) are needed for mold design, create them and fix in printed mold. Join any multiple pieces if there are different parts of a form.
Final Inspection: Assess fabricated mould to ensure its compliance with quality standards and developed criteria of designing; make necessary adjustments, repairs if needed.
Casting Preparation: Make sure that this is properly in place in casting setup and has all necessary coatings or treatments which can withstand molten metal so as to get ready for casting process.

Through these steps, manufacturers can quickly produce high-quality sand molds using 3D printing technology which offers accuracy coupled with freedom of Design.

Designing the Mold Cavity

For making a mold cavity, the shape of the final product, its size and surface finish must be considered. Initially, it is necessary to develop a digital 3D model that accurately reflects the desired end product. Analysis of draft angles, wall thicknesses and parting lines are important in order to ensure that cast objects can be easily removed from molds without damaging them. It also helps to cool down molten metal or plastic using cooling channels in the mould design so as to reduce internal stresses and defects in the finished article. Simulation software can help predict how well a mould is likely to perform before it is actually put into production by flagging up issues such as air voids or weak points.

Printing the Sand Mold

When you want to print sand mold, you use a 3D printer which deposits layers of sand along with a binding agent according to the digital model created. This method called binder jetting allows for the production of complex and intricate molds that would otherwise be impossible with conventional methods. The 3D model is sliced into thin layers by software in the printer followed by building up mold layer by layer as per these instructions. After printing has been done, there are post-processing steps like cleaning and curing which remove any loose sand and solidify this structure thereby creating highly accurate molds ready for casting purposes.

Finalizing and Using the Sand Mold

The subsequent process after the sand mold has been printed and followed by primary post-processing is finalizing it for casting. This involves a careful examination of the mold to ensure that there are no flaws such as cracks or missing parts that can affect the quality of the product. Any required mending should be done using suitable adhesive substances and some more sand.

After inspection, one will carefully join all parts of the mold with binding agents applied at joining sections for proper fitting. Final casting precision depends on good alignment of the mold components. To prevent concerns like porosity, venting passages must be included so that gases may escape when molten metal is being poured.

Now you have got a ready-to-use, completed sand mold. The initial step in casting process is preheating of the mold to minimize thermal shock during pouring molten metals/plastics into them. After preheating, one pours molten material into the cavity created by this structure made up out of sand. Then this fluid cools, solidifies, and therefore breaks away to expose cast object.

Cleaning follows post-casting in order to eliminate any remaining sands or other imperfections from this object. Thus, you get an intricately designed part of high quality ready for further processing or use in its intended application area.

What Are the Challenges and Solutions in 3D Printed Mold Making?

Challenges:

Material Limitations: The range of materials suitable for 3D printed molds may be narrow, affecting the type of casting materials that can be used.
Surface Finish: One of the obstacles in achieving a smooth surface finish on a 3D printed mould is that it is difficult hence affecting the quality of casted final products.
Dimensional Accuracy: Printing hence some warping or shrinkage during printing will make proper dimensioning hard to achieve.
Complexity in Design: It could be more challenging to print highly intricate designs that may possibly require more supports.
Post-Processing: It could be more challenging to print highly intricate designs that may possibly require more supports.

Solutions:

Advanced Materials: Exploring new printable substances allows for a wider choice, increasing strength while making them compatible with diverse casting media.
Surface Treatment: To improve surface finish and reduce blemishes, chemical smoothing, grinding or coating can be employed.
Precision Calibration: Regularly calibrate and maintain 3-D printers to enhance accuracy and mitigate issues like warping. Use advanced software for precise slicing and layer control.
Design Optimization: Advanced design software should be utilized in order to reduce unnecessary supports thus minimizing excessive supports resulting into better printability options available on the market today.
Efficient Post-Processing: Develop streamlined post-processing workflows including high-quality bonding agents, thermal treatments, and finishing tools to minimize preparation time and enhance the performance of final products.

Overcoming Print Quality Issues

Overcome the problem of poor print quality in 3D printed molds by implementing these:

Material Selection: Select highly pure and accurate filaments that are purposefully designed for precise printing like those advised by industry leading manufacturers.
Printer Calibration: Make it a habit to regularly do printer calibration to guarantee its excellent performance. These include bed leveling, nozzle alignment, and maintaining proper temperature settings.
Print Settings Optimization: Modify configuration of print such as layer height as well as print speed, infill density. Employing software that offers advanced slicing options can improve print accuracy and surface finish.
Environmental Control: This ensures your 3D printer is housed in a controlled environment that minimizes warping risks. Manage room temperature and humidity levels.
Post-Processing Techniques: Use efficient methods of post-processing, e.g., sanding, chemical smoothing, or UV curing for improved mold surface quality and strength.

Therefore adherence to these best practices will greatly improve the quality and reliability of your 3D printed molds thereby giving you better results for your casting projects.

Addressing Material Limitations

Various ways to overcome the constraints associated with 3D printed molds are:

Use Advanced Materials: One may examine application of high performance materials such as carbon fiber composites, polycarbonate (PC) and acrylonitrile butadiene styrene (ABS) which have better tensile strength, flexibility as well as heat resistance over standard filament options.
Hybrid Manufacturing: Integrate 3D printing along with traditional manufacturing techniques like CNC machining or injection molding in order to take advantage of each process’ strengths. This will enable one to develop molds that are considerably more durable and functional.
Material Testing and Validation: Thoroughly test and validate new materials for their limitations under various conditions by working closely with material scientists and industrial experts to keep updated on the latest developments in this area of 3D printing technologies.

By adopting these strategies, one can negate some of the inherent material limitations in relation to 3D printed molds thereby making them more dependable and flexible for use in your projects.

Improving Mold Strength and Durability

To enhance the durability and strength of 3D printed molds, here are key strategies:

Optimize Print Settings: Modify print parameters such as layer thickness, infill density, and print speed to improve the strength of your molds. Increasing the infill density significantly can make the mold stronger.
Post-Processing Techniques: Post-processing methods may include annealing where heat is introduced to a 3D printed mold and gradually cooled down so that internal stresses get relieved. This helps in improving the toughness and heat resistance of molds.
Reinforcing Structures: Consider incorporating additional reinforcing structures like ribs or gussets into your mold design. Such features help in uniform distribution of loads as well as preventing any potential failure points under stress conditions.
Material Selection: These high-strength applications should be made out of specific materials. Polycarbonate (PC) and nylon are examples of high-performance thermoplastics that exhibit improved resistance against impacts, strength, thermal stability hence longer life for your molds.

Thus by adopting these techniques you will greatly boost performance as well extend the lifespan of your 3D printed moulds making them tough in various uses.

What Future Trends are Expected in 3D Printed Molds and Casting?

Continuous innovation in materials, technology and applications is set to drive significant progress in the future of 3D printed molds and casting. Some of the emerging trends include development of advanced composite materials which integrate best properties from different substances into lighter, stronger and more heat resistant molds. Additionally, multi-material 3D printing will advance the manufacture of complex internal structures with integrated functionalities in molds without any need for assembling them as it enhances their performance.

Moreover, the use of artificial intelligence and machine learning in designing and optimizing processes is anticipated to transform mold manufacturing. AI built software will provide predictive analytics as well as automated design adjustments hence ensuring optimal mold performance and longevity. Lastly, aligning production methods towards achieving global environmental goals such as through use of recyclable or biodegradable materials would make 3D printed molds and casting more eco-friendly.

Manufacturers and designers can thus exploit these developments to fully take advantage of 3D printed molds and casting thereby fostering innovation and productivity improvements in their respective fields.

Innovations in Additive Manufacturing

Innovations in additive manufacturing (AM) are revolutionising the industry by providing unprecedented capabilities and efficiencies. Notably, among the significant advancements is the inclusion of smart materials. These types of materials transform their properties with changes in environmental conditions thereby introducing novel functions into printed objects.

Another remarkable development is the progress made in high-speed 3D printing techniques. Technologies such as Continuous Liquid Interface Production (CLIP) and Multi Jet Fusion (MJF) reduce production times considerably while maintaining high detail levels and accuracy. This results in faster turnarounds, increased productivity, 3D printing being effectively scaled to mass production purposes.

Lastly, hybrid manufacturing techniques are emerging through combining 3D printing with other manufacturing processes like CNC machining and injection molding. Such hybrid approaches exploit advantages from multiple technologies to create highly precise and complex components that can still be produced on a large scale. This blending of design and manufacturing is opening up new opportunities for both fields that push this industry forward.

Integration with Traditional Casting Methods

Incorporating 3D printing with conventional casting enhances the strengths of both technologies in order to advance manufacturing abilities. By using three-dimensional printed moulds and patterns, producers can gain increased design flexibility and quicker prototyping resulting in reduced costs and lead times. These are direct applications for casting into investment castings, sand castings or even metal casting molds among others. Likewise, the possibility of producing intricate shapes that are hard to form through ordinary ways is made possible due to 3D printing’s accuracy as well as details achievable. It also improves time-to-market by fostering innovation through quick iteration of designs without the need for costly tooling changes. This combination of techniques has facilitated a simpler method for making precision cast parts that are more intricate while at the same reducing cost.

Advancements in Digital Foundry Techniques

Cutting-edge technologies have made the casting industry revolutionize using recent advancements in digital foundry techniques. A significant advance is through simulation software that allows manufacturers to digitally model and optimize the entire casting process before any physical production starts. This also imply that both the defects as well as costs of production will be reduced.

Additionally, if integrated with sensors and IoT (Internet of Things) devices, real-time monitoring can be established within a foundry leading to data collection for use in enhancing process control and quality assurance. By analyzing data continually, foundries can forecast and thus avoid potential problems leading to overall efficient performance.

It is also important to note that additive manufacturing otherwise known as 3D printing also plays a critical role in digital foundry techniques. Producing accurate molds or patterns directly from digital designs reduces considerably time spent on prototyping and production stages. Moreover, various materials science are expanding the range of metals and alloys usable for 3D printing thereby widening its applications into metal casting too.

To put it briefly, traditional casting approaches are being transformed by employing simulation software, IoT and additive manufacturing in digital foundry techniques hence improved production capacities characterizing more innovative manufacturing solutions which are likely to be more effective too.

Frequently Asked Questions (FAQs)

Q: What is the benefit of using 3D printed molds for metal casting processes?

A: 3D printed molds provide high precision and customization, allowing for complex geometries that are difficult or impossible to achieve with traditional methods. This innovation significantly reduces both the time and cost involved in mold making and casting, leading to faster production of metal parts.

Q: How does 3D printing allow for superior mold design in investment casting?

A: 3D printing allows designers to directly print intricate molds and cores, eliminating the need for traditional pattern making. This enables more complex designs, lightweight structures, and a higher degree of accuracy in the final cast.

Q: Can 3D printed molds be used for silicone and resin casting?

A: Yes, 3D printed molds are increasingly being used for casting resin and silicone due to their ability to precisely replicate the original model. This is particularly useful in industries where fine detail is critical, such as in the production of prototypes and intricate custom parts.

Q: What types of metals can be used with 3D printed molds in direct investment casting?

A: 3D printed molds can be used with a variety of metals in direct investment casting, including aluminum, bronze, copper, and pewter. The high accuracy of 3D printed molds ensures a precise final product, regardless of the metal used.

Q: What is lost-wax casting, and how do 3D printed molds improve this process?

A: Lost-wax casting, also known as investment casting, involves making a wax model of the desired part, creating the mold around it, and then melting the wax away. 3D printing technologies enhance this by directly printing the casting mold, thus improving the precision and reducing waste and time.

Q: Are 3D printed molds compatible with traditional metal casting processes like sand casting?

A: Yes, 3D printed molds can be used in traditional metal casting processes such as sand casting. A sand 3d printer can create detailed and complex sand molds, enhancing the quality and intricacy of cast metal parts.

Q: How do you create the mold for casting using a 3D model?

A: To create the mold using a 3D model, the original model is designed in a 3D modeling software, then a 3D printer is used to produce the mold halves. The mold material is chosen based on the specific requirements of the casting process and the type of metal or resin being used.

Q: What are the steps involved in using a 3D printed mold for metal casting?

A: The process involves designing the part in a 3D modeling software, printing the mold using a 3D printer, preparing the molten metal, and then pouring it into the mold. Once the molten metal cools and solidifies, the mold is removed to reveal the final cast part.

Q: Can 3D printing be used for creating tools for injection molding?

A: Yes, 3D printing can be employed to create tools for injection molding. The precision and customization capabilities of 3D printing technologies allow for the production of durable and detailed injection molds, streamlining the manufacturing process.
